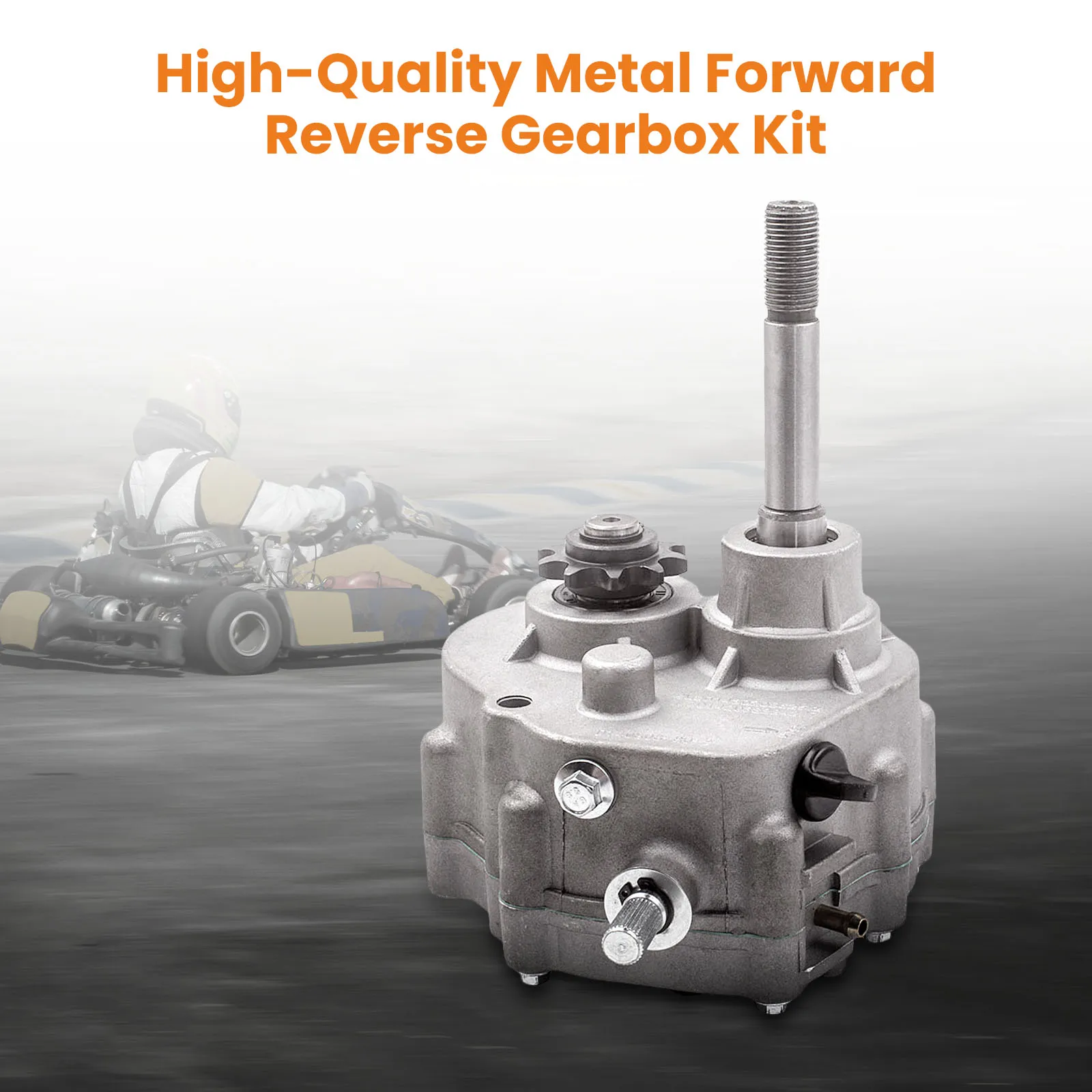

Go Kart Forward Reverse Gear Box for 2HP-13HP Engine 4 Stroke Gearbox

【Wide Application】

This is forward Reverse gearbox. it is suitable for go-karts, utility vehicles and other applications with engines up to 14HP and # 35 chain 12T and #40/41/420 Chain 10T (Both sprockets included)

【Quality Material】

It is made of high-quality metal, which is light and sturdy; it allows the operator to choose three positions: forward, reverse and neutral.

【Easy to Install】

It is easy to install and complete accessories，suitable for people who like DIY assembly of karts, just follow the operation to complete the installation and use

Product Description

This Forward Reverse Gearbox is for go-karts, utility vehicles and other applications up to 13HP. It's lightweight, rugged gearbox that allows operator the selection of three position: forward, reverse and neutral. This box works with a TAV2 30 torque converter system.

It has 12T Sprocket #35 chain and comes with extra 10T #40/41/420 Chain. THE ONLY PART SHIPPED is included in our KIT (No driver / driven clutch, no go kart mounting etc).

NOTE:

Please only use on 30 SERIES. Jackshaft on Reverse Gear won't fit 40 SERIES.

Feature

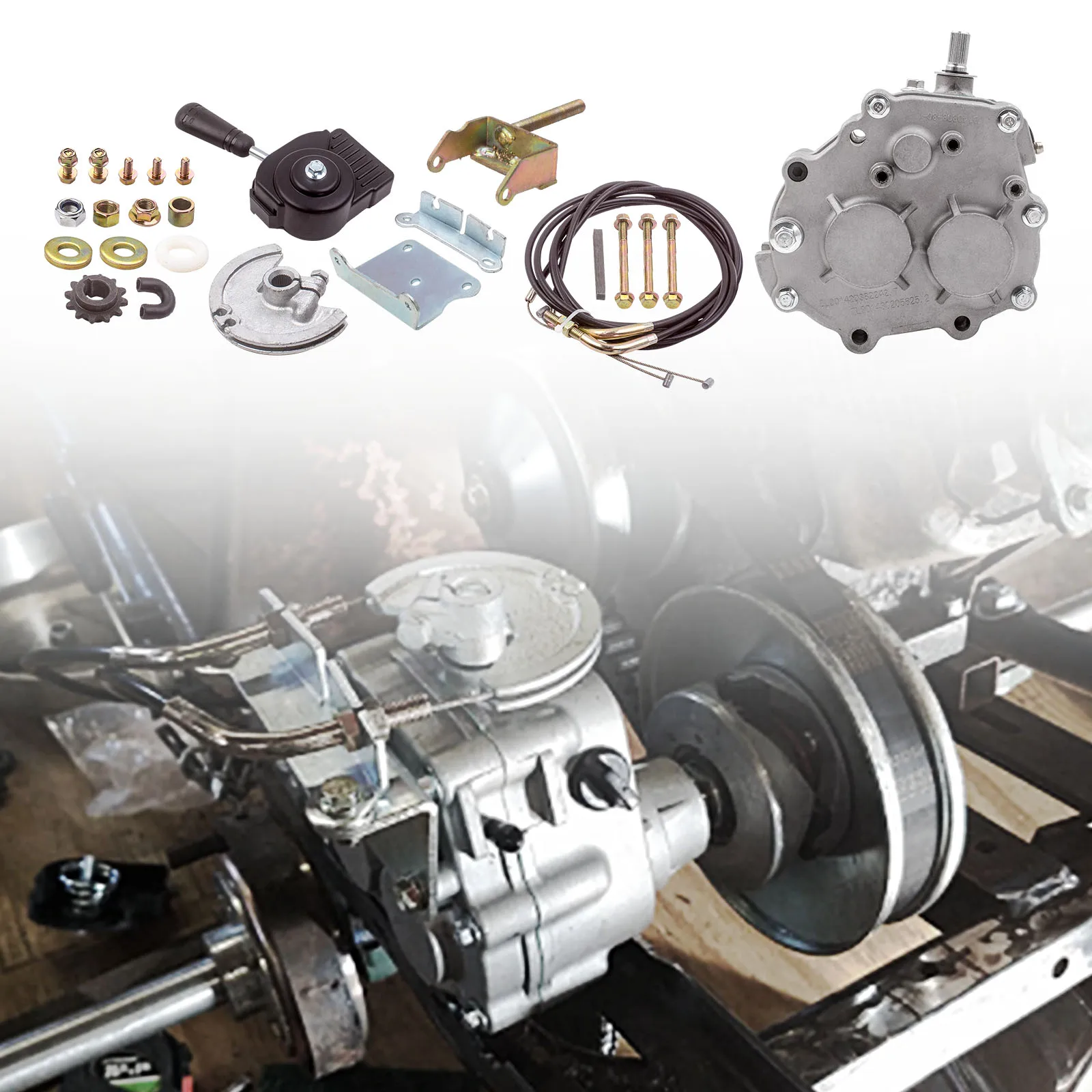

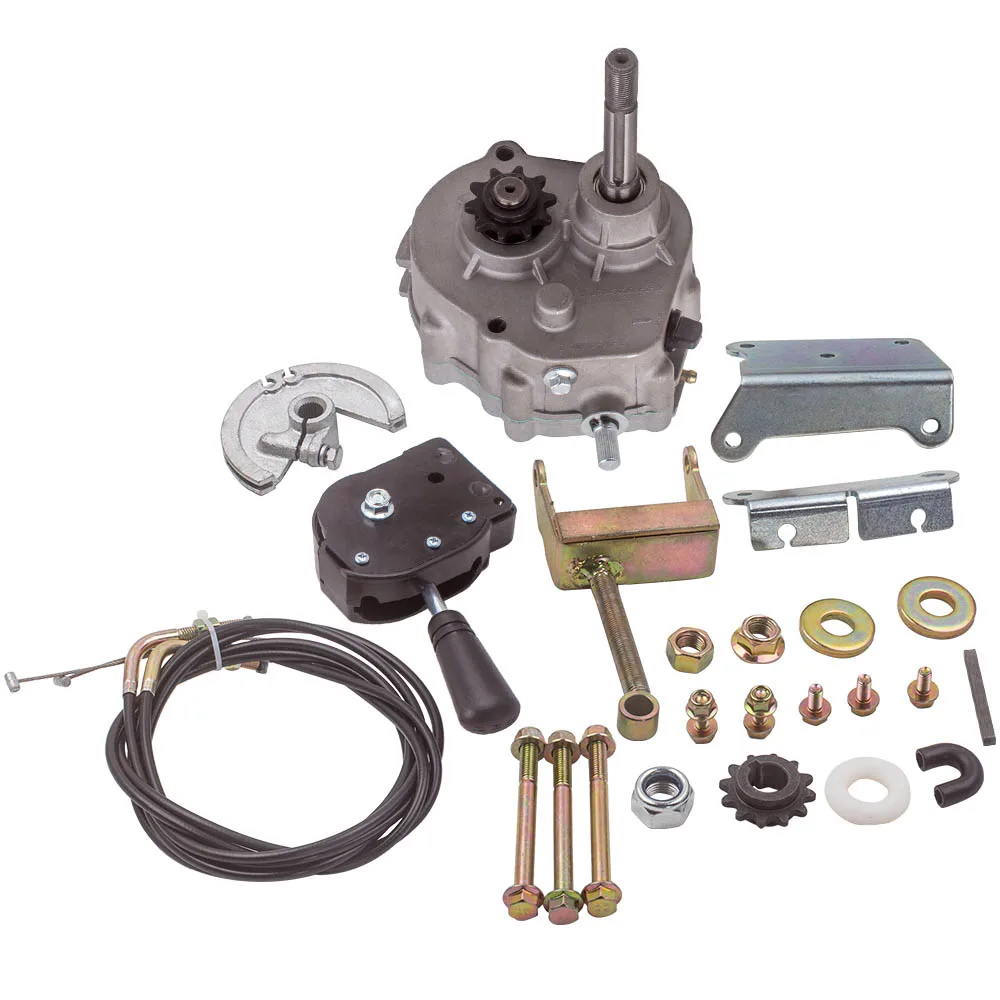

Brand new complete reverse gear box kit with necessary mounting hardware

For use on Go Karts, Dune Buggies, UTVs, and other off road vehicles

This fluid filled gear box can be used with engines up to 13hp

Shaft size for driven clutch is 5/8'' with 3/16'' keyway

2HP - 13HP, 2300RPM

Suitable for # 35 chain 12T or #40/41/420 Chain 10T

10T Sprocket OR 12T Sprocket (Both included)

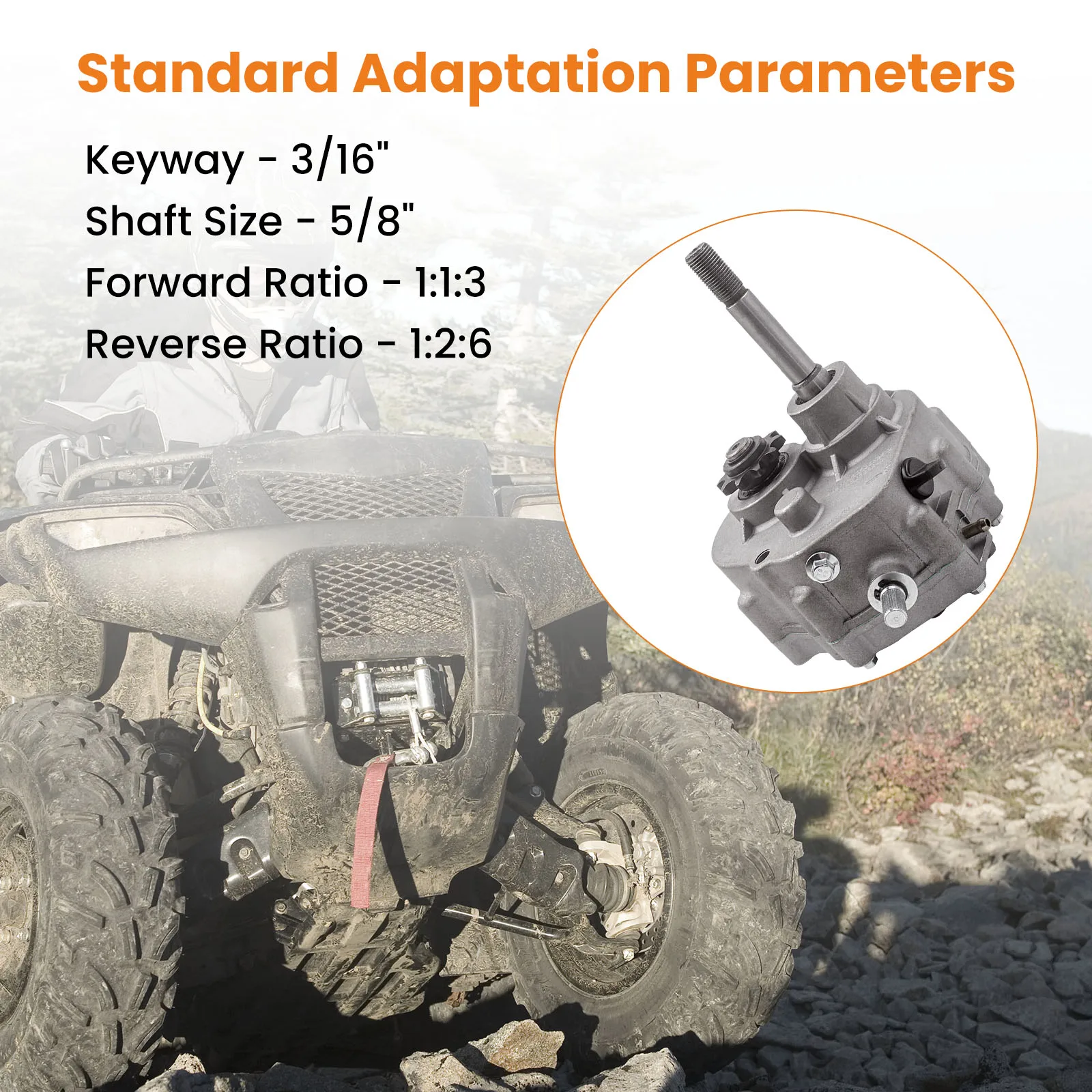

Specifications

Material: Metal

Shaft Size: 5/8" with 3/16" keyway

Forward Ratio: 1:1.3

Reverse Ratio: 1:2.6

RPM: 2300

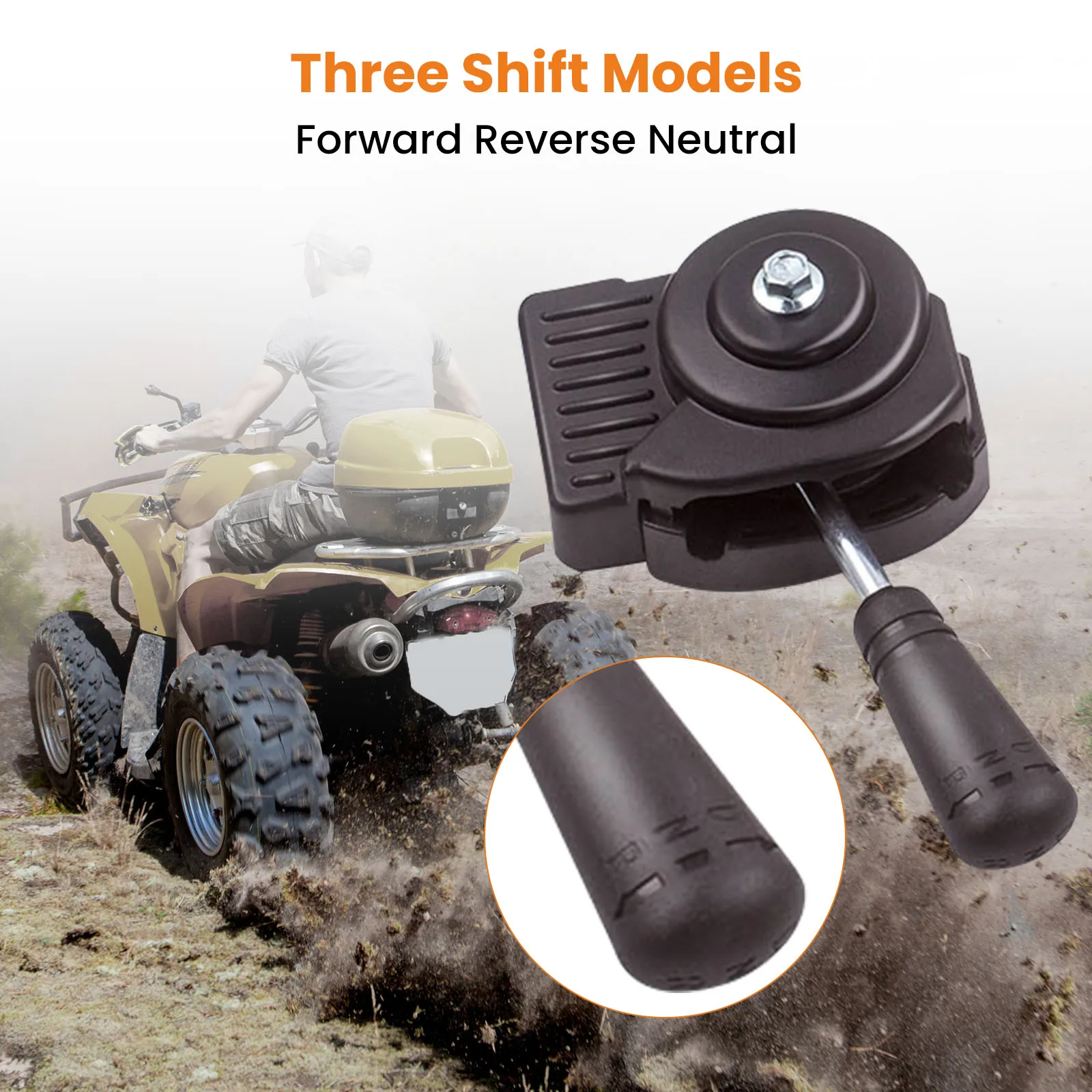

Shifting position: Forward, Reverse and Neutral

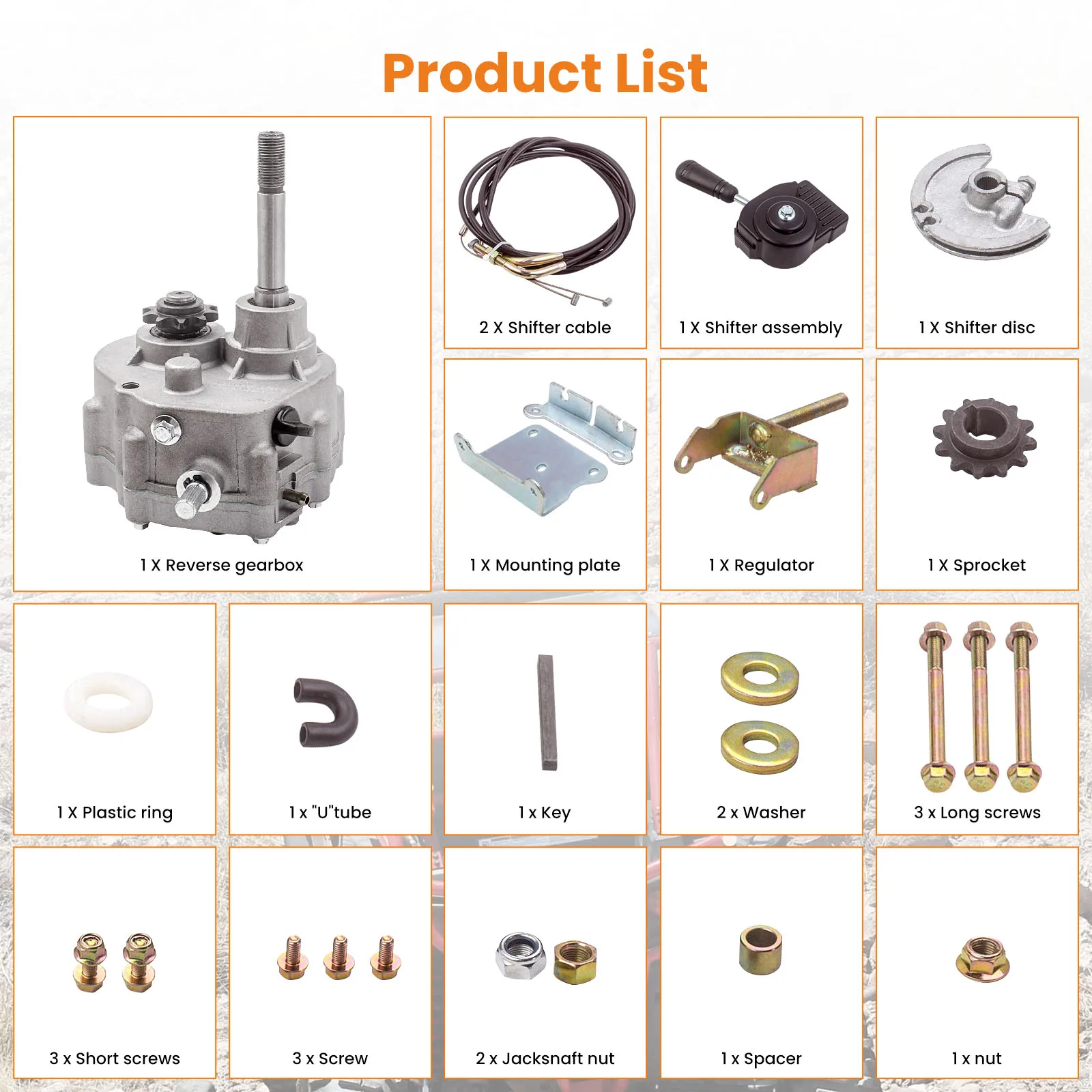

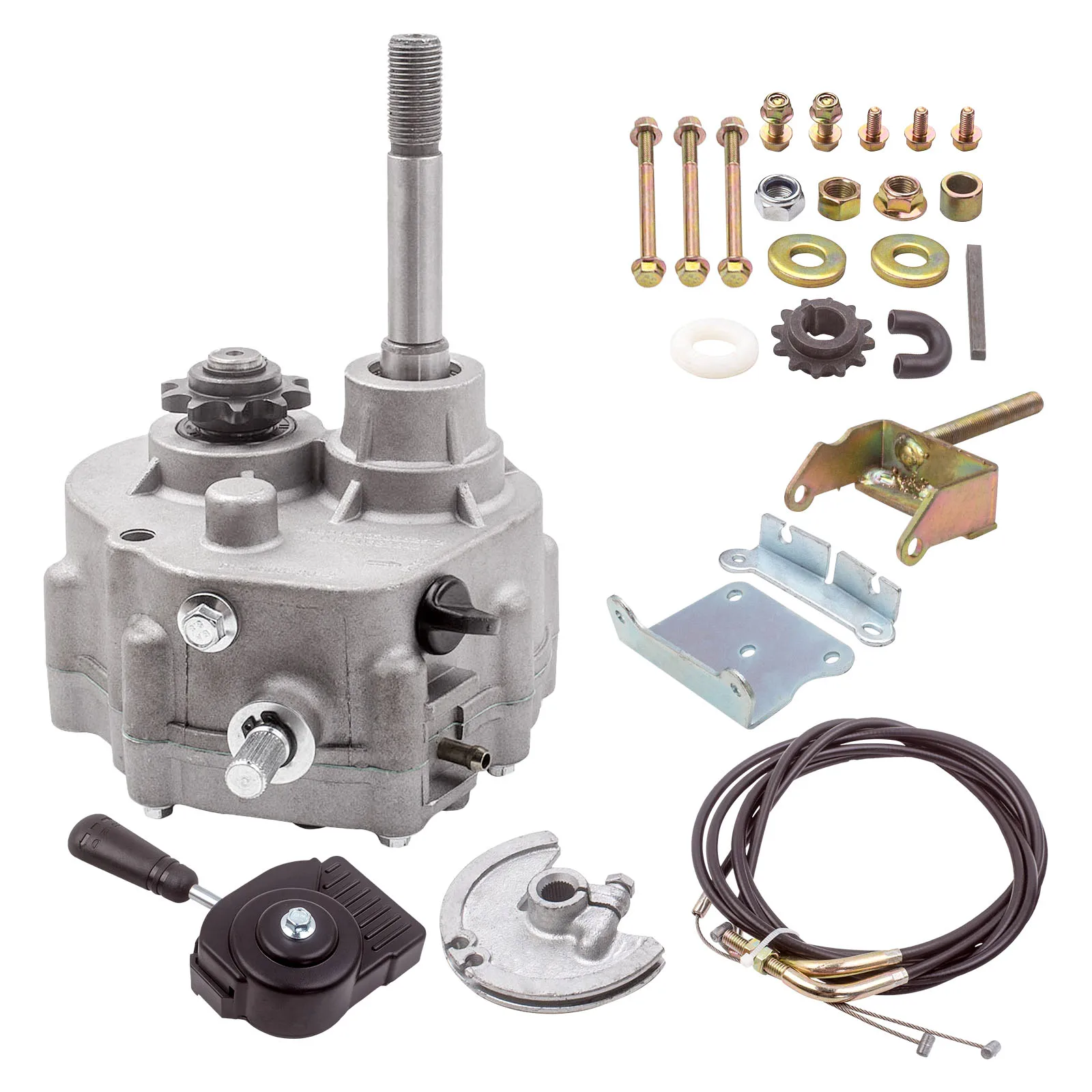

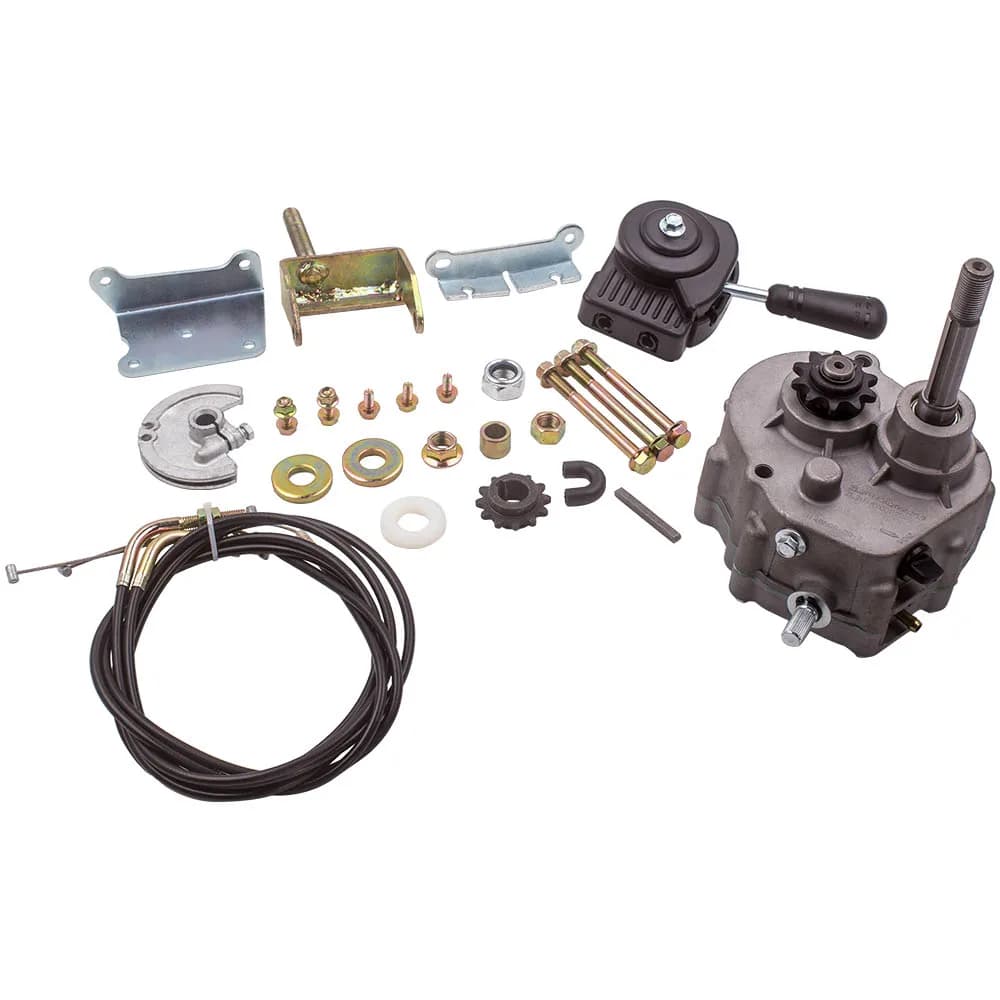

Package Content

1 X Forward / Reverse Gearbox with 3/16" Keyway

2 X Mounting Plates

1 X Shifter Disc
