『US/EU』NC 2.2W 220V ATC Spindle Motor ISO20 80mm Permanent POWER Water Cooled Spindle+Inverter For CNC Router Machine

Good News:

We

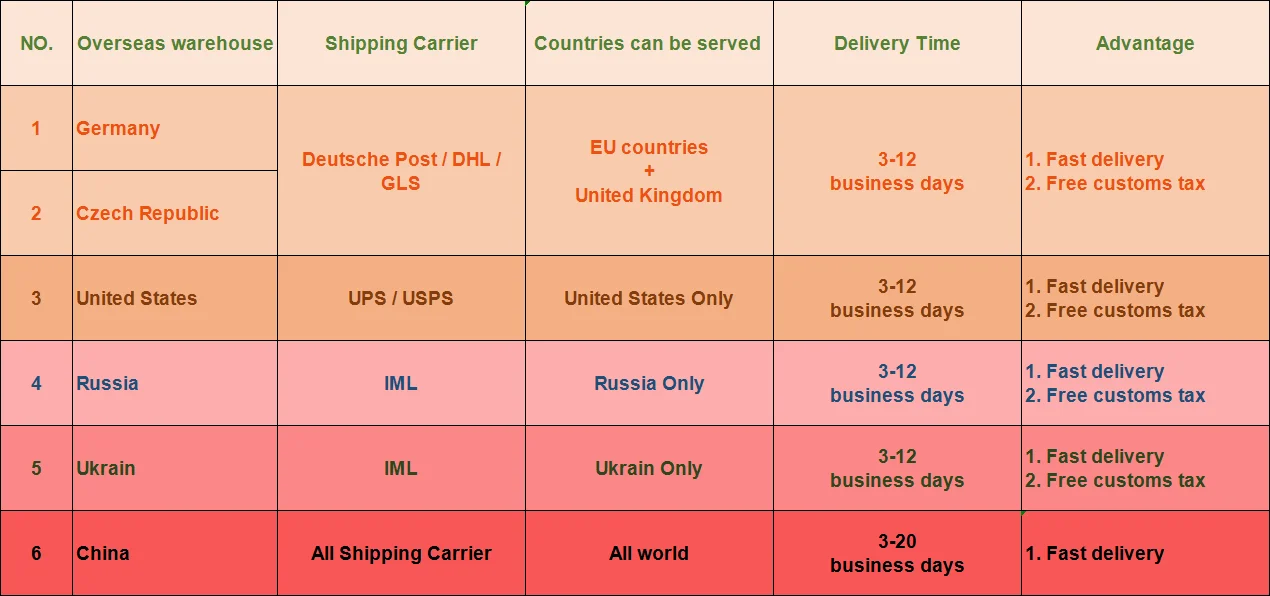

have warehouse in Germany, Czech Republic, United Kingdom, we can ship

to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

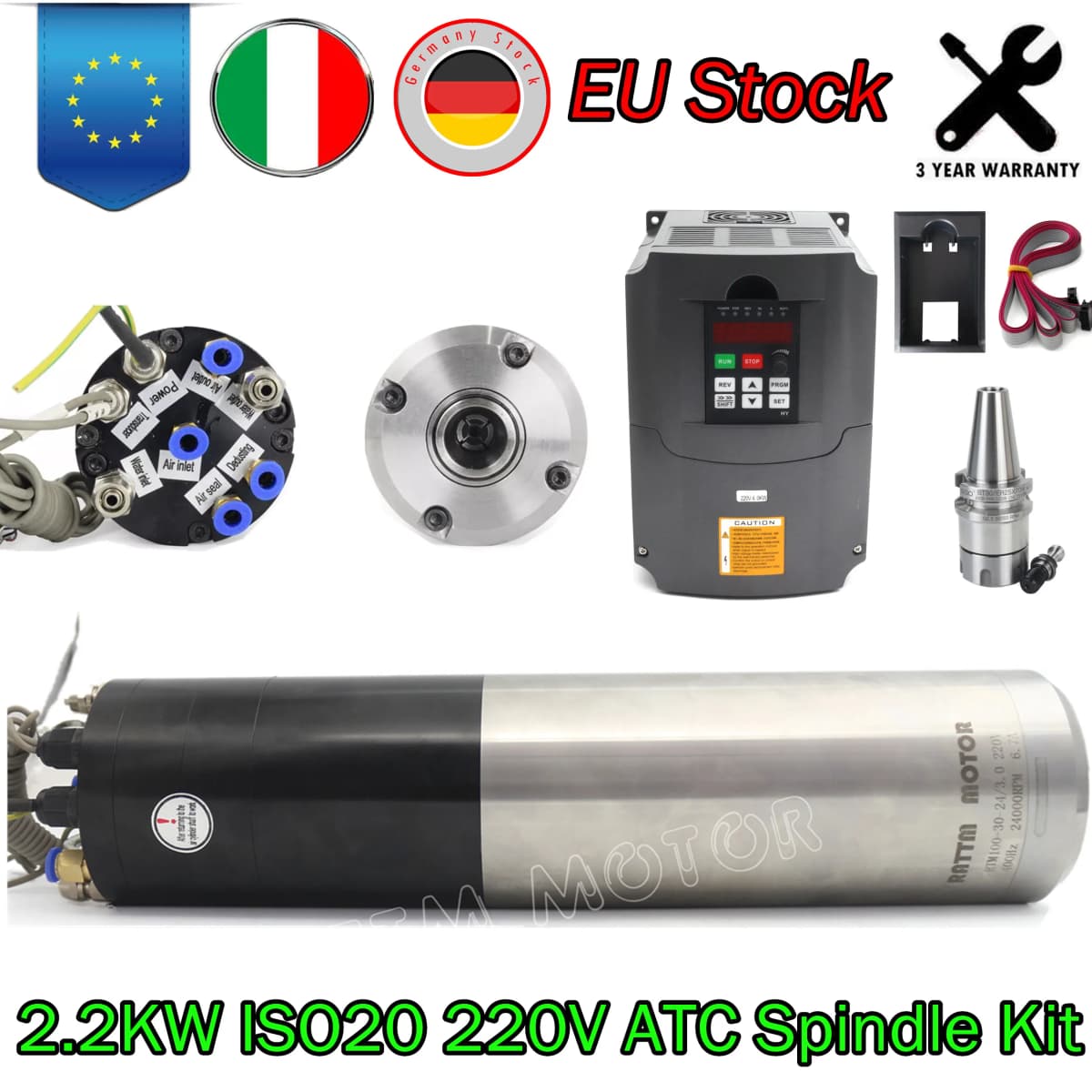

Package include:

1 x 2.2KW ATC Automatic Tool Change Spindle Motor 80mm ISO20 220V,24000rpm

1 x ISO20-ER20-35MS Tool holder with pull stud

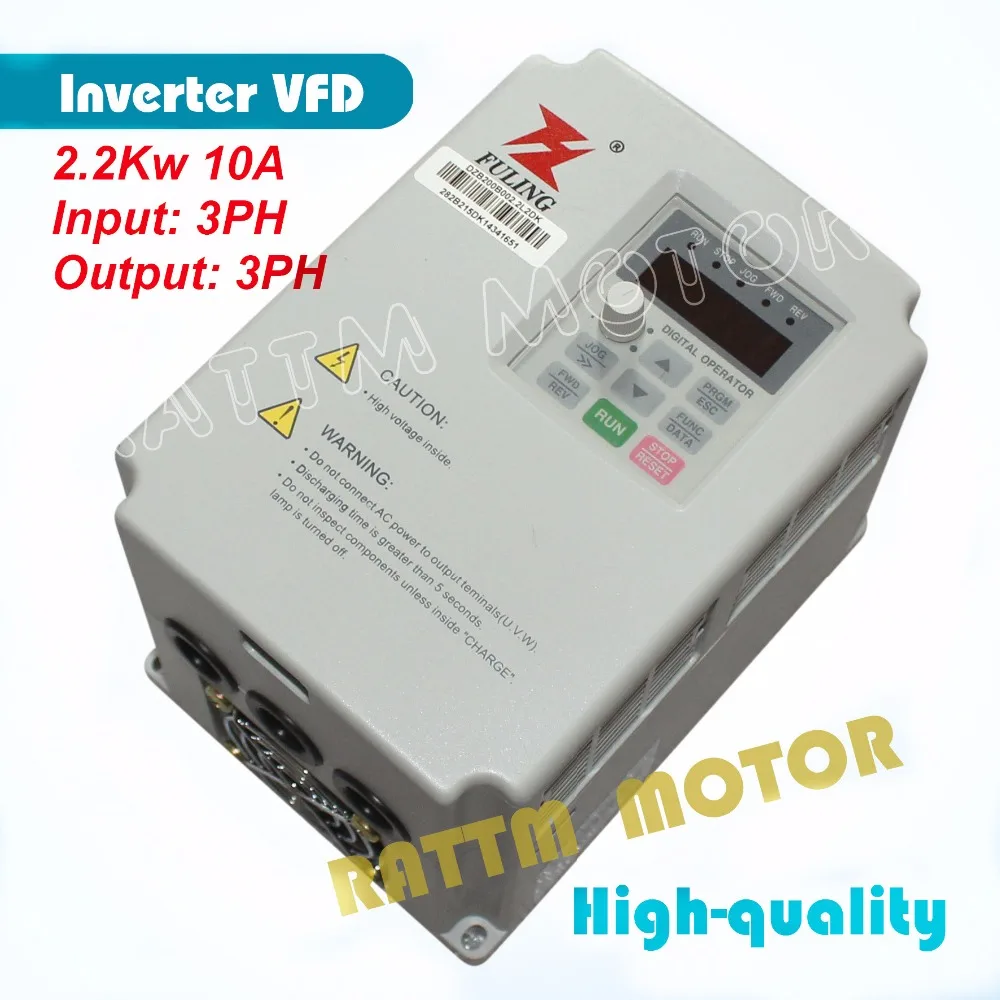

1 x 2.2KW Fuling Brand/Huanyang VFD Inverter 220V (High Quality)-Optional

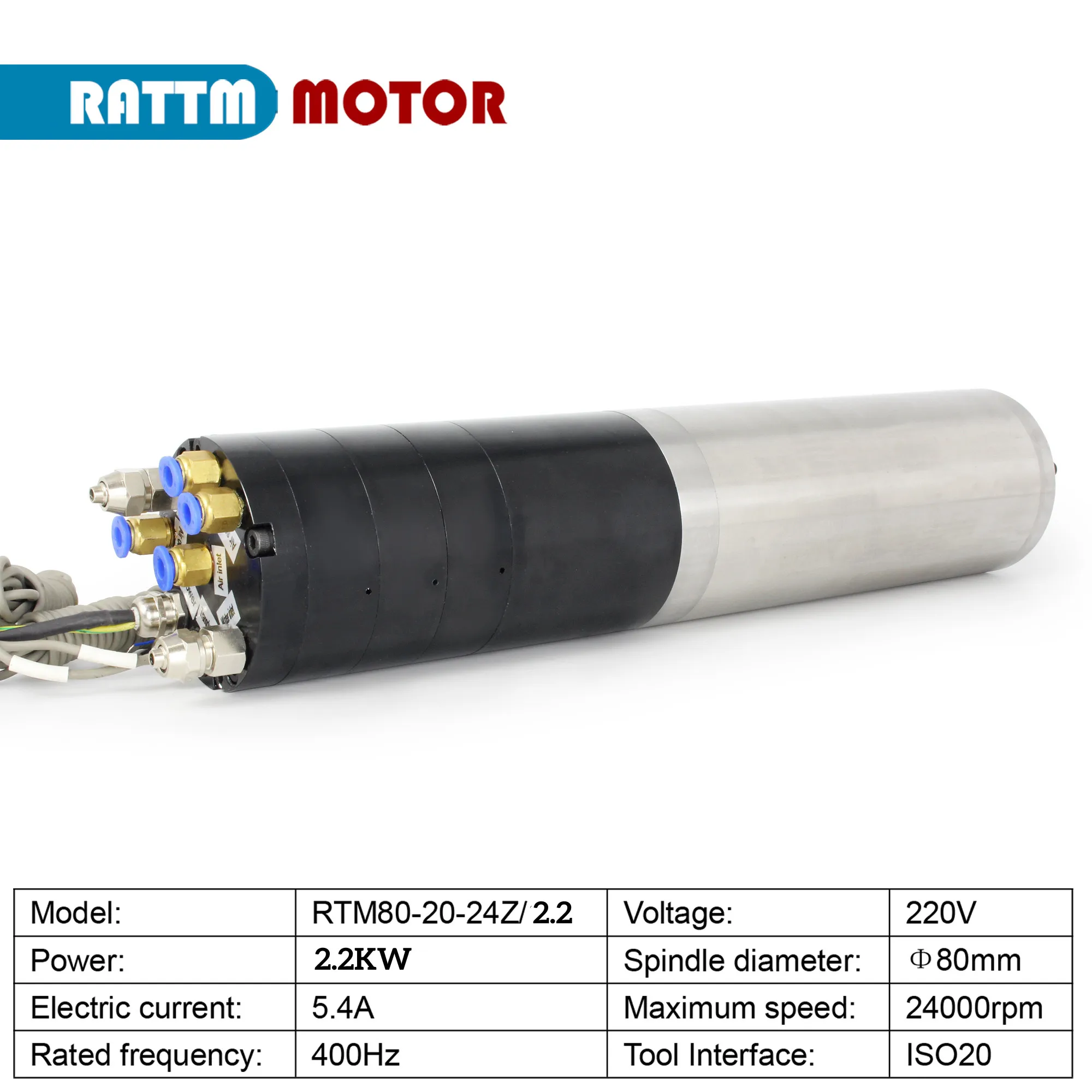

Model:RTM80-20-24Z/2.2

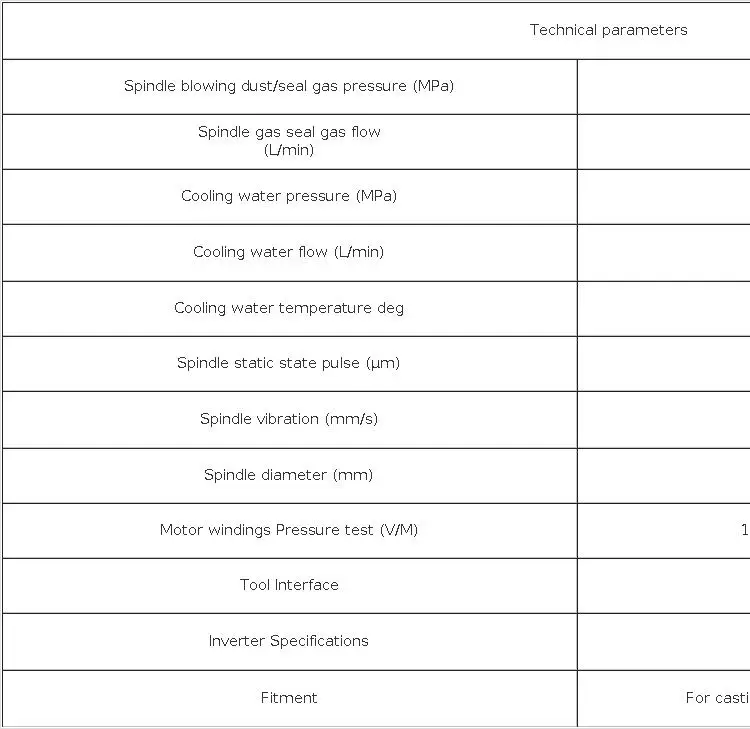

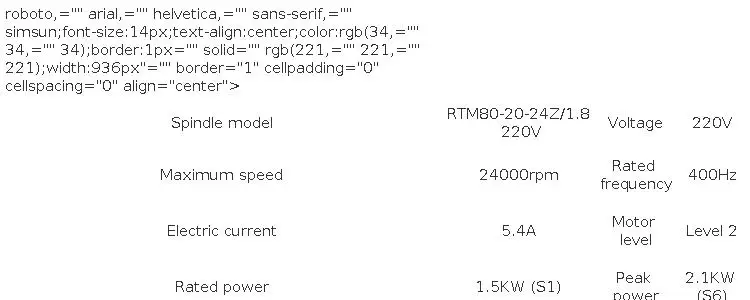

I.   2.2KW ATC Automatic Tool Change Spindle Motor 220V,24000rpm

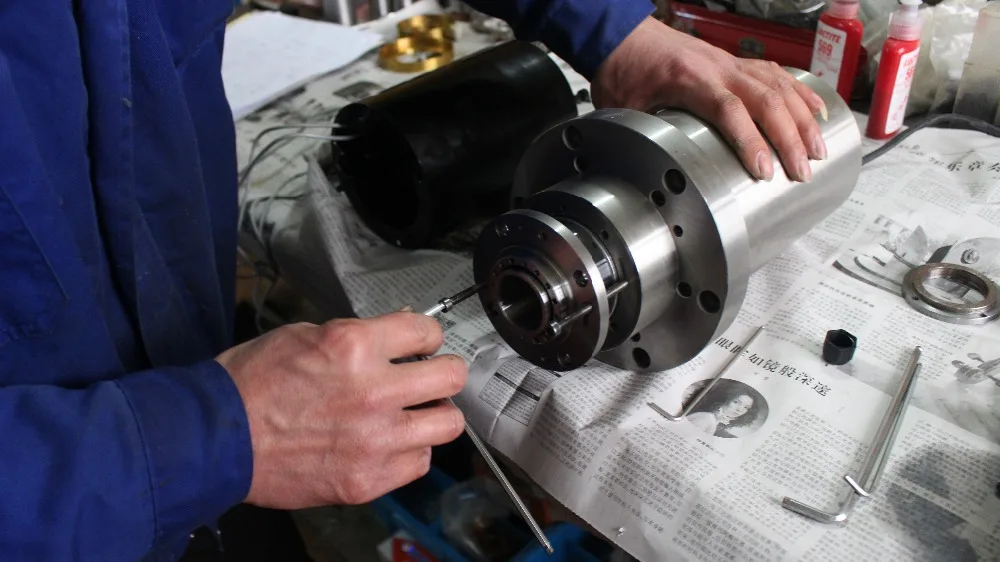

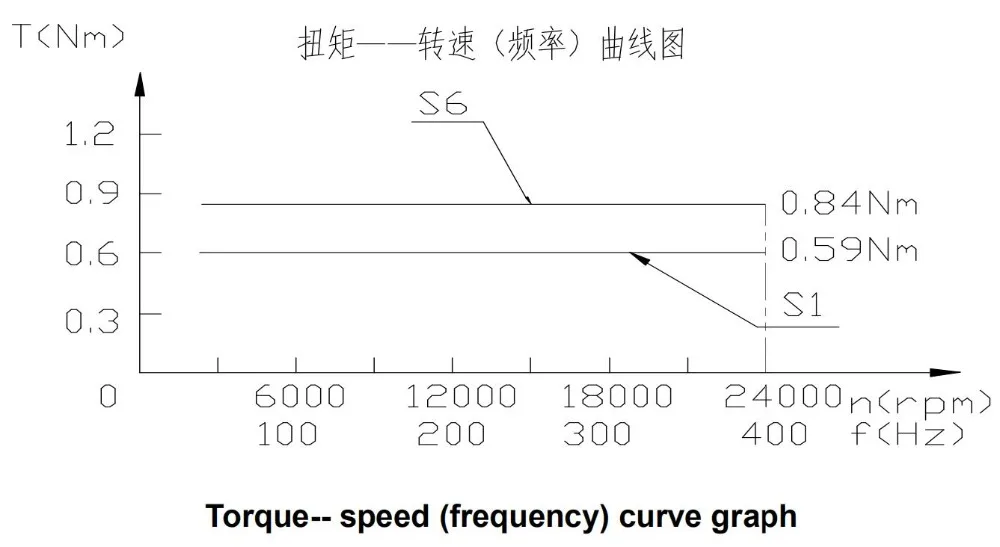

1. Product overview

1) This spindle is built-in type spindle motor, built-in three asynchronous motors,by theinverter

control.As the spindle has a compact structure,high power, big torque,

small vibration,low noise characteristics,so it can achieve high

speed,high powe cutting,high precision and highstability operation.

2) The bearing of spindle use grease lubricated angular to contact bearings,can beachieved lifelong lubricating within the life cycle.

3) The spindle use forced coolling mode to coolling motor,front and rear bearings.Coolantflow

through the reasonable arrangement cycle watercourse of the spindle

body,thus can takethe heat generated of the spindle rotation speed, to

achieve thermal equilibrium,let spindletemperature within a certain

constant value. External cooling device effect:maintaining aconstant

temperature of the coolant.

4) The spindle built-in PTC 140 temperature sensor(Technical parameters are visible inother sections of this specification),you can read it anytime if you need to protect the motortemperature.

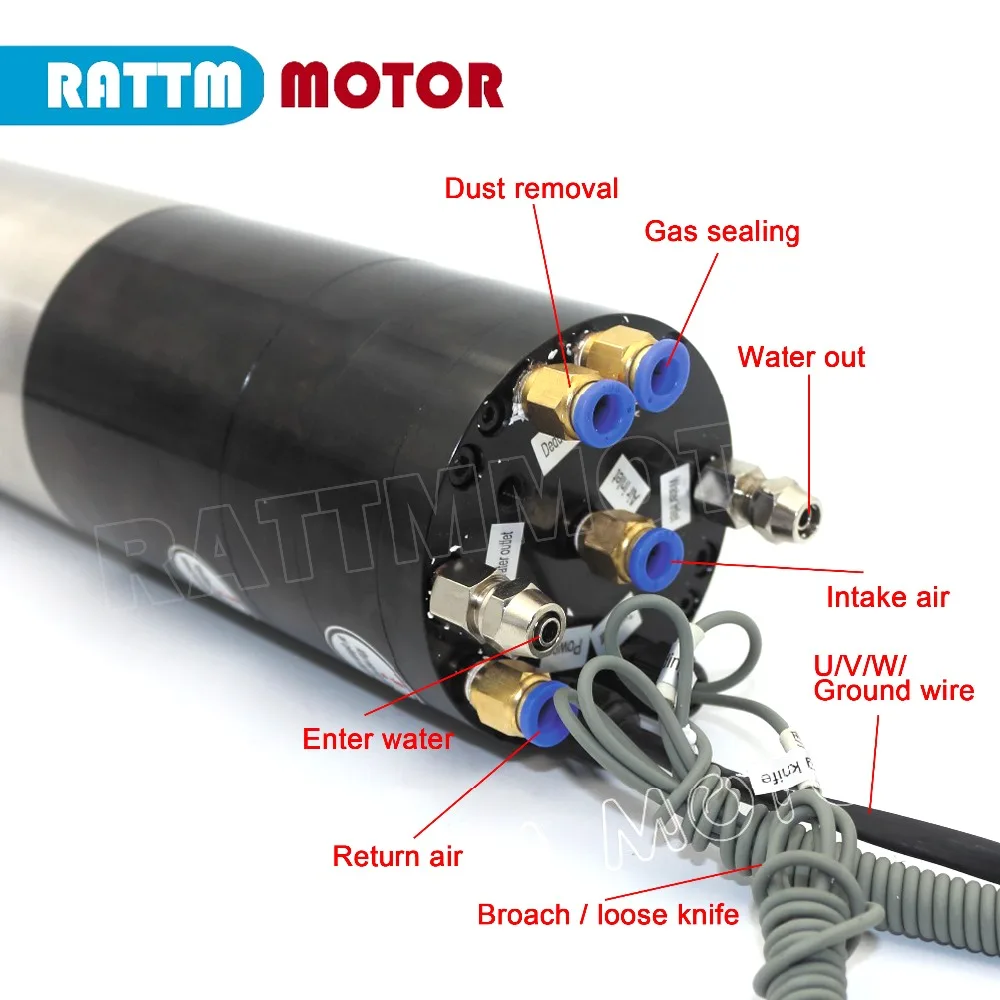

5) The tool clamping methods:this spindle built-in automatic tool change device,shank form

is ISO20

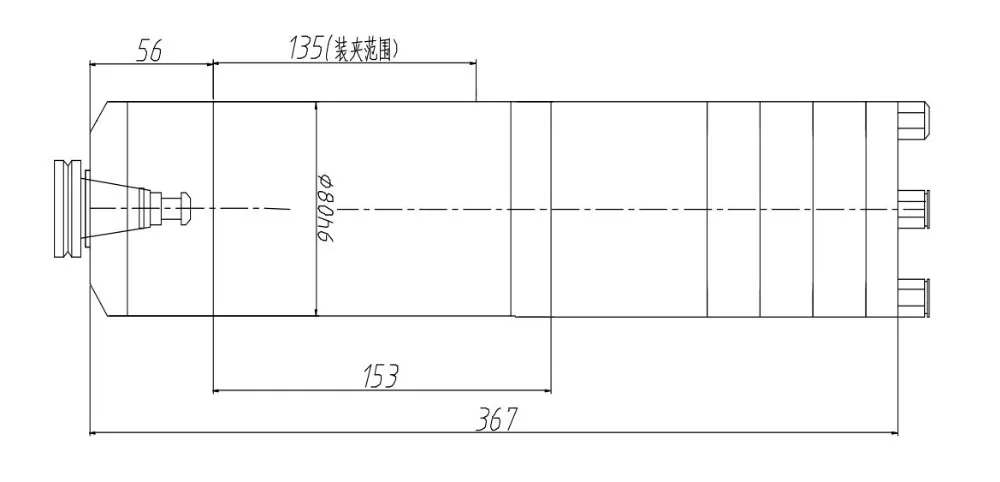

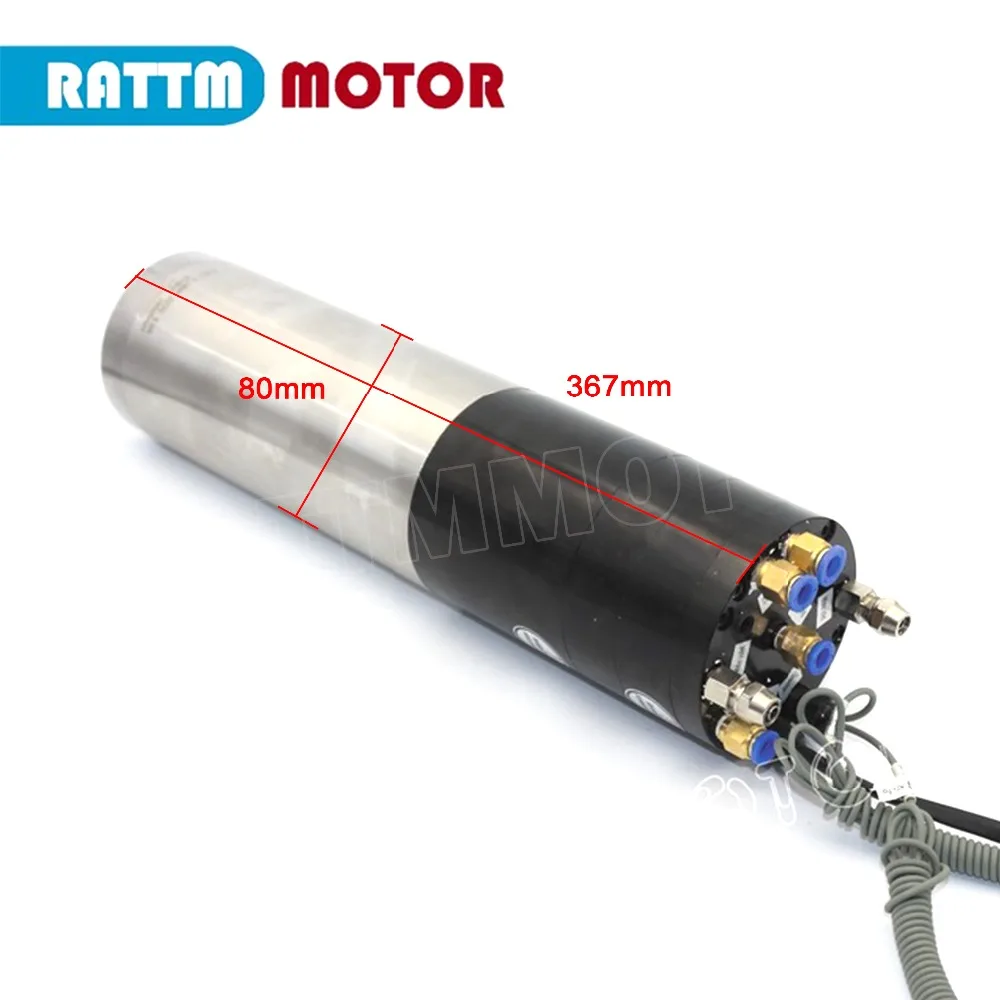

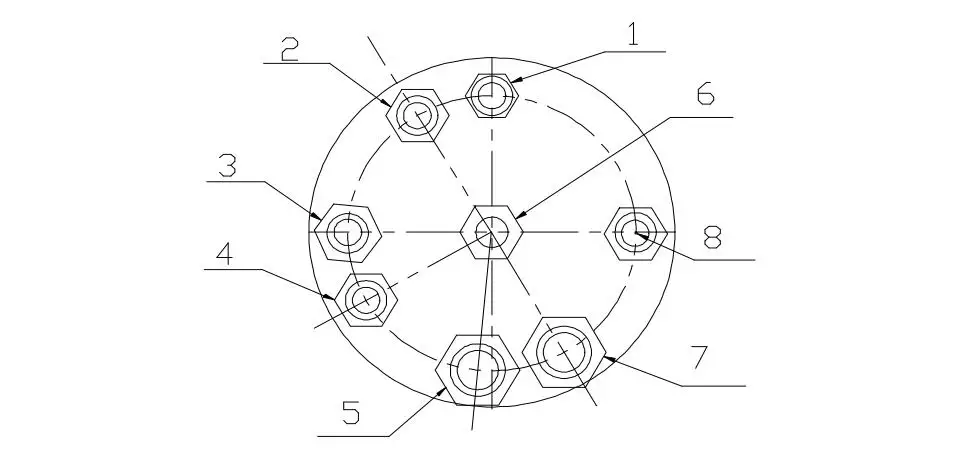

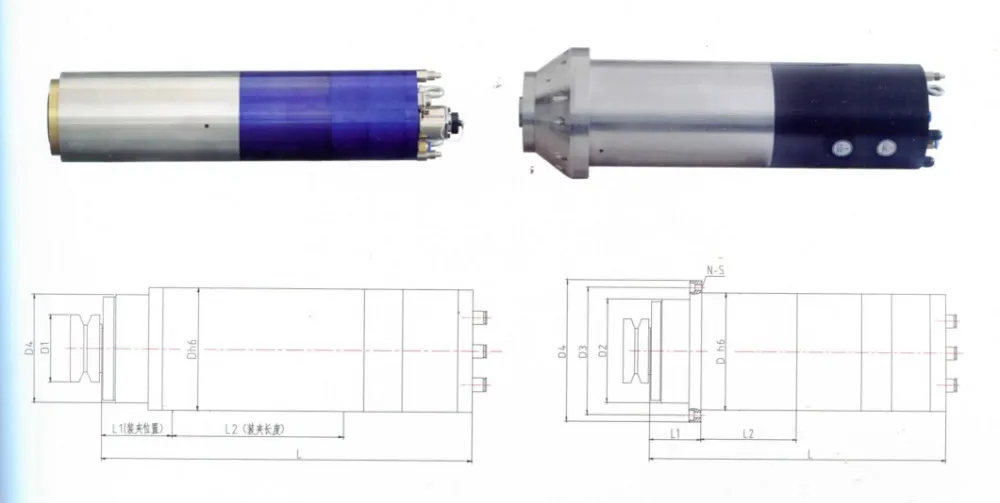

2. Drawing Size Description

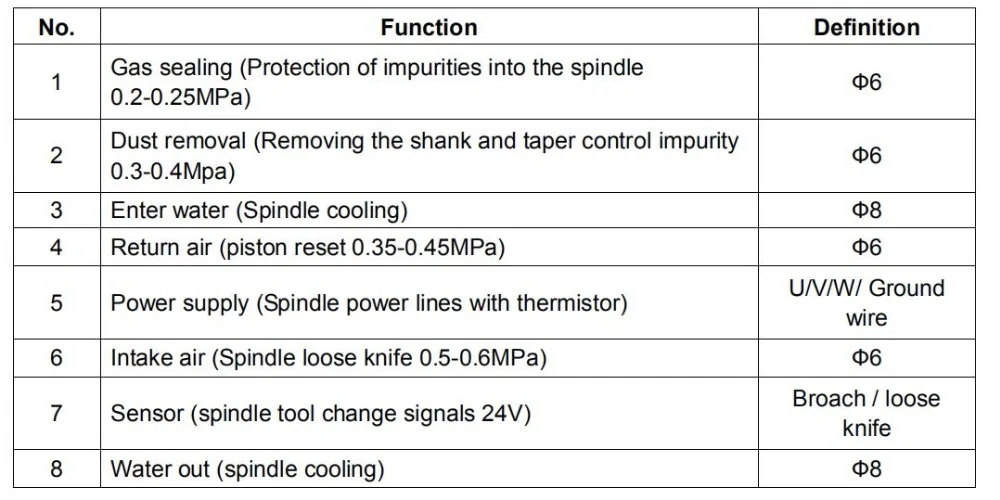

Spindle installation explanation

1)     Circulating Cooling System Description

The

system must ensure that the cooling water temperature of supply spindle

is between 24-28deg. Usually setting the flow switch in return pipe of

the cooling system,to ensure the supply of spindle cooling water.

Cooling water requirements: we recommend using distilled water, while

recommend Feinuokesi (Fenix) protective agent F1 (using the scale of 1:

200),coolant temperature is 26deg±2deg,inlet, outlet pipe temperature

can’t exceed 5 deg.It is allowed As long as other monitoring can ensure

fuller spindle cooling.

2) Air sealing control

In

order to prevent water or impurities enters internal of the

spindle,spindle will have gas sealing device,the gas seal machine must

be started start with the machine at the same time. And the need to go

through multi-stage filtration.

3) Compressed gas quality requirements

The quality requirement of gas which is used in gas seals:

Oil content:<0.01mg/m3

Solid particle:<5µ m

Pressure dew point: <7.5deg(0.7MPa)

4) Running-in program instructions

Only

all monitoring issued no failures operational signals,at the same

time,all safety devices have been installed and working properly,then

allow start spindle.

Note:

New or spindle which is not used for a long time must to be running

slowly.First,start run spindle for half an hour as 25% of the maximum

speed,then increase  to 50% of the maximum speed,to run 15

minutes,finally, increase to maximum speed.It’s need to check the

temperature of the spindle during the whole process, spindle will get

hot, but not hot hand, if the spindle becomes hot, pls stop the

operation and contact our customer service department.

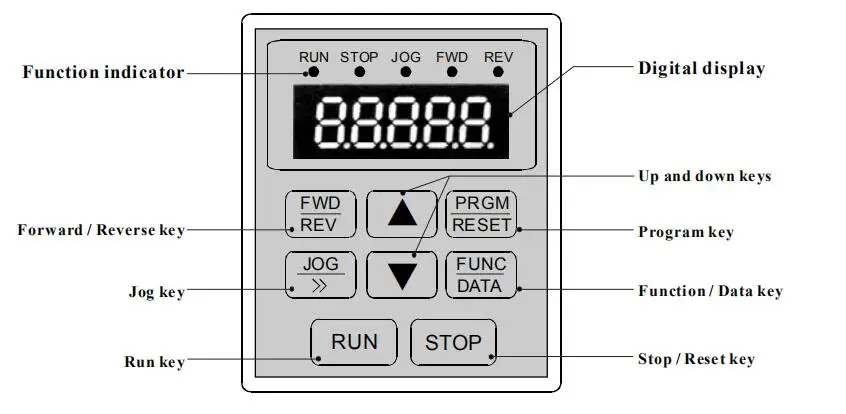

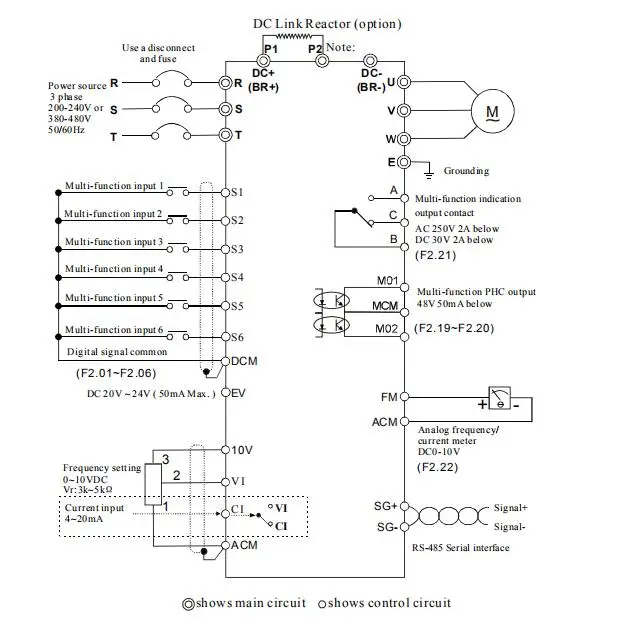

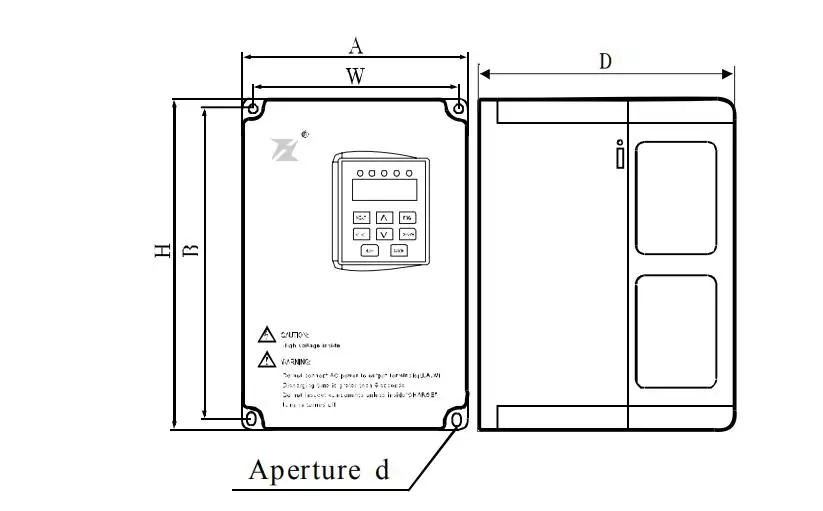

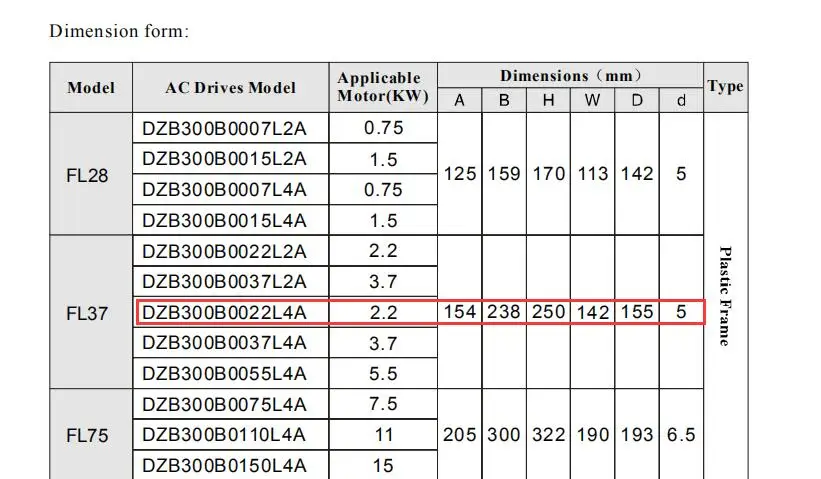

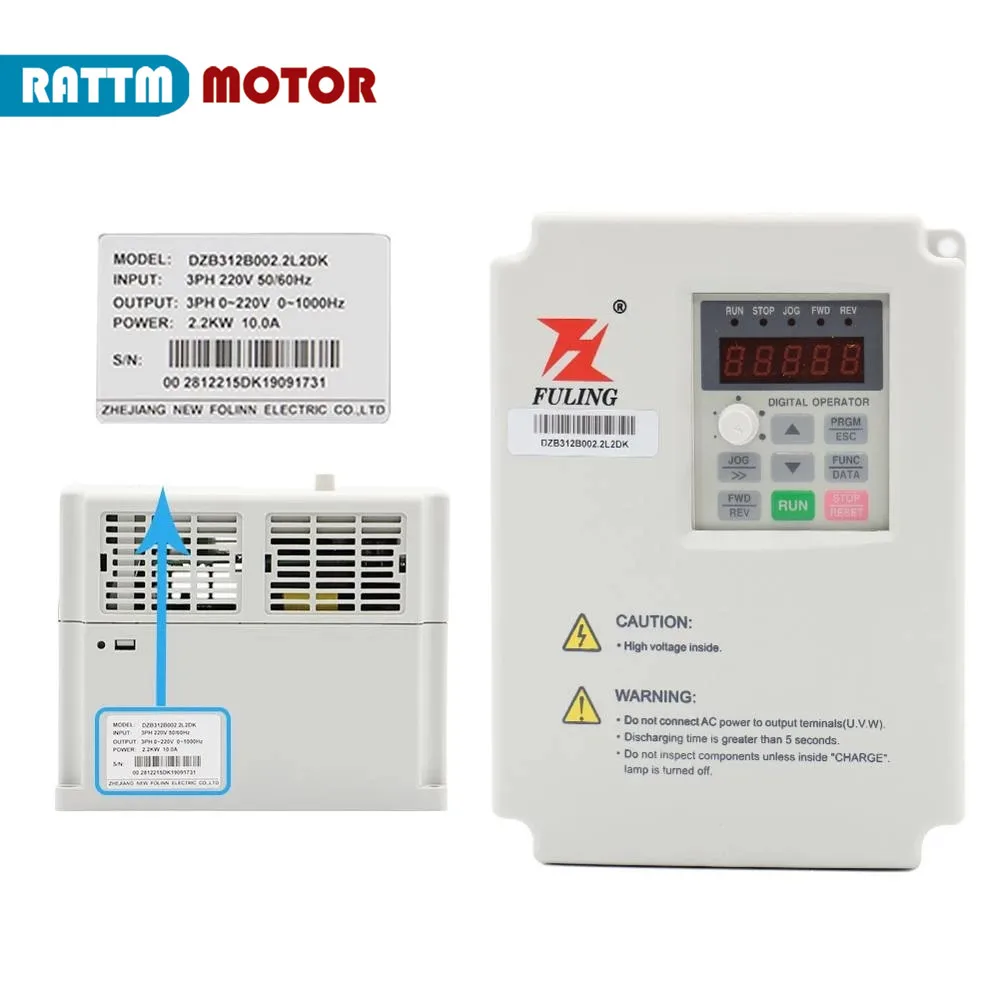

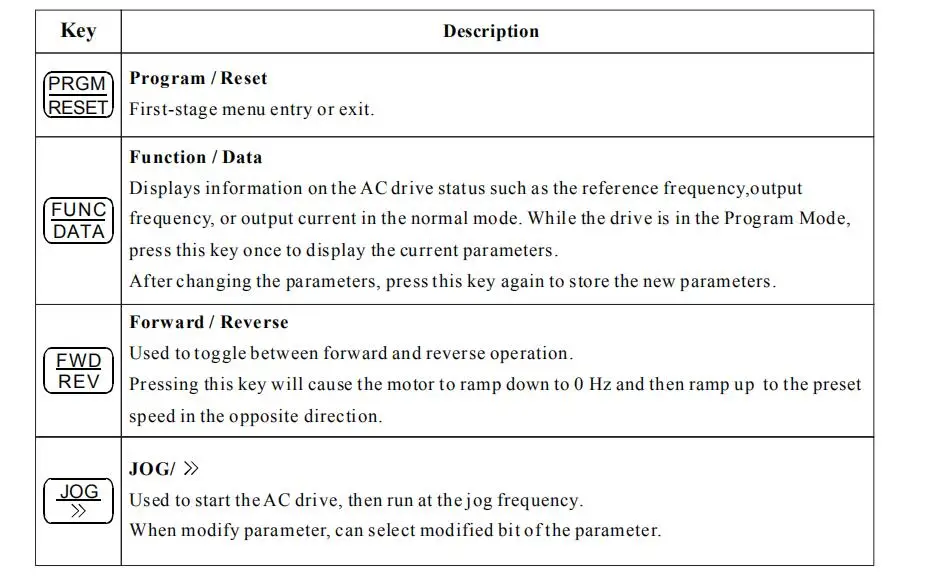

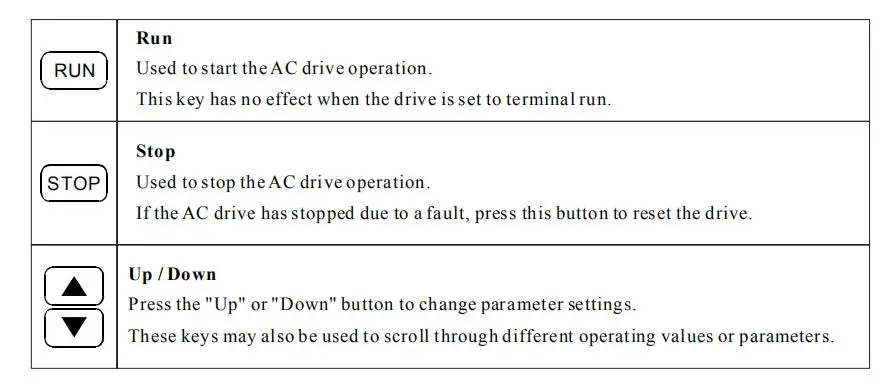

II.  2.2KW Fuling Brand Inverter VFD

(we will send the detailed manual after you order)

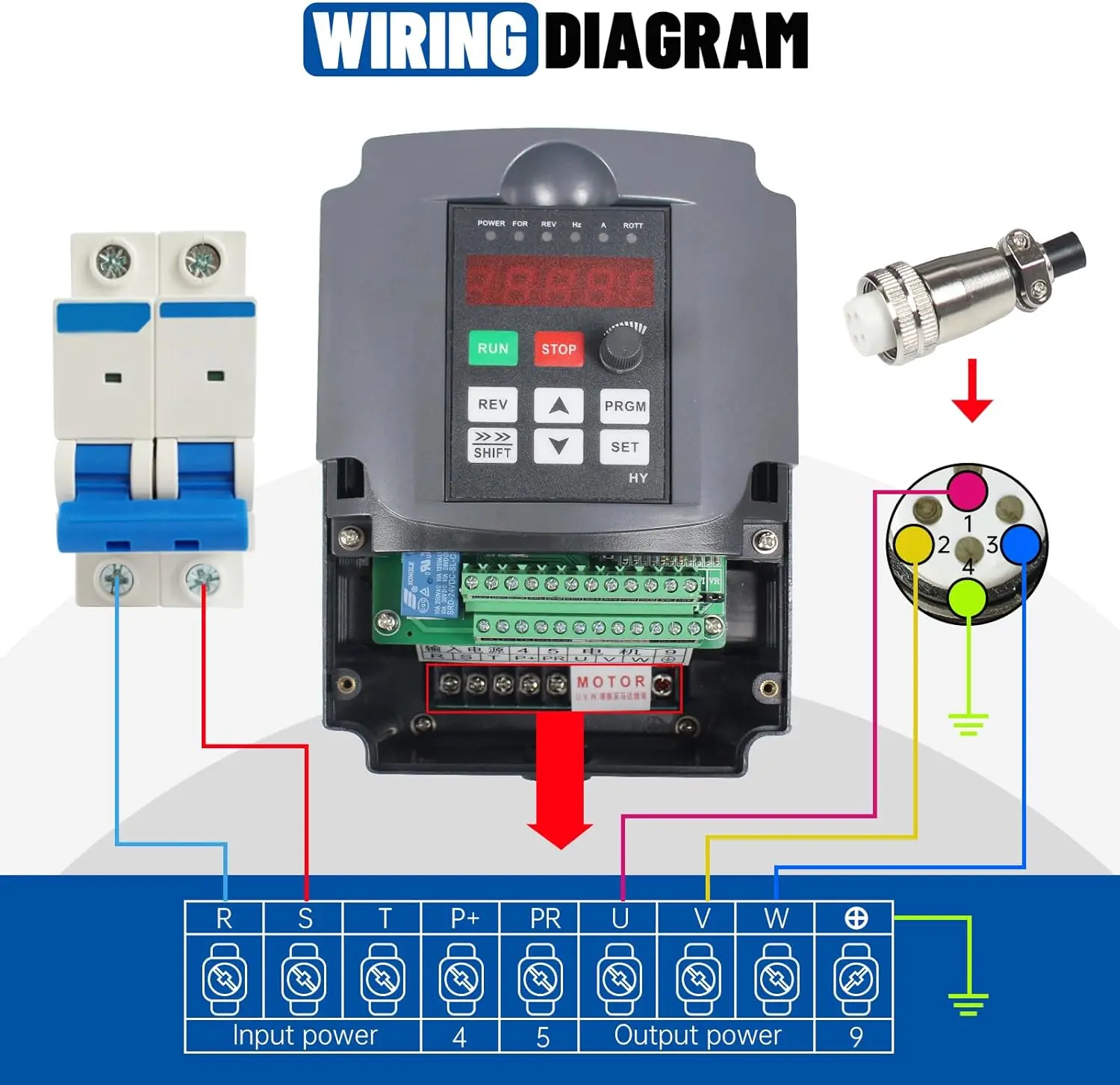

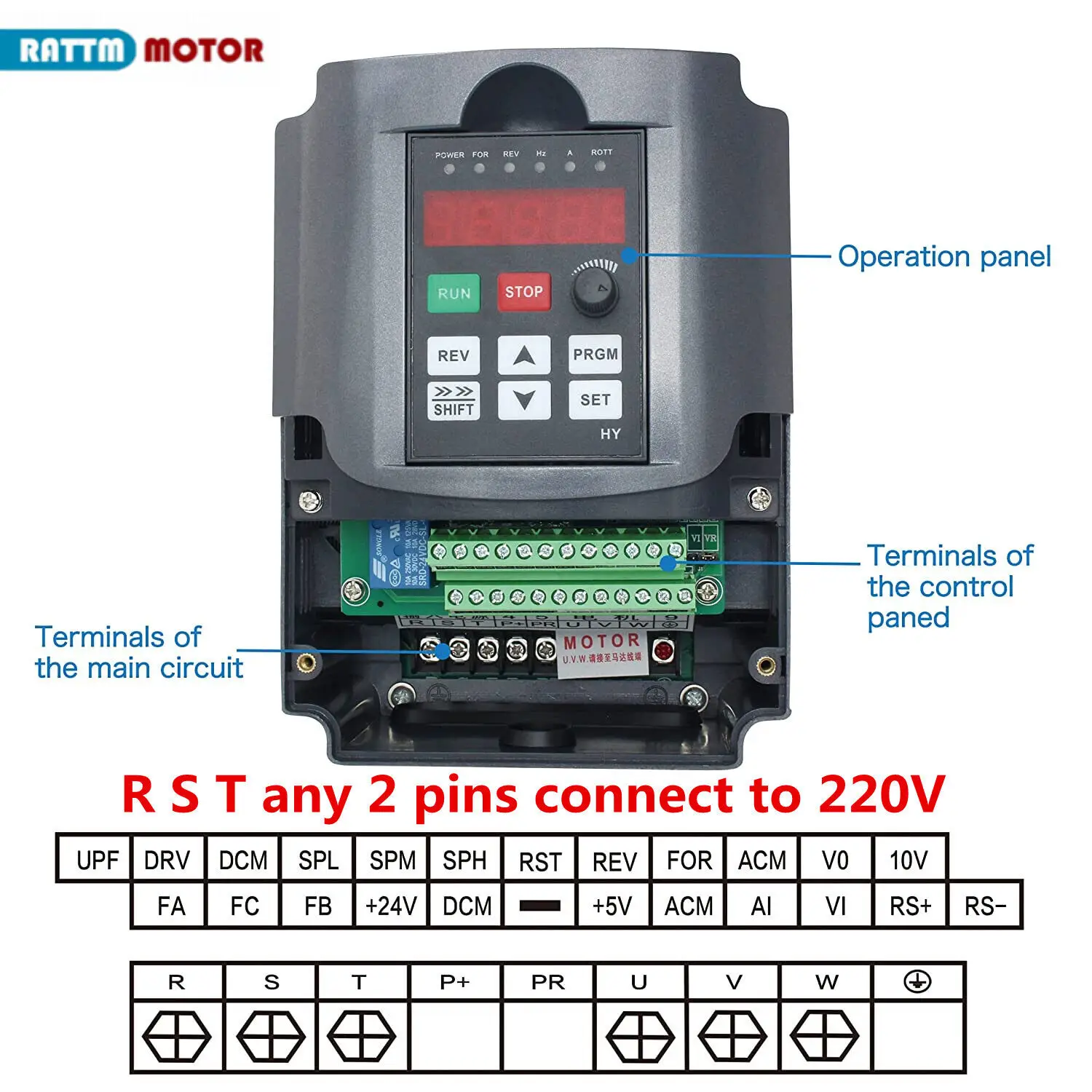

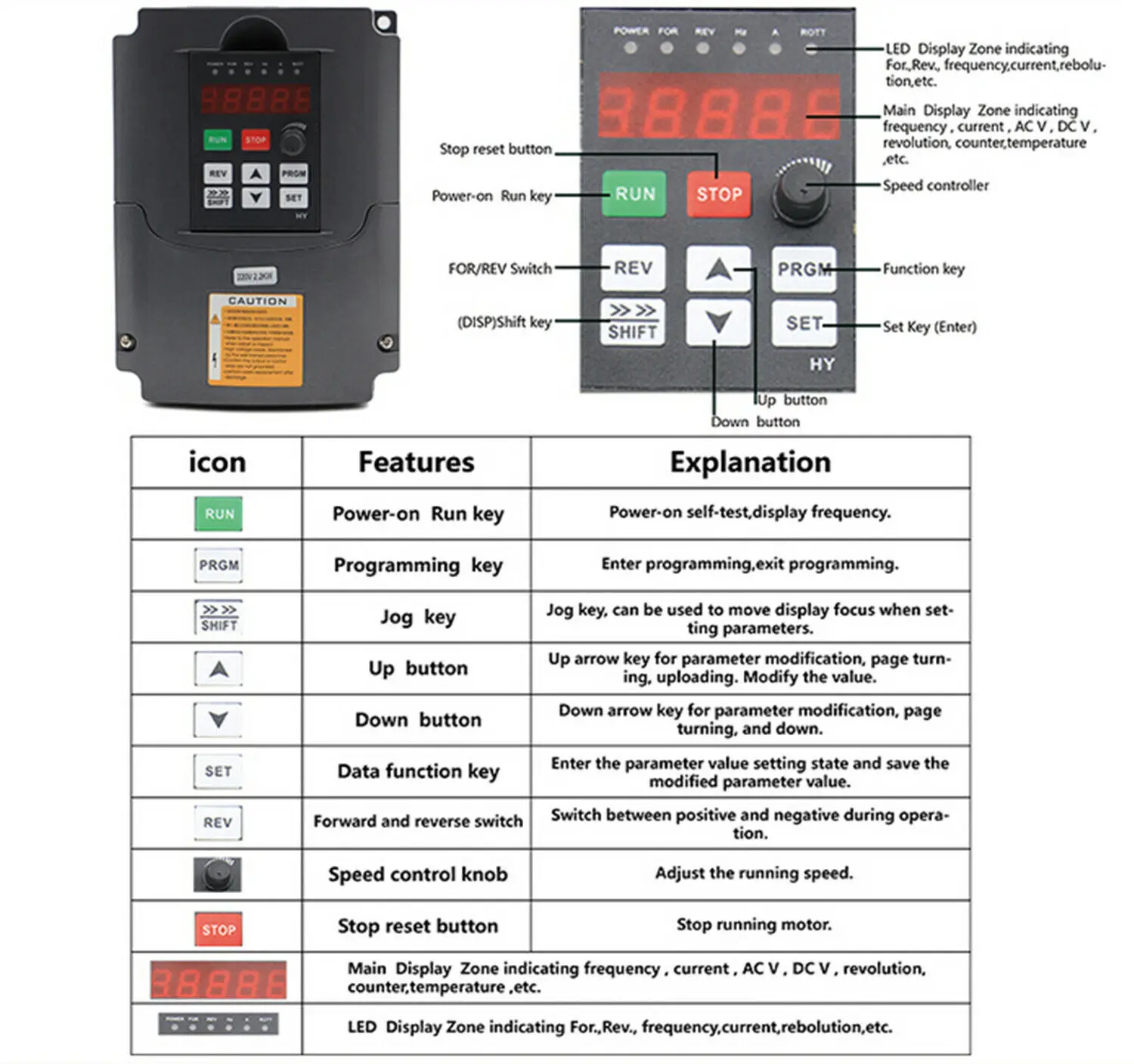

III  2.2KW Huanyang Brand Inverter VFD
