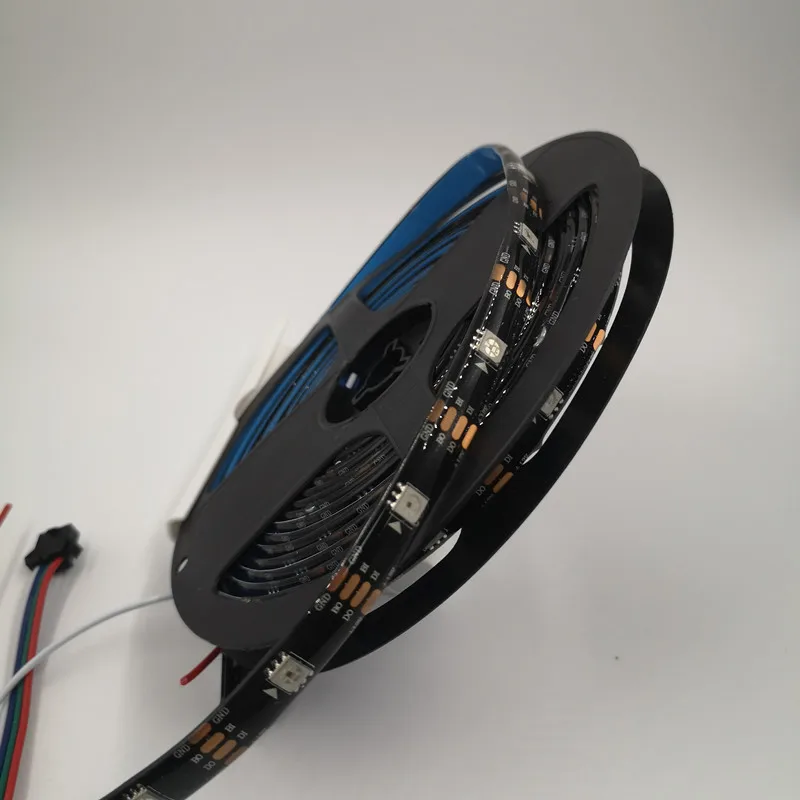

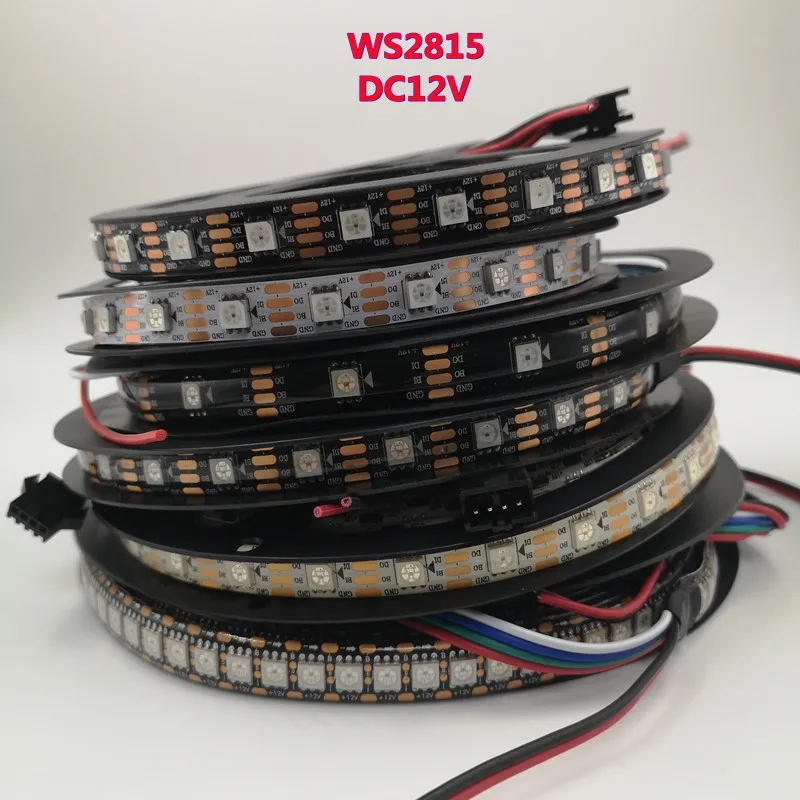

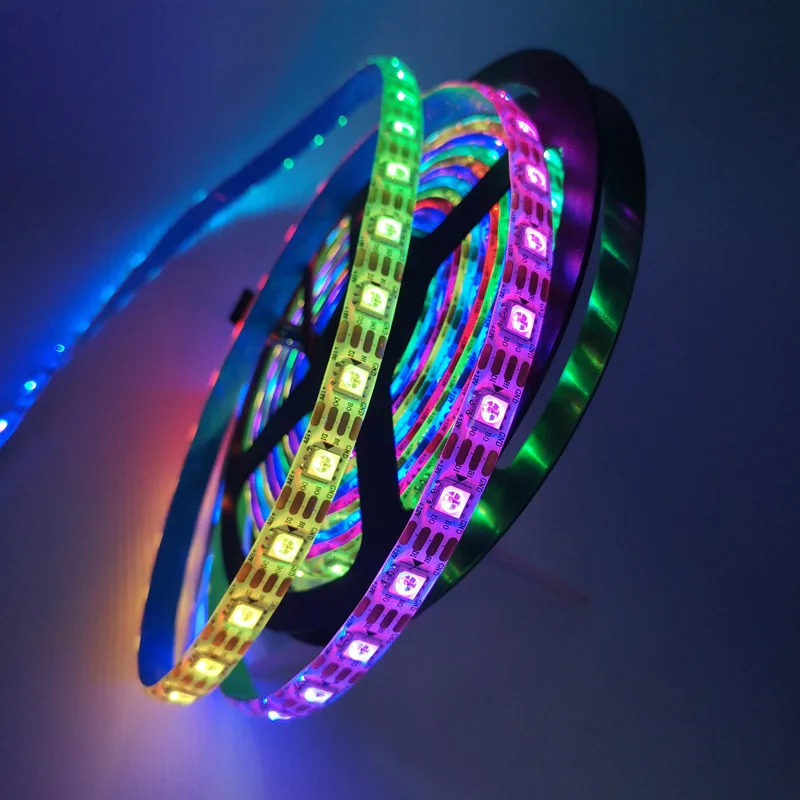

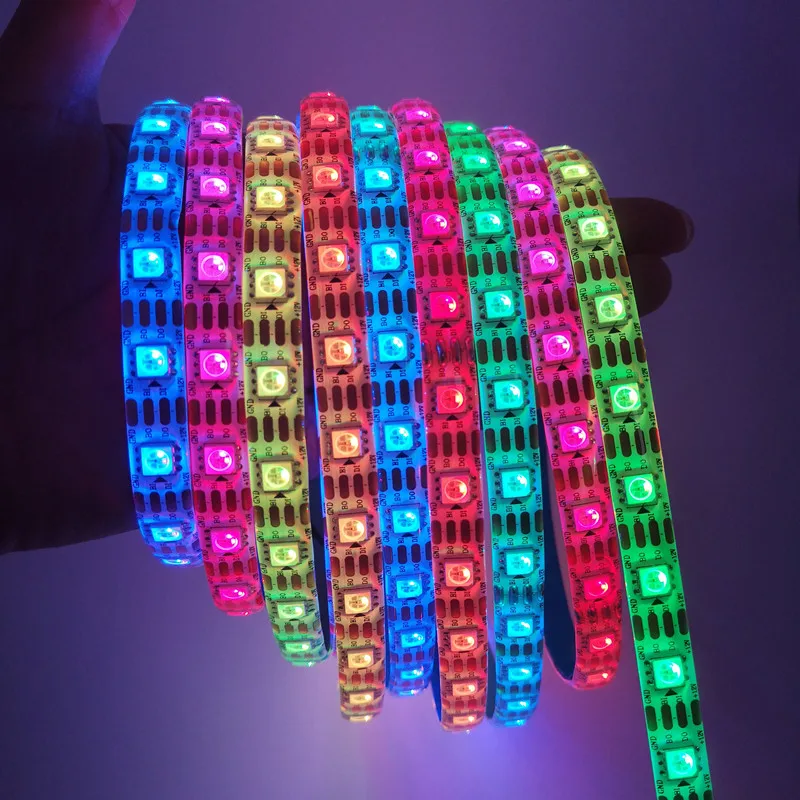

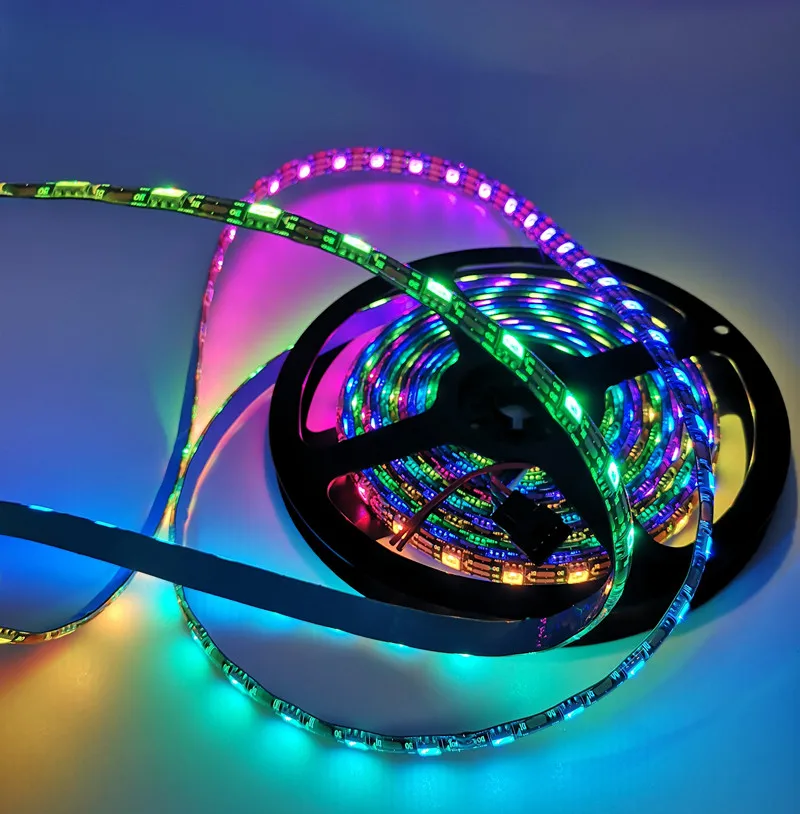

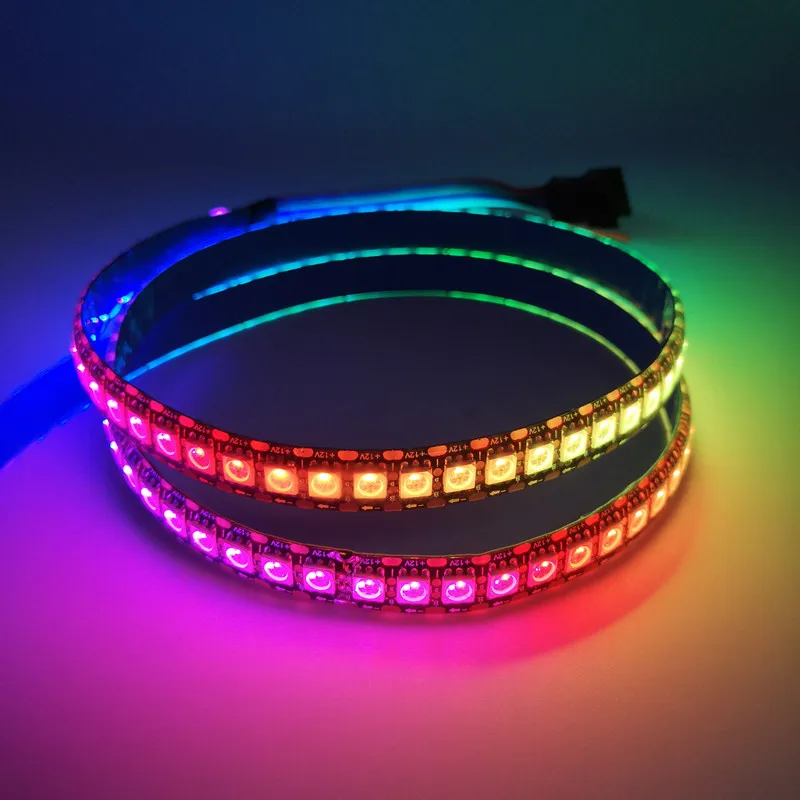

5m/roll WS2815 DC12V (WS2812B/WS2813) RGB LED Pixels Strip Light Individually Addressable LED Dual-Signal 30/60/144 Pixels/Led/m

5m/roll WS2815 DC12V (WS2812B/WS2813) RGB LED Pixels Strip Light Individually Addressable LED Dual-Signal 30/60/144 Pixels/Led/m

White :  White PCB

Black :  Black PCB

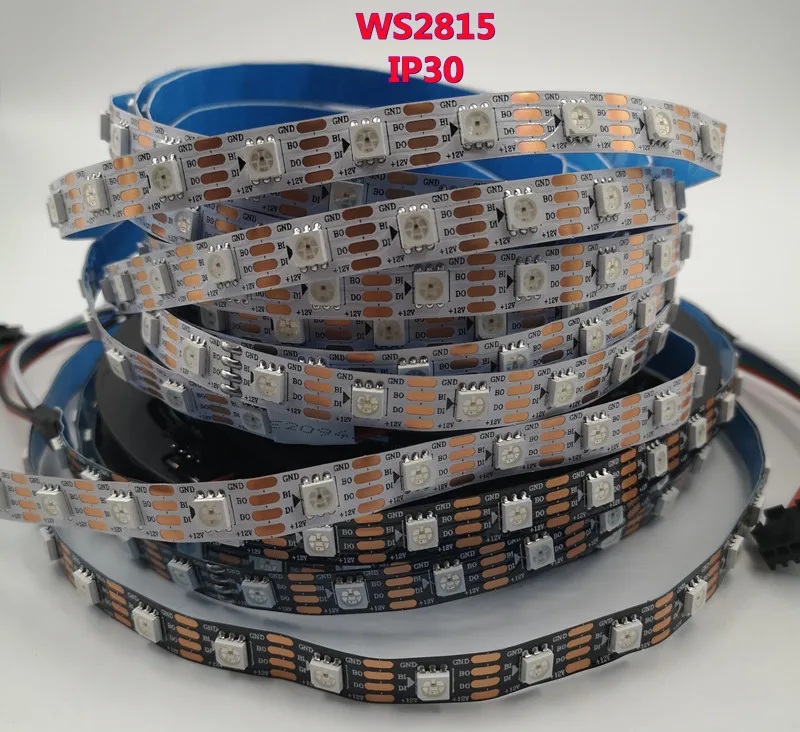

IP30: Non- waterproof

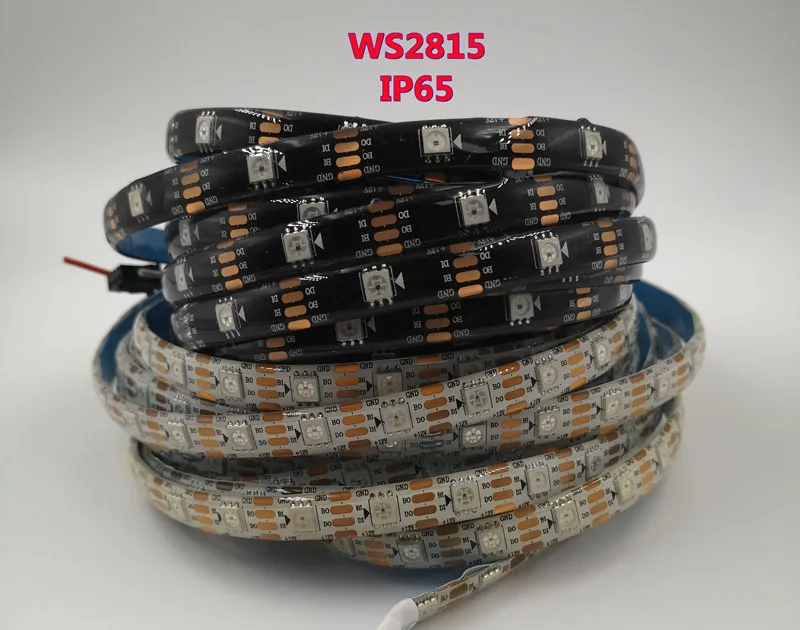

IP65: Waterproof in Silicon Coating

IP67: Waterproof in Silicone Tube

Wide compatibility:

Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E etc.

12V WS2812B LED Strip:

WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.

Individually addressable:

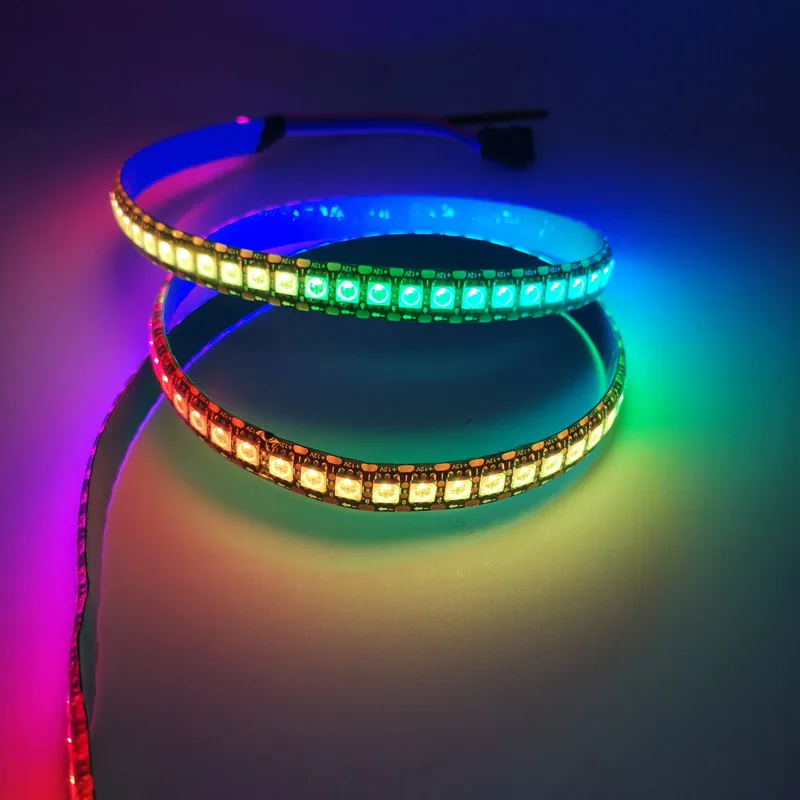

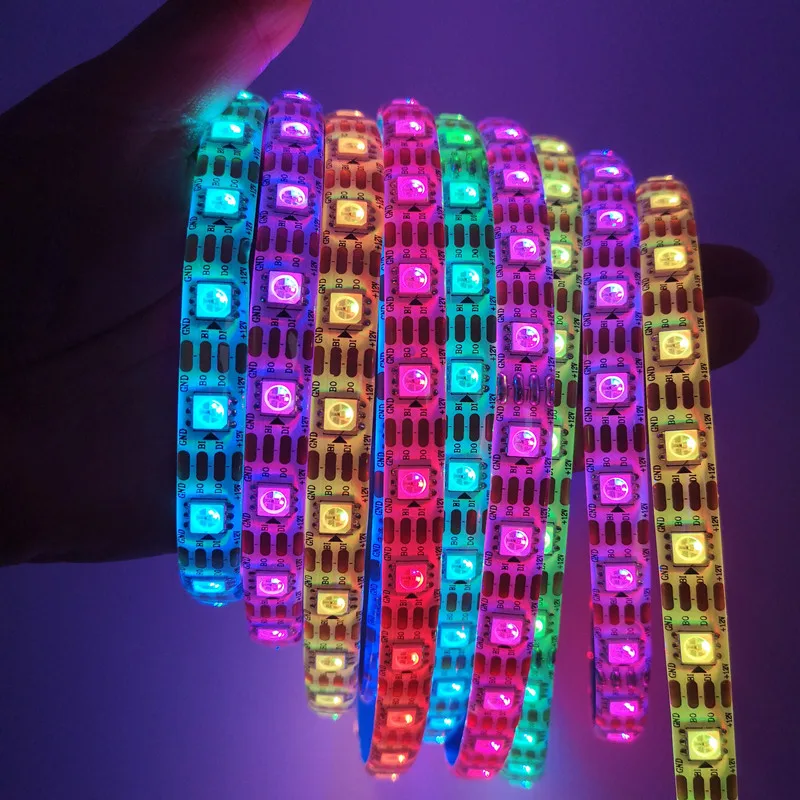

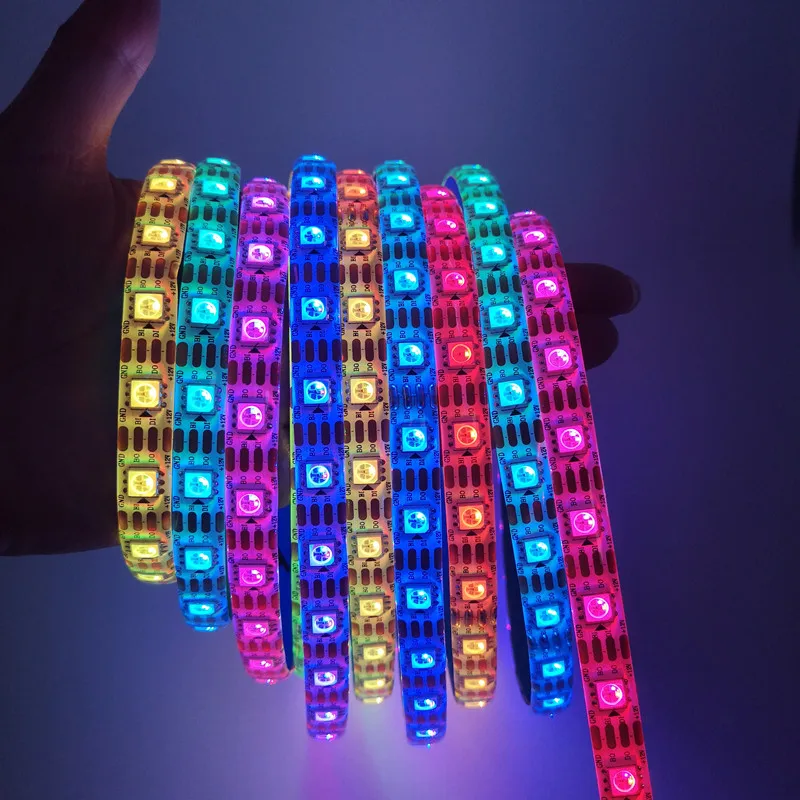

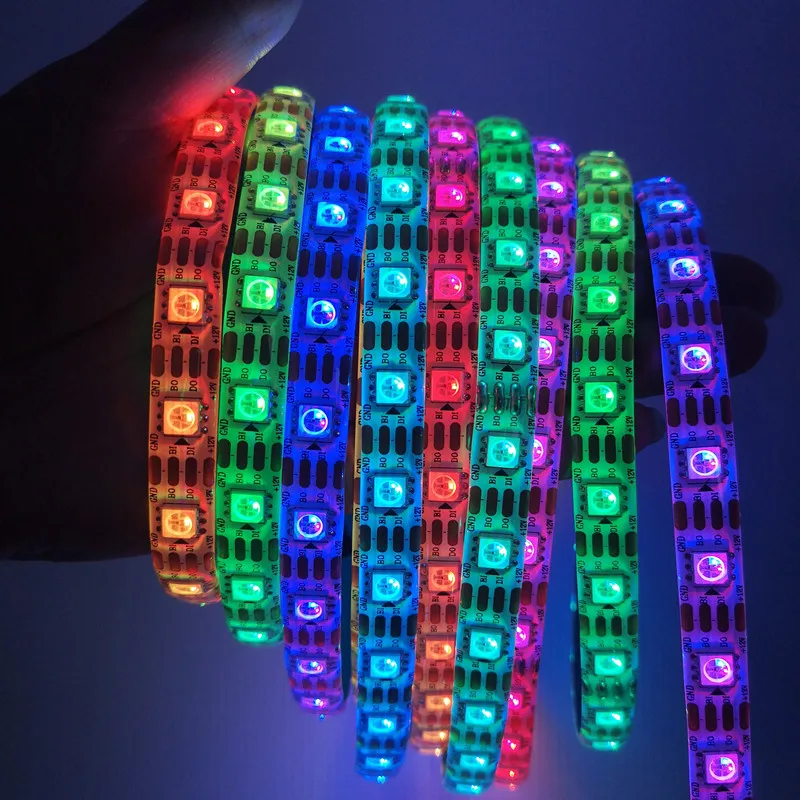

Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.

Dual-signal wires:

WS2815 LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

Easy installation:

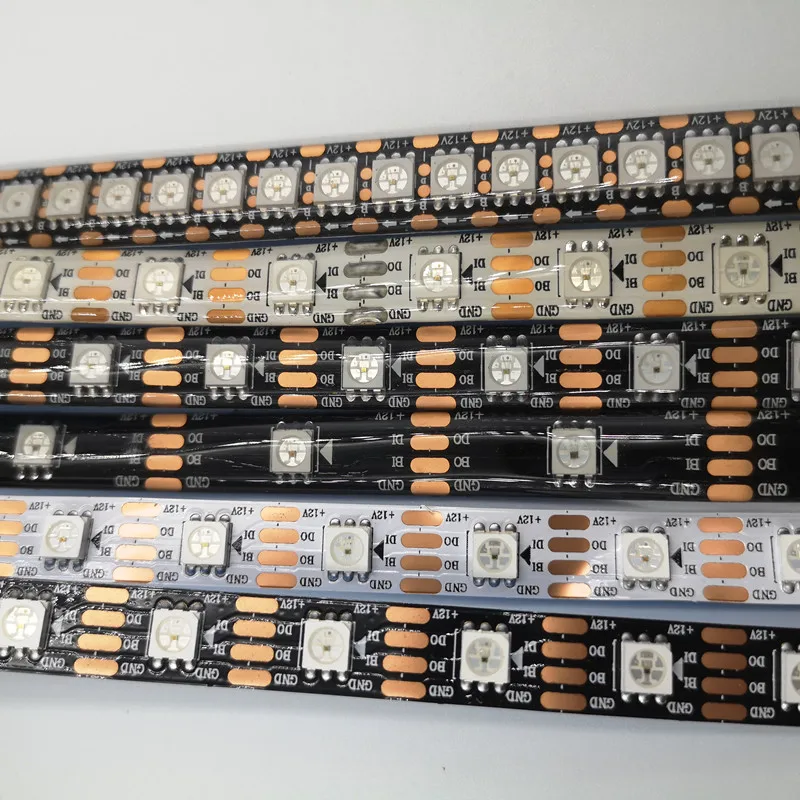

Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED can be cut off at cutting line.

There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other and wire up for power.

Specifications:

IC type :WS2815 IC

Gray level: 256

View angle: 120°

Input voltage: DC12V

Color: full color 24-bit

FPCB board color: White/Black

Power: 0.3W/LED  30/60/144 LEDs/m

Model: WS2815 strip 5050rgb chips

Storage Temperature:-30-+95 °C

Operating Temperature:-20 ~ +85°C

Led Qty: 30/60/144pcs RGB SMD 5050 per meter

Waterproof level: IP30: Non- waterproof, IP65: Waterproof in Silicon Coating, IP67: Waterproof in SiliconTube

Package includes:

1 * 1M/5M 30/60/144leds/m led strip

1 * 4pin connector

Note:

Power adapter and controller are not included!

It is forbidden to light up for a long time when the strip is in the spool.

Pay attention:

White :  White PCB

Black :  Black PCB

IP30: Non- waterproof

IP65: Waterproof in Silicon coating

IP67: Waterproof in SiliconTube

the length as you choose
