【EU&BR Stock】CNC Spindle 3.5KW 220V 380V Waterproof Water Cooled Spindle Motor ER20 400Hz 24000RPM 100x258mm Metal Engraver

Notice:

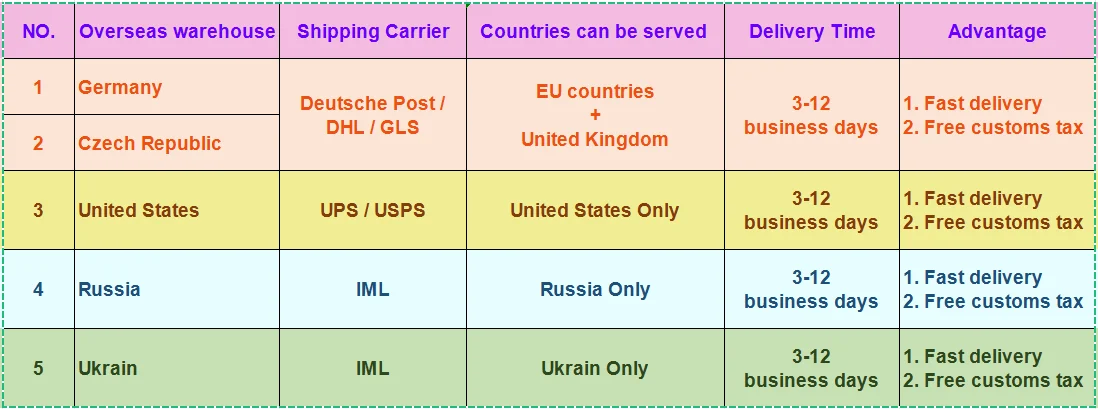

Dear friends,we havewarehouseinGermany/United States/Russia，we can ship to all EU countries from our Germany warehouse via DHL, ship to United States from our USA warehouse via UPS, which isfast delivery.

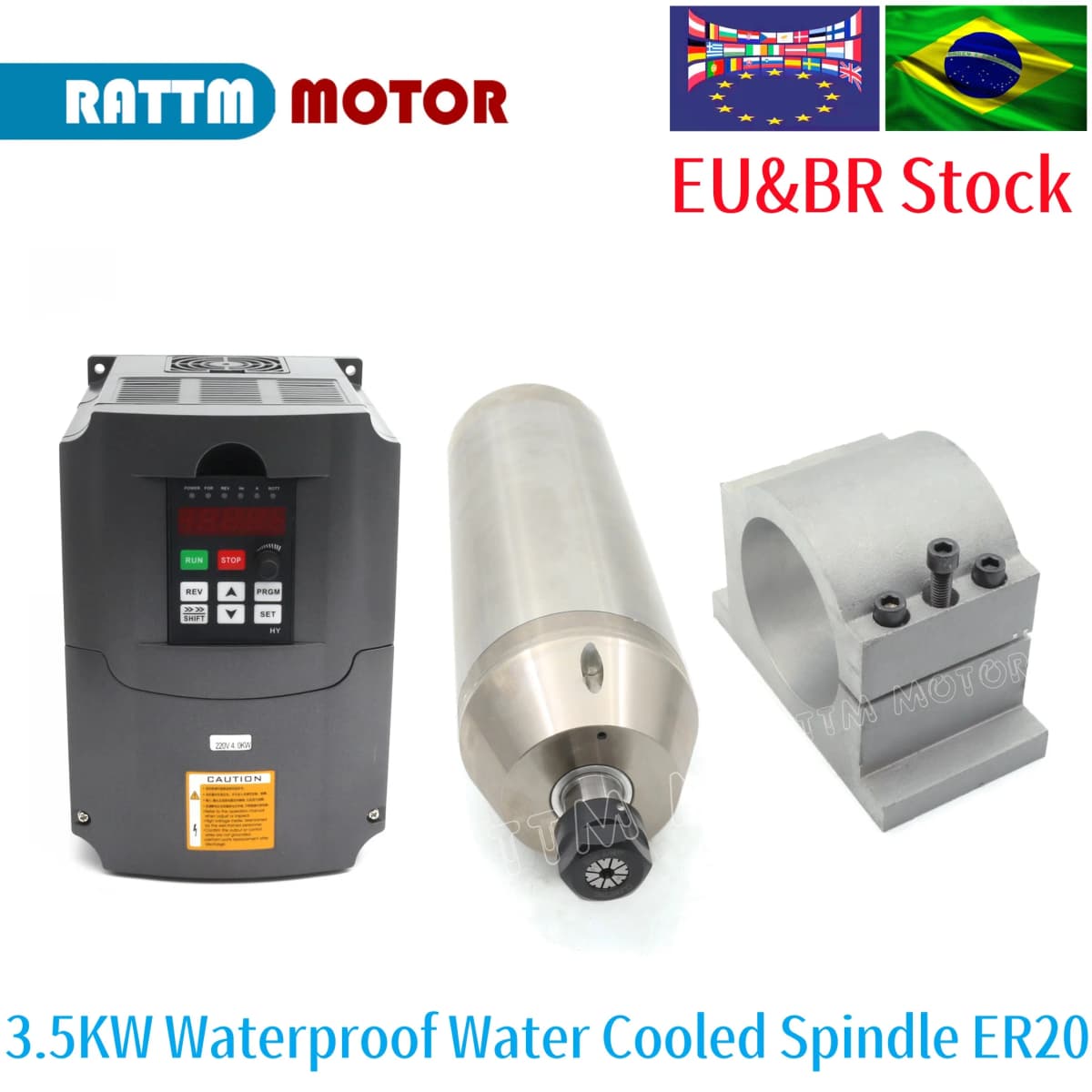

 Package include:

220V type:

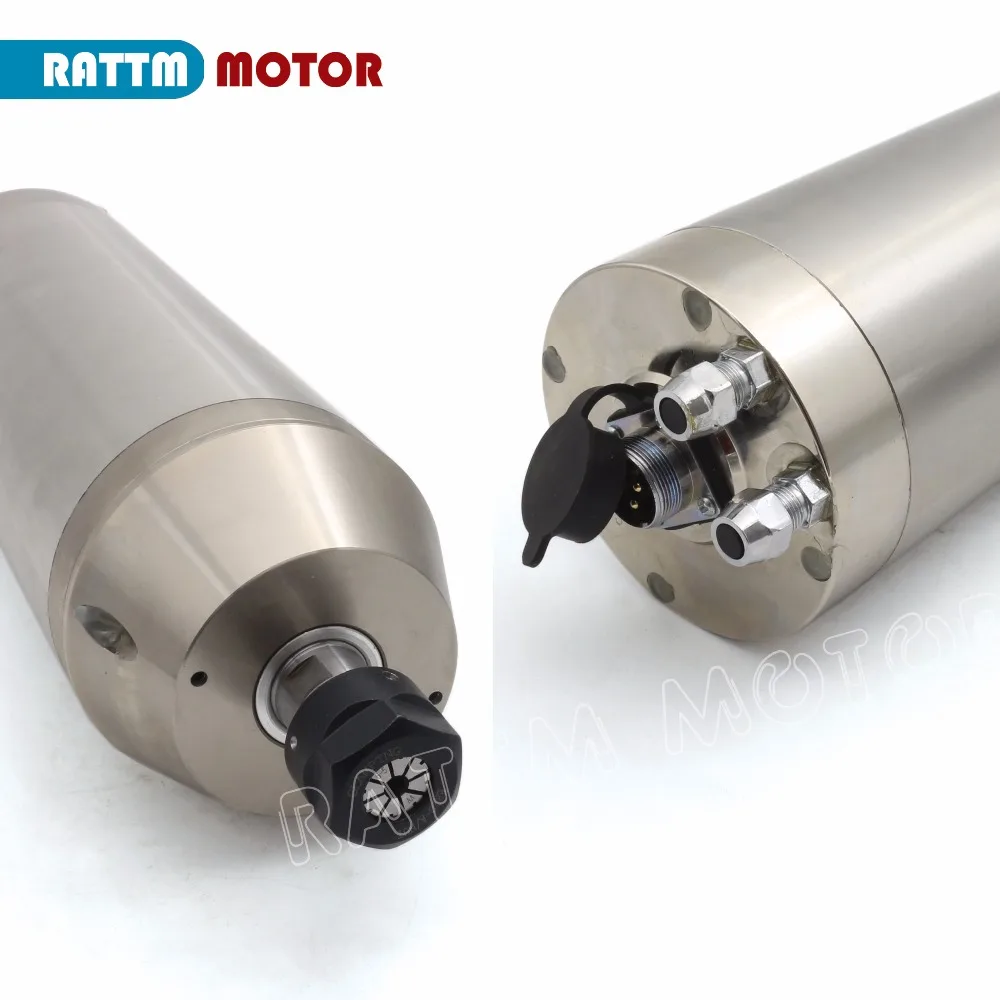

1 x 3.5KW ER20 220V Waterproof Carved metalWater-cooled spindle motor

1 x 4KW 220V HY Inverter VFD(Optional)

1 x 100mm cast aluminum clamp(Optional)

1 Set ER20 Collets(Optional)

380V type:

1 x 3.5KW ER20380V Waterproof Carved metalWater-cooled spindle motor

1 x 4KW380VHY Inverter VFD(Optional)

1 x 100mm cast aluminum clamp(Optional)

1 Set ER20 Collets (Optional)

The English manual for the VFD will be send via email.pls leave ur e-mail ID after purchase, thanks.

Specification:

Features:

1) Waterproof

2) Long life

3) Long length and high torque

4) Can engrave metal,Mold processing

5) 4 Bearings(2x7005+2x7004)

6) High precision

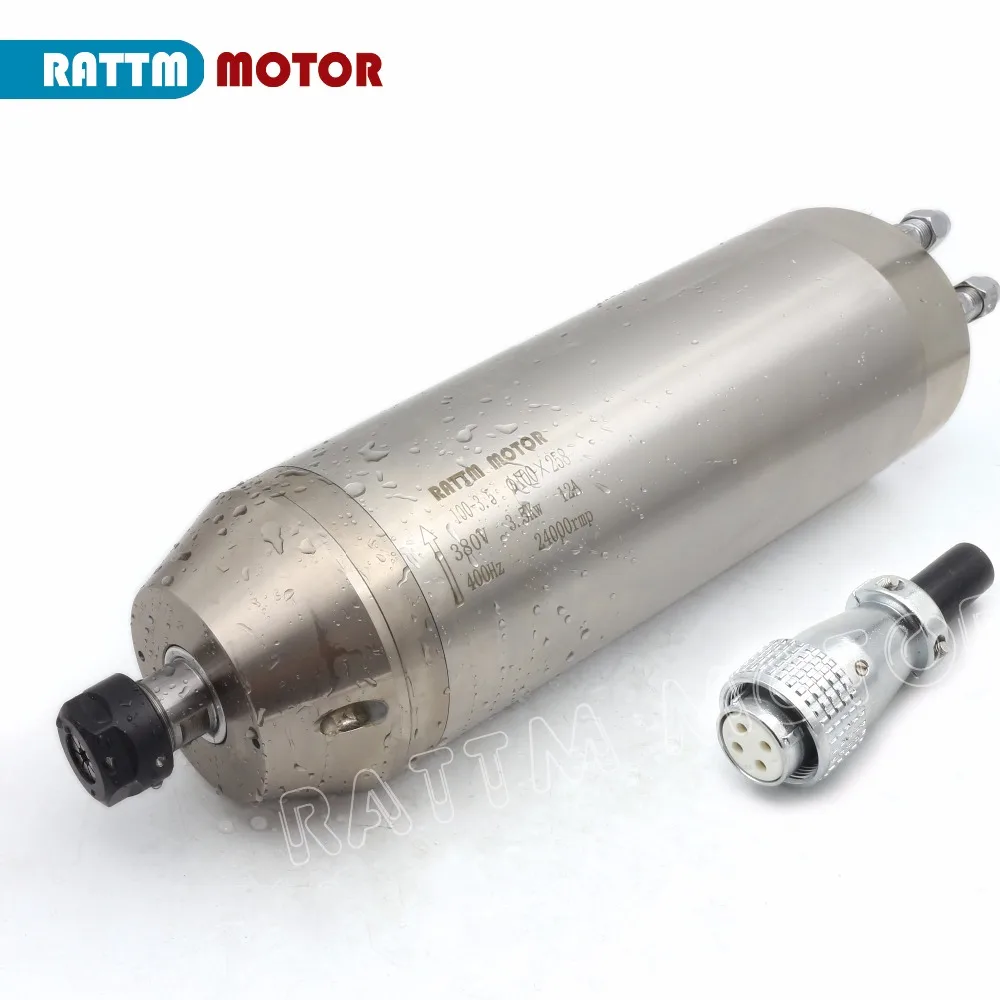

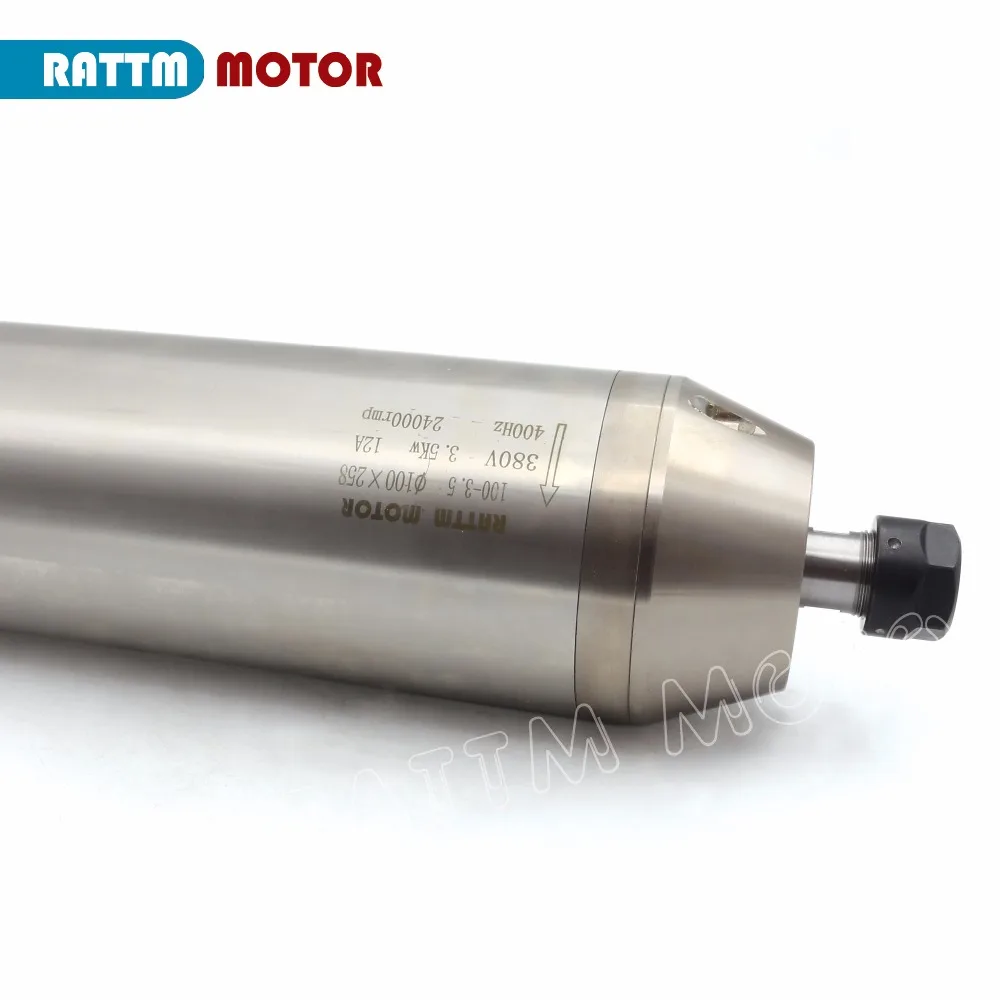

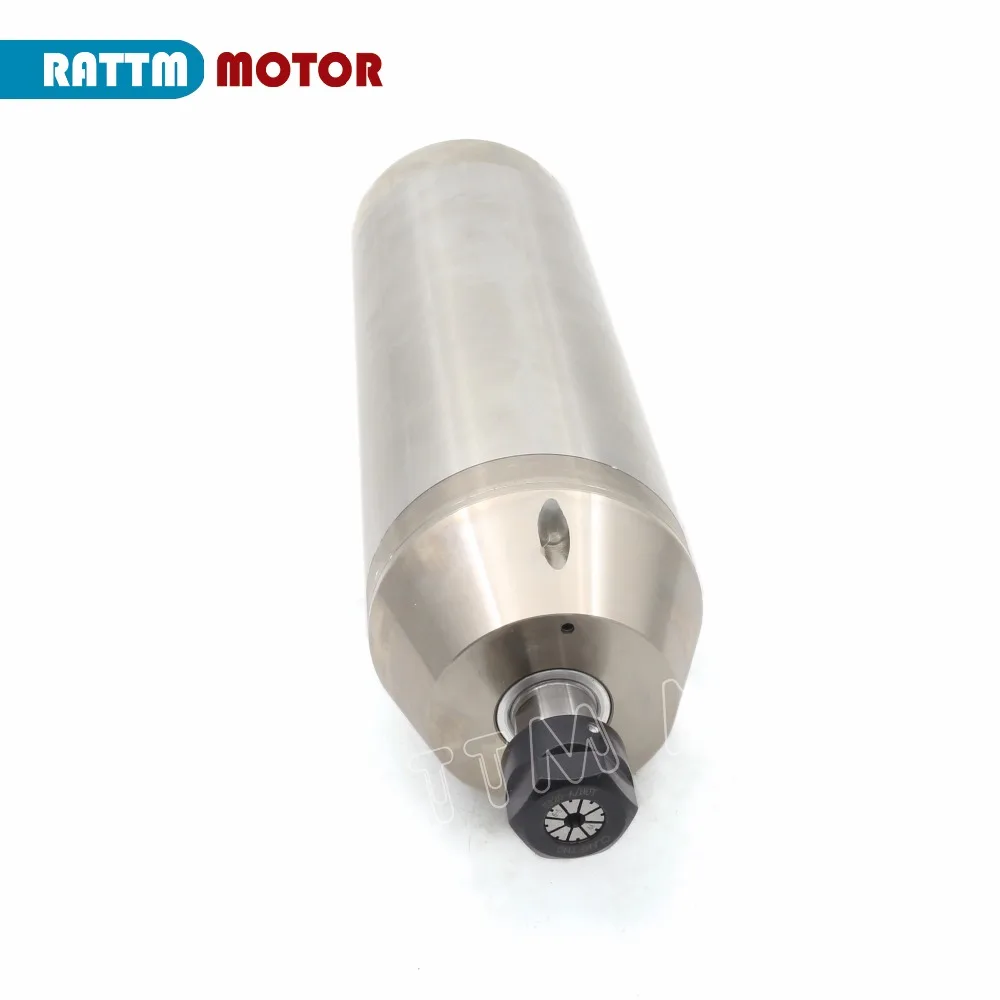

Specification:

Material: Stainless Steel

Size: Φ 100x258mm(long length and high torque)

Power: 3.5Kw

Voltage: 380VAC

Current: 12A

Frequency: 0-400Hz

Speed: 10-24000rpm

Cooling: Water-cooling

Precision tapered bore: 0.01mm

Runout off: Less than 0.01mm

Bearing Lubrication: Grease

Collet size:ER20

Bearings: 4 bearings(C7005x2 + C7004x2),P4 class

Net Weight: 10.95kg

Power supply interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 is blank to avoid connection wrong to burnt the spindle.

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

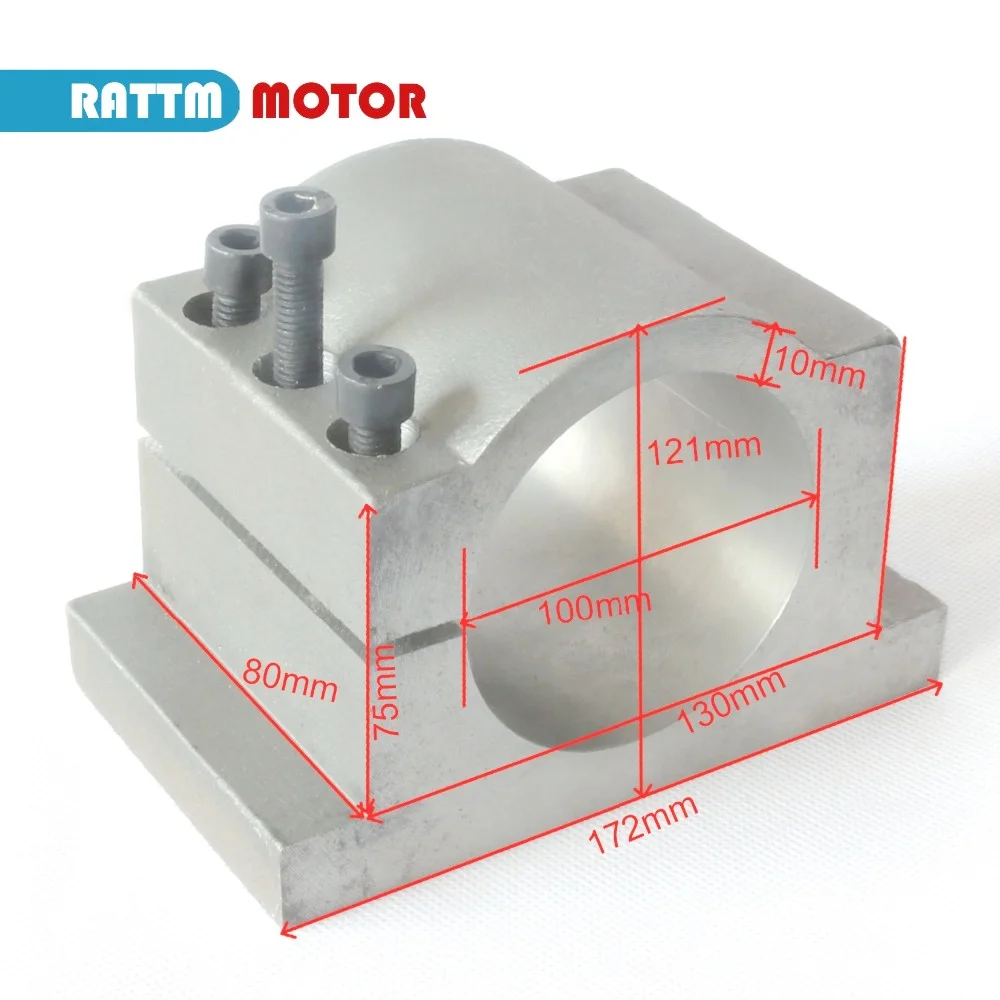

100mm cast aluminium bracket

Diameter: 100mm

Material: Cast aluminium

Features:

Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.

Inner wall is very smooth,  outer walls is sandblasted, relatively fine uniform,  but not very smooth,.

Cast aluminium fixture is much heavier than aluminium profile fixture.

Product Description:

Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.

Usage:

Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error

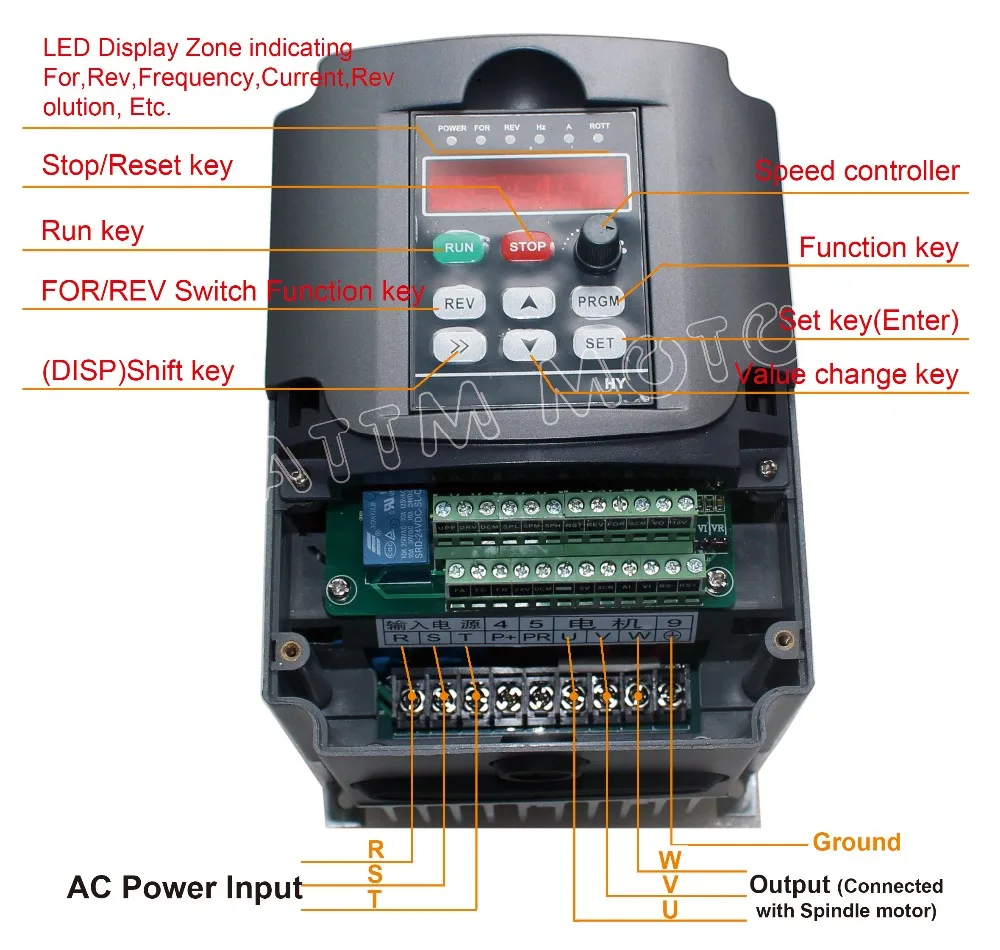

Inverter Type: 380v 9A

Input Voltage: 380V(+/-15%)

Input Frequency: 48-63 Hz

Output Voltage: 380VAC

Output Frequency: 0-400 Hz

Input Phase: 3 phase

Output Phase: 3 phase

Warranty: 1 year from the date you purchased

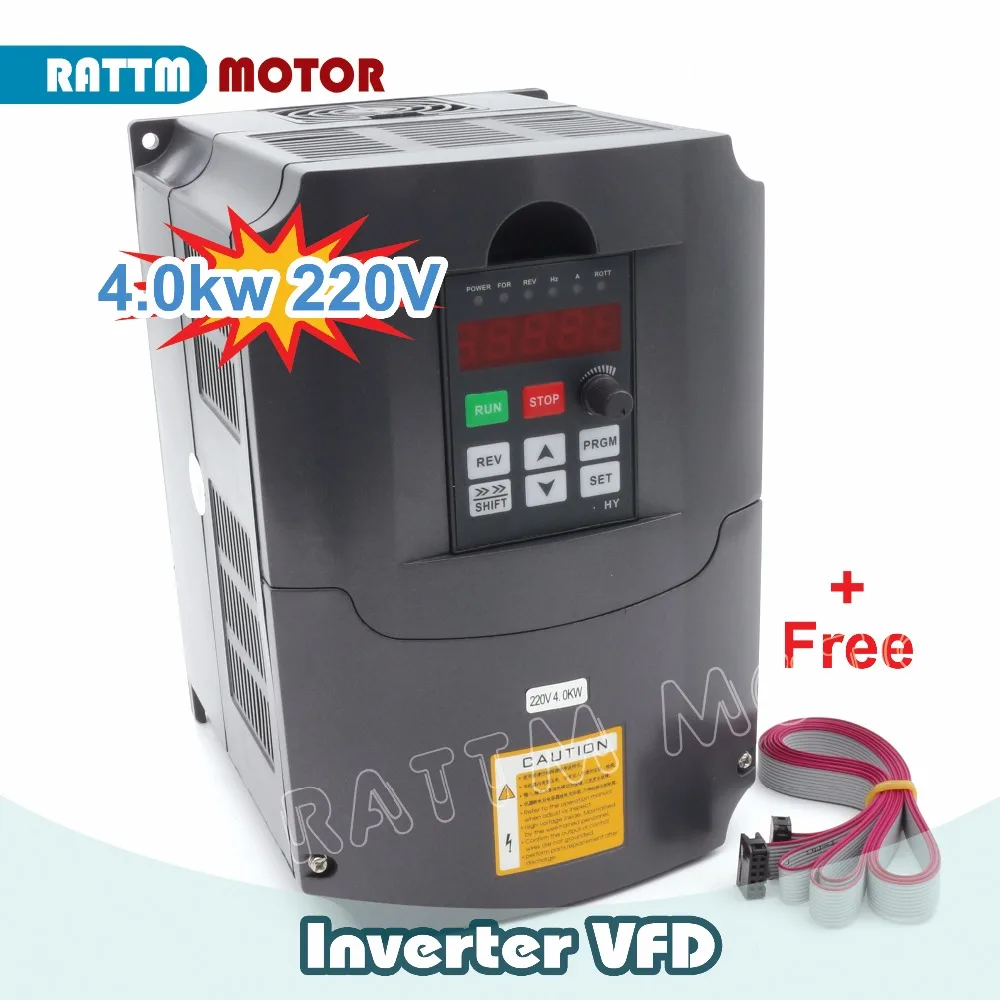

Inverter Type: 220v 17A

Input Voltage: 220V(+/-15%)

Input Frequency: 48-63 Hz

Output Voltage: 220VAC

Output Frequency: 0-400 Hz

Input Phase: 1 or 3 phase

Output Phase: 3 phase

Warranty: 1 year from the date you purchased

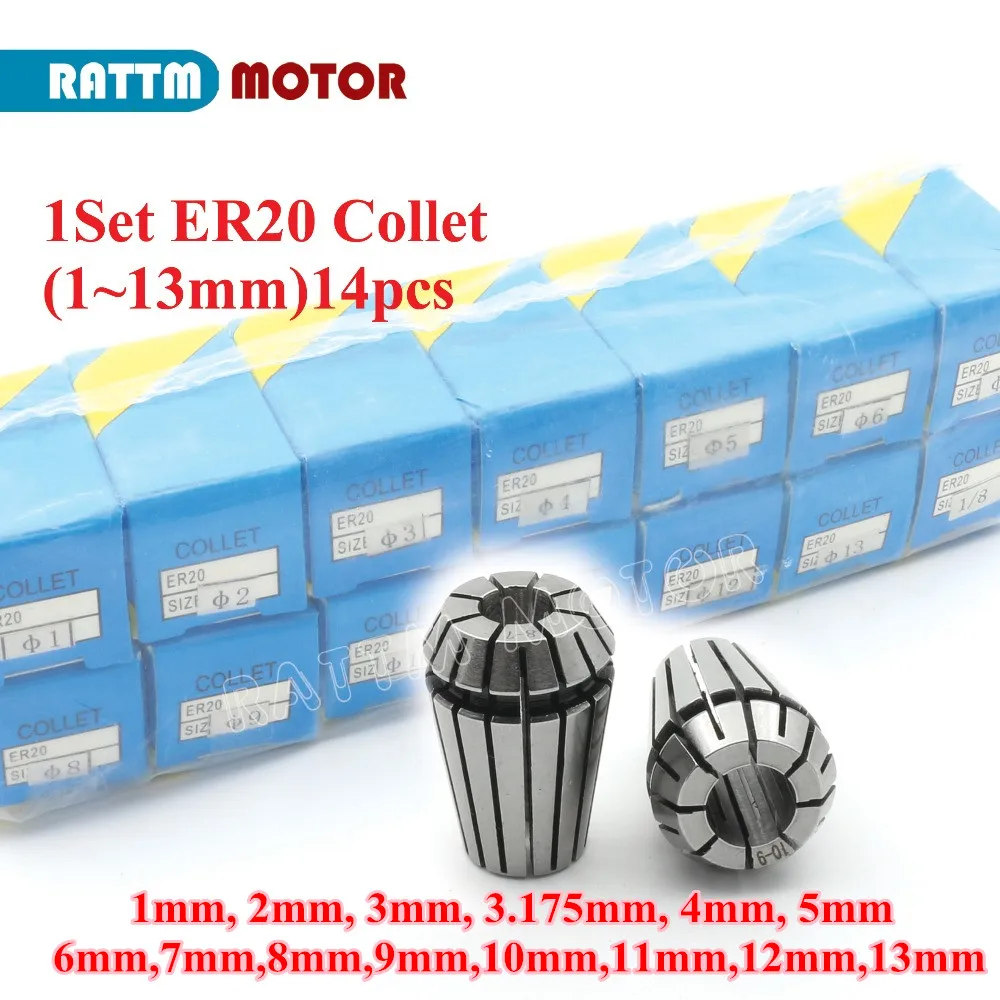

1 Set ER20 Collet
