2-4-10PCS TMR Hall Effect Joystick 3D Analog Stick Sensor Replacement for PS5/PS4/Xbox Series X/S Controller Upgrade Accessories

This product link offers five models:

Compatible with PS4/PS5/Xbox X. Available in three packaging sizes: 2-pack, 4-pack, and 10-pack. Please purchase according to the quantity required. We will ship based on the picture you provide.

Please check carefully before placing your order. We do not accept refunds for any errors.

2. If you select "For Xbox," this option will only work with Xbox One/Xbox One X/Xbox One S/Xbox Series X/Xbox Series S models. Due to different calibration standards, this option will not work with the Xbox Elite. Similarly, if you select "For PS5," this option will not work with the PS5 Elite. It only works with the PS5.

Please select the model you require. We will send you an image of your selected model. Thank you!

Purchasing Instructions:

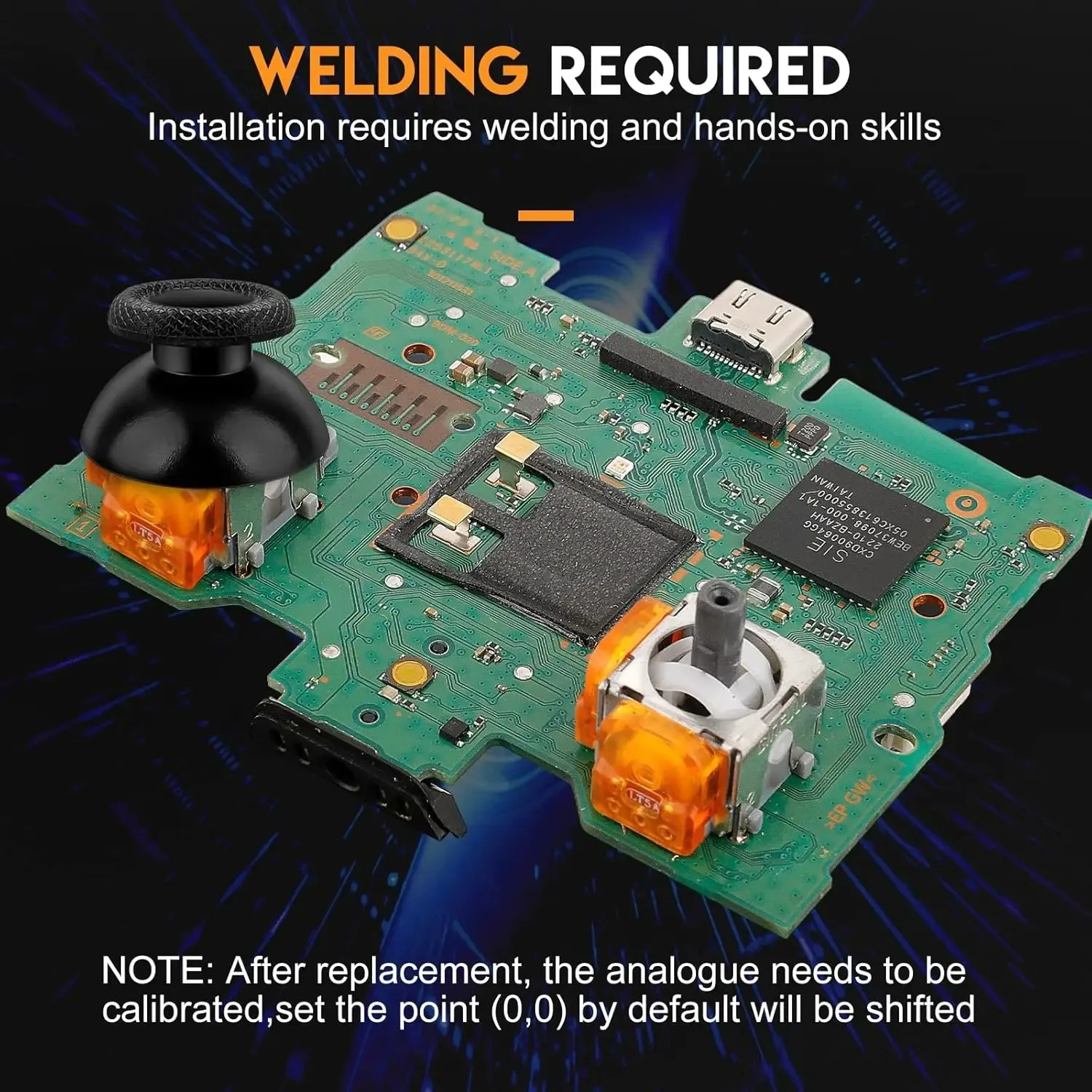

1. The left and right joysticks are interchangeable. Soldering skills are required to replace the joysticks. Hands-on users can purchase directly. This shop only sells accessories and does not provide technical guidance. Modifications and repairs are personal and we are not responsible for the consequences of such modifications or repairs.

2. PS5 Elite controllers, Xbox One controllers, and Xbox Elite controllers are not software-calibrated and may have significant errors. We do not recommend their use.

3. PS5/PS4 controller joystick calibration: Use the third-party open-source calibration tool (dualshock-tools.github.io) to calibrate the joysticks.

4. For disassembly instructions, visit iFixIt.

Description:

1. About the TMR electromagnetic joystick: The TMR joystick utilizes advanced tunnel magnetoresistance technology. Its operating principle is based on the tunnel magnetoresistance effect of magnetic multilayer thin film materials. It uses a TMR sensor. When the joystick is rotated, the magnitude and direction of the magnetic field change. When the magnetic field acts on the TMR sensor, the magnetic moment of the ferromagnetic layer changes, thereby altering the spin polarization in the tunnel structure, which in turn affects the tunnel resistance, achieving an effect similar to the resistance change of a carbon film structure. The joystick value is output by measuring the tunnel resistance.

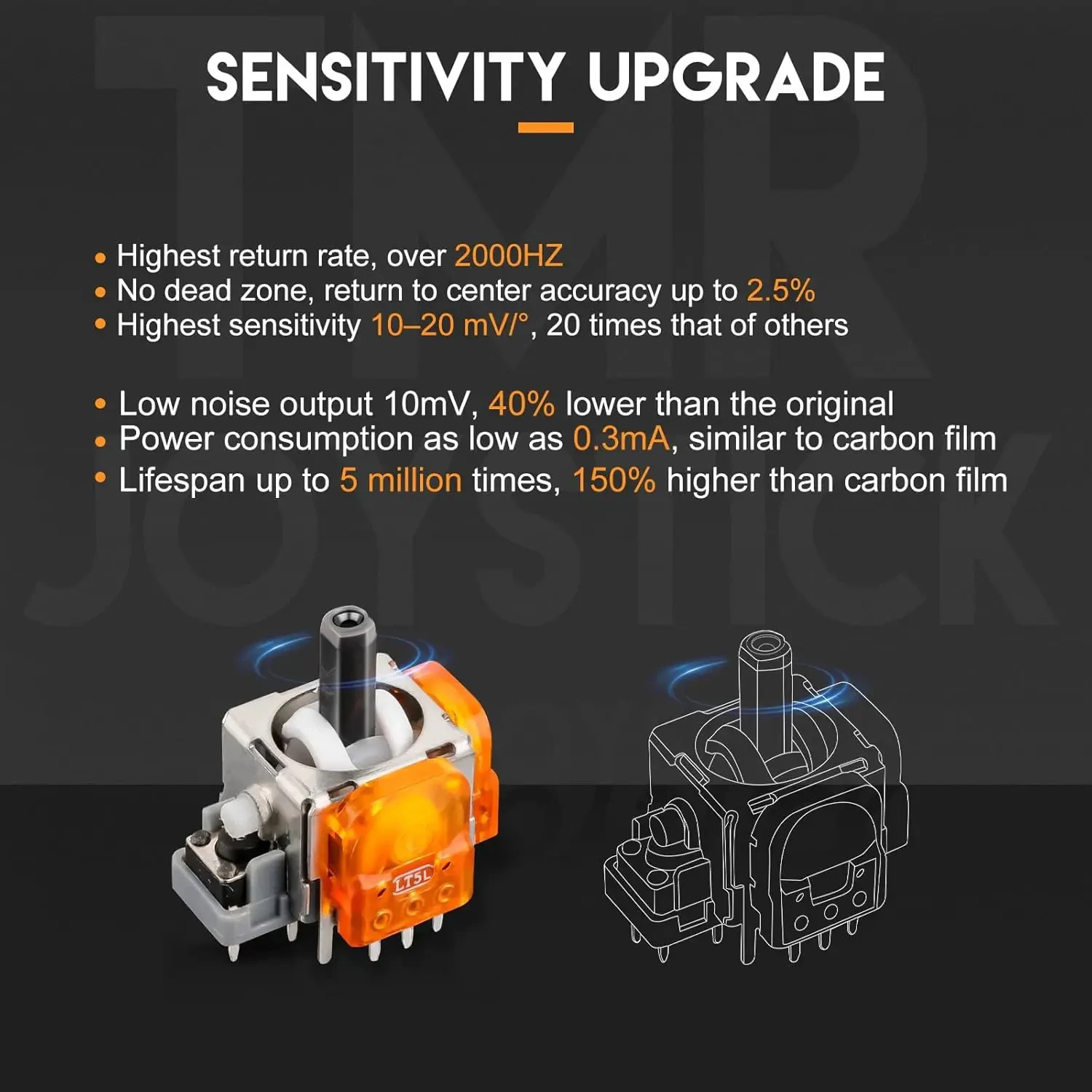

2. Advantages of the TMR electromagnetic joystick: Compared with traditional carbon film joysticks, TMR joysticks combine the long life and zero drift characteristics of Hall effect joysticks with the high precision and low power consumption of carbon film joysticks. They offer higher sensitivity and resolution, achieving millimeter-level feedback accuracy, fundamentally eliminating joystick drift.

3. High Sampling Accuracy: A new 12-bit sampling chip enables 4096 joystick sampling levels, enabling precise transmission of subtle movements.

4. Low Power Consumption: Utilizing a custom low-power TMR chip, single-chip power consumption is as low as 200μA, extending the battery life of the game controller.

5. Good Linear Response: The output voltage exhibits excellent linearity within the specified range, providing precise operational feedback, allowing players to accurately grasp the status of their game characters.

6. Strong Anti-Interference: The impact of electromagnetic interference (EMI) and radio frequency interference (RFI) is virtually zero, and it is generally unaffected by high-frequency vibration or movement.

6. Long Lifespan: The non-contact design reduces wear and drift, ensuring a long service life.

7. Comfortable Handfeel: Some models support stepless damping adjustment, allowing you to adjust the damping strength via the knob on the handle to suit different games.

Parameters

Recommended Age: 18+
Place of Origin: Mainland China

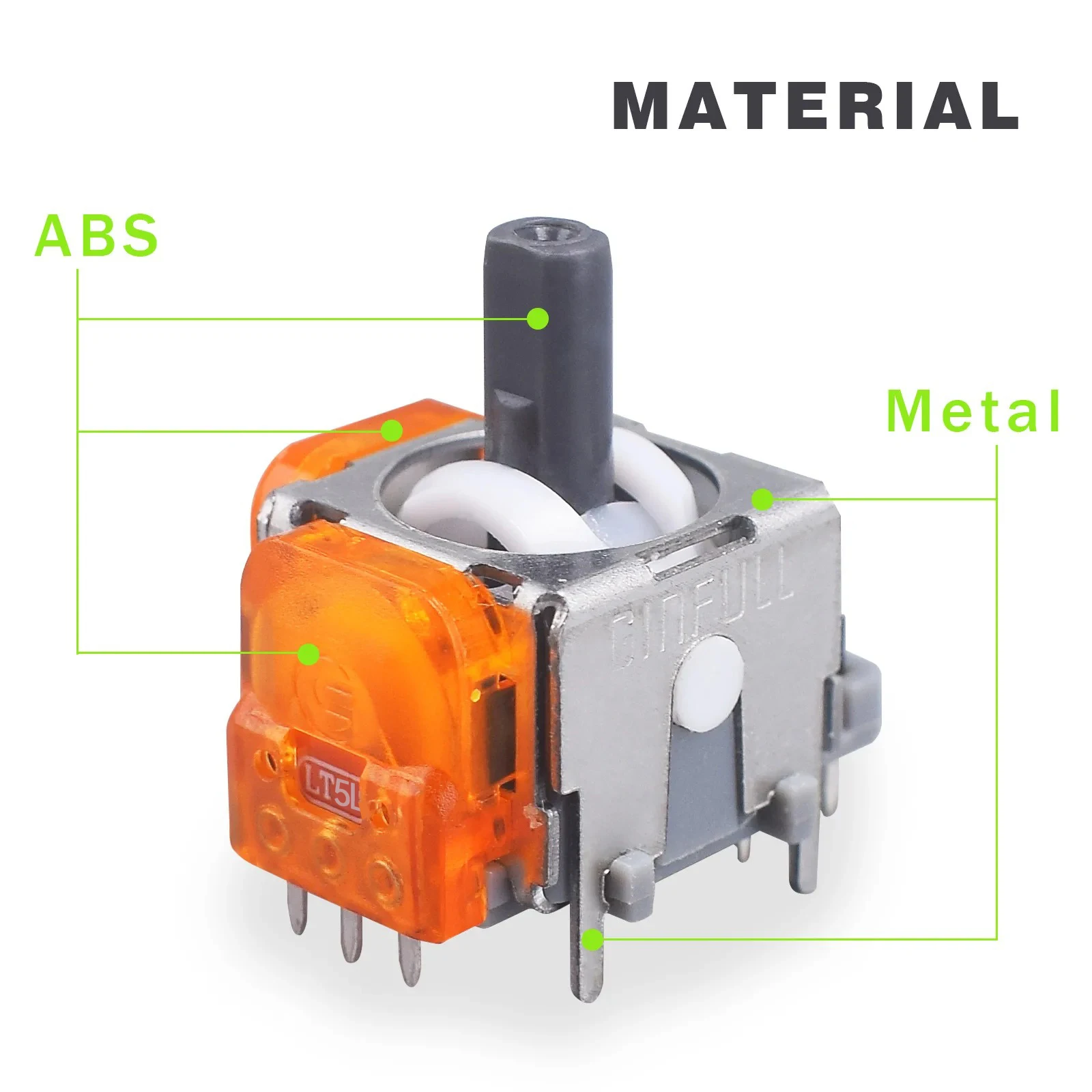

Material: Plastic

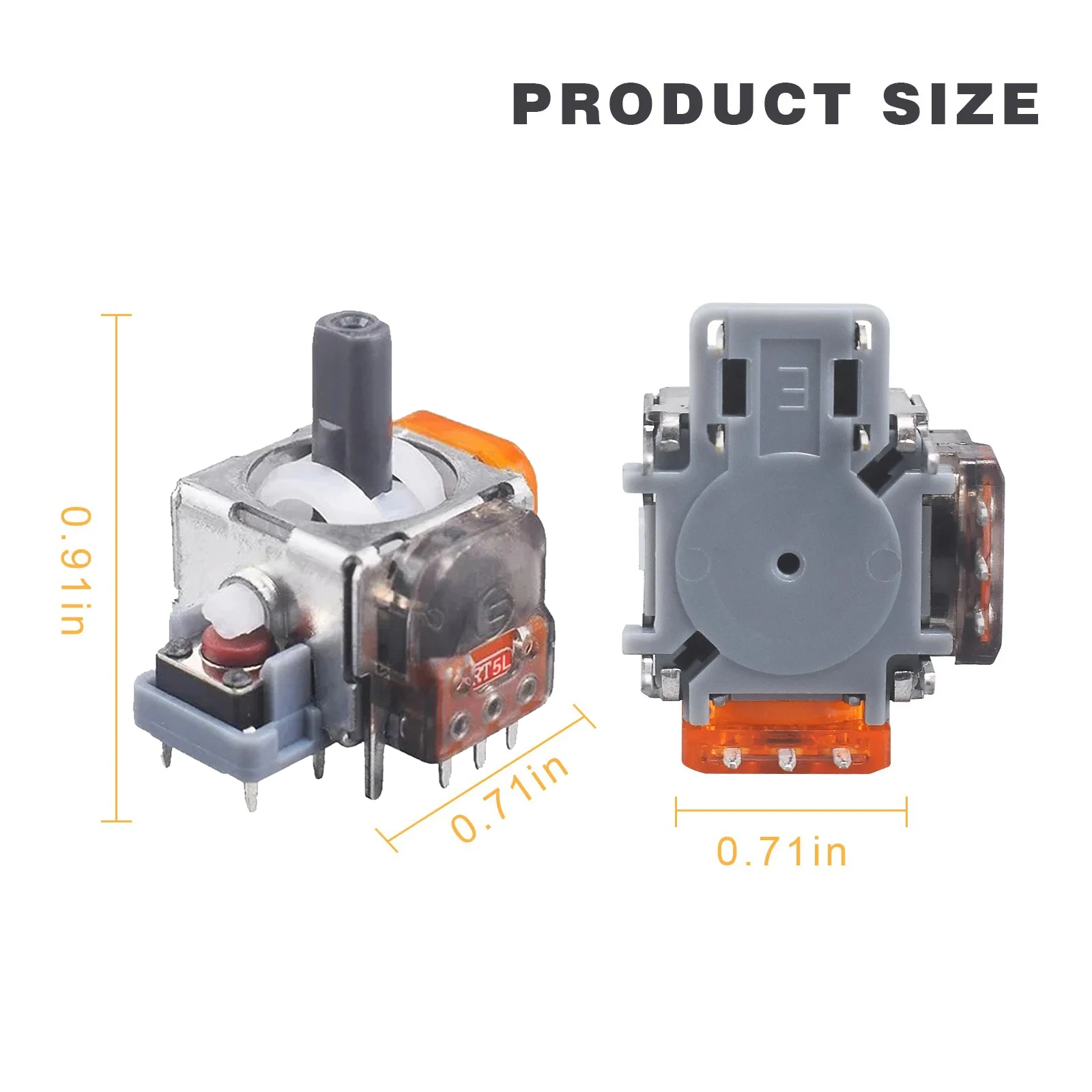

Dimensions: 20*15*15mm
Battery: No batteries
Quantity: 1 PCS

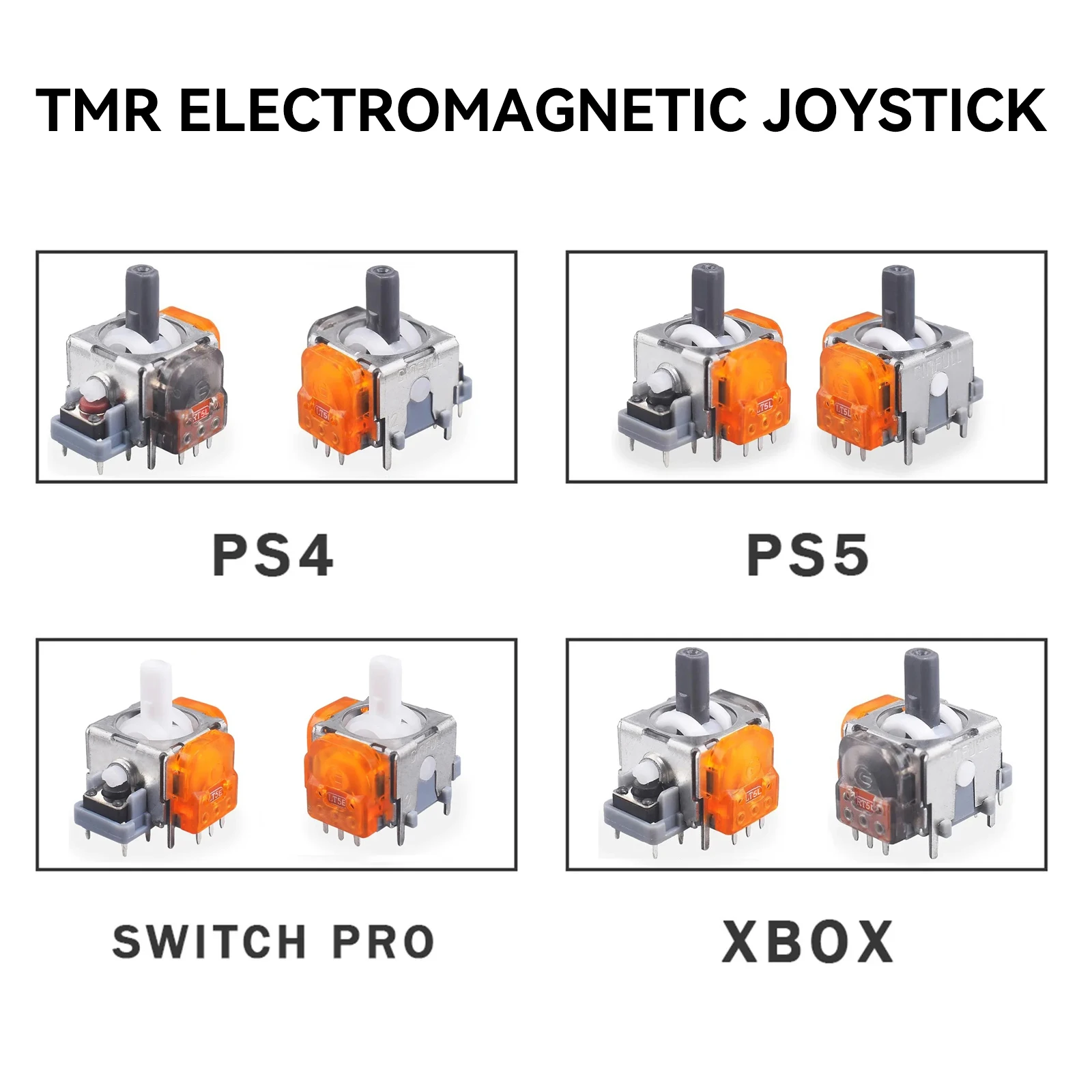

Compatible Models: PS4/PS5/Xbox (optional)

Package Includes:

1* TMR-3D Analog Joysticks

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement
