Product description:

1 channel relay module

Maximum load: AC 250V/10A, DC 30V/10A

Trigger current: 5mA

Working voltage: 5V

Module size: 50 x 26 x 18.5mm (L x W x H)

Four mounting bolts holes, diameter 3.1mm

DC+: positive power supply (VCC)

DC-: negative power supply (GND)

IN: can be high or low level control relay

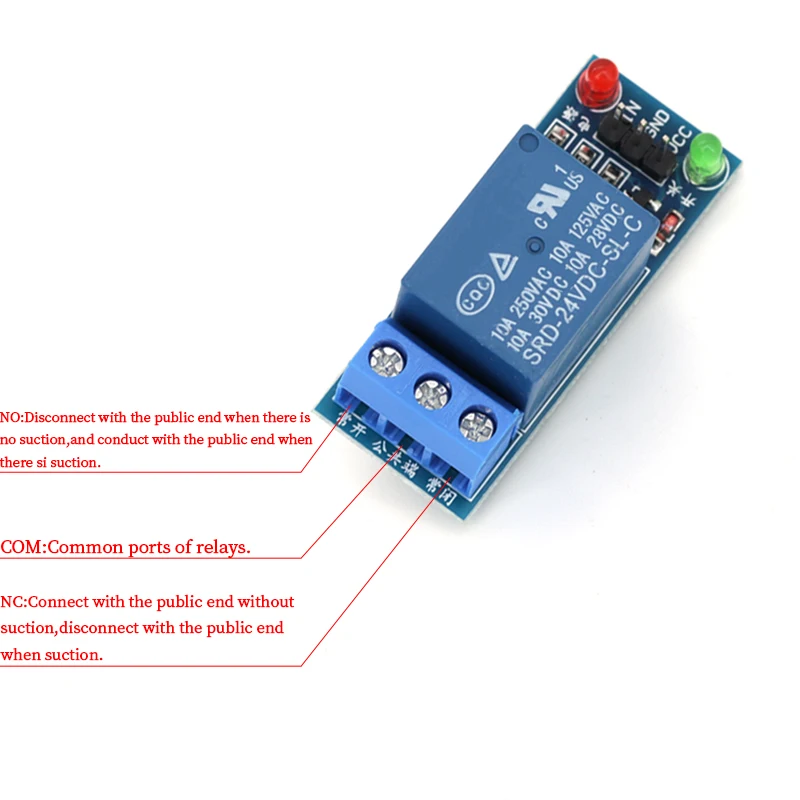

NO: normally open relay interface

COM: Common Interface Relays

NC: normally closed relay interface

2 channel relay module

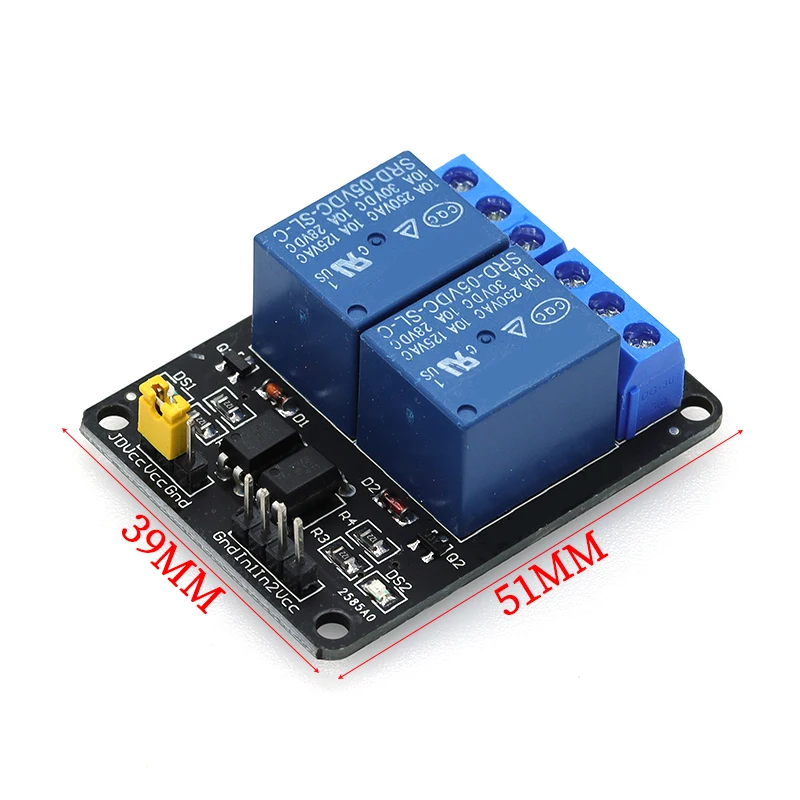

1 Dimensions: 50.5mm (length) * 38.5mm (W) * 18.5 (H)

2 Weight:. 31g

3.PCB Color: Black

4 board four weeks with four screws holes, hole diameter 3.1mm, easy to install and fixed

5 relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal

6 optocoupler isolation, good anti-jamming

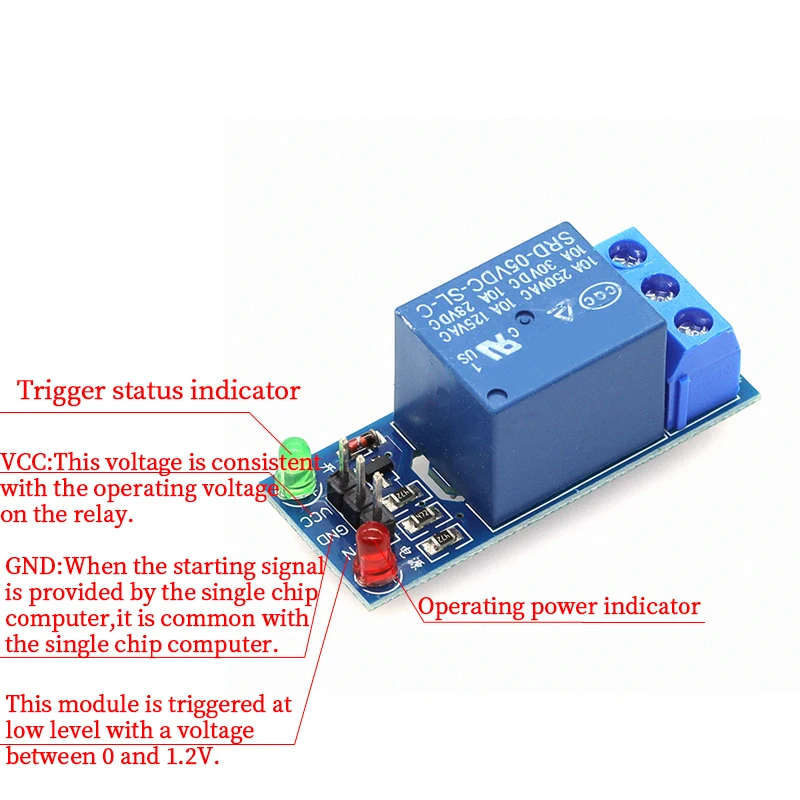

7 low pull, high release. Energisation status indicator light, release status LED is off

8.VCC of system power, JD_VCC relay power. You can plug in jumpers

Electrical parameters:

Supply voltage: 5VDC, 12VDC

Current: more than 100mA

Load: 250V 10A AC or 30V 10A DC

Wiring:

VCC: positive power supply system

GND: System power negative

IN1 - IN2: relay control ports

4-channelrelayoutput modules,relayoutput contacts250A 10A.InputIN1,IN2,IN3, IN4,the signal lineLOWeffective.VCC, GNDpower input,canrelaya separatepowersupplyrelaypowerinput ofJD-VCC.

Uses:

1,supportallMCU control.

2,theindustrial sector;

3, PLCcontrol;

4, smart homecontrol

8 channel relay module

Features

Using high-current relay , AC250V 10A DC30V 10A

Contact some independent wiring , safe and reliable

Standard interface , can be extended in a variety of development board

With fixed screw holes for easy installation

Suitable for a variety of platforms such as 51/AVR/AVR/ARM

Module Description :

1 , the module complies with international safety standards , the load control area and regional isolation tank ;

2, using double-sided FR-4 circuit board design, high-end chip production process ;

3, using loose music authentic relay control ;

4, with the relay instructions , pull off, disconnect does not shine ;

5, the signal input has a low signal , often beginning with a common terminal will be turned on ;

6 , the relay can control the various devices and the load ;

7 , 8 and 8 normally open normally closed contact ;

8 , blue KF301 terminals to the control line is more convenient.

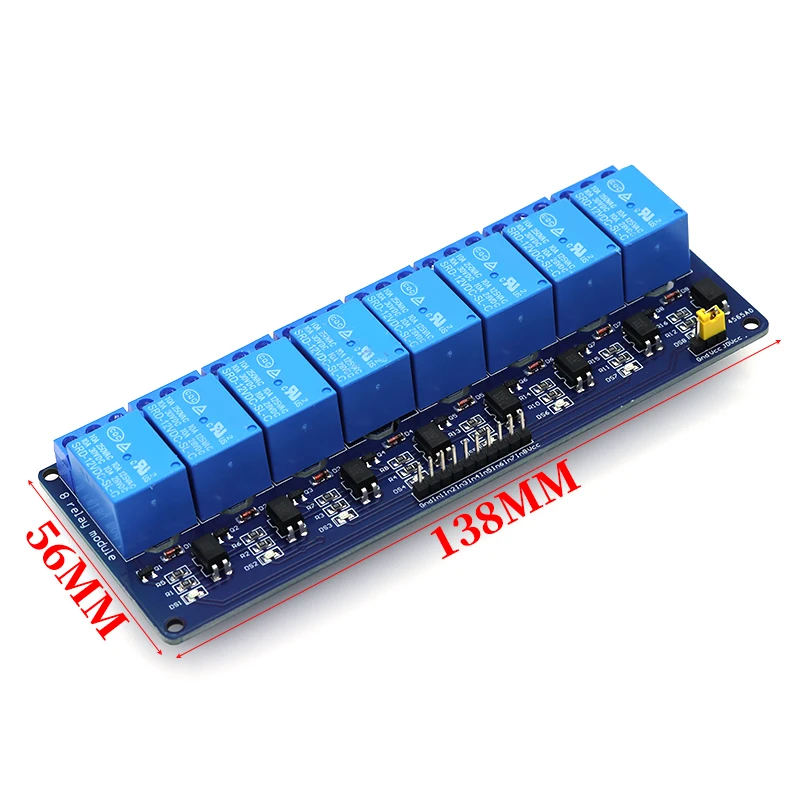

9 , Module size : 138m * 56mm * 18.5mm ( L * W * H ) , Weight : 120g

10 with 4 fixing bolt holes , hole 3.1mm, pitch 131mm * 49.5mm

11 , finished by 100% functional testing and stability testing

Two module interface :

1, VCC: 5V power supply connected to the positive

2, GND: 5V power supply connected to the negative

3, IN1-IN8: trigger signal , active low

Relay outputs : a 12- line interface, the interface can be directly connected to all leads , user-friendly

1, NO1 - NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM

2, COM1 - COM8 Relay Common Interface

3, NC1 - NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant

Tips: choose the same channel, and will pay less freight
