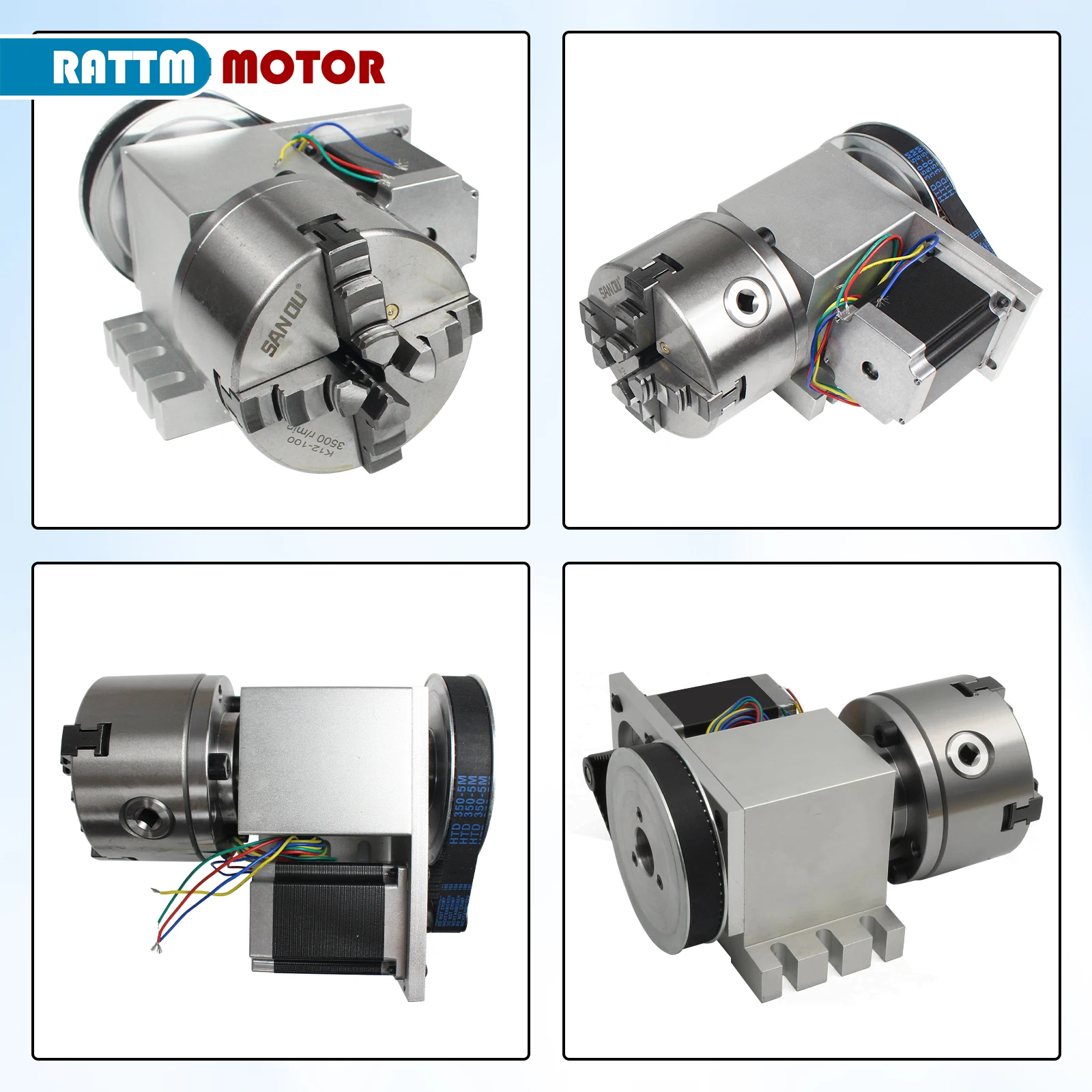

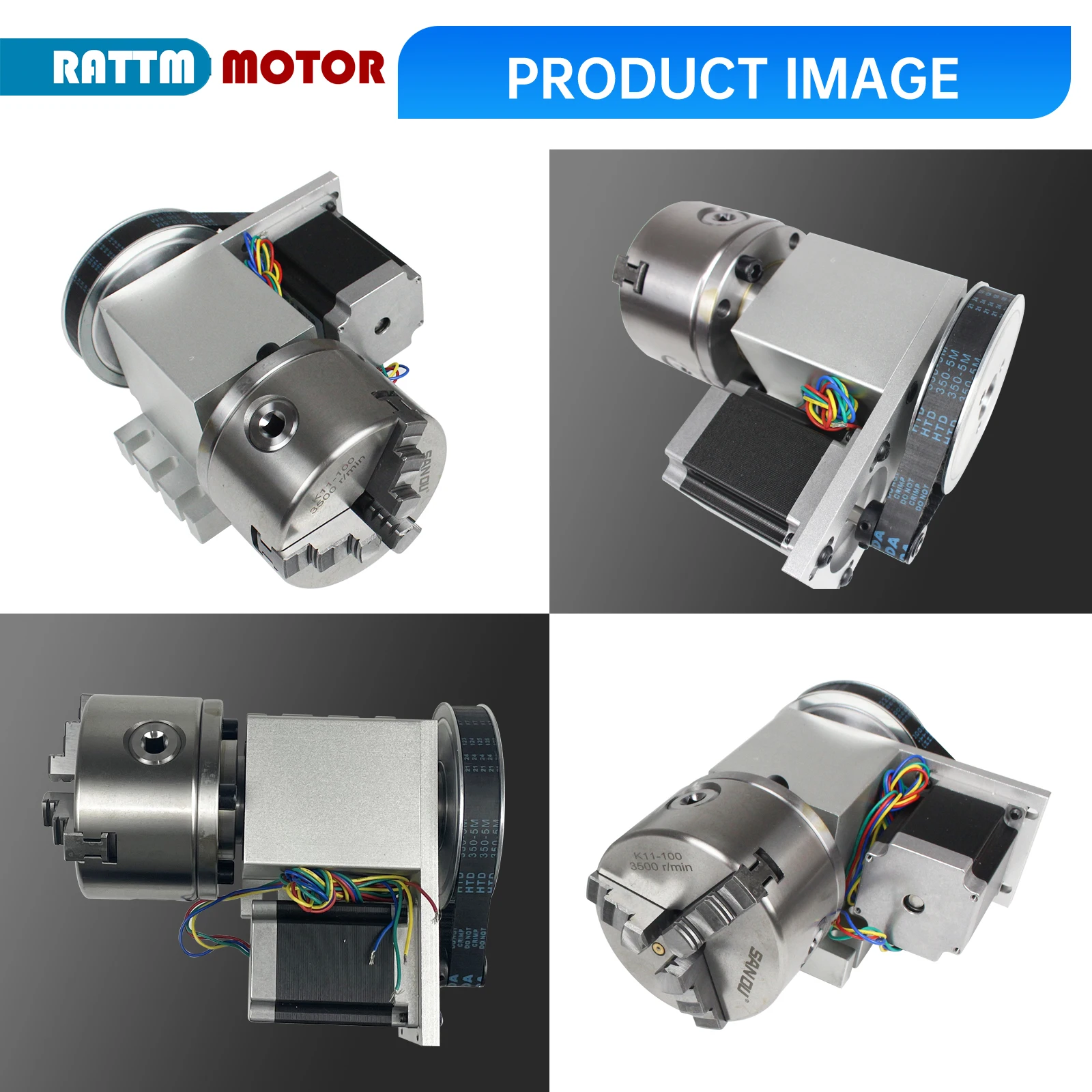

【EU BR】K11-100/K12-100mm 3/4 Jaw Chuck 100mm 4th Axis + Tailstock Kit for Mini CNC Router/Woodworking Engraving

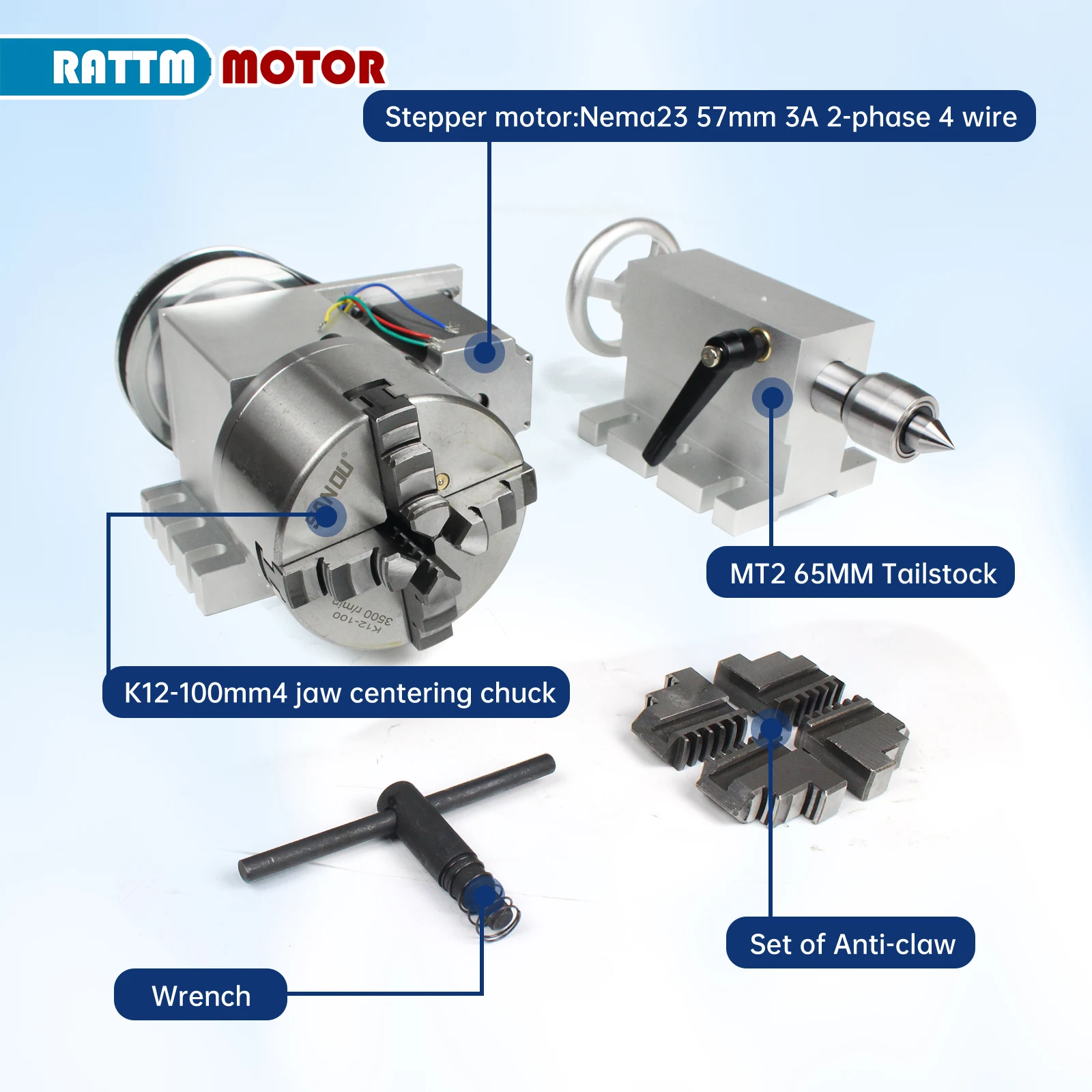

Package Includes:

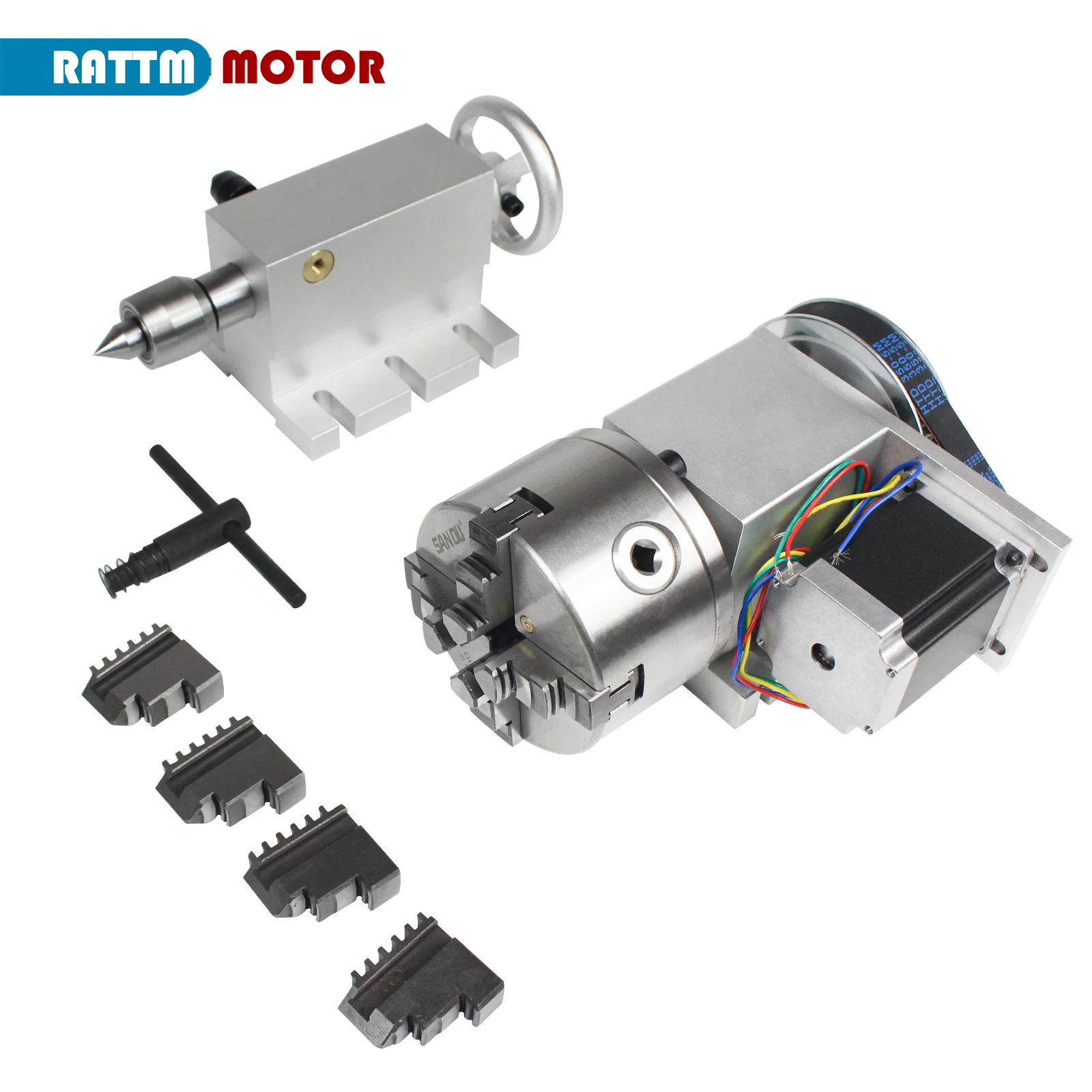

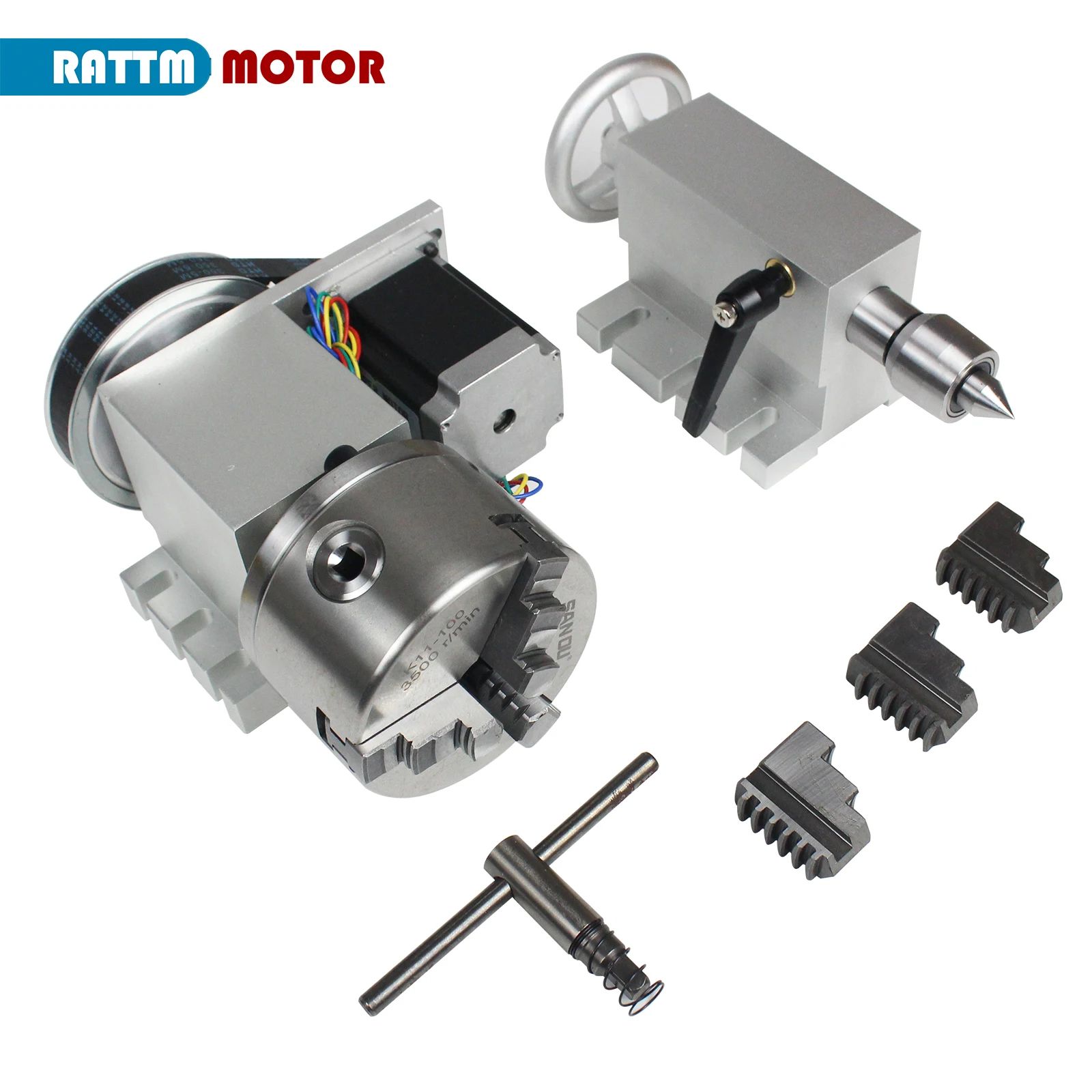

1 set CNC 4th axis (including motor and K12-100MMchuck/K11-100MM) 1 x tailstock

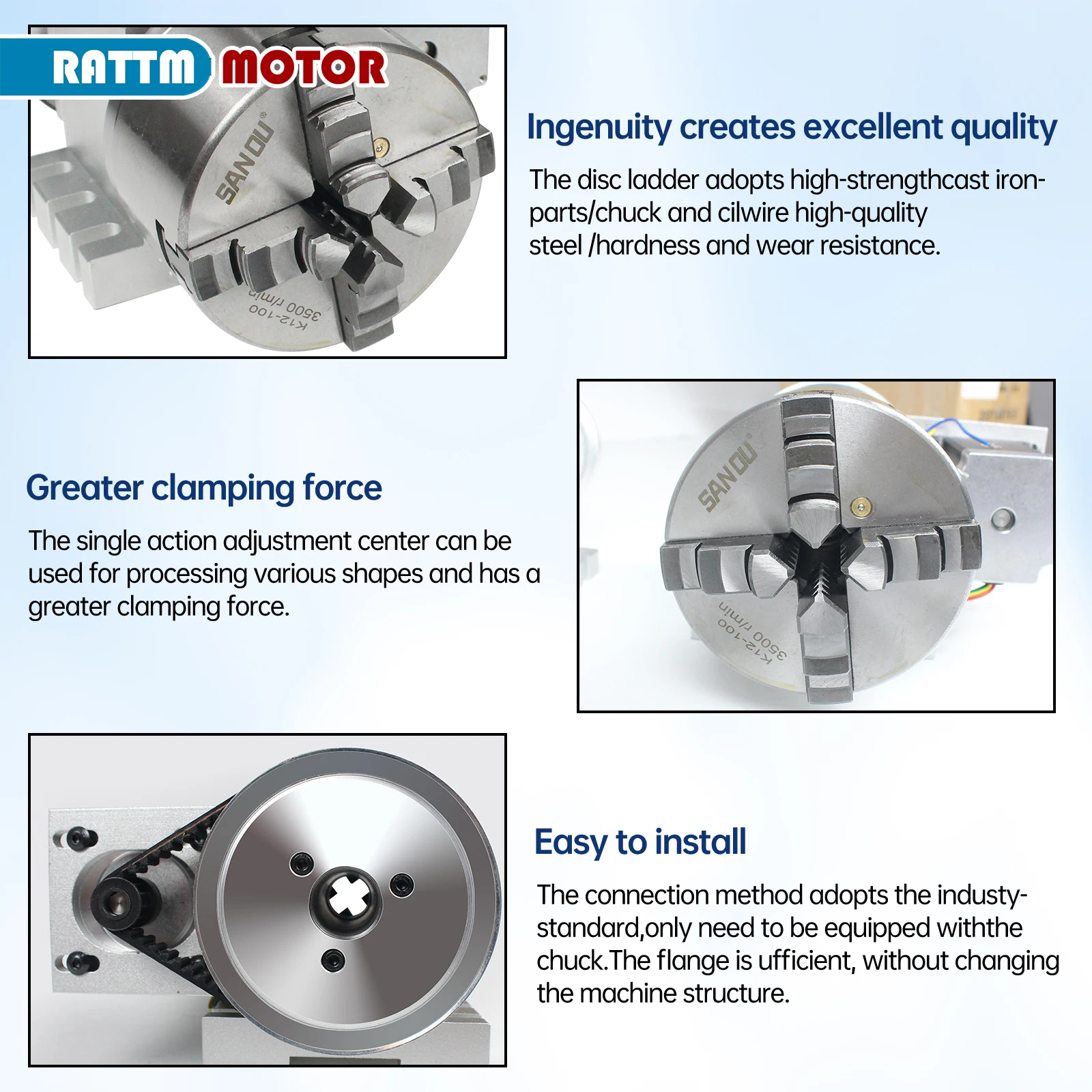

1、4 Jaw K12-100mm

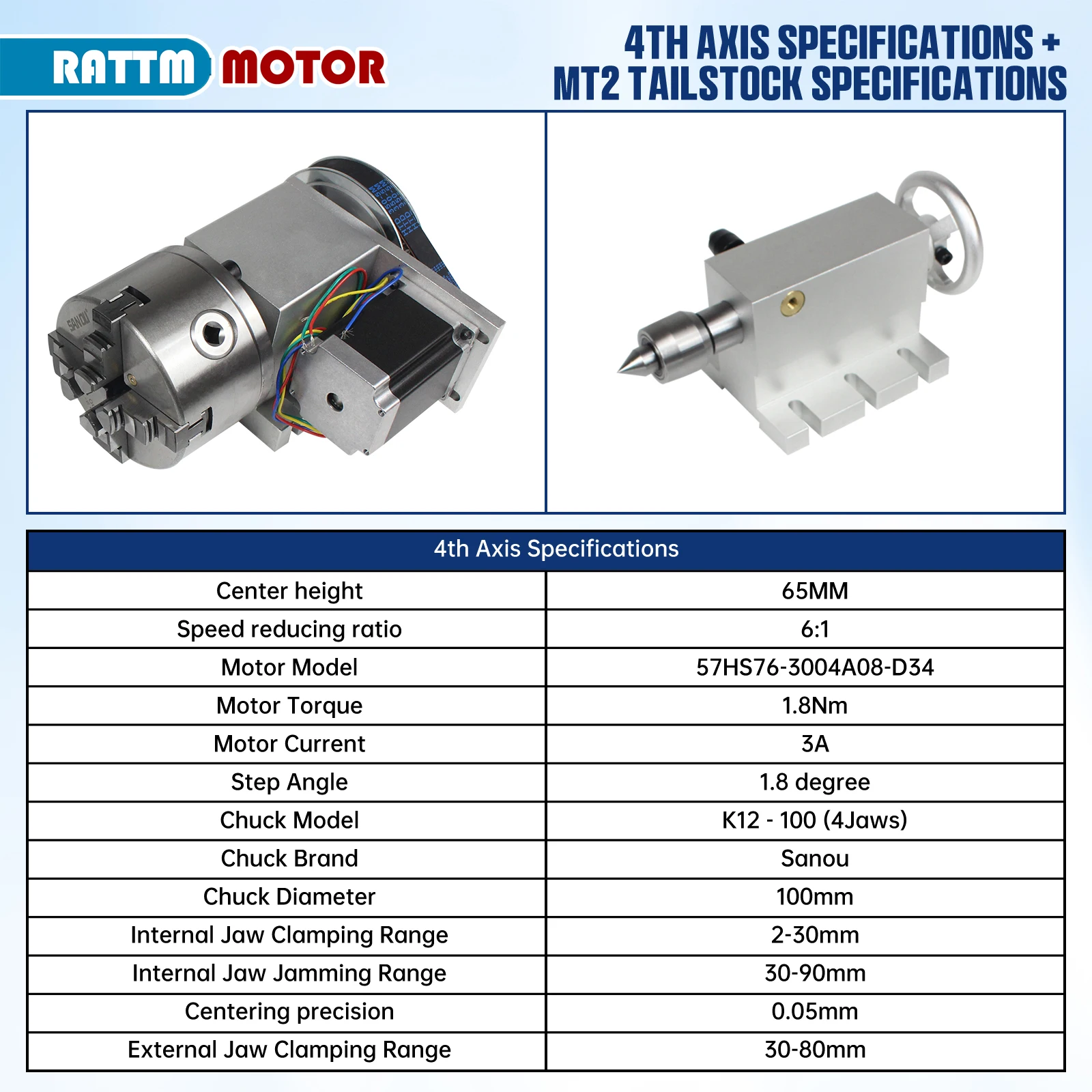

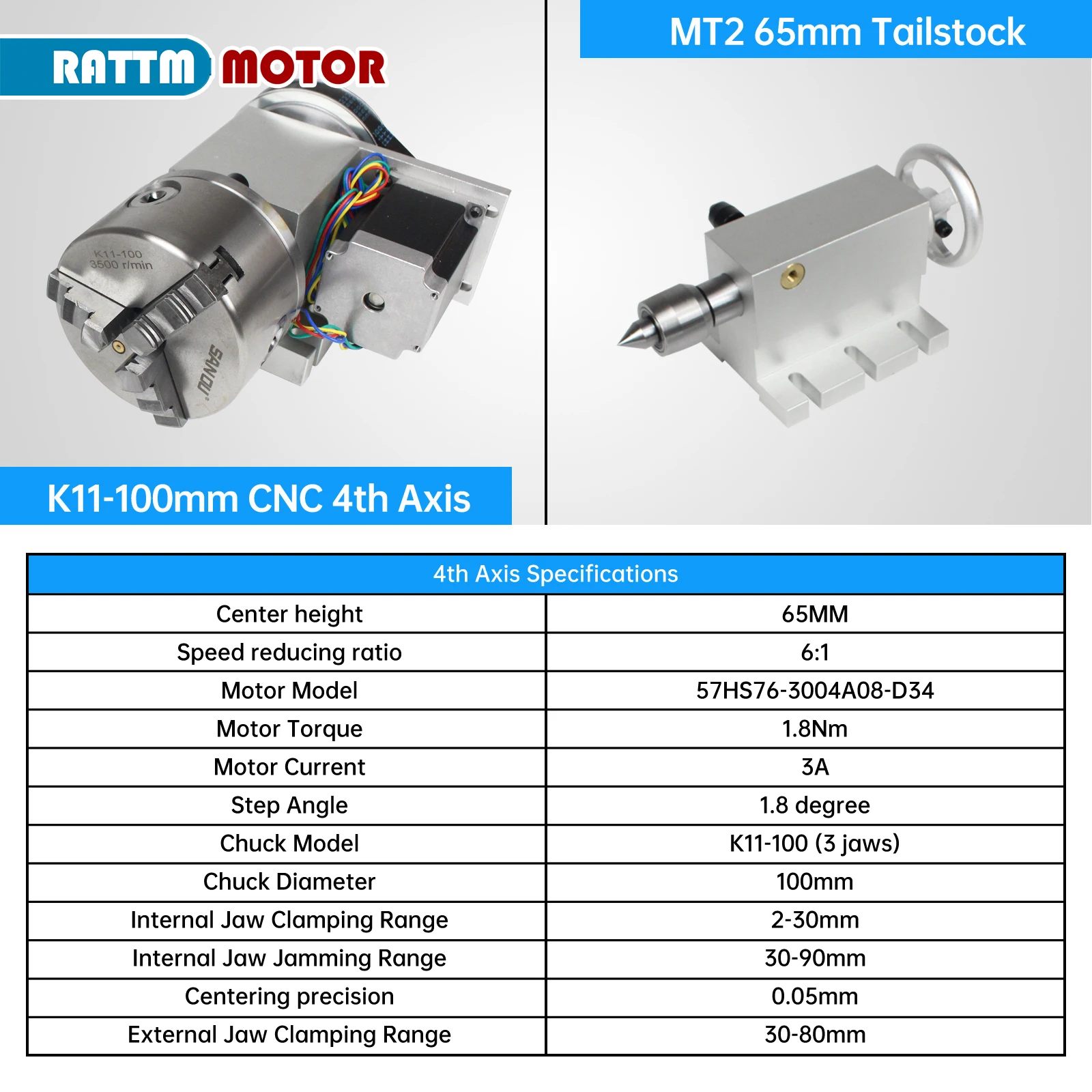

Engraving machine fourth axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox

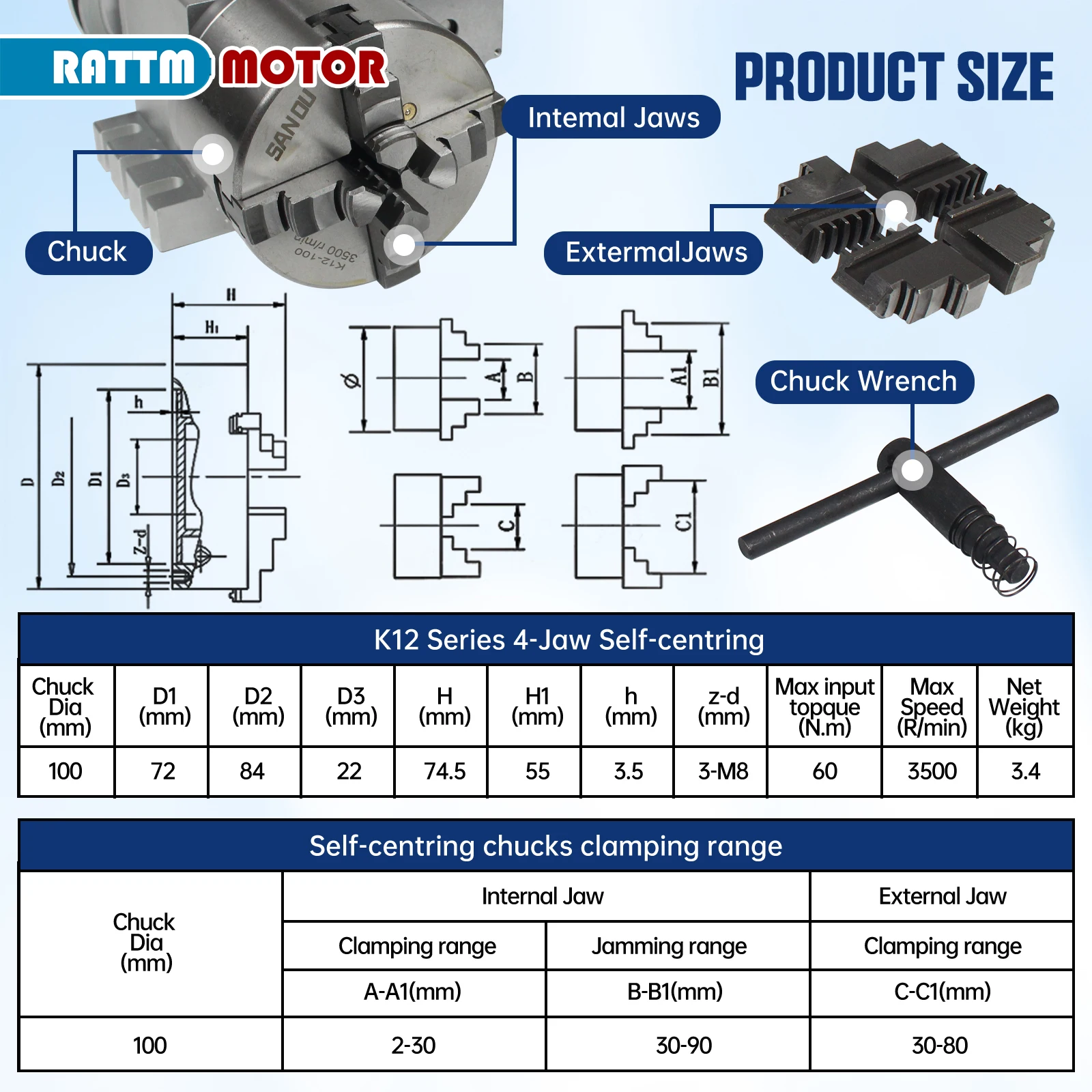

Chuck type: K12 100mm 4 jaw centering chuck

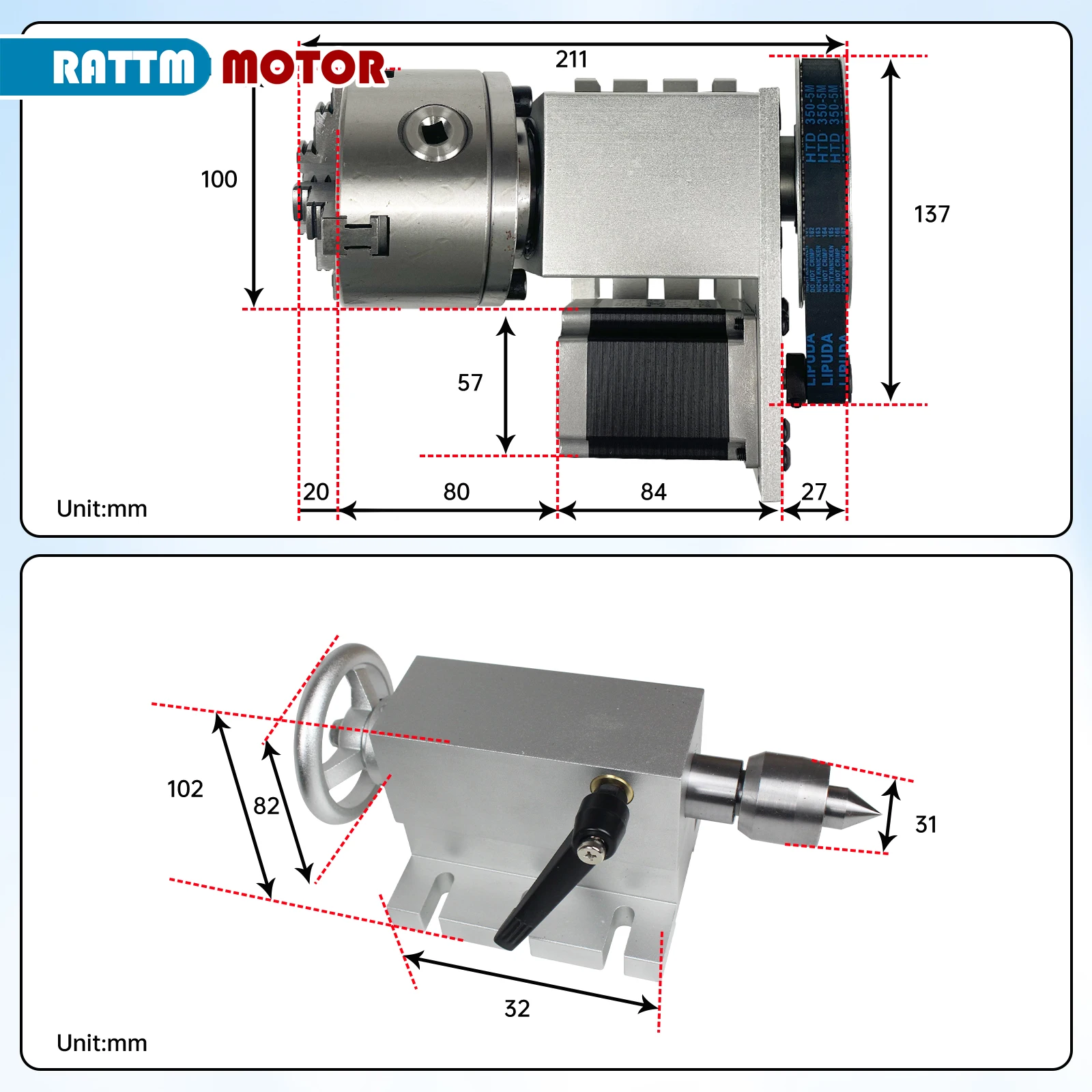

Center height: 65mm

Total height: 115mm

Angle: 0.3°/ step

Gear box output shaft diameter: 25mm

Reducing ratio: 6:1(belt deceleration mode)

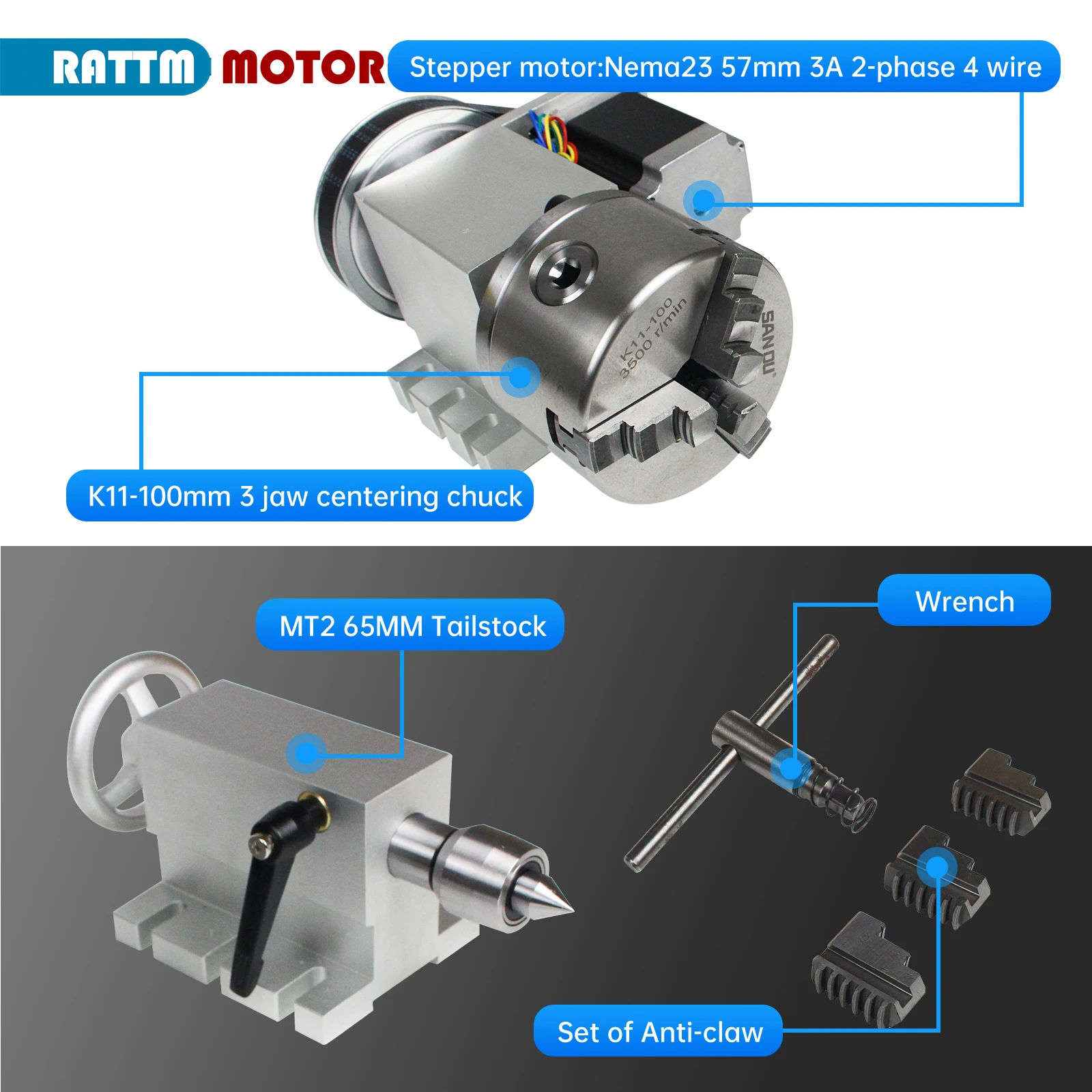

Stepper motor: Nema23 57mm 3A 2-phase 4 wire

Accessories: Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings: the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings: 1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125

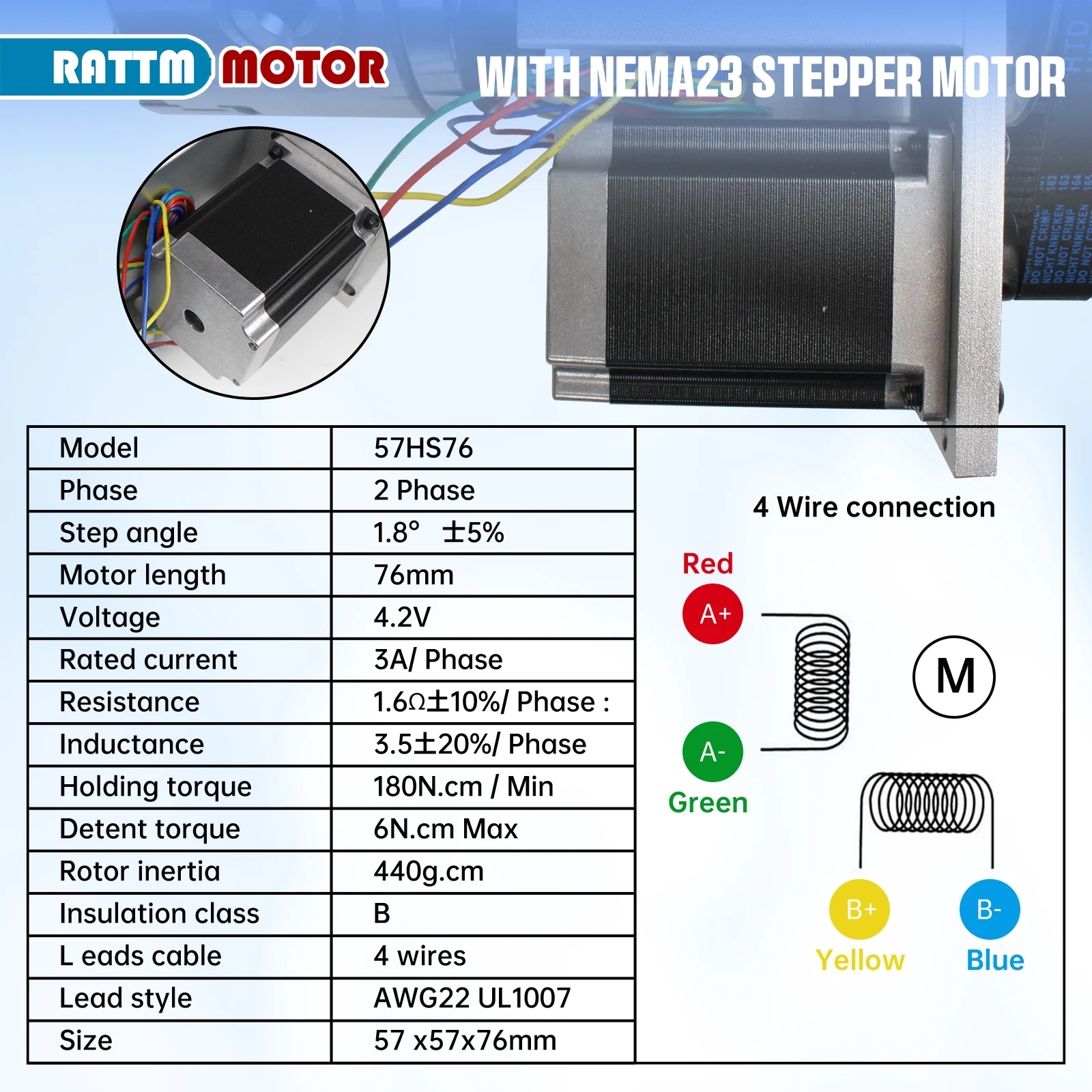

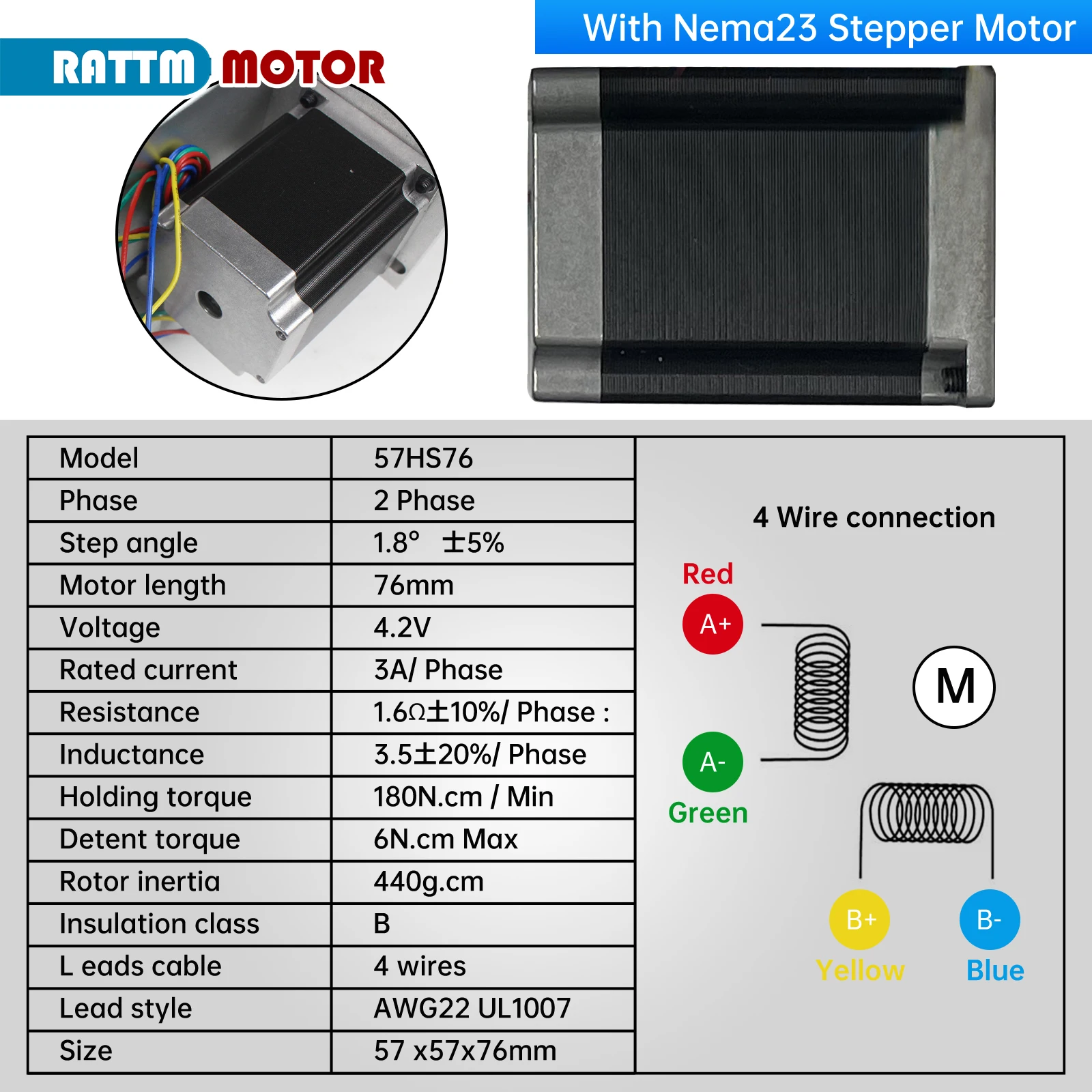

Stepper Motor:

Nema 23 57x57x76mm

Shaft Diameter: 8 mm

Shaft length: 25.5mm

Step Angle: 1.8

Current: 3A

Voltage: 4.2V

Temperature Rise: 80 c max

Ambient Temperature: -20 c - + 50 c

Phase No.: 2HP

Insulation Resistance: 100MOhm (500V DC)

Holding Torque: 18kg.cm

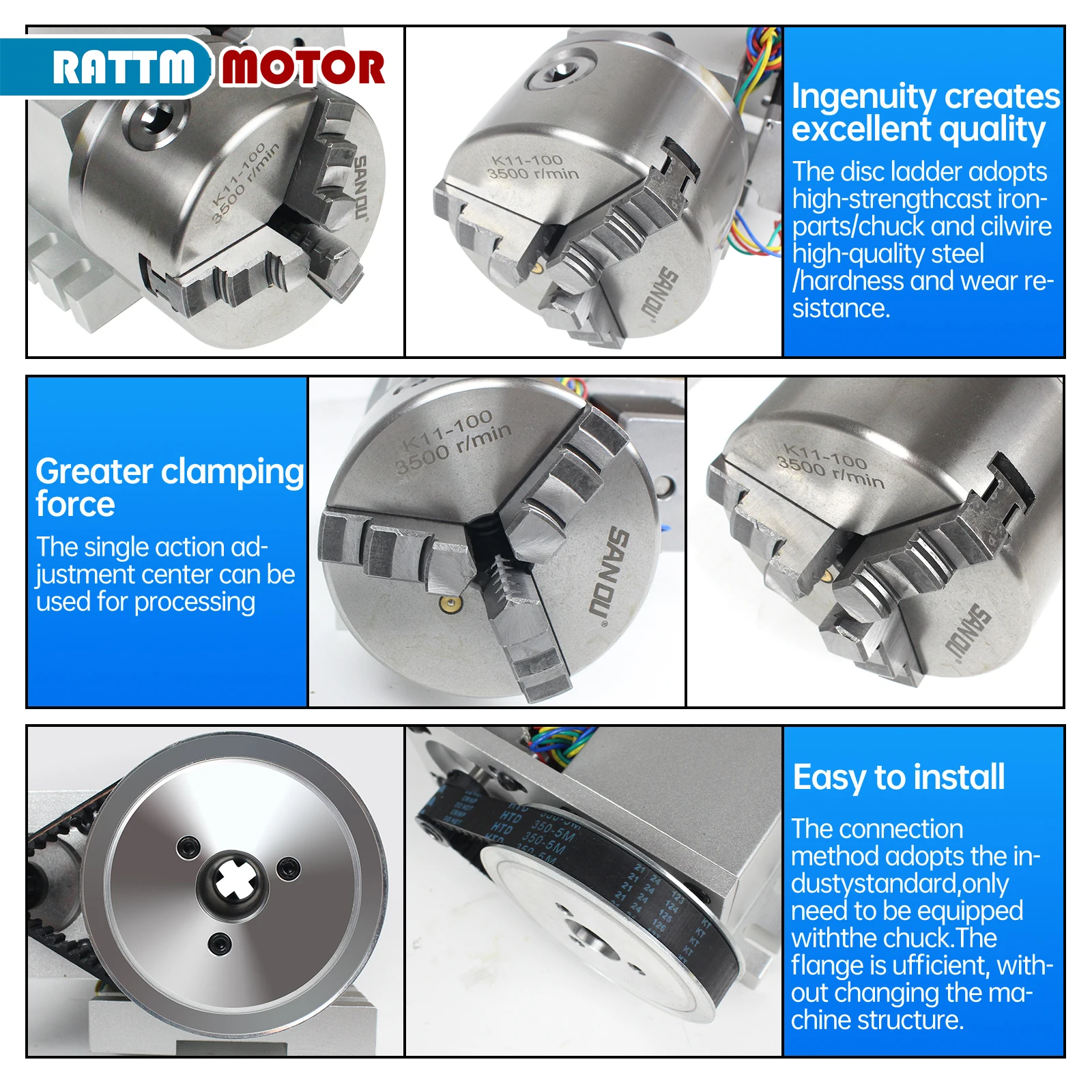

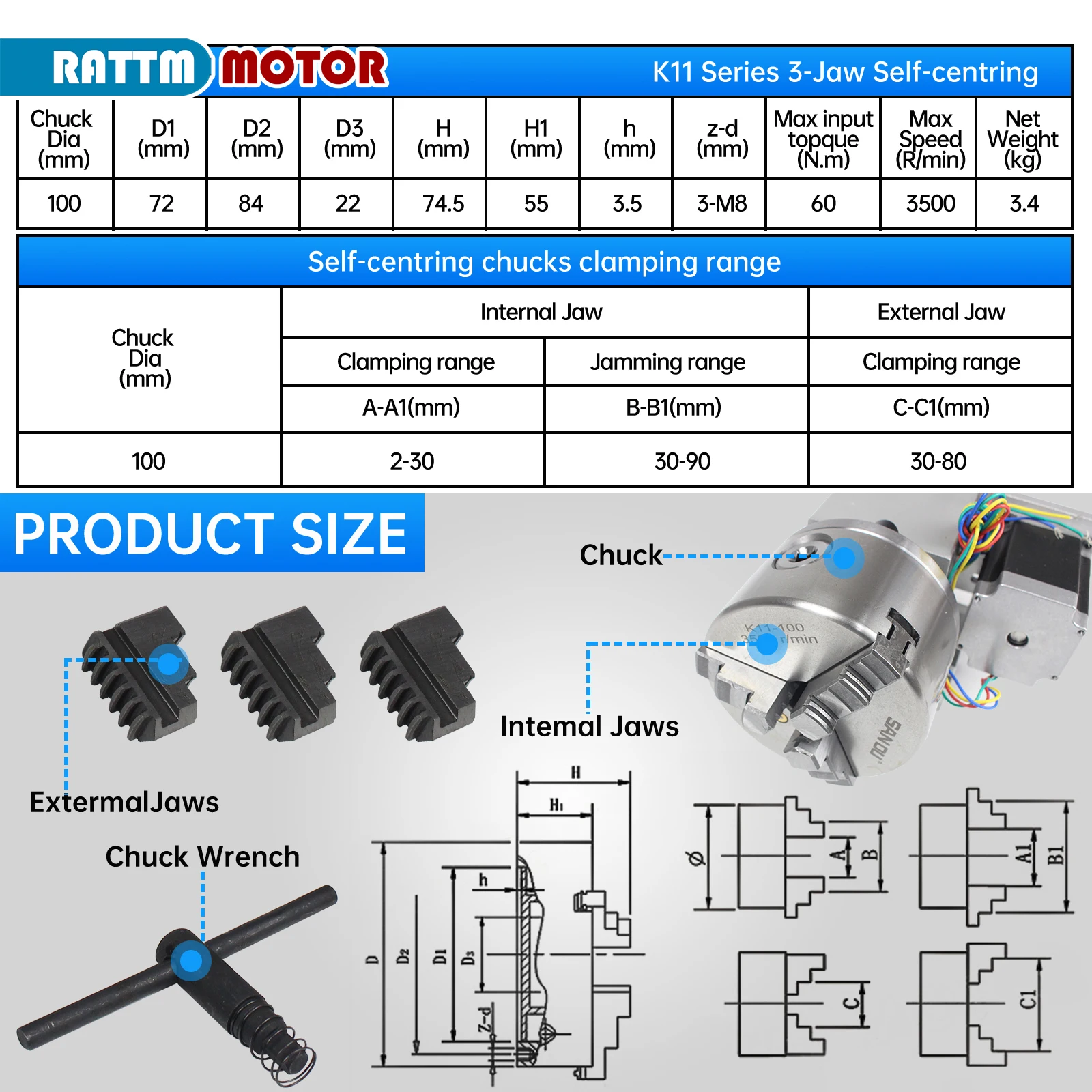

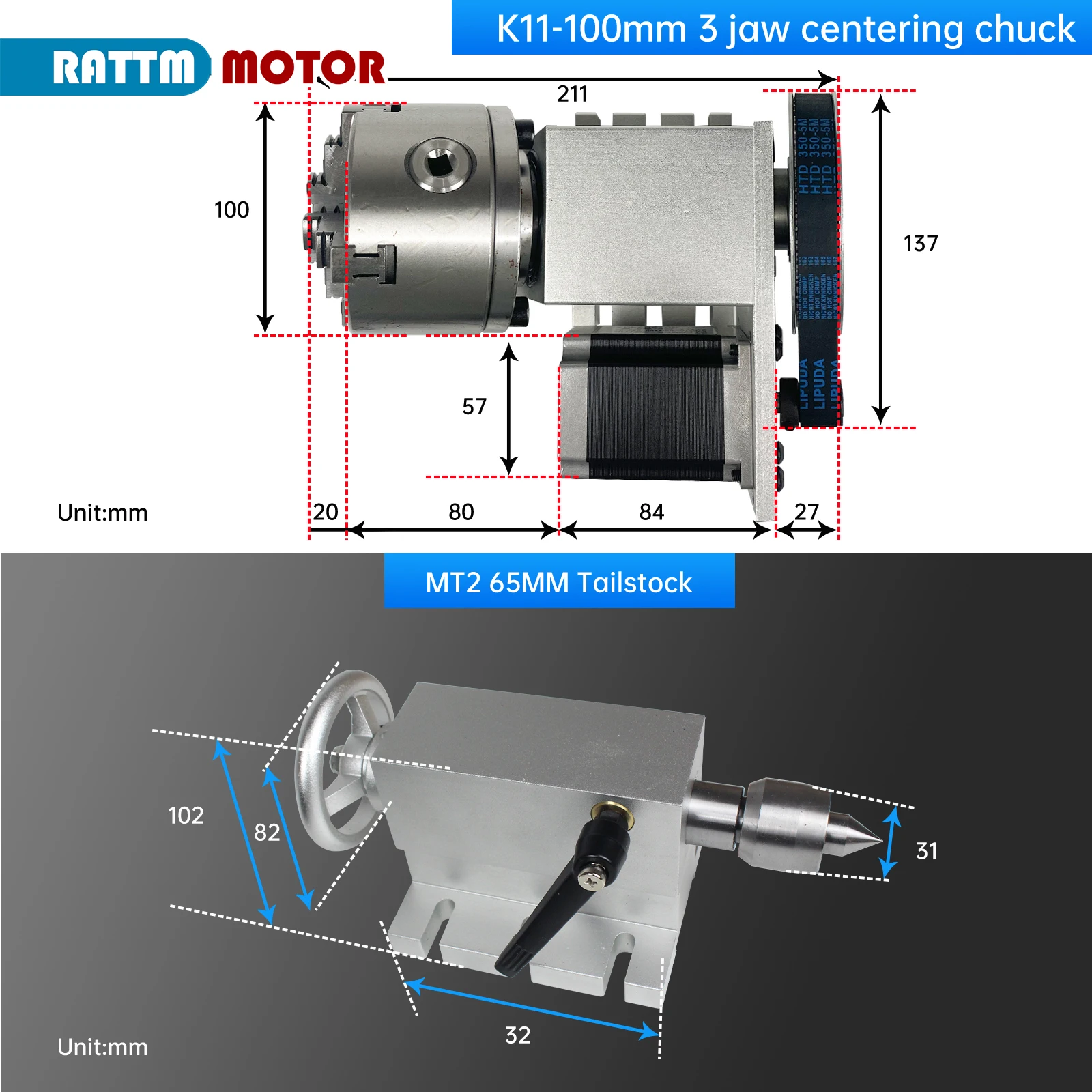

2、3 Jaw K11-100mm
