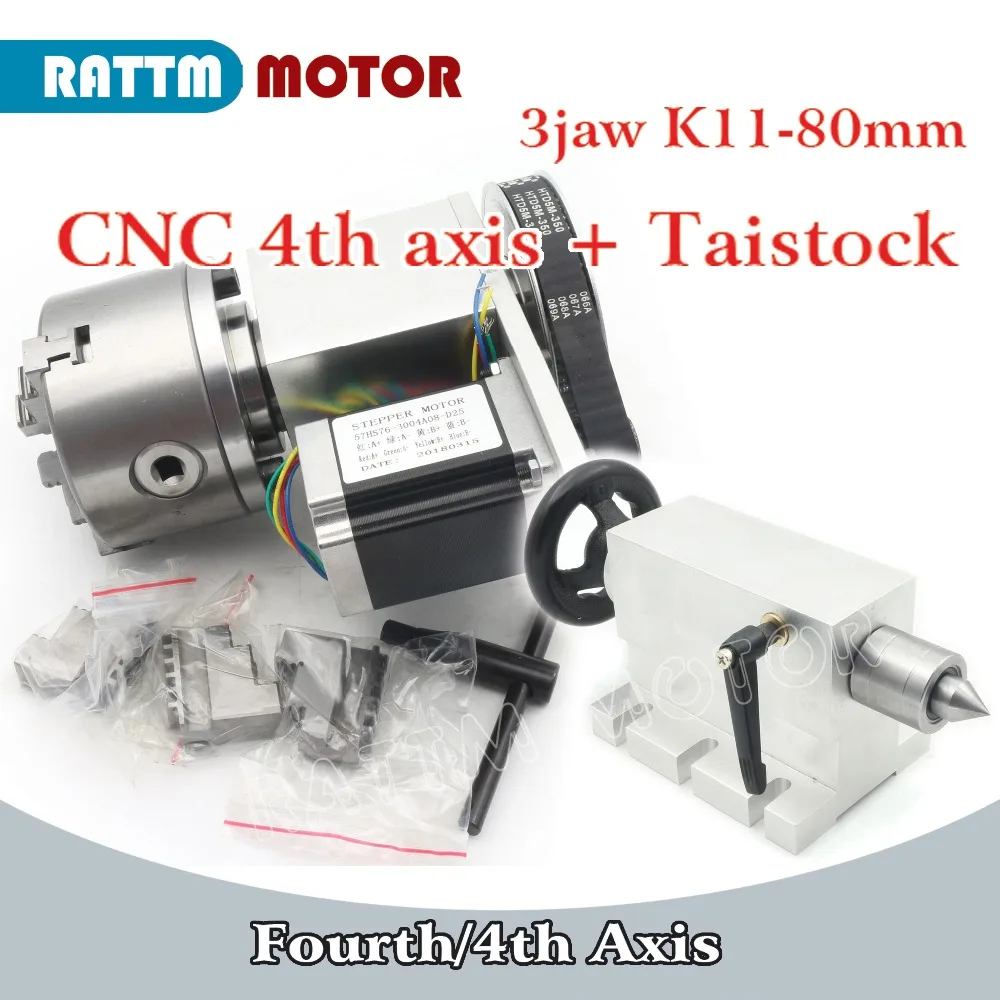

【EU Stock】K11 K12 80mm 100mm 3 Jaw or 4Jaw Chuck 4th Axis+Tailstock Dividing Head Rotation Axis with Nema23 stepper Motor Driver

Good News:

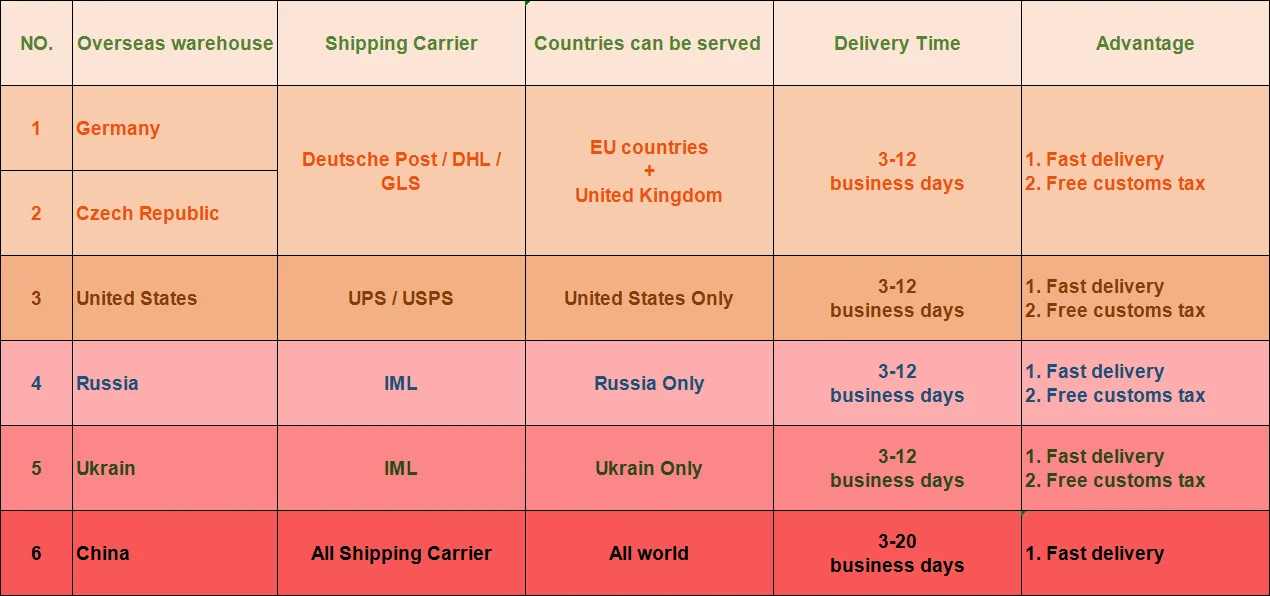

We have warehouse in Germany, Czech Republic, United Kingdom, we can ship to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

Package include:

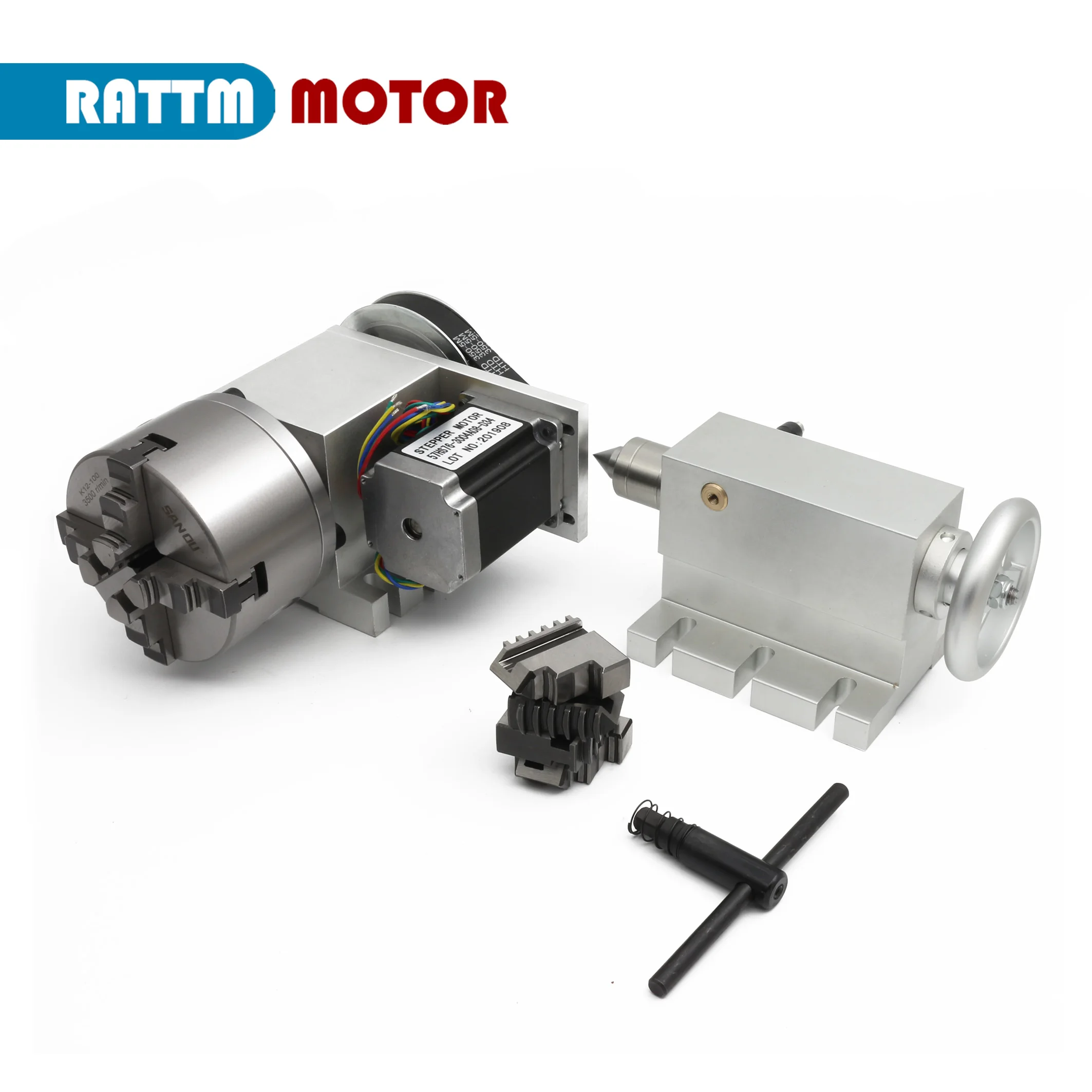

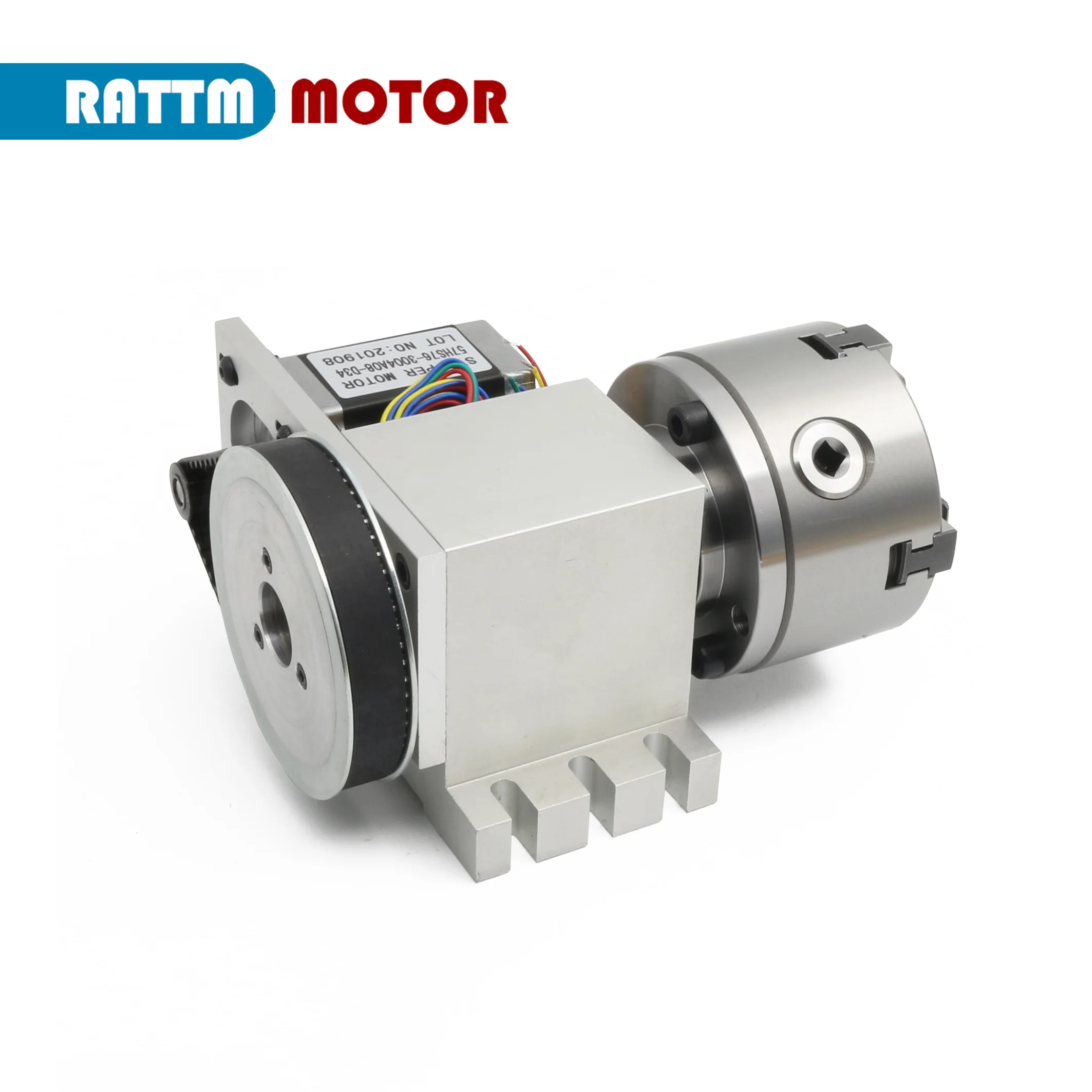

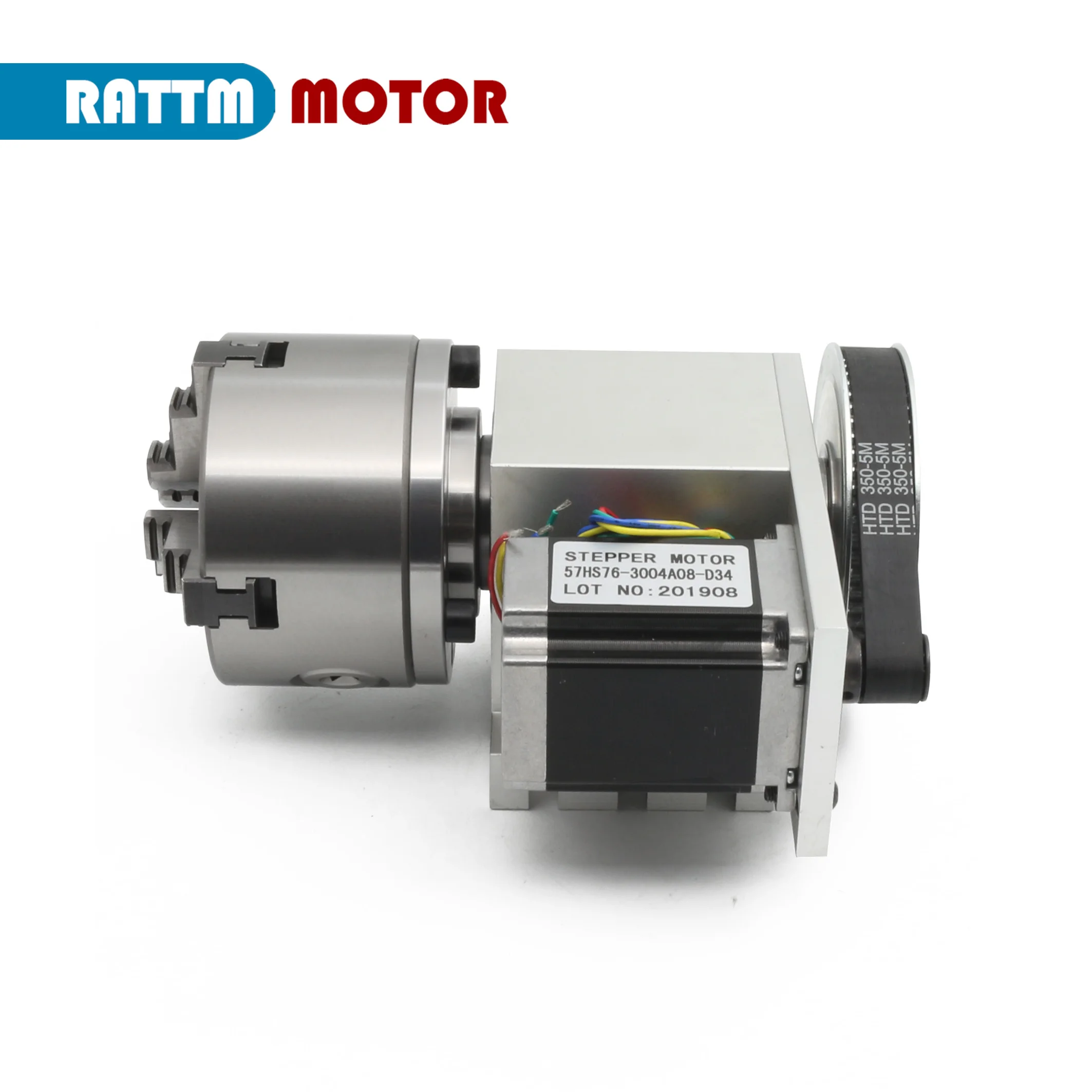

1 Set  4th Axis (Includes motor and chuck K11-80mm /K11-100mm/K12-100mm (Optional)

1 x Tailstock 65mm

1 x DM556S Motor Driver (Optional)

(1). 1 Set  4th Axis (Includes motor and chuck K11-80mm (Optional)

Chuck type:K11-80 (3 jaw centering chuck)

Center height:65mm

Total height:115mm

Angle:0.3°/ step

Gear box output shaft diameter:20mm

Reducing ratio:6:1

Stepper motor:Nema23 57mm 3A 2-phase 4 wire

Accessories:Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings:the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings:1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125

(2). 1 Set  4th Axis (Includes motor and chuck K11-100mm (Optional)

Engraving machine fourth axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox

Chuck type:K11 100mm three jaw centering chuck

Center height:65mm

Total height:115mm

Angle:0.3°/ step

Gear box output shaft diameter:25mm

Reducing ratio:6:1(belt deceleration mode)

Stepper motor:Nema23 57mm 3A 2-phase 4 wire

Accessories:Set of Anti-claw and wrenches

Weight:6.5KG

The fourth axis parameter settings:

Mach3 system settings:the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings:1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125

(3). 1 Set  4th Axis (Includes motor and chuck K12-100mm (Optional)

1.  Engraving machine fourth axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox

Chuck type:K12 100mm 4 jaw centering chuck

Center height:65mm

Total height:115mm

Angle:0.3°/ step

Gear box output shaft diameter:25mm

Reducing ratio:6:1(belt deceleration mode)

Stepper motor:Nema23 57mm 3A 2-phase 4 wire

Accessories:Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings:the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings:1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125

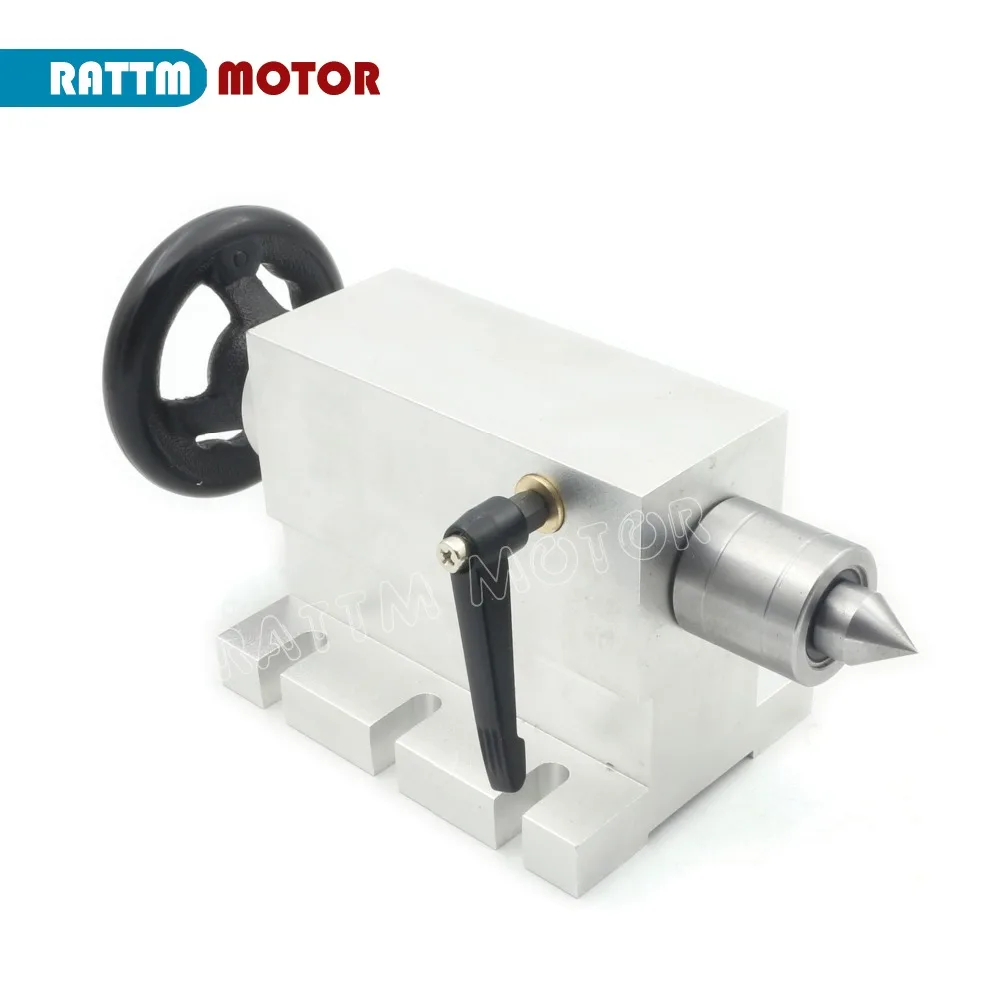

Tailstock type:

Center Height: 65mm

Stretch distance:50mm

Top tip: activity type

Axial locking wrench for tailstock

Net Weight:2.1kg

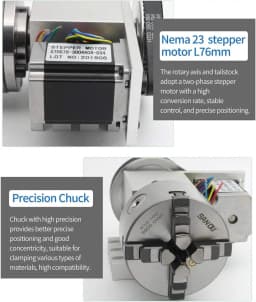

Stepper Motor:

Nema 23 57x57x76mm

Shaft Diameter: 8 mm

Shaft length: 25.5mm

Step Angle: 1.8

Current: 3A

Voltage: 4.2V

Temperature Rise: 80 c max

Ambient Temperature: -20 c - + 50 c

Phase No.: 2HP

Insulation Resistance: 100MOhm (500V DC)

Holding Torque: 18kg.cm

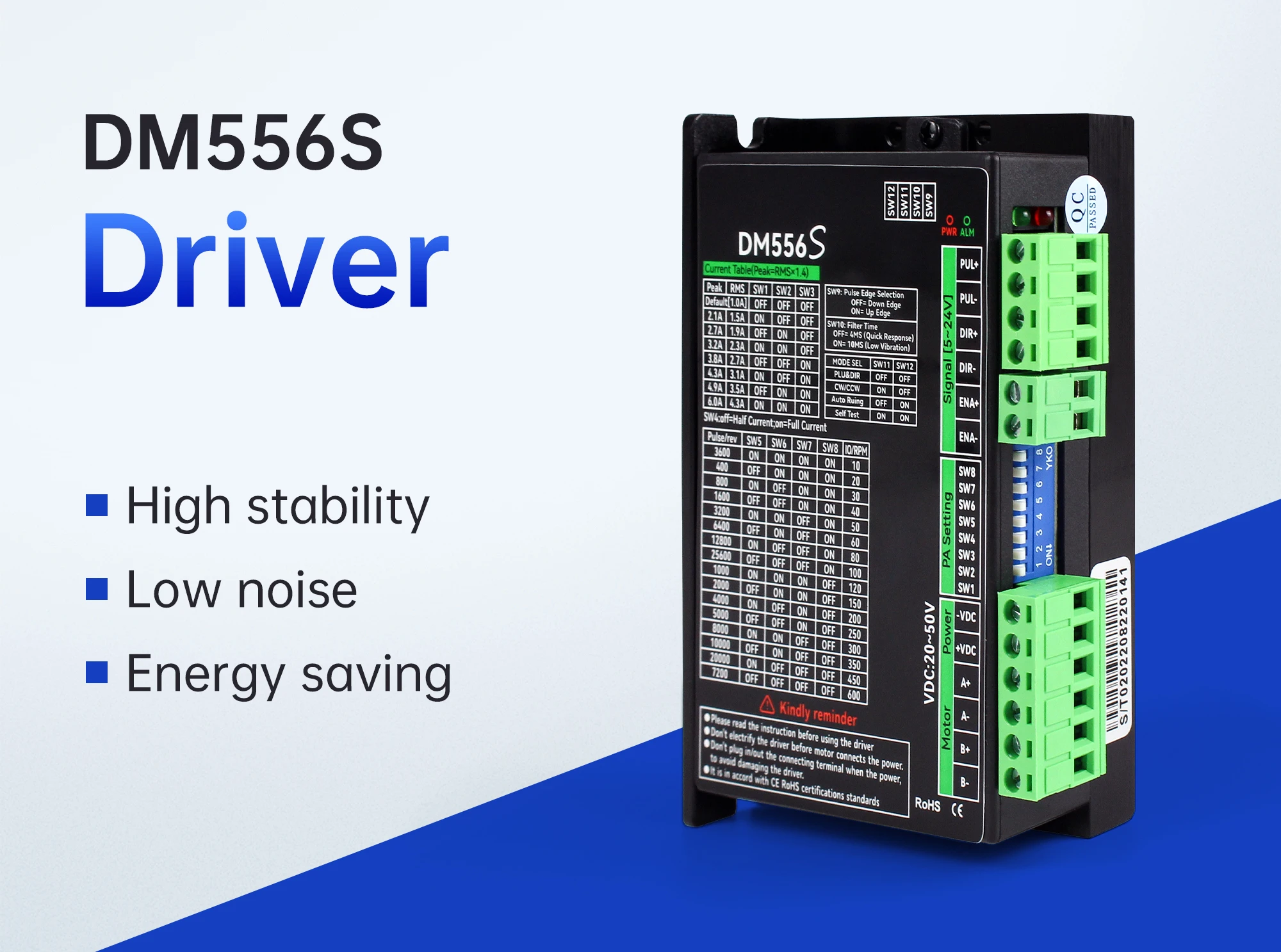

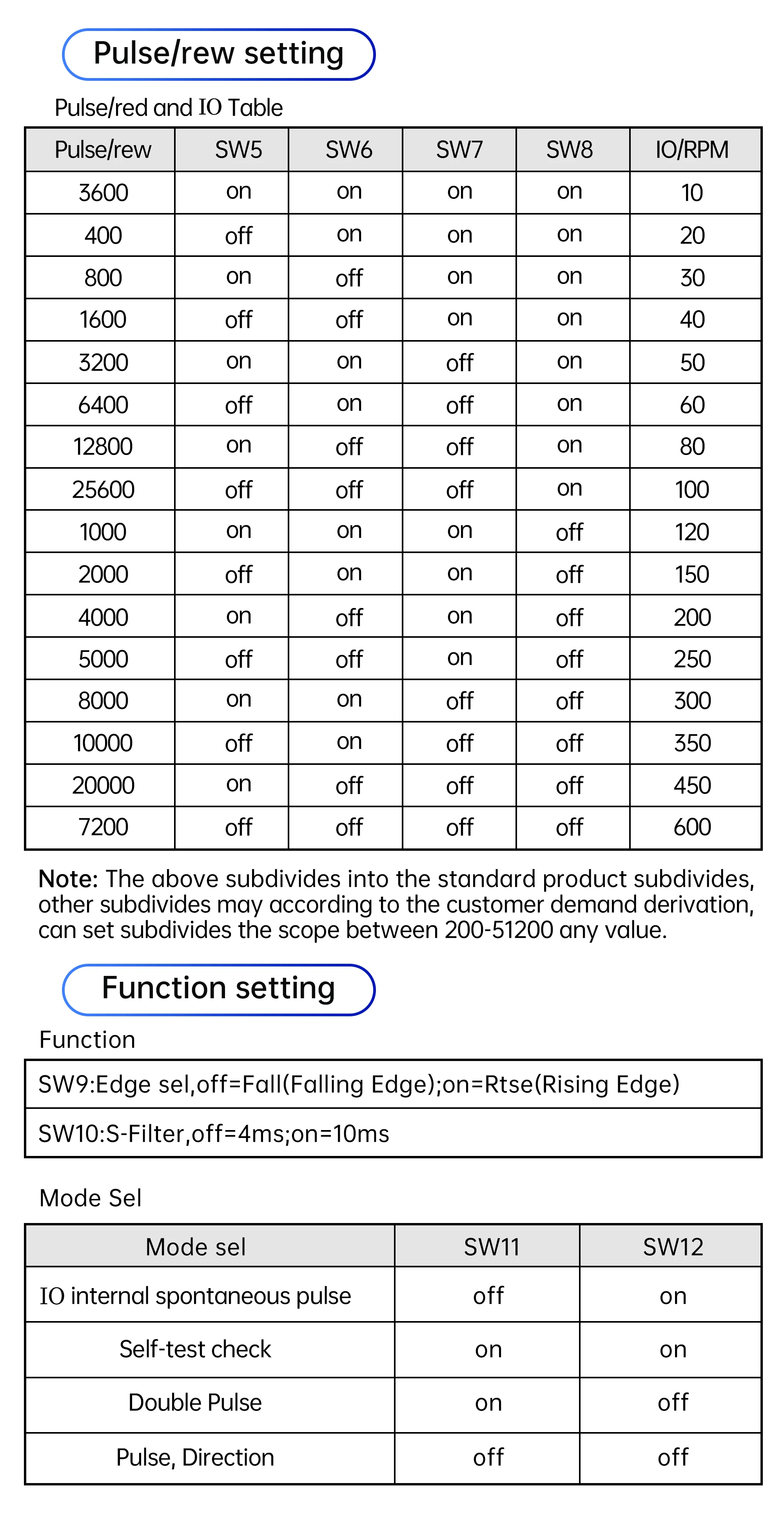

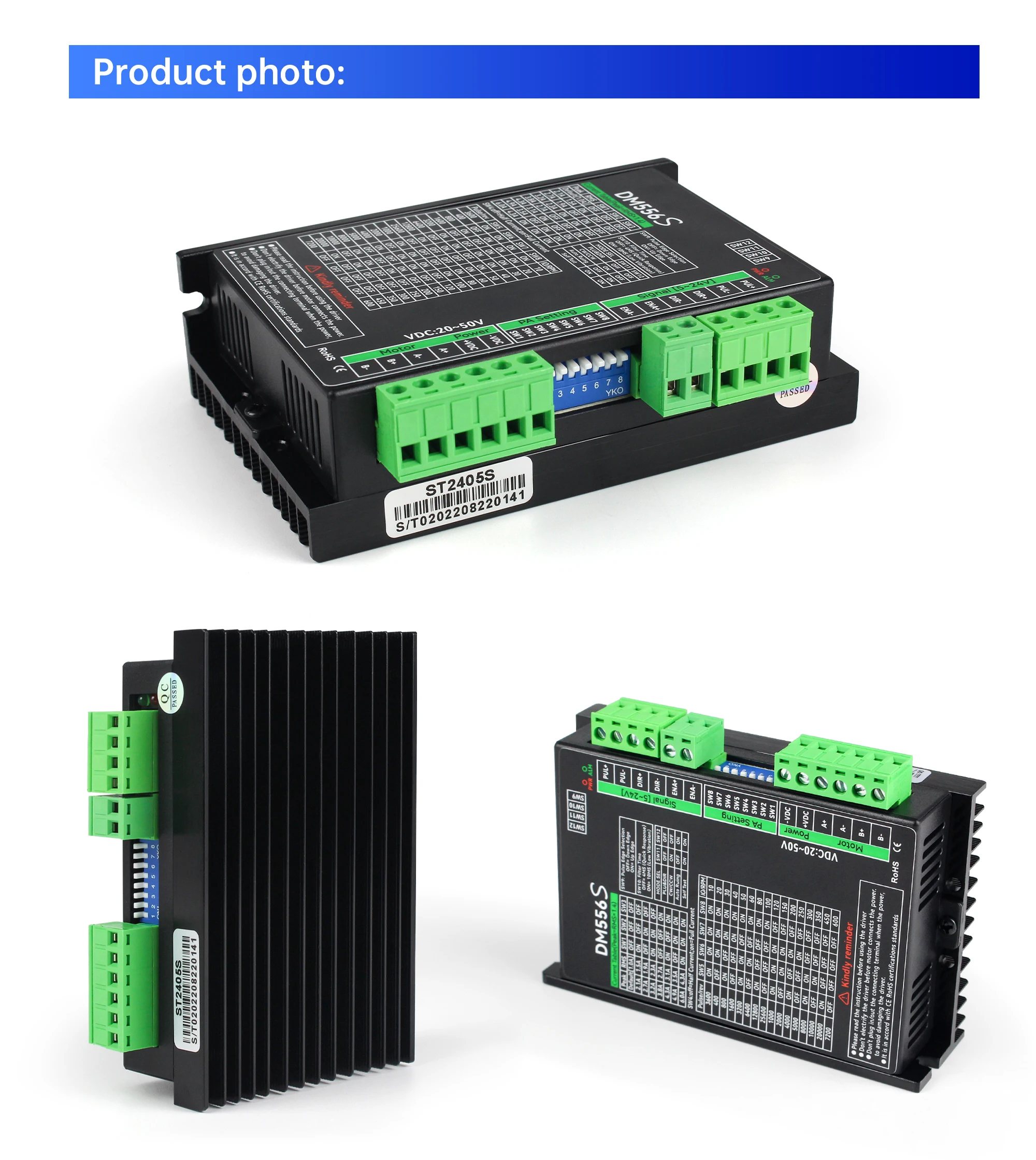

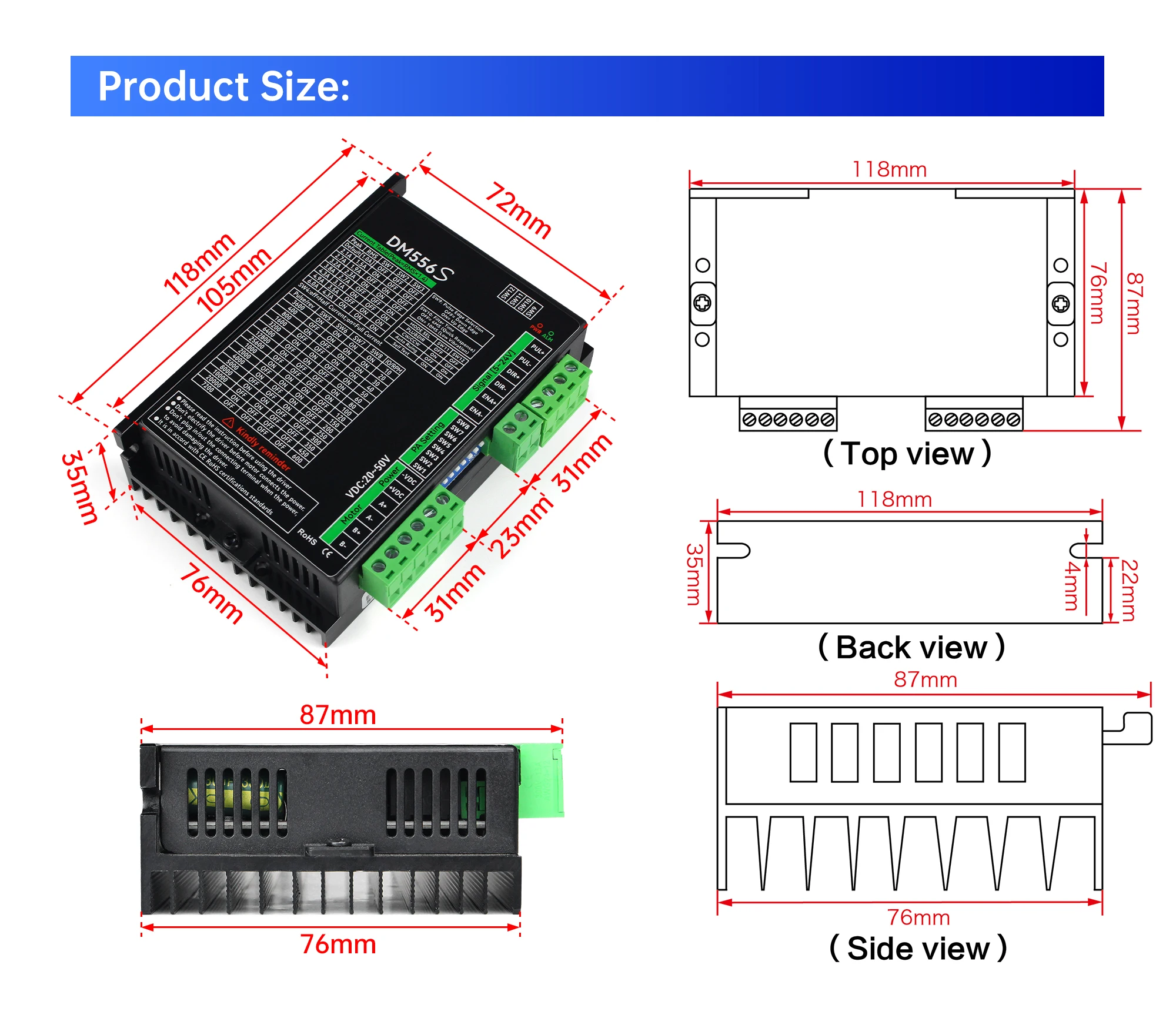

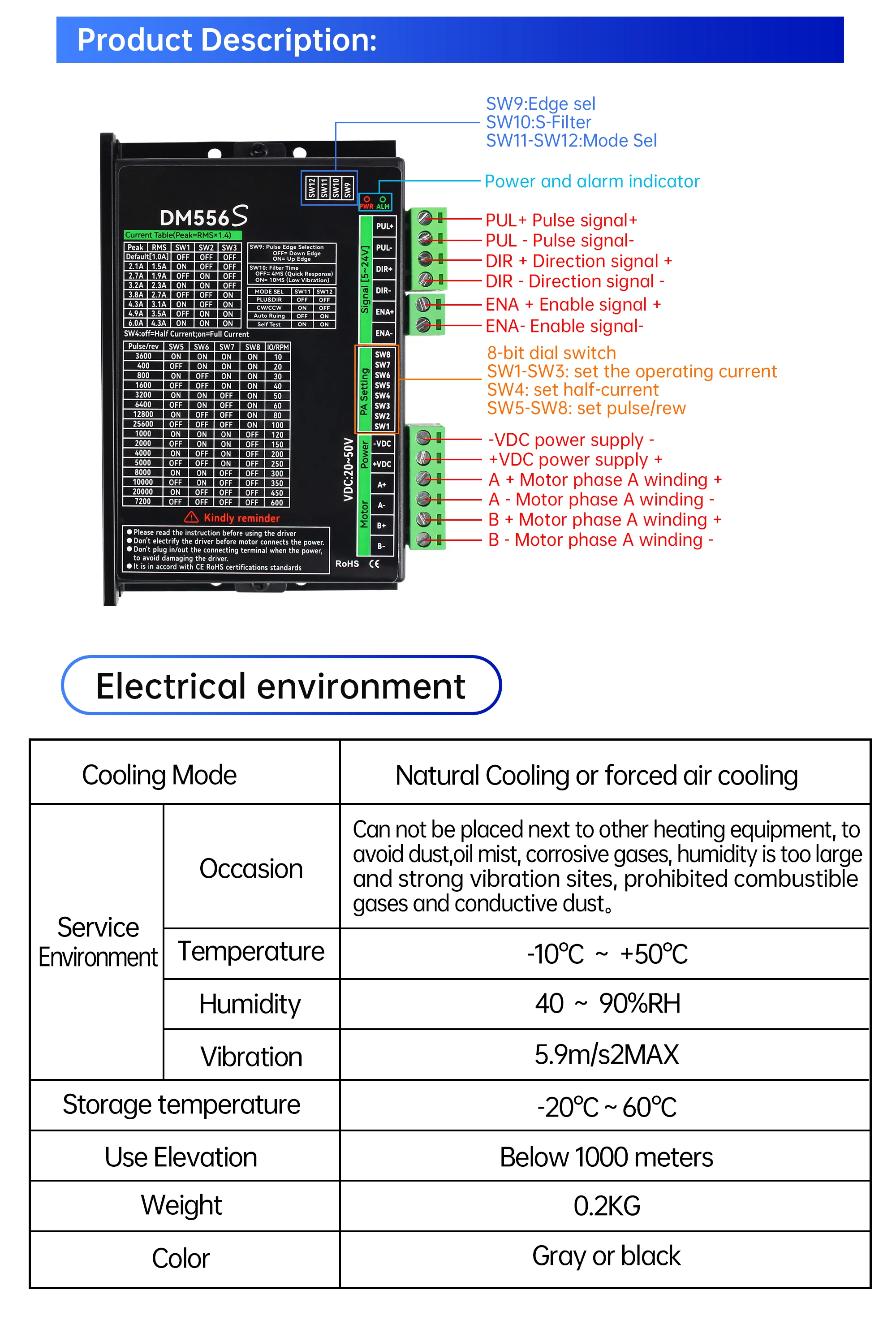

DM556S Digital Stepper Motor Driver (20-50VDC, 1.0-6.0A)

Characteristics

●

New 32 Bit DSP Technology

●

Ultra-low vibration noise

●

Built-in high subdivision

●

Automatic parameter power-on setting function

●

Variable current control greatly reduces the heat generation of the motor.

●

Automatic halving of current at rest

●

Can drive 4,6,8-wire two-phase stepping motor

●

Photoelectric isolated differential signal input

●

Photoelectric isolation, alarm output

●

Impulse response frequency up to 500KHz (factory default 200KHz)

●

Voltage range DC 20-50VDC

●

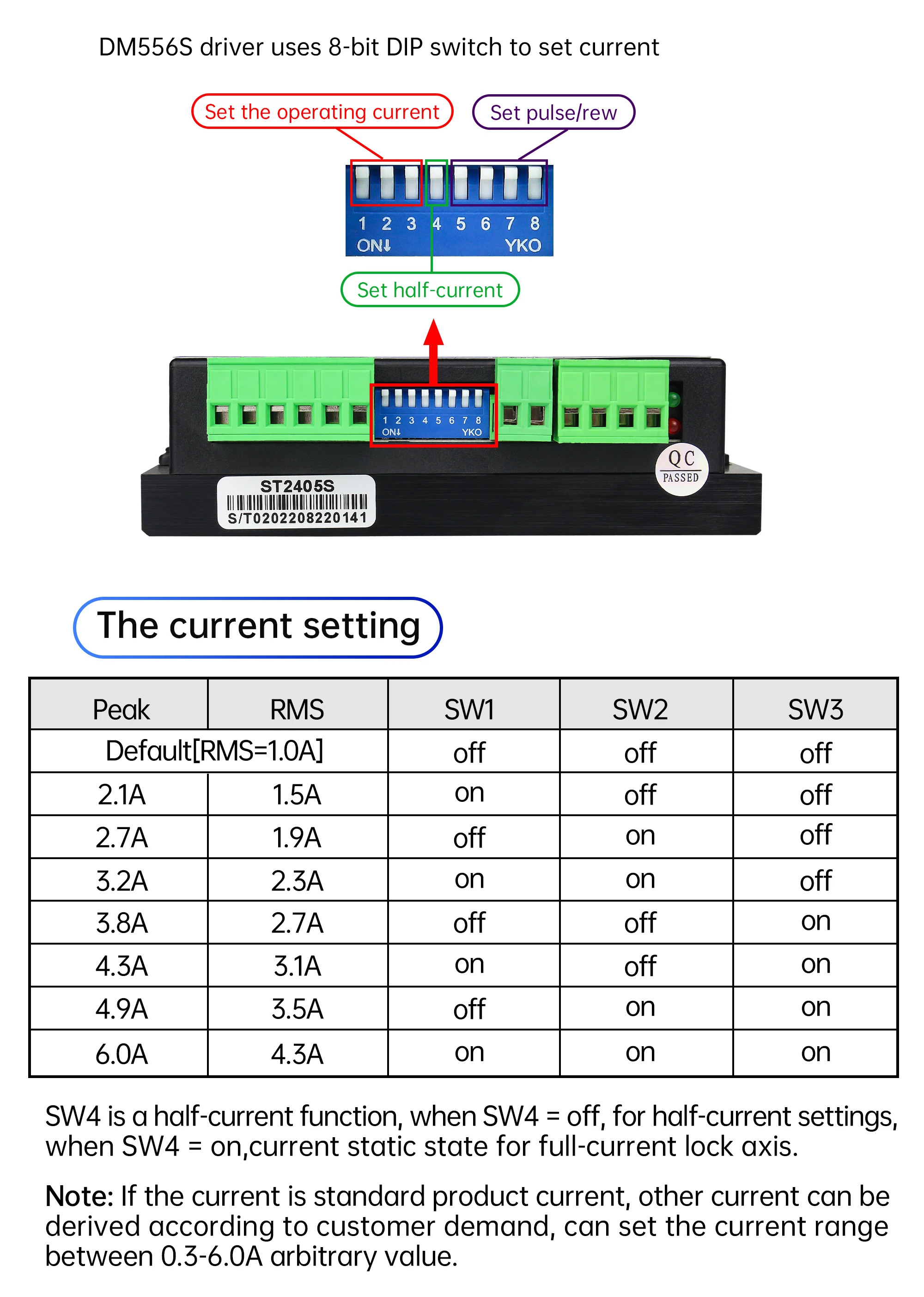

The current setting is convenient and can be selected between 1.0-6.0 A

●

sub-set range 200-51200, higher sub-customizable

●

It has the protection functions of overvoltage, undervoltage and overcurrent.

●

It has rising/falling edge, IO control spontaneous pulse, single/double pulse, high

response/high speed and low vibration, self-measuring function

Application areas：

Suitable for all kinds of small and medium-sized automation equipment and instruments,

such as: lithium battery equipment, 3C electronic equipment, engraving machine, marking

machine, cutting machine, laser phototypesetting, engraving machine, plotter, CNC machine tool,

automatic assembly equipment, etc. It is especially effective in applications where users

expect small noise and high speed。
