【DE stock】1.5KW 220V water-cooled spindle motor and kit Water-cooled spindle ER16 & 1.5KW frequency converter and other parts

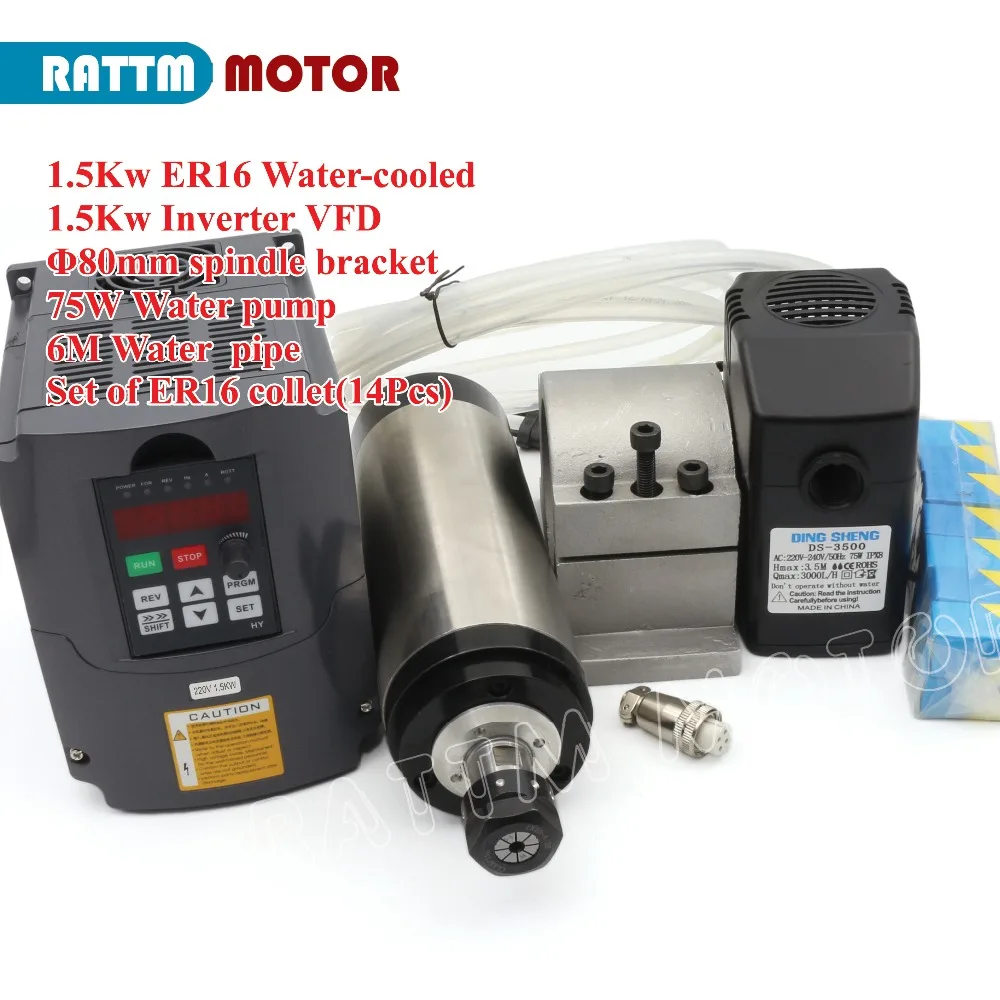

Package include:

1 x 1.5KW Water-cooled spindle ER16  80x198mm 24000rpm,400Hz,

1 x Inverter 1.5KW VFD 220V input with 220V output

1 x 80mm cast aluminium bracket

1 x75W Water Pump 220V 3.2M

1 x 5m water Pipe

1set ER16 collet (11Pcs)

English user manual of inverter

1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND

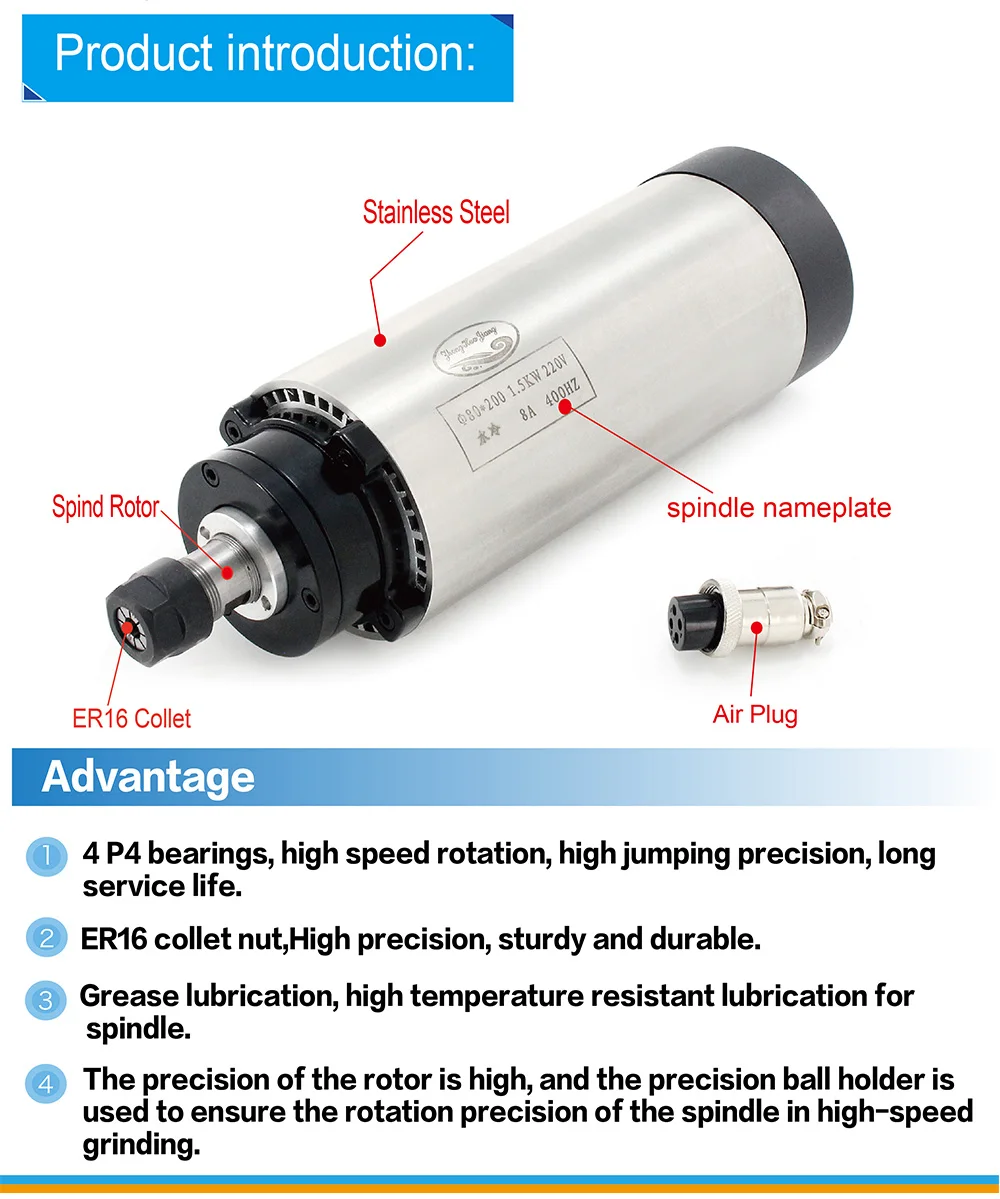

Specification:

Material: Stainless Steel

Size: 80x198mm

Power: 1.5Kw

Voltage: 220VAC

Current: 8A

Frequency: 400Hz

Speed: 24000rpm

Cooling: Water-cooled

Precision tapered bore: 0.003--0.005

Runout off: Less than 0.02mm

Bearing Lubrication: Grease

Collet size: ER16

Bearings: 4 bearings (C7004x2+C7002x2),P4 class

Net Weight: 4.6kg

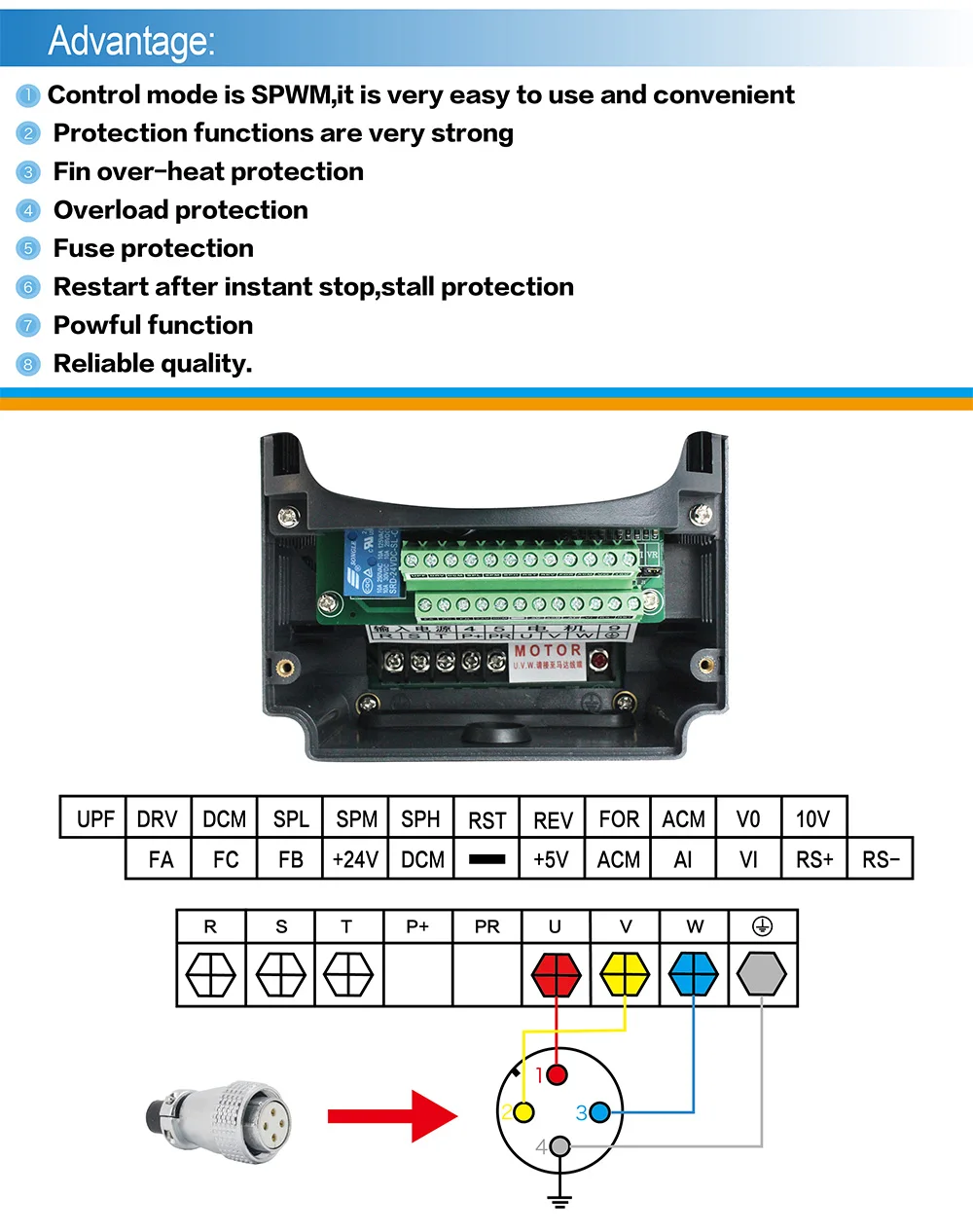

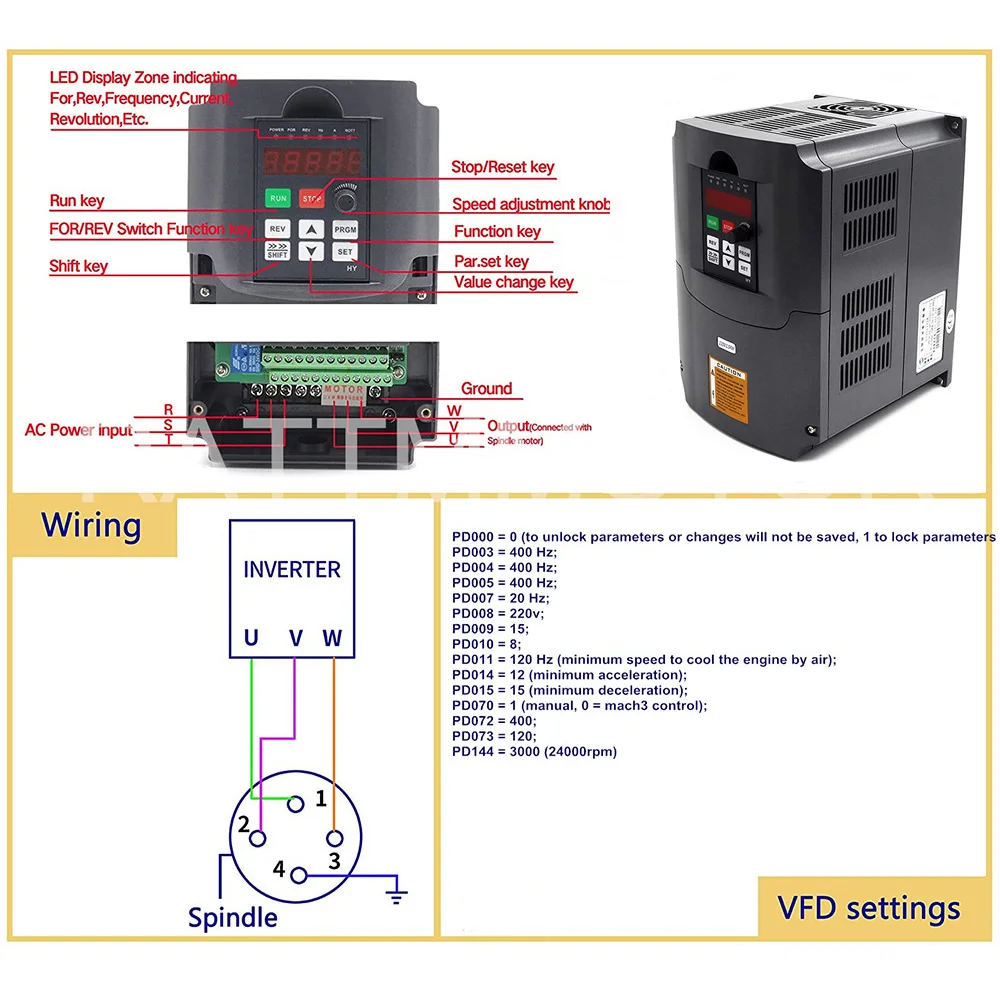

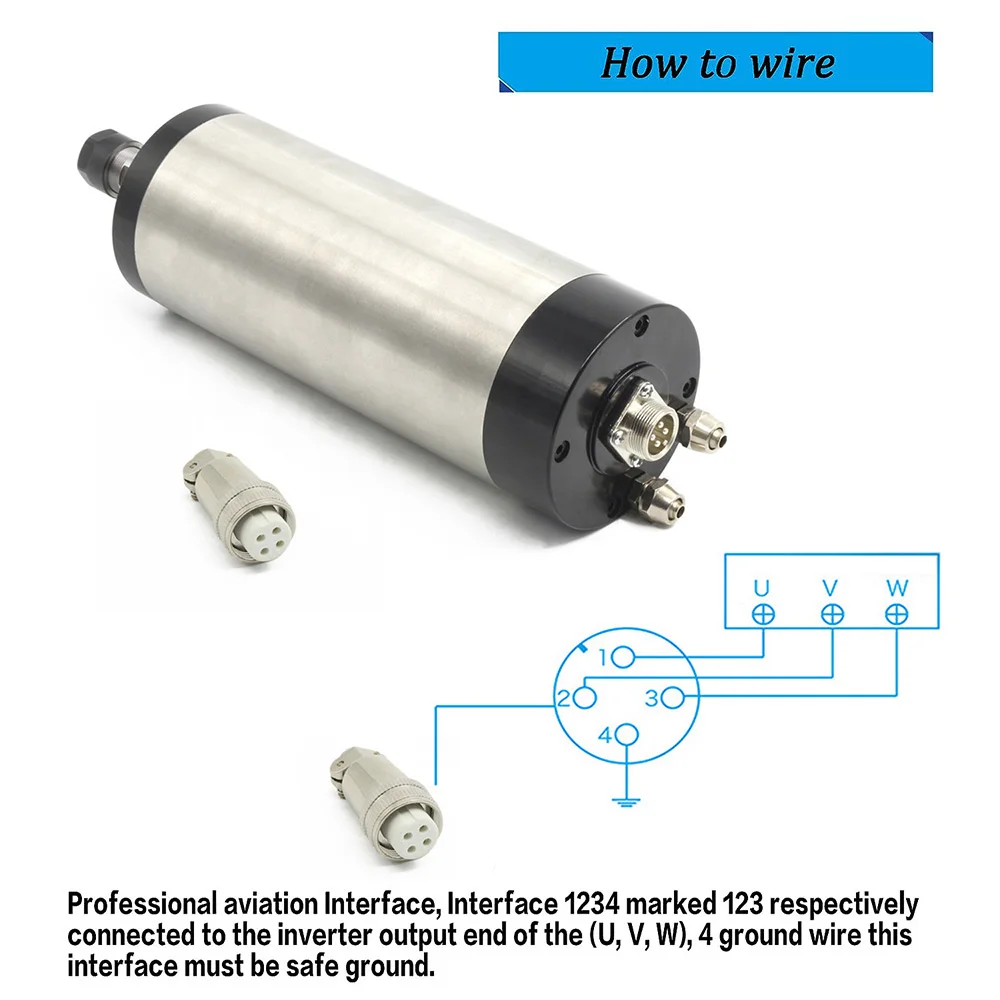

Power supply interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

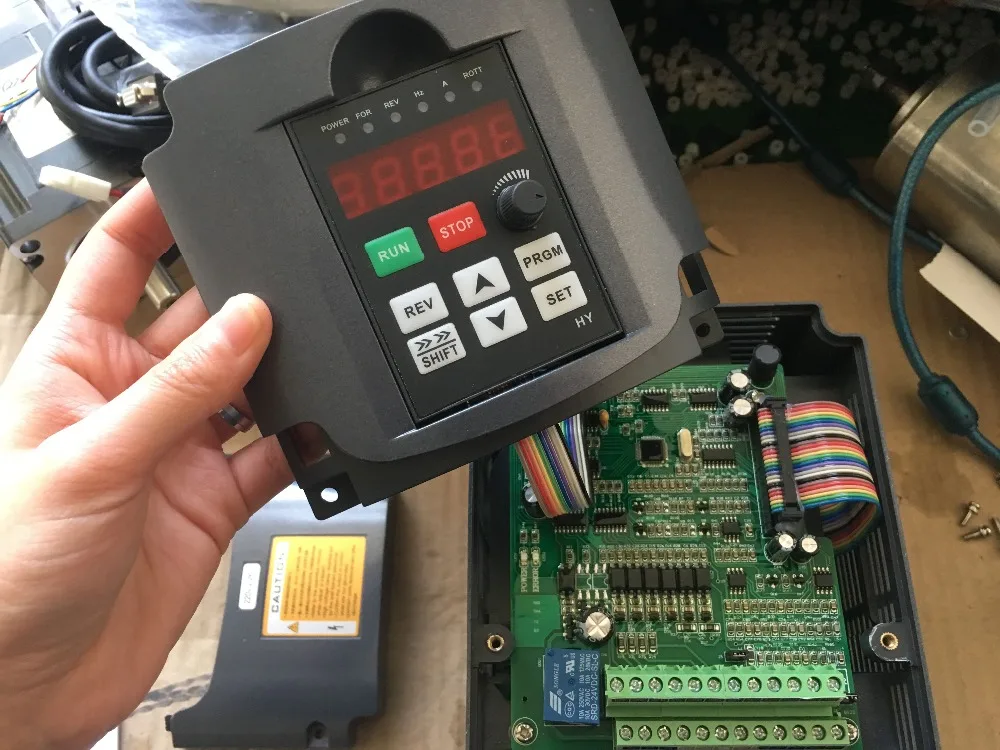

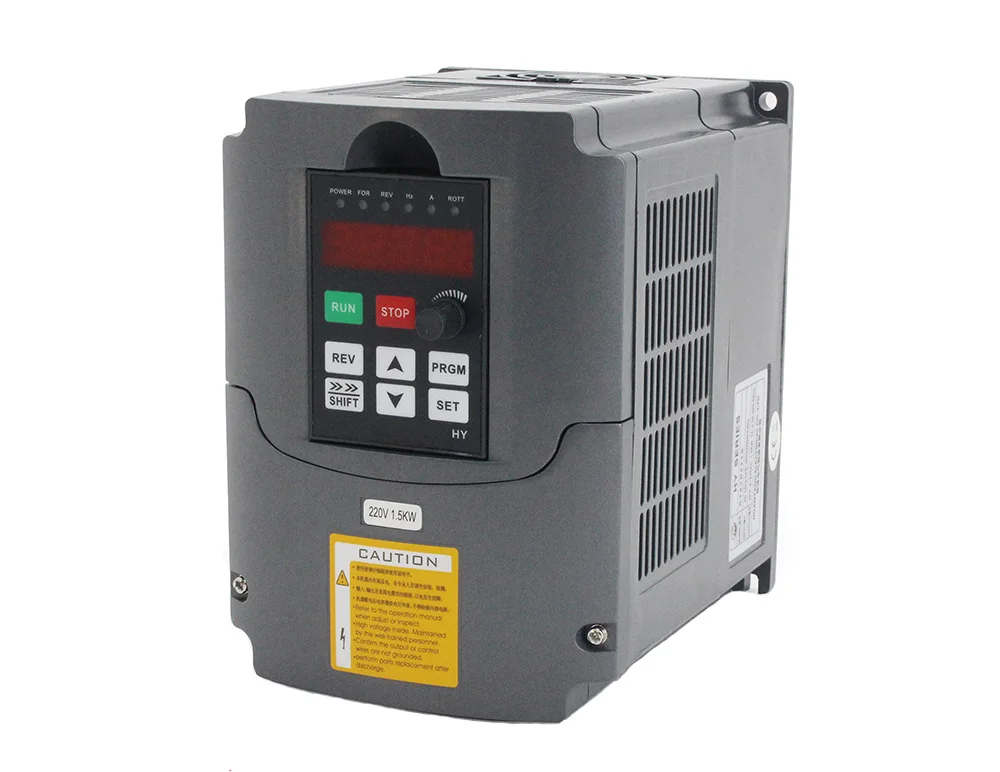

Variable Frequency Drive VFD Inverter 1.5KW 3HP 220VAC

Product Feature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

Tech parameters:

1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us

for item stock.

2) Output Voltage 208Vac-240VAC

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased

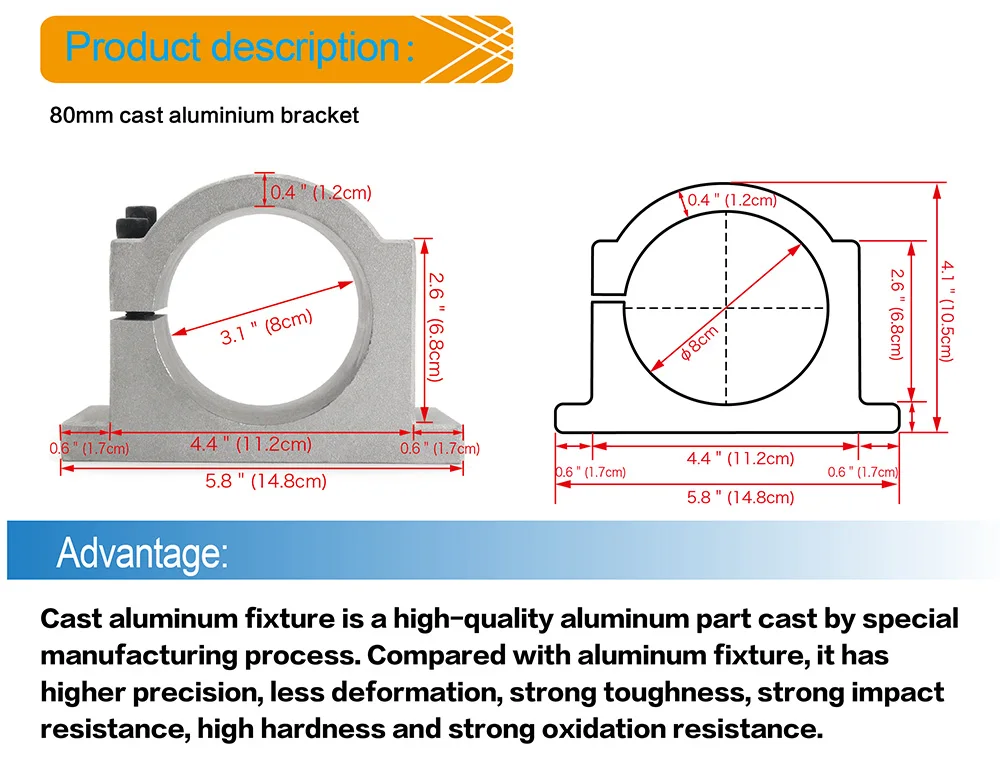

80mm cast aluminium bracket

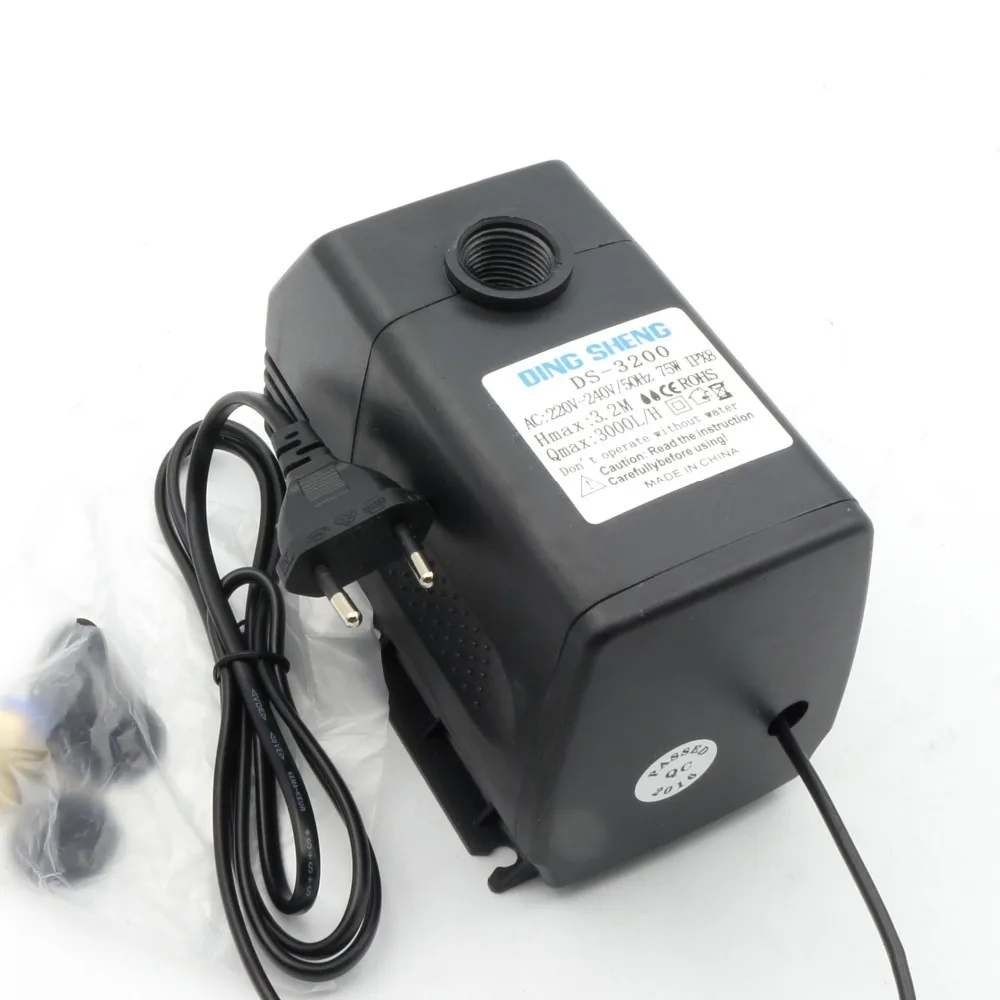

75W CNC spindle motor water pump 3.2m 220VAC

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:75W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

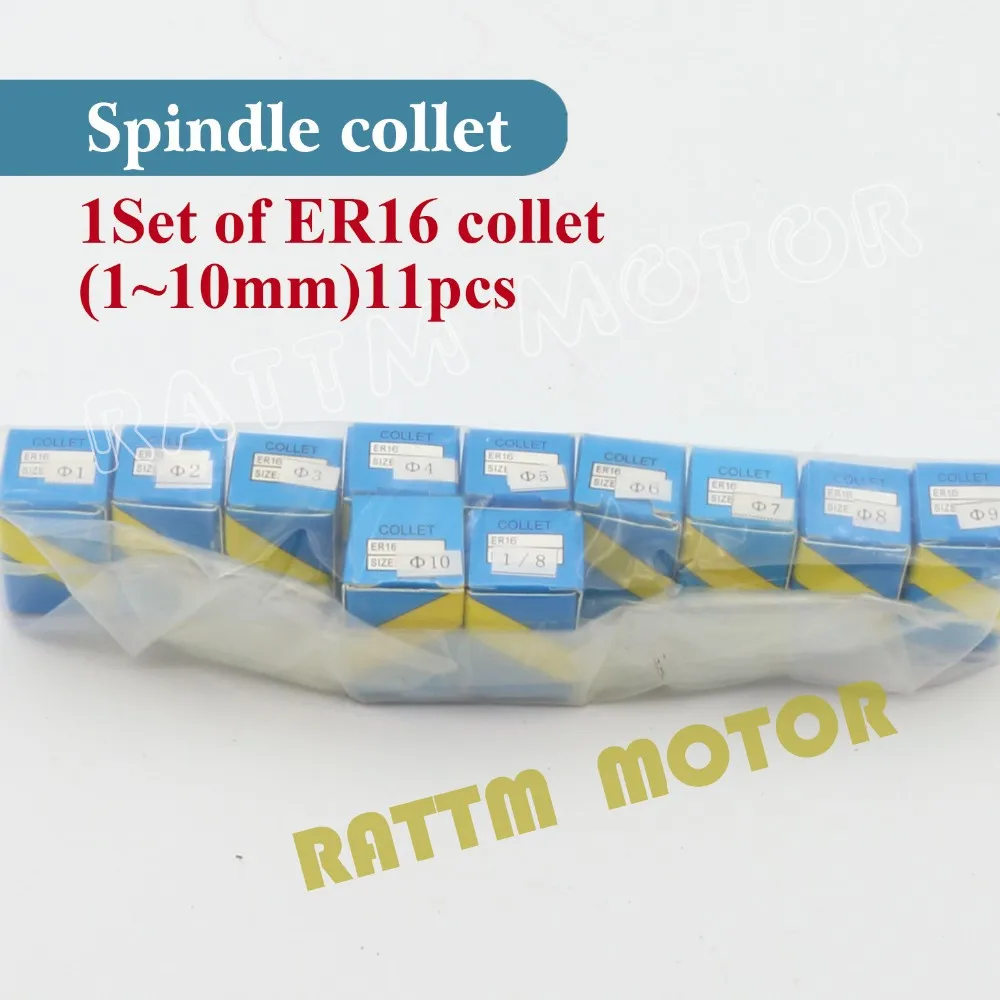

ER16 Spring Collet (11pcs,1mm-10mm)

(1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm)
