【EU/US/BR Stock】CNC Router 3018 Pro Max Upgrade Mini Milling Machine GRBL 1.1 ER11 3 Axis controller offline for wood engraving

Good News:

We have warehouse in Germany, Czech Republic, United Kingdom, United States and Brazil, we can ship to EU countries, USA and Brazil via DHL/UPS, which is very fast delivery.

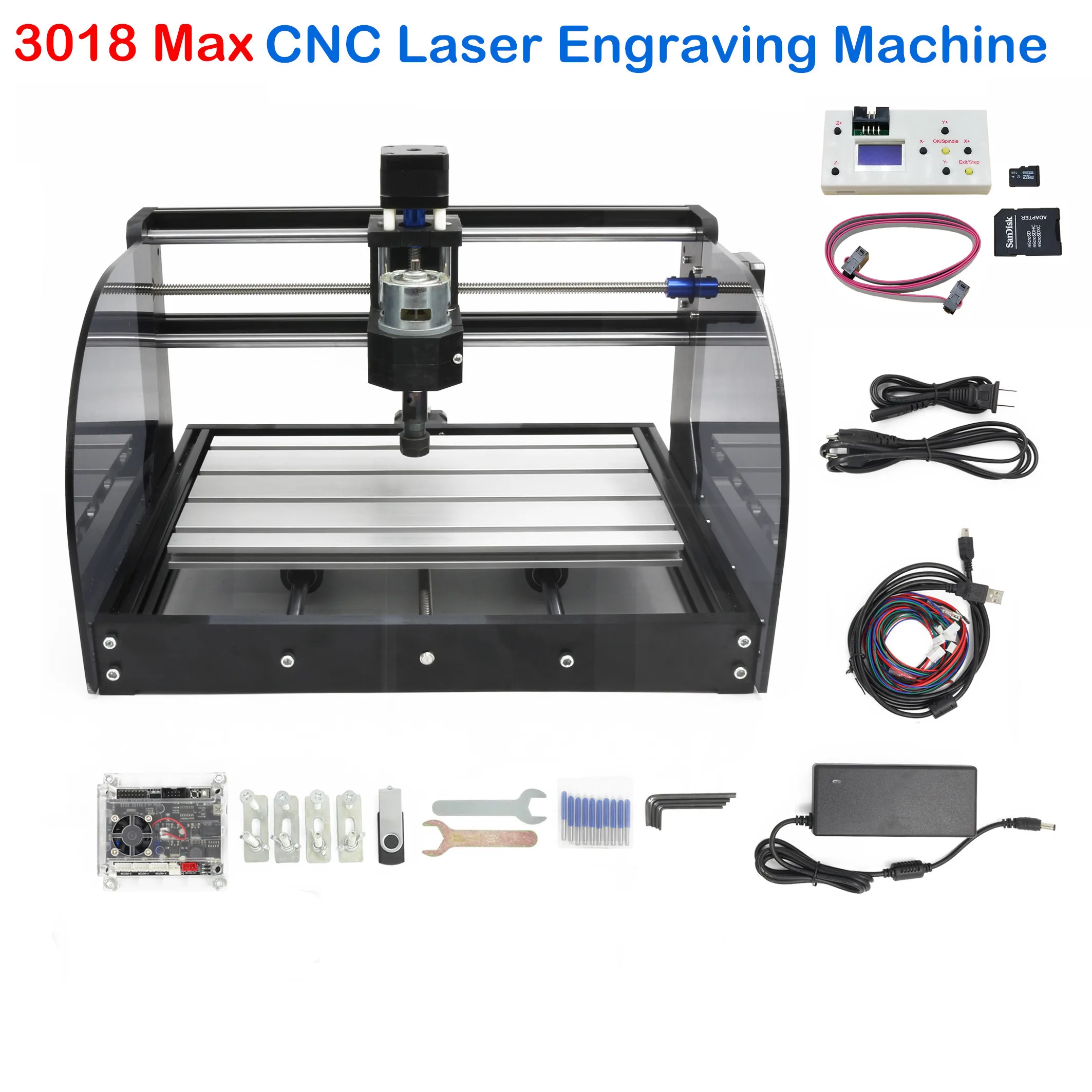

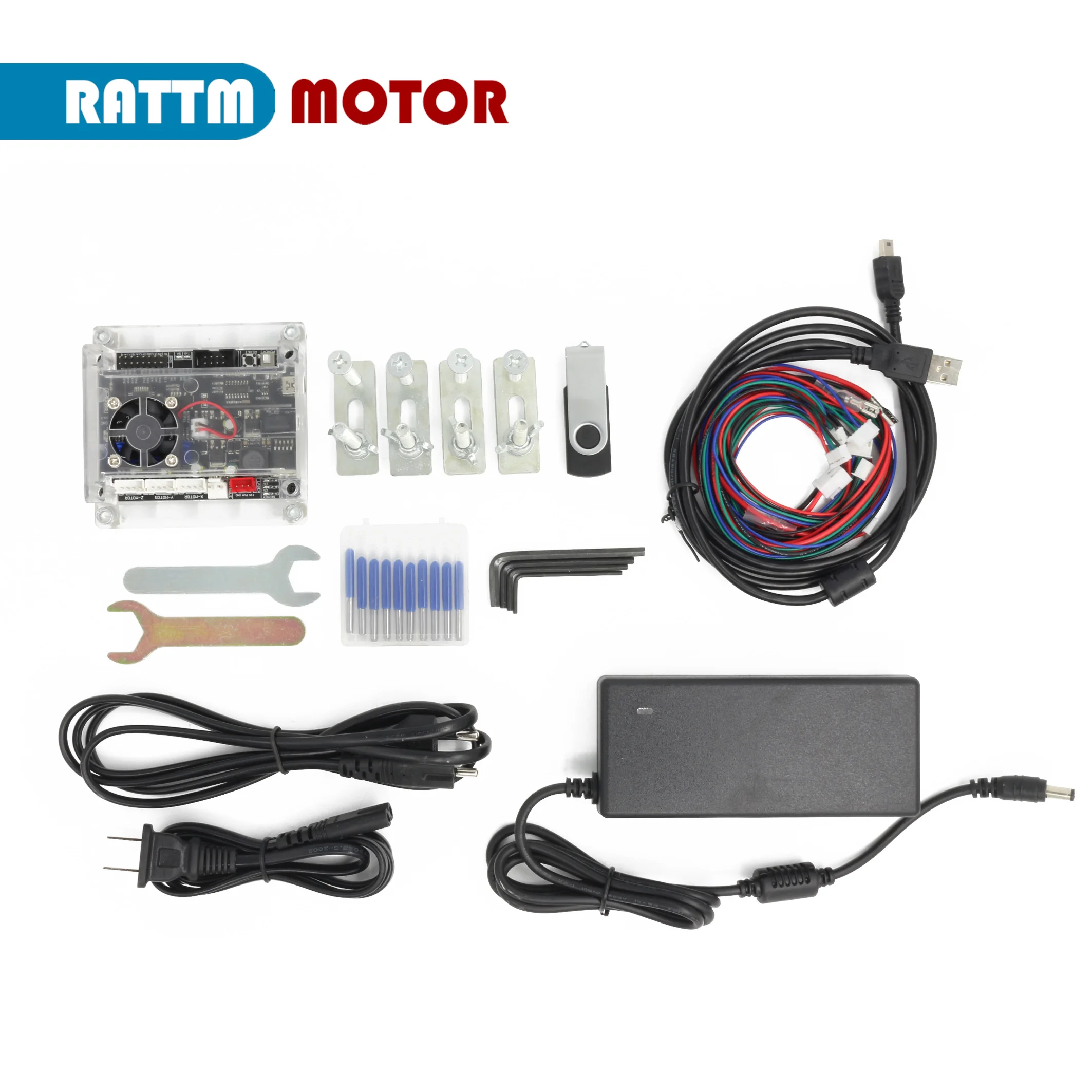

Package include:

1set GRBL 3018 Pro Max CNC Laser machine kit (laser is not included)

1 x 775 Spindle Motor with ER11 Collet

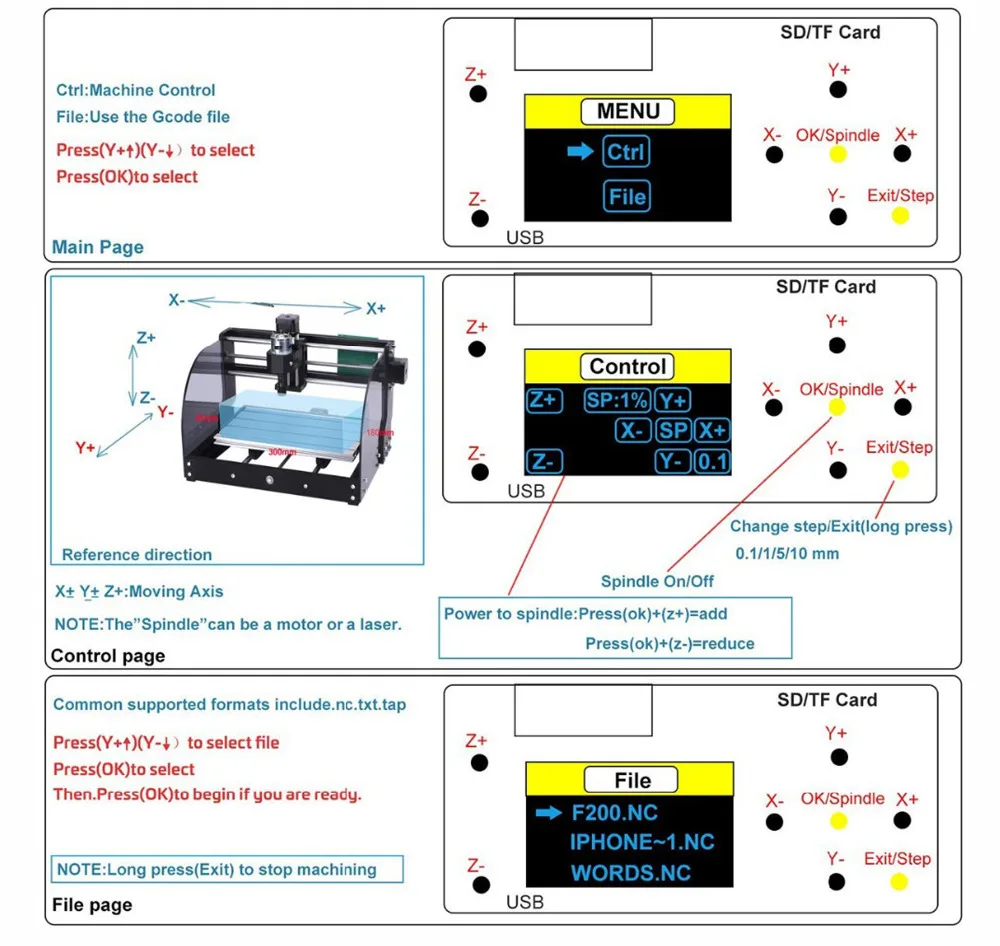

1 x Offline hand controller

1 x GRBL control board

10 x 20°0.1mm drill bits

1 x Set of allen wrench

1 x Power Supply

1 x U disk

English manual link will send to your email.

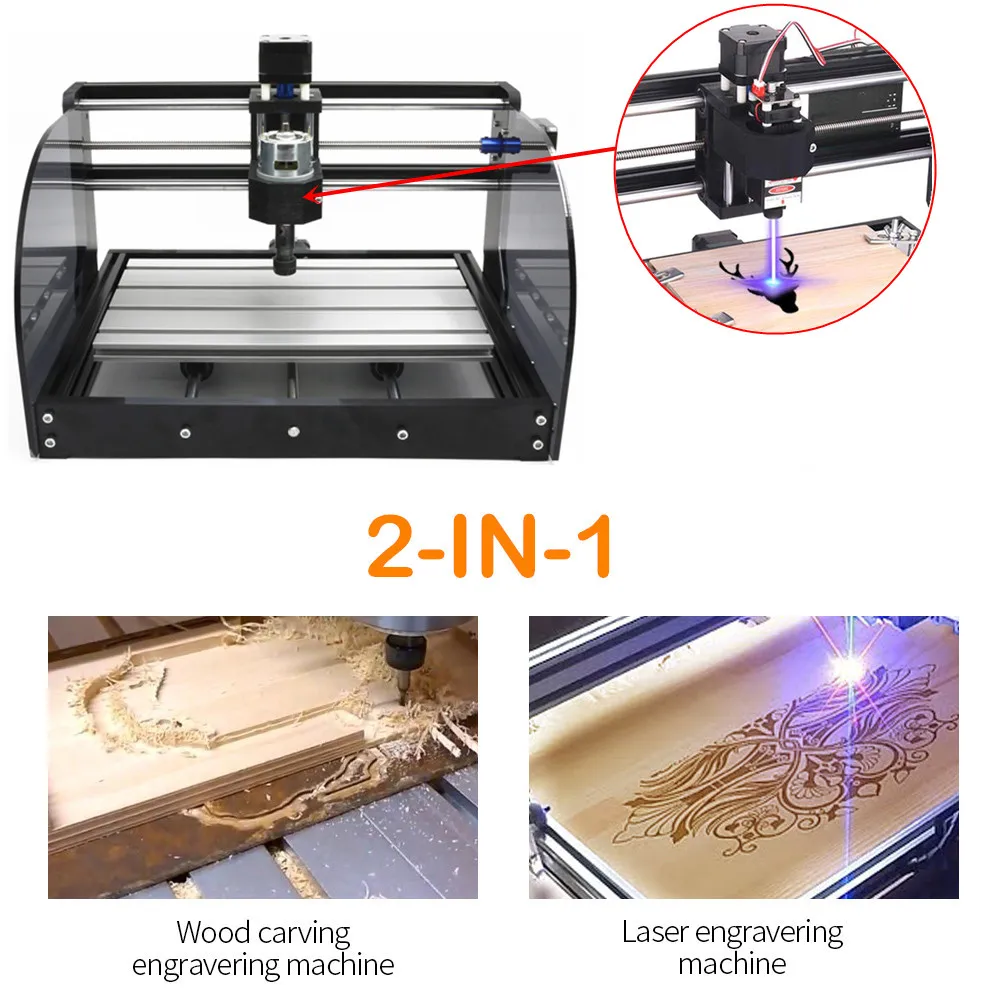

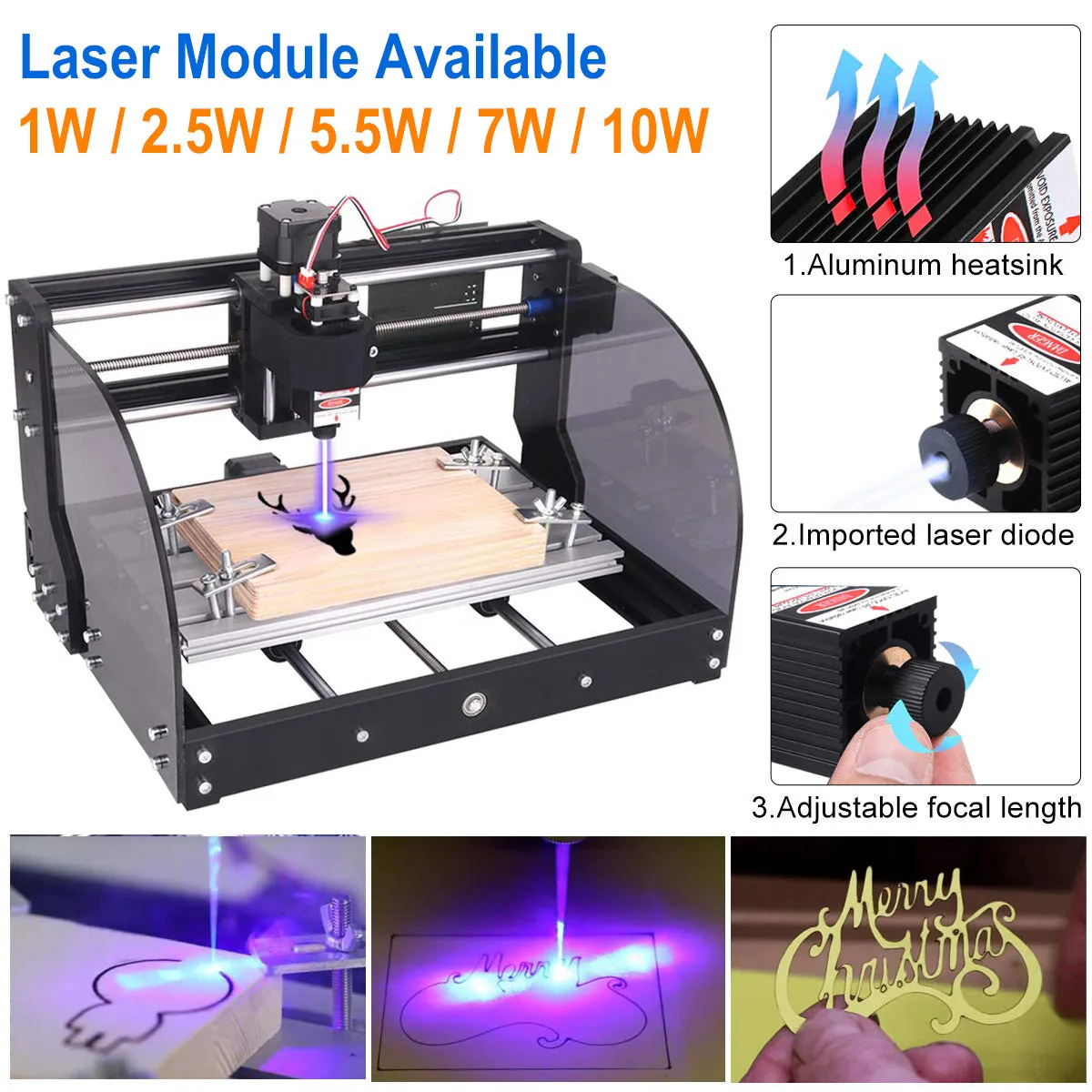

Note: This Machinne supports laser engraving but the laser is not included, if you need, pls contact us when you order.

Notice: The machine for a full set of spare parts, shall be installed by the buyers,the package include the U Disk , with detailed user manual and free software,buyers don‘t need to worry about machineAssembly.

We suggestcnc-based buyers to buy,This machine is not industrial grade level.

 Basic Paraments

Item Name：CNC 3018 Pro Max 3-Axis Laser Engraving Machine

Work area:300x180x45mm(approx.11.81x7.08x1.77inches)

Mesa:300x180mm(approximately 11.81x7.08inches)

Frame:420x350x270mm(approximately 16.53x13.78x10.63inches)

Material:PA6 Nylon+Aluminum porfile

Workable thickness:45mm(height 64mm)

Stepper Motor:3x42 stepper motors

Spindle:775 Spindle motor(12-36V);24V:1000rpm

Chuck:ER11 (3.175mm default)

Connection:PC-USB connection(Windows XP/ Win7/Win8/Win10/offline line)

Power supply:24VDC power adapter(110-240V input voltage)

Screw:T8 T-screw, 4mm lead

Control Board:Upgrade

version with  shell and fan, best for dust proof, cooling and extending

to affect time and service life, firmware GRBL1.1F, offline wiorking

support.

Using with 775 spindle motor (cutters):

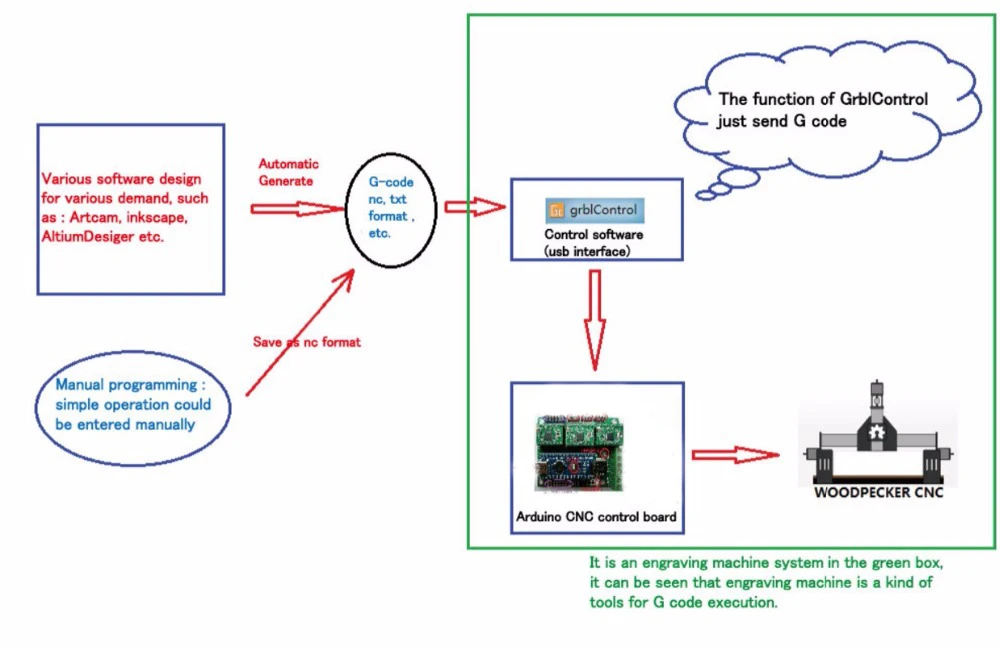

Design software:CAM

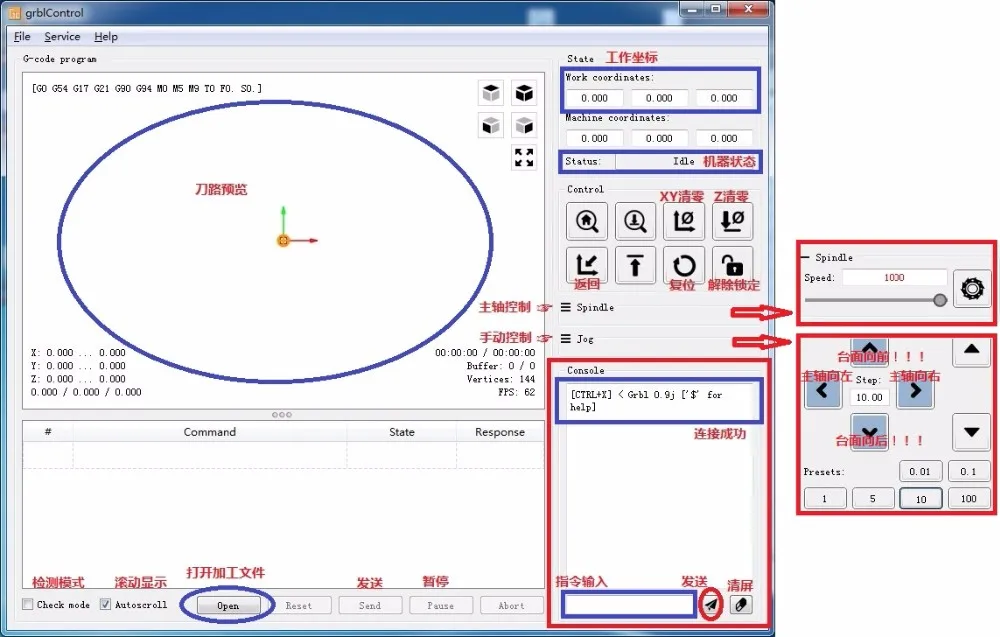

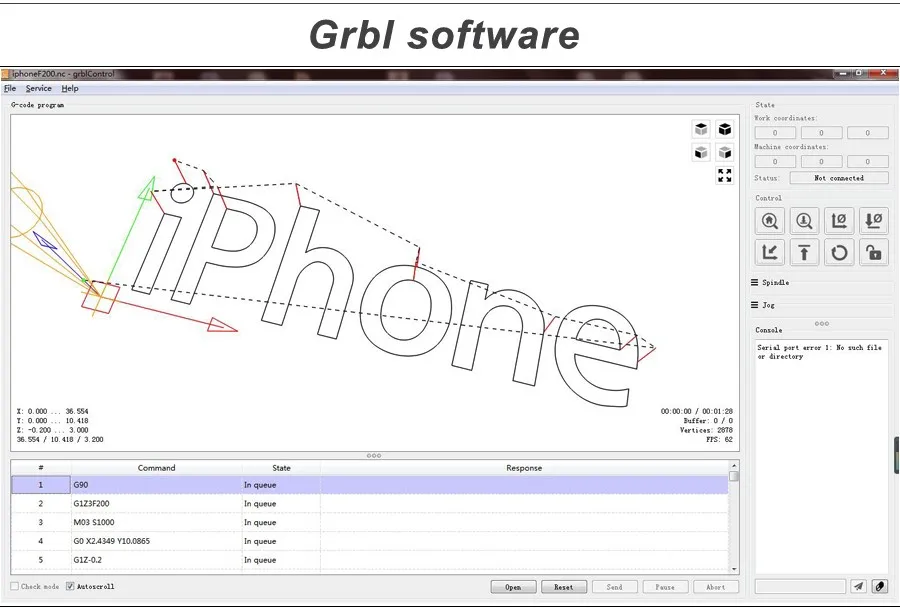

Control software:GRBL (GRBLcontrol / Candela)

File format:G code (gcode / txt / nc / ncc / tap / ...)

Spindle power:120W (24V)

Spindle speed:10000rpm

Processing method:relief / drilling / cutting

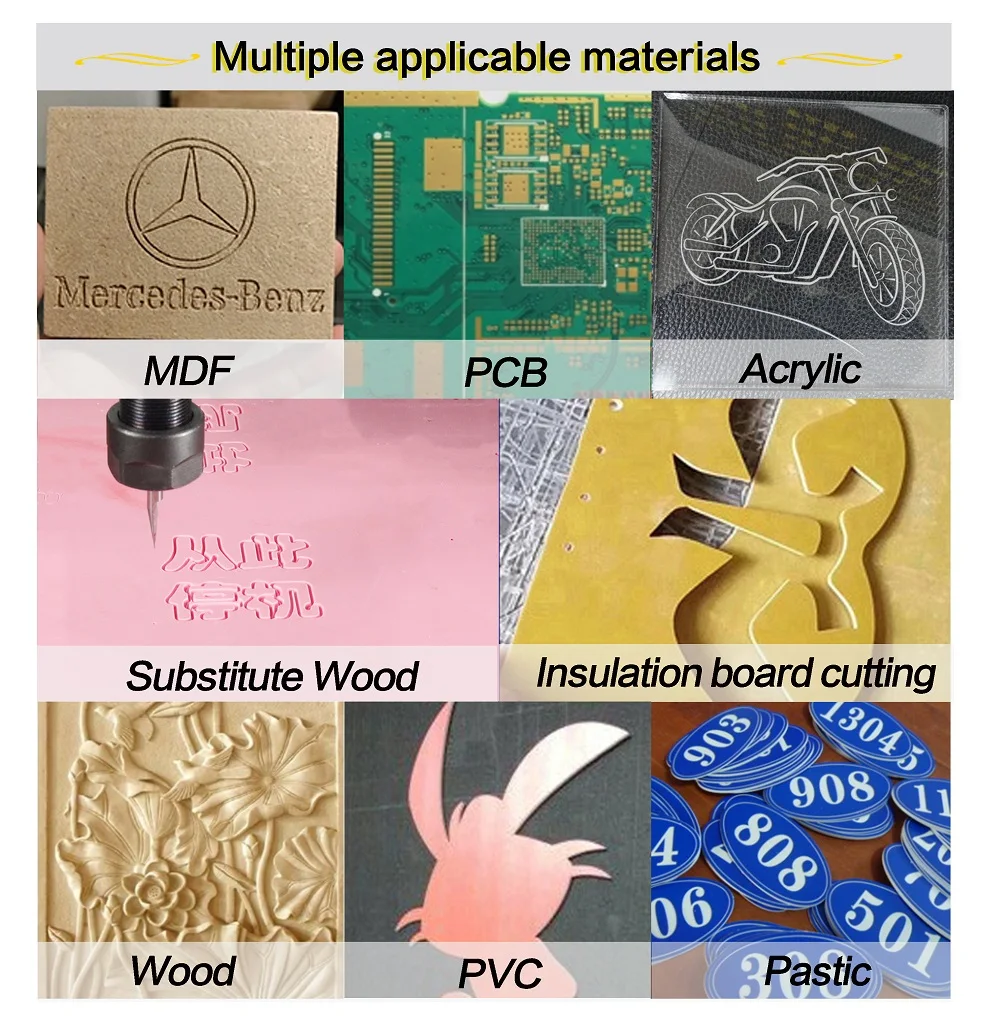

Workable material:wood / plastic / PCB / acrylic / plywood / ...

  Advantage

1.Add laser protection cards on both sides to make laser testing more convenient.

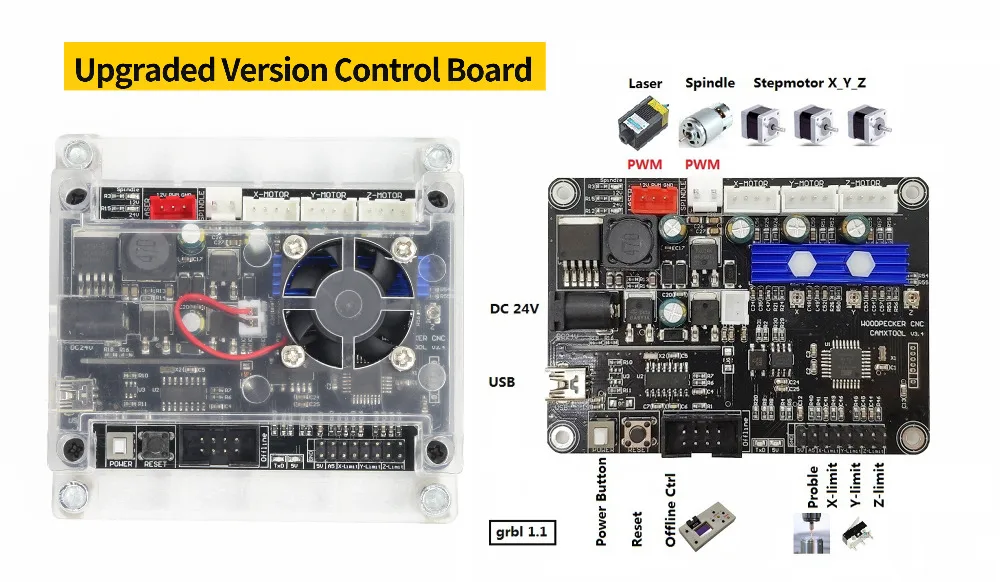

2.DRV8852 Driver GRBL1.1F control board firmware V3.4, stable performance, overcurrent protection stepper motor to avoid damage.

3.The updated control board is with shell and fan, better for dust proof and

cooling, and the etching time and service life will be extended.

4.Laser engraving-import the photo directly for engraving, needn't program and design which is very simple and convenient.

F.A.Q:

1 Q: Does this machine need to be assembled when I received it?

  A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included

      in the kit.

2 Q:  How to assemble the kit?

   A:We'll provide whole assemble and operating manual,please share your email address,then we'll send to you.

3 Q: Are there software and instructions can I get it?

  A:You can get the software in a USB disk with machine.

4 Q: And what image format the software supports? Engrave Mode?

   A: Supported Image Format: jpg, bmp, svg, G-code

       Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving

5 Q: Whick type computer system can run its software?

  A:The software only support the Windows XP/7/8/10.

6 Q: What's the laser's lifetime?

   A: The laser module have over 6,000 hours lifetime.

 7 Q: What material can it engrave?

   A:Wood, bamboo, plastic, paper, leather, rubber,MDF.

8 Q:What material can it cut?

  A:wood, paper, thin leather.

9 Q:Can I use it to cut or engrave on metal?

   A:It can not engrave or cut on any metal.

10 Q: Can I regulate the laser power or the laser power is adjustable?

   A: Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.

11 Q: How long can the machine work continuously?

   A: It can work continuously about 45 minutes, after the laser mould cool

down(about half of an hour), then start work again. Long time work

continuously with shorten the laser module lifetime.

12 Q:My laser doesn't work, what should I do?

If the machine does not work, it might because:

A The wire connection is wrong.Please check the connection like the picture shown.

B Your computer could not support the software.Please use Win XP 7/8/10 to check it.

C Software problem .Please check whether wires are inserted rightly. And then check your data setting.

D The kit misses some accessories. Please compare with the instruction and tell us, we will solve it once you send us the email.

E Laser module/ driver board/power supply is broken.

   Please check which part is the main problem, and then send us a video to prove it.

   Or you can send us a video about your software setting, working laser and driver board. We will analyze it and give you a solution.

 Friendly Note:

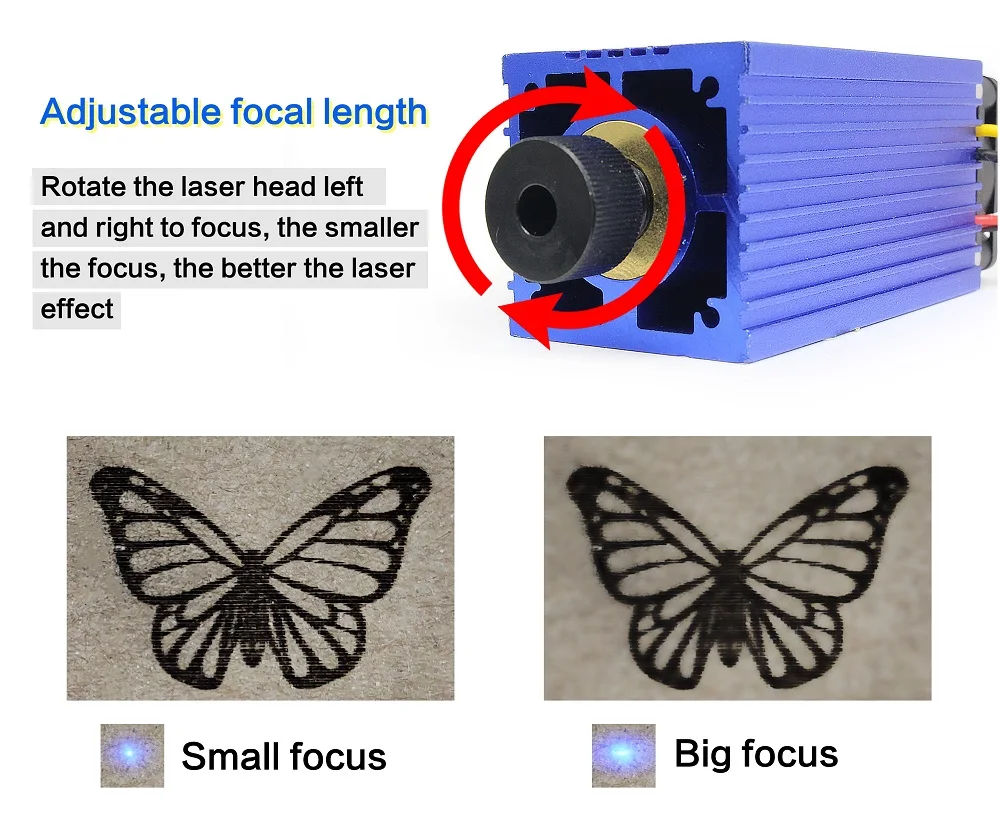

Due to the different wattage of the laser head, the engraving material

range, engraving speed, depth, etc. are different. The greater the

power, the faster the speed

3W-5.5W laser:

1. Can carve wood, paper, plastic, leather, bamboo, bones, teeth, etc.

2. Can't carve metal

7W-10W laser:

1.Can carve Wood, paper, plastic, leather, bamboo, bones, teeth, acrylic and other materials that can be burned by fire.

2. Can carve 304 201 pure color stainless steel, painted metal (except

stainless steel, other pure metal with primary color smooth surface

cannot be carved)
