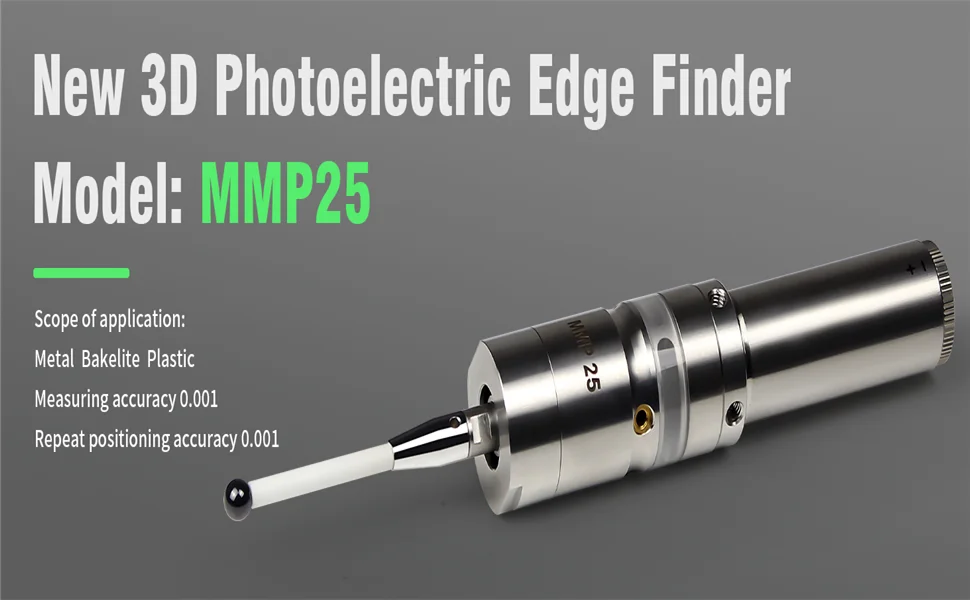

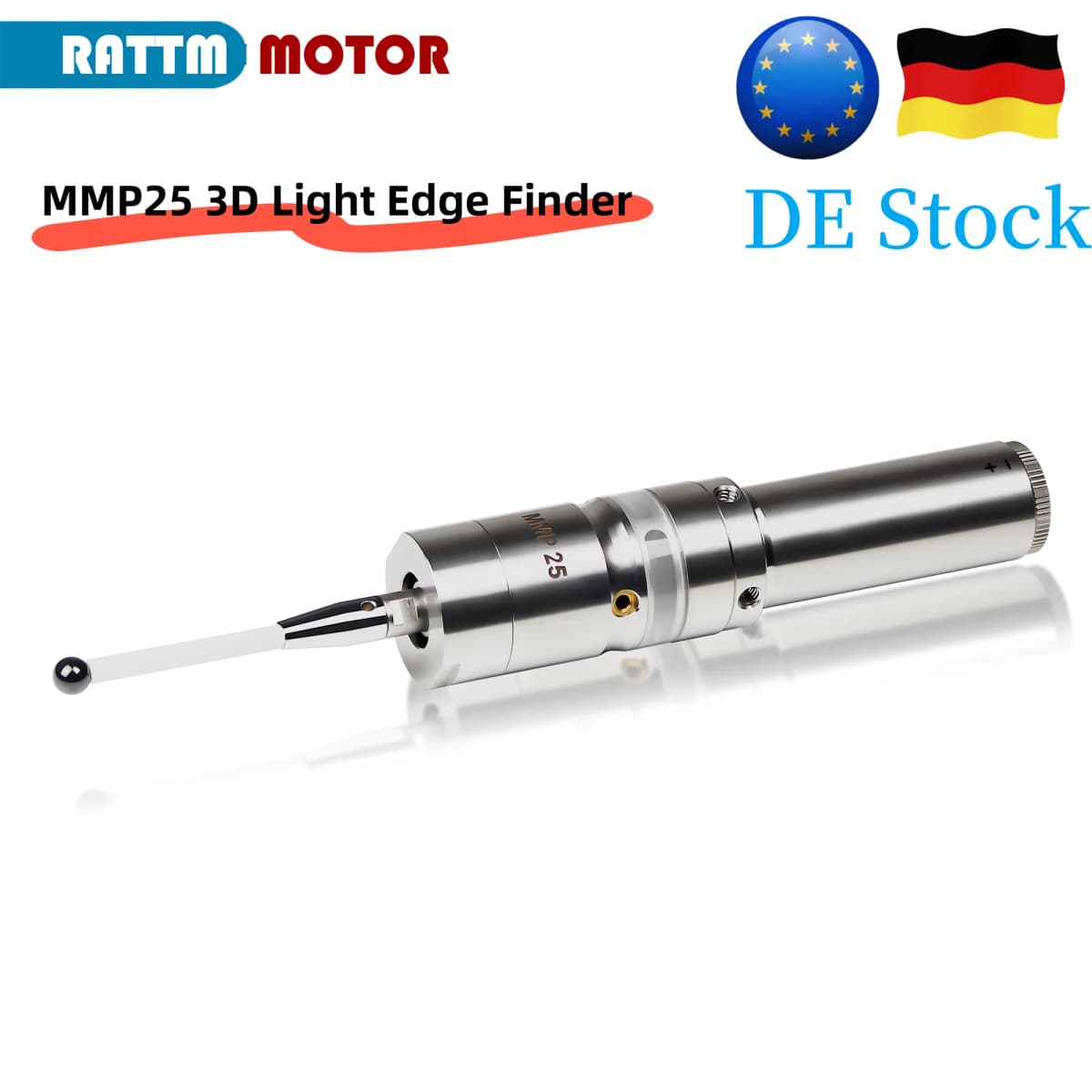

【EU】MMP25 3D Light Edge Finder with Ceramic Probe Centering Rod, to Find CNC Milling Lathe Machining Center,Accuracy 0.001mm

Notice:

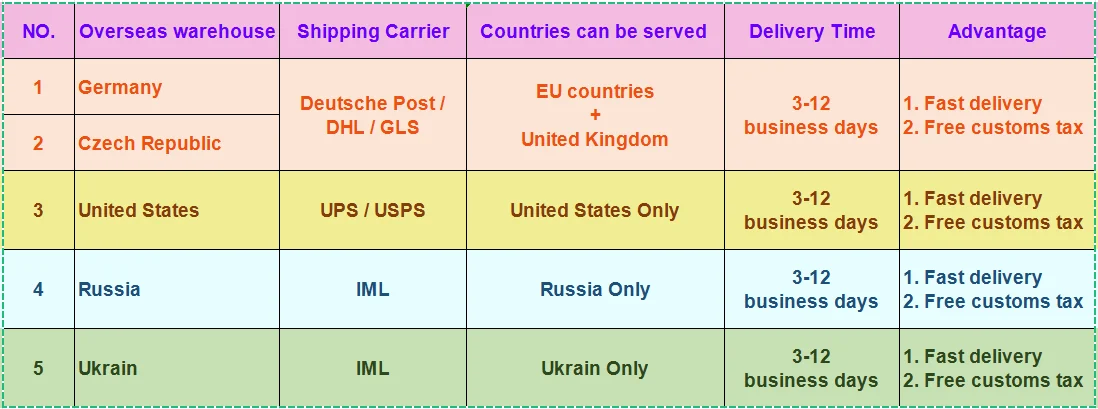

Dear friends,we have warehouse in Germany/United States/Russia，we can ship to all EU countries from our Germany warehouse via DHL, ship to United States from our USA warehouse via UPS, which isfast delivery.

Package include:

1x 3D Edge Finder MMP25

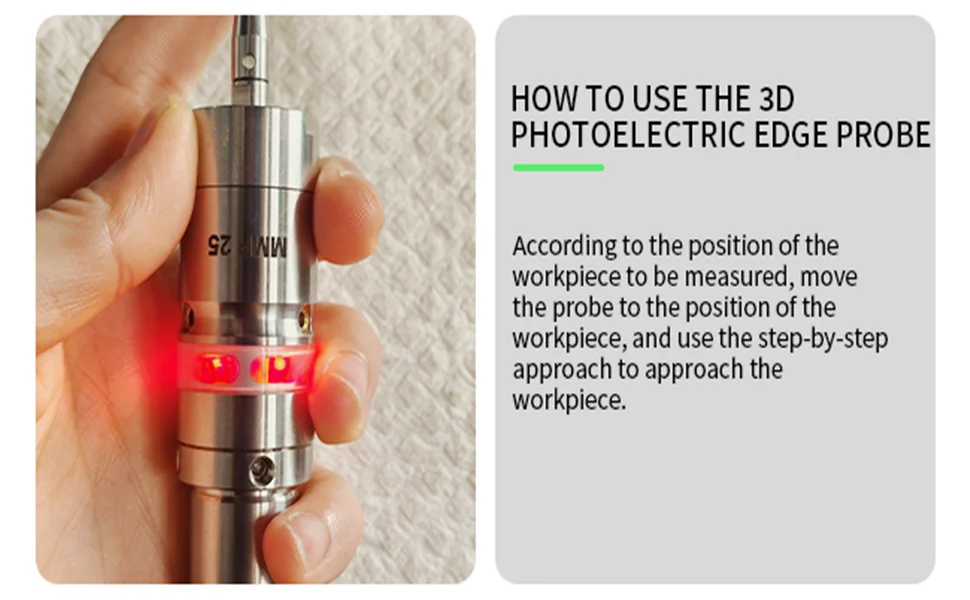

How to Use the 3D Edge Probe

According

to the position of the workpiece to be measured, move the probe to the

position of the workpiece, and use the step-by-step approach to approach

the workpiece.

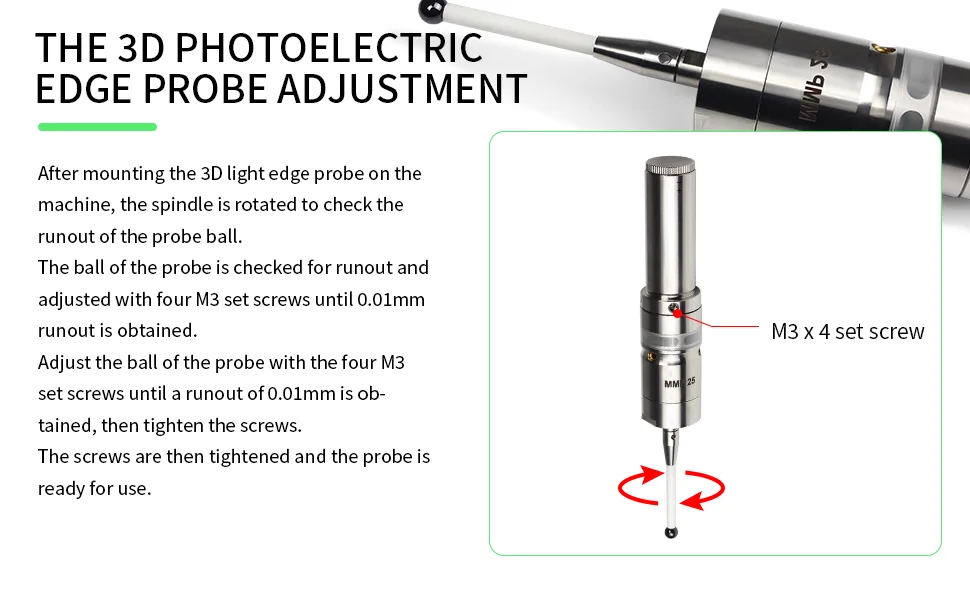

The 3D Edge Probe Adjustment

After mounting the 3D edge probe on the machine, the spindle is rotated to check the runout of the probe ball.

The ball of the probe is checked for runout and adjusted with four M3 set screws until 0.01mm runout is obtained.

Adjust the ball of the probe with the four M3 set screws until a runout of 0.01mm is obtained, then tighten the screws.

The screws are then tightened and the probe is ready for use.

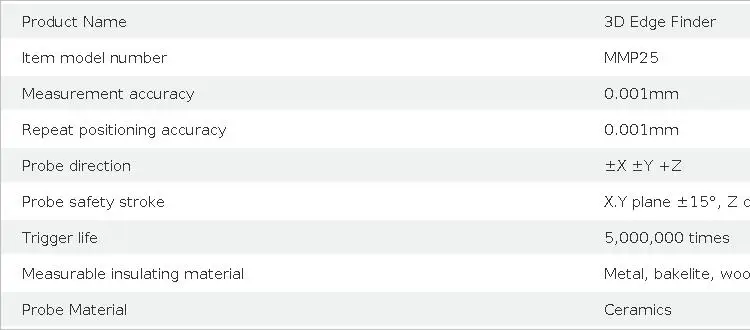

Product Features

The 3D edge probe is a product with high-precision edge measurement and other features that offer the following advantages:

Higher alignment accuracy, repeatability up to 0.001MM.

Z-axis measurement is more comprehensive.

Adopt ceramic probe for better accuracy retention.
