【EU&Brazil Stock】4 Axis Rotation A Axis Extend Rotary 4 Jaw 100mm K12-100 Chuck Nema23 Motor &Tailstock for Wood Metal Milling

Good News:

We have warehouse in Germany, Czech Republic, United States, Brazil, we can ship to EU countries.USA and Brazil via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

Package include:

Package include:

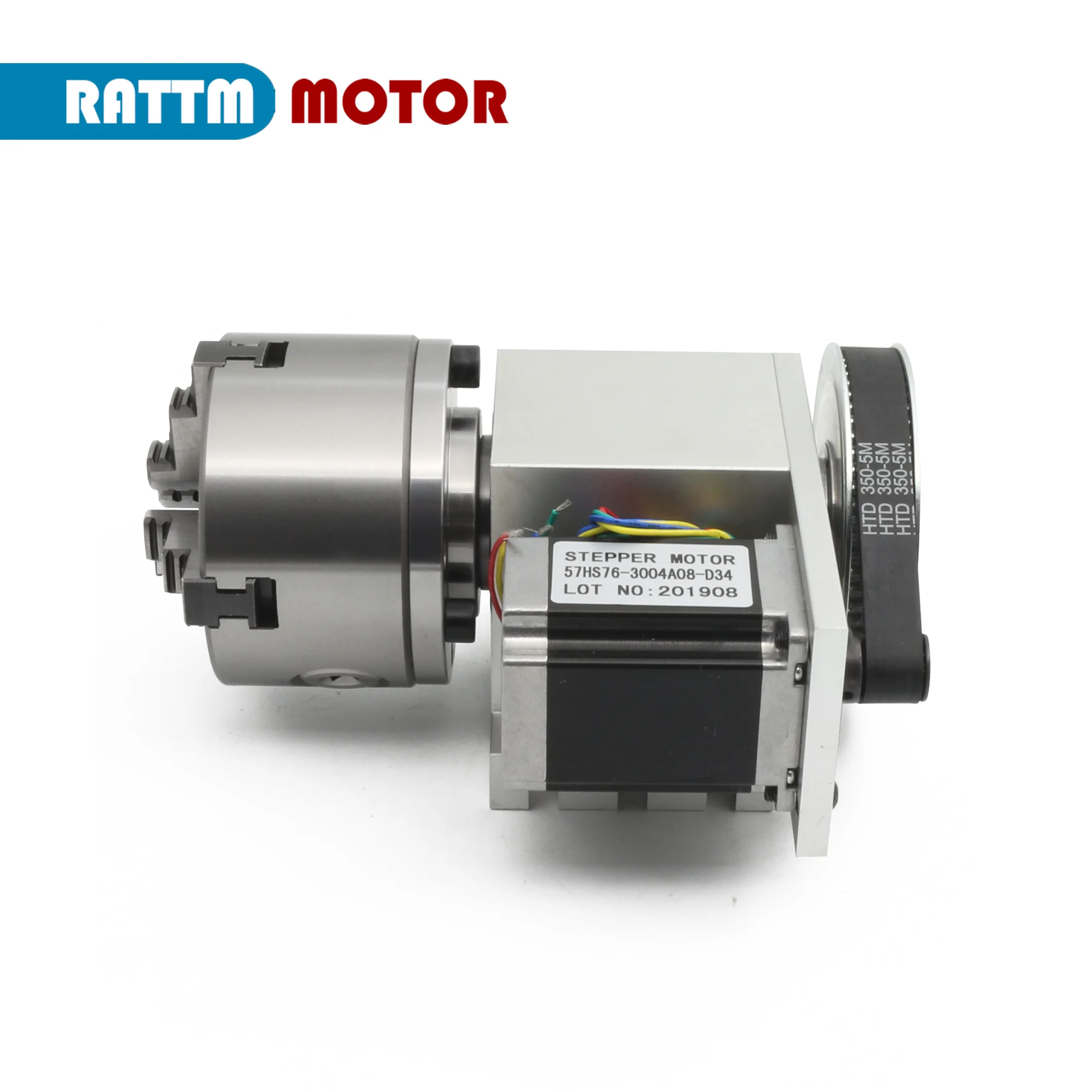

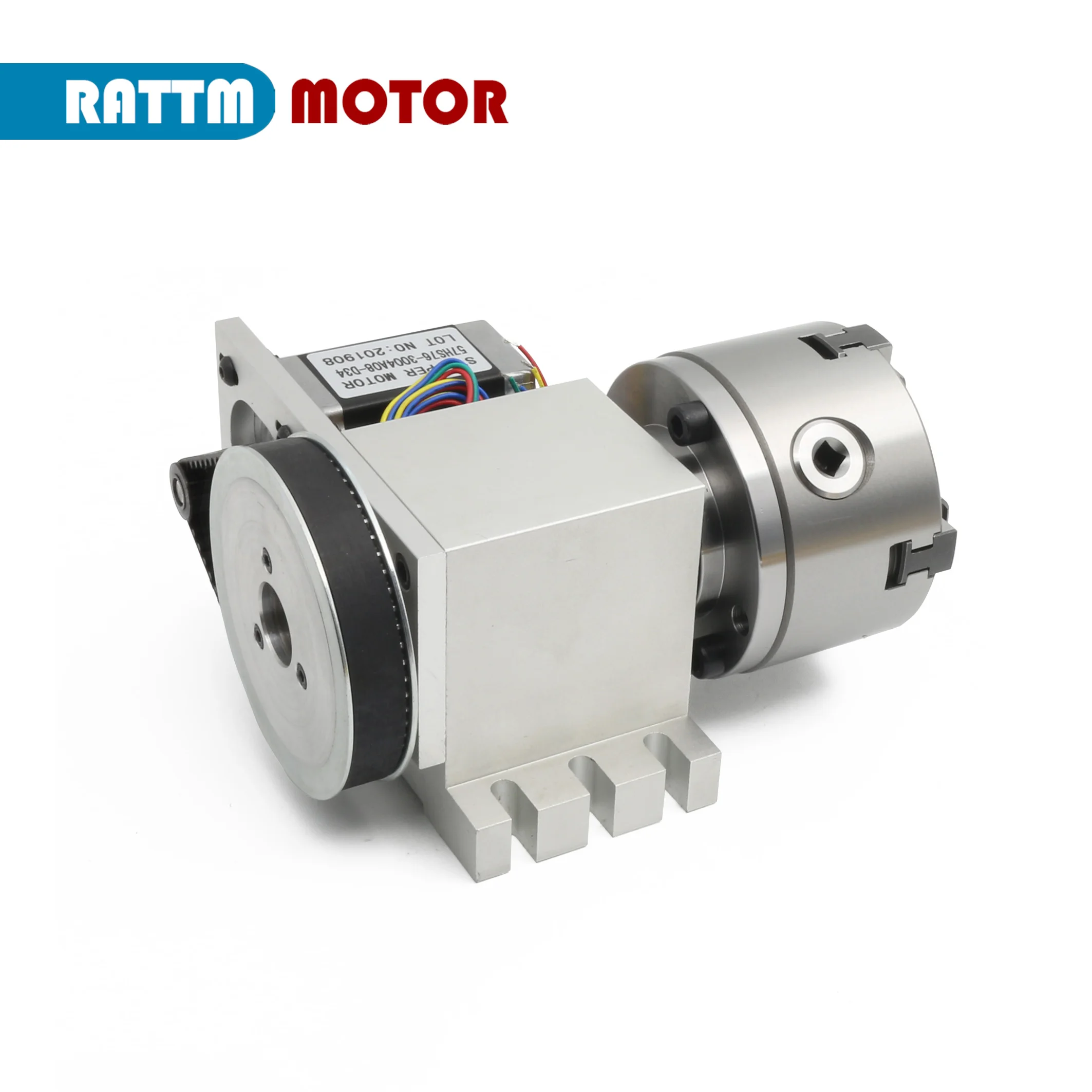

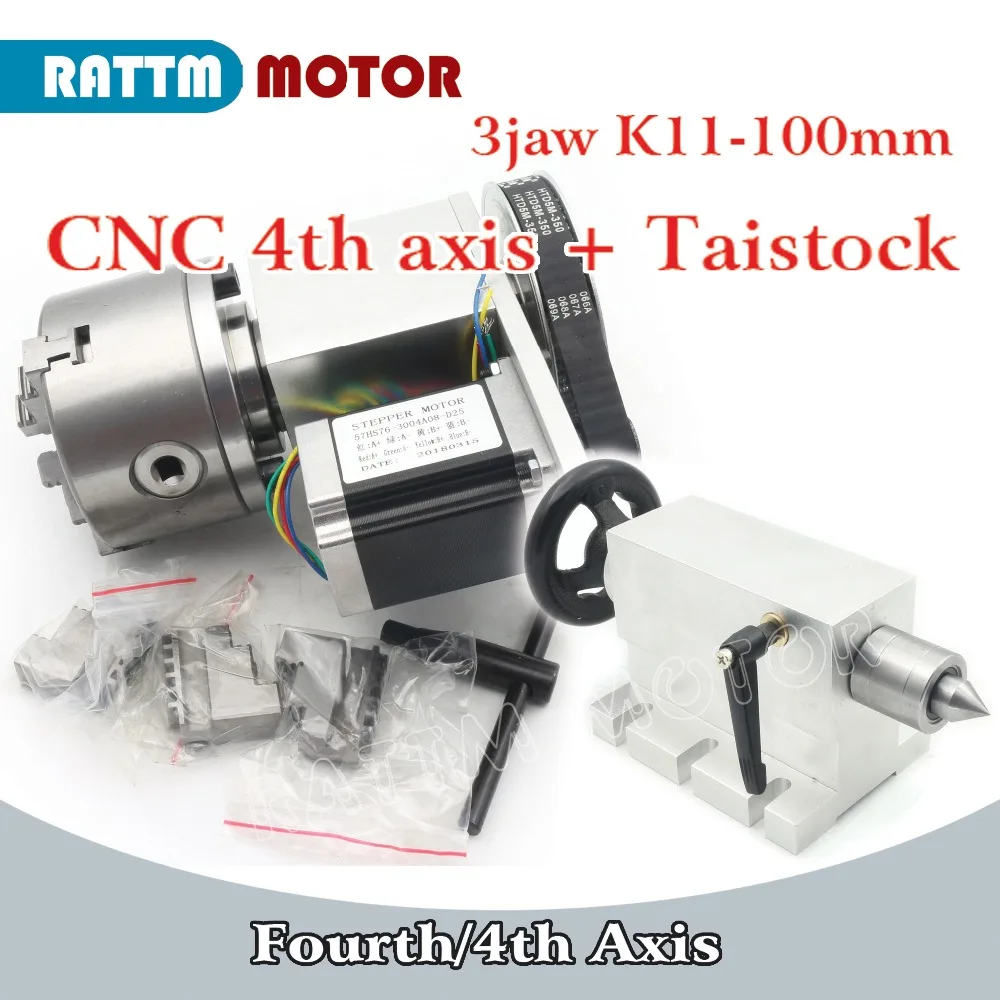

1 Set  4th Axis (Includes motor and chuck K11-100mm / K12-100mm(Optional)

1 x Tailstock 65mm

(1). 1 Set  4th Axis (Includes motor and chuck K11-100mm (Optional)

Engraving machine fourth axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox

Chuck type:K11 100mm three jaw centering chuck

Center height:65mm

Total height:115mm

Angle:0.3°/ step

Gear box output shaft diameter:25mm

Reducing ratio:6:1(belt deceleration mode)

Stepper motor:Nema23 57mm 3A 2-phase 4 wire

Accessories:Set of Anti-claw and wrenches

Weight:6.5KG

The fourth axis parameter settings:

Mach3 system settings:the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings:1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125

(2). 1 Set  4th Axis (Includes motor and chuck K11-100mm (Optional)

1.  Engraving machine fourth axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox

Chuck type:K12 100mm 4 jaw centering chuck

Center height:65mm

Total height:115mm

Angle:0.3°/ step

Gear box output shaft diameter:25mm

Reducing ratio:6:1(belt deceleration mode)

Stepper motor:Nema23 57mm 3A 2-phase 4 wire

Accessories:Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings:the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

(200 x 16 x 100) / 360=888.88888888)

Weihong system settings:1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

360 / (200 x 16 x 100) =0.001125

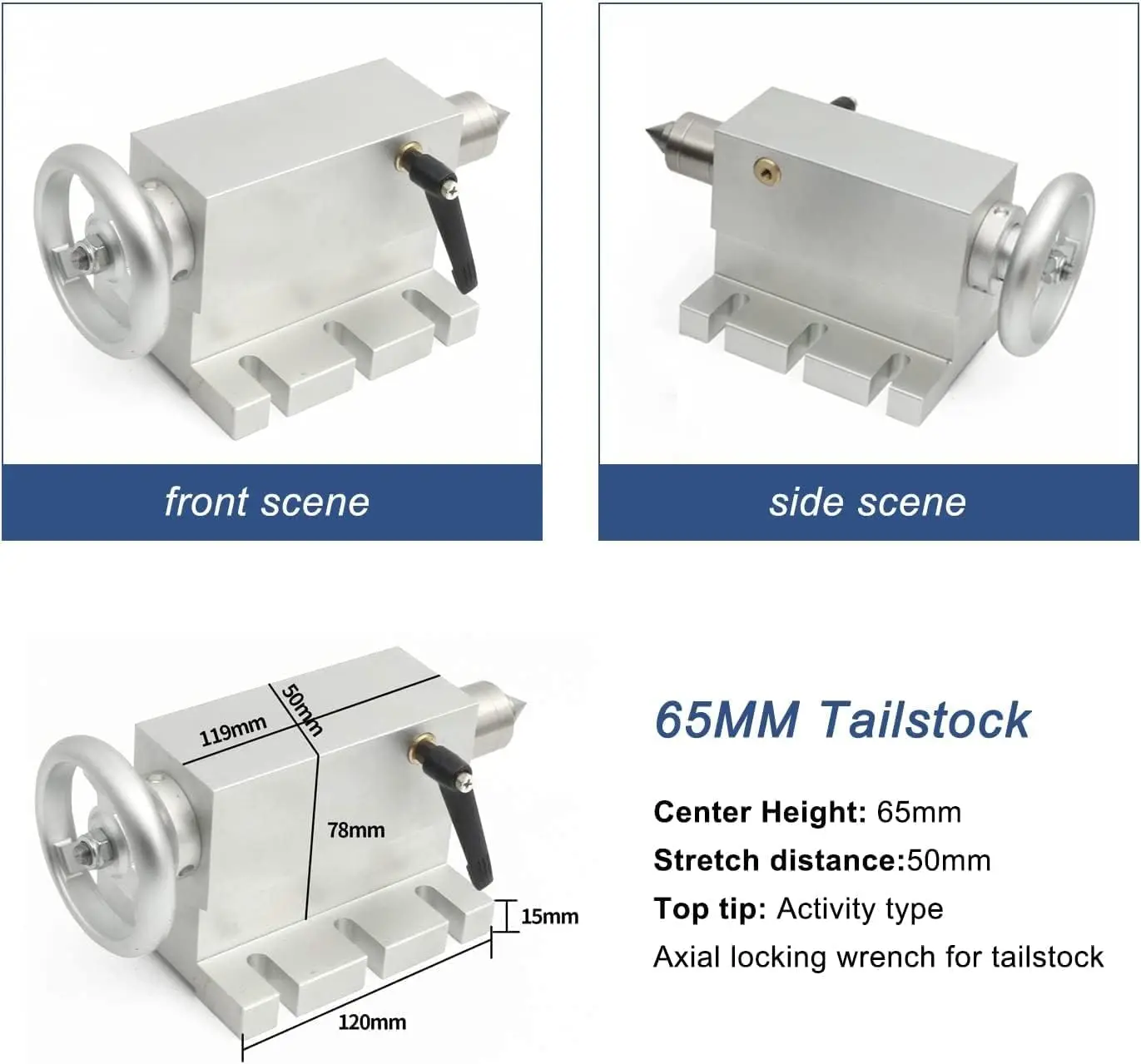

Tailstock type:

Center Height: 65mm

Stretch distance:50mm

Top tip: activity type

Axial locking wrench for tailstock

Net Weight:2.1kg

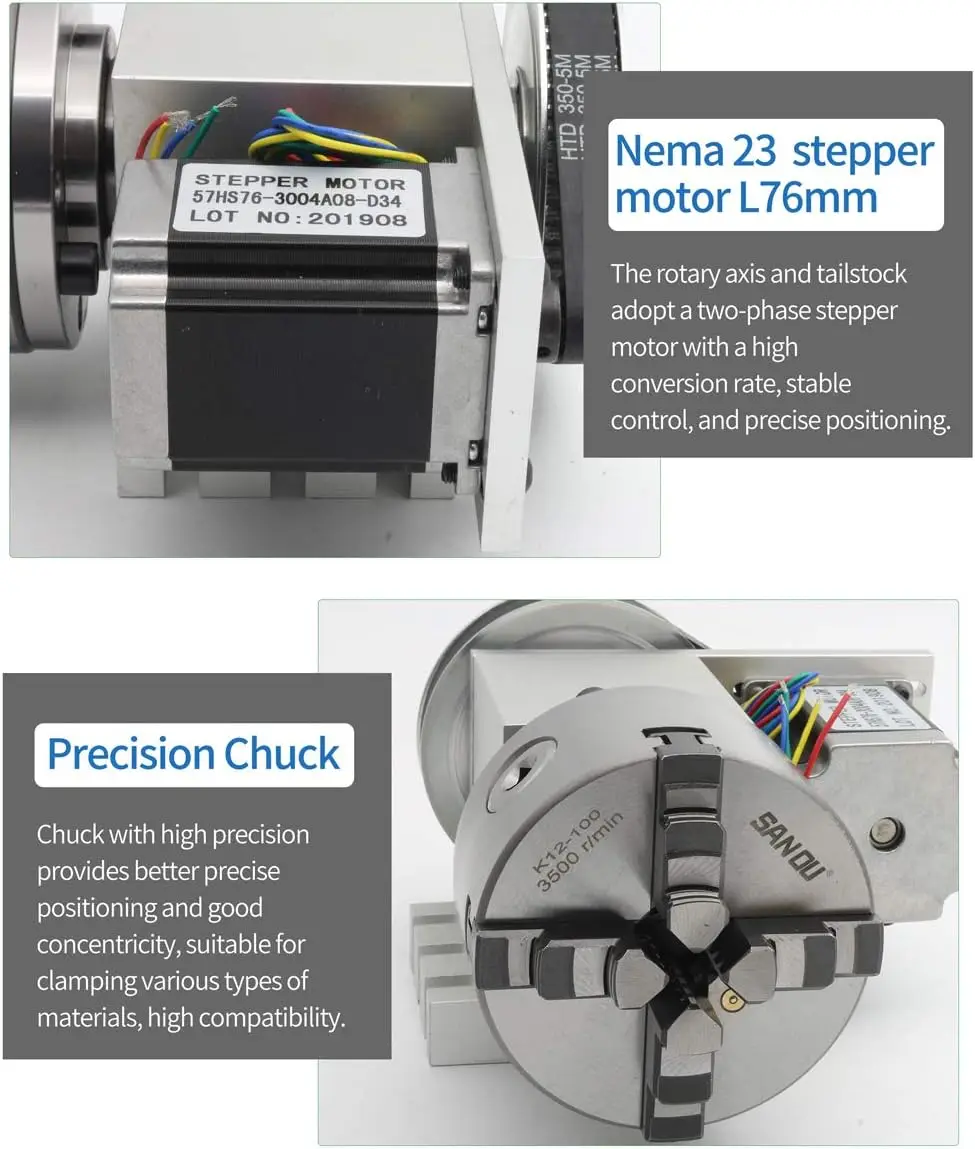

Stepper Motor:

Nema 23 57x57x76mm

Shaft Diameter: 8 mm

Shaft length: 25.5mm

Step Angle: 1.8

Current: 3A

Voltage: 4.2V

Temperature Rise: 80 c max

Ambient Temperature: -20 c - + 50 c

Phase No.: 2HP

Insulation Resistance: 100MOhm (500V DC)

Holding Torque: 18kg.cm
