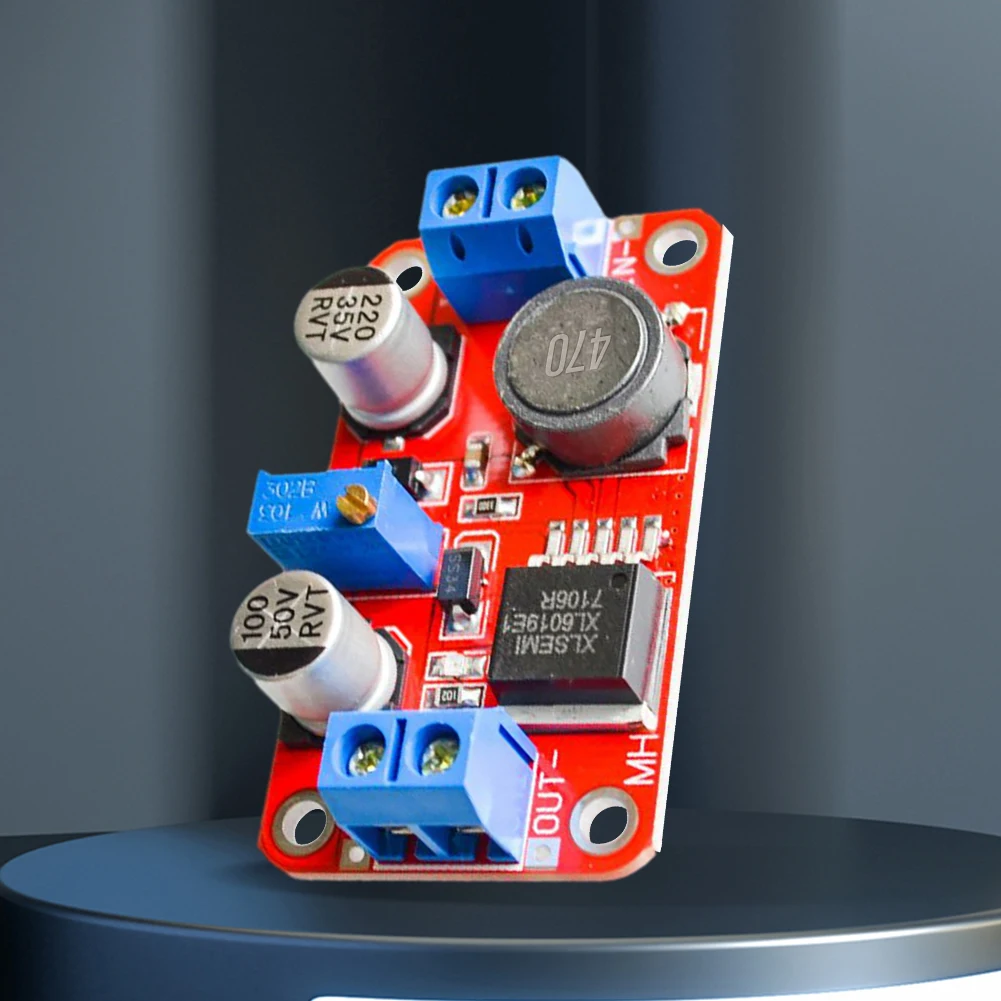

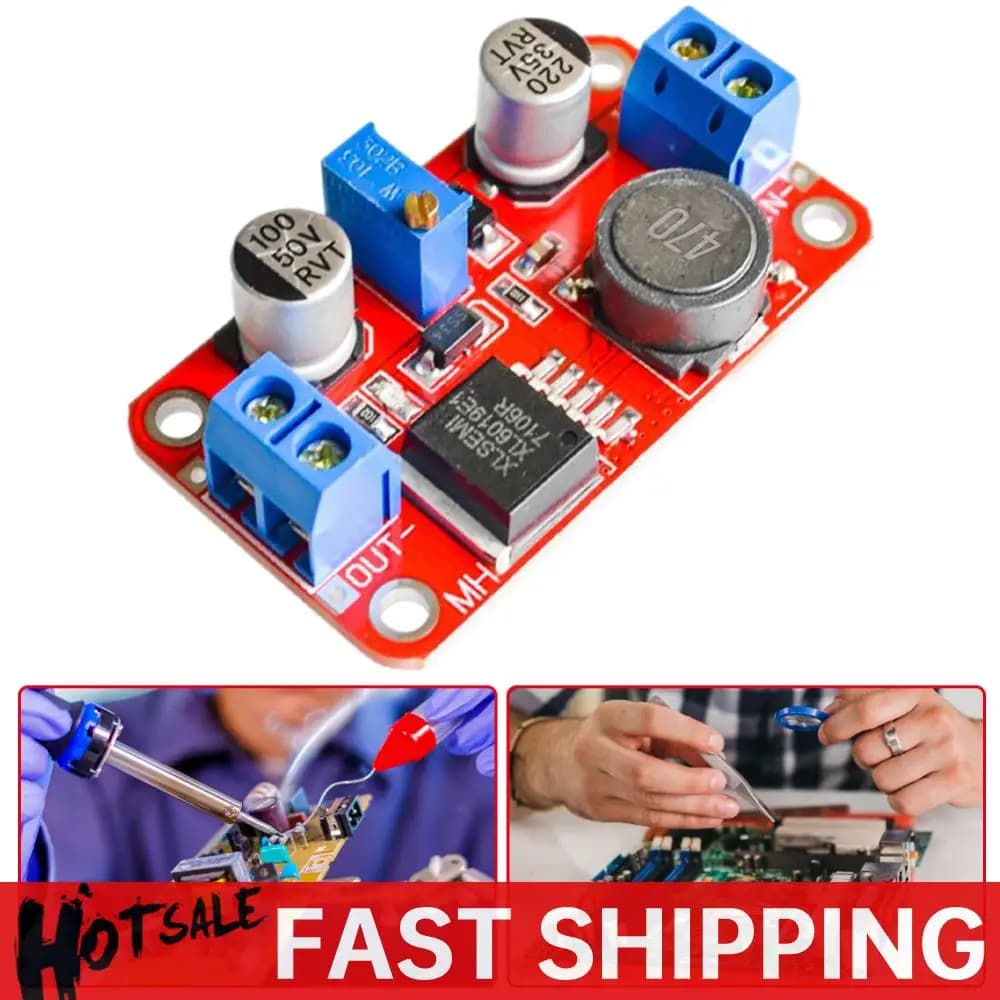

XL6019 Booster Power Supply Module Adjustable Output DC-DC Step-Up Voltage Regulator High Power for Handheld Device Power Supply

XL6019 DC-DC Step Up Power Module 3V-40V To 5V-45V DC-DC Boost Volt Converter Adjustable Output for Handheld Device Power Supply
Features:
1. Integrated Boost Power Module: This DC-DC step up power module utilizes the XL6019 integrated circuit, designed for boosting and buck-boost applications. It operates within a wide input voltage range of 5V to 40V, delivering low ripple performance and featuring an integrated power MOSFET.
2. Wide Input Range with Adjustable Output: With an input voltage range from 3V to 35V (recommended), this DC-DC boost volt converter supports high input voltages up to 40V. The output voltage is also adjustable, allowing flexibility in powering various devices.
3. Enhanced Reliability and Protection: Equipped with built-in over-temperature and over-current protection circuits, this step up converter module ensures reliable performance and safeguards against potential damage. Enjoy peace of mind knowing your system is well protected.
4. Efficient and Heat-Friendly: Achieve conversion efficiencies of over 90% with this booster power supply module, facilitating efficient power transfer while minimizing heat generation. Ideal for applications requiring effective thermal management.
5. Compact and Versatile: Designed in a T0263-5L standard package, this DC-DC step-up voltage regulator is perfectly suited for boosting applications up to 30W. Its compact dimensions make it suitable for EPCs, notebook car adapters, voltage conversion, and portable device power supply.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Module Nature: Non-Isolated Boost (Boost)
Rectification Method: Non-Synchronous Rectification
Input Range: Limit Value: 3-40v, Recommended Value: 3v-35v
Output Range: Limit Value: 5-45v, Recommended Value 5v-40v (By Rotating Potentiometer)
Input Current: Limit Value: 0-5A, Recommended Value 0-3A
Conversion Efficiency: Maximum 94%
Switching Frequency: 220khz, The Second Generation Of Switching Power Supply Technology
Output Ripple: Less Than 100mV
Load Adjustment Rate: ±0.5%
Voltage Adjustment Rate: ±0.5%
Operating Temperature: Limit Value: -40℃~+150℃, Recommended Value -20c~+85℃
Reverse Connection Protection: Input 40v Anti-Reverse Connection Protection

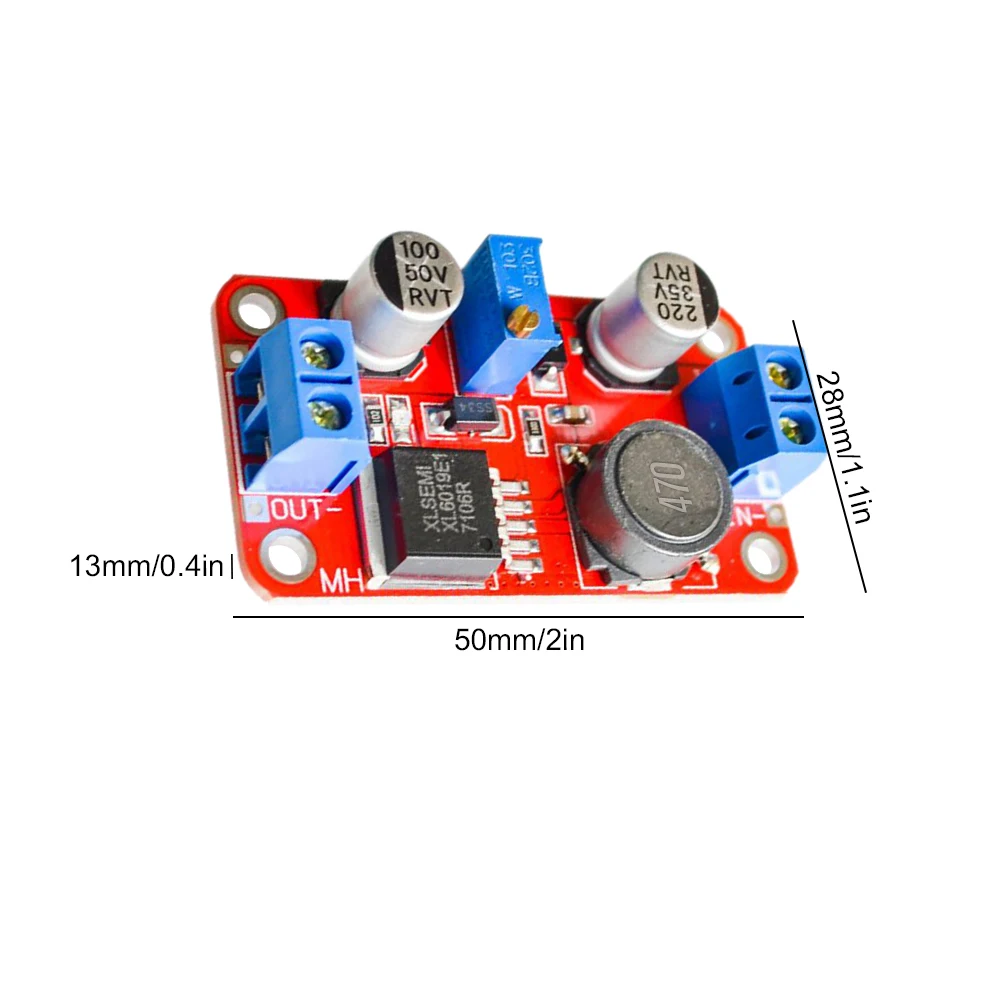

Size: 50*28*13mm/1.95*1.09*0.51in
Application: EPC/Notebook Car Adapter, Lift Voltage Conversion, Handheld Device Power Supply
Product Description:
The XL6019 is a monolithic IC designed for step-up and step-down voltages. It can operate from DC5V to 40V input voltage range. The XL6019 has a built-in fixed-frequency oscillator and frequency compensation circuit to simplify circuit design. The PWM control loop can adjust the duty cycle from 0-90% linearly. Built-in over-current protection and EN pin logic level shutdown function. Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1*DC-DC Step Up Power Module
