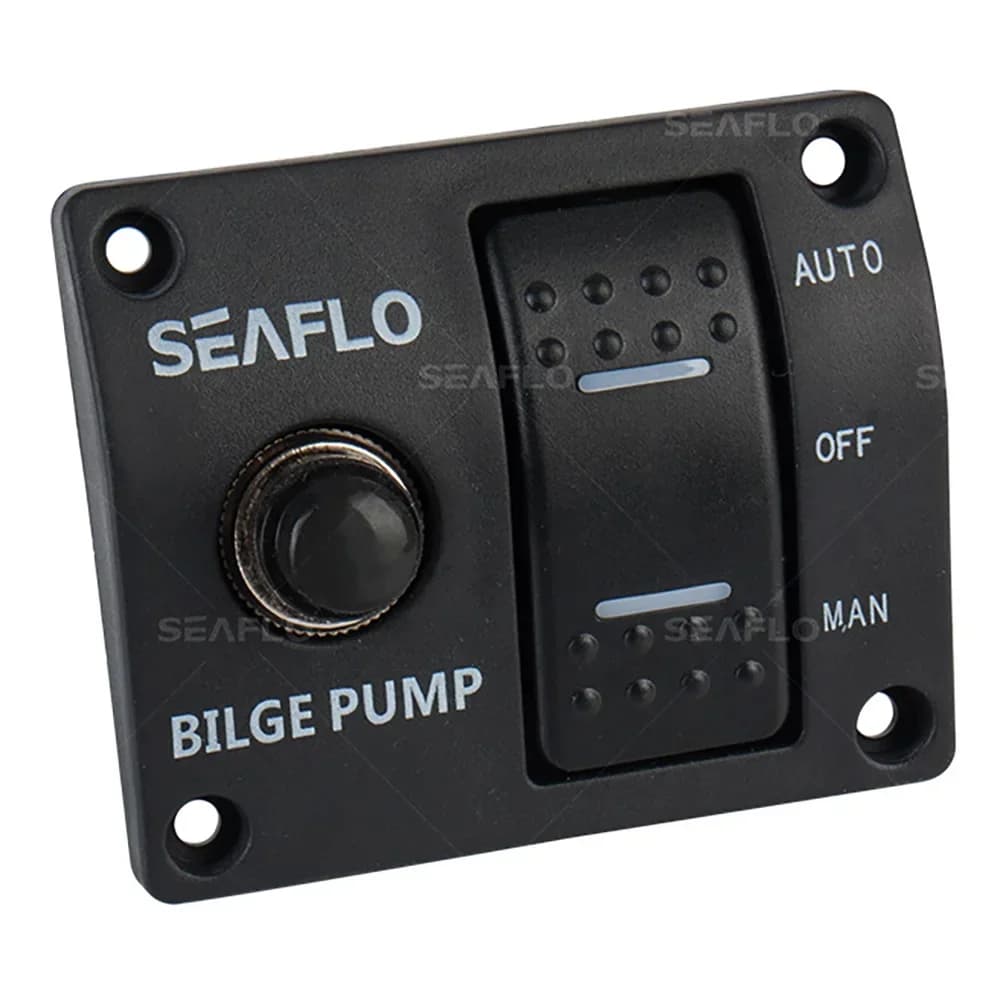

3 Way Bilge Pump Switch Panel Auto Off Manual 12V 24V with Built in 15A Circuit Breaker

This 3 way bilge pump switch panel is designed to provide safe and reliable control for 12V and 24V DC bilge pumps with an automatic float switch. It allows you to switch easily between automatic operation, manual activation, and off mode, giving you full control of your bilge pump system.

The built-in 15A circuit breaker protects the pump from overload and short circuits, helping prevent motor damage and eliminating the need for an external fuse. This improves safety while simplifying installation.

Made from durable black aluminum, the panel offers excellent corrosion resistance and long-term reliability in marine environments. The illuminated switch and LED indicators provide clear visual feedback, making it easy to monitor pump status even in low-light conditions.

A fail-safe spring-loaded design automatically returns the switch from MANUAL to OFF, preventing accidental continuous pump operation. The manual mode also allows direct pump activation whenever extra water needs to be removed.

This switch panel is suitable for boats, yachts, pontoons, and other marine vessels that require dependable bilge pump control.

✅ Product Features

• Three position switch: Manual, Off, Automatic

• Built-in 15A circuit breaker for overcurrent protection

• Supports 12V and 24V bilge pump systems

• Compatible with automatic float switches

• Aluminum panel for marine durability

• LED indicators and illuminated switch

• Fail-safe spring return from Manual to Off

✅ Specifications

Item Type: Bilge pump switch panel

Voltage: 12V / 24V DC

Current Rating: 15A

Switch Positions: Manual – Off – Automatic

Material: Aluminum

Color: Black

Protection: Built-in circuit breaker

Installation: Panel mount
