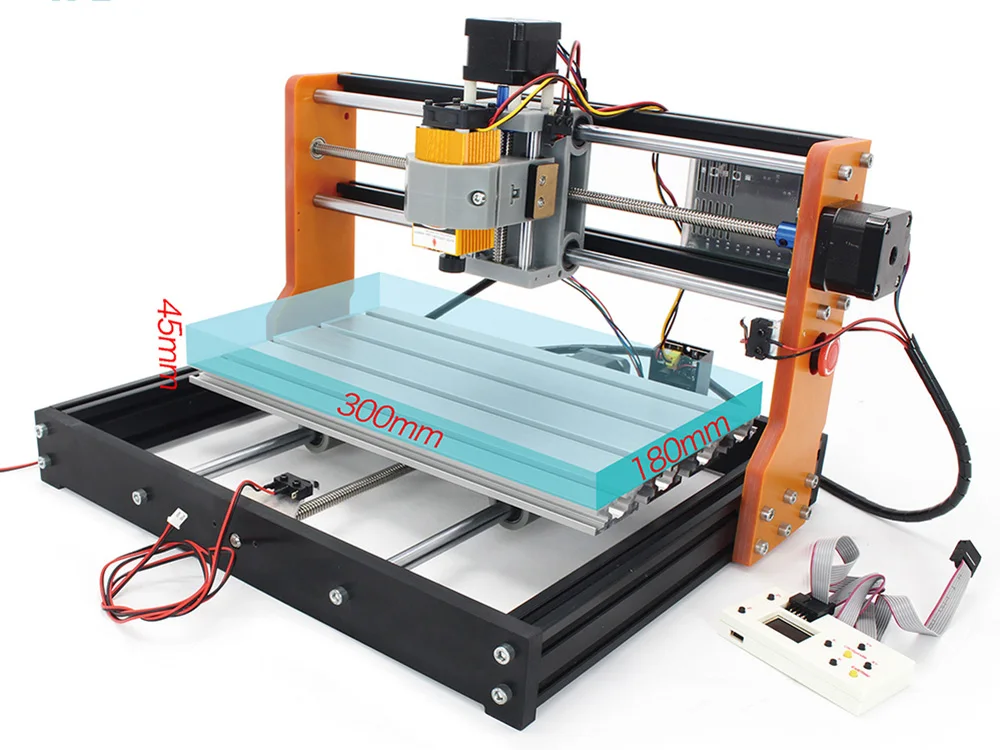

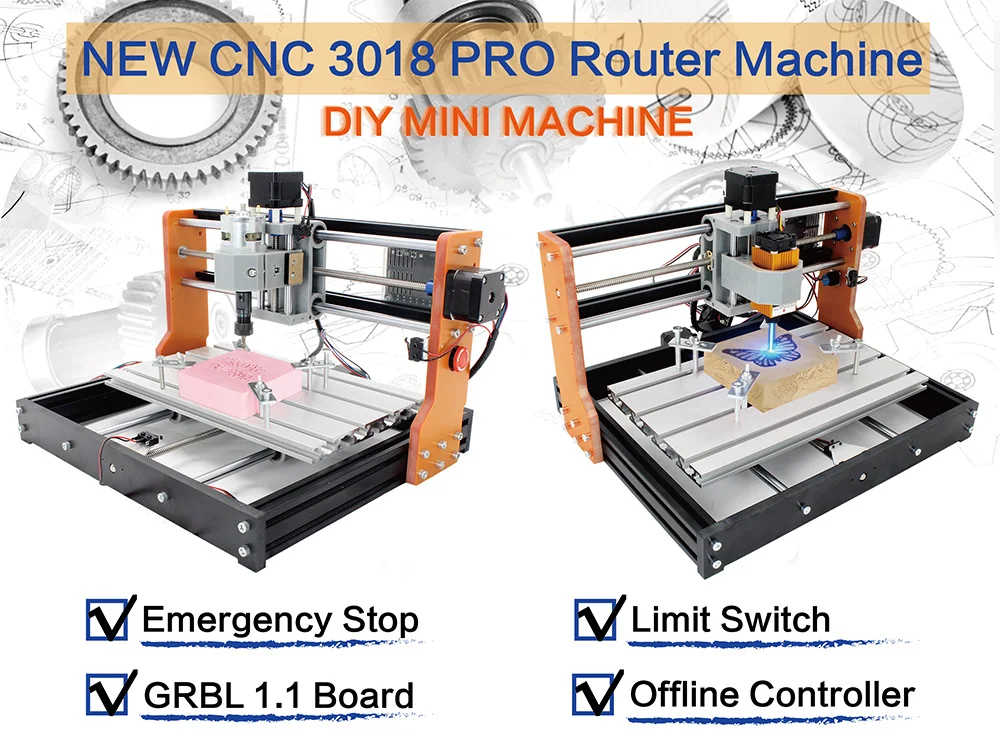

【EU】RATTM 3018 Pro Orange 3-Axis CNC GRBL Control Laser Engraving Cutter with Emergency Stop Switch

GRBL Offline Remote Controller

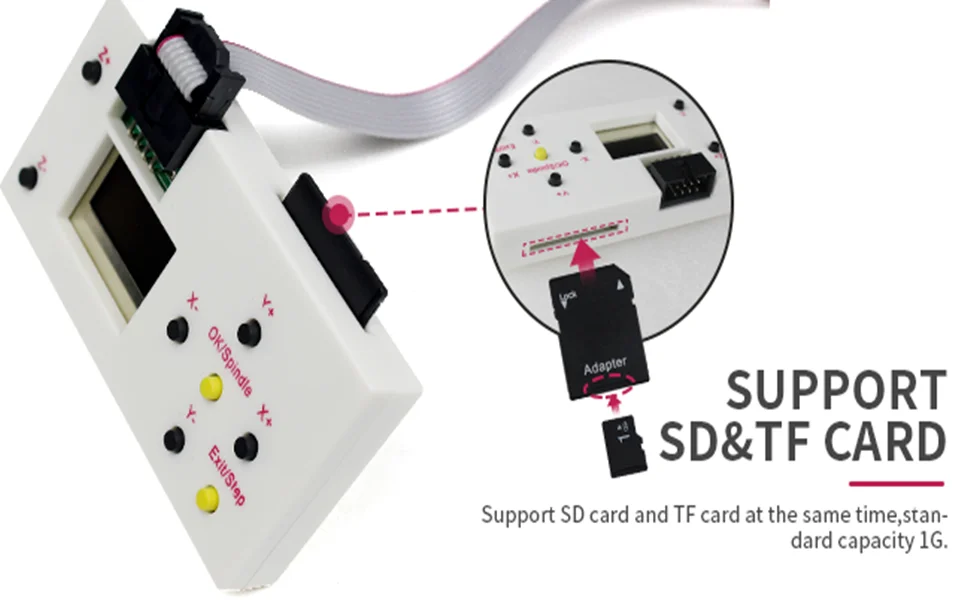

◆ Support SD card and TF card at the same time, standard capacity 1G.

◆ With this offline controller module, you can directly control the CNC router without connecting it to your computer.

◆ After

inserting the file into the SD card,the engraving file can be directly

identified. You can also use the micro USB cable to connect the offline

hand controller board to your computer and save the file directly.

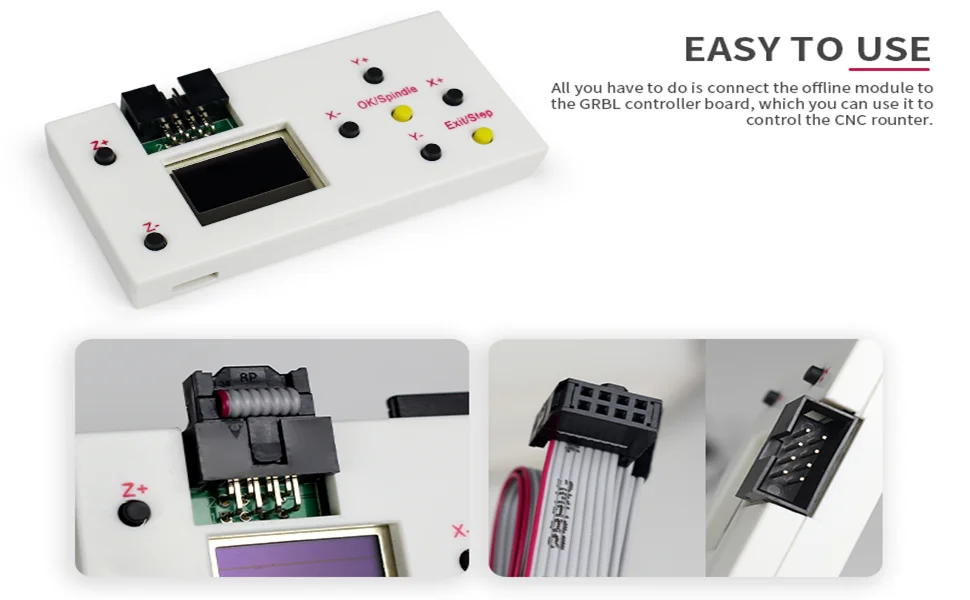

◆ Easy

to use: All you have to do is connect the offline module to the GRBL

controller board, which you can use it to control the CNC rounter.

◆ Manually

control: manually adjust X,Y,Z axis location as engraving starting

point,manually open or close spindle,manully open or close cooling fan

◆ File

engraving: after off-line controller save file, it can connect the GRBL

control board and process engraving,no need to connect PC computer

◆ Save

file: after the off-line controller connect PC,it will be recognized as

USB,large capacity storage device, can access engraving file directly.

◆ SD

shows it is SD card condition,turn on power supply after insert SD

card,otherwise,it won't work.SD card capacity 4G could be recognized.

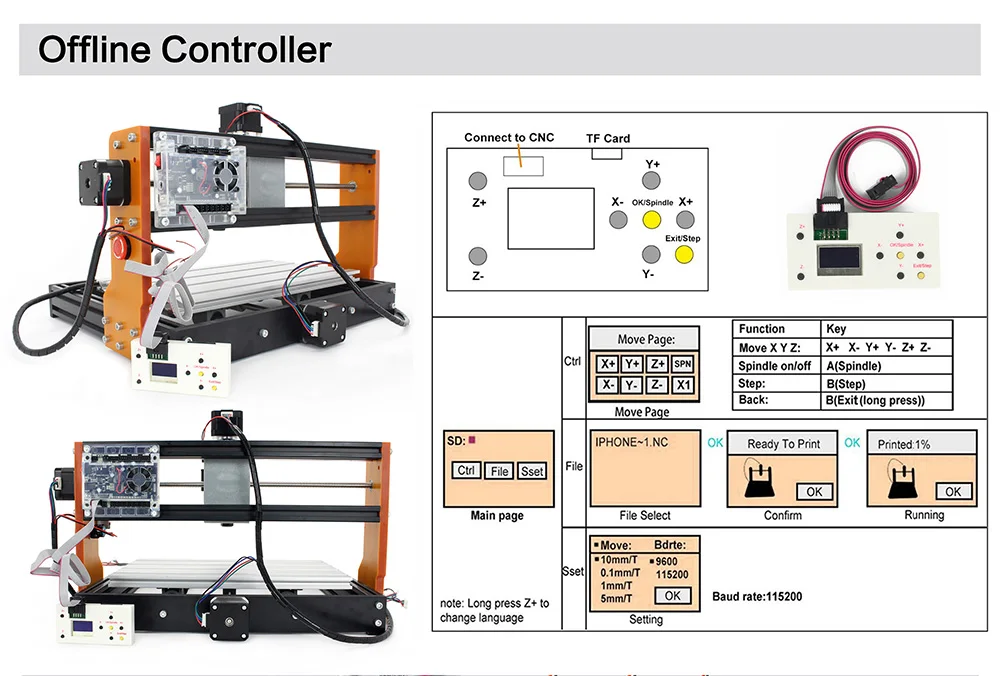

Main Page

◆ Ctrl: Machine Control;

◆ File: Use the Gcode file;

◆ Press [Y+] [Y-] to select; Press[Ok] to Enter

Control Page

◆ X± Y± Z±: Moving Axis

◆ OK/Spindle: Spindle ON/OFF

◆ Exit/Step: Change Step/Exit (long press)

◆ How

to increase the spindle power: After pressing the spindle button, press

and hold the OK ◆ button and the Z+ button simultaneously to increase the

speed.

◆ How

to decrease the spindle: After pressing the spindle button, press and

hold the OK button ◆ and the Z- button simultaneously to decrease the

speed.

File Page

◆ Common supported formats include nc. tex. tap.

◆ Press [Y+] [Y-] to select file

◆ Press [Ok] to Enter

◆ Press [Ok] to begin if you are ready

◆ Note:Long press [Exit] to stop machining

Feature:

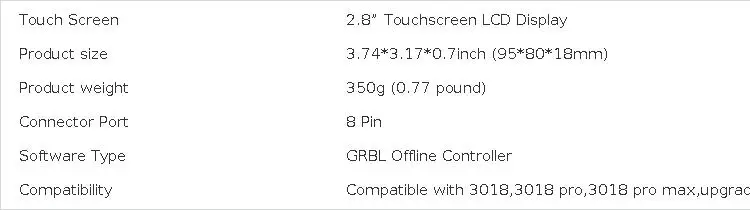

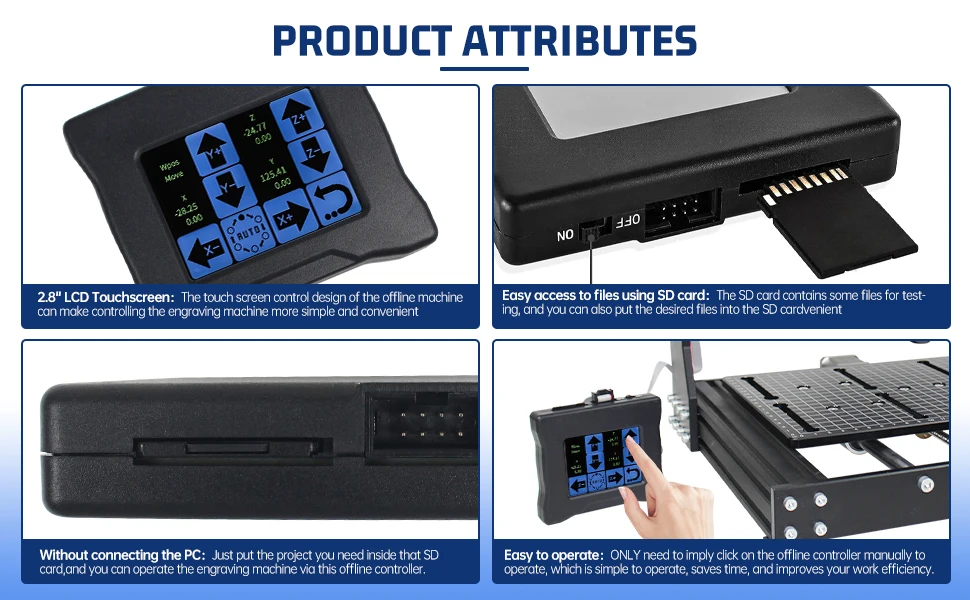

This

offline controller is equipped with a 2.8 inch LCD touch screen,the

touch screen control design of the offline machine can make controlling

the engraving machine more simple and convenient;

The

SD card contains some files for testing, and you can also put the

desired files into the SD card.The functions of the touch screen offline

controller are the same as the computer's control software,and you can

also control every movement of the engraving machine as if you were

operating on top of the engraving machine.

You

can successfully and easily operate the engraving machine without

connecting to a computer,greatly improving work efficiency;Just put the

project you need inside that SD card,and you can operate the engraving

machine via this offline controller.
