【BR US CZ】 4 Axis CNC Offline Motion Controller DDCS V4.1 + MPG Pendant Handwheel with E-Stop For Lathe Router Machine

Package include:

1 × DDCSV4.1 CNC controller (3/4 axis optional)

1 × 4GB USB flash drive

1 × USB extension cable and other small accessories

1 × parallel port link cable

1 × Breakout Board

1 x E-Stop handwheel (this is based on ur choose. )

The English user manual will be sent to u via e-mail,pls leave ur e-mail ID after purchase,thx. :)

Product description:

DDCS V4.1 is a 3/4 axis offline motion controller upgraded on the basis of DDCS V3.1, V2.1 and V1.1. DDCS V4.1 continued

Inheriting the consistent simple and efficient features of the DDCS series, and according to the shortcomings of DDCS V3.1, the algorithm has been improved, and the programming instruction rotation has been increased.

Commands, etc., improve the simulation function, etc., support IO port configuration, etc., and improve the product function of the DDCS CNC controller as a whole, making it more functional.

More stable and powerful, and more suitable for customer needs.

DDCS V4.1 CNC system adopts ARM+FPGA design structure, ARM completes the man-machine interface and code analysis part, and FPGA completes the bottom

Layer algorithm and control pulse generation part, fpga speed generator adopts 32-bit speed generator, which makes the resolution of speed and acceleration higher. Assume

Reasonable design, reliable control and convenient operation, DDCS V4.1 enhances the product function and panel layout structure, but 17 keys can still complete all the de-

machine control operation. DDCS V4.1 also supports the universal FANUC compatible G instruction set.

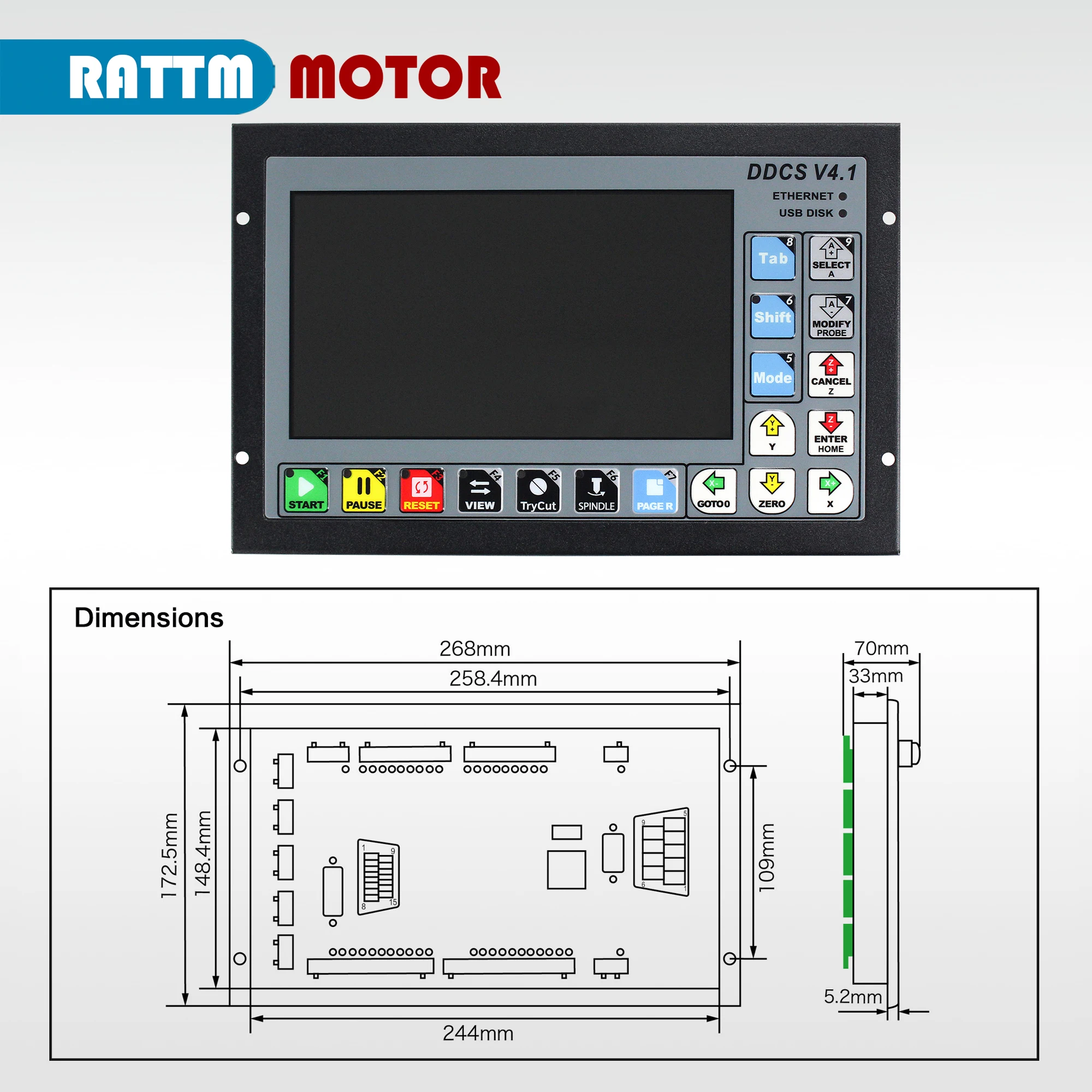

1) 7-inch screen, 17 keys; 18 optocoupler isolated digital input interfaces, 3 optocoupler isolated digital input ports;

2) The new version strengthens the algorithm, and introduces a new algorithm for motion planning, which makes the path of small line segments smoother through configurable contour errors;

3) 1 channel 0-10V spindle speed control analog output interface, and the spindle can be configured as a servo spindle;

4) 3-4 axis drive mode adopts differential mode and double pulse mode for customers to choose, the maximum output frequency of interpolation pulse is 500Khz;

5) ARM9 main control chip, FPGA core algorithm chip;

6) 7-inch TFT screen; size: 1024x600 pixels, resolution: 72 pixels/inch;

7) The main control device is 24VDC power input, and the current capacity is required to be no less than 0.5A; the IO port power input is also 24VDC, and the current capacity must be

It is required to be no less than 0.5A; the main control power supply power supply control system, the IO port power supply power supply IO; when there is no power supply to the IO port, all IO ports are invalid;

8) Support standard MPG;

9) Support single-axis manual jogging and linkage and fixed-distance operation of panel buttons;

10) Support running specified line and nearest point operations;

11) Support floating tool setting, fixed tool setting, corner point setting and tool length measurement

12) Supports array processing, sequential processing, plane milling and cylindrical milling;

13) Support the offset adjustment of XYZA four-axis;

14) Support pause breakpoints, power-off breakpoints and load breakpoints

15) Support multi-workpiece origin operation, users can save origin and load origin as needed

16) Support the centring operation of X and Y axis;

17) Support simulation operation and during simulation, you can adjust the magnification to carefully observe whether the programming path is in line with expectations, and perform software limit

Bit check, you can pause at will during the simulation, after pressing the start button, the system will start execution from the simulation pause breakpoint

18) The communication between the controller and the computer can be realized through the Ethernet connection port, which is convenient for operations such as file reading and copying;

19) The memory of the controller is 1G; the G command can also be read from the U disk, and the file size of the G command is not required;

speech pack;

20) The language of the controller adopts international coding, and supports basically all languages. Customers can make various languages according to their own needs.

21) DDCS V4.1 controller only supports NPN type limit switch;

22) The use rights of the controller include operator, administrator and super administrator.

New features of DDCS V4.1 vs. DDCS V3.1:

1) Added file transfer via Ethernet;

2) The mapping axis function is added to the CNC function (can be used to configure the double-Y gantry structure machine);

3) The spindle can also be configured as a servo spindle;

4) Added bias adjustment;

5) The polar coordinate programming command and rotation command are added to the command, and the radius compensation command is perfect;

6) The motion planning introduces a new algorithm to make the path of small line segments smoother through configurable contour errors;

7) A total of three detection functions are supported: corner detection, inner circle center detection, and outer circle center detection;

8) Improve the specified line start function and the nearest point start function, no matter how large the file is, it can be quickly started within a few seconds;

9) Improve the simulation function. During the simulation, you can adjust the magnification to carefully observe whether the programming path meets the expectations, and perform a software limit check.

, during the simulation can be paused at will, after pressing the start button, the system will start execution from the simulation pause breakpoint;

10) In terms of input port, the port function can be configured arbitrarily, and the driver alarm support is added;

11) For the a-axis, a cyclic encoder is added. The cyclic encoder is especially useful for processing files where a keeps growing;

12) There is also a parsing error prompt. DDCS V3.1 has never been there, and if there is a parsing error, it will stop directly;

13) The language adopts international coding, which supports basically all languages. The advantage is that it can be used as a language pack of various characters;

14) Increase the emergency stop acceleration configuration parameter to solve the huge impact caused by the direct stop when the machine tool moves at high speed;

15) FPGA speed generator adopts 32-bit speed generator, and the resolution of speed and acceleration is higher.

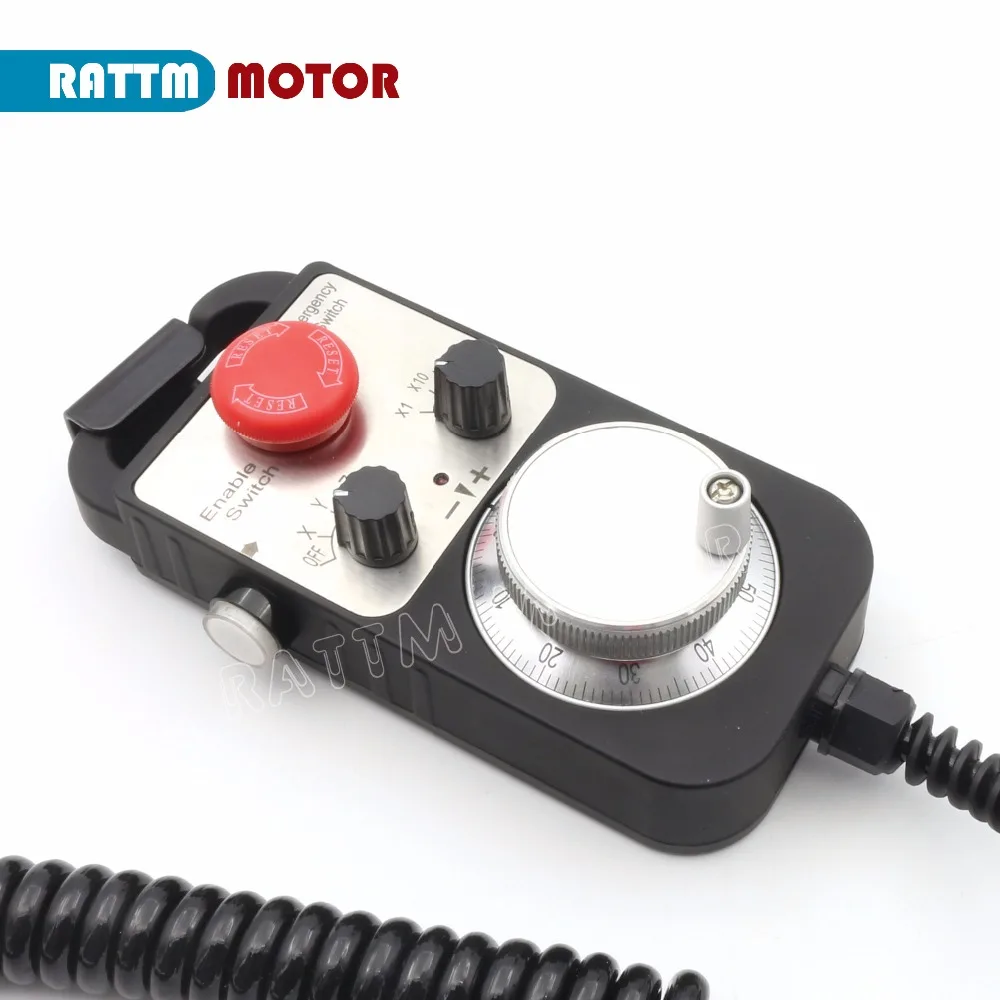

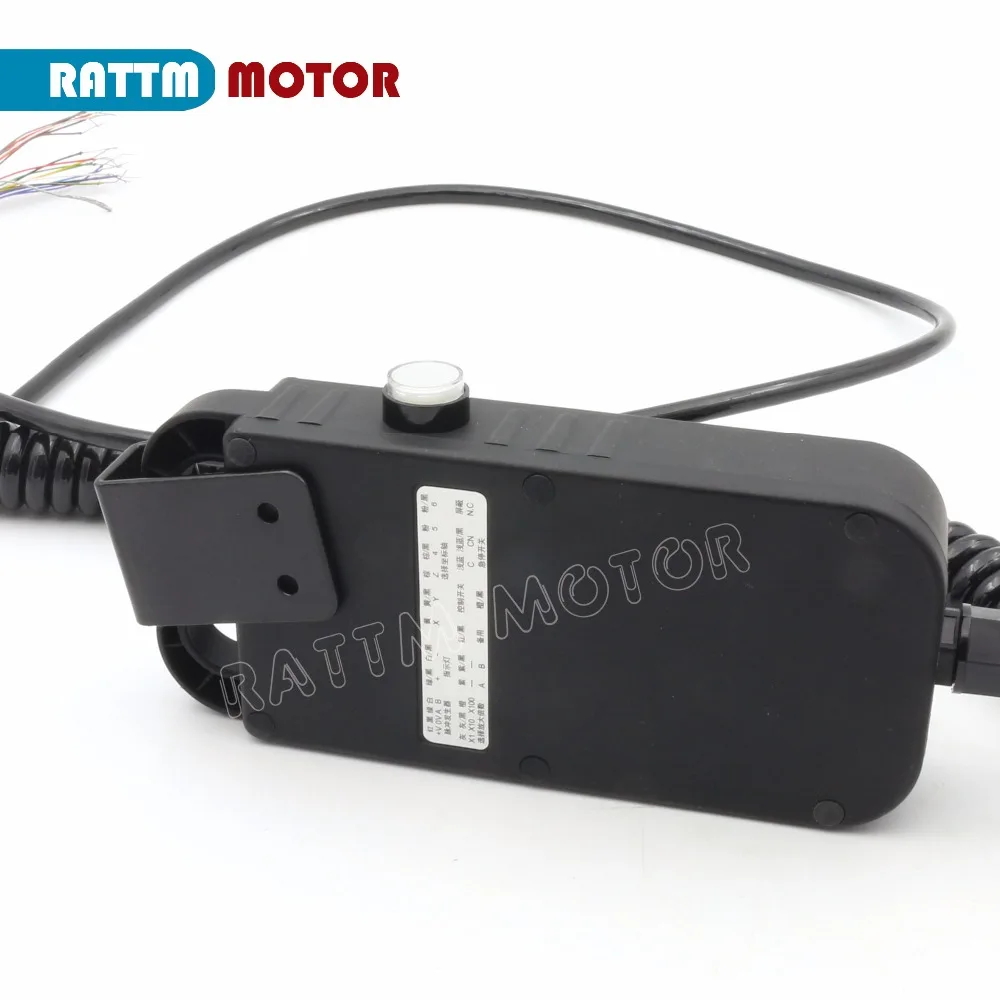

1. Pendant Handwheel

Description:

1) CNC system and position control of various mechanical devices, mainly for CNC machine tools and various mechanical zero correction and signal division.

2) 100 times per revolution slightly cracking point,100 pulses per revolution output, holding the handle of the panel and all-metal high-grade design.

3) Metal code disc, high precision, good texture

4) Easy installation, shaped thin, ultra-light.

5) DC 5V power system

6) Voltage, single-ended, differential in three output options provide 100PPR pulse output options.

7) Driver output type, anti-interference ability, long-distance transmission.

8) Oil, water, dust-proof design (grade IP65) spiral stretch 20 million guaranteed.

Features:

1) Novelty, easy to move, interference, load capacity.

2) Full plastic shell, insulation, high strength, anti-oil seal design.

3) With × 1, × 10, × 100 third gear ratio, enabling 4-12 axis magnification switch

4) With the control switch, emergency stop switch optional, easy to operate

5) For CNC machine tools, printing machinery, numerical control equipment

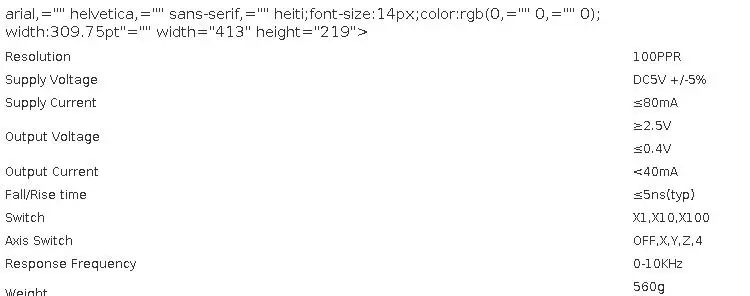

Specification:
