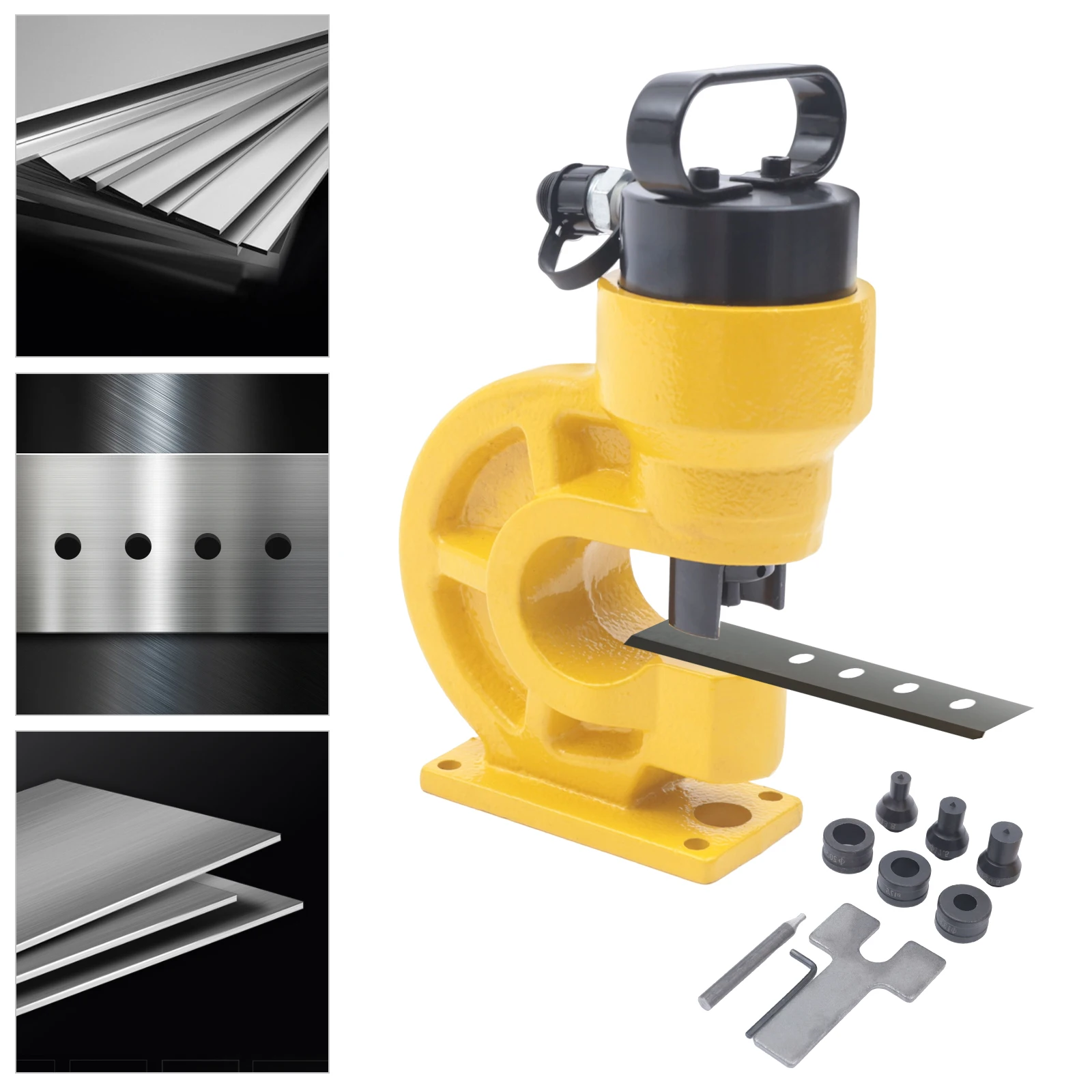

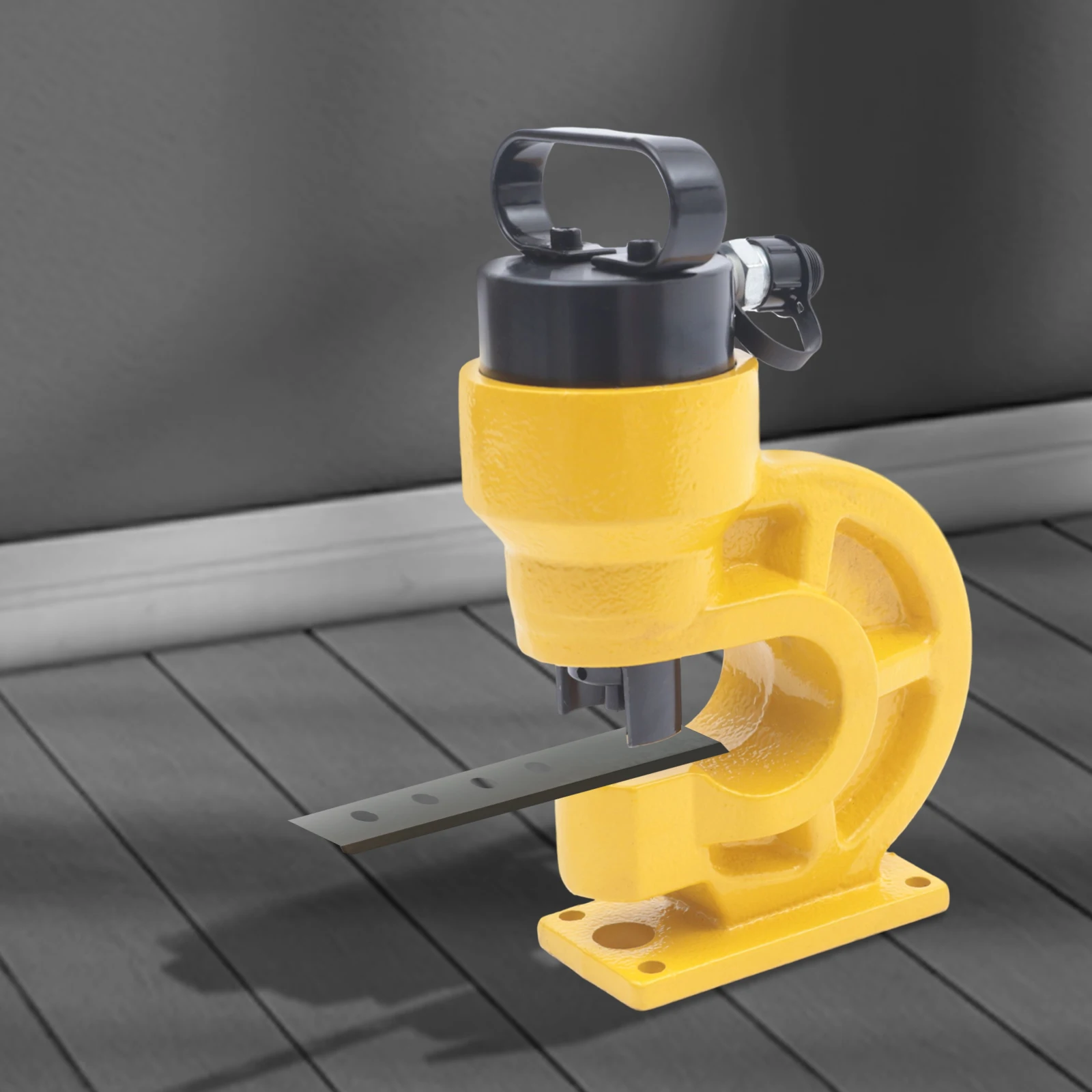

31T Hydraulic Punching Machine 95mm Throat Depth for Copper Iron Aluminum Steel, 4 Punching Dies Set, Portable Hole Puncher for Bus Bar Flat Iron, Heavy Duty Metal Punch Tool W/Padding Plate & Hex Wrench, Electrician DIY Equipment

This punching machine has a wider throat depth to make punching more convenient and fast. 31T punching pressure ensures accurate burr-free holes. It comes with 4 pairs of molds, giving you the flexibility to create holes of different sizes for various projects. The handle at the top makes you easy to carry. Whether you are a professional mechanic or a DIY enthusiast, it will meet your needs and deliver exceptional results.

Key Features

Build to Last: Our product is mainly made of high-class steel with a plastic spraying process, so it is rust-resistant, oxidation-resistant, impact-resistant, with high durability, and has a long service life.

Excellent Performance: It has a 3.74-inch throat depth and 31T punching pressure for an efficient and convenient punching experience that can handle most materials and is sufficient for your use needs. Single-return oil design and high-strength construction ensure robustness and durability.

4 Punching Dies: It comes with 4 pairs of dies (1 of which is installed): 0.41 in,0.54 in,0.69 in, 0.81 in, which will meet your needs for different punching tasks.

Stable Design: The upper part of the mold is locked with a locking cap, and the lower part is fixed with screws, which is stable and safe.

User Friendly: The top handle enhances grip and comfort for easy handling. In addition, it uses a male connector to link the female connector on the hydraulic pump, and the dust cap can be screwed on when not in use to avoid dust entering.

Space-saving:It has a small footprint with a base length of 6.3 inches and can be placed on the desk without delaying the rest of your work.

Easy to Clean: Thanks to its smooth surface and simple construction, you can wipe it clean with a damp rag.

Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Hex Wrench: It is convenient for you to use it to fix, load, and unload the mould, to provide you with convenience.

Stable Bottom: The thickened rectangular base ensures high stability of the product.

Padding Plate: After punching the thin plate, when resetting, it can be padded on the thin plate to snap the material off the mold. After punching the plate edges, when resetting, it can be padded up to increase the role of the width of the plate and snap the material off the mold for your convenience.

Pre-drilling Holes: They are convenient for you to fix the product on the table to improve product stability.

Application

It is suitable for L, H types flat copper, bus bar, flat iron, etc. It can also be connected to CP-700, CP-700-2A, CP-800, DYB-63A, ZCB-700A pumps, or electric pumps (not included). It can be used in the energy industry, indoor, electric power, construction sites, outdoor, bridge construction, industrial buildings, etc.

Specifications

Color: Yellow

Material: Steel

Process: Plastic Spraying

Assembly Required: Yes

Cylinder Ton/Punching Pressure: 31T/304KN

Throat Depth: 95mm/3.74inch

Punching Dies Size: 0.41 in (ф10.5mm), 0.54 in (ф13.8mm), 0.69 in(ф17.5mm), 0.81 in(ф20.5mm)

Applicable Angle Steel: 4-5mm/0.16-0.2in Thickness

Applicable Channel Steel: 6-10# Wide Panel

Applicable Copper Bar: 3-10mm/0.12-0.39 in

Applicable Aluminum Bar: 1-10mm/ 0.04-0.39in

Applicable Iron Plate: 3-5mm/0.12-0.2 in

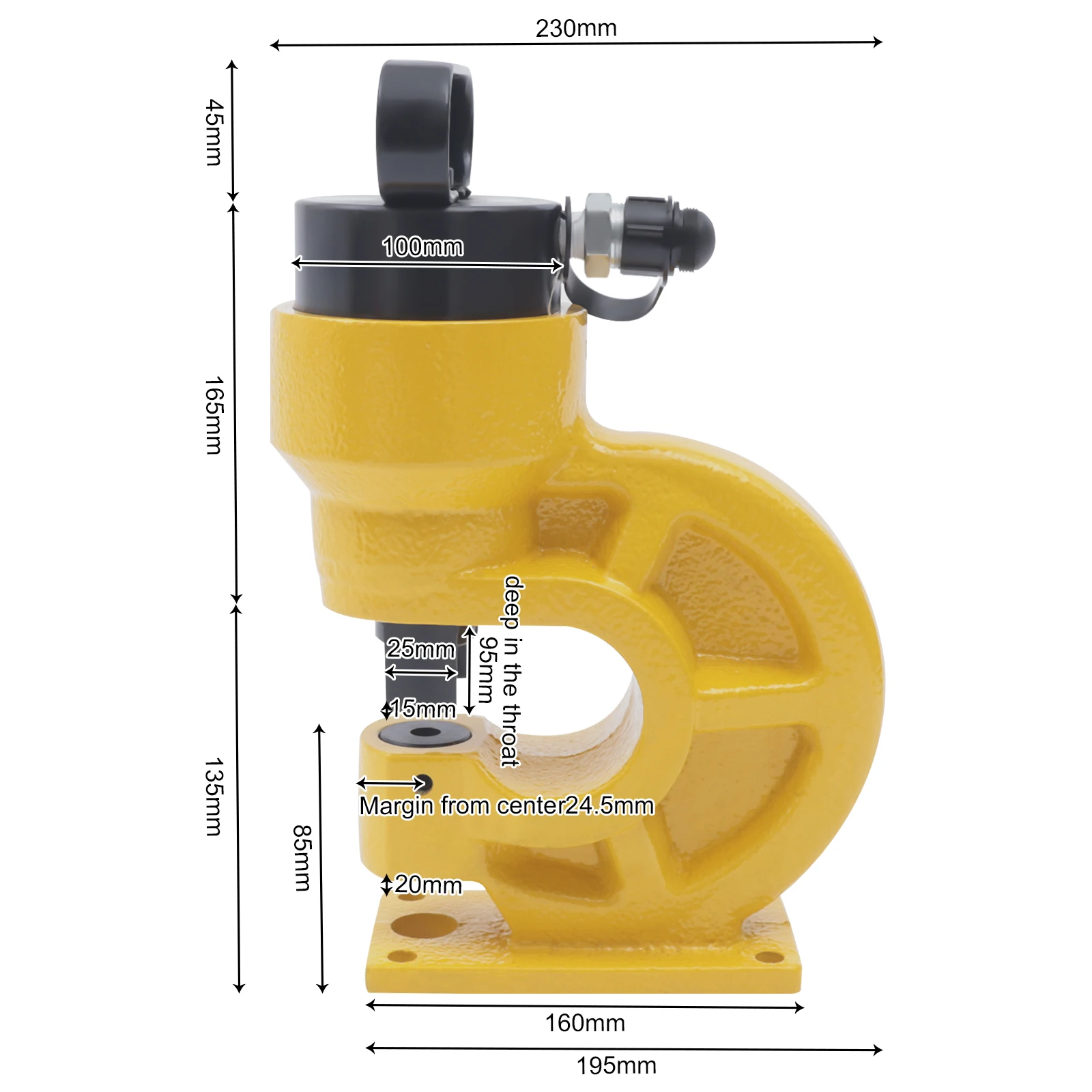

Product Size: 23*34.5cm/9.06*13.58in
Base Length: 16cm/ 6.3 in
Package Size: 37*26*16cm/14.57*10.24*6.3in
Gross Weight: 16.55kg/36.5 lbs


Package Included
1* Hydraulic Punching Machine
4* Punching Dies(One is Installed)
1* Padding Plate
Other Accessories for Use

Notes
1.Please note that this product is a split type and should be used with a manual hydraulic pump or an electric hydraulic pump(not included).
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
