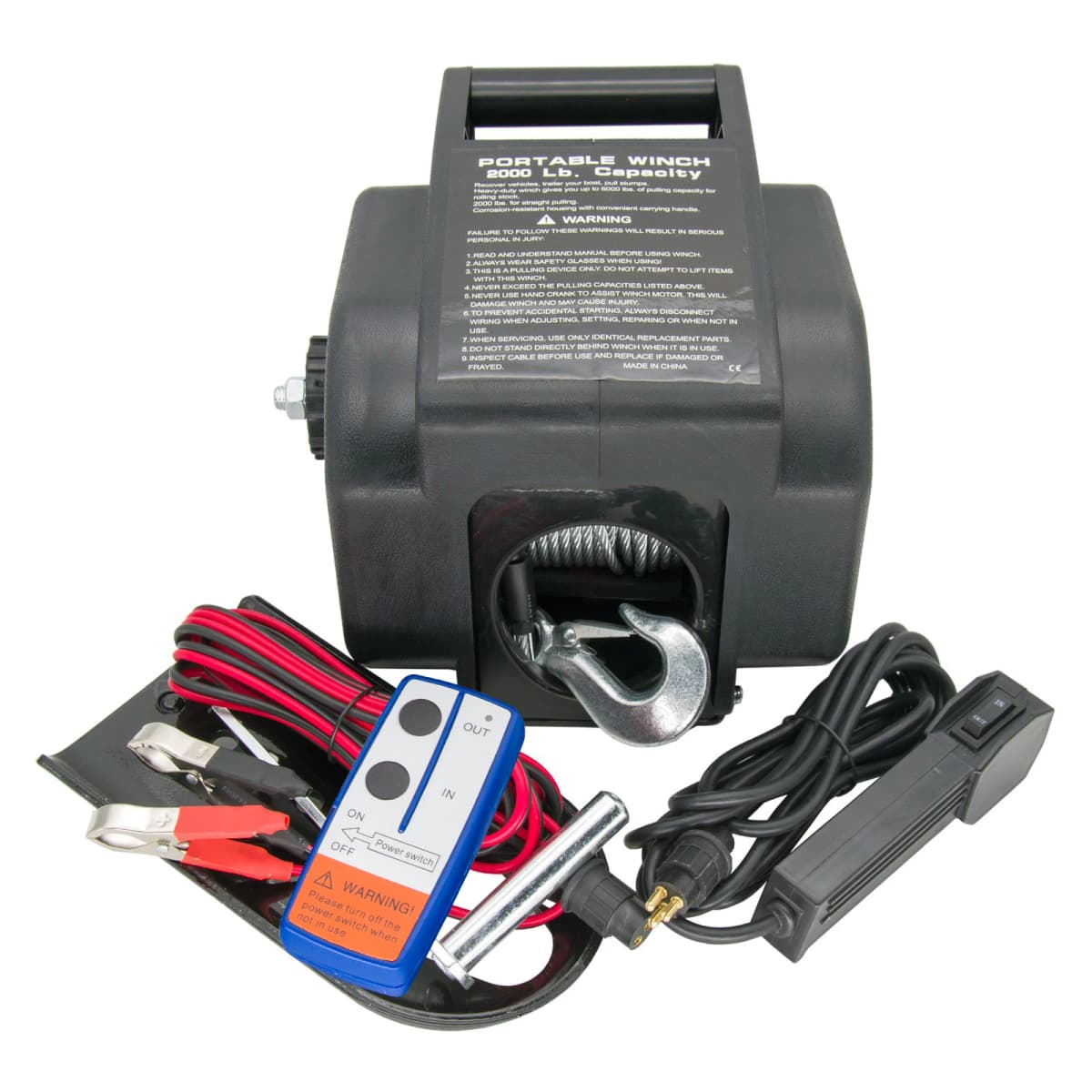

12V 2000 lb Electric Winch with Wireless Remote Control, Steel Cable, Manual Crank Handle

Key Features

• 12V DC Operation — Designed for use with a compatible 12V DC power supply.

• 2000 lb Rated Single-Line Pull — Rated pulling force of 2000 lbs (approximately 908 kg) under the manufacturer's specified conditions.

• Electric IN / OUT Operation — Allows powered cable winding and unwinding.

• Three-Stage Planetary Gear Train — Features an all-steel gear construction.

• 280W Motor — Motor power as specified by the manufacturer.

• Steel Wire Cable — Includes 9.2 m (approximately 30.2 ft) of 4.8 mm diameter steel cable.

• Wireless Remote Control — Allows convenient wireless operation with the included compatible remote control and receiver.

• Remote Control Battery Not Included — The wireless remote control requires a 27A, 12V battery measuring 28 mm × 8 mm. Battery is not included.

• Manual Crank Handle — Included for manual operation according to the product instructions.

• Circuit Breaker — Included as part of the electrical system.

• Mounting Plate — Included for installation according to the manufacturer's instructions.

Specifications

• Operating Voltage: DC 12V

• Motor Power: 280W

• Rated Single-Line Pull: 2000 lbs / approximately 908 kg

• Cable Type: Steel Wire Cable

• Cable Diameter: 4.8 mm

• Cable Length: 9.2 m / approximately 30.2 ft

• Wireless Remote Control: Included

• Remote Control Battery: 27A, 12V, 28 mm × 8 mm (Not Included)

• Power Cable Length: 3 m / approximately 9.84 ft

• Mounting Plate Dimensions: 8.9 × 4.4 × 1.2 in

• Winch Dimensions: 10 × 9.6 × 7.7 in

• Net Weight: Approximately 12 kg

Package Includes

• 1 × 12V Electric Winch with Steel Wire Cable

• 1 × Wireless Remote Control

• 1 × Compatible Wireless Receiver

• 1 × Mounting Plate

• 1 × Manual Crank Handle

• 1 × Power Cable

• 1 × Operation Manual

Important Notes

• The wireless remote control battery is not included. Required battery specification: 27A, 12V, 28 mm × 8 mm.

• This winch supports electric IN and OUT operation. It does not have a freewheel function. Cable release must be performed electrically or manually according to the manufacturer's instructions.

• Designed for pulling and loading applications only. Do not use for lifting or suspending people or loads overhead.

• Do not exceed the rated pulling capacity. Actual pulling performance depends on the installation, load conditions, cable arrangement, and other operating factors.

• Ensure the winch is securely mounted and connected to a suitable power supply before operation.

• Follow the manufacturer's instructions for installation, operation, and maintenance.
