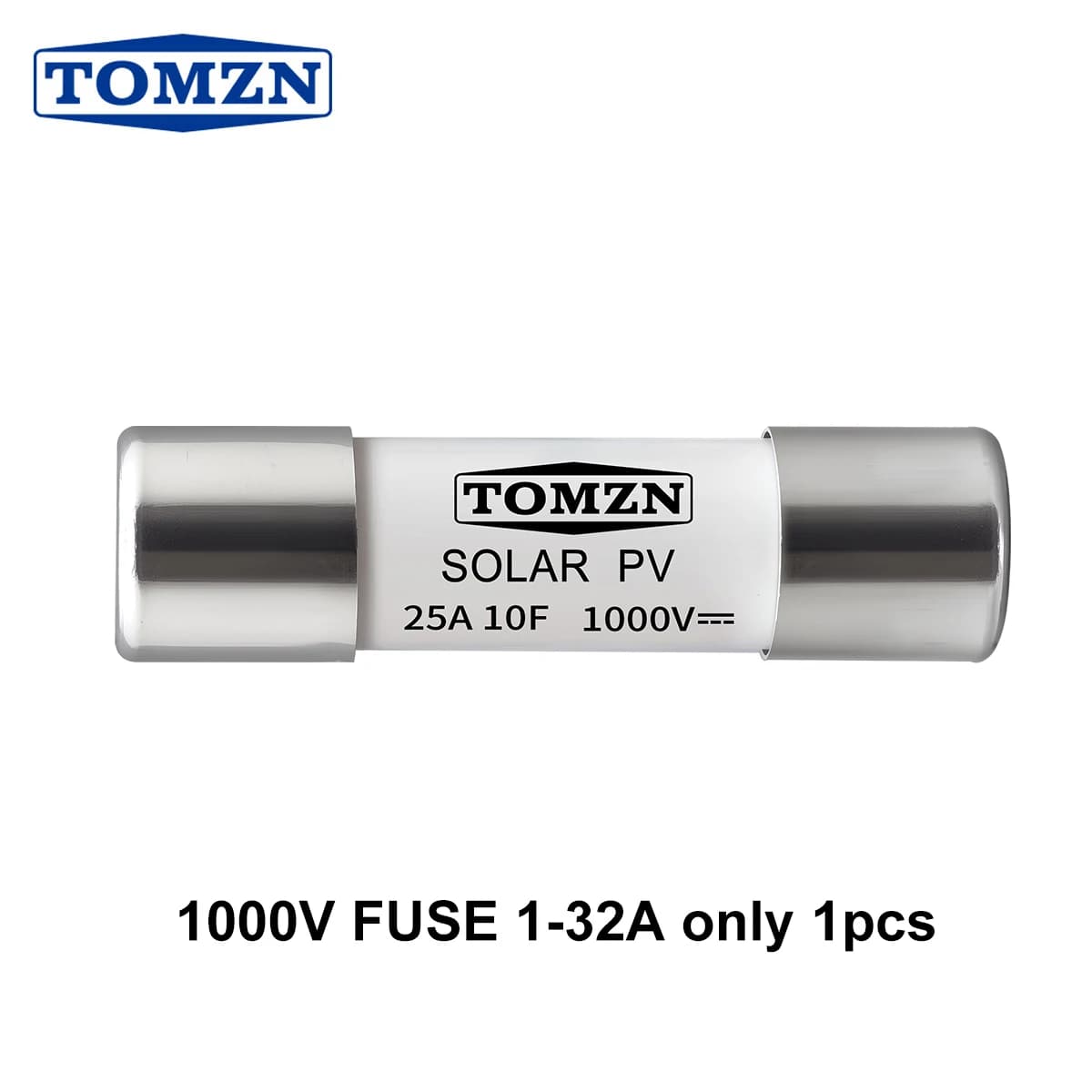

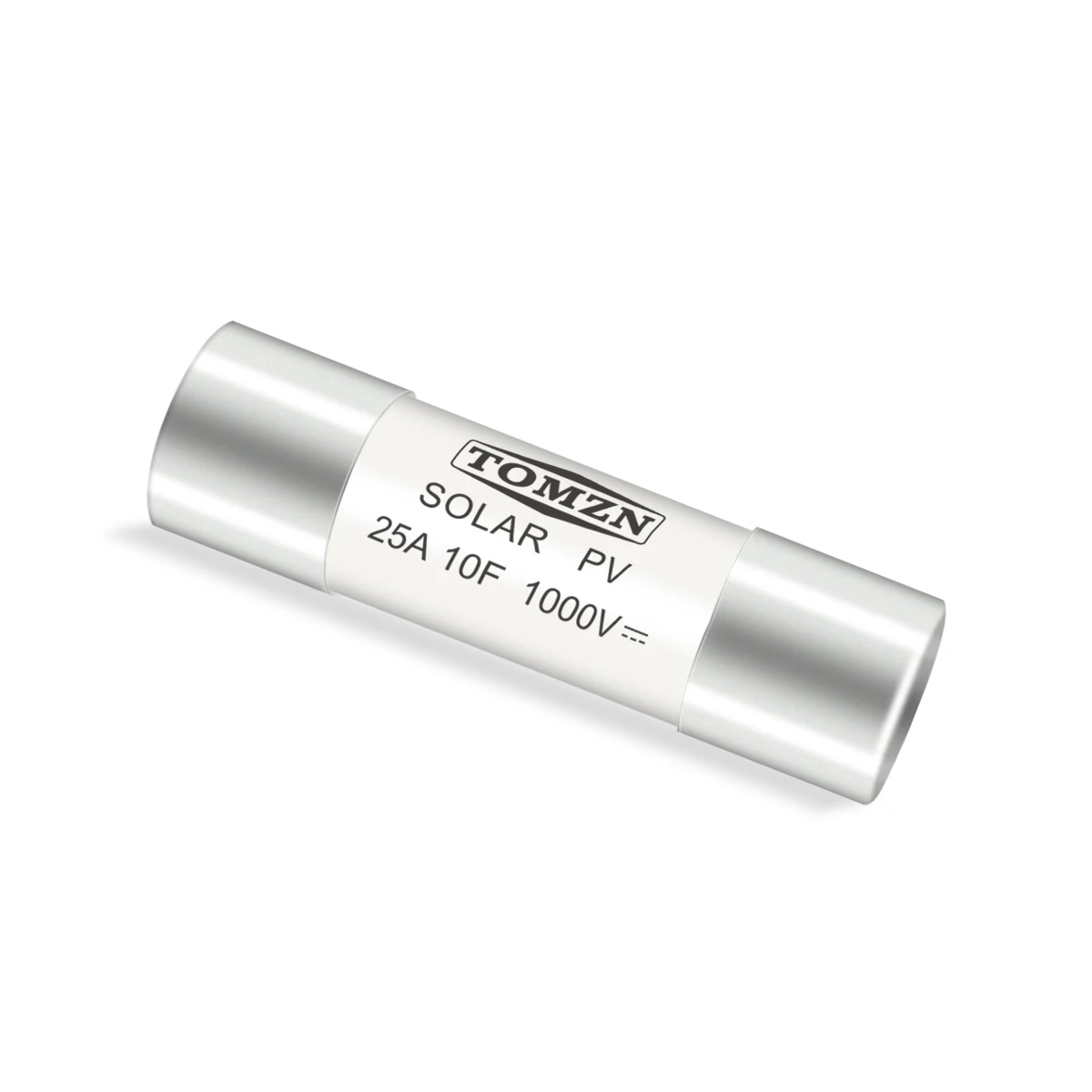

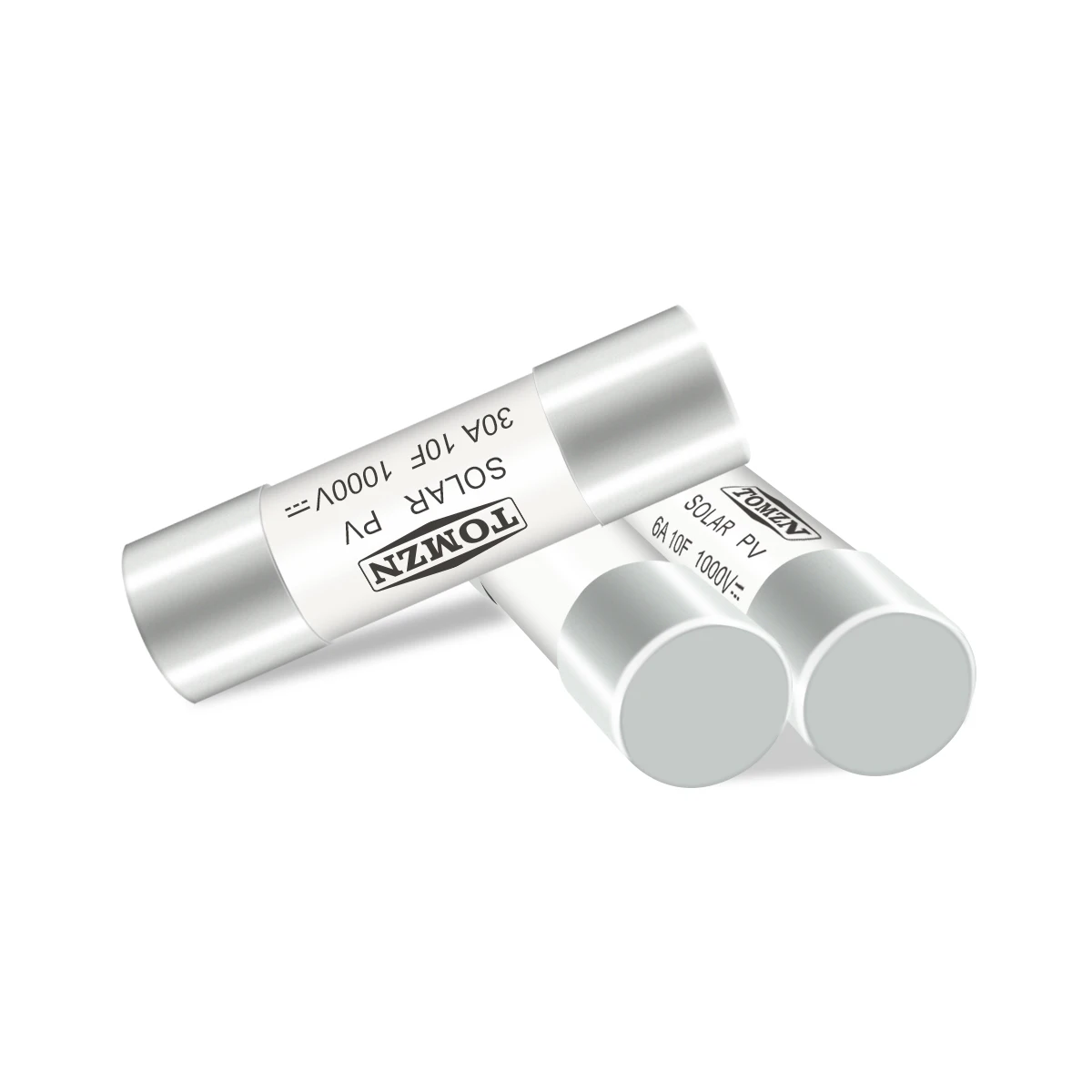

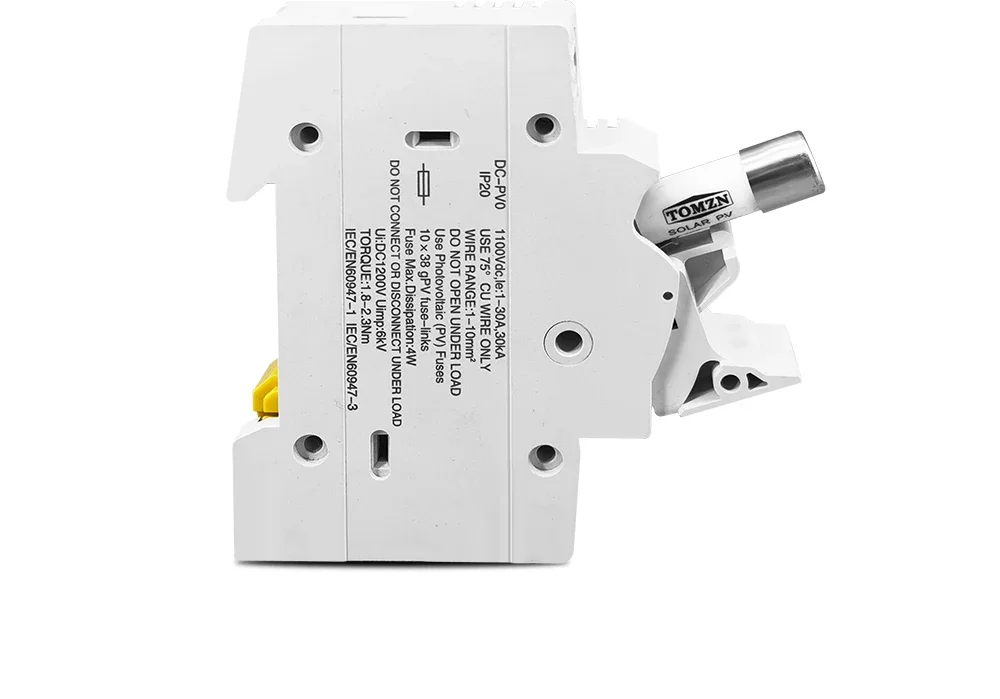

TOMZN Solar DC 1000V PV Fuse 3A 6A 10A 15A 16A 20A 25A 30A 32A High Voltage for Solar System Protection

Please noted ONLY 1 PCS

3A,6A, 10A, 15A, 16A,20A, 25A, 30A,32A only fuse. If you want fuse holder, you have to buy the fuse holder.

PV String Fuses for solar panels  - 1000VDC

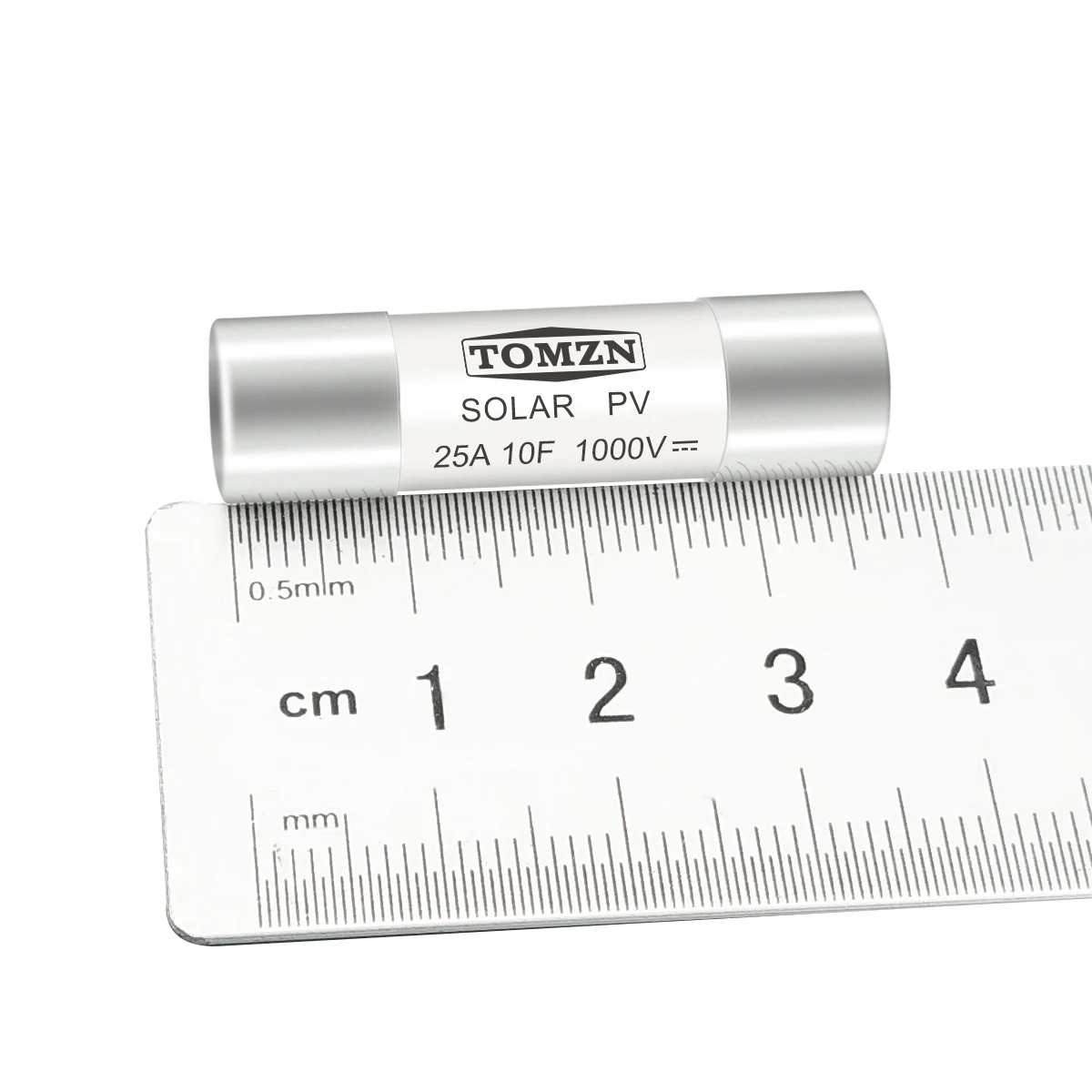

A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.

The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.

Applications

Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1000VDC

Electrical Characteristics

Rated voltage 1000VDC

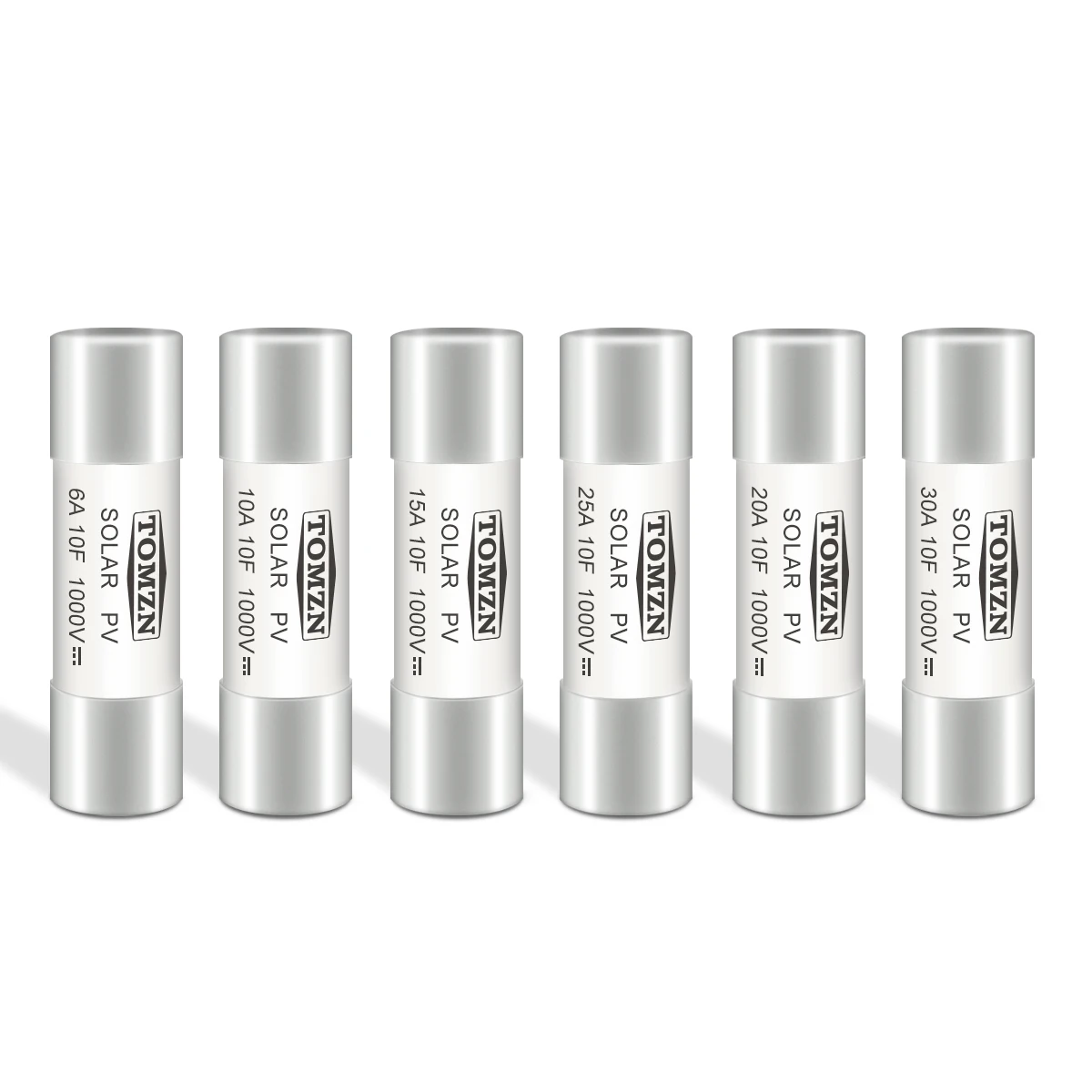

Amps  3A,6A,10A,15A,16A,20A,25A,30A,32A

Rated braking capacity 33kA dc

Minimum interrupting rating 1.3x In

Time constant under 1ms

Standard

IEC 60269-6, EN 60947-3, DC-20B
