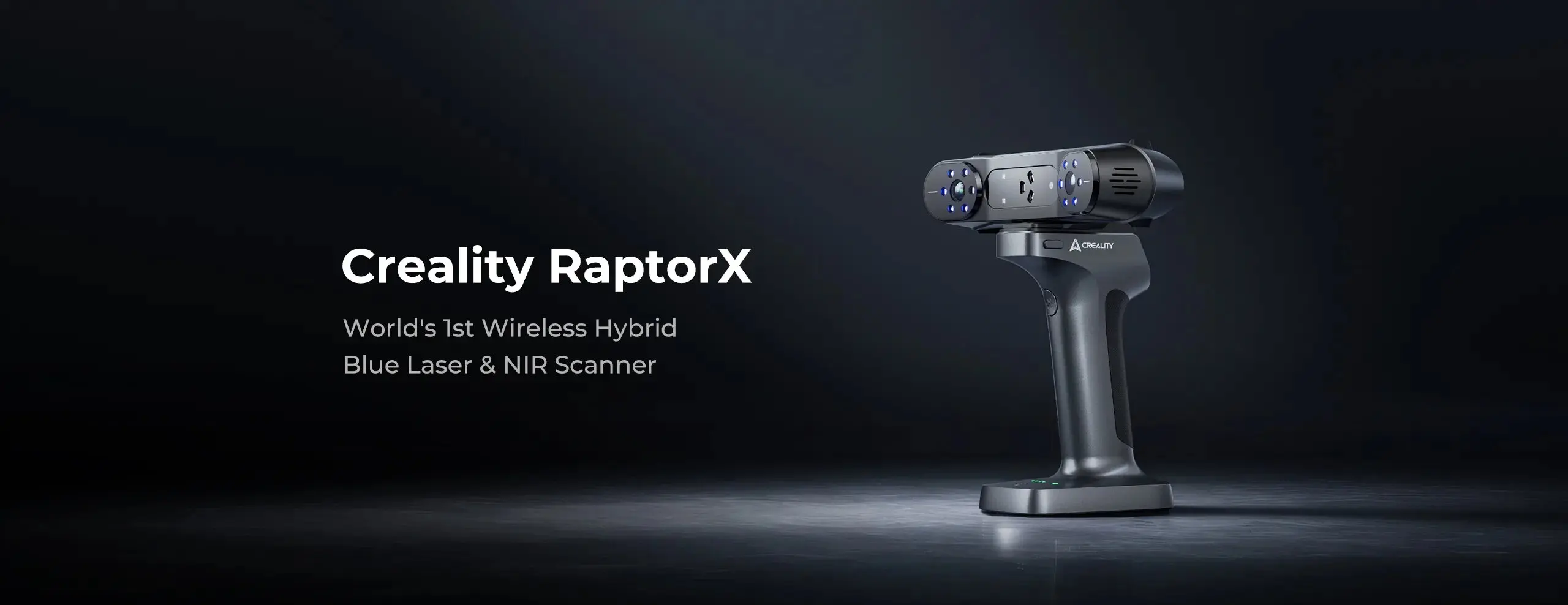

Creality Scanner Raptor X&Creality Handle Scanning Bridge 3D Scan Triple-in-one 34+7 Blue Laser NIR Light 0.02 Mm Accuracy 60fps

Creality RaptorX & Scan Bridge Kit

Feature:

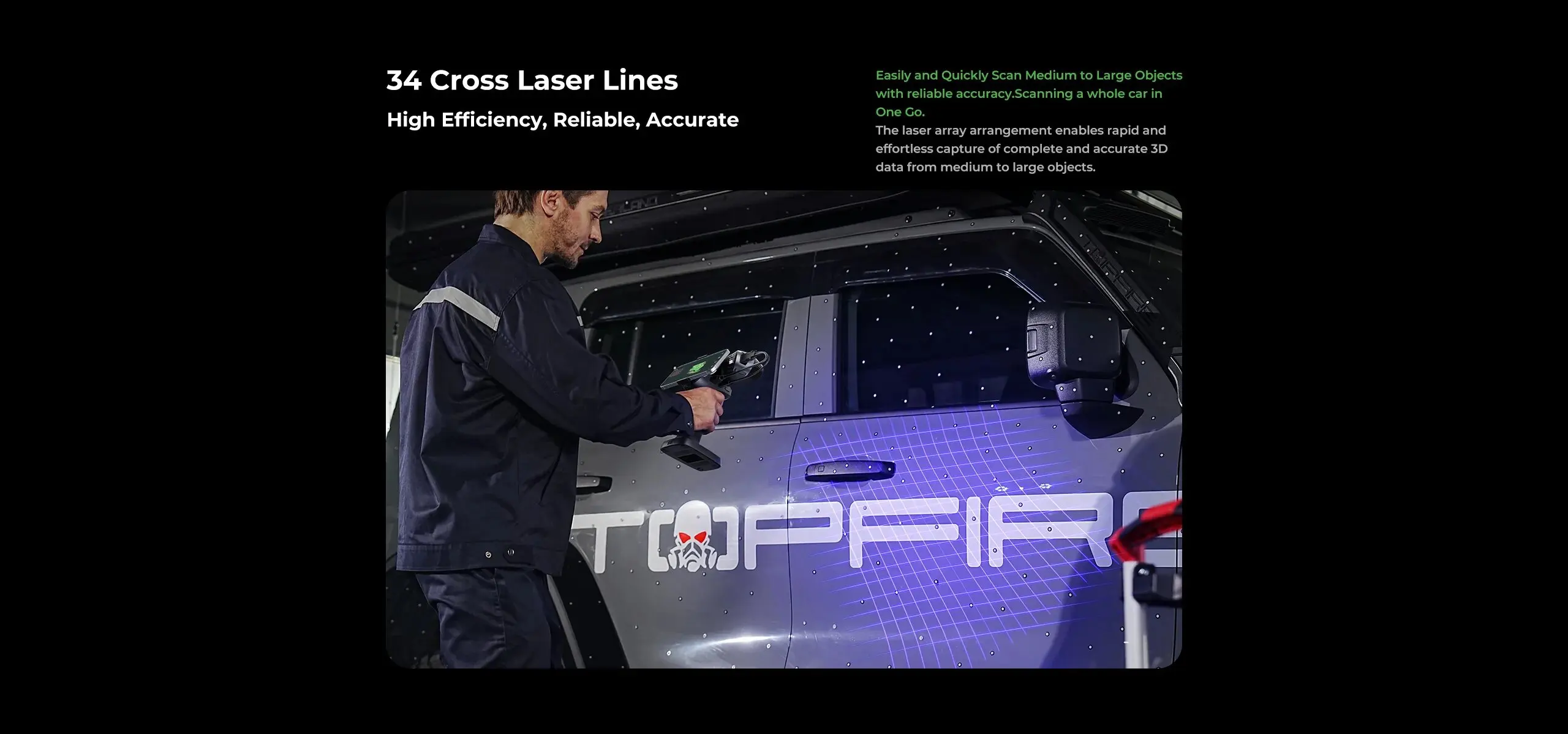

1.Blue Light(Blue 34-cross line laser) Mode:

Accuracy: Up to 0.02mm

Volumetric Accuracy:0.02mm+0.06mm/m

3D Resolution: 0.02-2mm

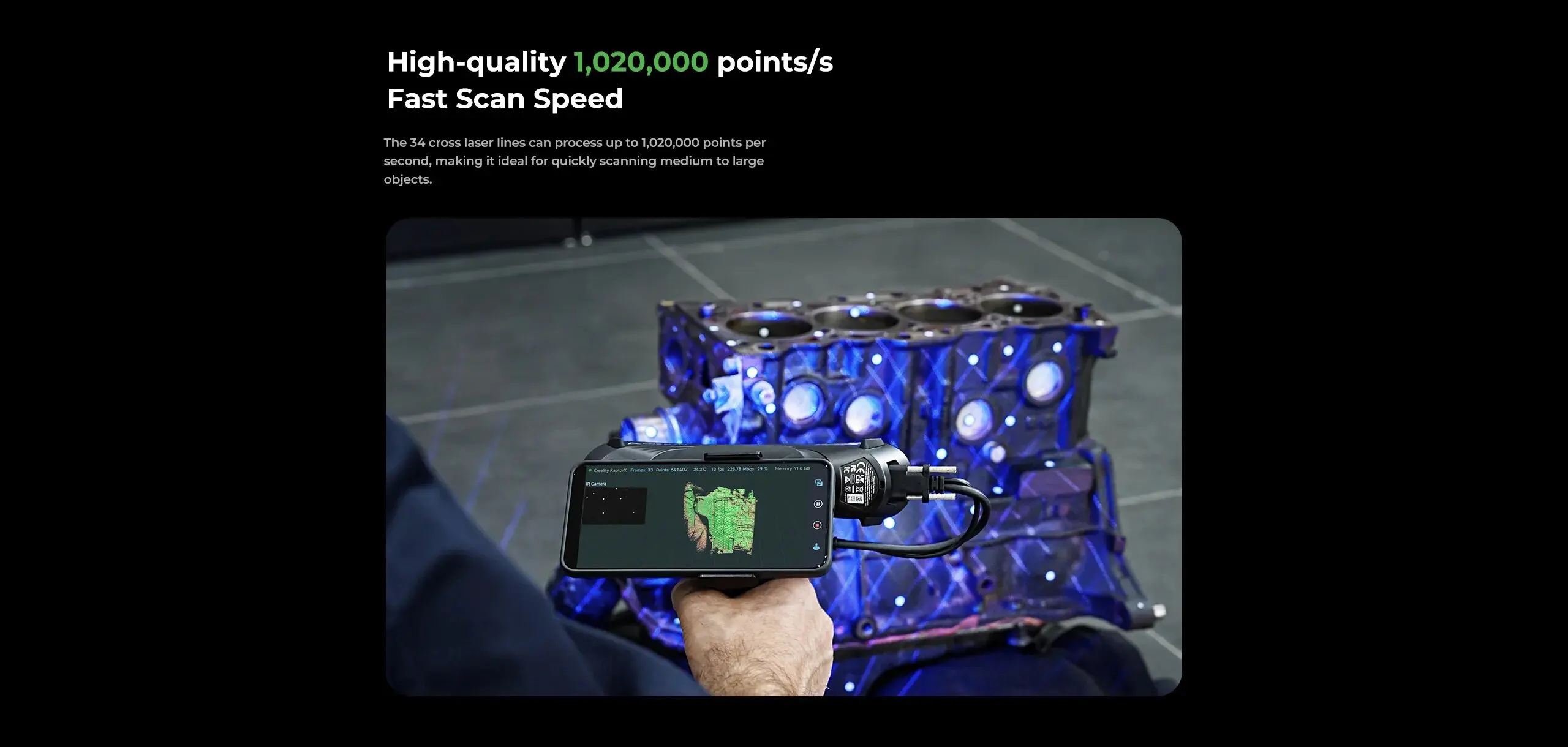

Scanning rate:1020,000 measurements/s

Single Capture Range:

270mm x 170mm @300mm

341mm x 232mm @400mm

397mm x290mm @500mm

452mm x 348mm @600mm

Working distance: 200mm-600mm

Outdoors Scanning: 100,000 lux

Color Mapping: Yes

Alignment mode: Marker

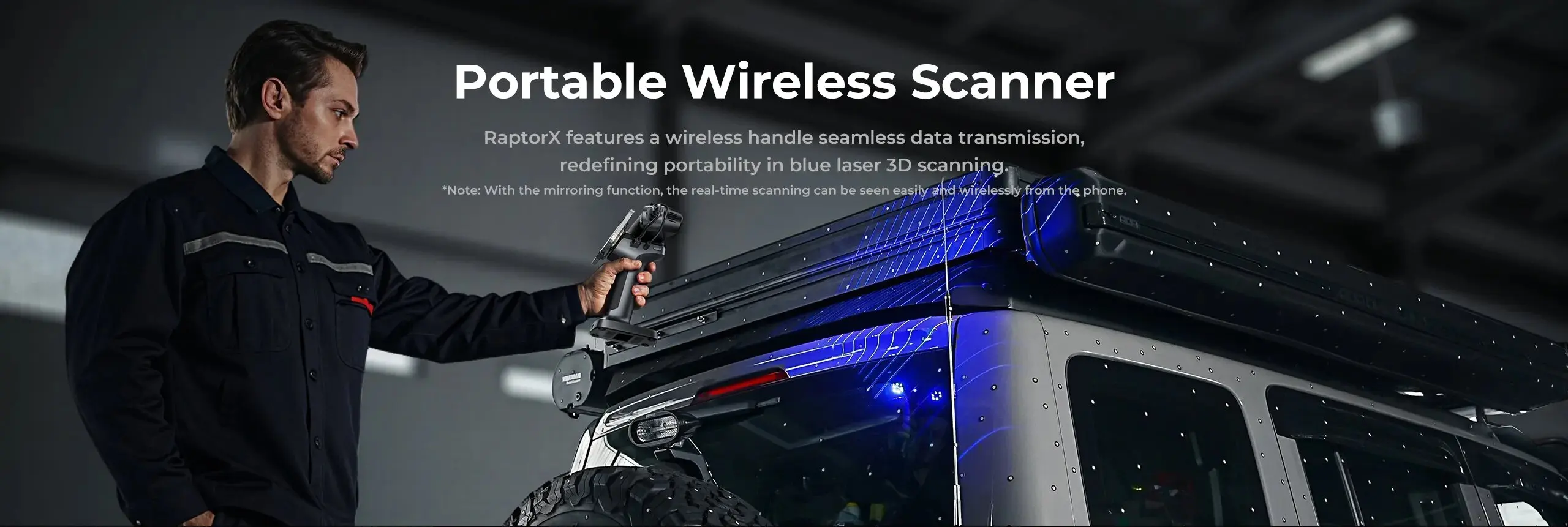

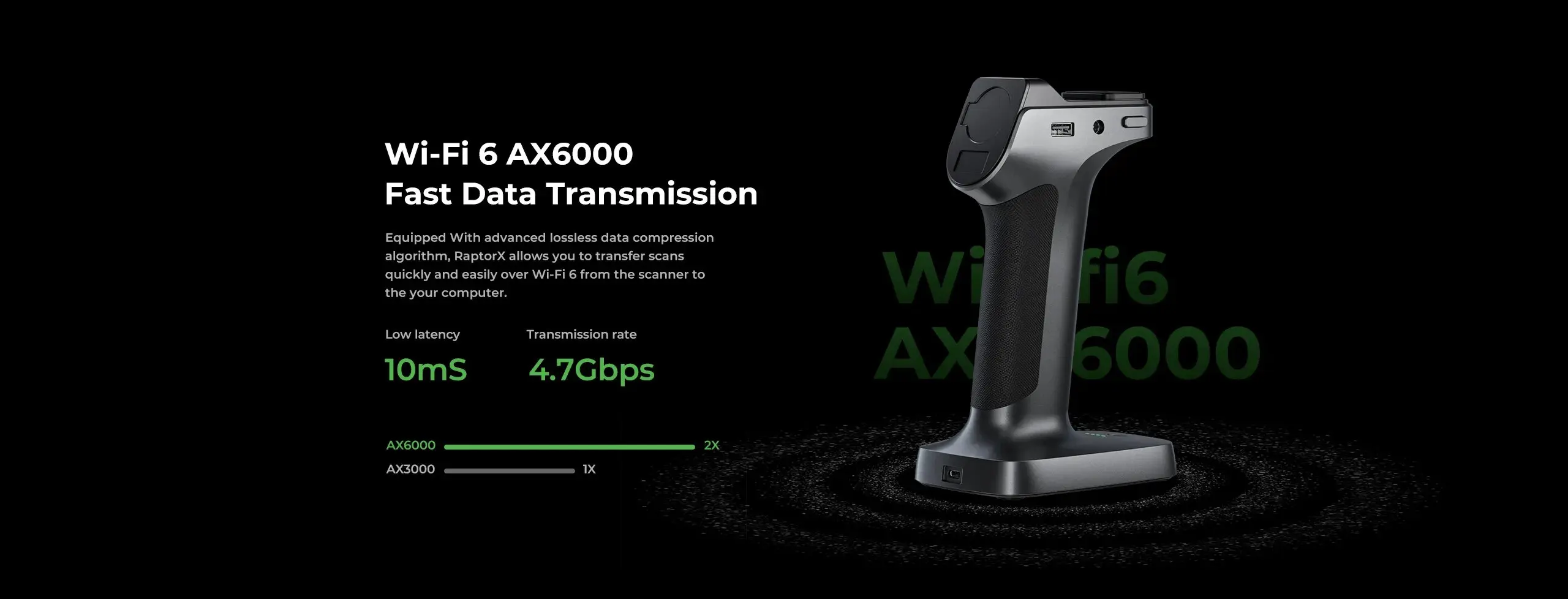

Wireless Scanning:Support

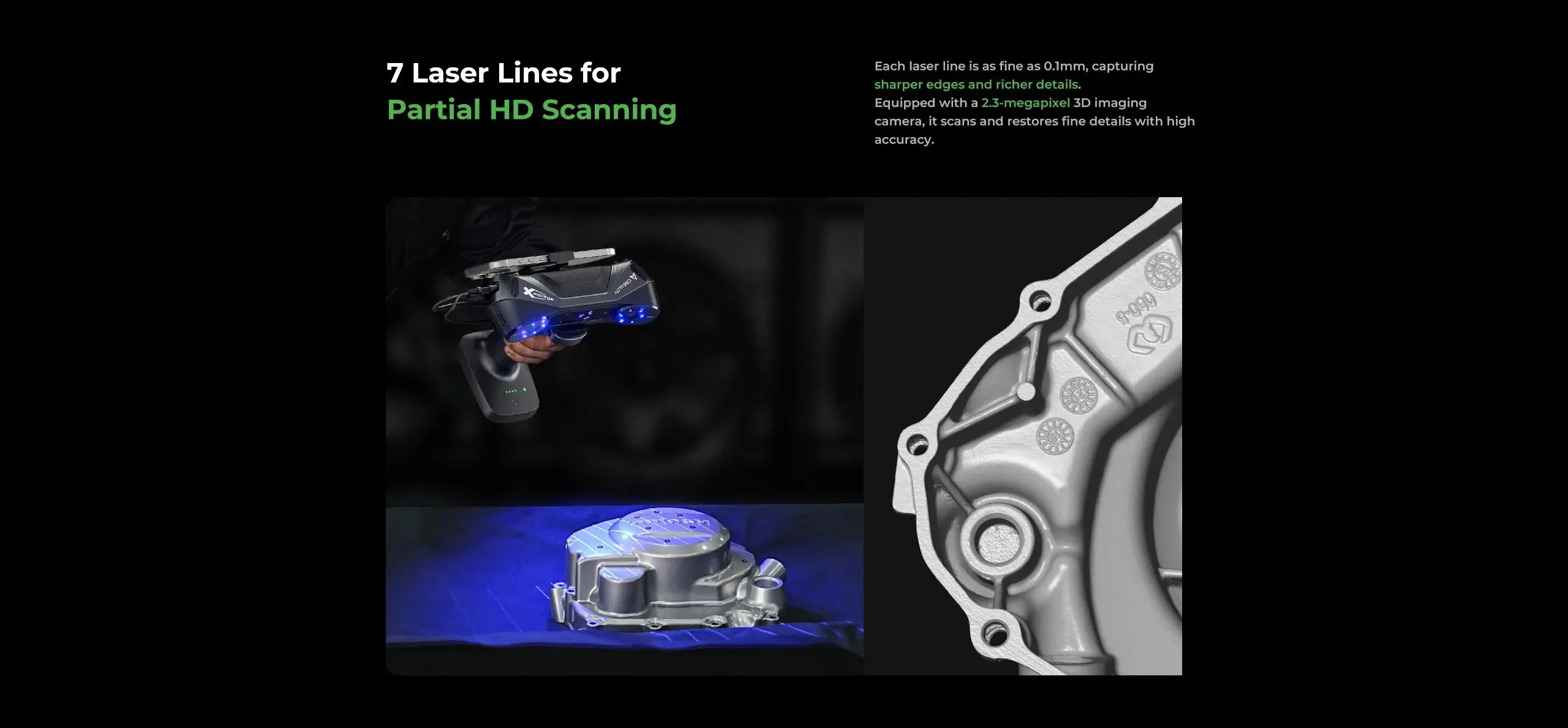

2.Blue Light(Blue 7-parallel line laser) Mode:

Accuracy: Up to 0.02mm

Volumetric Accuracy:0.02mm+0.06mm/m

Scanning rate:420,000 measurements/s

3D Resolution: 0.02-2mm

Scanning Speed: Up to 60fps

Min. scanvolume: 5mm x 5mm x 5mm

Single Capture Range: 270mmx170mm@300mm

Working distance: 150mm-400mm

Outdoors Scanning: 50,000 lux

Color Mapping: Yes

Alignment mode: Marker

Wireless Scanning:Support

3.NIR(infrared binocular structured light) Mode:

Accuracy:Up to 0.05mm
3D Resolution:0.1-2mm
Scanning Speed:Up to 20fps
Volumetric Accuracy:0.05mm+0.1mm/m
Scanning rate:3580,000 measurements/s
Single Capture Range:655mmx574mm@1000mm
Working distance: 170mm-1000mm
Outdoors Scanning: 30,000 lux
Color Mapping: Yes
Alignment mode: Marker / geometry / texture
Wireless Scanning:Support

Note:[1] Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.

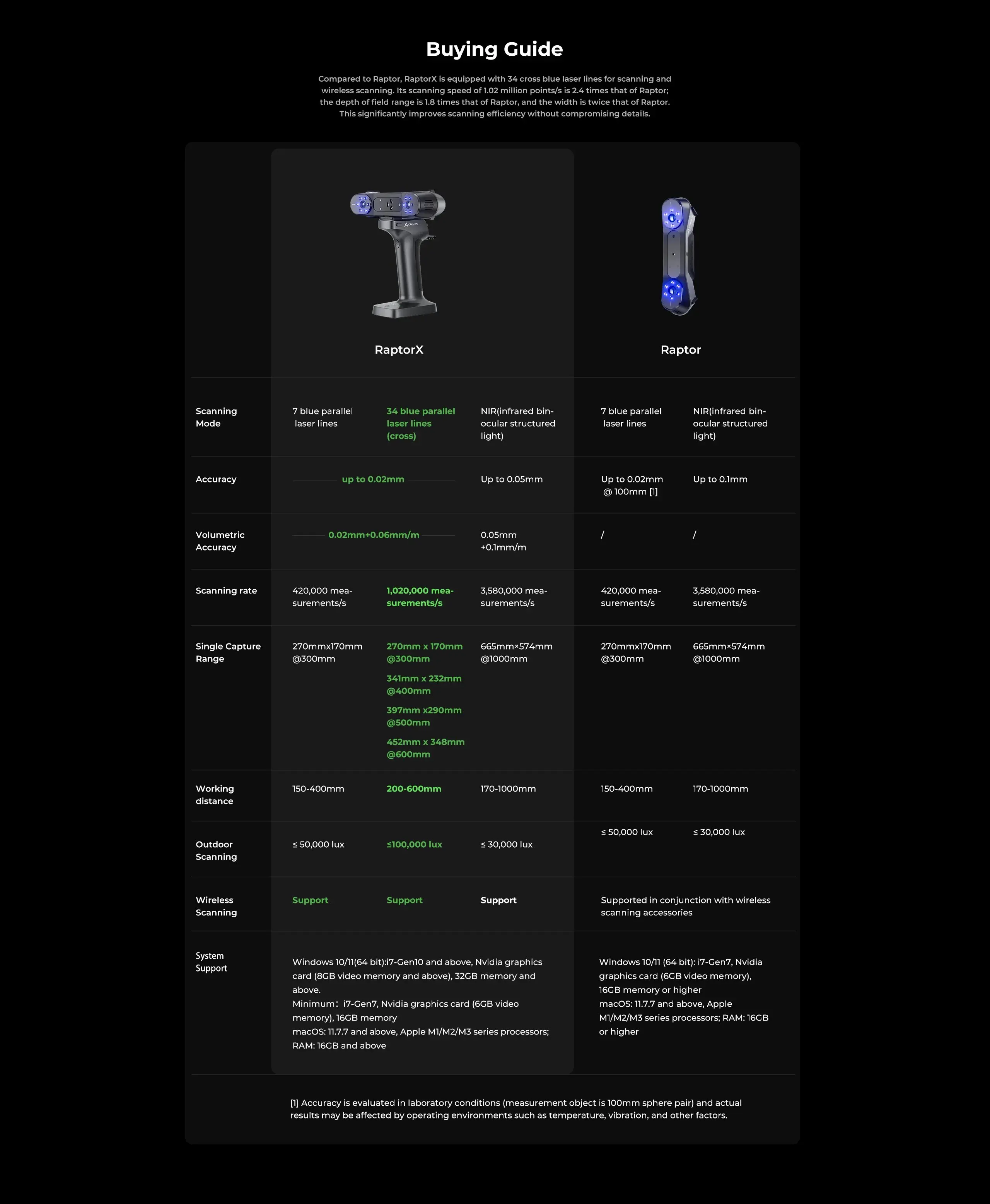

Buying cuide：

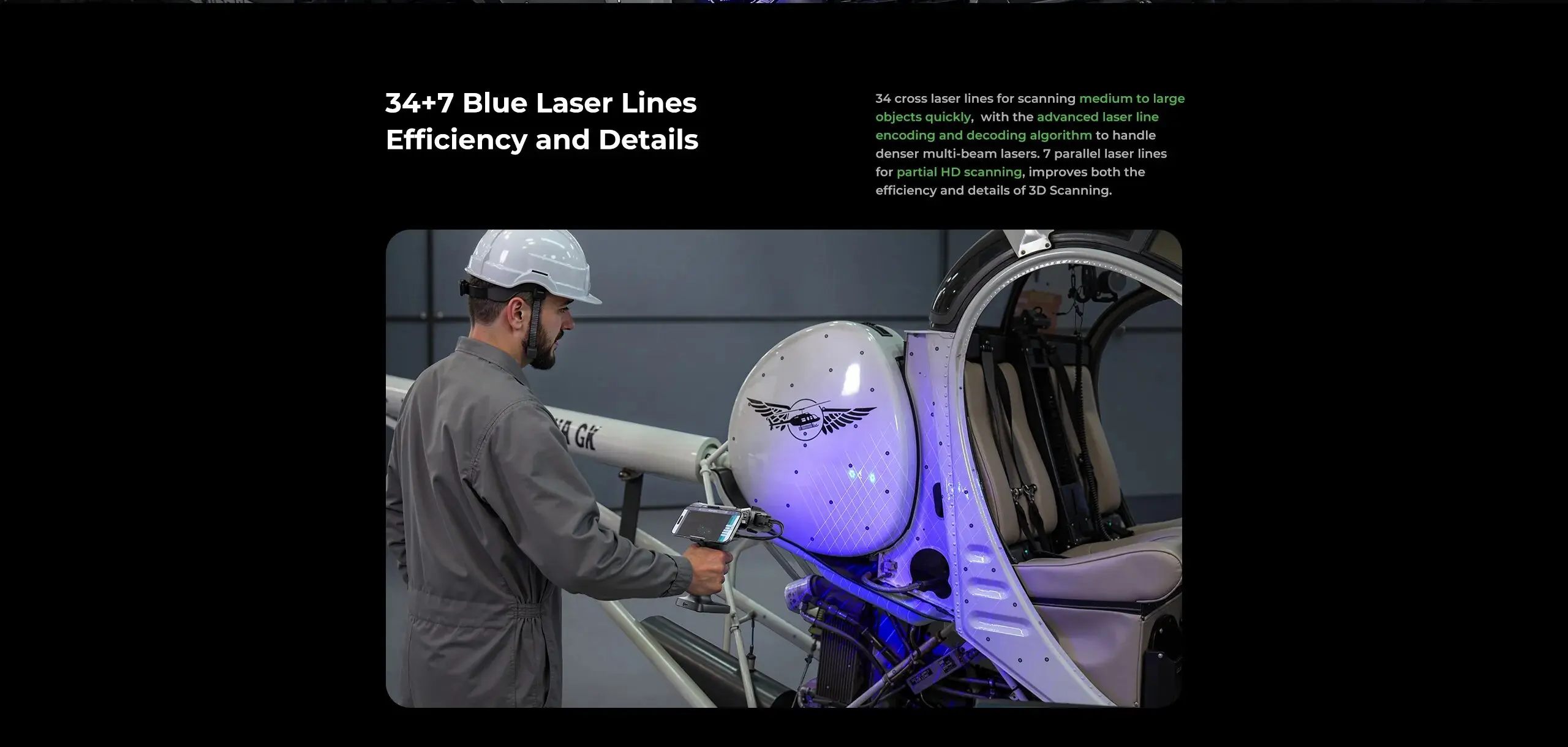

Compared to Raptor, RaptorX is equipped with 34 cross blue laser lines for scanning and wireless scanning. Its scanning speed of 1.02 million points/sis 2.4 times that of Raptor; the depth of field rangeis 1.8 times that of Raptor, and the width is twicethat of Raptor.This significantly improves scanning efficiency without compromising details.
