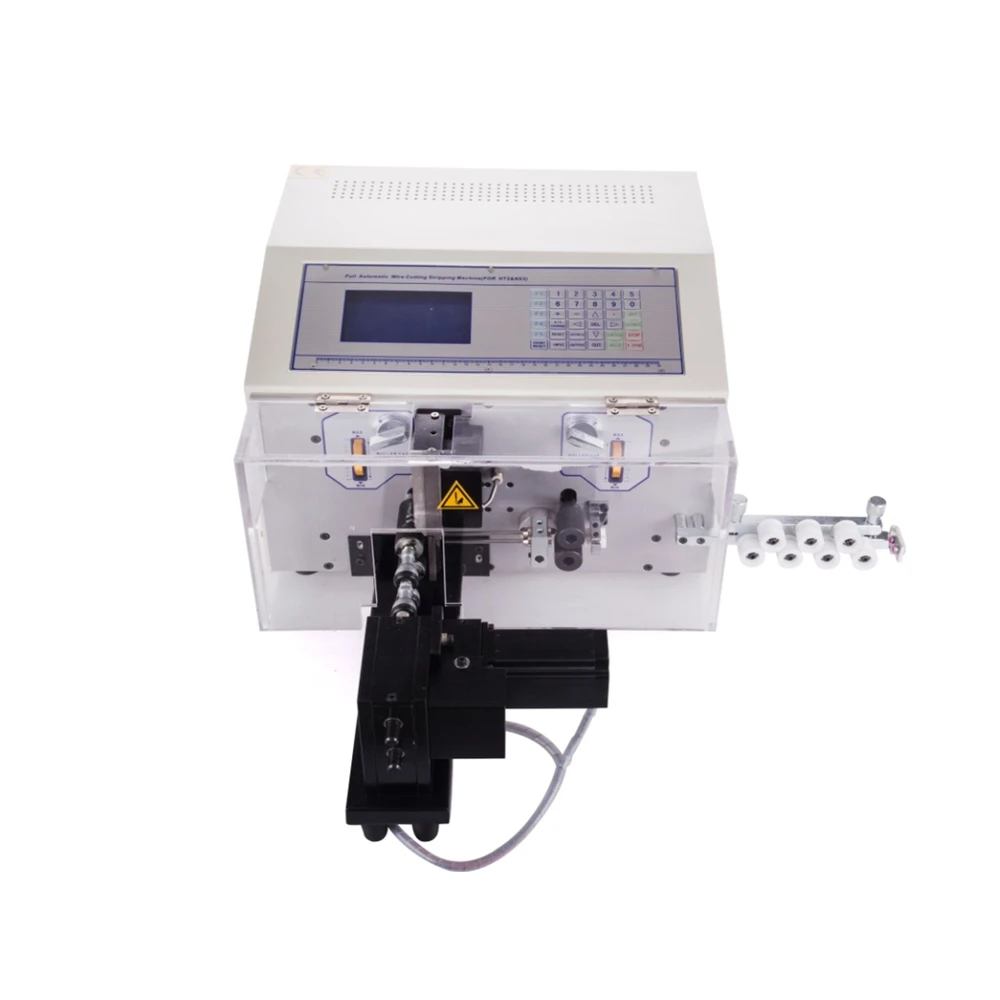

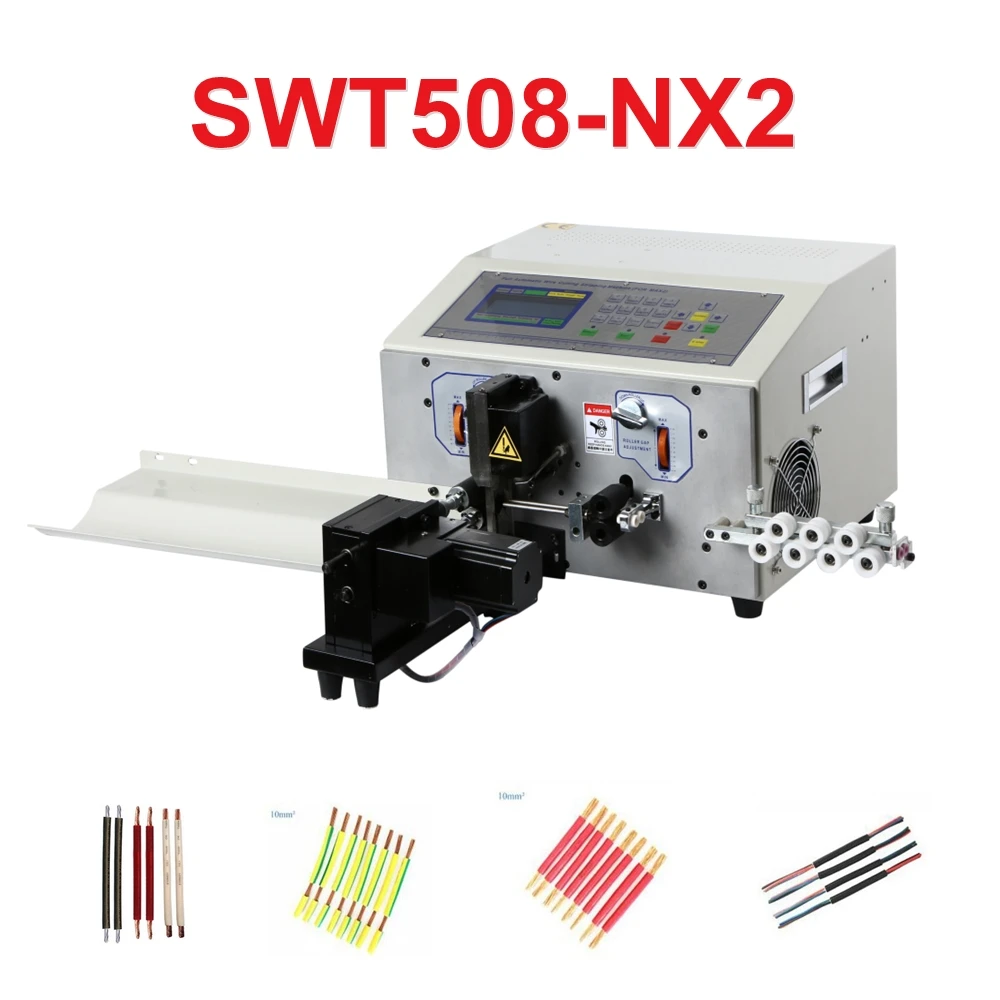

SWT508-NX2 Computer Automatic Wire Strip Peeling Stripping Cutting Machine For 0.1-4.5MM2 With Single Or Double Wires

SWT508-NX2 Peeling Stripping Cutting Machine Computer Automatic Wire Strip Stripping Machine 0.1-4.5mm2 Compatible With Single Or Double Wires 220V 110V

Product Description

 The product function characteristics:

 Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

 Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function

Applications:

 Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

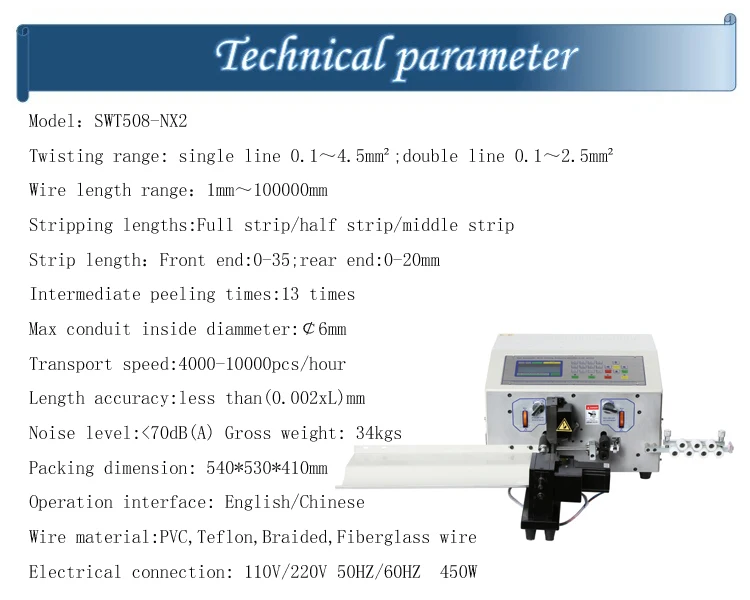

 Technical parameters:

 1,The model: SWT508-NX2

 2,Power: AC 220V/110V  50/60 Hz

 3, POWER:450W

 4,Cutting length: 1-100k mm

 5,Cutting tolerance: (0.2+/- 0.002 by L) mm

 6,Cut off the error: can be modified

 7,Stripping length: Front end 0-35mm,Rear end 0-20 mm

 8,Middle strip cut: 13 places strip

 9,Cutting wire core section: Single wire 0.1-4.5mm2; double wires 0.1-2.5mm2

 10,Max cut diameter: ￠6

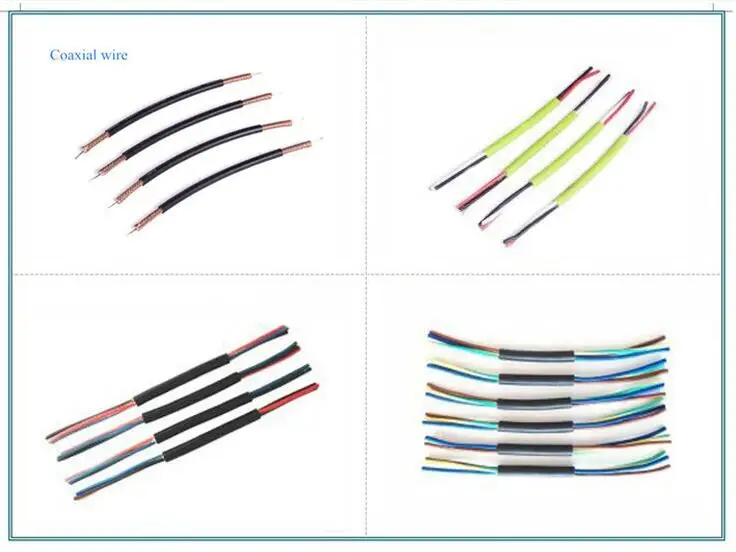

 11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc

 12,The blade material: hard tungsten steel (import BaiGang optional)

 13,Peel linear velocity (a/hour) : L = 100 mm, 4000-10000 PCS/h (high yield)

 14,Driving way: 4 wheels drive

 15,Envelop dimensions: 537*507*410

 16,weight:36KG

 17,Showing the way: Chinese and English LCD interface

 18, 12 months warranty

19, Noise level <70dB(A)
