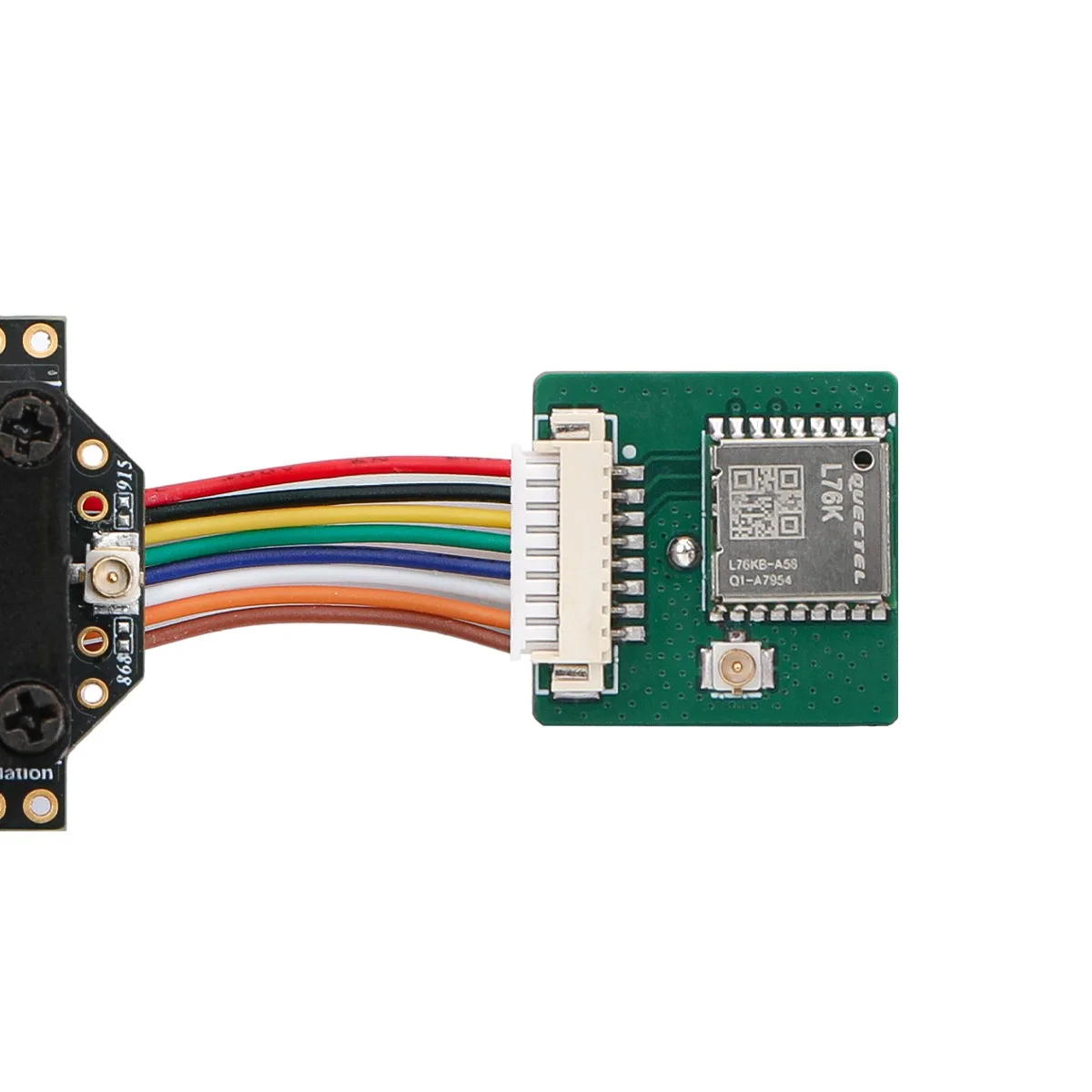

L76K GNSS GPS Module Board quectel L76K Chip for Heltec V4 T114 IoT Device 2.8V~4.3V compatible Meshtastic Node Meshcore
Quantity:
1
Availability:
Not AvailableCard Payments
Crypto Payments
Easy return
Reliable Shipping
L76K GNSS GPS Module Board quectel L76K Chip for Heltec V4 T114 IoT Device 2.8V~4.3V compatible Meshtastic Node Meshcore
Description:

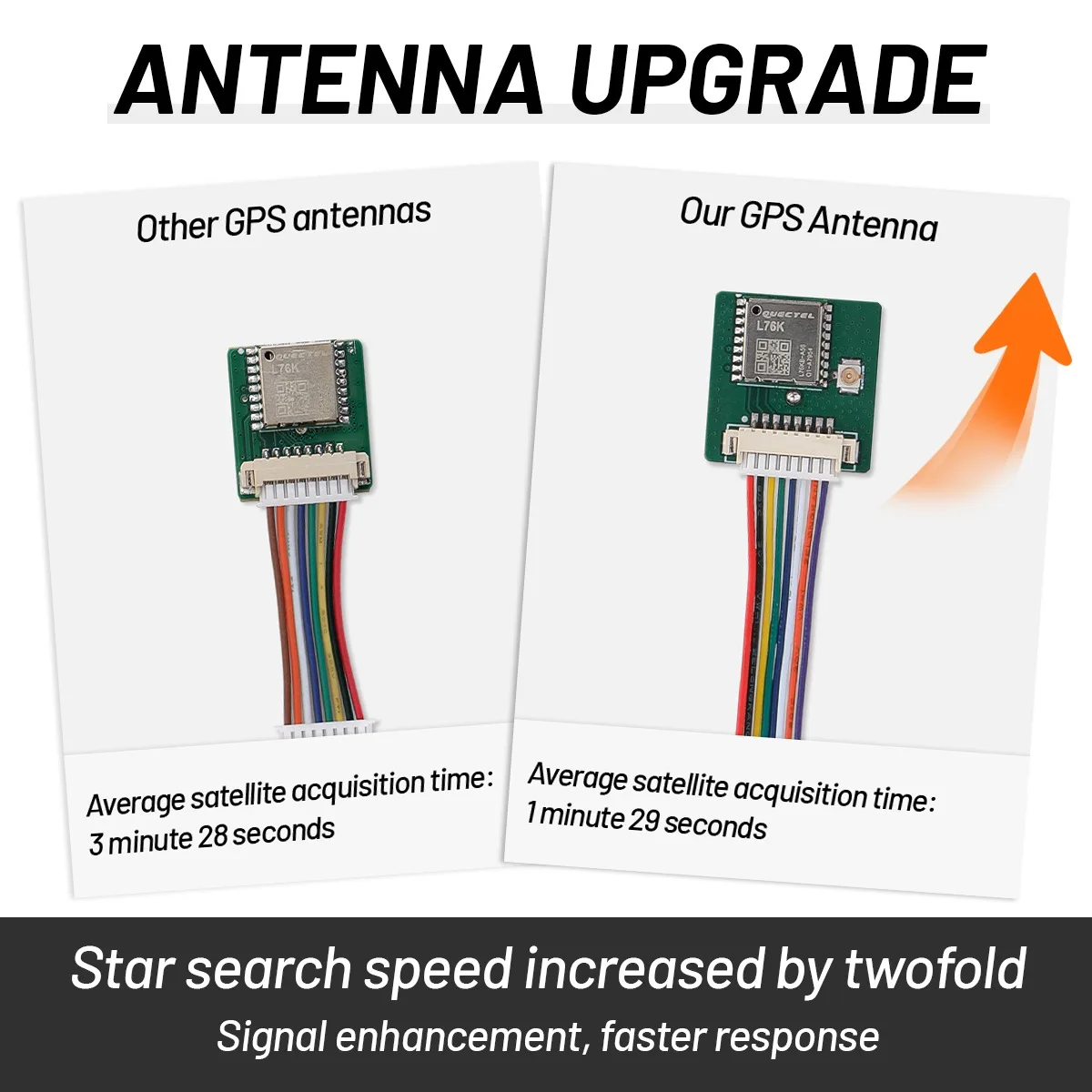

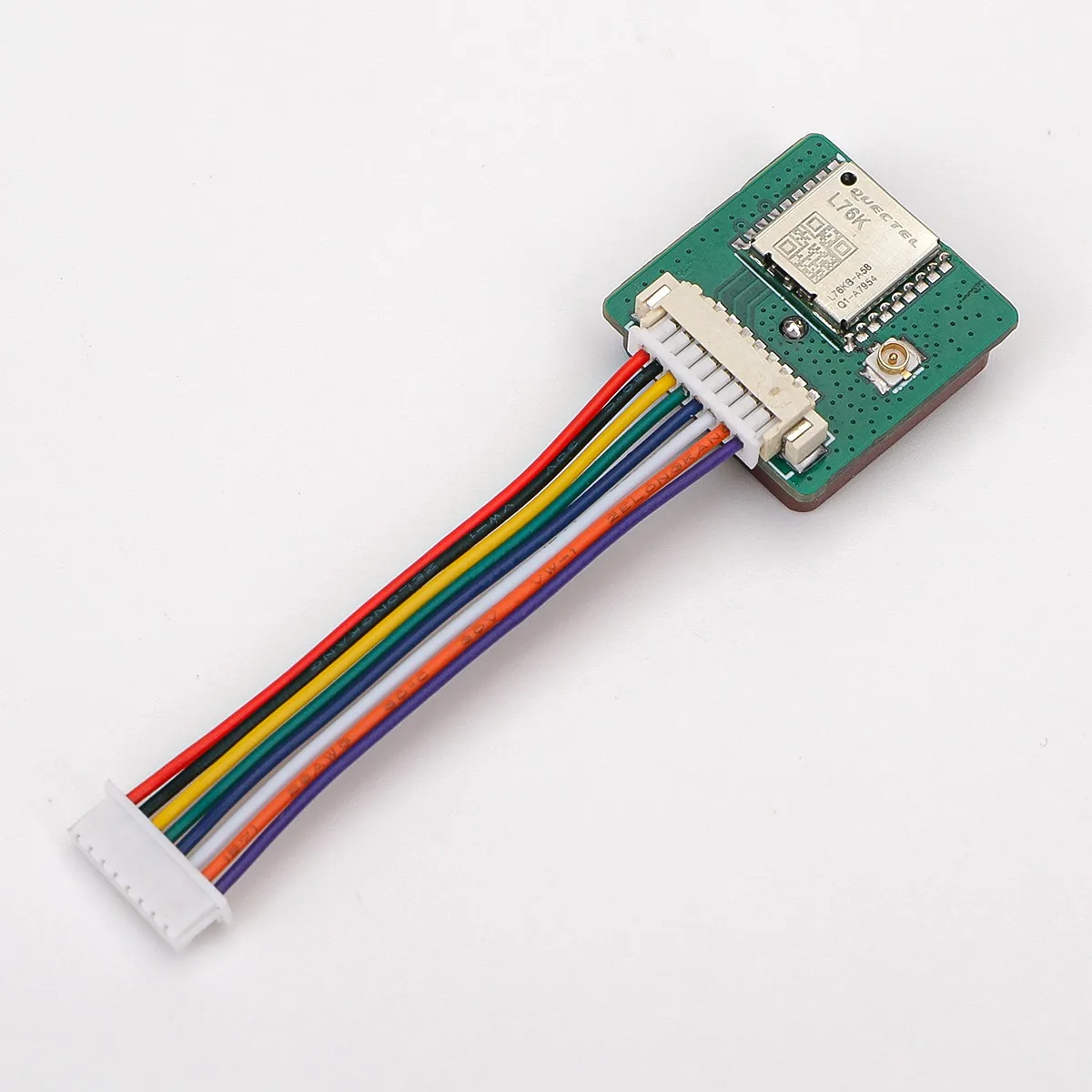

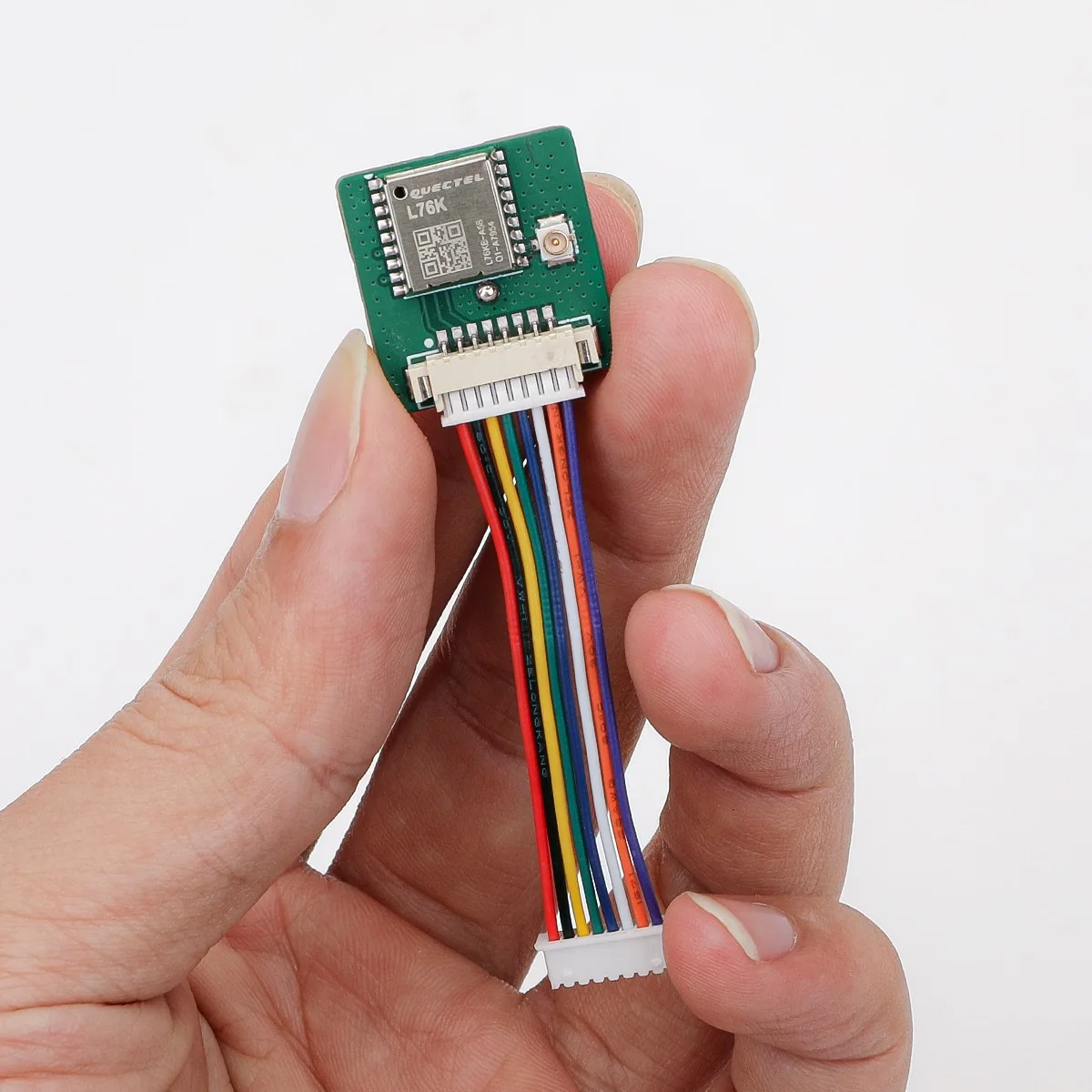

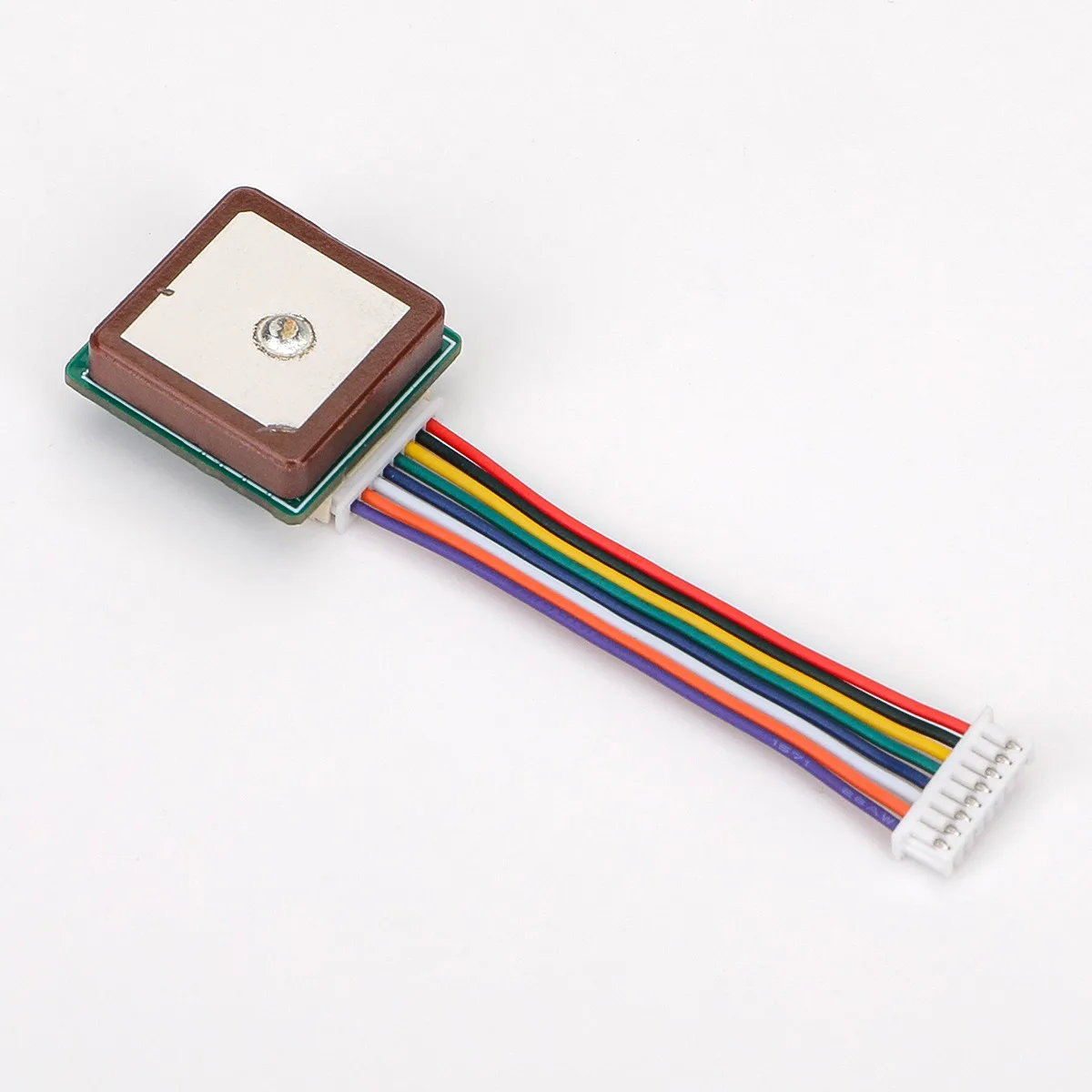

This is a mini size GPS module develop board.compact with Quectel L76K GNSS Chip, supports GPS multi-constellation positioning with up to 2.5m CEP accuracy, 10Hz update rate and ultra-precise 1PPS timing, ideal for navigation, tracking, and timing applications.
Ultra-Low Power Consumption：Designed for energy-efficient IoT device, L76K consumes only 18mA /3.3V, extending battery life in portable devices, asset trackers, remote sensors and long-running Meshtastic nodes.easy to integrate into drones, handheld devices, IoT boards and embedded GNSS development systems.

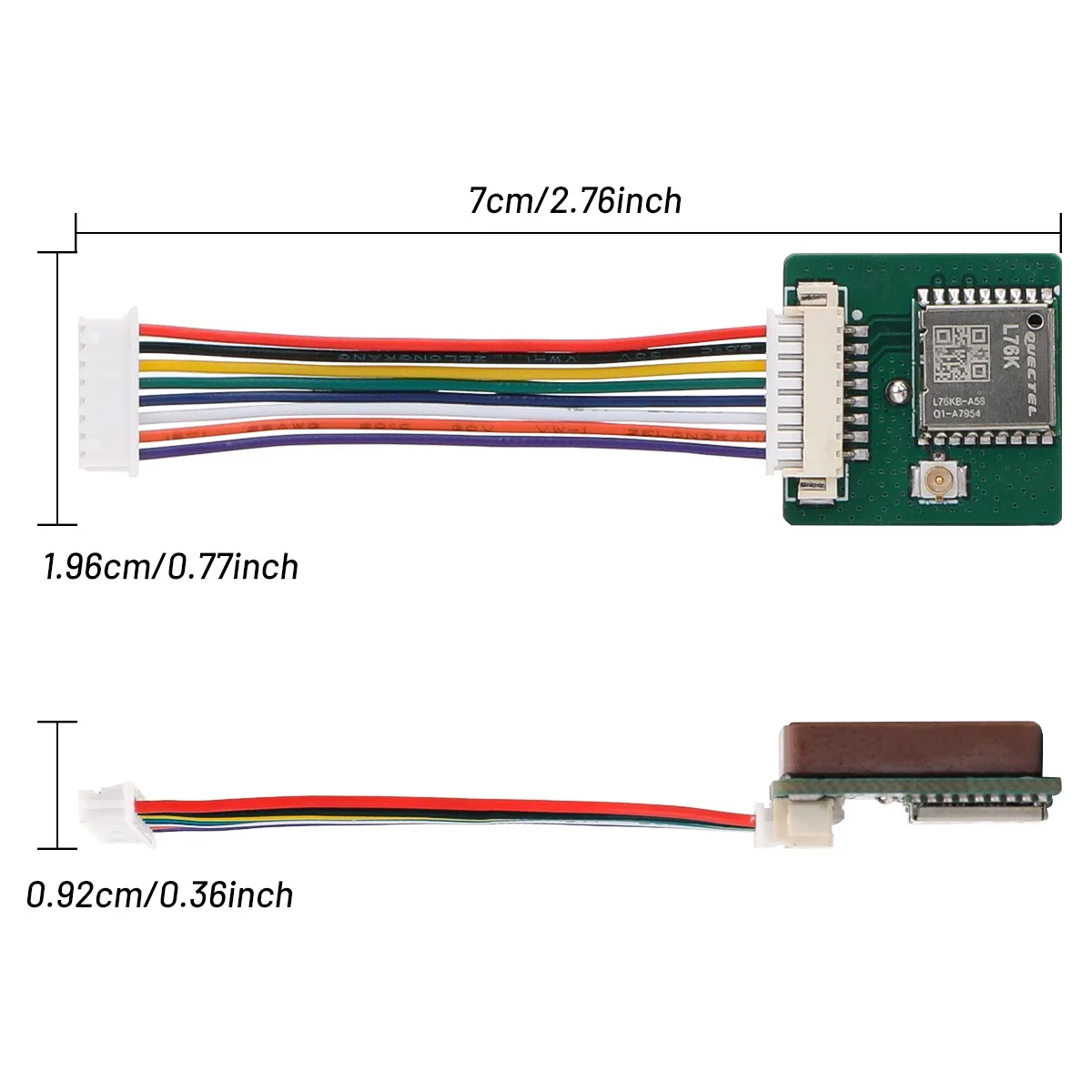

Mini Size:20x20x9mm Compact Design
Connector:1.25mm 8-pin SMD interface with 45mm adapter cable.
Wide Temperature:Stable operation from -40℃ to 85℃
Easy Integration:compatible support for iot industrial, outdoor tracking,mobile applications, ensuring reliable GNSS positioning in worldwide.
Compatible Device:
Pefect compatible with Heltec T114 LoRa Module,Heltec V4 LoRa Board,Heltec Mesh Tracker,Heltec Pocket,Helec Node.GPS modules.
Meshtastic device kits:Meshtastic node,Meshtastic tracking,Meshtastic tracker,Meshtastic radio,Meshtastic kits
Meshcore device kits:Meshcore Radio,Meshcore Tracker,Meshcore node,Meshcore Pocket
Others IoT devices:Outdoor GPS tracker,Sensor and so on.
Customer Reviews
17 ratings

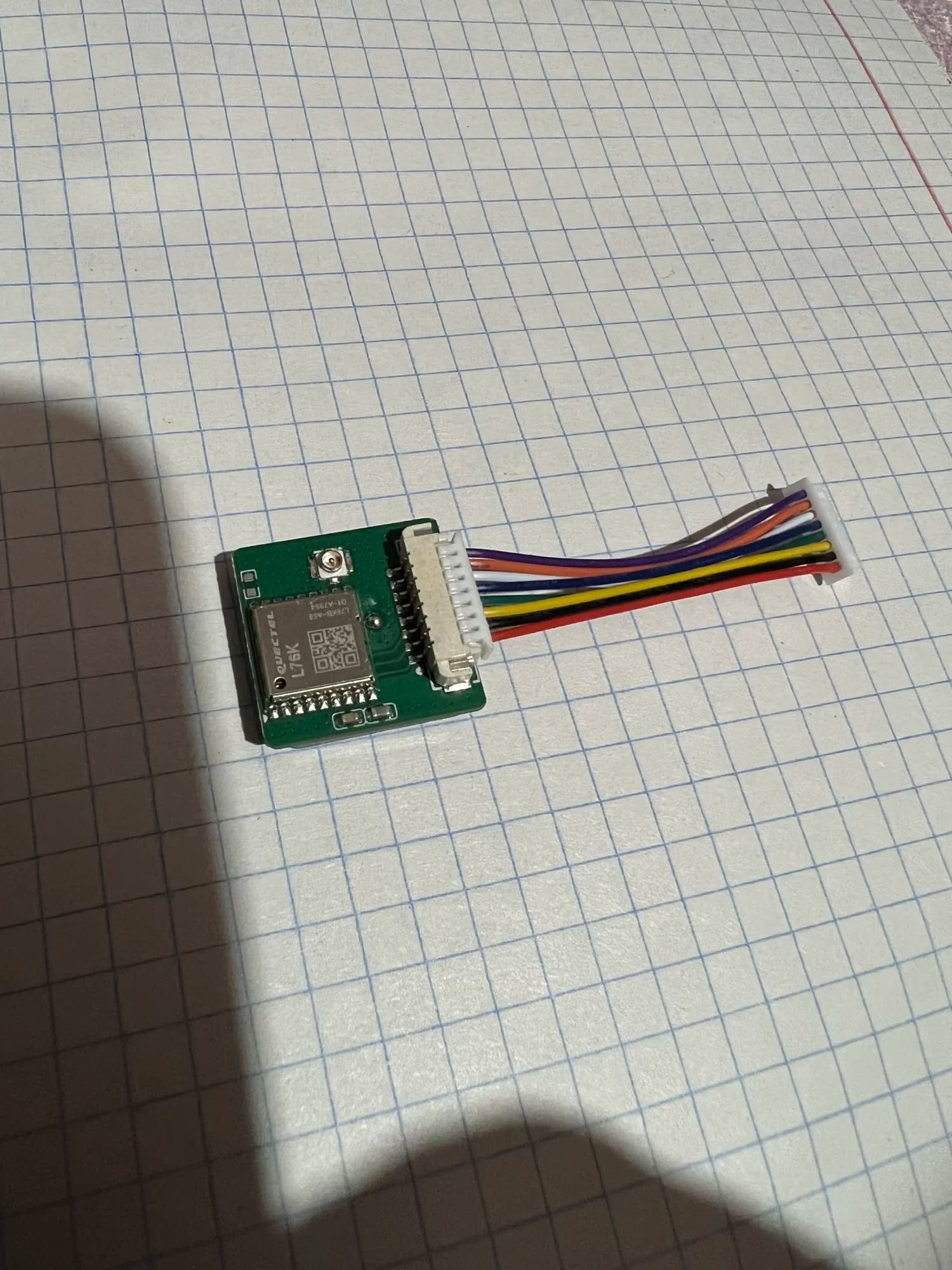

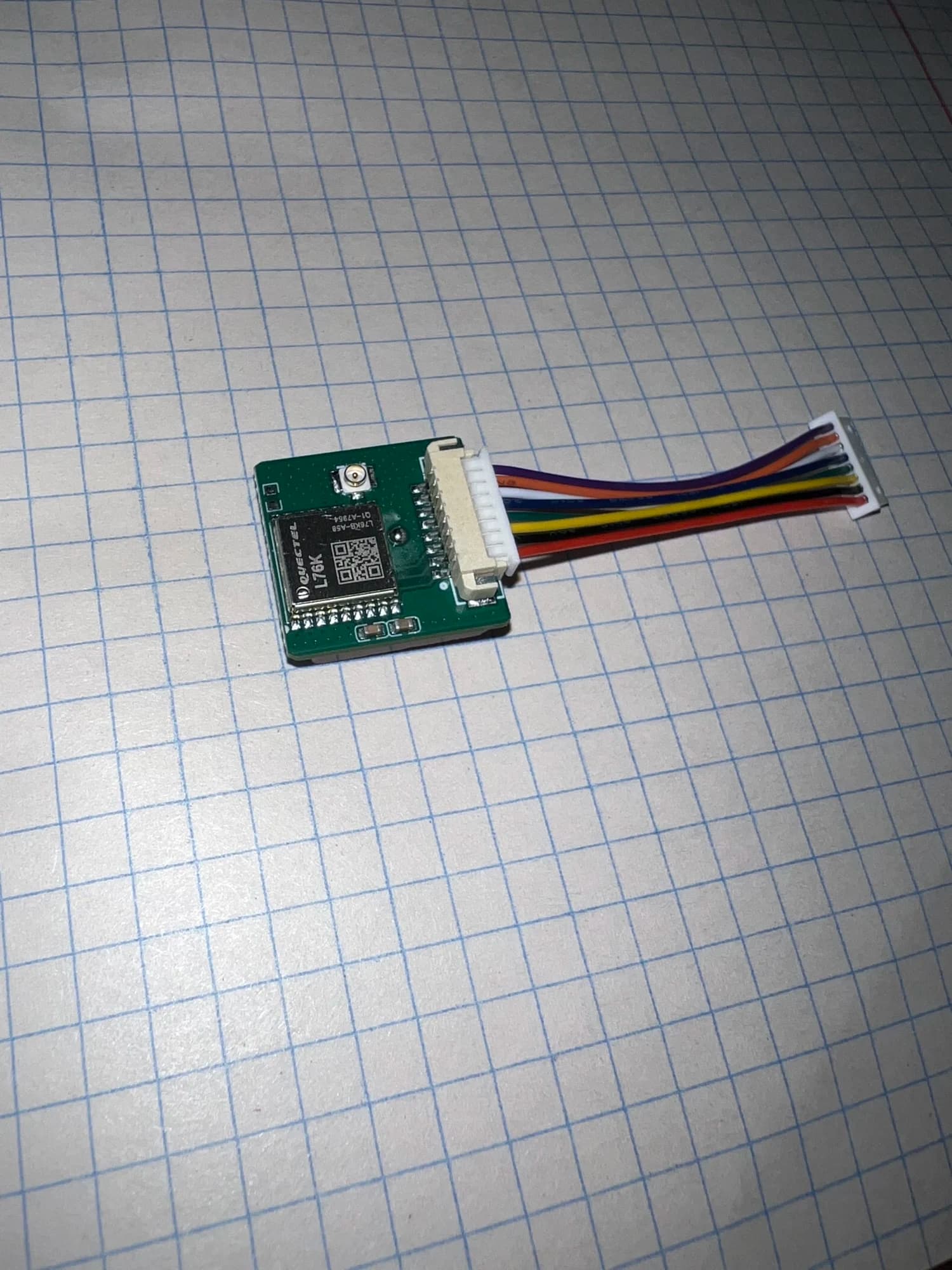

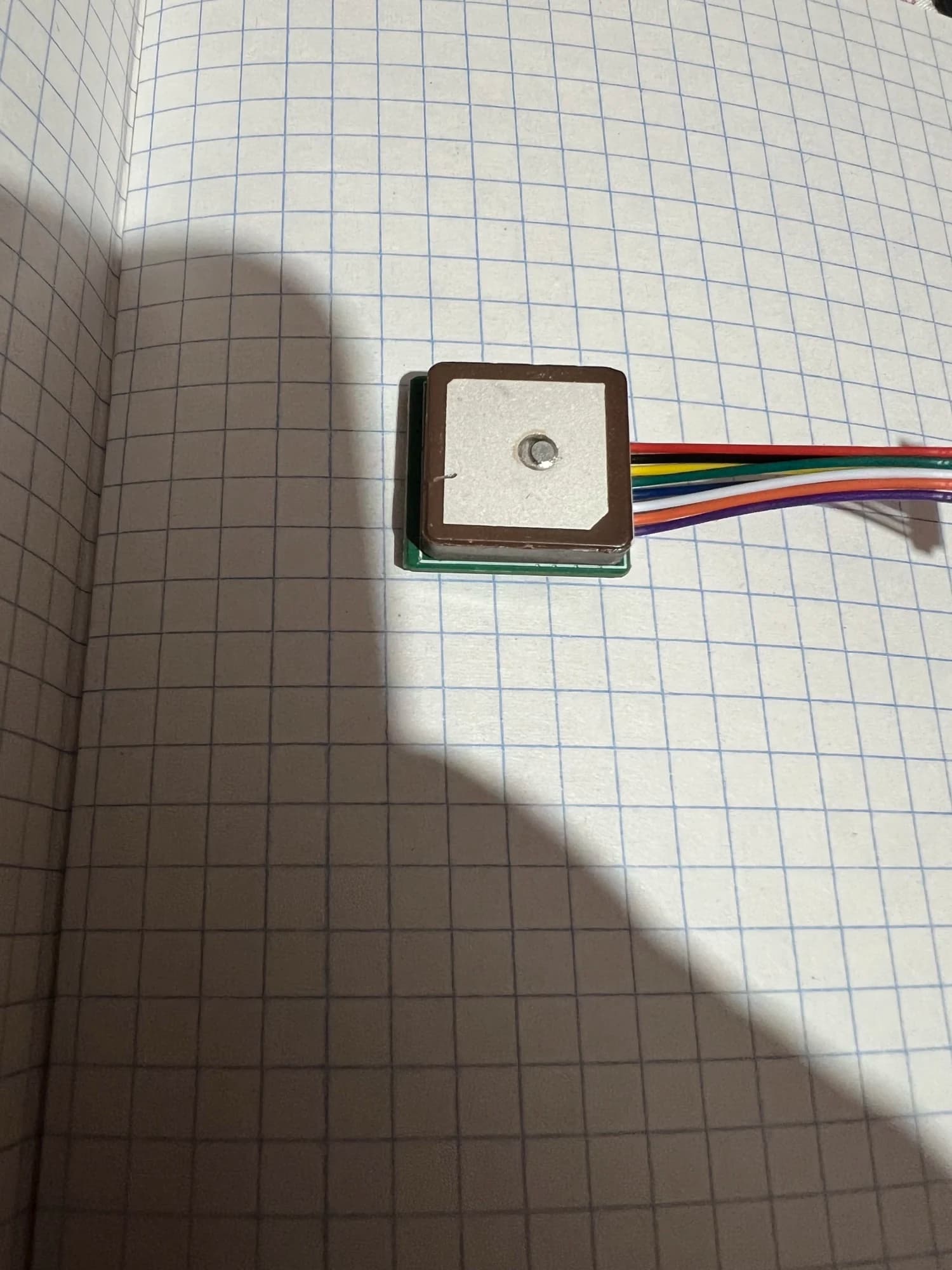

Customer photos (3)
Buyer from Russia
August 23, 2026
Variant: Color:3Pcs Ships From:China Mainland
It works on V4, you can take it.
Translated by AliExpress ·
С***т
May 16, 2026
Variant: Color:3Pcs Ships From:China Mainland
None of the three sensors are working. "Satellites not detected." Tried on two T114 boards and one Heltec v4 board.
Translated by AliExpress ·
R***s
May 6, 2026
Variant: Color:2Pcs Ships From:China Mainland
I am requesting a refund because the GPS module's external antenna interface (IPEX) is non-functional. No Power: The IPEX connector center pin measures 0V. An active antenna requires power, and the board lacks the necessary Bias-T circuit (Inductor/Capacitor) to provide it. Signal Conflict: The ceramic antenna is hard-wired to the same path as the IPEX connector without a switch or jumper, causing severe signal interference and making the external antenna useless. Manual Contradiction: The user manual states 'An active GNSS antenna is required', but the hardware fails to provide the required voltage at the RF port. The product design is incomplete and does not support the external active antenna as advertised.
М***ч
March 24, 2026
Variant: Color:3Pcs Ships From:China Mainland
Great, it works! But, because of the traffic jams, it sends to the suburbs.
Translated by AliExpress ·
