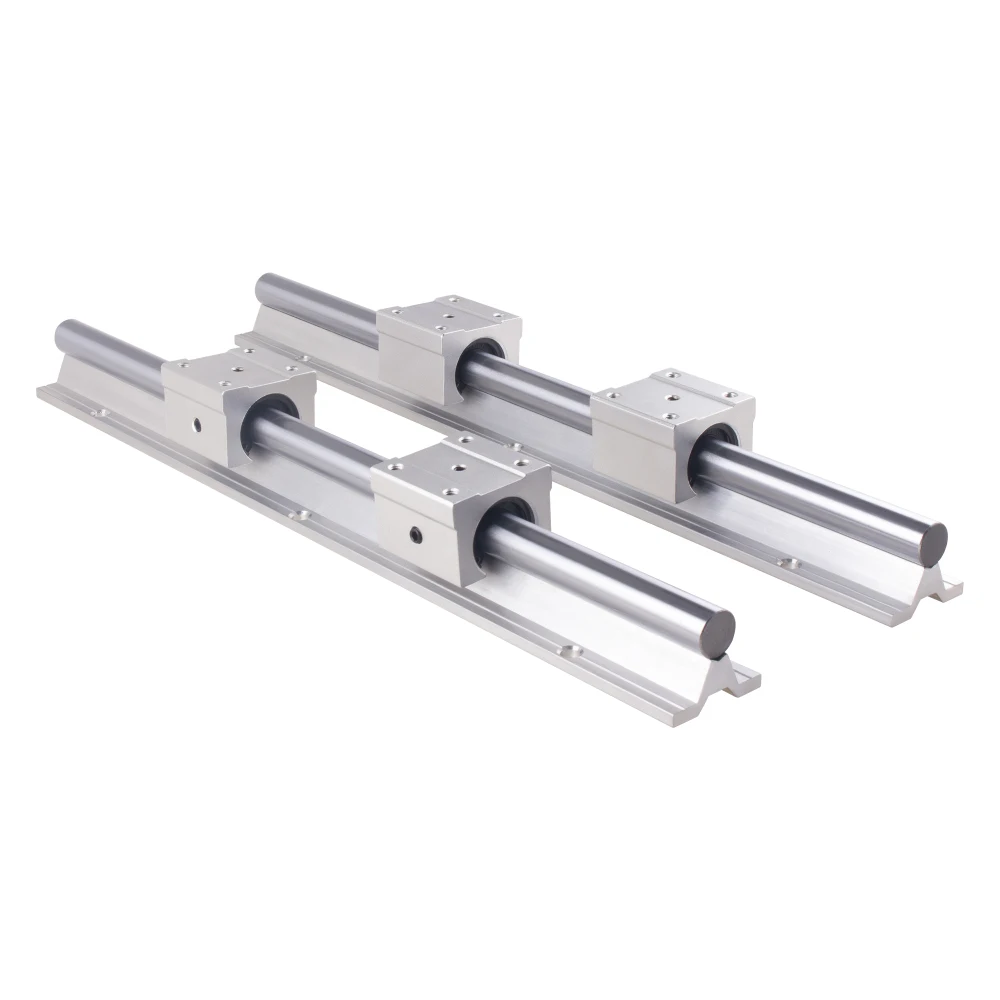

2PCS SBR12 SBR16 SBR20 20mm Linear Guide Rail 300-1500mm Fully Supported Linear Rail with SBR16UU Linear Bearing Block CNC Part

2PCS SBR12/16/20 20mm Linear Guide Rail Length 300-1500mm Fully Supported Linear Rail with 4PCS SBR20UU Linear Bearing Block CNC Part
We can customize the lengh whatever you want, pls contact us before buying.Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Because of point contact between ball and straight axis, so the load is small. The ball is spinning with the smallest friction, it can run a high precision and smooth motion. Flange linear bearings can be divided into: round flange type, oval flange, guide wheel flange, guide the oval flange type, plus long round flange type.

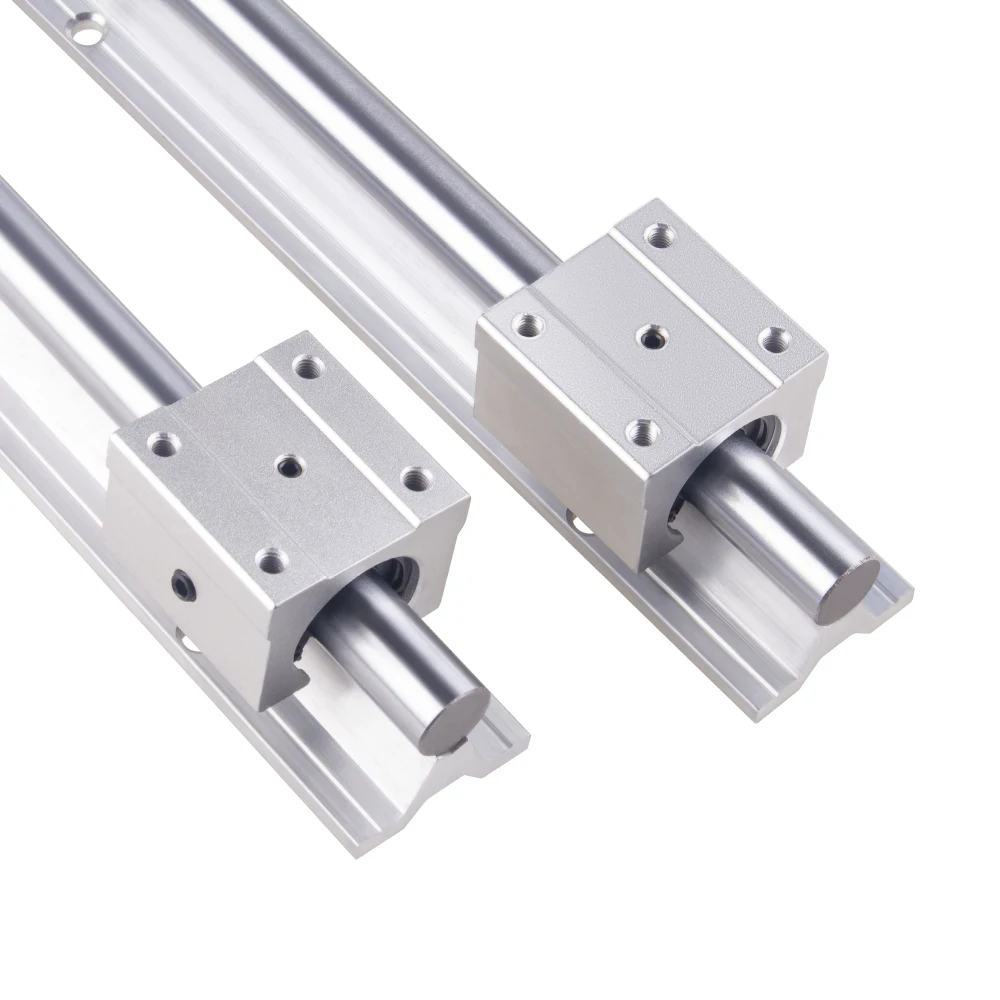

This is the sliding unit with the aluminium case, shafts and aluminium rail for preventing deflexion. This is the complete sliding unit systems and can be clamped simply tightening by bolt with high accuracy. The support rail unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.
Package Included :
2pcs SBR12/16/20 Linear rail
4pcs SBR12/16/20UU Bearing Blocks
(By the way, if you order ONLY SBR12/16/20UU 4pcs, we will send only 4pcs SBR12/16/20UUBearing Blocks, Any Question, Please Contact Us)
Model :SBR12/16/20
Color: Silver
Material: Metal
Length:300MM,400MM,500MM,600MM,1000MM,1200MM,1500MM
