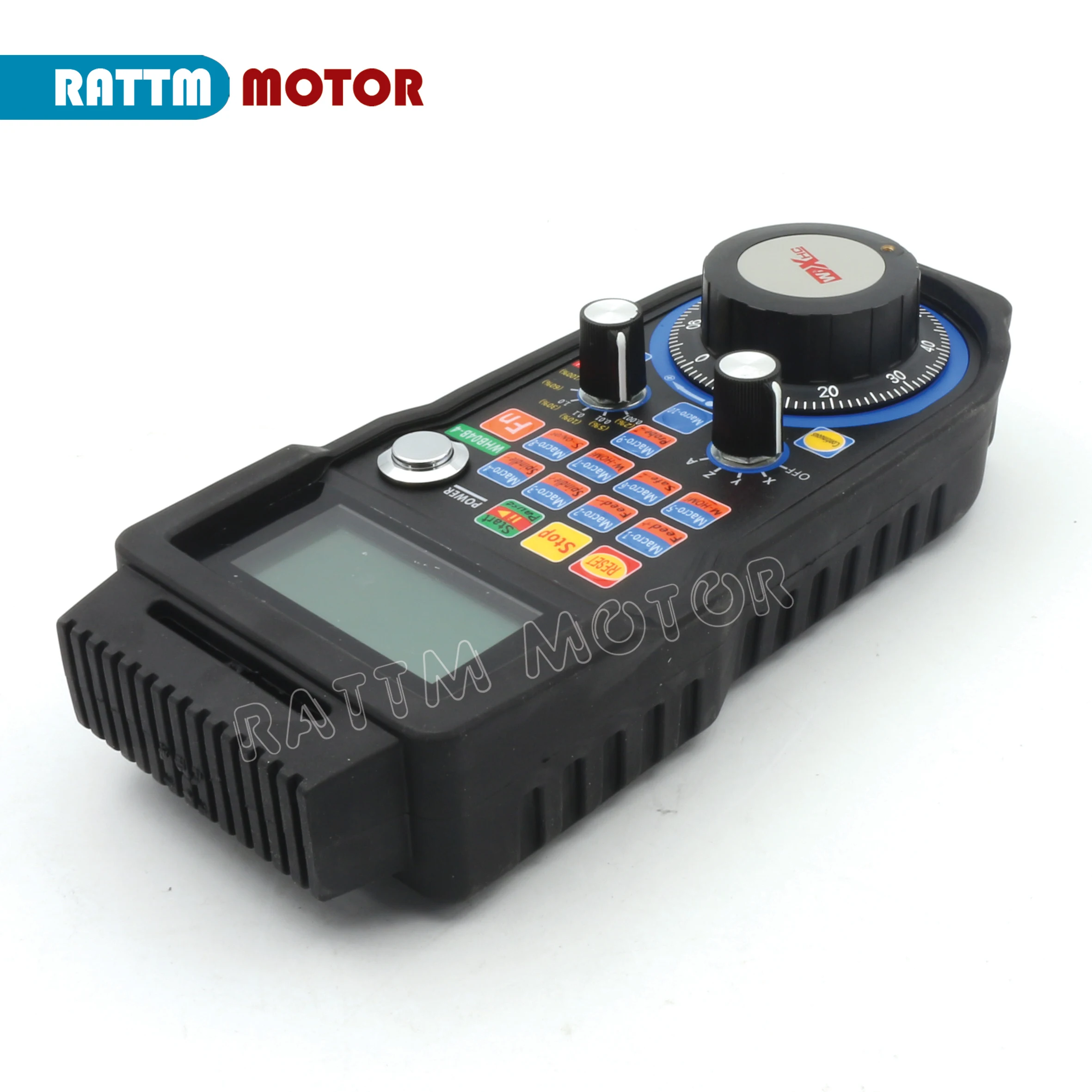

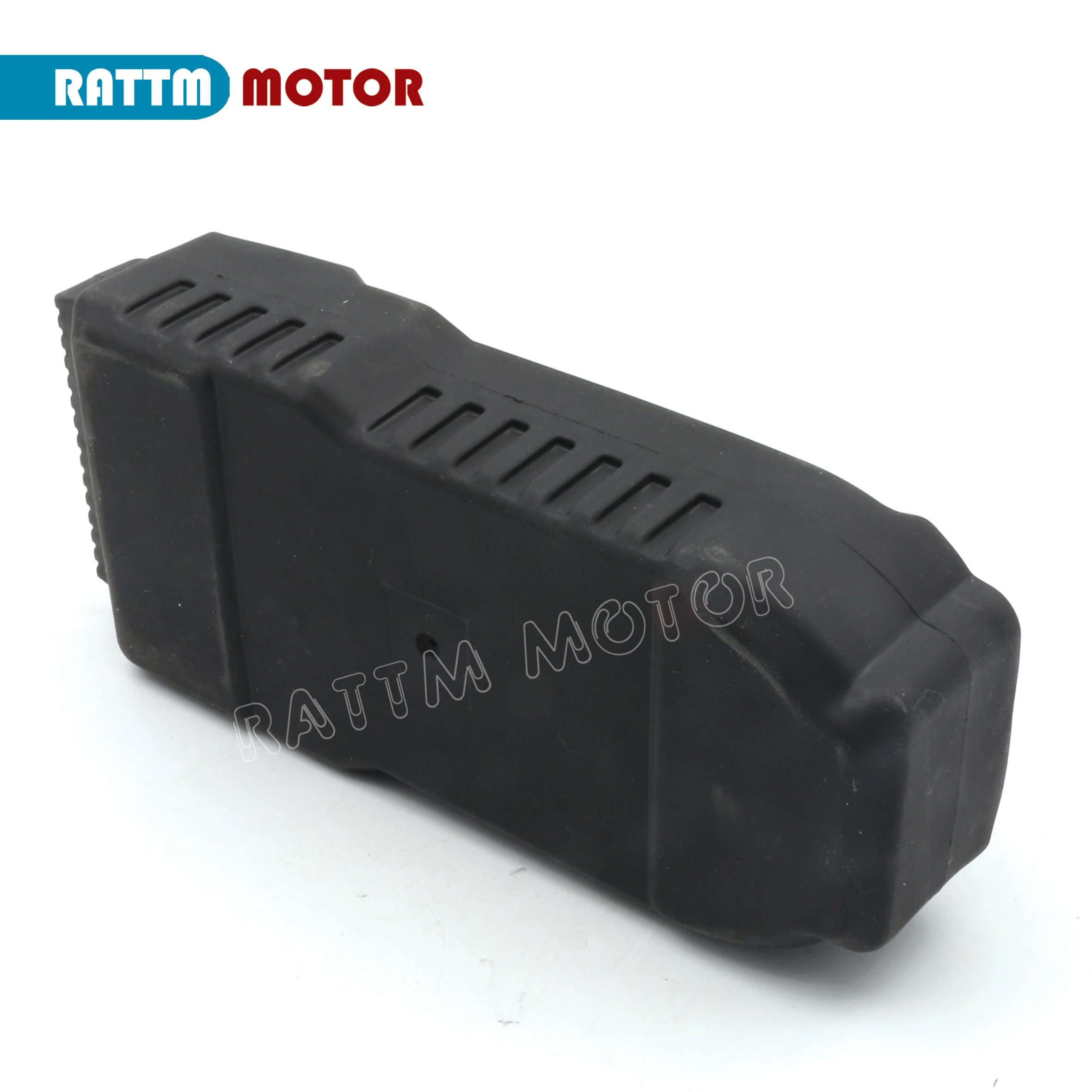

【DE/US Stock】4 / 6 Axis XHC Mach3 / NC Studio MPG Pendant CNC Wireless Handwheel Manual USB Receiver 40 Meter Distance WHB04B

Good News:

We

have warehouse in Germany, Czech Republic, United Kingdom, we can ship

to EU countries via DHL/UPS, which is very fast delivery.

Package include:

1 x 4 axis / 6 axis Wireless Handle(default send Mach3 type, if need Nc-Studio pls leave us a message, the same price)

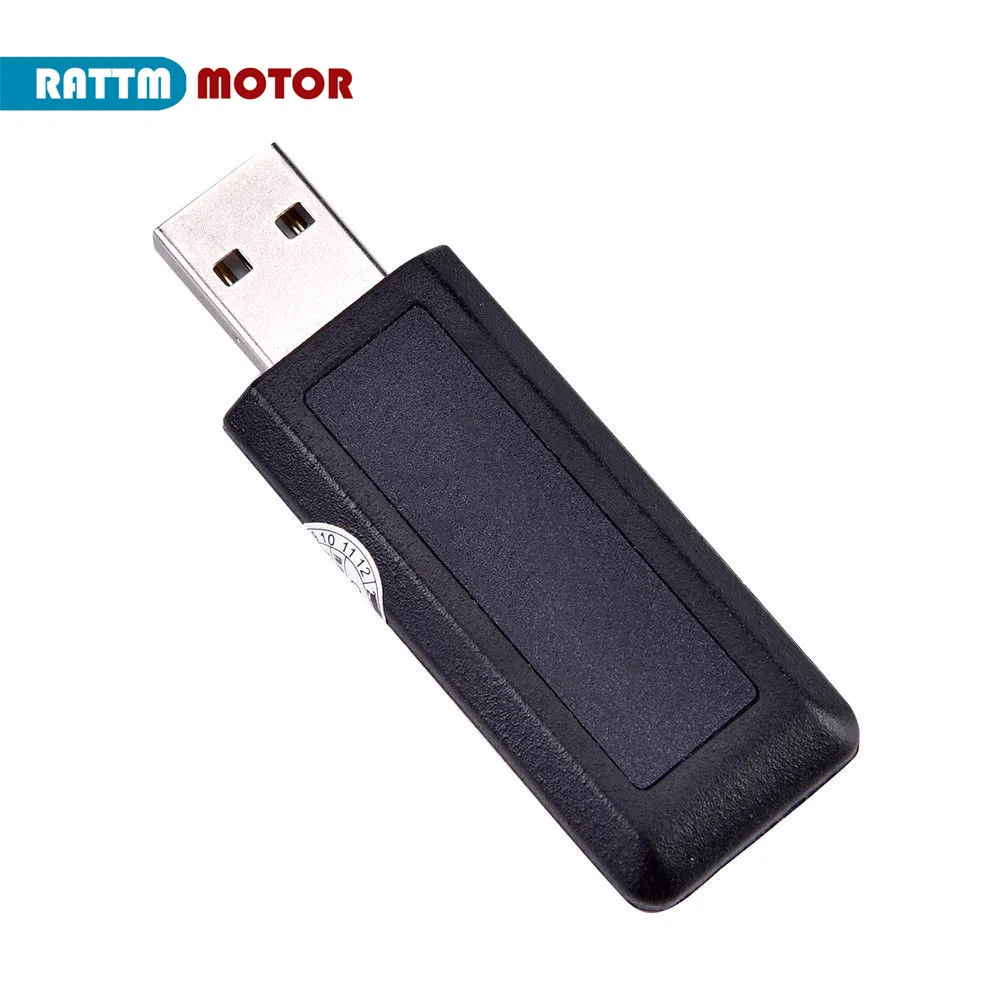

1 x Wireless USB Receiver

1 x Manual download from link too

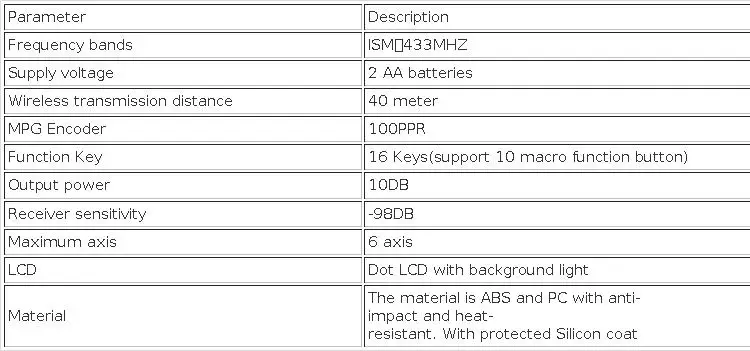

Model

WHB04B

WHB04B new


Radio frequency

ISM,433MHZ

ISM,433MHZ

Wireless transmission distance

40 meter

40 meter

Power

2pcs Alkaline batteries

2pcs Alkaline batteries

Pulse generator

100PDR

100PDR

Accept sensitivity

negative 98DB

negative 98DB

Max. axis

6

6

Material

ABS and PC material

ABS and PC material

Screen

LCD Display

LCD Display

Only displayed the current axis value

Can display 3 axis value meanwhile

Macro code button

Not support

Support

Step/Continuous mode switch

Not support

Support

Compatibility

Only support some USB card, th following           cards can not be used

All card can be used

All parallel cards

All parallel cards

Some ethernet card

All ethernet card

Some USB card

All USB card

-

Description :

1. Applications

WHB04B has 2 series：

1. WHB04B-4：support 4 axis with x,y,z,a

2. WHB04B-6：support 6 axis with x,y,z,a,b,c

application on mach3 cnc system in windows platform.

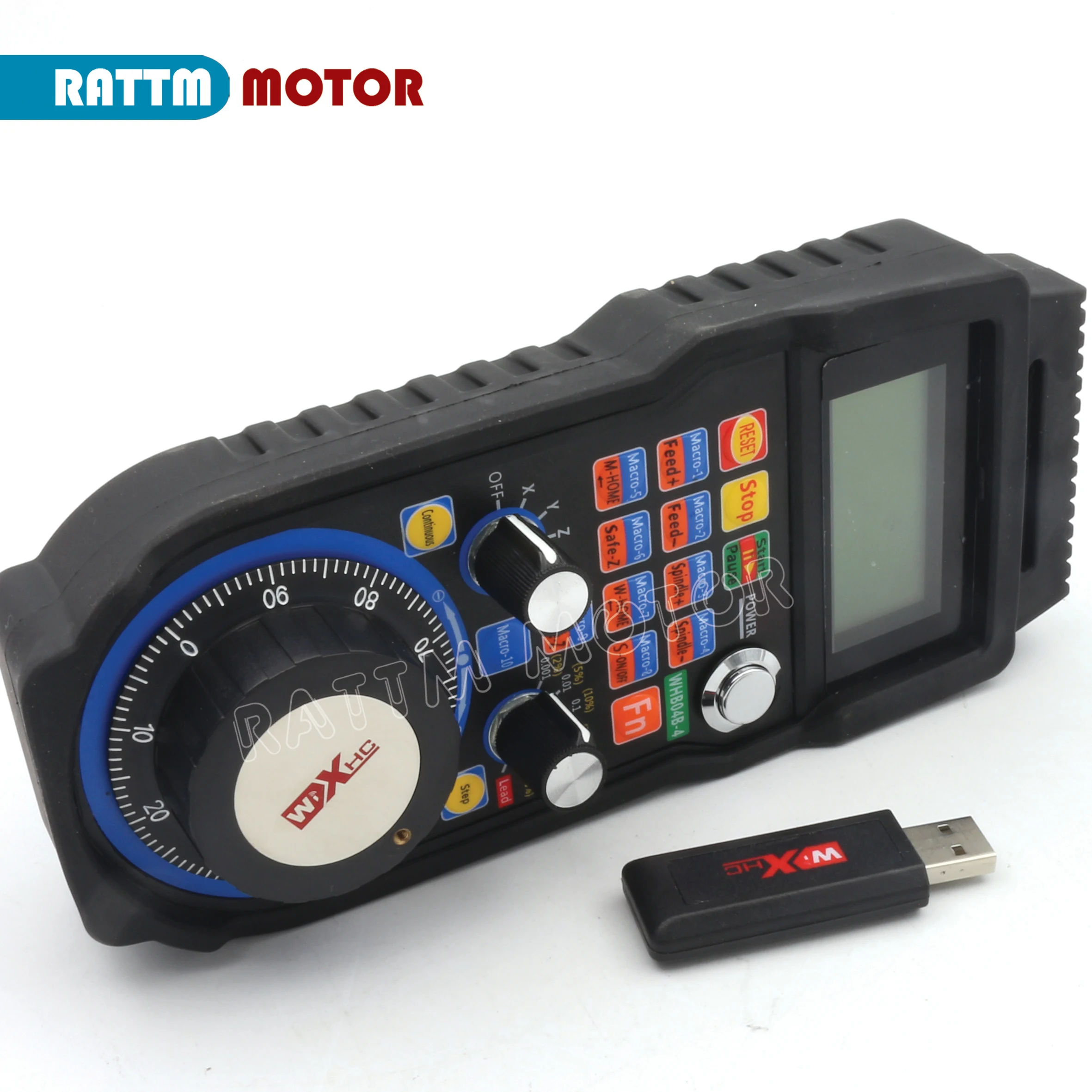

2. Product Overview

3. Application circut

4. Key feature

1 .Auto Frequency Hopping When Noise.

Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity-98DB.

32 hopping channels，the channel frequency gap is 1Mhz.

the transmission is encrypted， auto build communication network and pair. auto hopping when noise.

32 sets of wireless MPG could be used at the same time in one room.

2. LCD display

Display the X Y Z A B C axis work and machine coordinate data.

Display the spindle and feed speed.

The lcd display data with background light.

3. Axis/Step band switch

To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.

4. support 10 macro function button

5.

6.LCD Display overview

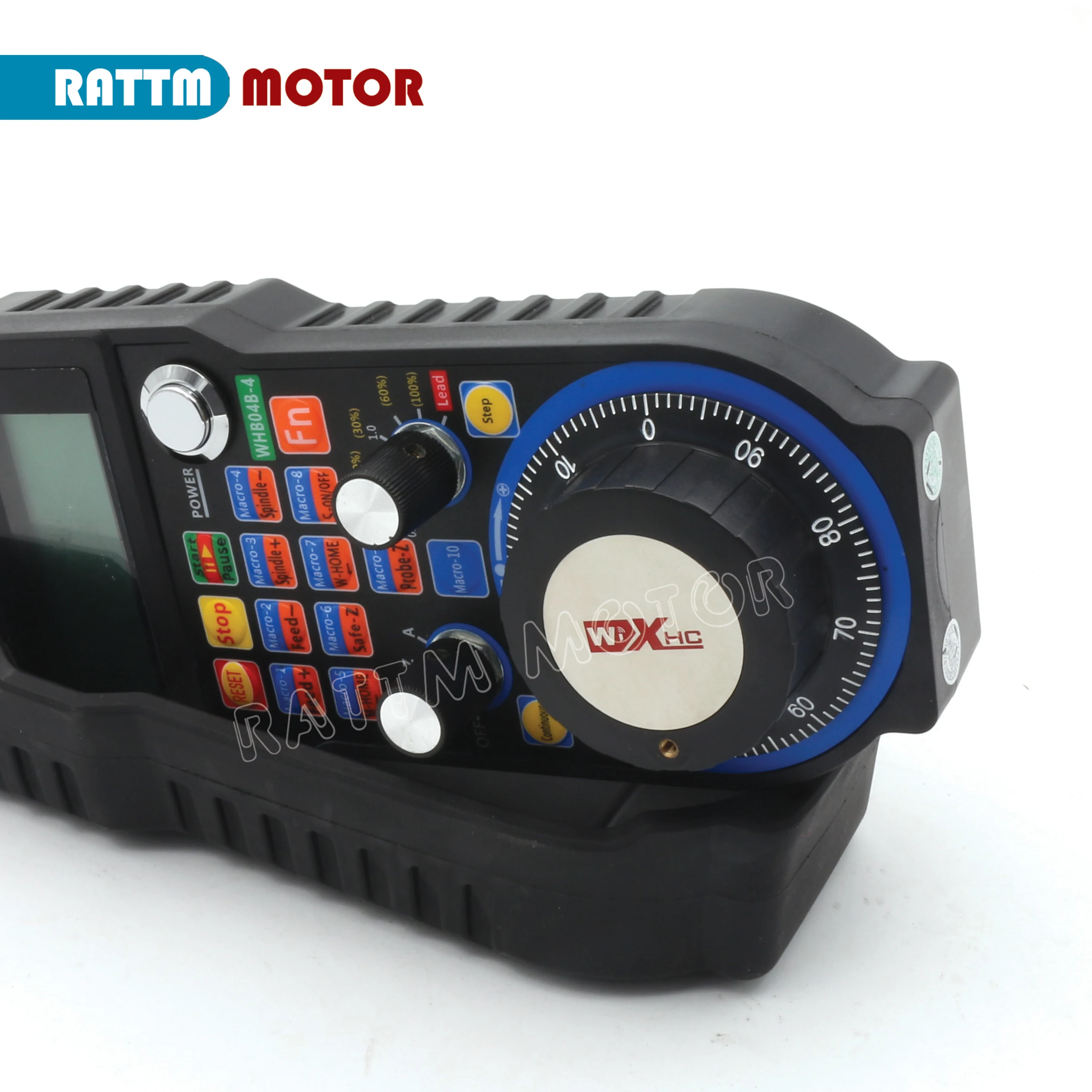

7.  Funciton key descripiton
