BSIDE Smart Digital Multimeter Pen Type Multitester True RMS Voltmeter DC AC Voltage Capacitance Ohm Hz Diode NCV Live tester

Product introduction:

This products belong to the latest generation of BSIDE brand smart Pen-shaped multimeter！

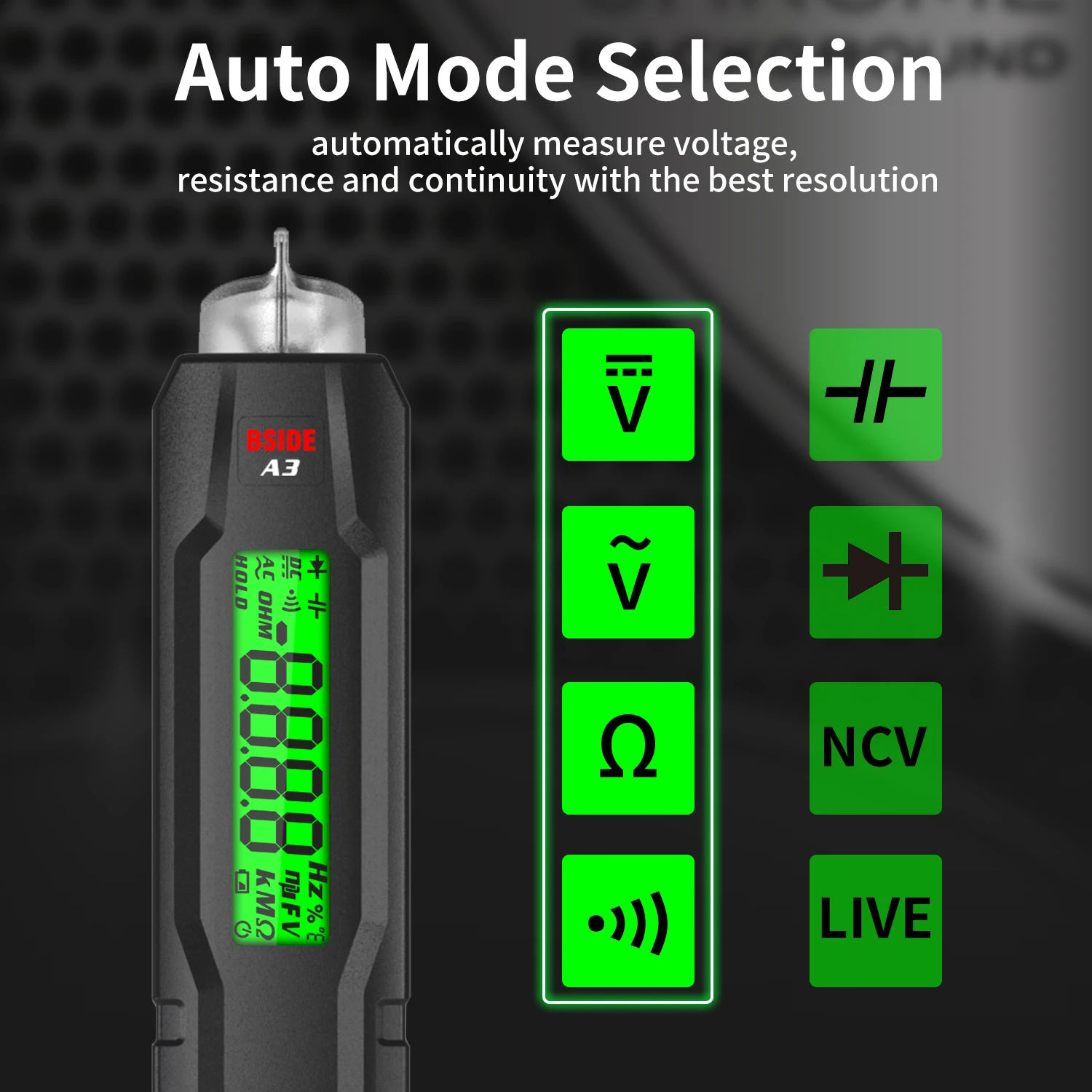

The 1.9-inch Red/green bicolor display design leaves an excellent user experience for buyers; The easy-to use/Single Button to Switch design is well recognized by buyers.

Equipped with a High-quality cloth bag made of EVA material, it is very portable.Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as gift.

BSIDE A3X is an upgraded version of A3 model.

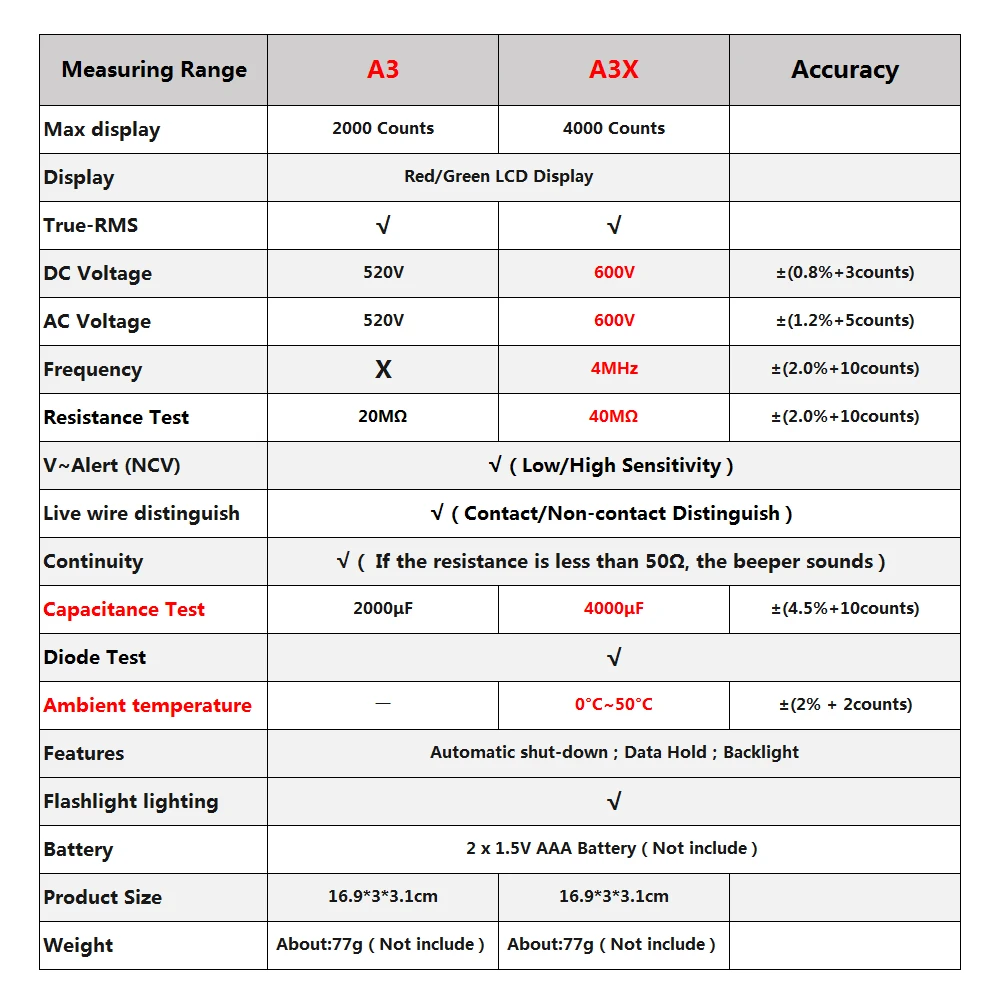

A3X Product Details:

Max Display: 4000 counts.
​

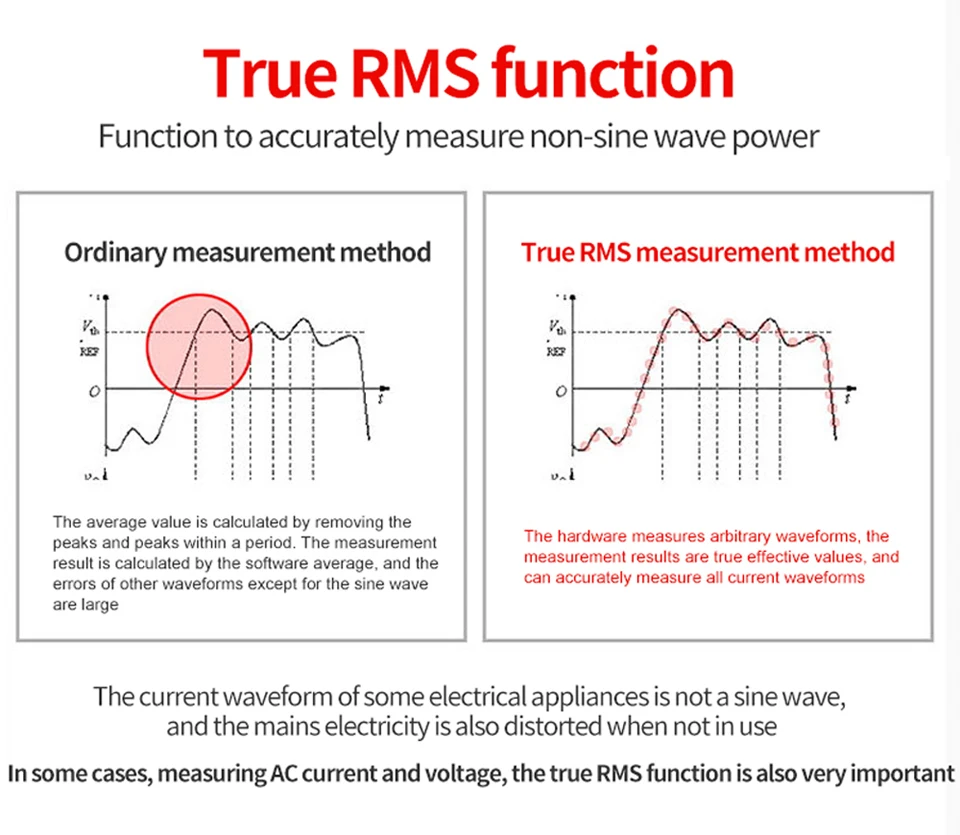

​True RMS
​

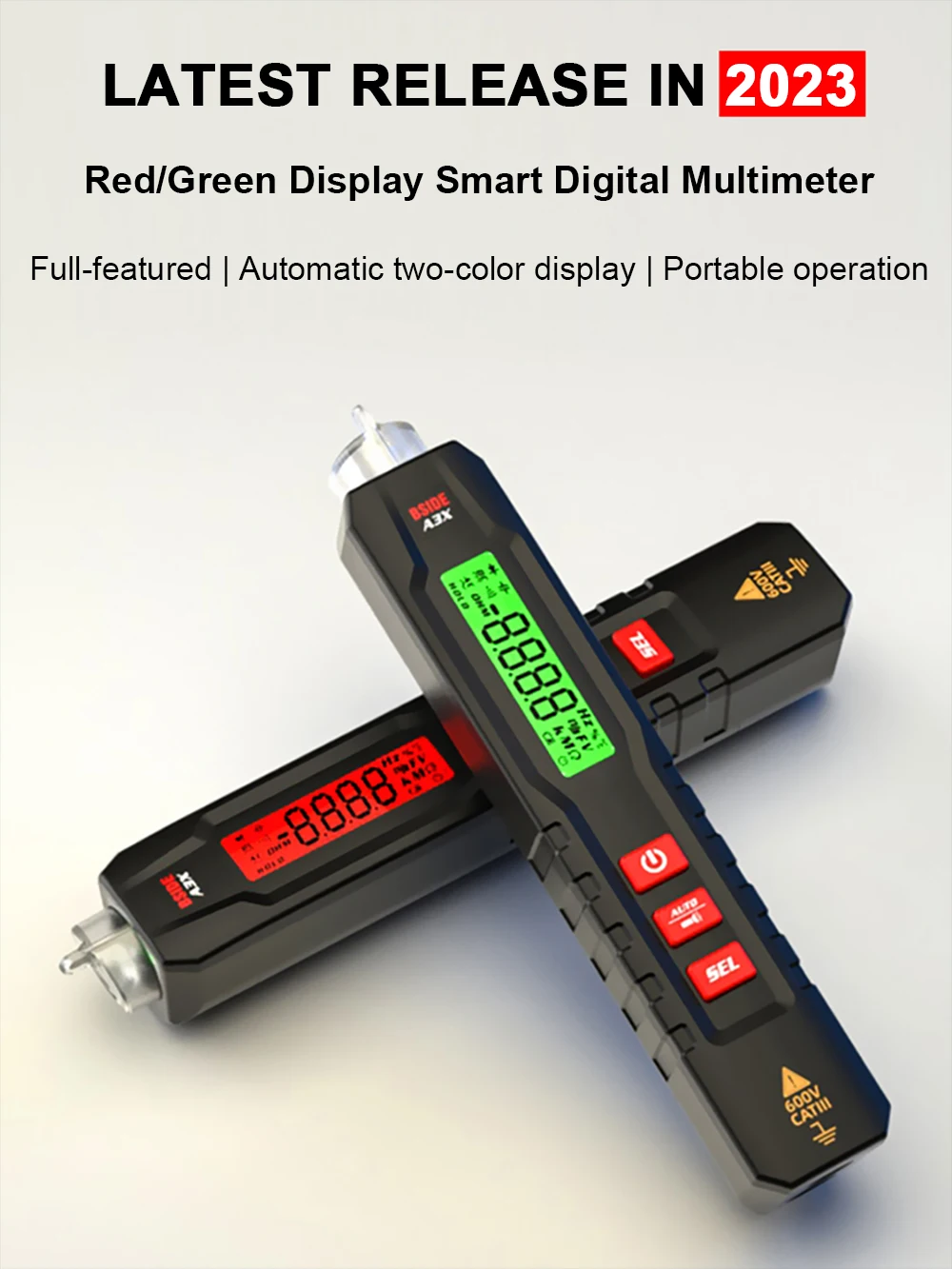

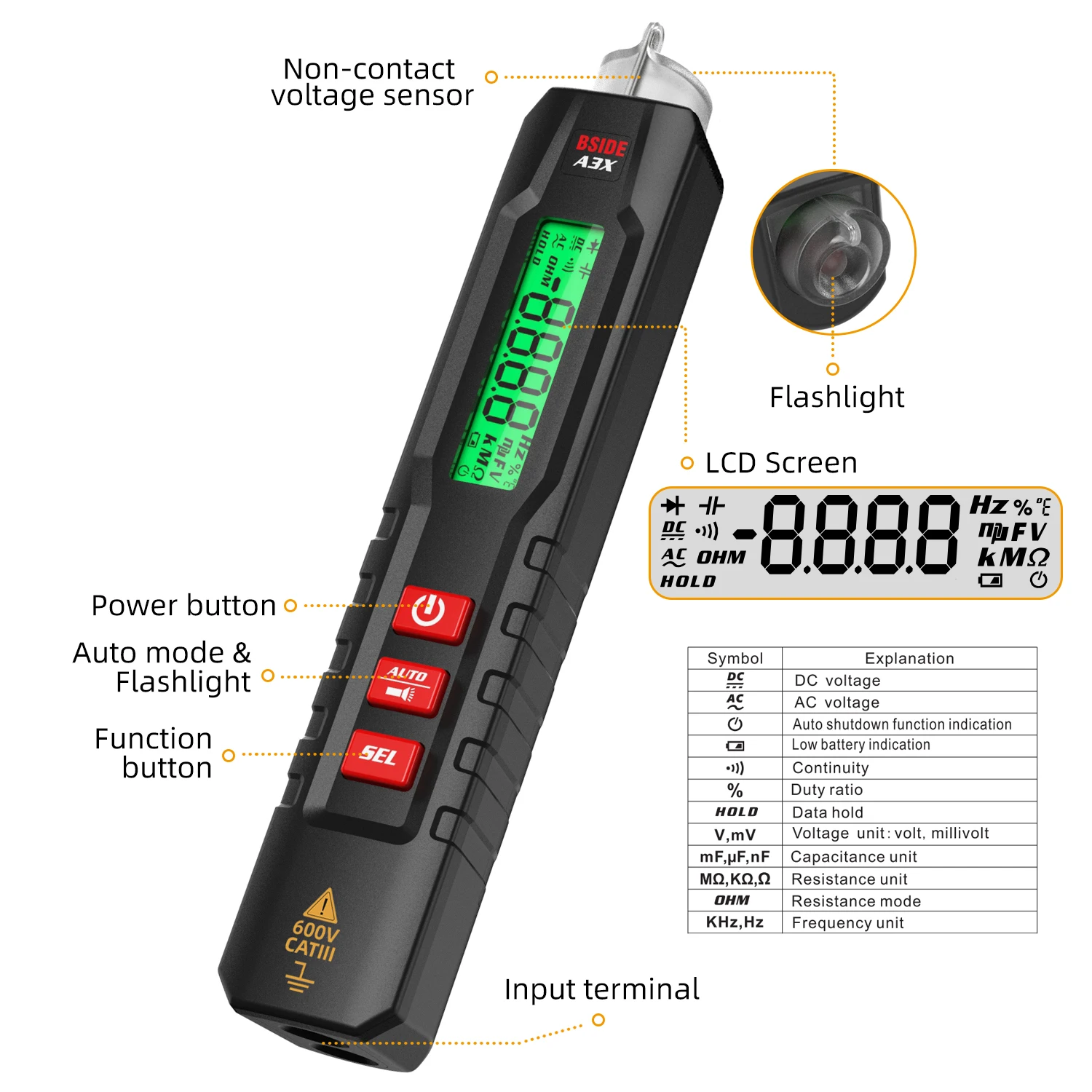

​Display Type: Red/green bicolor screen.
​
​Screen: 1.9 inch.
​
​DC Voltage: 0.05V-600V ±(0.8%+3); Resolution: 0.001V.
​

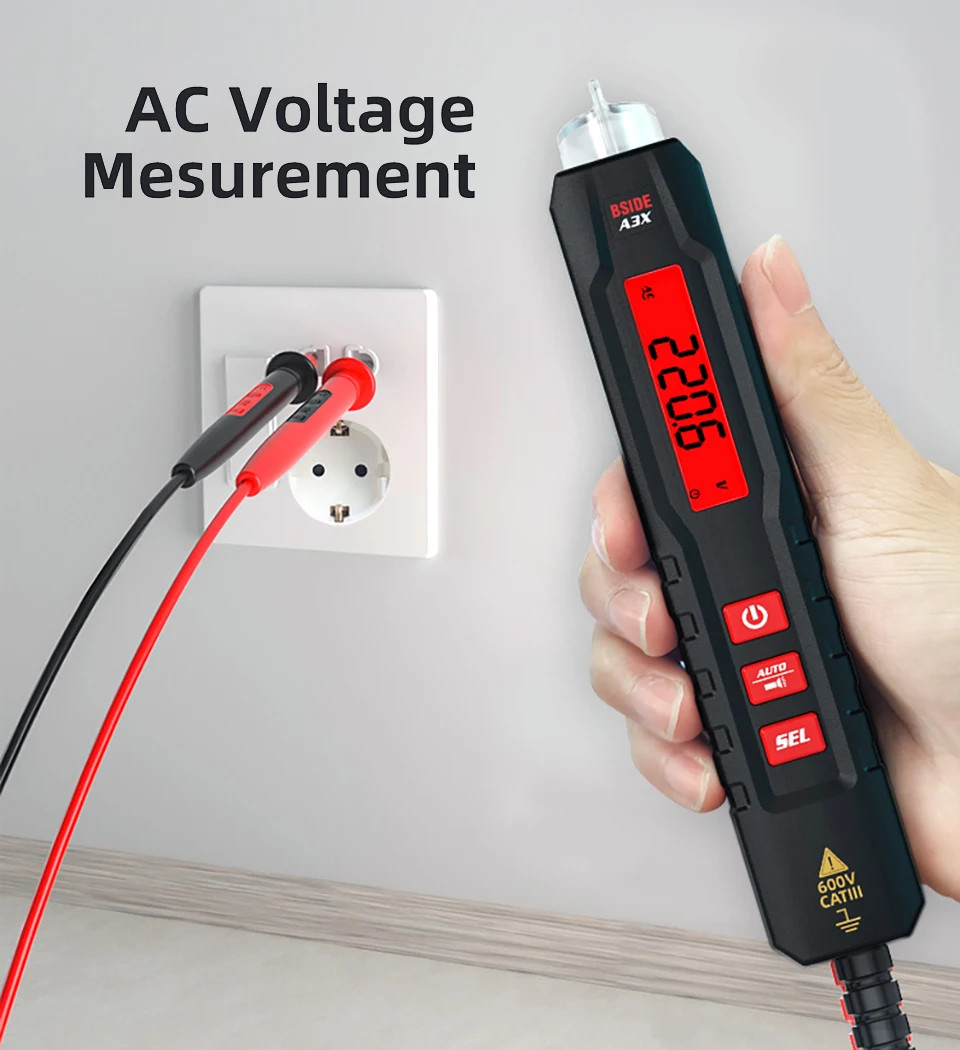

​AC Voltage: 0.8V-600V ±(0.8%+3); Resolution: 0.001V.
​
​Resistance: 0Ω-10MΩ ±(1.2%+3), 10MΩ-40MΩ ±(2.0%+10); Resolution: 0.1Ω
​

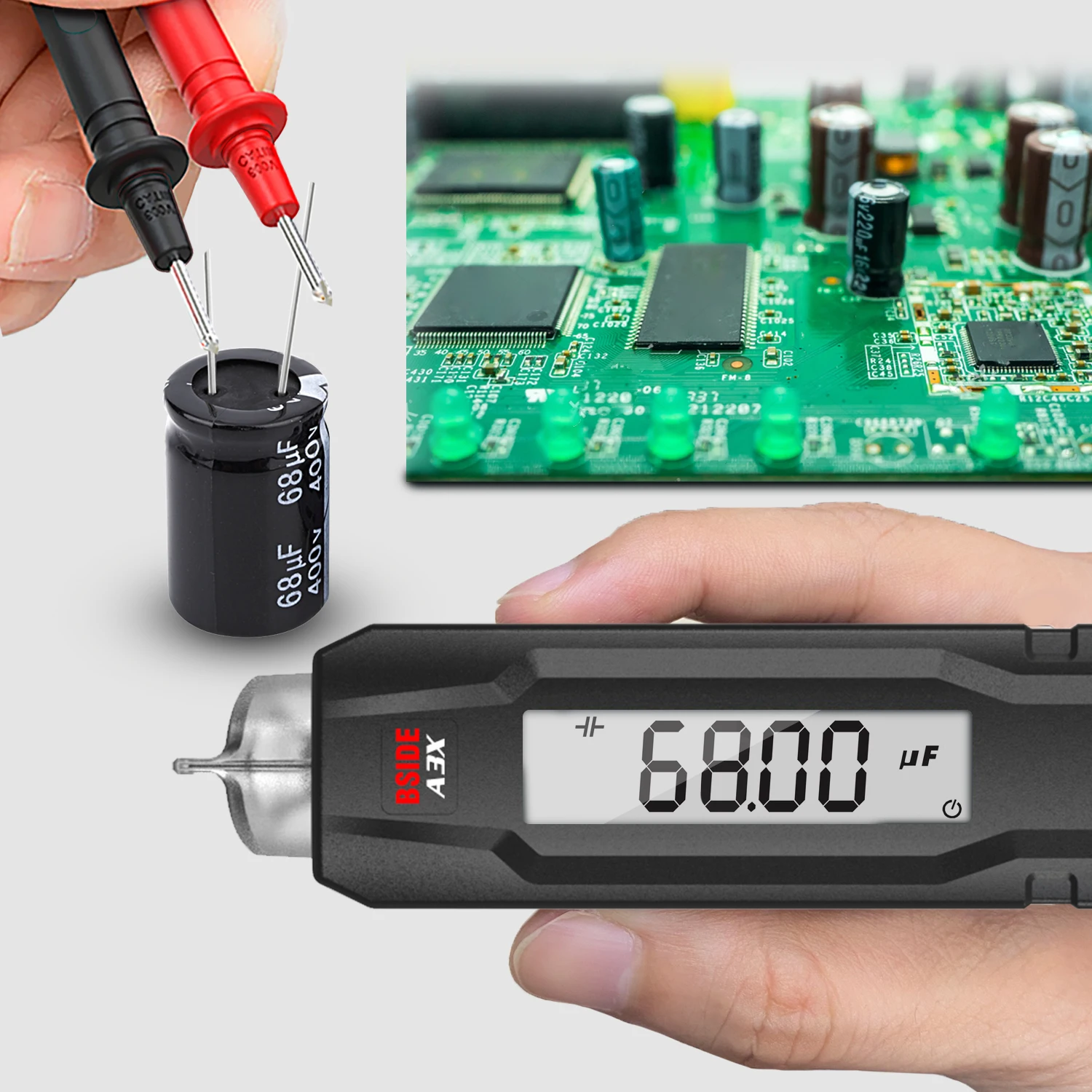

​Capacitance: 1nF-1.00mF ±(3.5%+8), 1mF-40.00mF ±(4.5%+10); Resolution: 0.001nF
​
​Frequency: 0Hz-4MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz
​
​Diode: Auto identify diode if less than 1.5V.
​

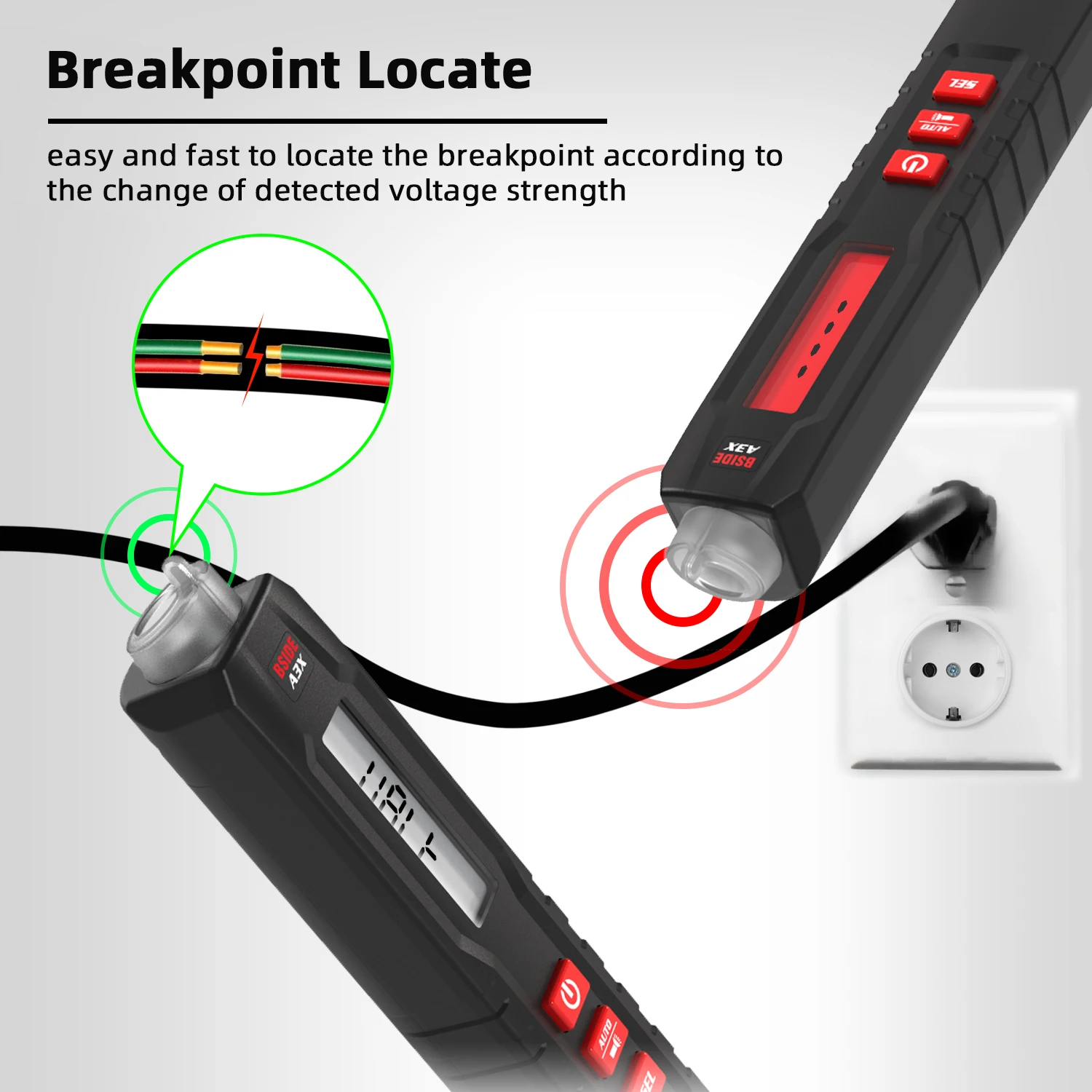

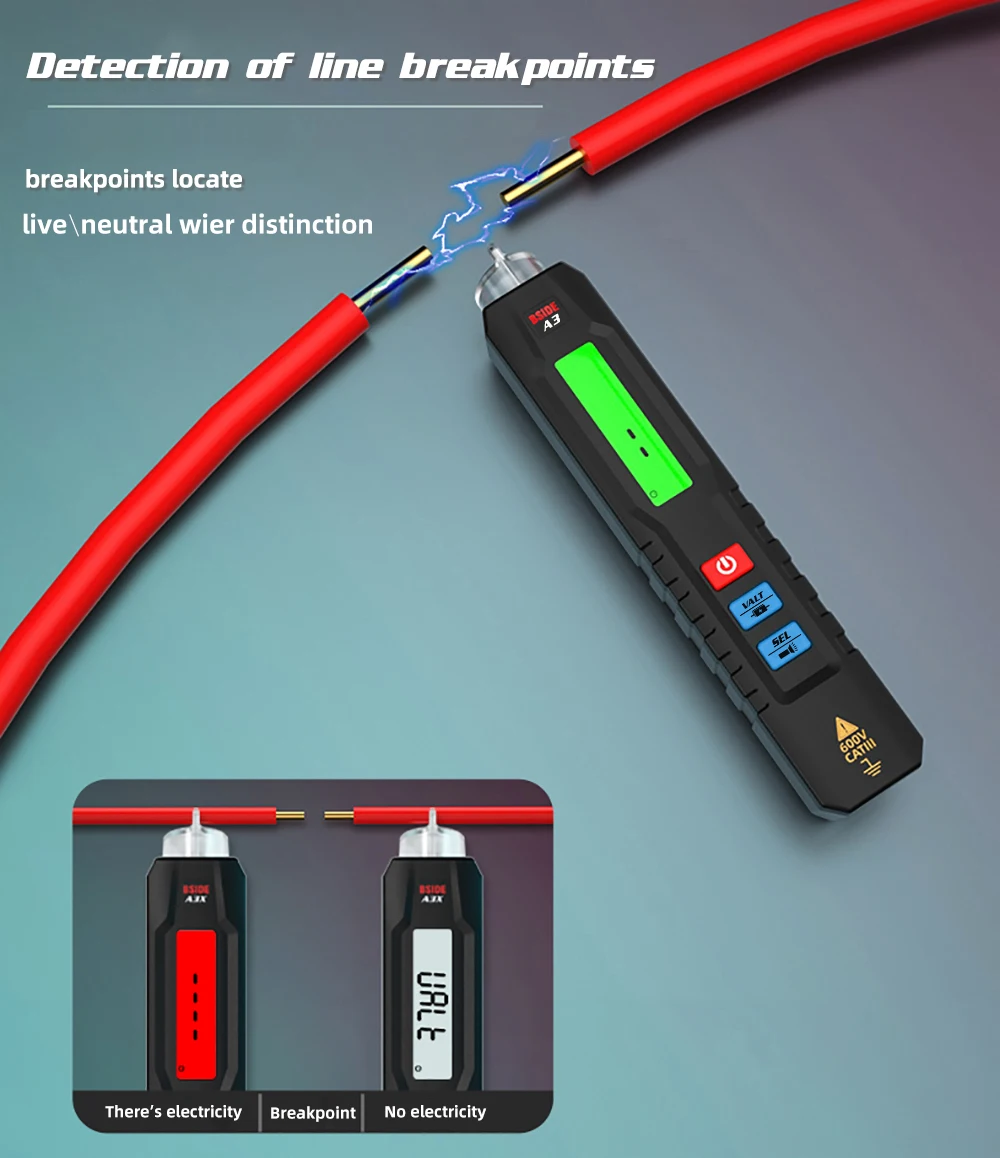

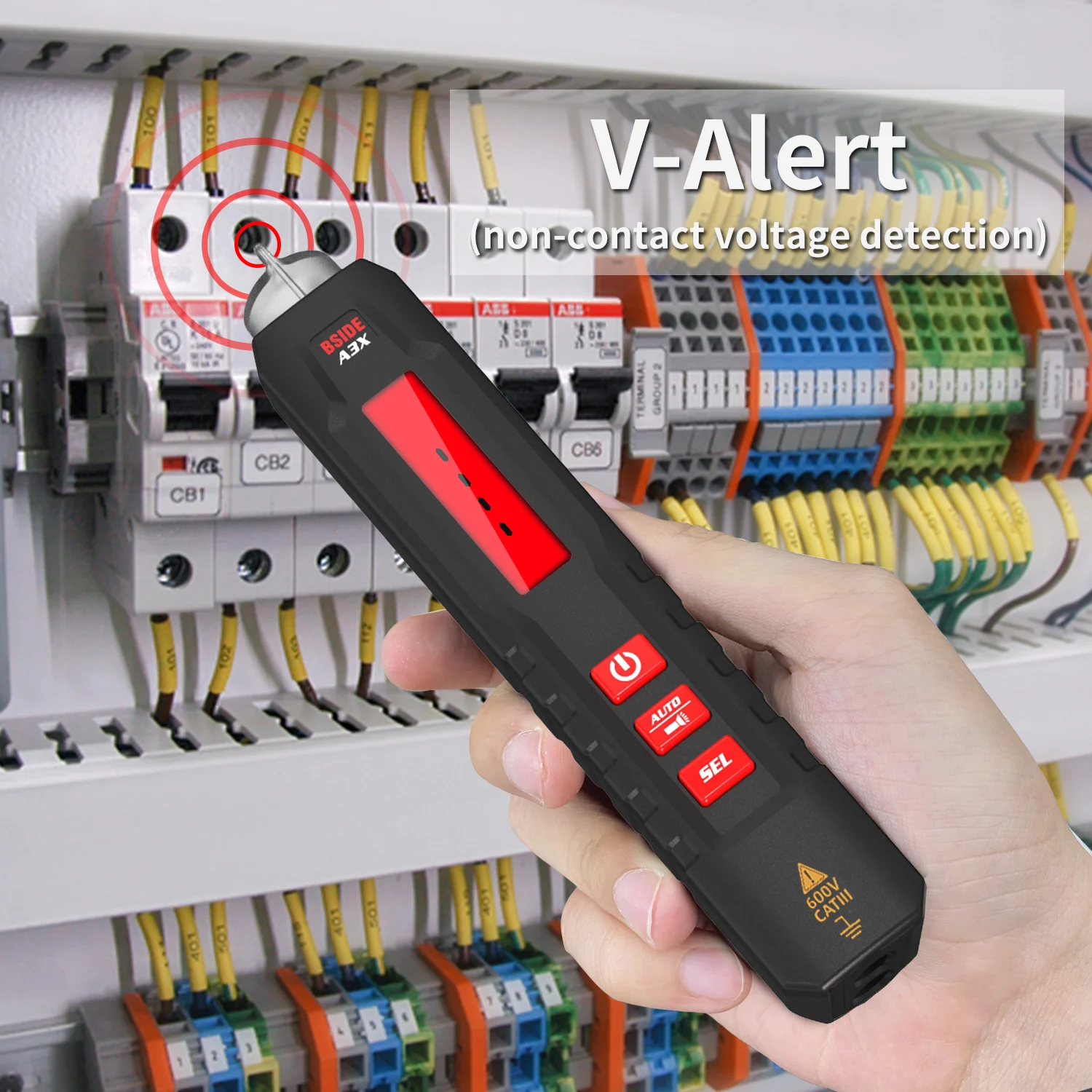

​V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe.
​
​Live Check.
​
​Continuity: If the resistance is less than 50Ω, the beeper sounds.
​

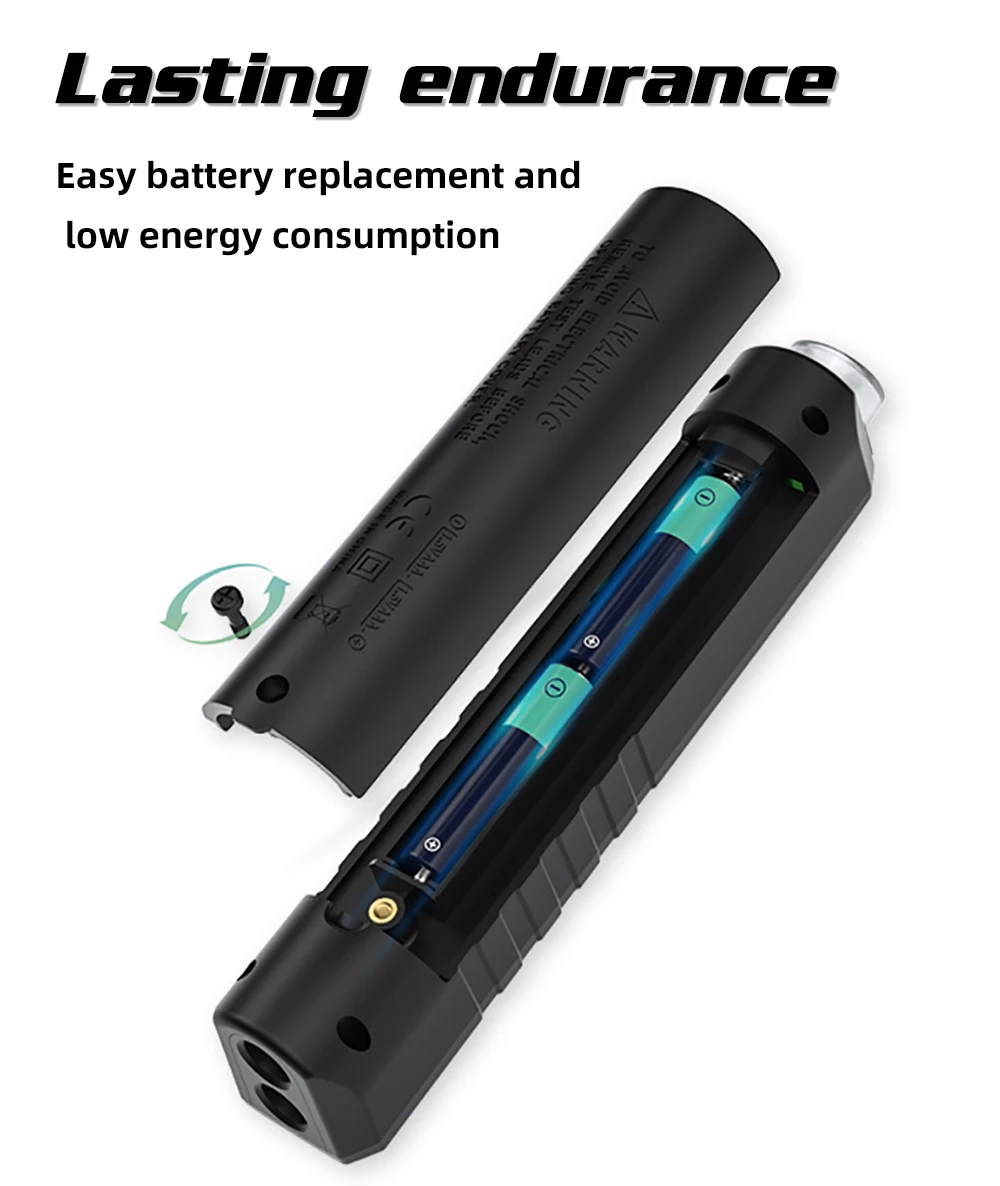

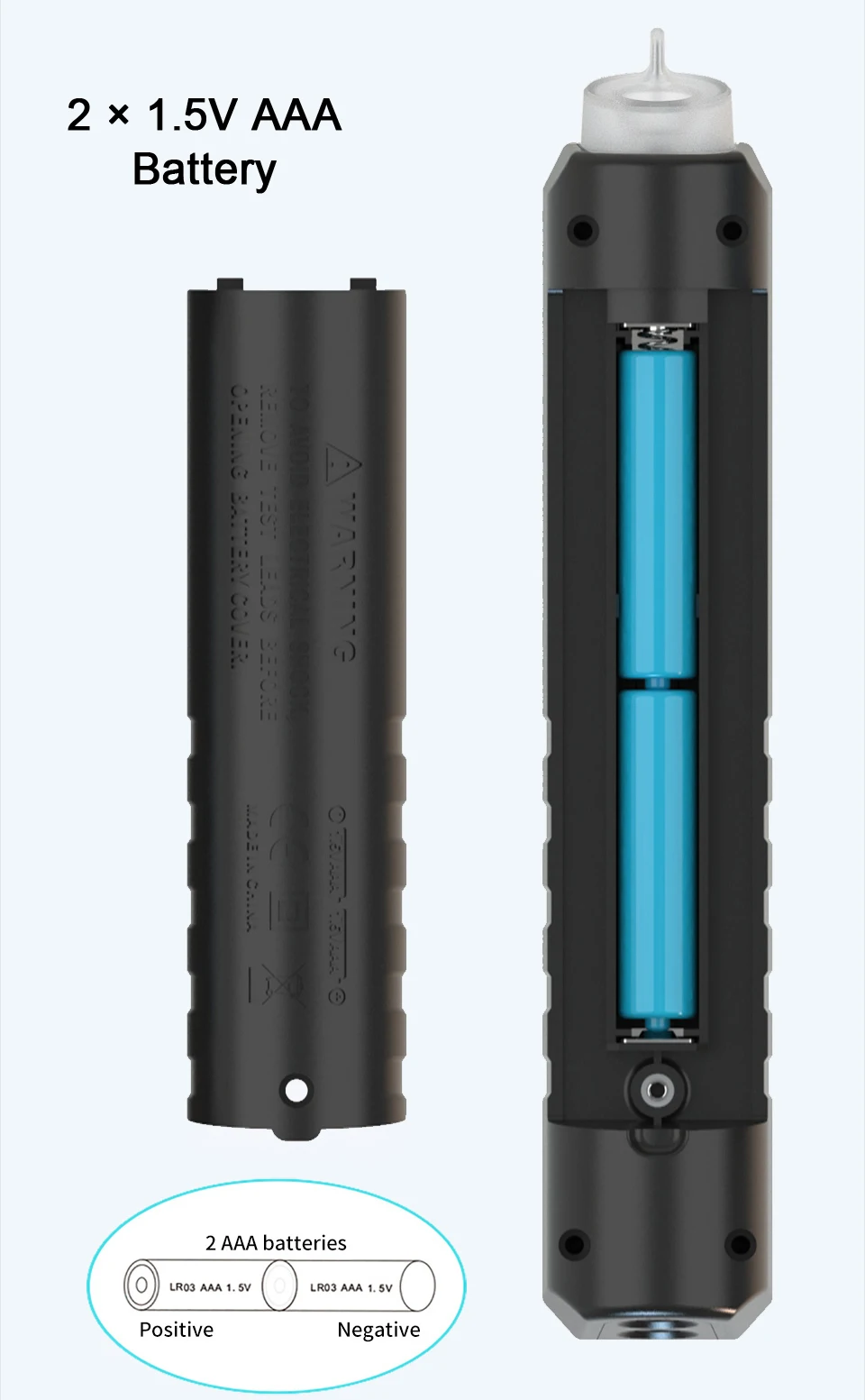

​Power: 2*1.5V AAA battery
​
​Size: 16.9*3*3.1cm
​
​Weight: 77g.

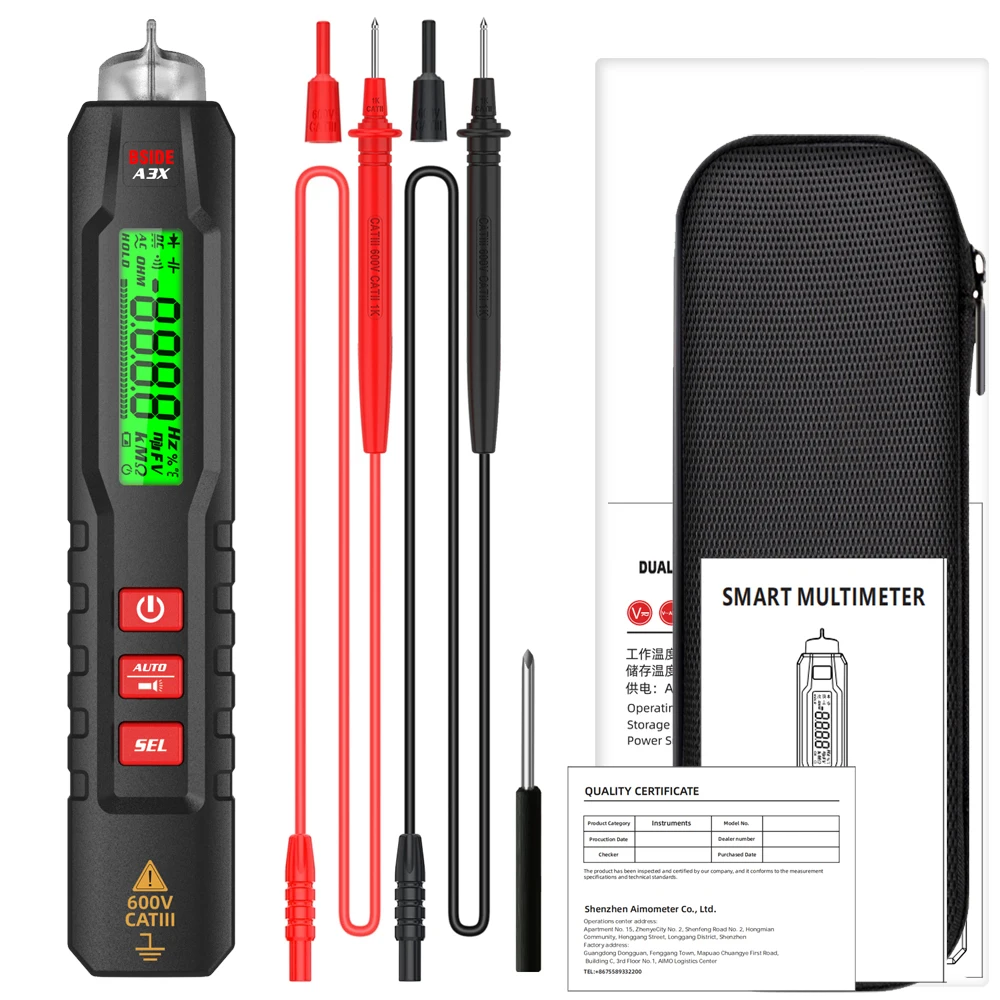

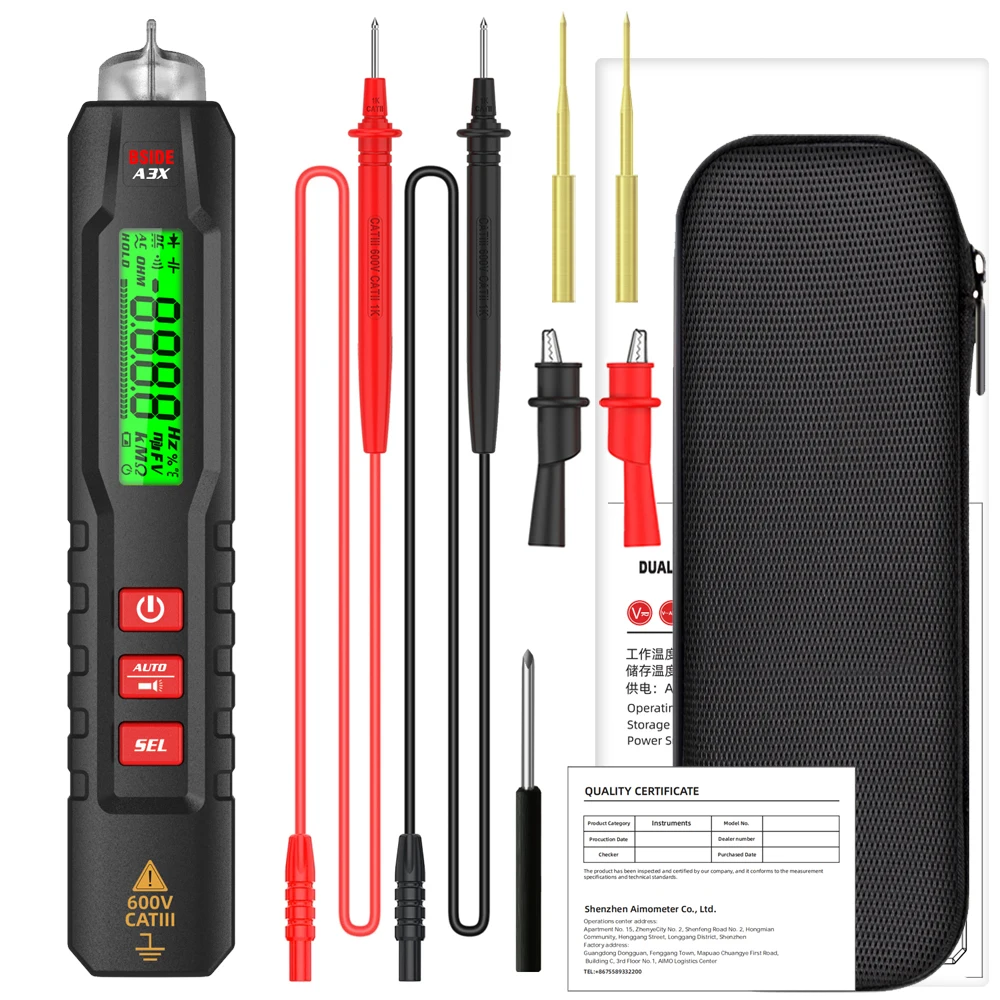

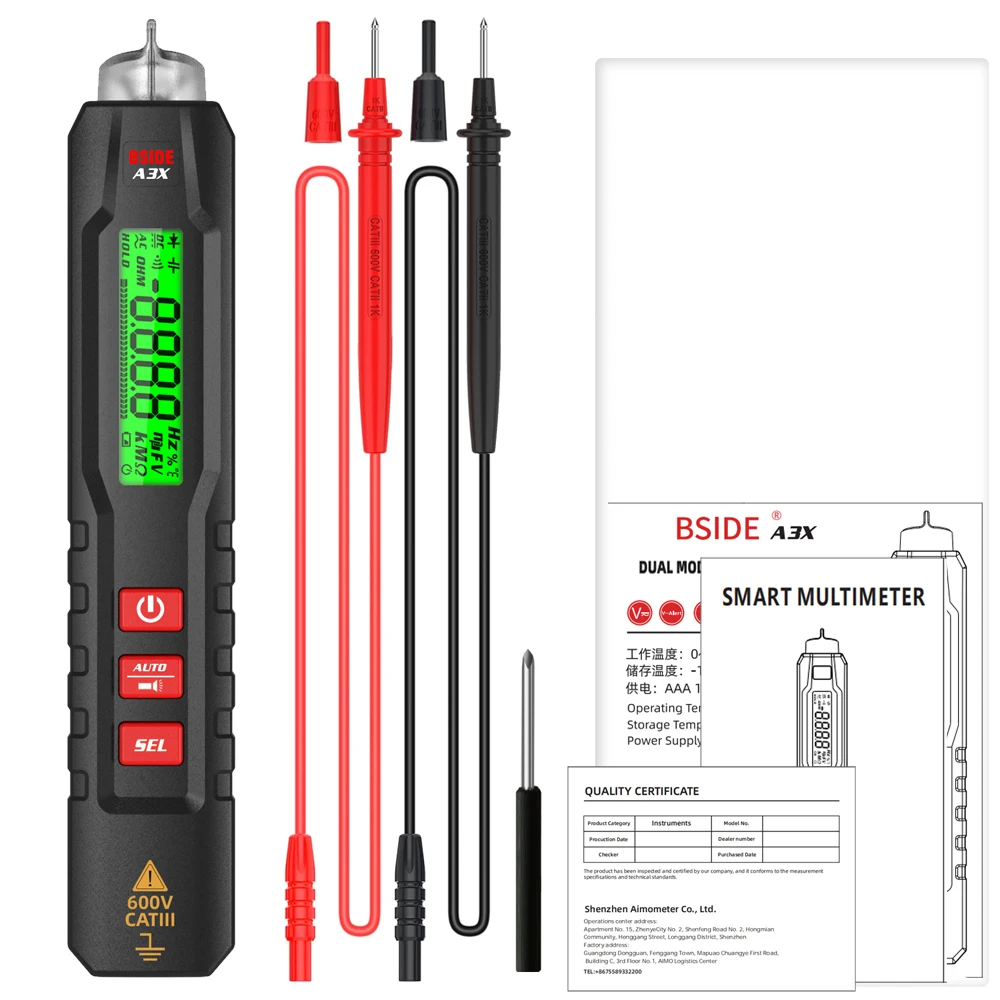

Package Includes:

1 * A3X/A3 Smart Digital Multimeter. 1 * Test Lead.
​
1 * screwdriver. 1 * Quality Certificate.
​
1 * User Manual. 1 * Packing Box.

​1 * EVA portable cloth bag（$1.5）.

​1 x C3104 High Quality Alligator Clip(Tool Kits)

​2 x Special tip test probe(Tool Kits)
