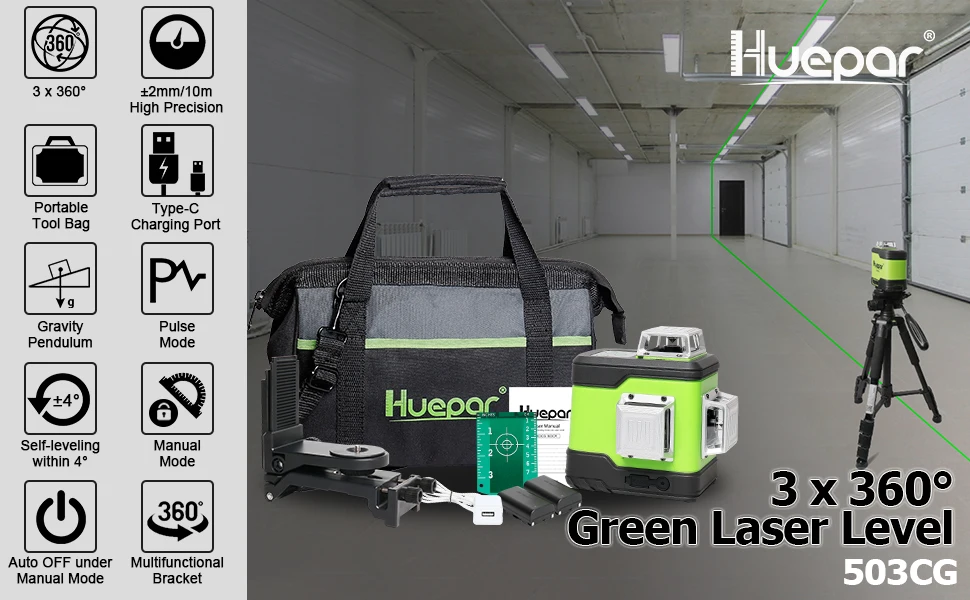

Huepar 3D Cross Line Self-Leveling Laser Level 3x360 Green Beam Three-Plane Leveling & Alignment Laser Tool & 2 Li-ion Battery

Huepar 3D Cross Line Self-Leveling Laser Level 3x360 Green Beam Three-Plane Leveling and Alignment Laser Tool-Switchable Vertical & Horizontal Lines, Li-ion Battery & Portable Tool Bag included 503CG

503CG 3 x 360 Green Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength: 505-520nm

Horizontal/Vertical Accuracy: +/- 1/13 inch at 33Ft.

Leveling/Compensation Range: 4°+/- 1°

Working Distance (Line): 65Ft (100 LUX), 200Ft. with Huepar Laser Receiver LR-6RG&LR-5RG

Operating Time: 6 hours continual use with all laser beams on

Power Source: 7.4V 2600mA Li-ion battery

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

Operation Temperature Range: 14℉ ~ 104℉ (-10℃~ 40℃)

Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)

Mount Size: 1/4"-20 and 5/8"-11

WARNING:

Avoid direct exposure of the laser beam to the eyes

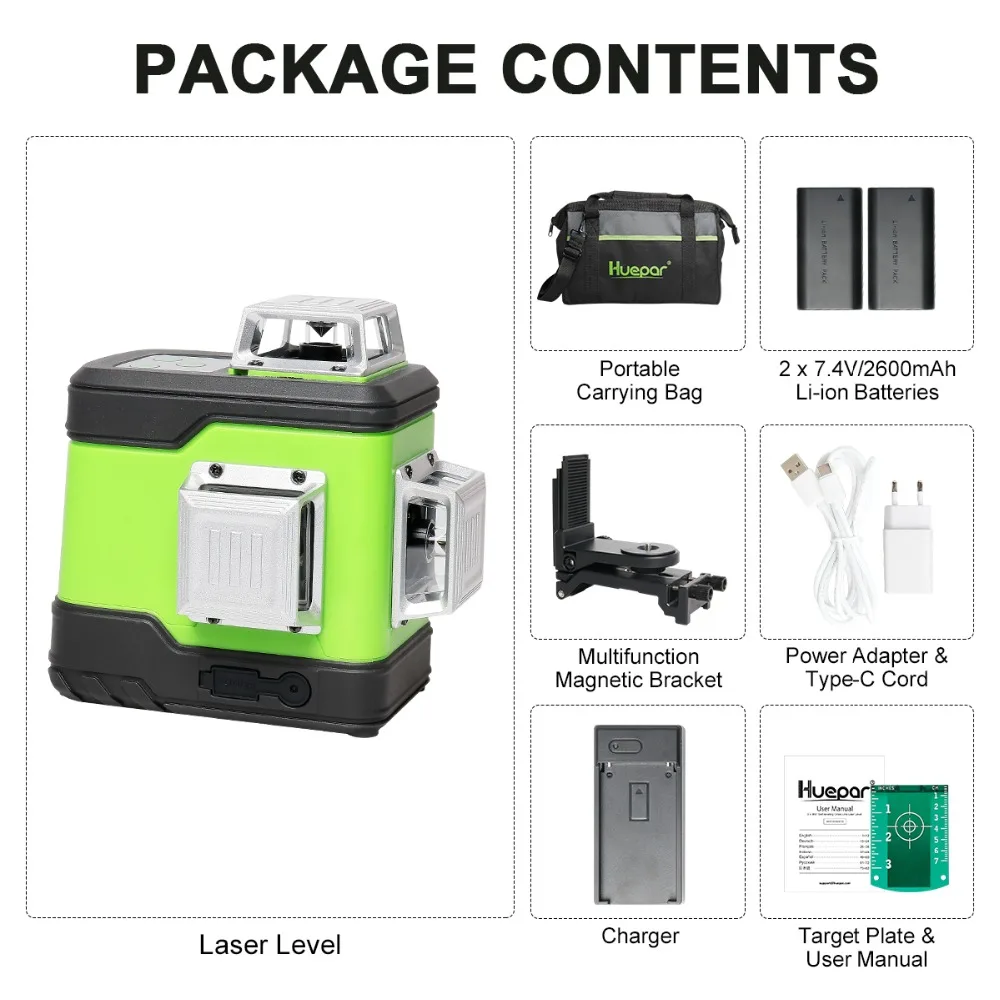

Items in the Package:

1 x Huepar 503CG 360° Laser Level

2 x Rechargeable Lithium Batteries

1 x Battery Charger

1 x 360° Magnetic Bracket

1 x Type-C Power Cord&1 x Power Adapter

1 x Pouch Bag for Laser Level

1 x Portable Tool Bag

1 x Laser Target Plate&1 x User Manual

PLEASE CHOOSE THE BEST WAREHOUSE AND SHIPPPED IT OUT,AND YOU WILL GET IT VERY FAST.

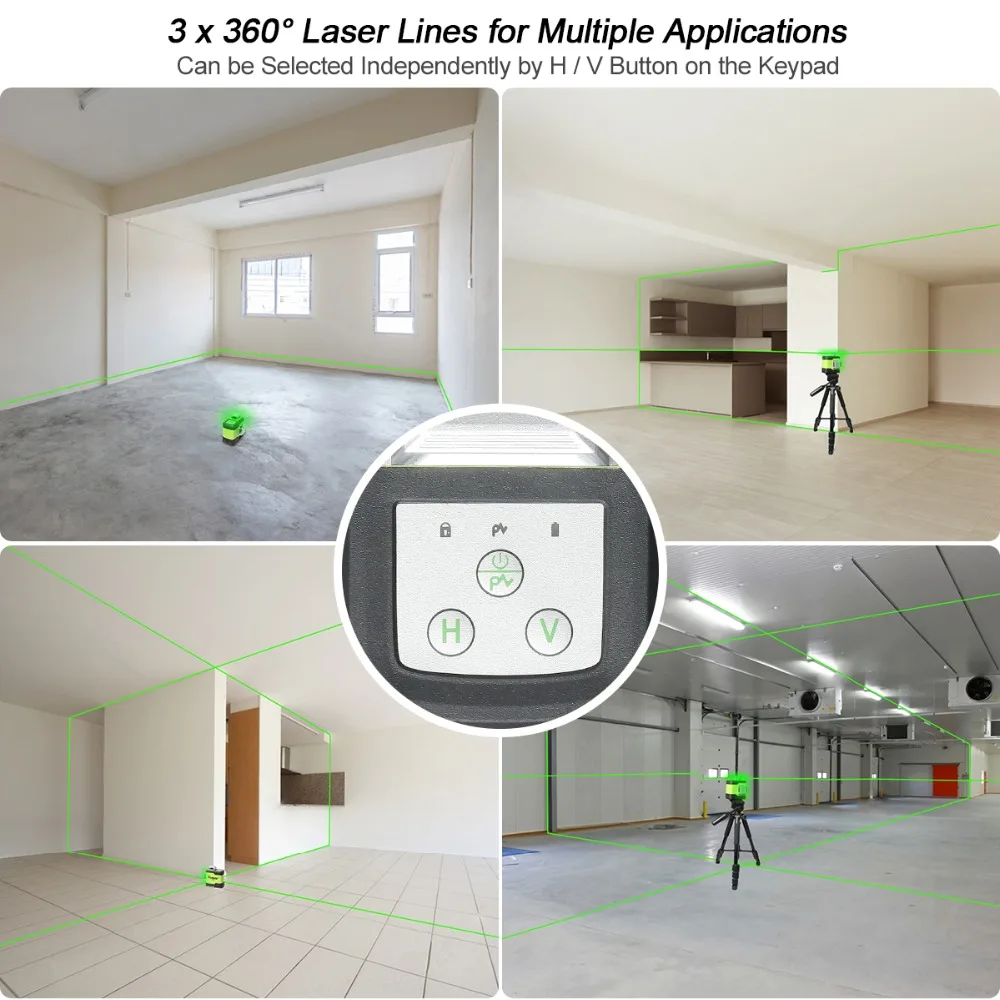

3 x 360° Multiple Line Switching Functions:

This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes - one horizontal and two vertical lines.

The horizontal line and vertical lines can be selected individually by separate H and V button on the keypad.

In manual mode, when all laser lines are switched OFF, the laser tool will automatically turn off after about 4 minutes of inactivity.

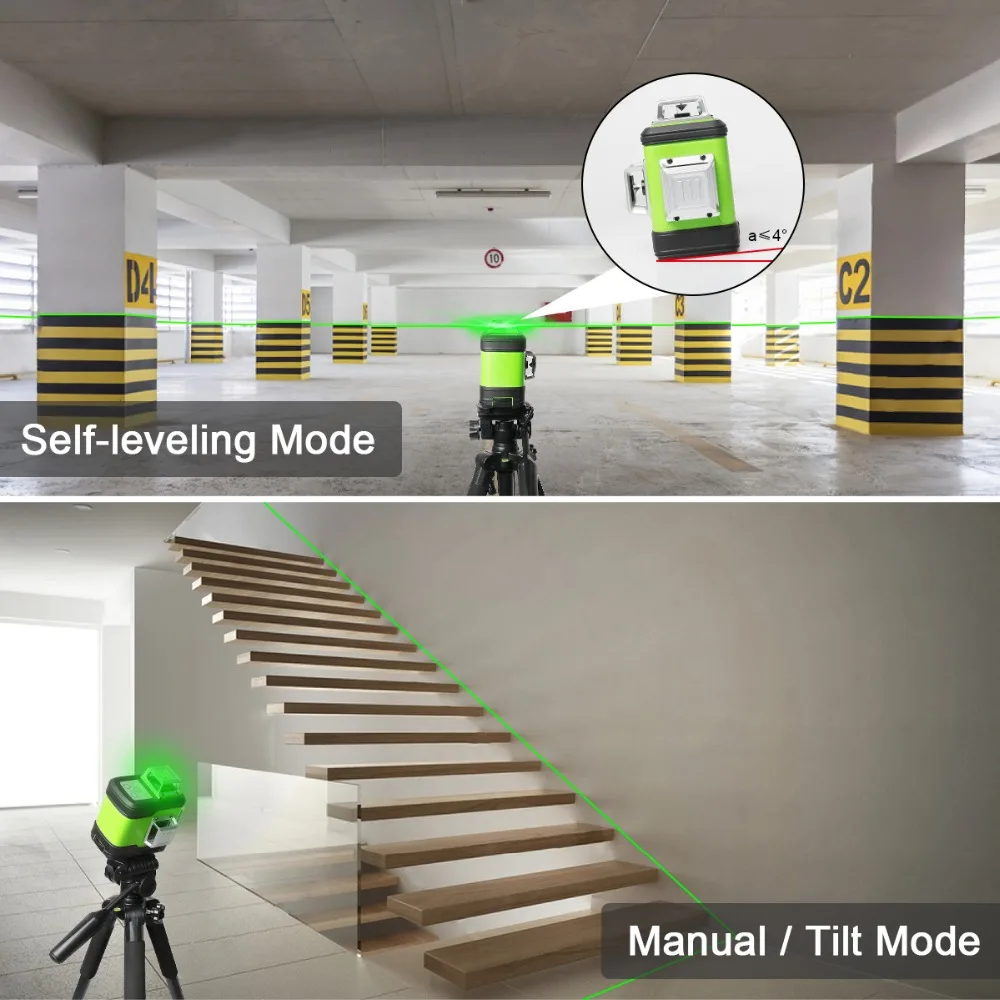

Self-leveling Mode & Manual Mode

Self-leveling Mode:

When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.

The laser beam will flash when the tool is beyond self-leveling range 4° ± 1°.

Manual / Tilt Mode:

When the pendulum locked, the laser tool can be placed for alignment at any angle.

The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

Pulse Mode

Turn ON the pulse mode: After power ON, short press the pulse mode button to switch ON/OFF the pulse mode.

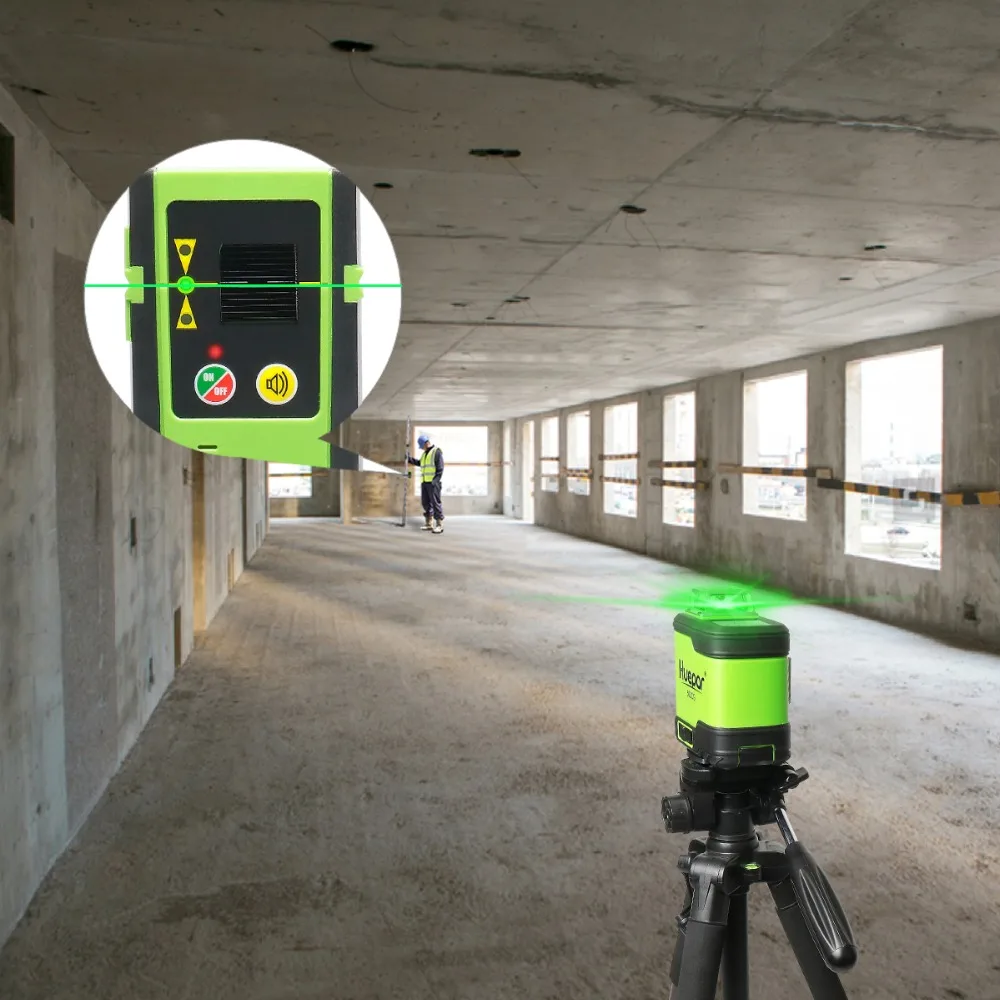

Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Detector (ASIN: B07L6FP48S).

When the pulse mode is activated, the laser beams will become dimmer.

It is compatible with Huepar LR-6RG / LR-5RG Line Laser Detector only.

Keep the pulse mode on when using with a receiver.

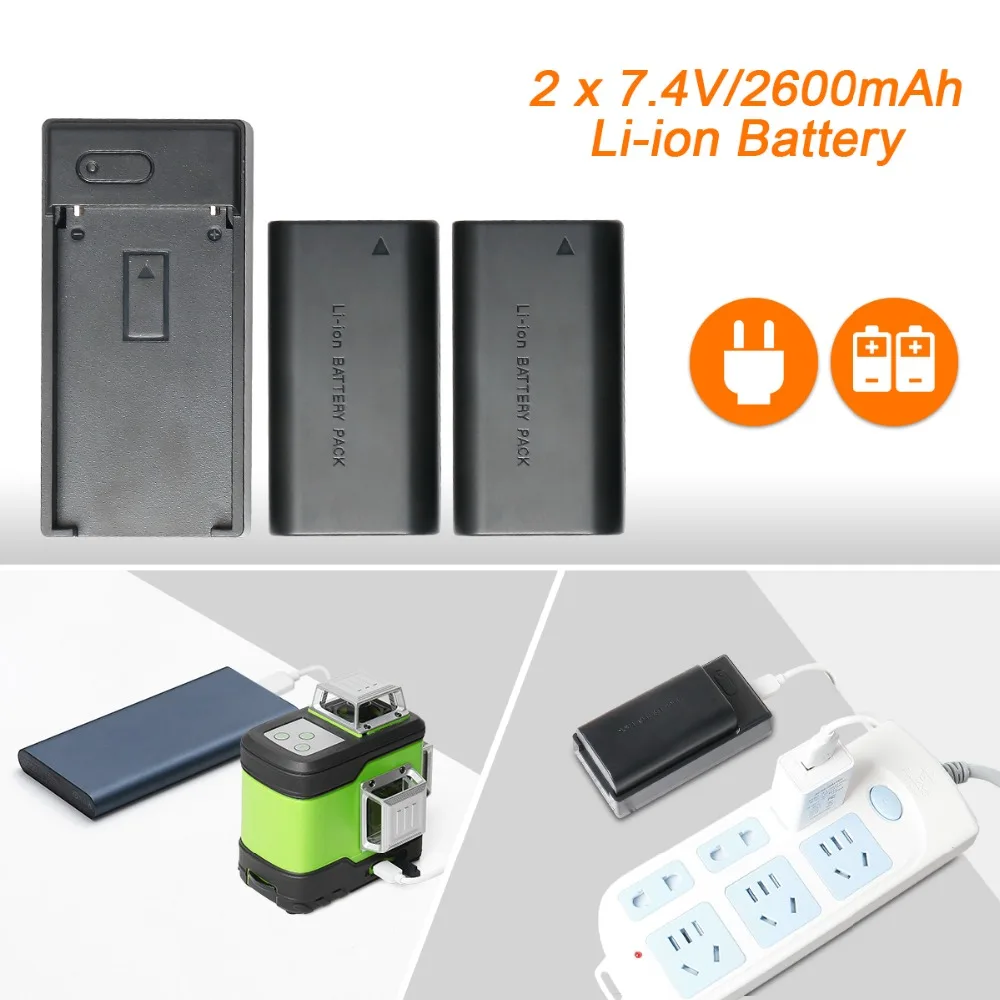

Dual Power Methods:

This laser tool utilizes the large capacity li-ion battery which is compatible with Samsung SB-L110 battery.

An extra battery is included in the package for backup.

The level tool can be used at job site by plugged in directly when take out the battery.

Users can charge the battery independently with the battery charger. The battery is not being charged in the device when connected to the power adapter.

With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

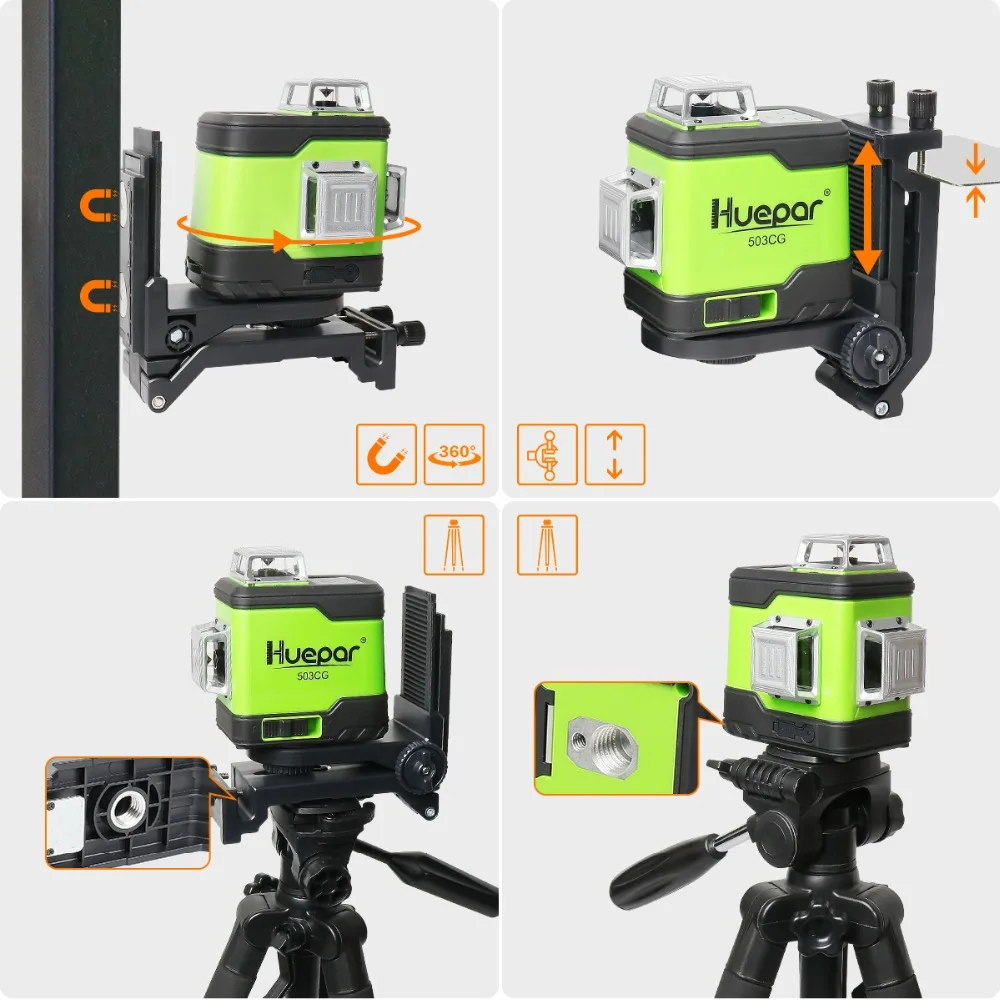

360° Strong Magnetic Pivoting Bracket

Allows for attachment to metal surfaces and enables to turn the laser level around at 360 degree.

The bracket offers ability to mount to any object up to 0.47" thick.

The fine-tuning knob with lock on the bracket help adjust and lock the height within 3.74".

1/4"-20 and 5/8"-11 female thread on the laser tool as well as the 5/8"-11 mounting thread on the bracket to suit for standard tripod or laser mounting pole.

Durable Design & Easy to Use

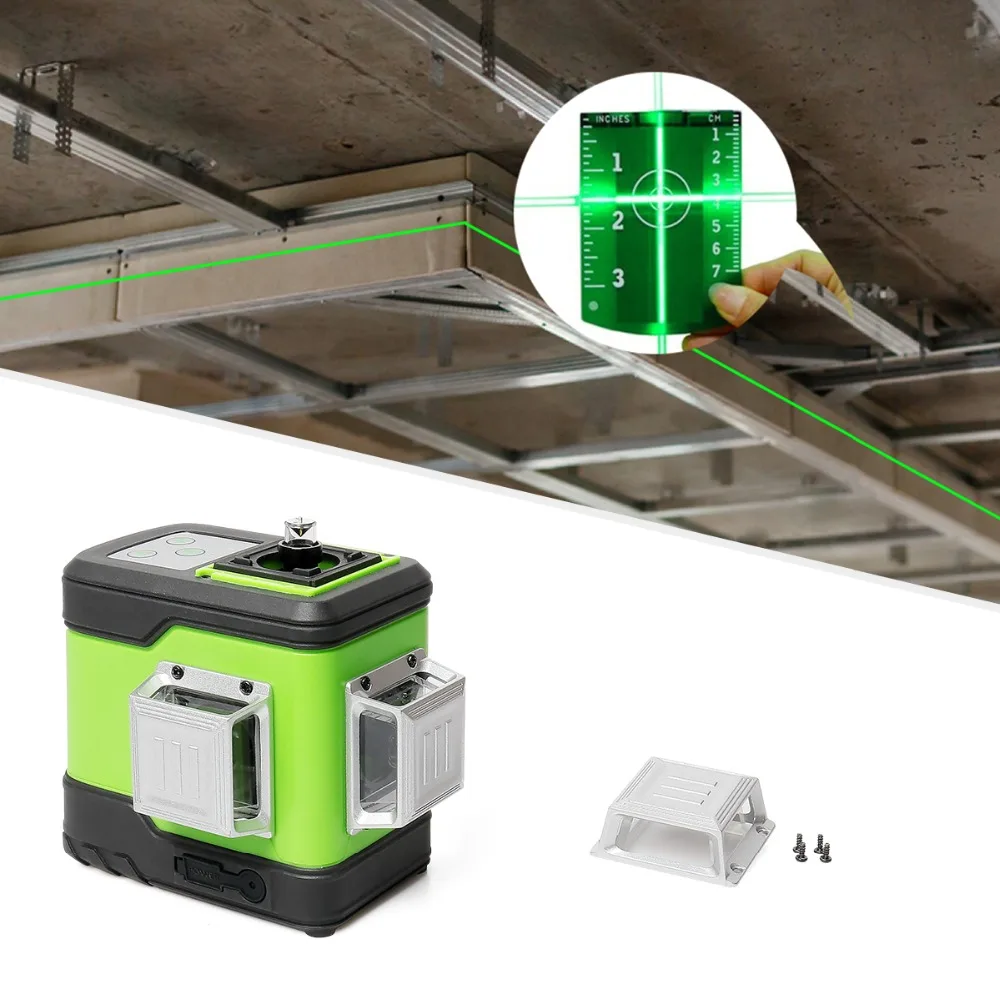

Metal Top Design: Over-molded metal laser window withstands hazardous job site conditions and can be removed and replaced with a screwdriver.

The kit comes with a small pouch bag for the laser level, which is dust and scratch-proof to some extent, bringing much more convenient to carry and store the laser tool.

IP54 water/dust resistance ensures you work well in hazardous working conditions.

Green Target Plate: Increases the visibility of the laser beam.

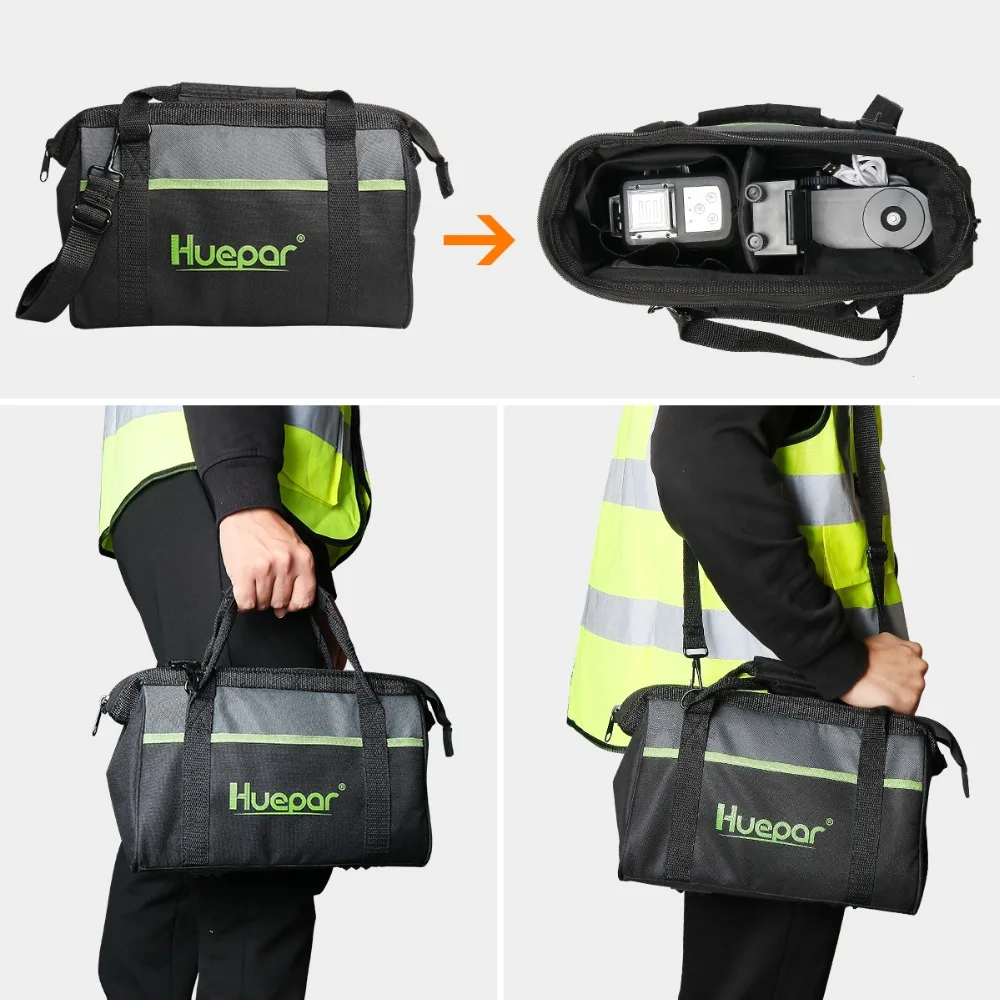

Portable Tool Bag

The portable tool bag features a pop-open design and convenient interior compartments to allow for easy access to tool and parts.

Two interior flap covered pockets with loop closure bring much more convenience.

The tool bag comes with the extra padded handle and adjustable shoulder strap that adds extra comfort when carrying the tool and allow for safe and secure transi

​

Shipping:

Huepar ships to worldwide.

Processing time for Huepar is 3-5 days.

Orders are shipped by Aliexpress Standard Shipping method, if you need other shipping way, please just contact us.

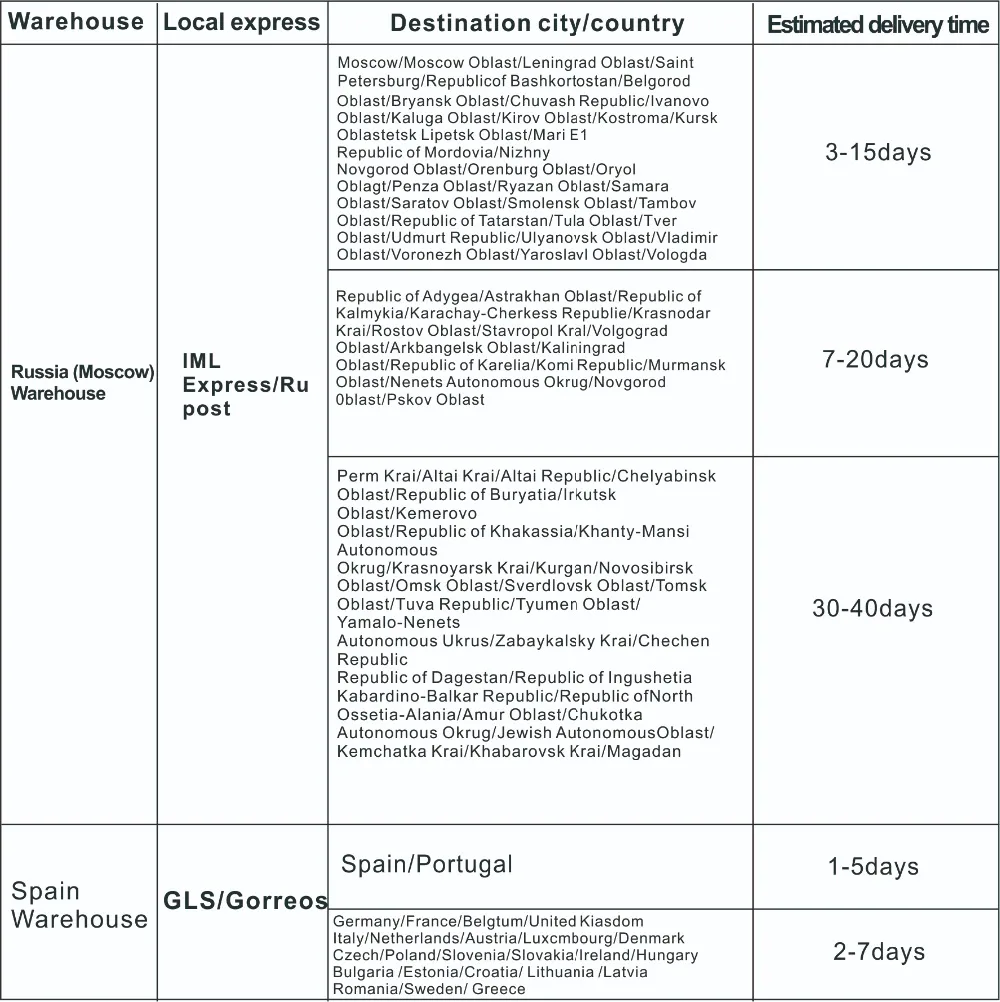

Normally 15-60 days can get the order, except Brazil which needs 90-100 days. Delivery time may be a little different depends on destination and other factors, particularly during the holiday season.

Import duties, taxes and charges are not included in the item price or shipping charges. And we do not bear any tariffs.

We accept dropship orders and wholesale orders. Welcome to choose us!

Payment:

We accept Alipay, Webmoney, VISA, Bank Transfer, QIWI Wallet, Boleto, Western Union and so on.

All major credit cards are accepted through secure payment processor ESCROW.

All Huepar Laser Level enjoy 12 months warranty.

If you are not satisfied with the product, you can return it back to us wihtin 15 days for replacement or refund. But you have to pay for the return postage. Please contact us before you return.

If you are satisfied with our products and services, your 5-star praise and positive feedback is our greatest encouragement, which will also be helpful for other customers.

If you are not satisfied ith our products or services, please do not hesitate to contact us first, we will do our best to solve the problem and work harder to give you more excellent service.

Q: Can laser level be used outdoors?

          A: 901CG, 902CG, Box-1G are recommended to use outdoors. Usually they are in company with laser receiver when using outdoors.

              9011G and 9211G are not recommended for outdoor use. In addition, outdoor work will also be affected by the working environment and sunlight.

Q: What influence adsorption strength of the adapter?

          A: The adsorption force of the adapter is affected by the material, area and surface cleanliness of the adsorption surface.

Q: 901CG, 902CG, Box-1G, how to open the pulse mode?

          A: After power on, long press the power key, the pulse mode is on when the blue light is on.
