LED Strips WS2812B DC5V ws2812 IC RGB Individually Addressable Led Strip Light Waterproof Diode Flexible Neon Led Tape Lamp

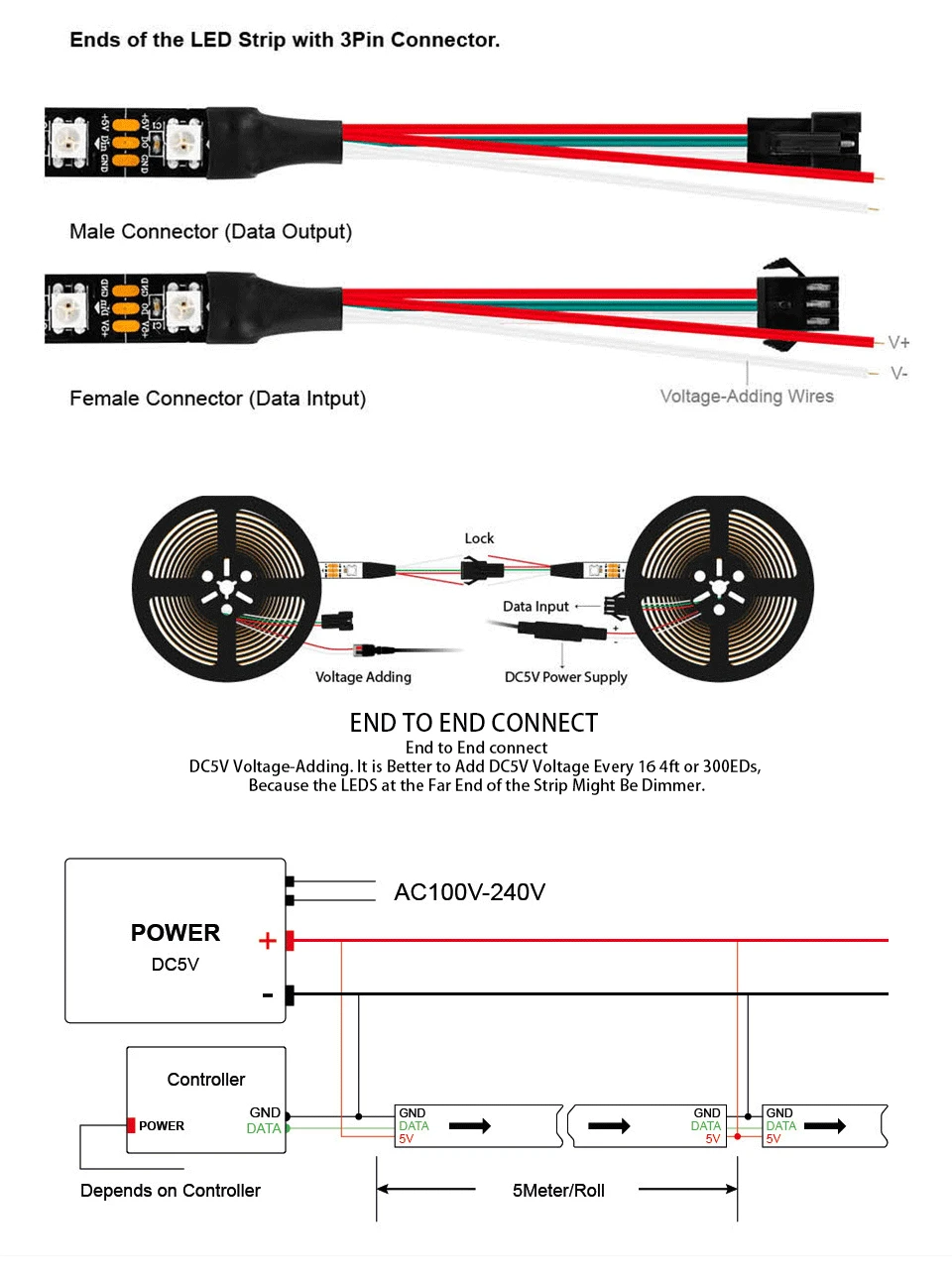

WS2812B WS2812 RGB LED light strip needs to be connected to the controller for normal use

1)Led strip welded by 0.5m/50cm is very normal in an electronic product,not a quality problem.

2)Please make sure your adapter is DC5V

3)Power: 30Led/m----9w/m ,

                 60Led/m----18w/m,

                144Led/m----43w/m

4) 5V 1A could work with 1M 30LEDs;

    5V 2~3A could with 30Leds 1M 2M 3M,60LEDs 1M 2M,144LEDs 1M

    5V 5~10A 30Leds 4M 5M ,60LEDs 3M 4M 5M,144LEDs 2M

Please match the appropriate power supply to use the connected LED light strip, or contact customer service for help.

Pay attention:

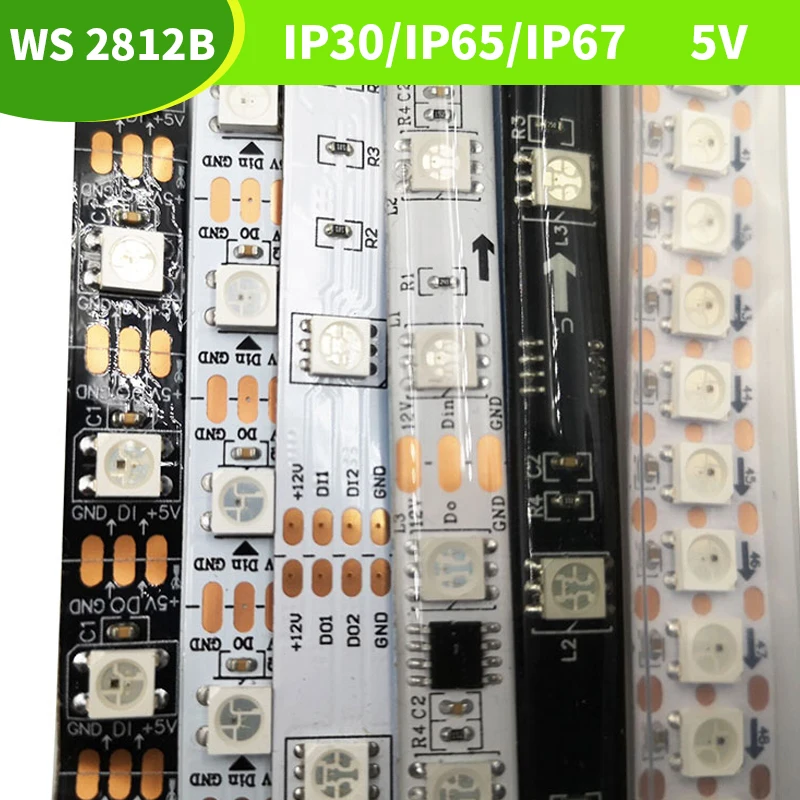

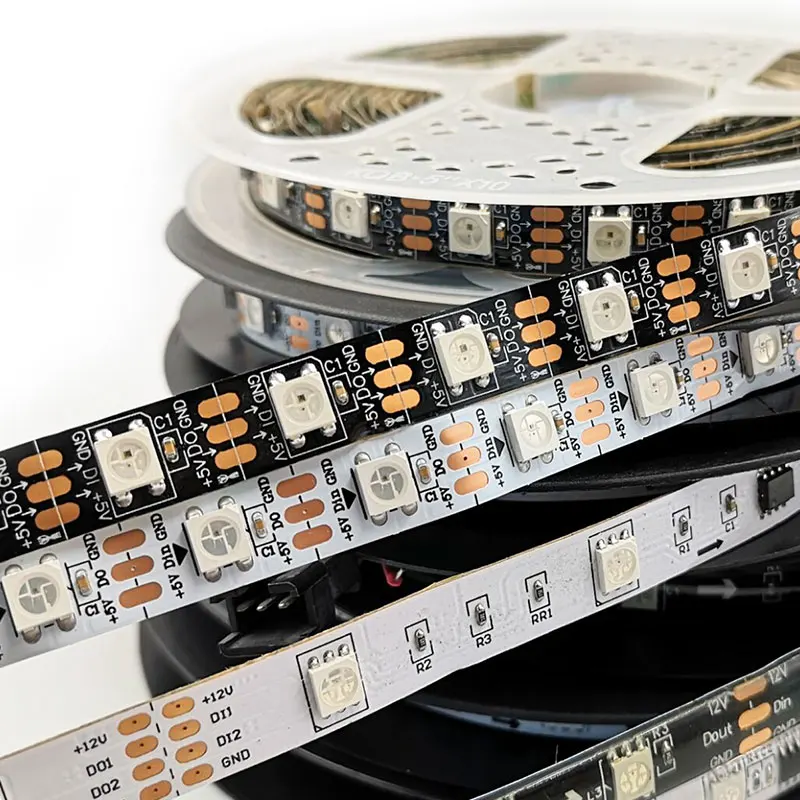

White :  White PCB

black :black PCB

30   : 30leds/m

60   : 60leds/m

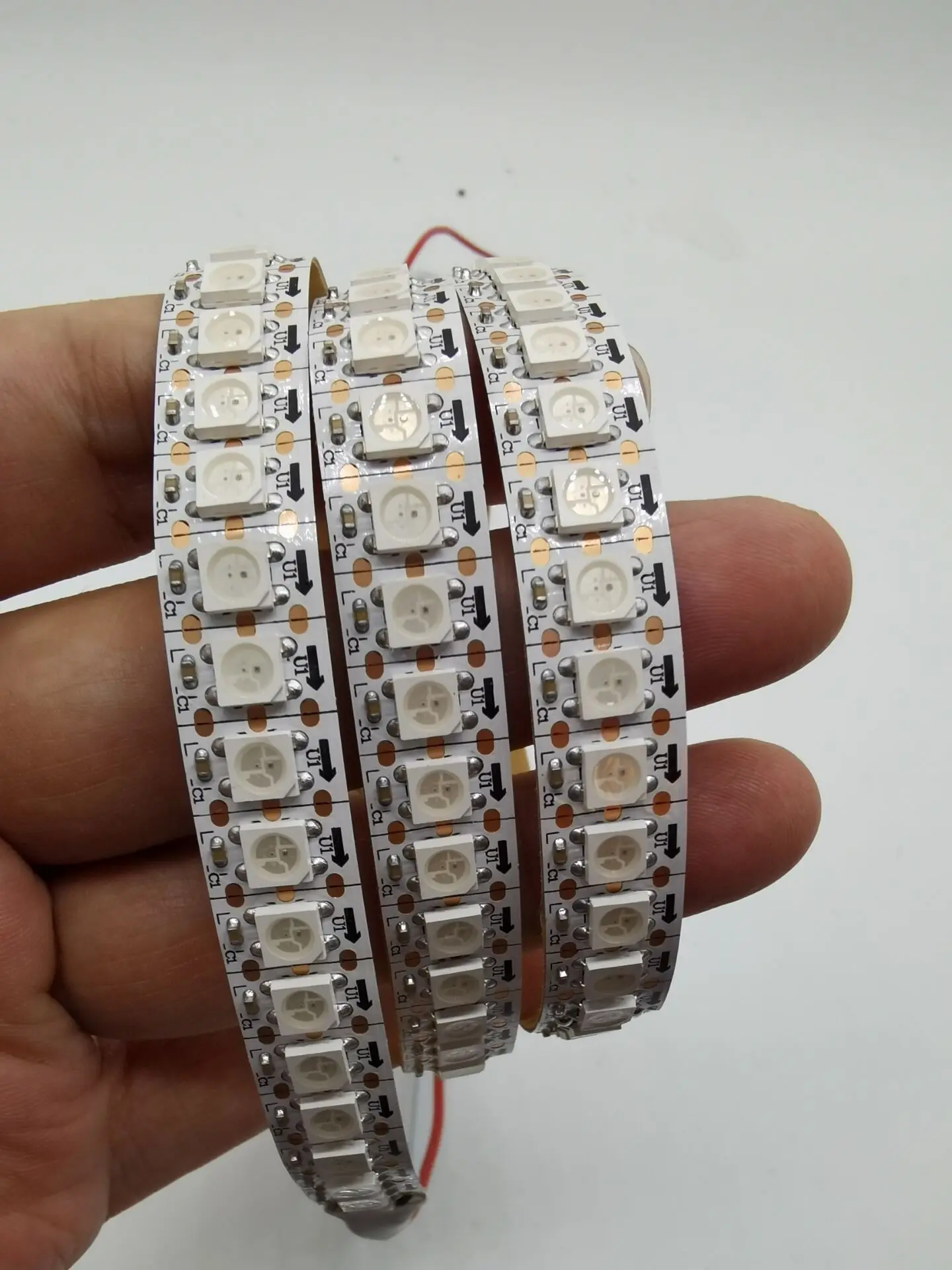

144   : 144leds/m

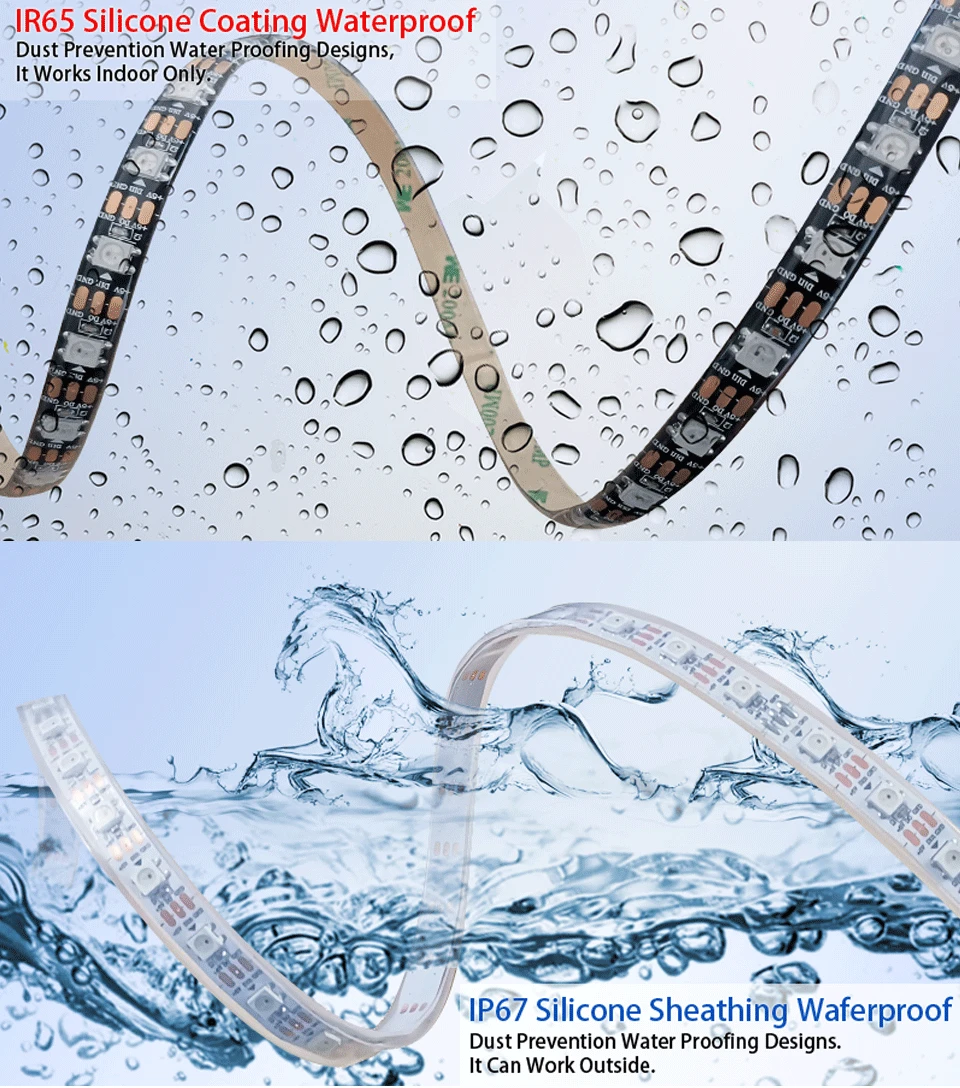

IP30: Non- waterproof

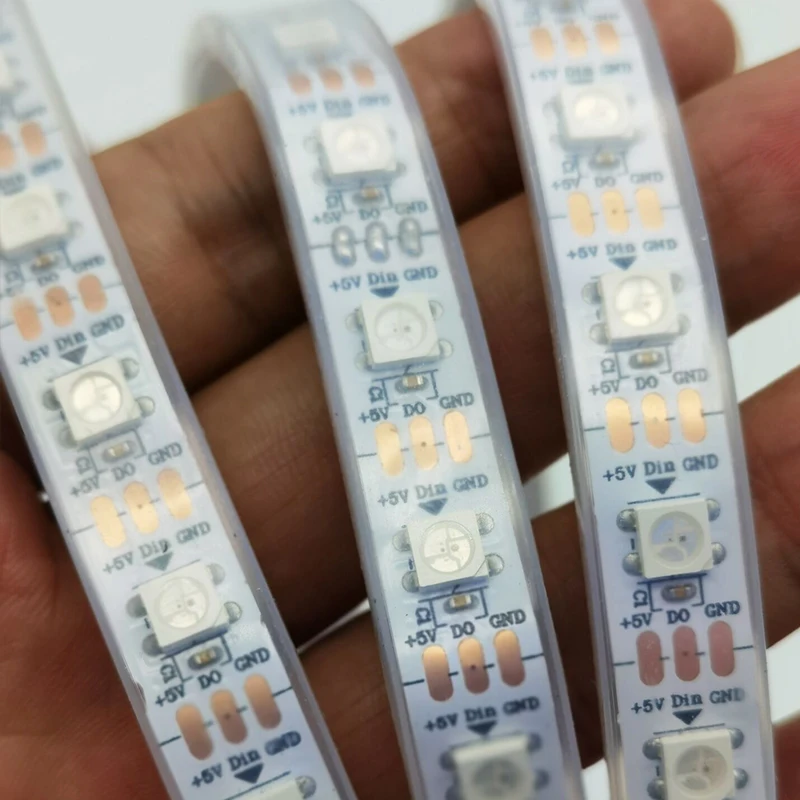

IP65: Waterproof

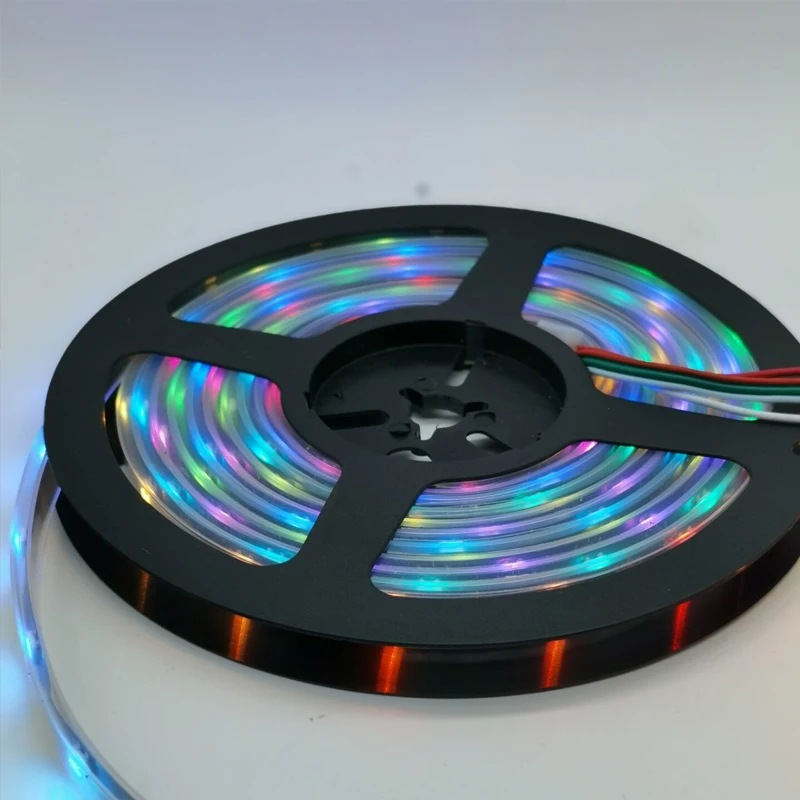

IP67: Waterproof in SiliconTube

product feature

Input voltage:.............DC 5v;

Power:.......................30leds/m----9watt/meter

            .......................60leds/m----18watt/meter

            .......................144leds/m----43.2watt/meter

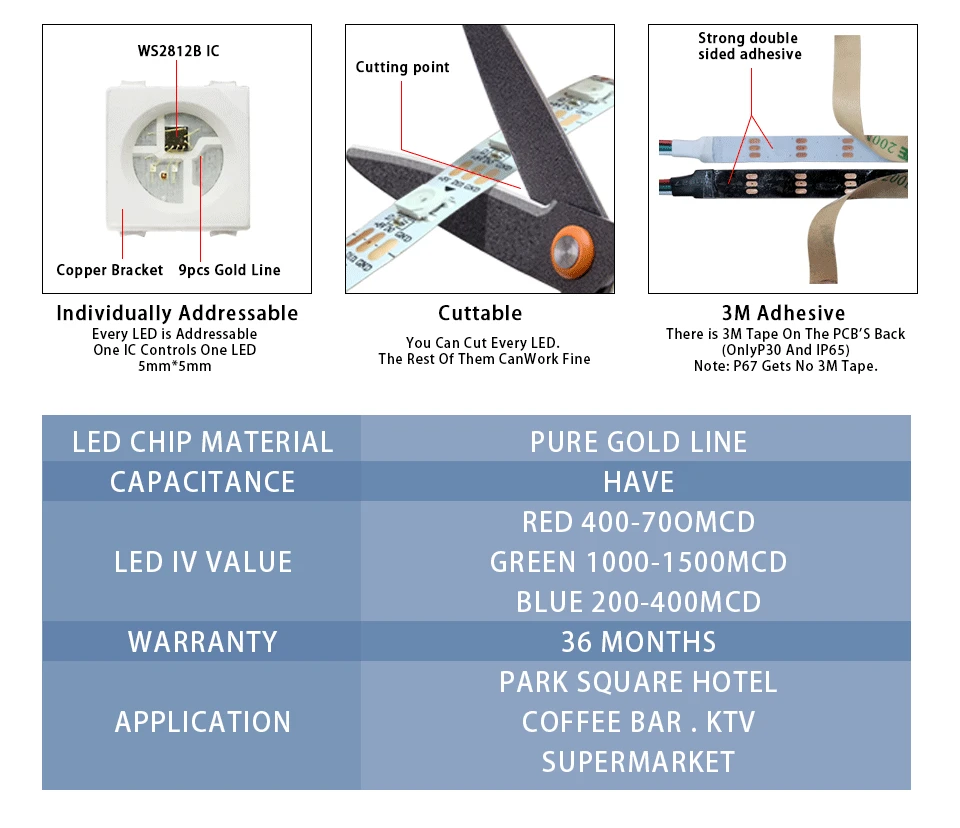

LED resource:.............WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 icLED: ...............each LED is separately controlled

IC Type: .....................improved version ws2812 IC(built inside the 5050 smd rgb led)

of IC: ..................(1 IC drives 1 led chip);

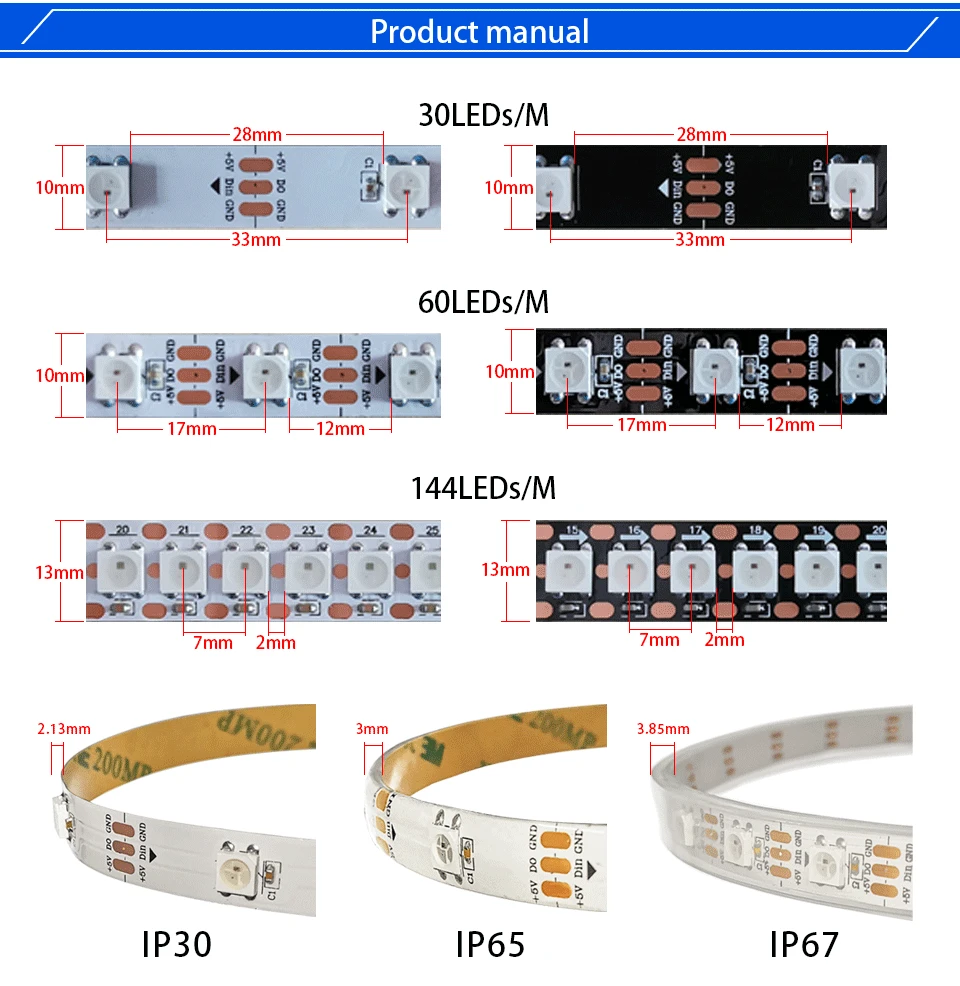

Pixels:.........                 30/60/144/meter;

Pitch: .........................16.6mm(1000/64);

Grey scale: ................256;

Bits/color: ...................8-bits/color;

FPC size: ....................Width: 10mm, High: 2.5mm;

FPC color: .........    Black/White

Protection rate...... IP30/ IP65 /IP67

Colors: ........................Full color RGB, dream color changing;

Cuttable:......................every LED is cuttable;

Package: ....................in anti-static bag,with 3M adhensive tape on the back
