【EU】CNC MACH3 Router Engraving Milling Cutter Machine 3 Axis 3040 Z-DQ & 500W Spindle 220V LPT Port / USB post

Package include:

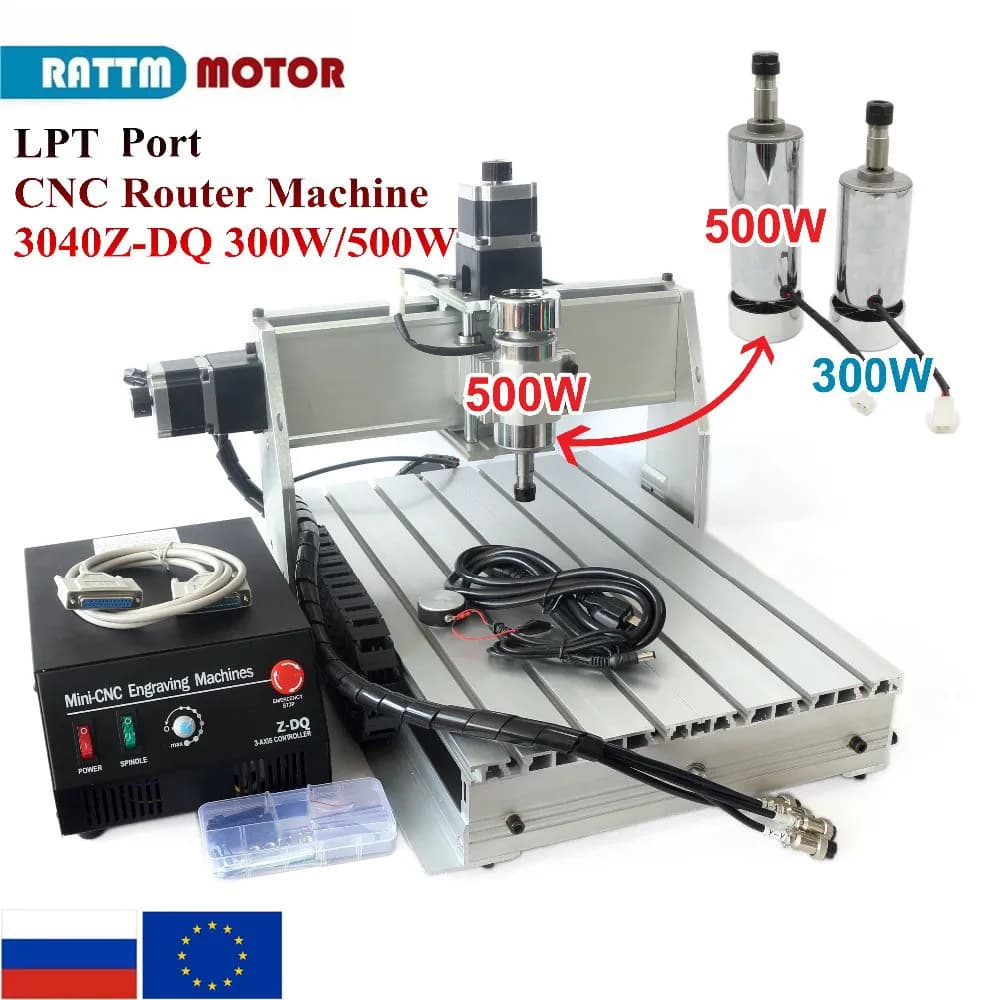

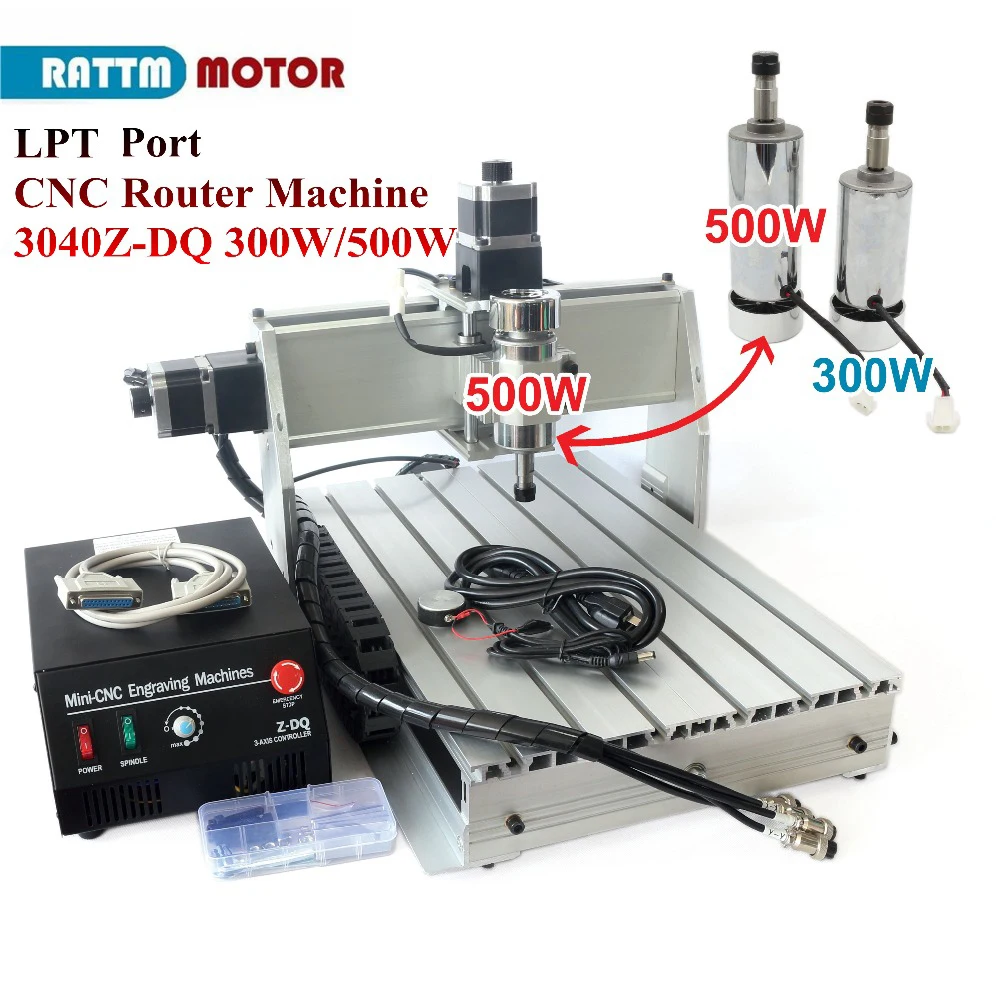

1 x 3040Z-DQ CNC Router machine300W/500W

1 x Control box

1 x DB25 Parallel cable

1 x Power cable(US,UK,EU,AU plug)

1 x Tool box and tools

3 x stepper motors

English User manual will send by email

The user manual for 3040Z-DQ you can check this link:

Note:

If you need USB Port, you can buy our RTM200 adapter, or can buy UC100 which is popular on the market, Then the parallel port can be changed to USB port, Very convenient!

RTM200 Link:

https://www.aliexpress.com/item/32756764565.html?spm=2114.12010615.8148356.1.1c5f29a33XXi1n

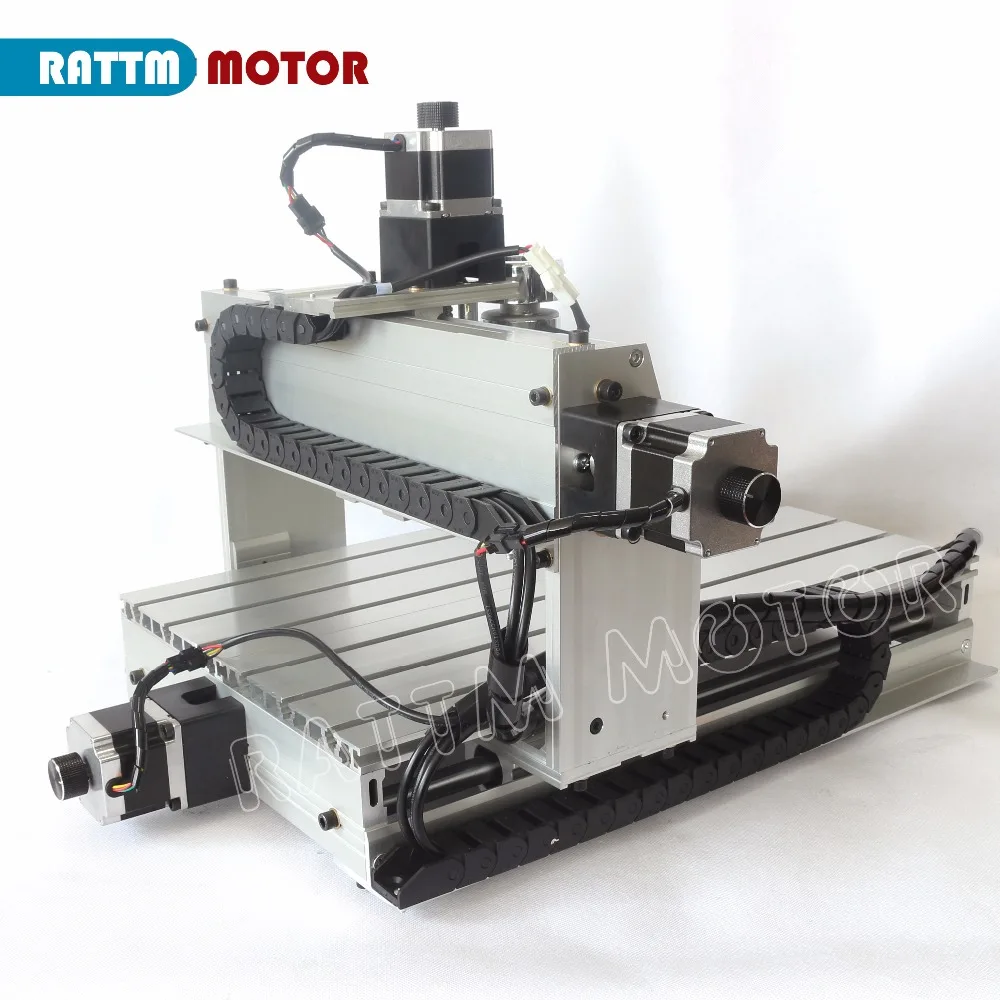

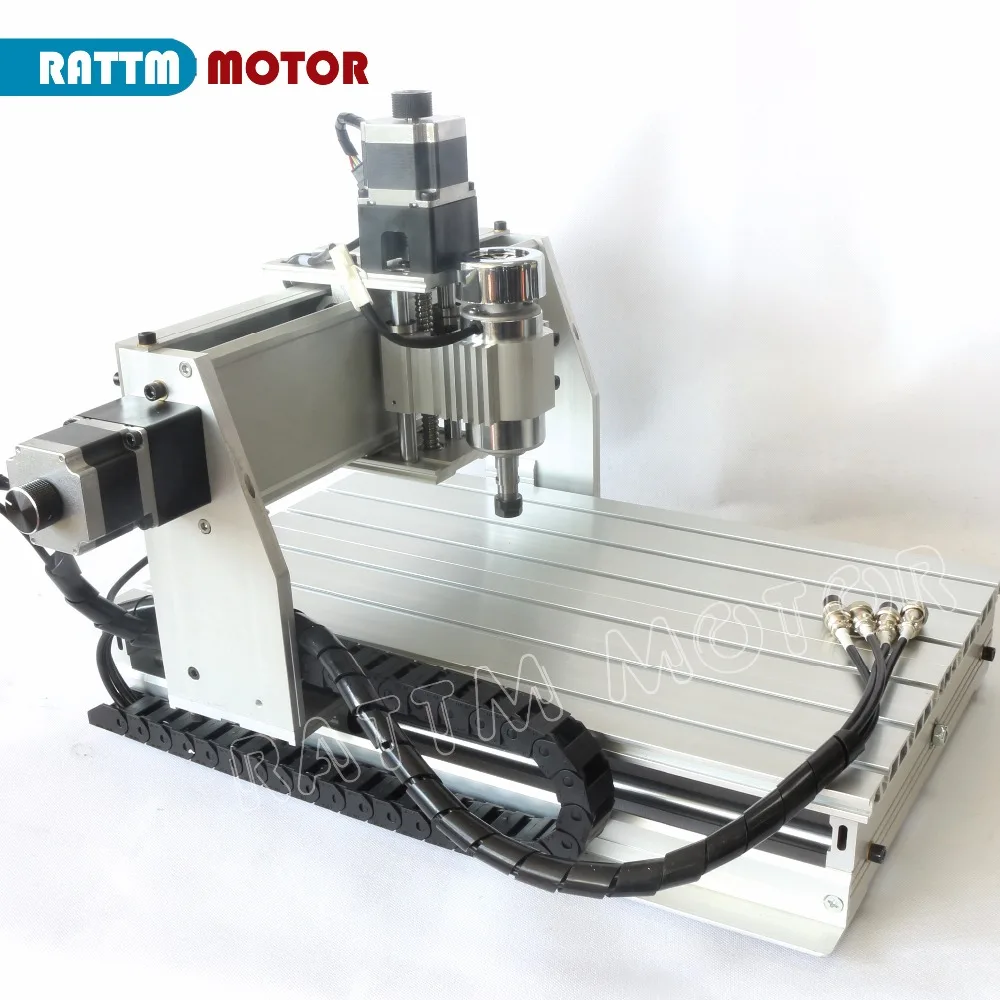

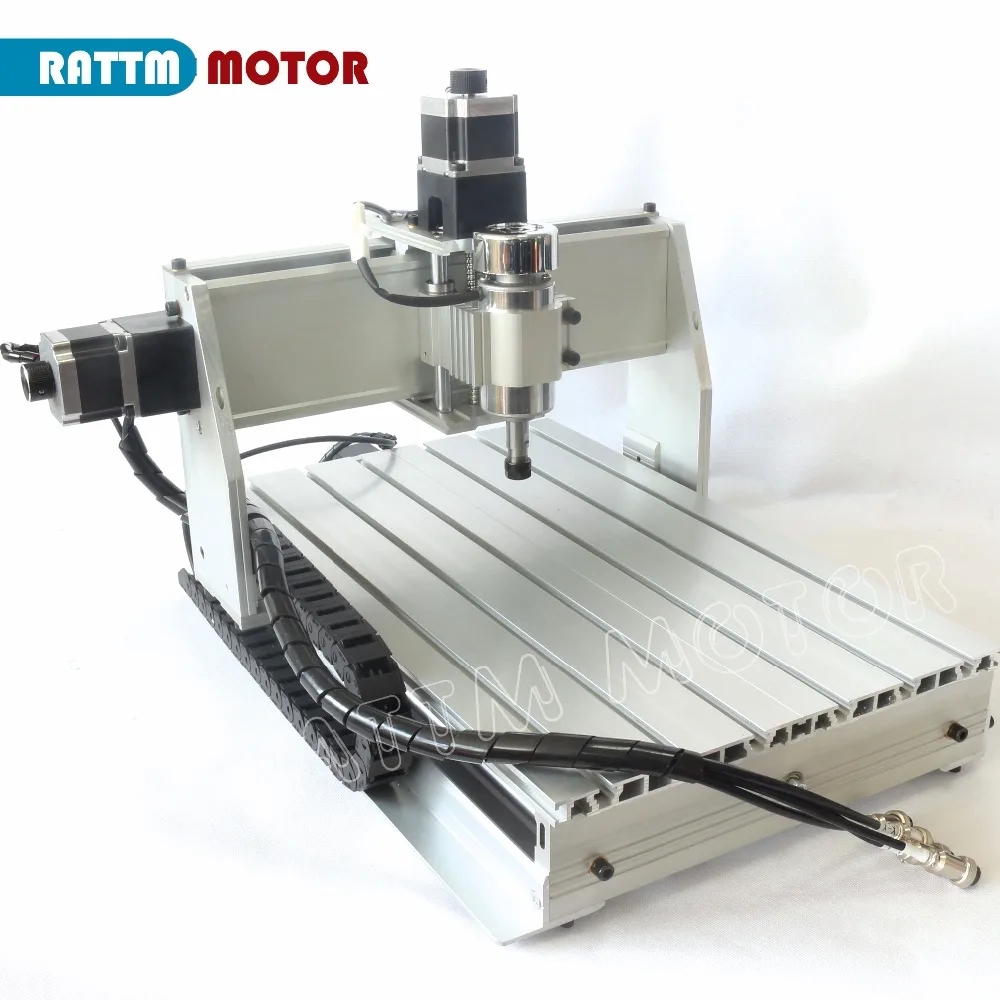

NEW 3040 CNC ROUTER ENGRAVER/ENGRAVING DRILLING Ball screw 220VAC

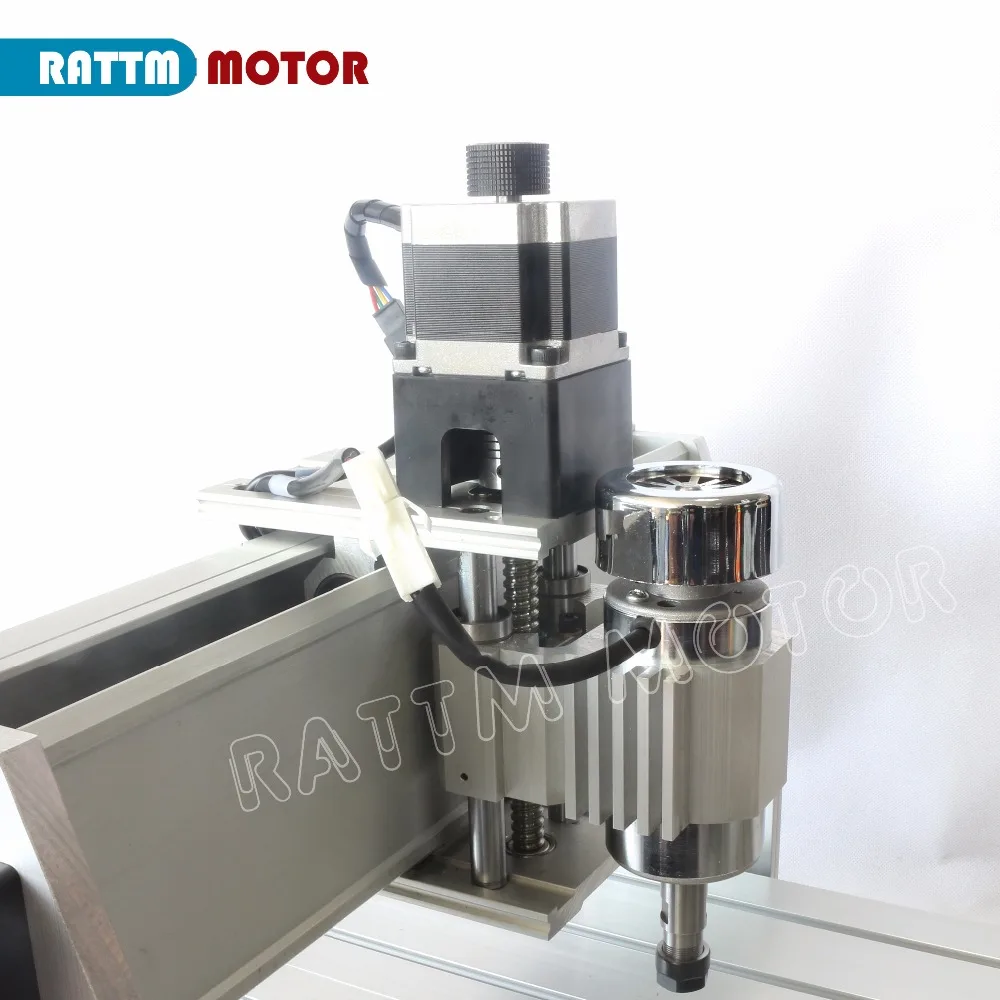

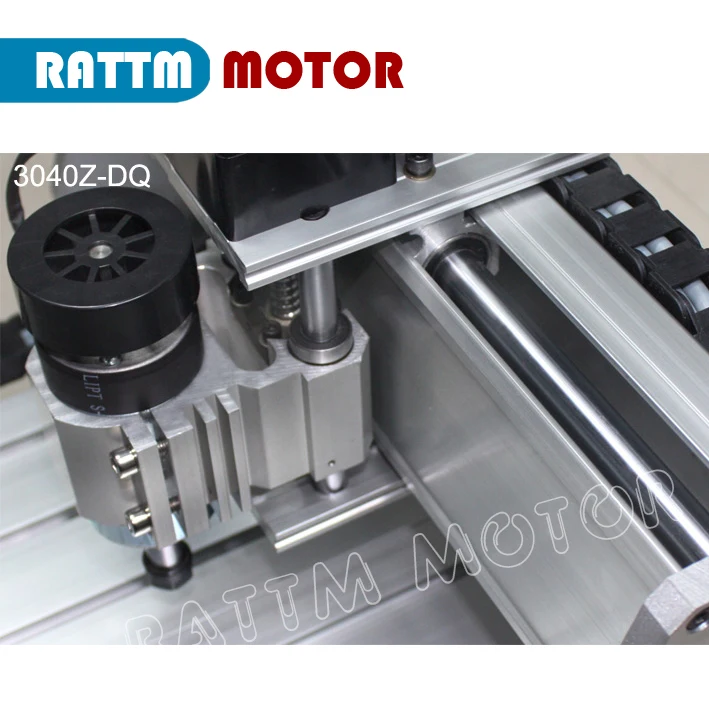

3040Z-DQ model: 300W/500W air cooled spindle motor ER11

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

Engrave almost anything on almost any surface

X Y and Z axis carving make more precise and and three-dimensional effect.

Cover plates reducing pollution for the screws and shafts.

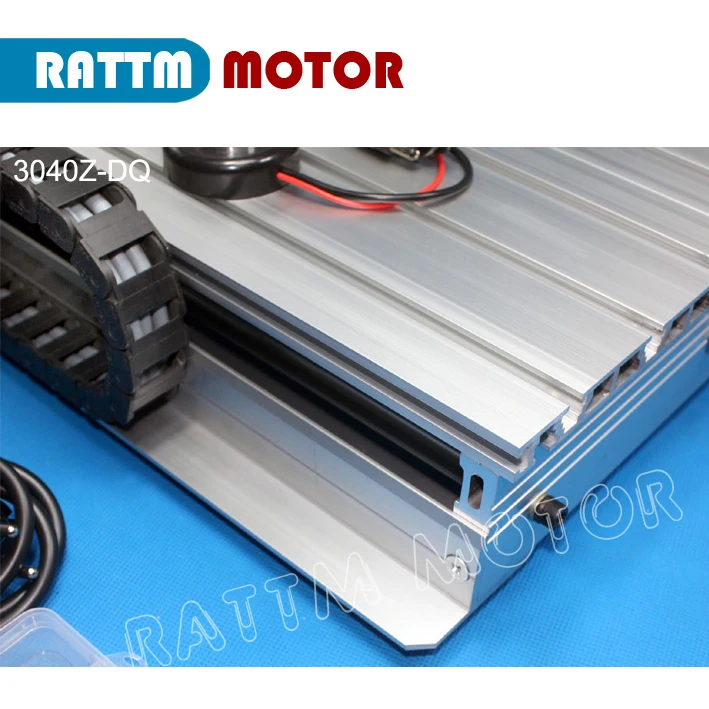

More steady and strong equiped with aluminum alloy frame materials.

Reinforced and thickened machine body make transportation absolutely to be safer and longer life time

Technical Parameters

Machine Dimensions: 610×485×395mm

Rack material:6061 and 6063 hard aluminium alloy(the unique and dedicated mold extrusion profiles)

Engraving Area:390×285mm

Z-axis Stroke:55mm,Engraving depth depends on the length of the tool edge

Max workpiece thickness:<=70mm

Rail type: Chromeplate shaft+Linear Bearings(Surface hardening 61HRC)

Transmission unit:SFU1204 ball screw

Spindle motor:New DC spindle motor,500W/300W/48V.11000rpm,lower noise,high precision,Support Mach3 control

Collet: ER11,1/8”(3.175mm)

Stepping motor and controller: two-phase 57/1.8A ,8 segments driver

Maximum speed: 4000mm/min

Engraving speed: 300-3000mm/min

Repeat positioning Accuracy: 0.05mm

Interface:Parallel port

Software Compatability:Mach3/Emc2,(Type3,Wentai, ArtCAM,Coppercam)

Command code: G code/.nc/.ncc/.tab/.txt

Machine weight: 29kg(including packaging)

Main application: engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working,but not milling working

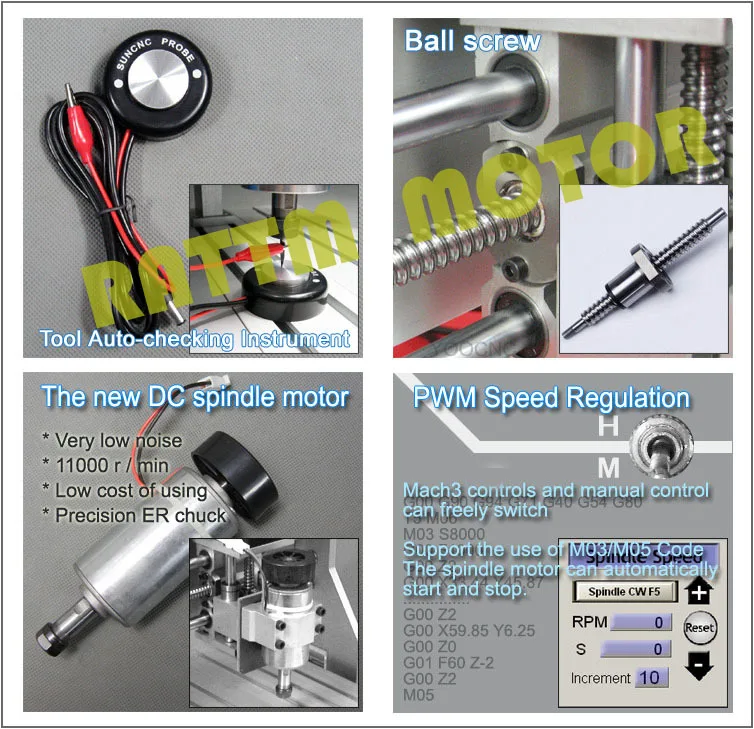

3040Z-DQ advantage(compare with 3040T+D and 3040T-DJ model) :

1.same size stepper motor but more torque,and the cables use more quality cnc flexible type

2.the power supply use ring transformer,more anti-interference and use more powerful controller

3.New 11000rpm spindle motor,and can turn and off the spindle by mach3 and PWM spindle speed control.more stable long working time

4.3 axis SFU1204 ball screw

5.95% aluminium material produced by mould extrusion forming,more beautiful and quality

6.Add the Z axis tool setting function,let user feel more better

How to use:

Please read the English user manual to see how to set up the software and how to use this machine.

1.Assembling and locating the CNC machine on steady desk well.

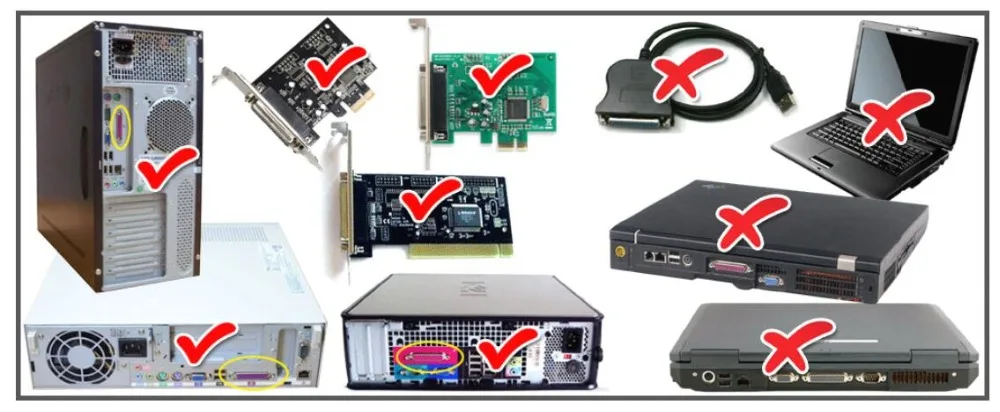

2.Make sure that your computer has a on-board parallel port output.

3.Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

4.Connecting the control box with the CNC machine and you computer.

5.Fllowing our manual or guideline to set uo the software.

6.You can enjoy making you dream with using our CNC machine now.

Feature:

Simple operation and installation.

More steady and strong equiped with aluminum alloy frame materials.

Can be controlled by computer

Mach3 software is simple and intellgent

Can control the engraving more precise

Emergency stop button enhance security

Stepping motor knob is useful for small positioning adjustment ,with steady and strong support structure.

Cover plates reducing pollution for the screws and shafts.

The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

The chrome shafts is not easy to deform,suitable for long time use.

Flexible coupling can be used for high torque transmission.

High Precision Stepping motor makes engraving more precise .

This item already be equiped NEW 1605 ball screws. Anti-blackflash,high precision,long life circle.

The aluminium table is not ready very level to the spindle,it need customer yourself milling a flat board under your work piece.
