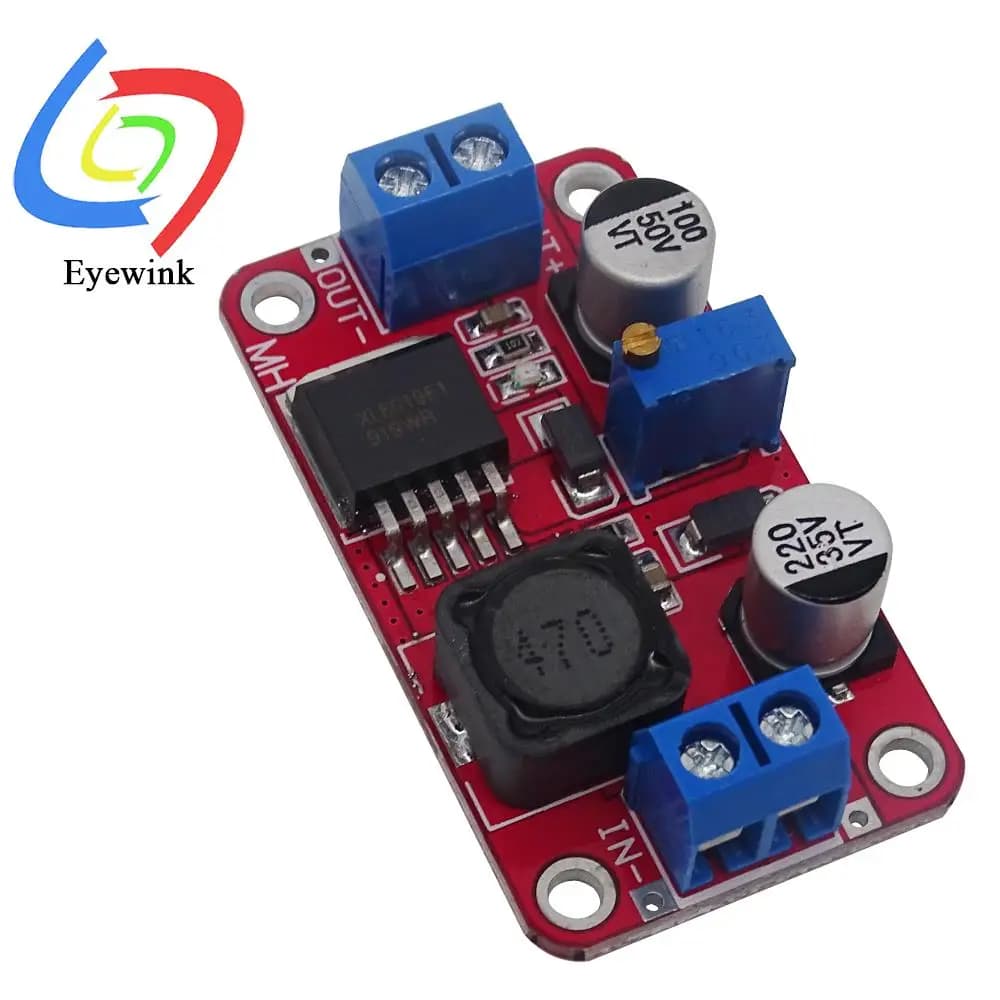

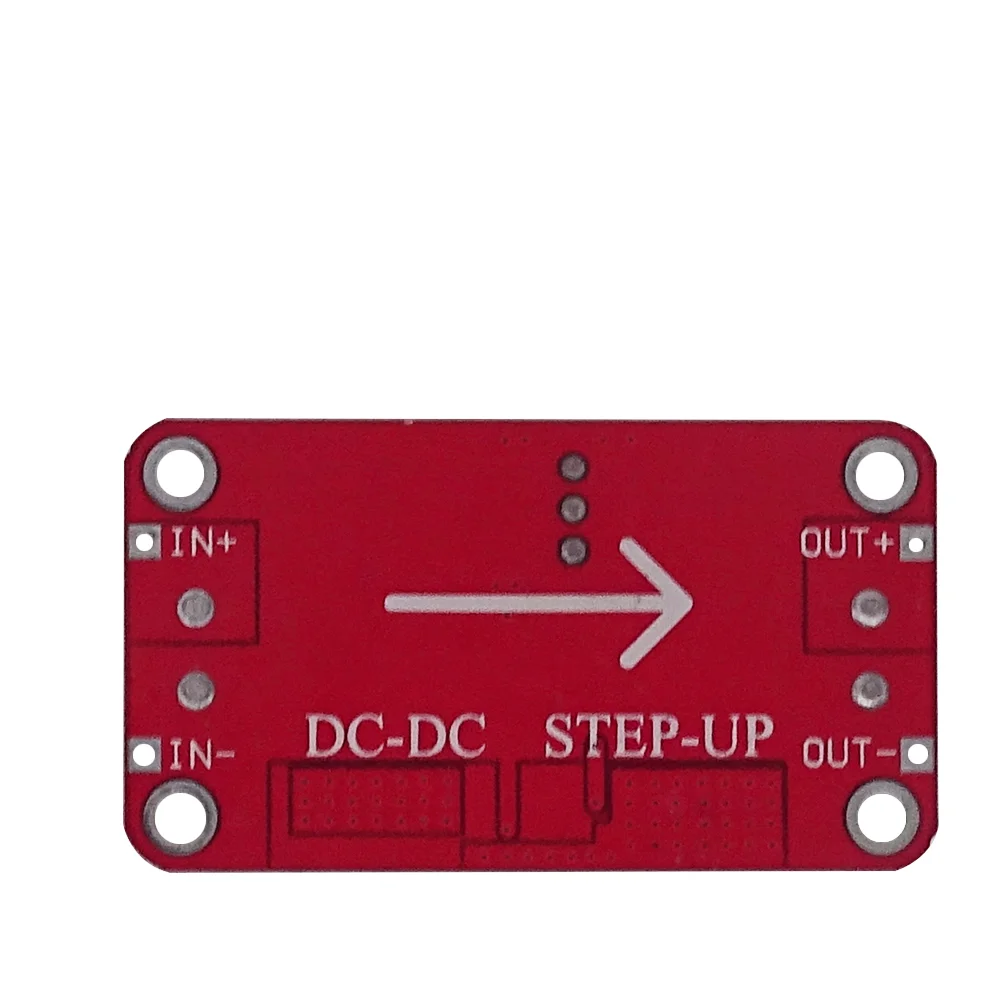

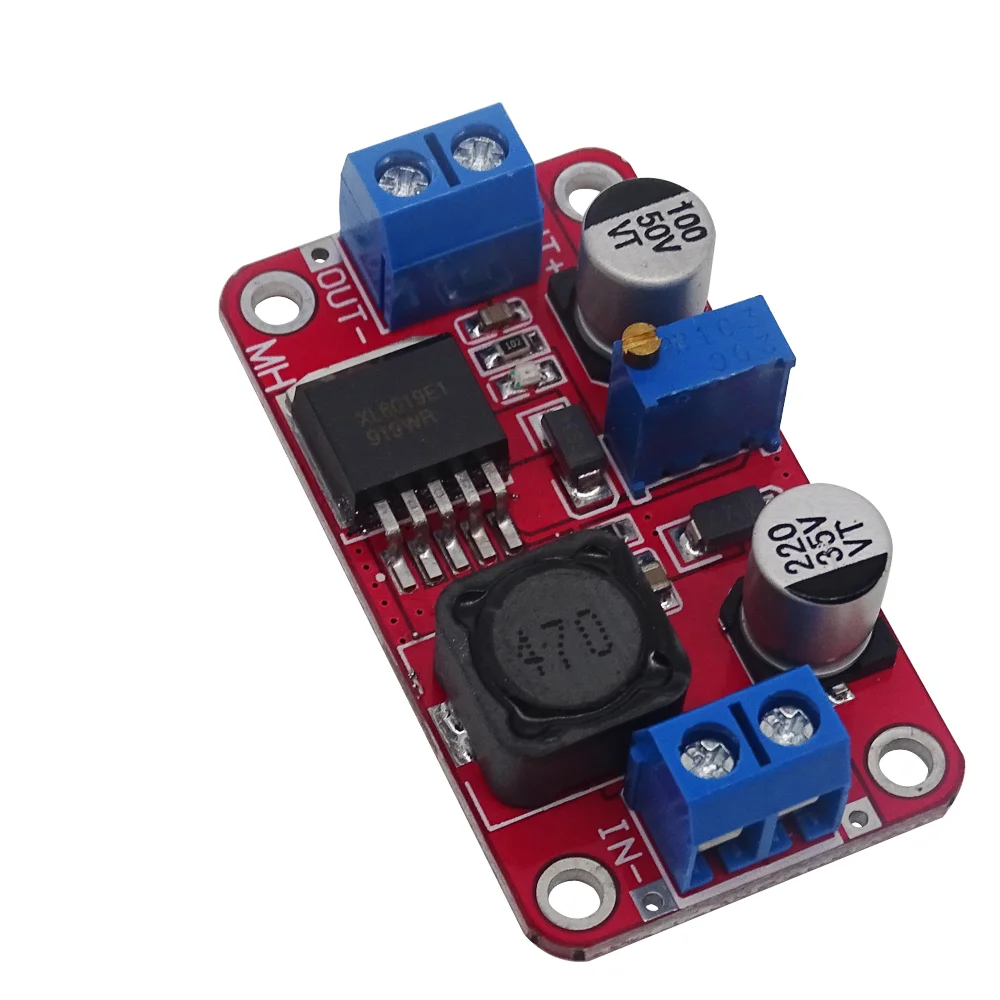

XL6019 5A High Power Current DC-DC Step Up Power Module Boost Volt Converter 3.3V-35V To 5V 6V 9V 12V 24V Power Module

Features:

1.Integrated Boost Power Module: This DC-DC step up power module utilizes the XL6019 integrated circuit, designed for boosting and buck-boost applications. It operates within a wide input voltage range of 5V to 40V, delivering low ripple performance and featuring an integrated power MOSFET.
2.Wide Input Range with Adjustable Output: With an input voltage range from 3V to 35V (recommended), this DC-DC boost volt converter supports high input voltages up to 40V. The output voltage is also adjustable, allowing flexibility in powering various devices.
3.Enhanced Reliability and Protection: Equipped with built-in over-temperature and over-current protection circuits, this step up converter module ensures reliable performance and safeguards against potential damage. Enjoy peace of mind knowing your system is well protected.
4.Efficient and Heat-Friendly: Achieve conversion efficiencies of over 90% with this booster power supply module, facilitating efficient power transfer while minimizing heat generation. Ideal for applications requiring effective thermal management.
5.Compact and Versatile: Designed in a T0263-5L standard package, this DC-DC step-up voltage regulator is perfectly suited for boosting applications up to 30W. Its compact dimensions make it suitable for EPCs, notebook car adapters, voltage conversion, and portable device power supply.
Specification:
Origin: Mainland China
Type: Module
Condition: New
Module Nature: Non-Isolated Boost (Boost)
Rectification Method: Non-Synchronous Rectification
Input Range: Limit Value: 3-40v, Recommended Value: 3v-35v
Output Range: Limit Value: 5-45v, Recommended Value 5v-40v (By Rotating Potentiometer)
Input Current: Limit Value: 0-5A, Recommended Value 0-3A
Conversion Efficiency: Maximum 94%
Switching Frequency: 220khz, The Second Generation Of Switching Power Supply Technology
Output Ripple: Less Than 100mV
Load Adjustment Rate: 0.5%
Voltage Adjustment Rate: 0.5%
Operating Temperature: Limit Value: -40℃~+150℃, Recommended Value -20c~+85℃
Reverse Connection Protection: Input 40v Anti-Reverse Connection Protection
Size: 50*28*13mm/1.95*1.09*0.51in
Application: EPC/Notebook Car Adapter, Lift Voltage Conversion, Handheld Device Power Supply
Product Description:
The XL6019 is a monolithic IC designed for step-up and step-down voltages. It can operate from DC5V to 40V input voltage range. The XL6019 has a built-in fixed-frequency oscillator and frequency compensation circuit to simplify circuit design. The PWM control loop can adjust the duty cycle from 0-90% linearly. Built-in over-current protection and EN pin logic level shutdown function.
