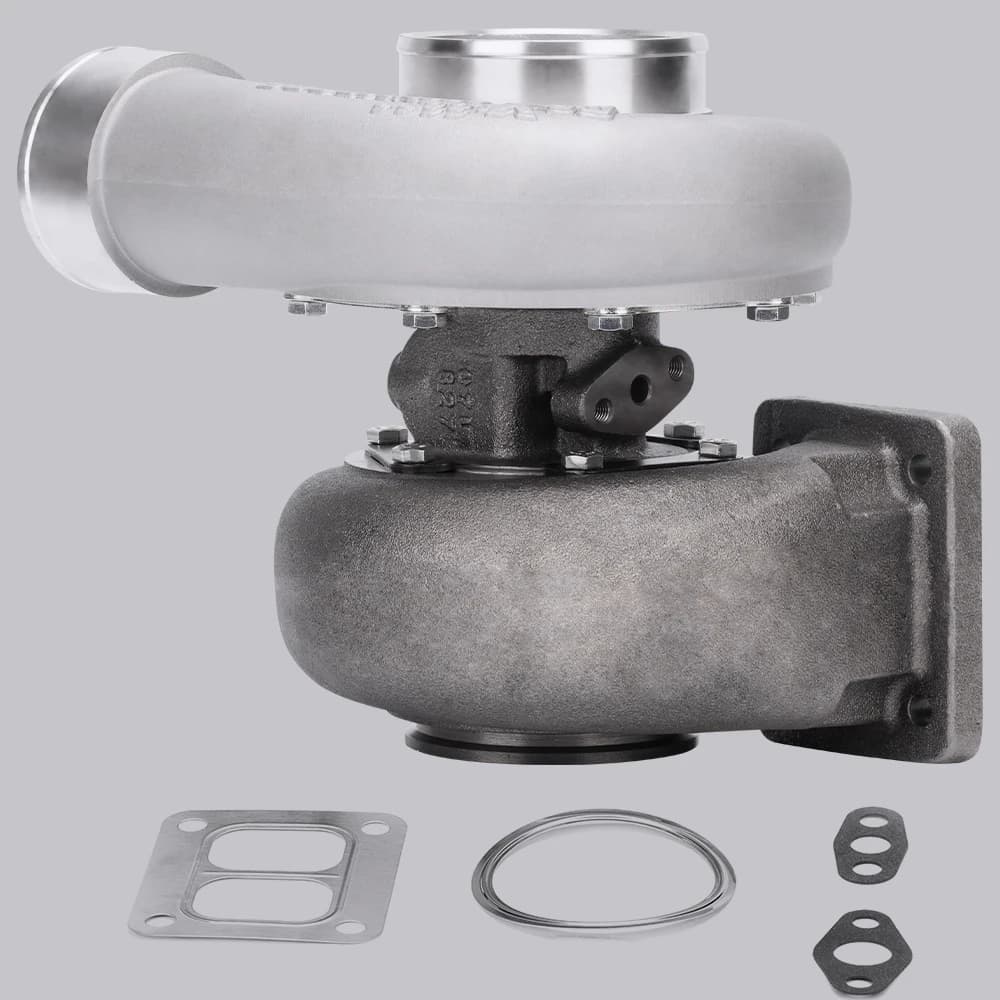

600+HP Turbolader GT45 T4 Turbine .66 A/R Com 1.05 A/R V-band 8psi Universal Turbo Turbocharger

Application

This turbo is a universal application turbo, some modification may be required based on individual vehicle.
for the vast majority of 4.0L - 6.0L engine

Horse Power: Capable of Boost Horse Power up to 600+ BHP

Specification

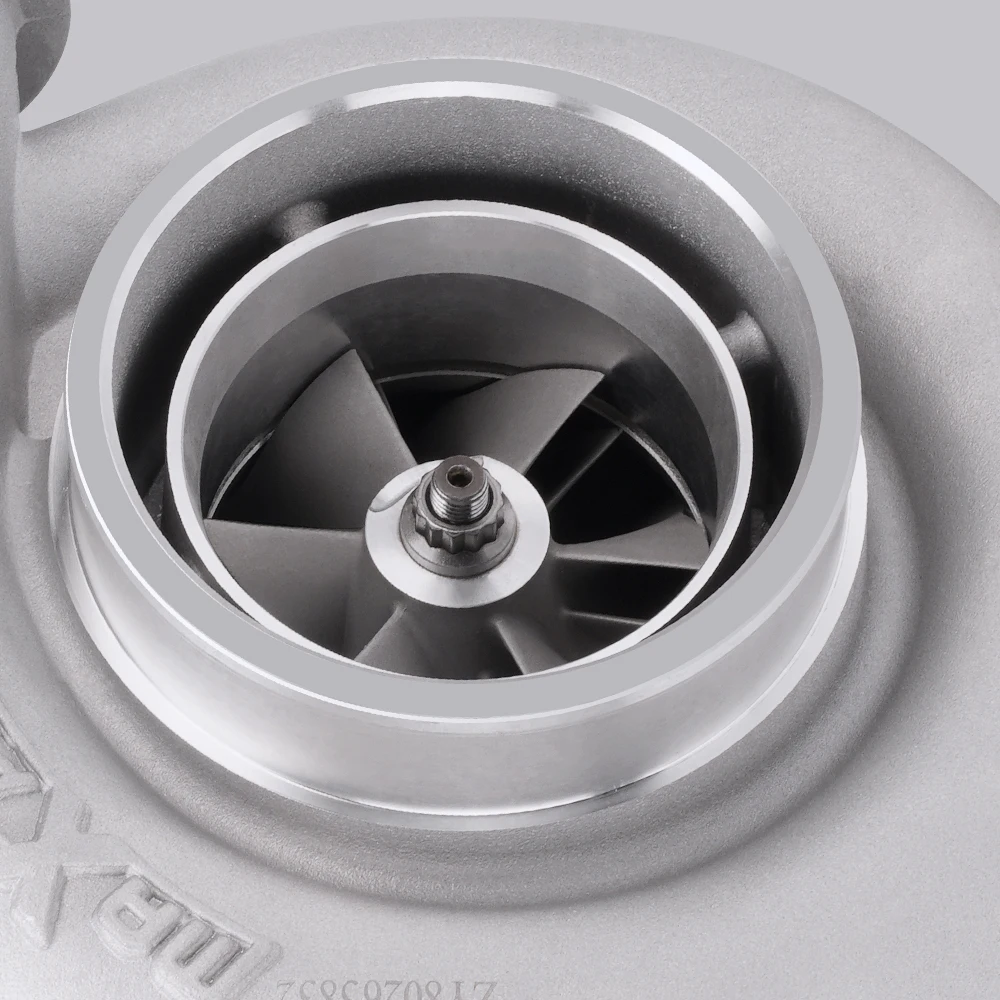

Compressor

Compressor Trim: 50

Compressor Inducer Diameter: 69 mm

Compressor Exducer Diameter: 98 mm

Compressor A/R: 0.66

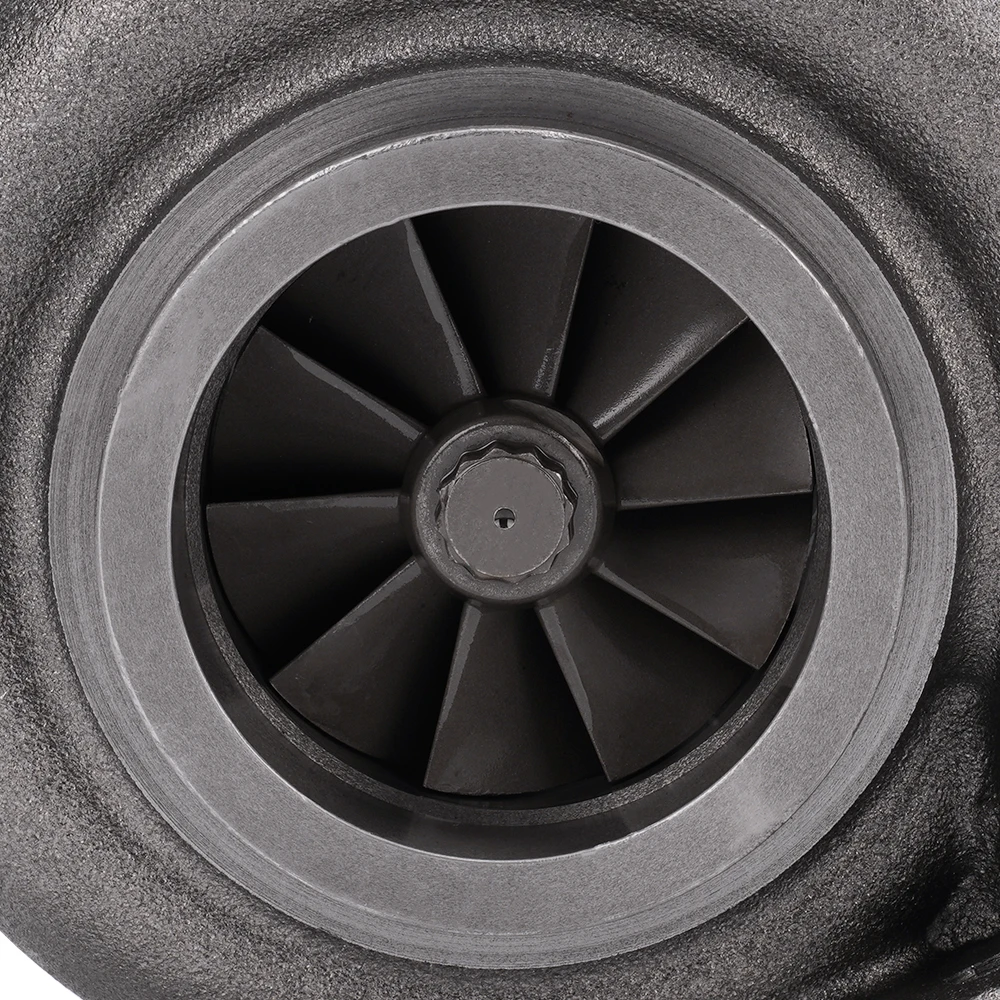

Turbine

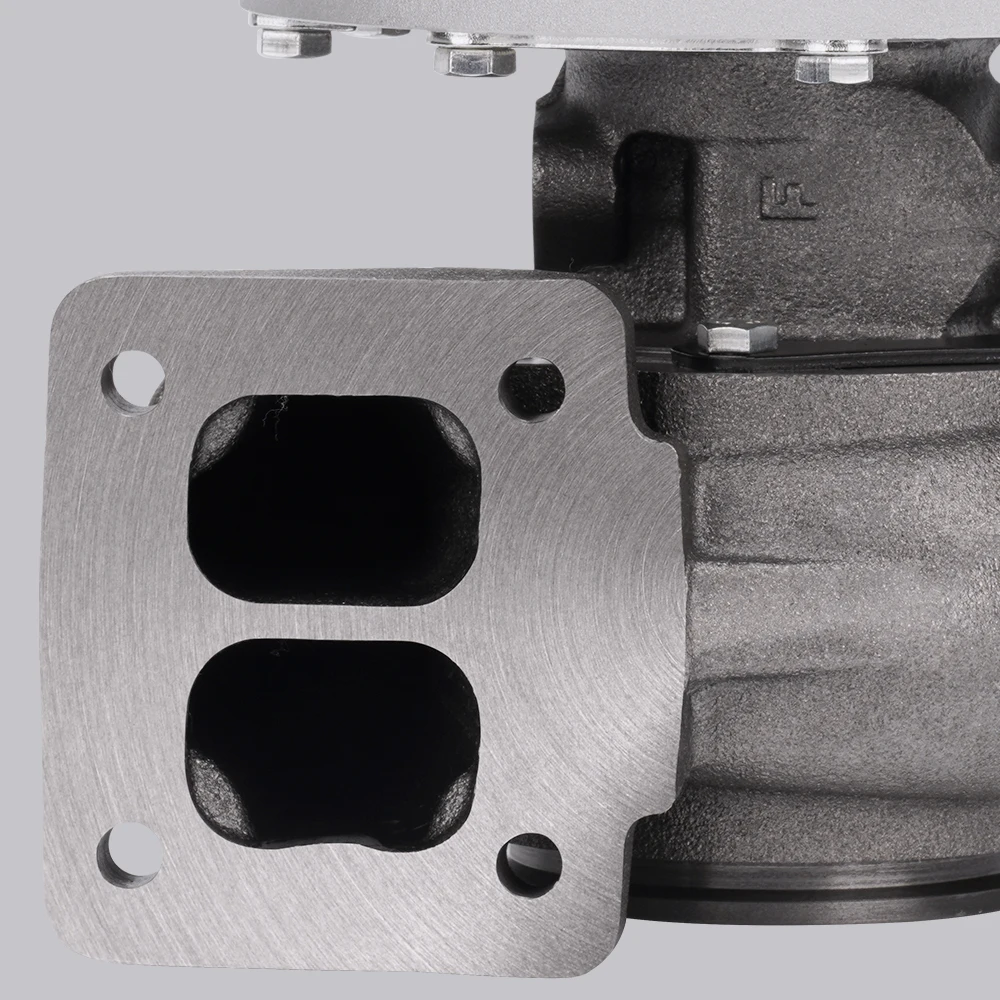

Exhaust Inlet (Turbo Manifold) Flange: T4 4 Bolt Flange

Exhaust Outlet (Downspout) Flange: 3.25 " V-Band Flange

Turbine Trim: 78

Turbine Inducer Diameter: 88 mm

Turbine Exducer Diameter: 77.5 mm

Turbine A/R: 1.05

Cooling Type: Oil Cooled

Bearing: Wet Float

Wastegate: Without Wastegate

Turbo Height: 243cm

Turbo Width: 273cm

Oil Inlet: M9 & 2*M8*1.25

Oil Outlet: M19 & 2*M8*1.25

Features

-High Quality Material, Cast Housing with Durable Steel

-Boost Engine Horsepower Significantly

-Increase Engine Power and Torque Outpout;

-Maintain Combustion Chamber Pressure and Fuel/Air Load

-Contructed with High Quality Material
