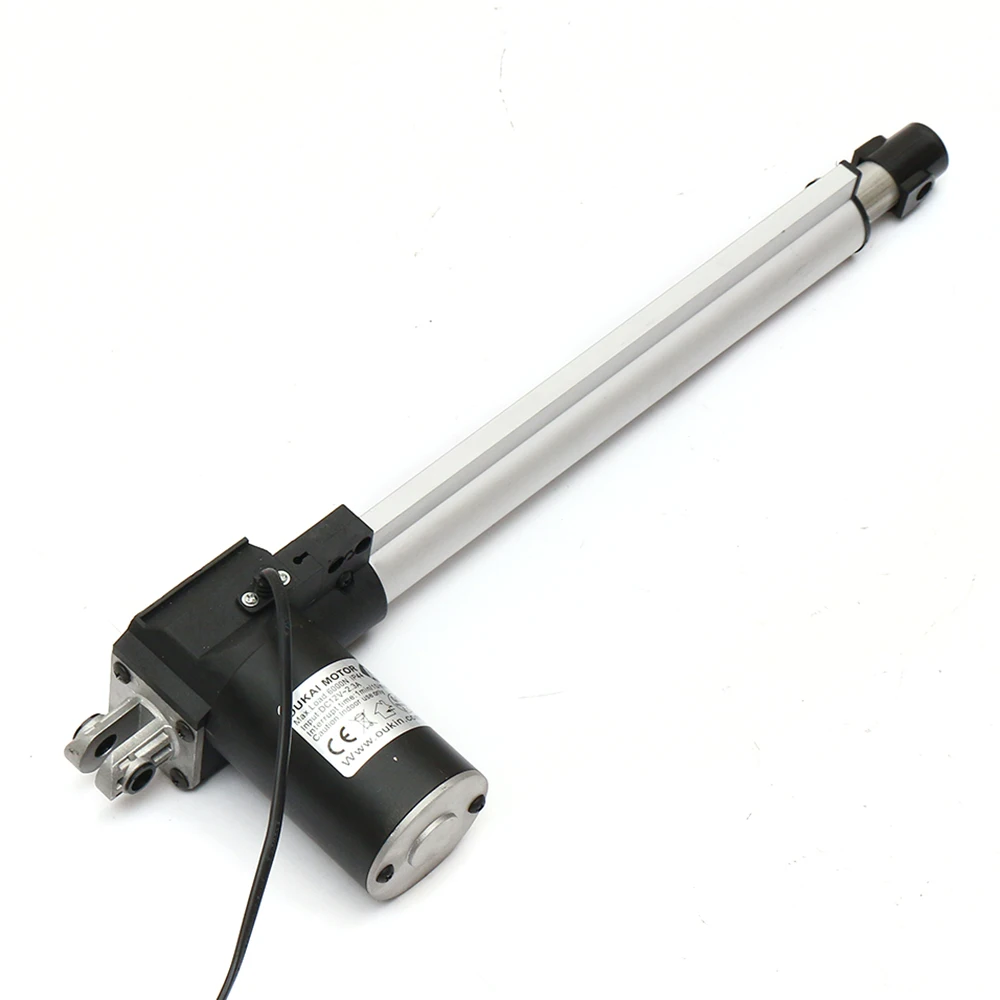

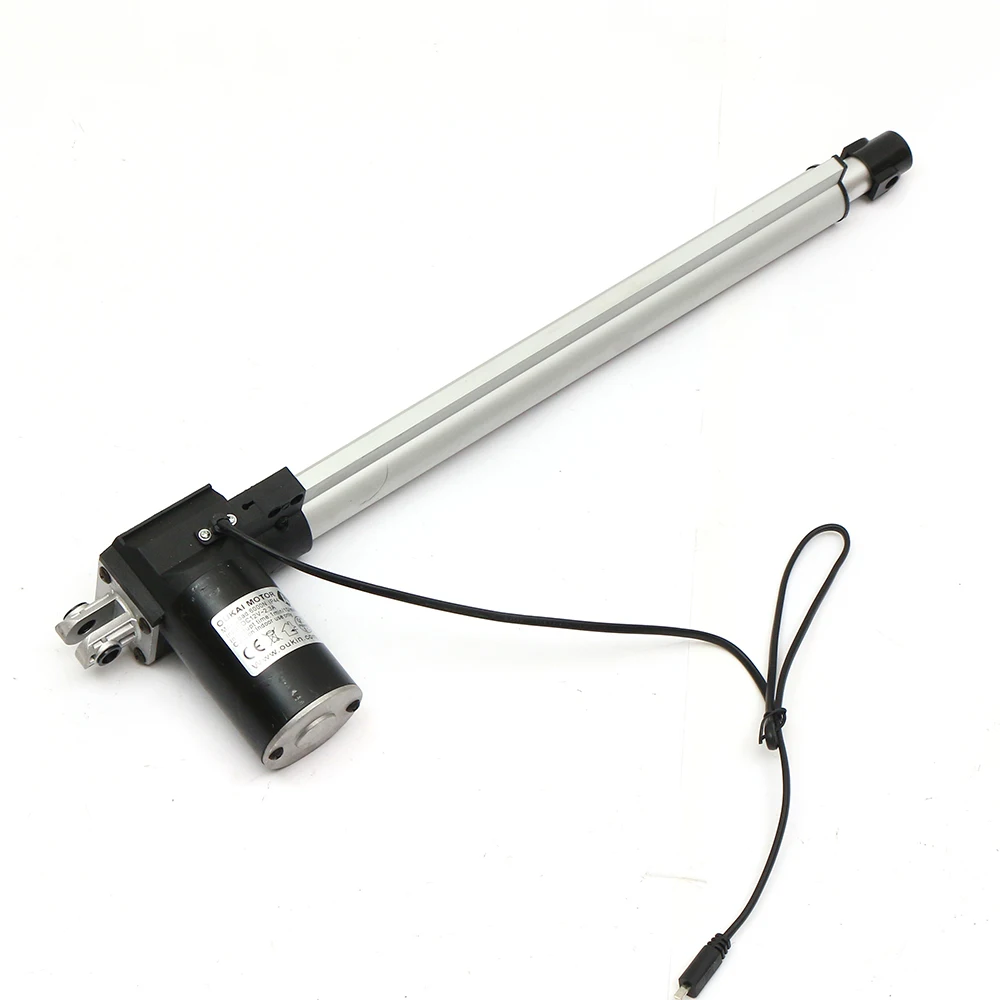

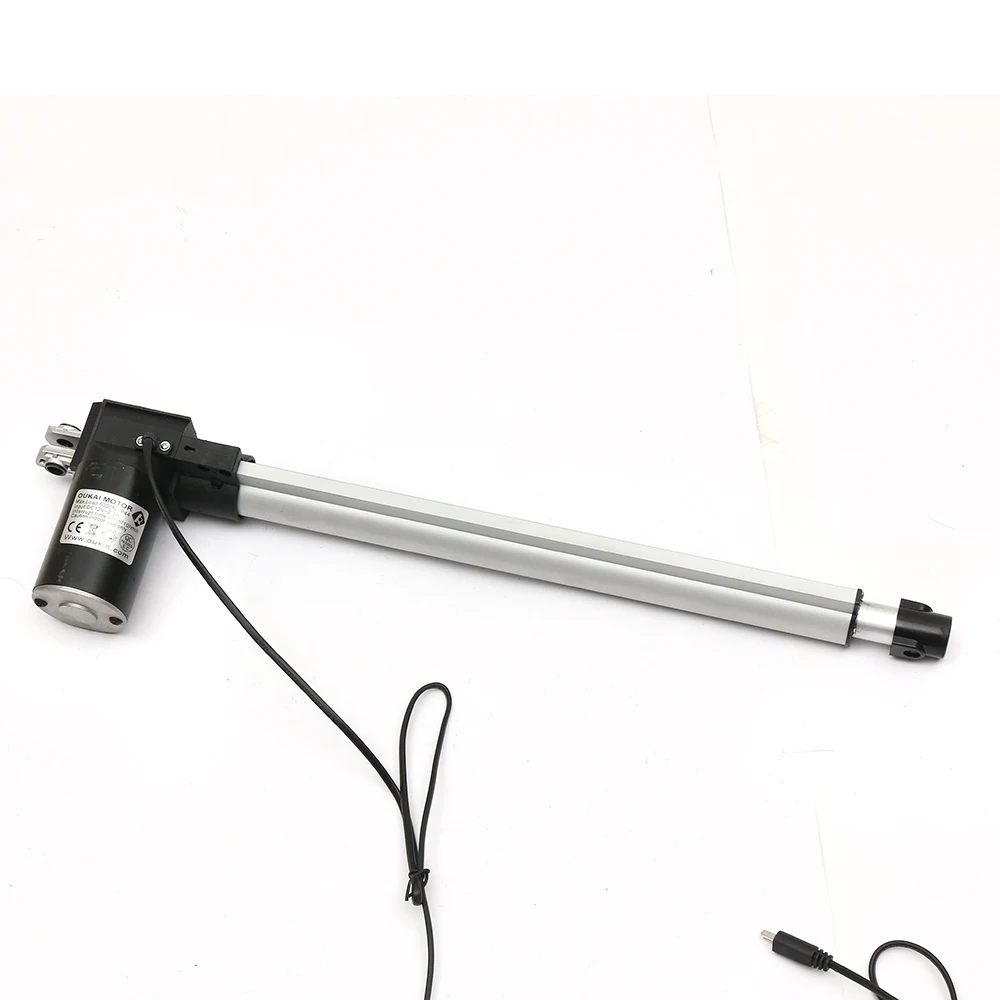

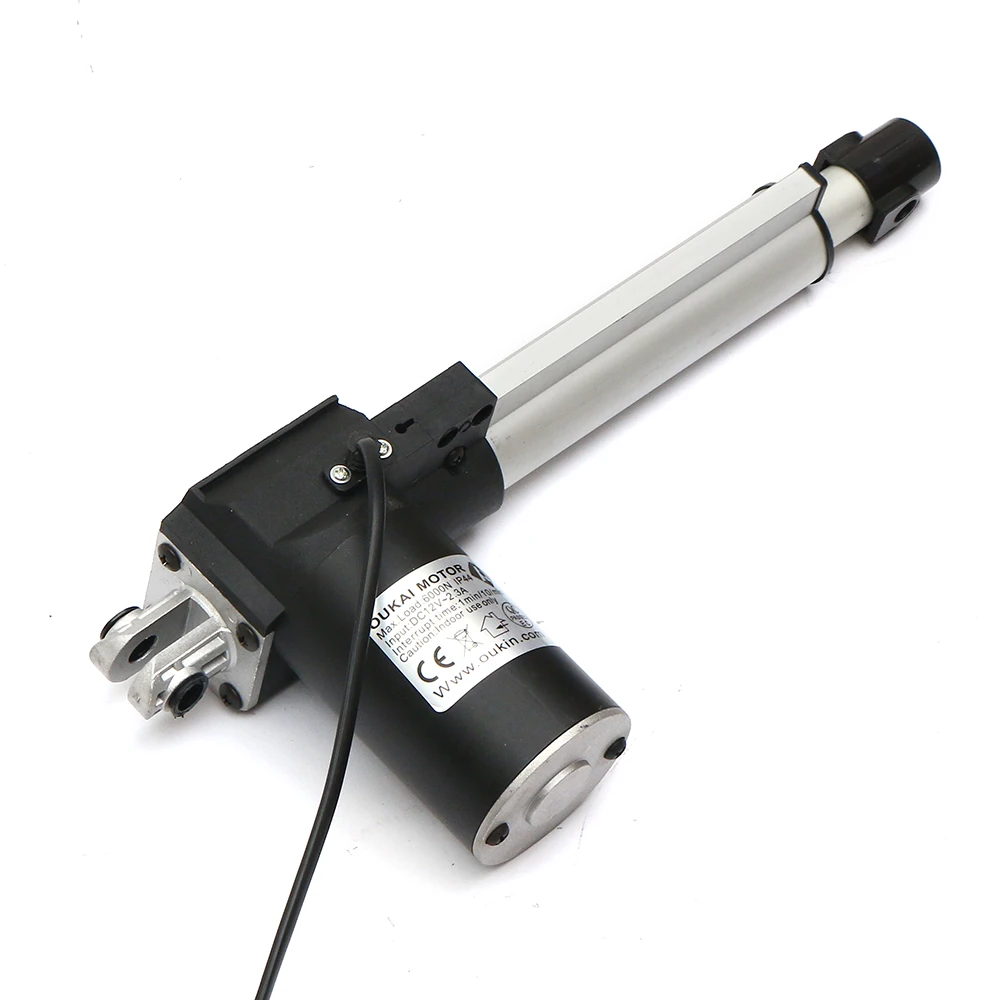

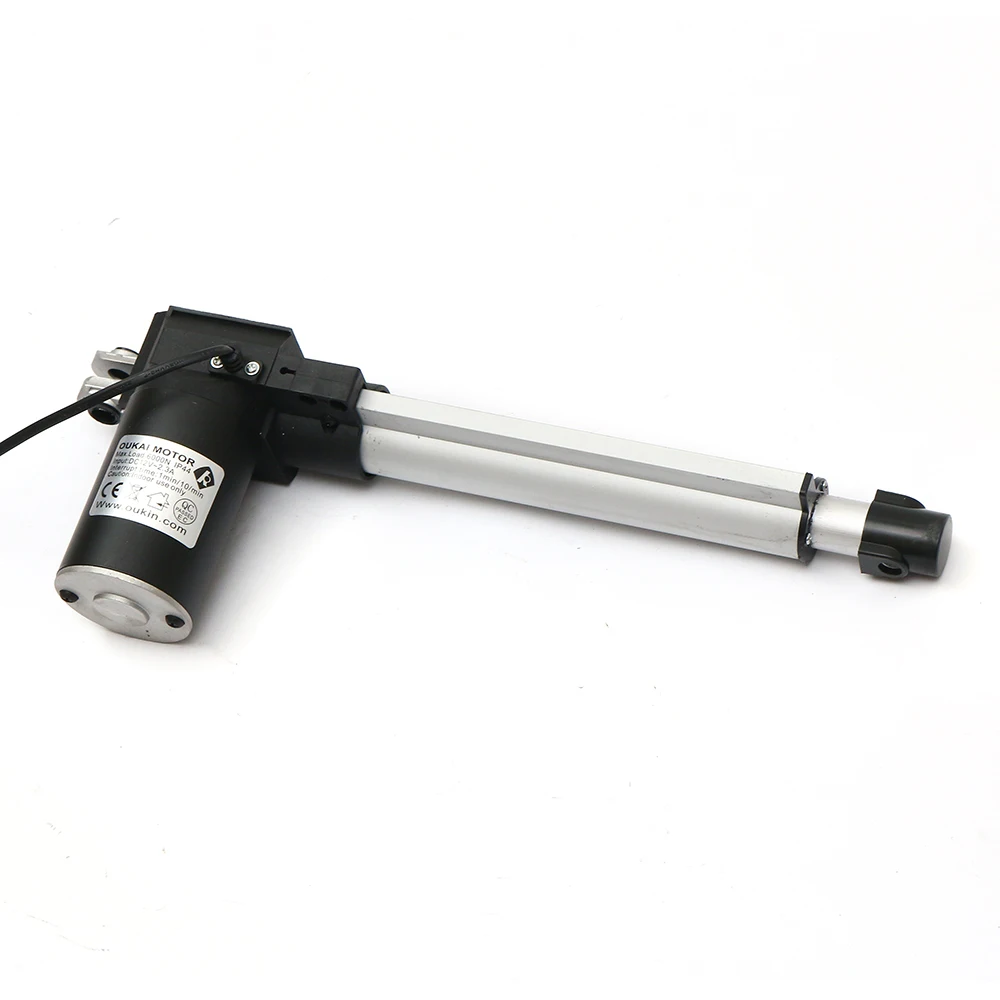

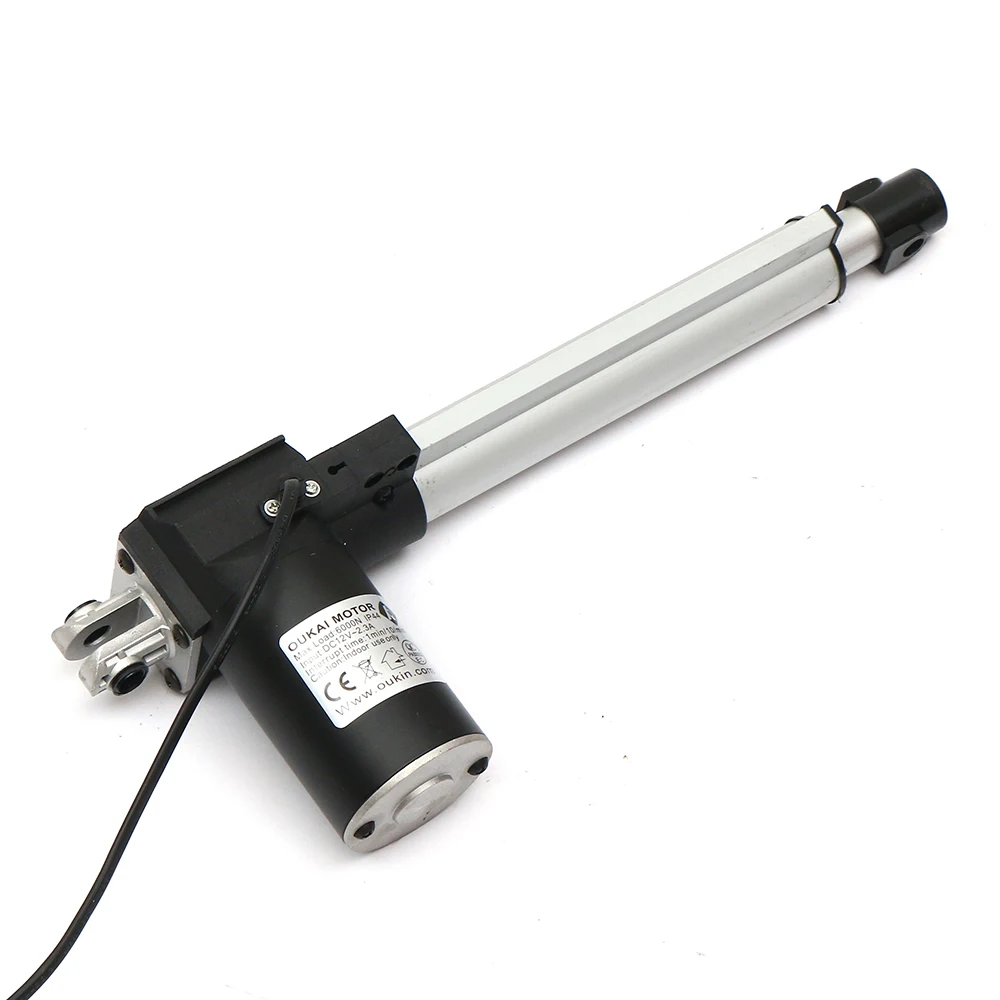

6000N 500mm 20 Inch Linear Actuator Electric Linear Motor Drive DC12V Pound Max Lift 12V Volt DC Motor 48db

Perfect service:

1. Our products are shipped from USA and Germany and can arrive quickly in 5-10 days.

2. If you have any questions, please contact us and I can provide you with return/refund/compensation/replacement.

3. Note: After sending the message, don't worry. Because of our time difference, we will respond to your message within 24 hours. 100% refund for quality problems and damage

Specifications:

Voltage: DC12V

Standard Stroke: 500 Mm

Speed: 5mm/s

Maximum Push / Pull: 600kg(6000N) / 400kg(4000N)

Aluminium Outer Tube: Ø30 Mm

Aluminium Inner Tube: Ø24mm

Noise: 48db

Standard Protection Class：IP44

Temperature: -5℃To＋50℃

Note: Please Check Before Purchasing

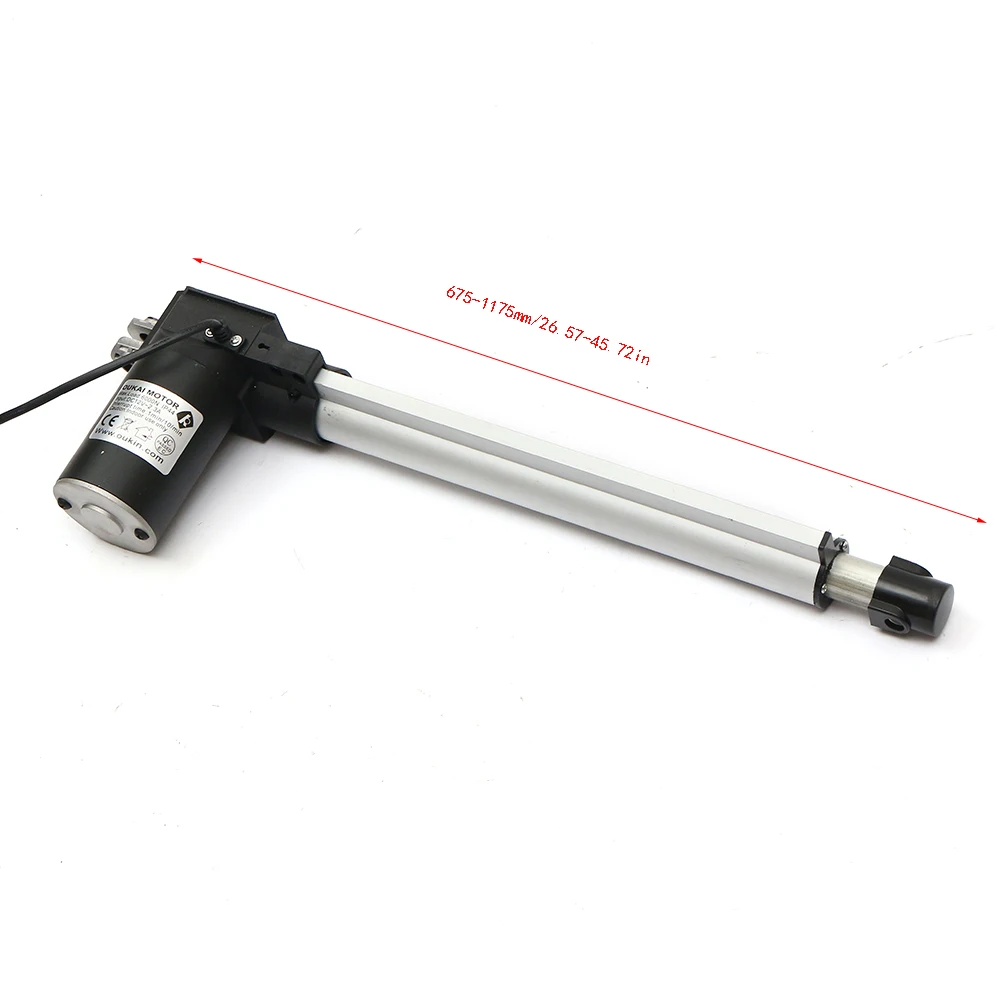

Minimum Installation Size: 675mm(He Distance Between The Two Holes Before And After The Push Rod Is Fully Retracted)

Fully Developed Product Dimensions: 1175mm

Net Weight:2.73kg

Gross Weight:2.839kg

Features:

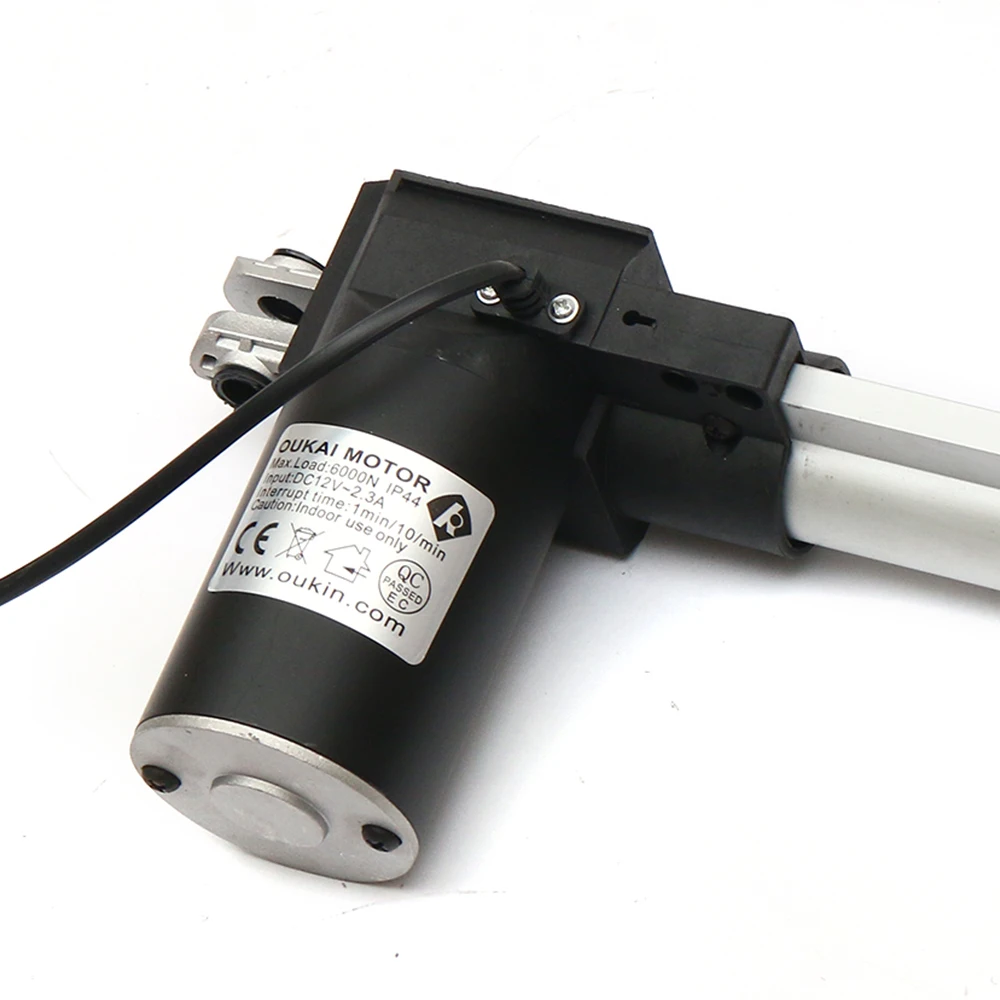

12V DC Permanent Magnet Motor

Thrust Up To 6000 N In Push. And Up To 4000 N In Pull.

Elegant And Compact Design With Small Installation Dimensions

Built-In Limit Switches (Not Adjustable)

Steel Back Fixture

Noise Level 48 dB (A), Actuator Not Loaded.

Duty Cycle, Max 10% Or 2 Minutes Continuous Use Followed By 18minutes Not In Use.

Application:

Electric Nursing Bed, Operating Bed, Traction Bed, Massage Chair, Dental Chair, Electric Wheelchair, Electric Sofa, Electric Exhibition Stand, Electric Skylight, Human Engineering Furniture And Other Occasions That Need Linear Motion Actuator Are Installed Very Conveniently, Which Are Widely Used In Medical Treatment, Fire Protection, Home Furnishing, Electric Mechanical, Chemical Industry, Sanitary Ware, Leisure And Other Fields.

Packages:

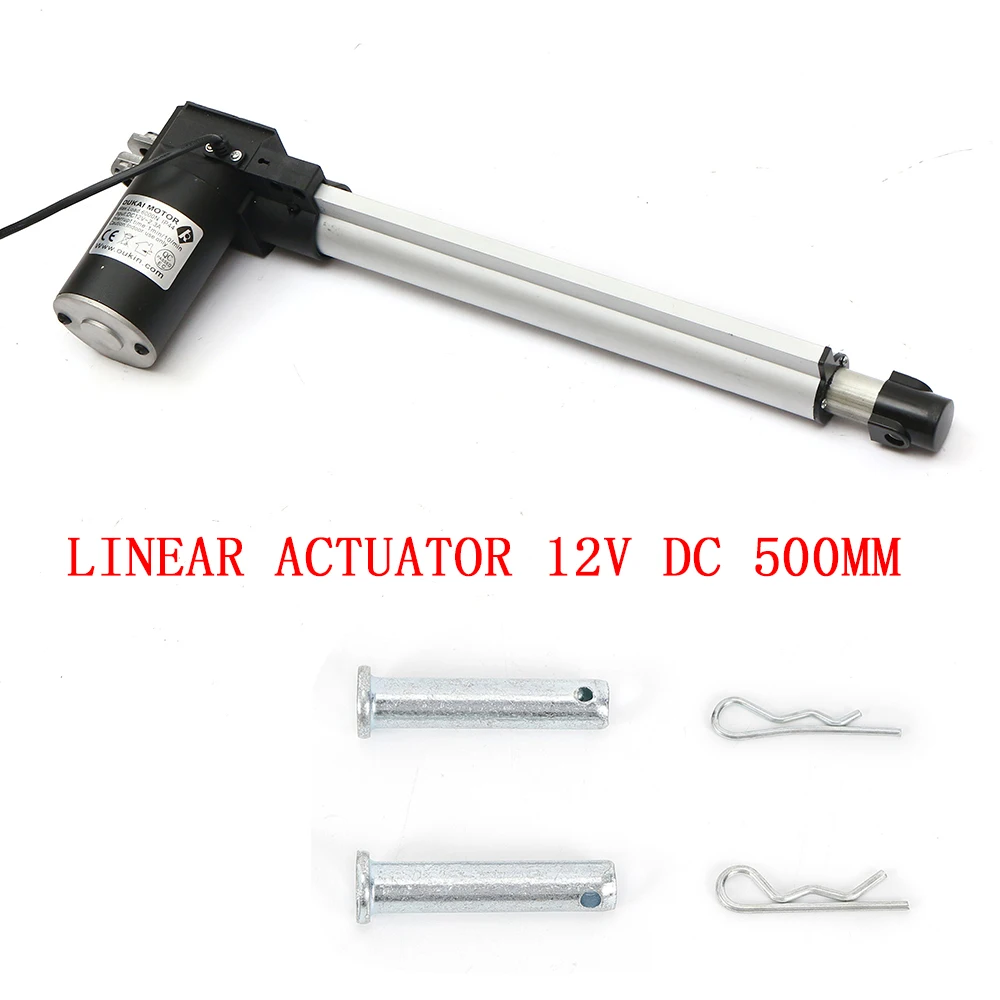

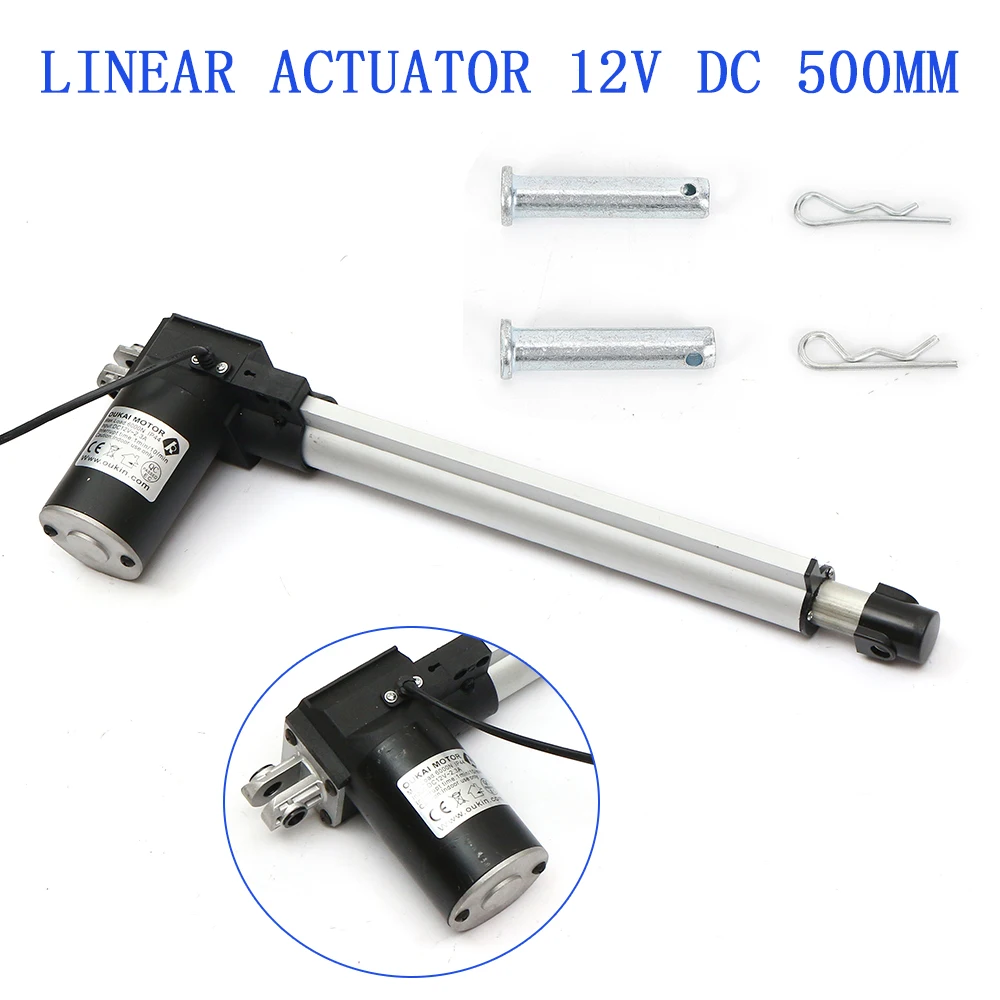

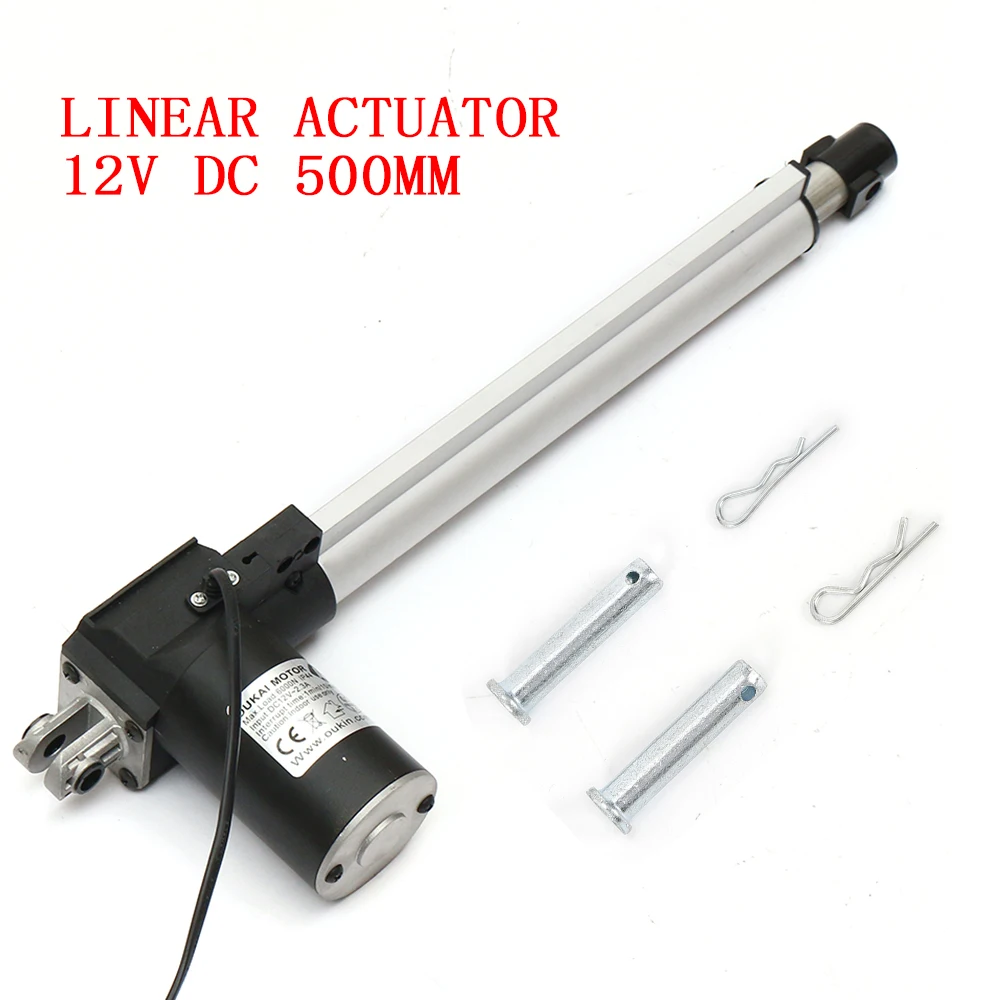

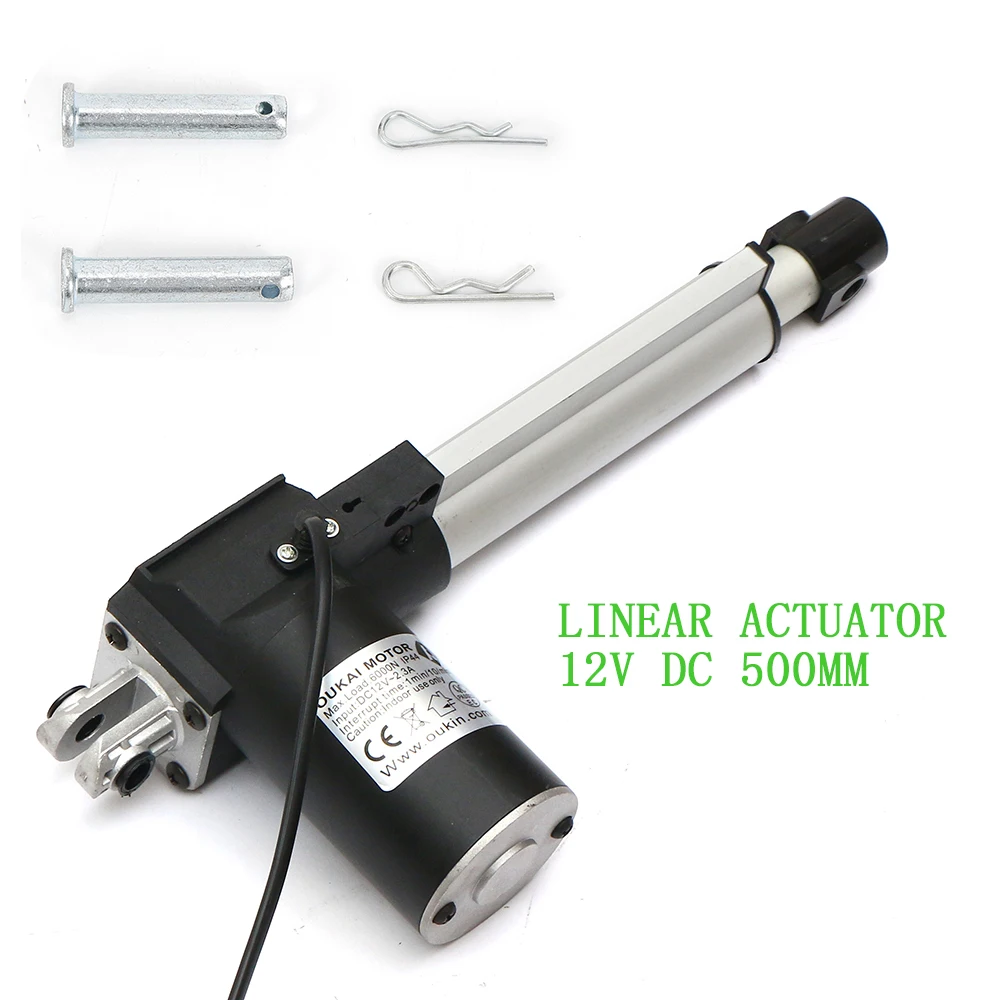

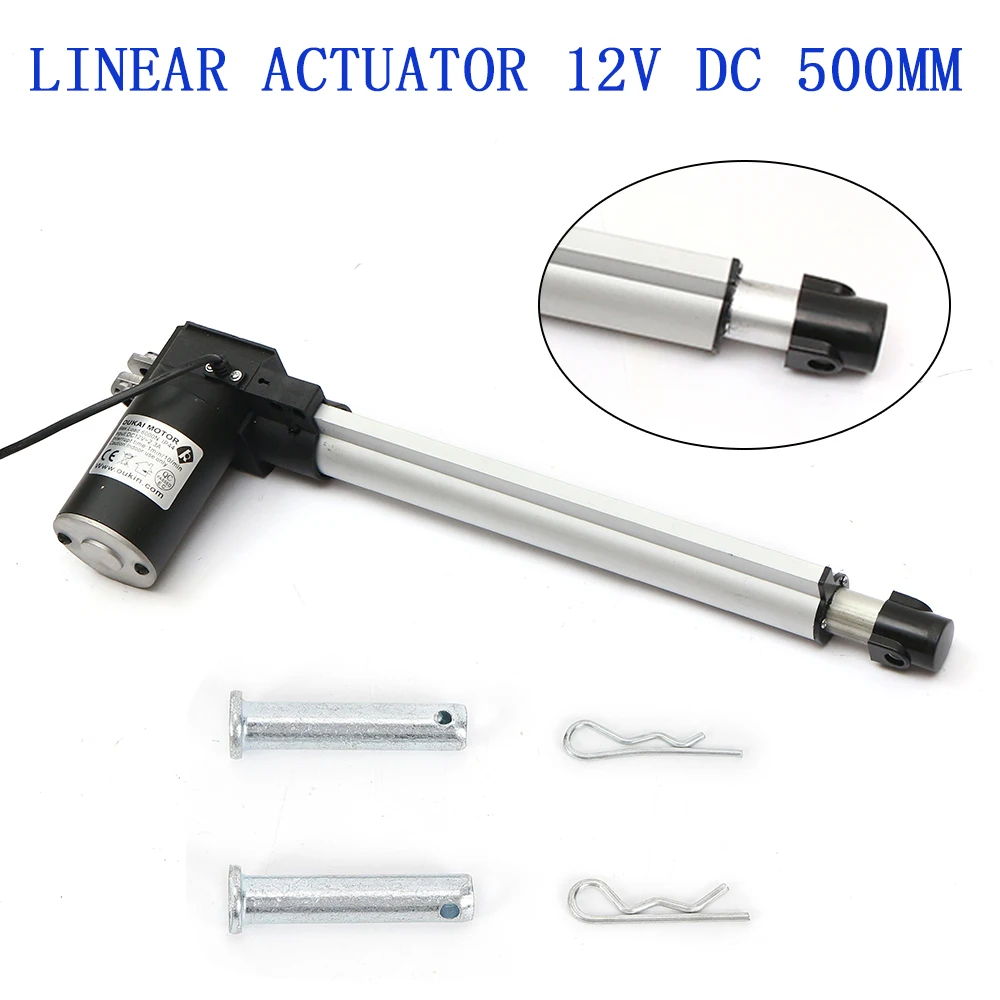

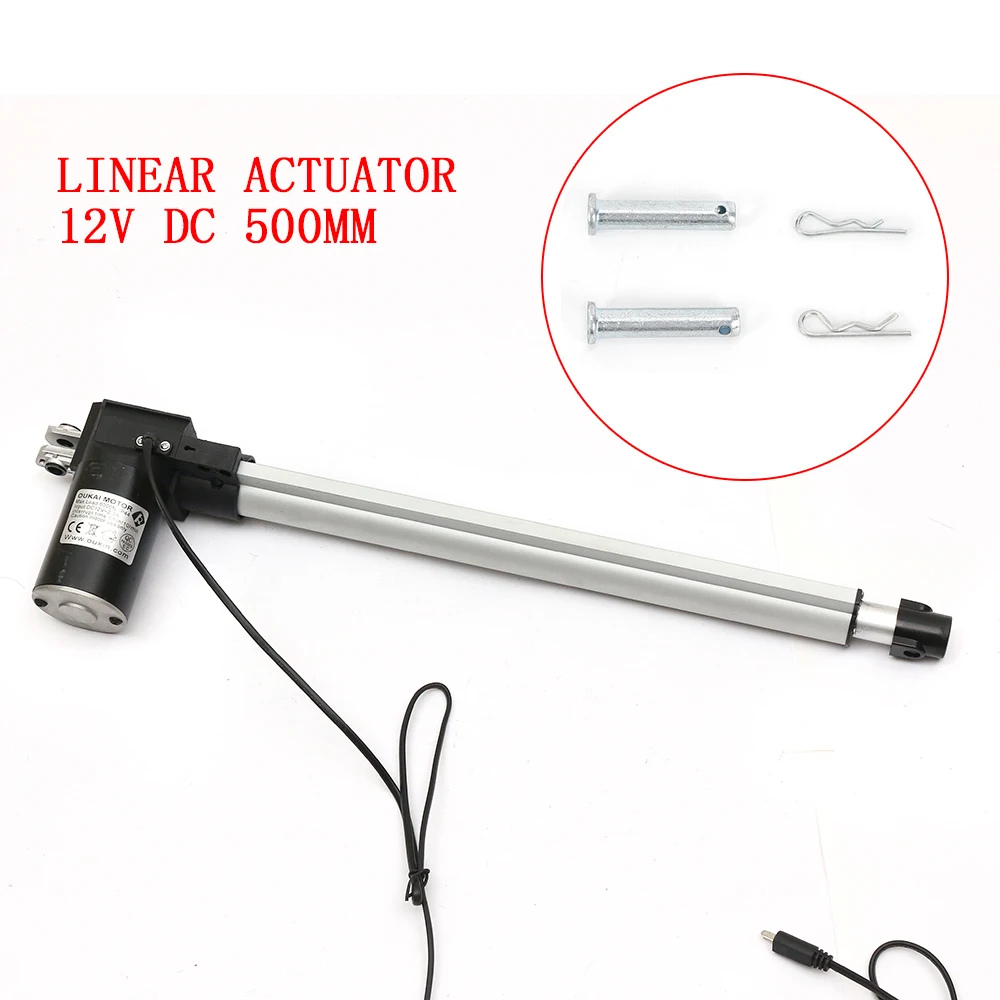

1 x 500mm Linear Actuator

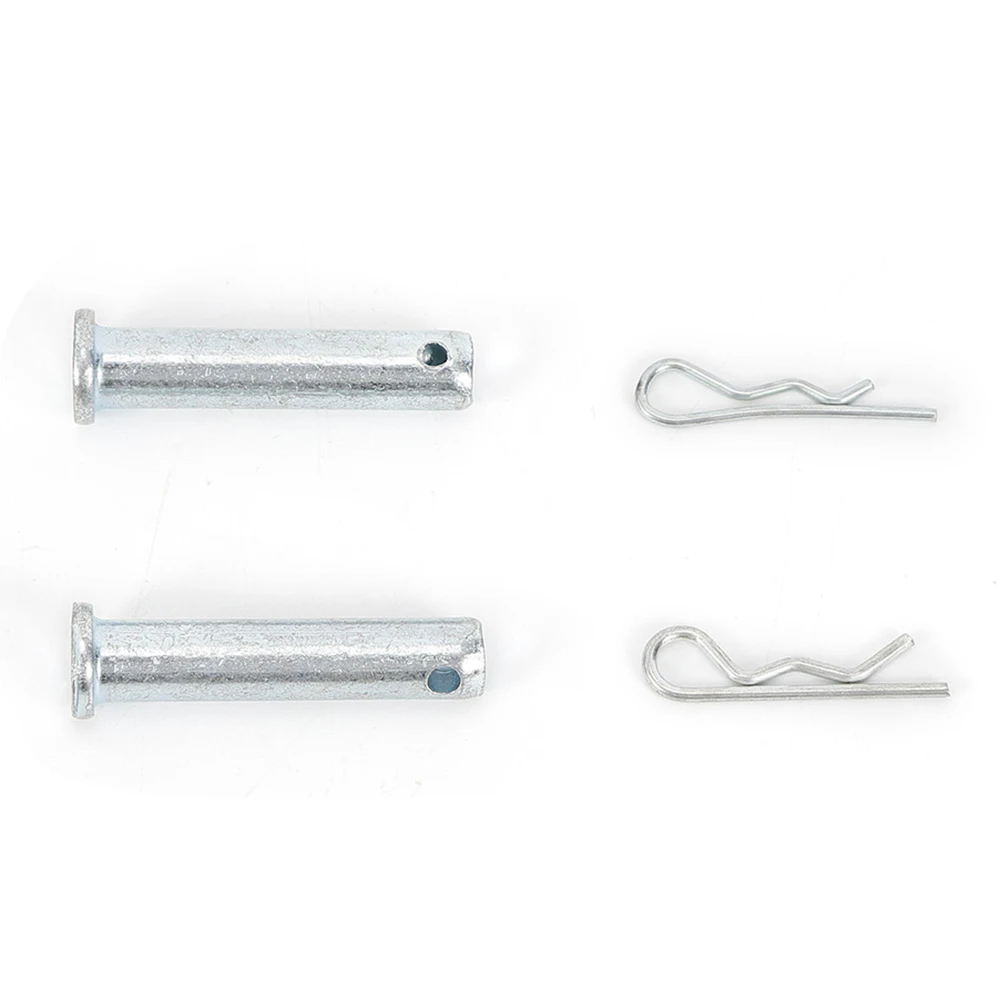

1 x Set Of Accessories
