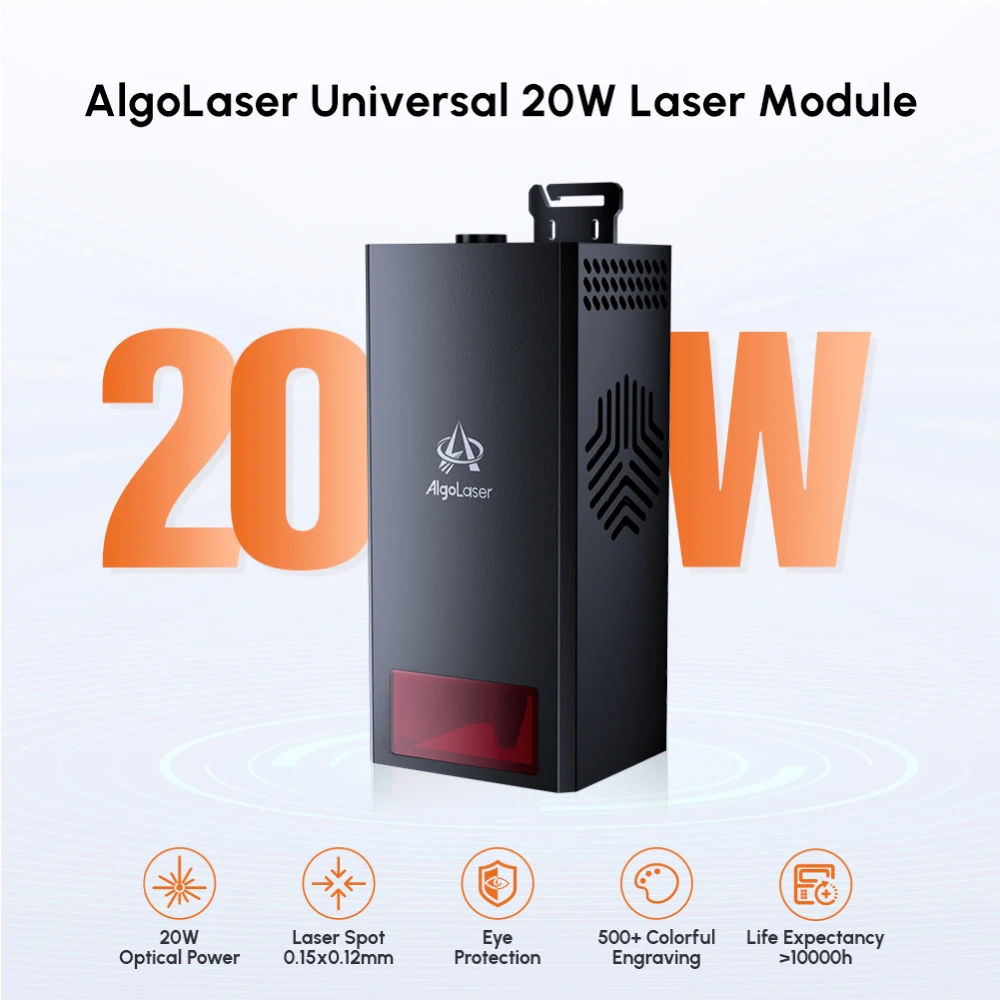

AlgoLaser 20W Optical Power Laser Module with Air Assist TTL Blue Light Module for CNC Cutter Woodworking Tools and Accessories

AlgoLaser 20W Optical Power Laser Module with Air Assist TTL Blue Light Module for CNC Cutter Woodworking Tools and Accessories

Product Features

1. High Power Laser Module--- 4-Beam compression technology, 20W optical power laser module

2. Powerful Cutting Ability

Cut 10mm bass plywood:  150mm/min,  100% power,  by one pass

Cut 9mm bamboo:  100mm/min,  100% power,  by one pass

Cut 10mm black acrylic:    80mm/min,    100% power,  by one pass

Cut 6mm MDF: 150mm/min,   100% power,  by 1 pass

3. Professional Air Assist--- with standard 30L air Pump, Blowing through the air nozzle to get clean-cut edges, improve cutting performance

4. Super Fast Engraving Speed--- ultra-fast engravingon stainless steel-300mm/s

5. Widely Compatibility--- Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

Engraving Material:

Plywood, Pine board,Black acrylic, Leather,MDF,Ceramics,Bone,Coated glass,Mirror stainless steel,Brushed stainlesssteel, Stone,Bamboo,Rubber,Alumina,Solid wood

Cutting Material:

2-20mm Plywood, 2-20mm Black acrylic, 4-8mm MDF, 2-30mm Pine board, 5-6mm Leather

You May Be Wondering:

1. Newest Technology, High-energy, Ultra-fine Laser:

Laser power can be 5W/10W according to the newest FAC and light refraction technology, the spot size is 0.08*0.08mm, can cut 5mm colorful acrylic & 8mm plywood, clearly engrave metal, ceramic, glass, stainless steel and so on.

2. What is the title says 20W, but the Laser power is 20W too?

its actual laser output power should be 20W.

3. Is it possible to engrave metal?

Yes, Our laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.

4. Is it possible to engrave glasses cups?

Yes, it can engrave glasses.

5. Can this machine only cut dark acrylic?

Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.

6. Is there user manual?

Yes, there are user manual in paper in the box, also some assembly videos.

7. Has any warranty?

Our laser engraving machine has 1 year warranty, Laser has 3 month warranty ,the parts can be replaced free, you just need pay for the shipping cost.

8. Do I have to pay for tax?

We have warehouses in China, Russia, Russia will not need to pay customs duties,other countries need to pay .

Widely Compatible Design

Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines

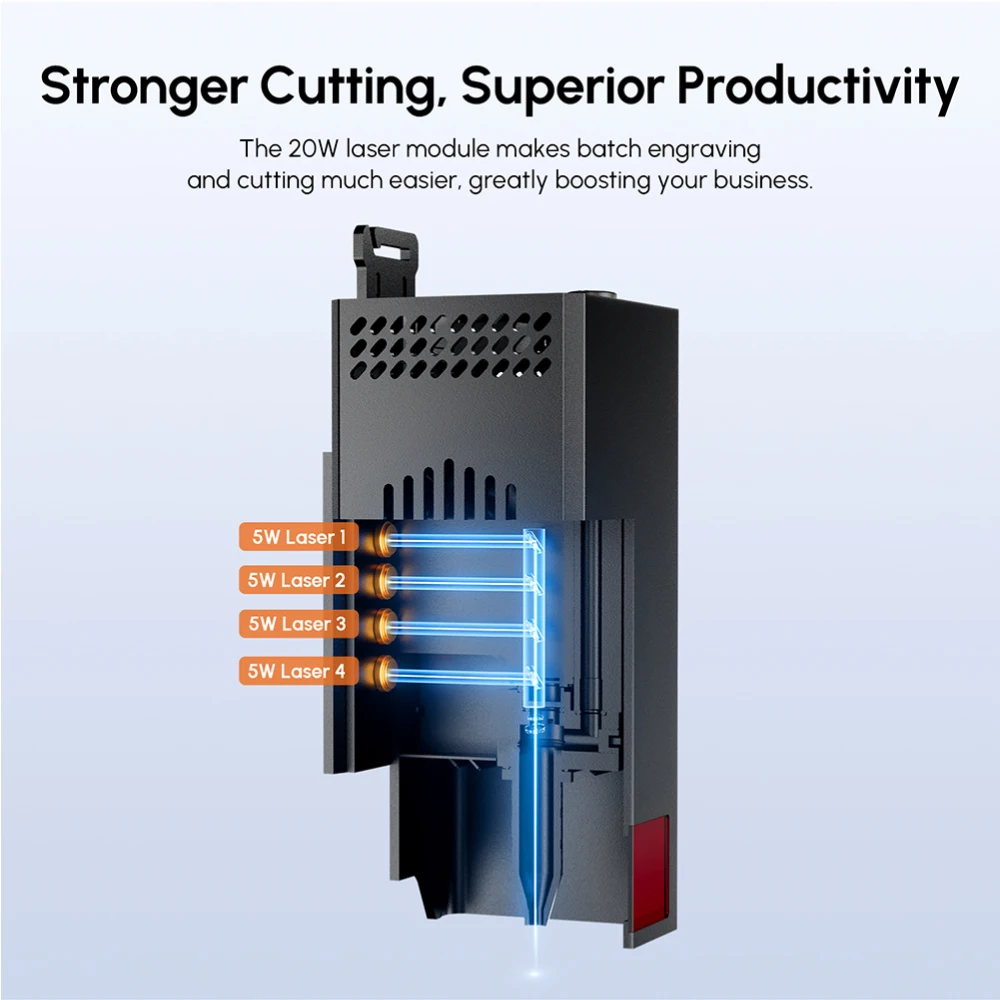

Dual-LDs with Beam Compressed Technology

One laser module has Four built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

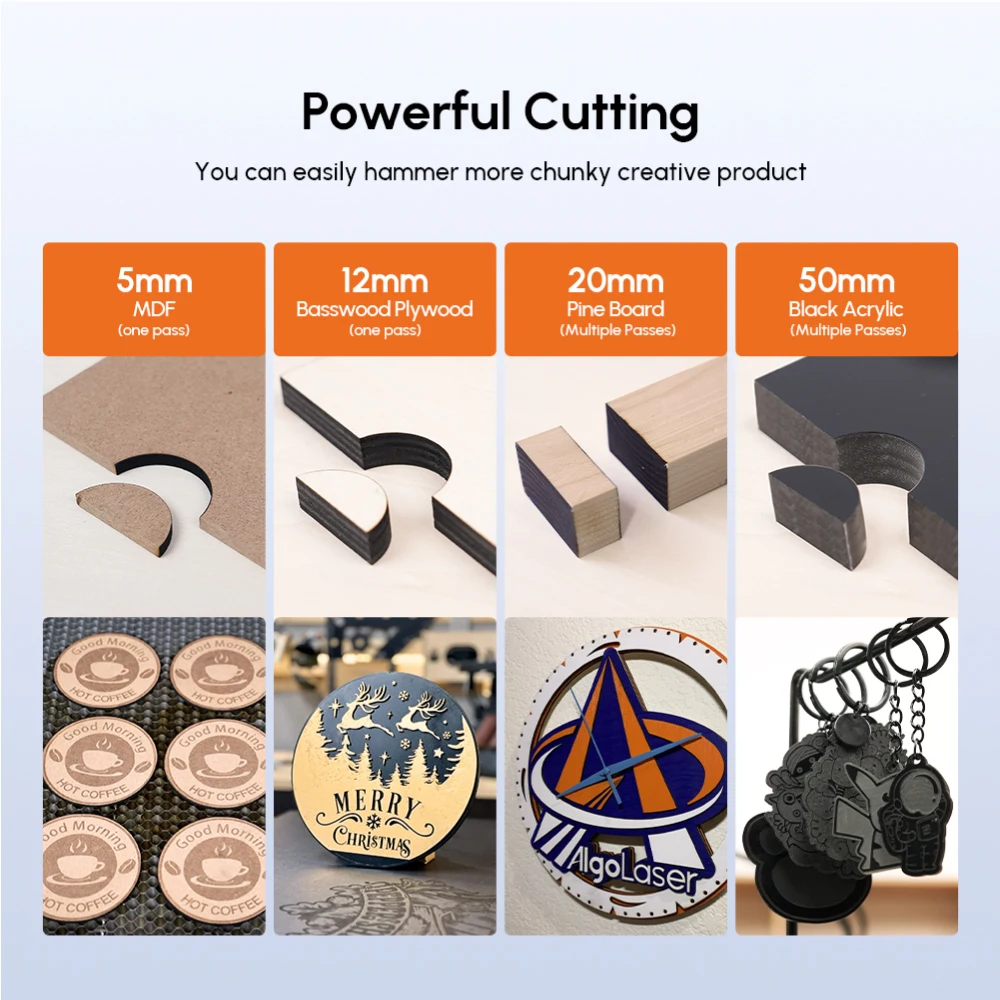

Powerful Cutting Ability

Cut 10mm bass plywood:  150mm/min,  100% power,  by one pass

Cut 9mm bamboo:  100mm/min,  100% power,  by one pass

Cut 10mm black acrylic:    80mm/min,    100% power,  by one pass

Cut 6mm MDF: 150mm/min,   100% power,  by 1 pasMinimum 0.08mm Ultra-thin Beam

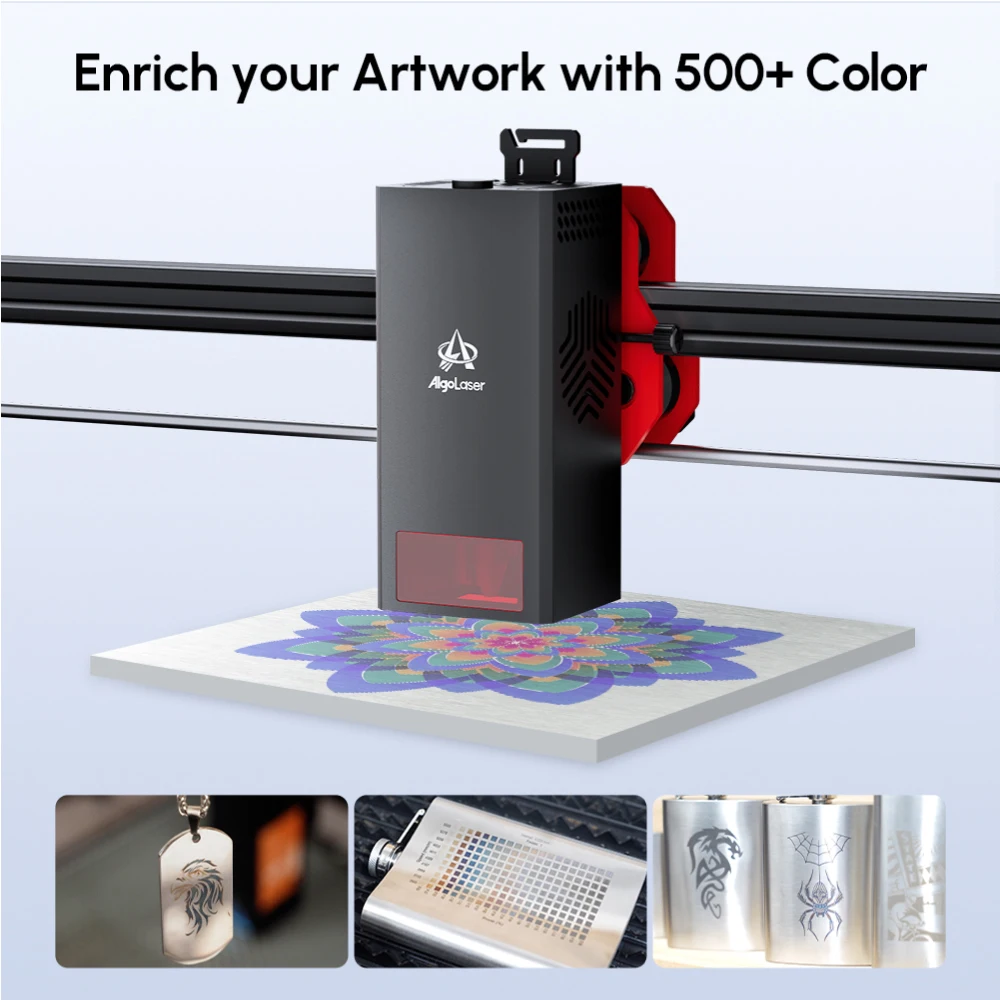

Ultra-fast engraving on plywood, special on stainless steel with colorful marking.

500+ colors

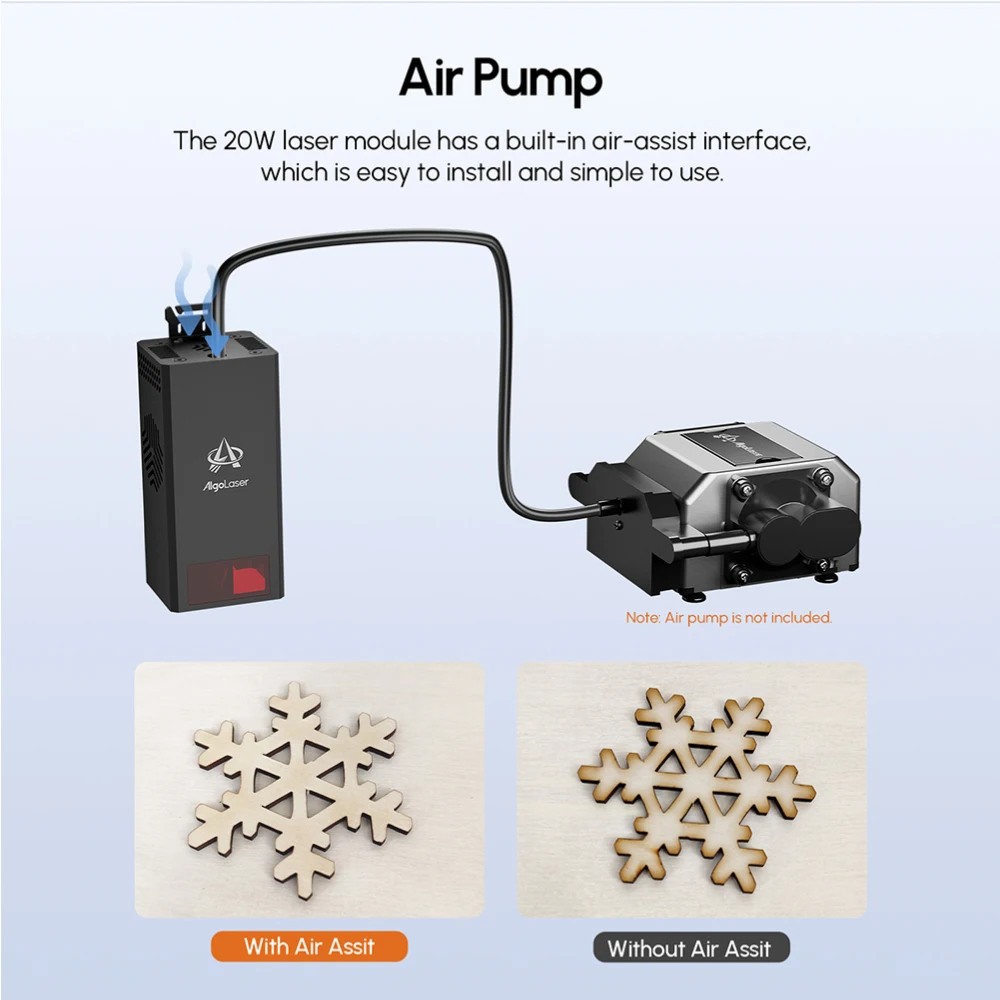

With Air Assist VS No Air Assist

Blowing through the air nozzle to get clean-cut edges, improve cutting performance

without Air Nozzle:  Scorched Edges

with Air Nozzle:  Clean-Cut Edges

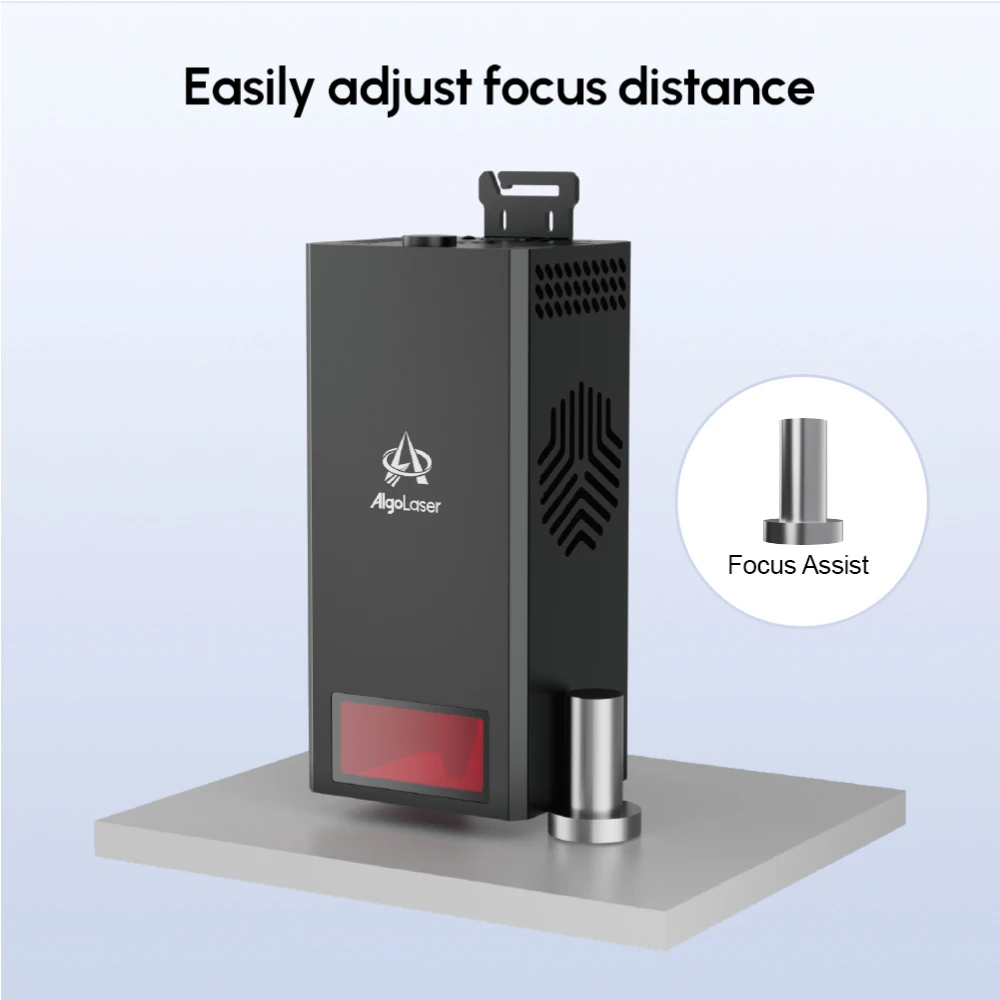

The Best Focus Length For Engraving Focus Length (Focus Assist)

Magnetic Eye Protection Cover

Easy to remove and install

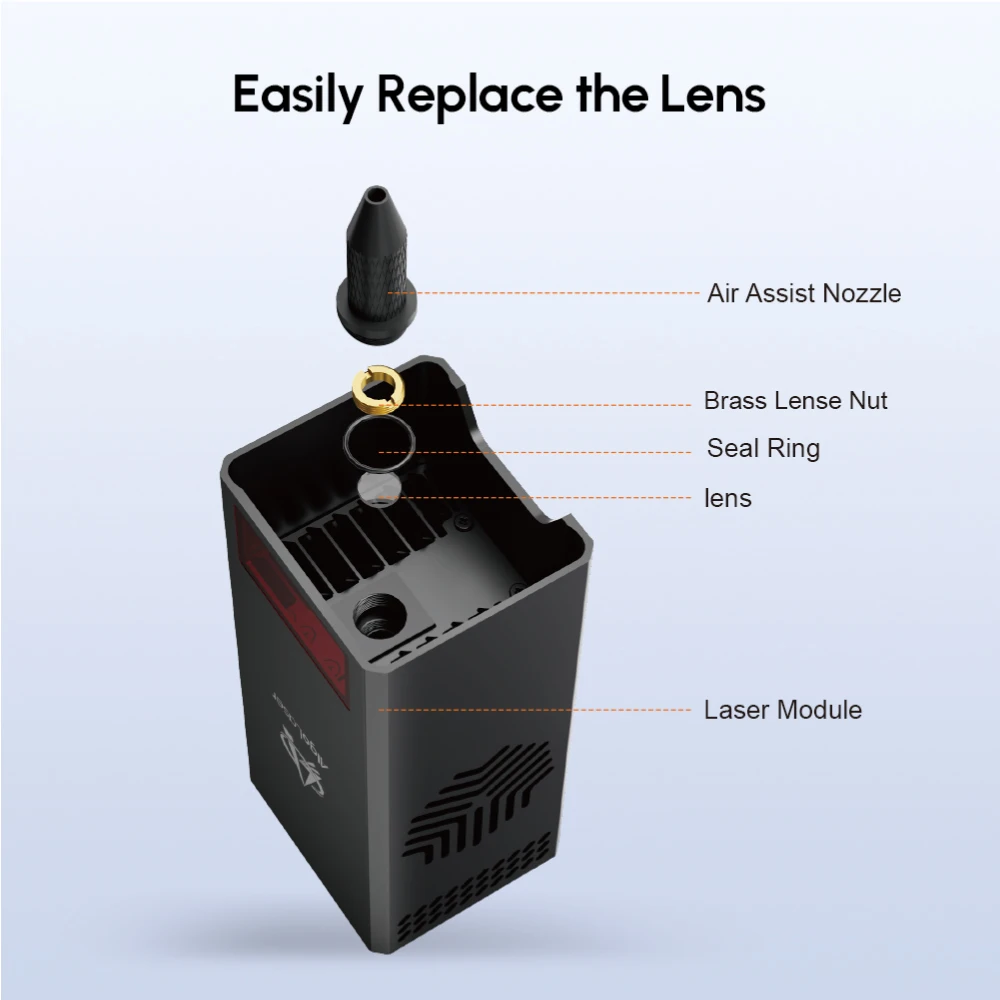

With Free lens for replacements

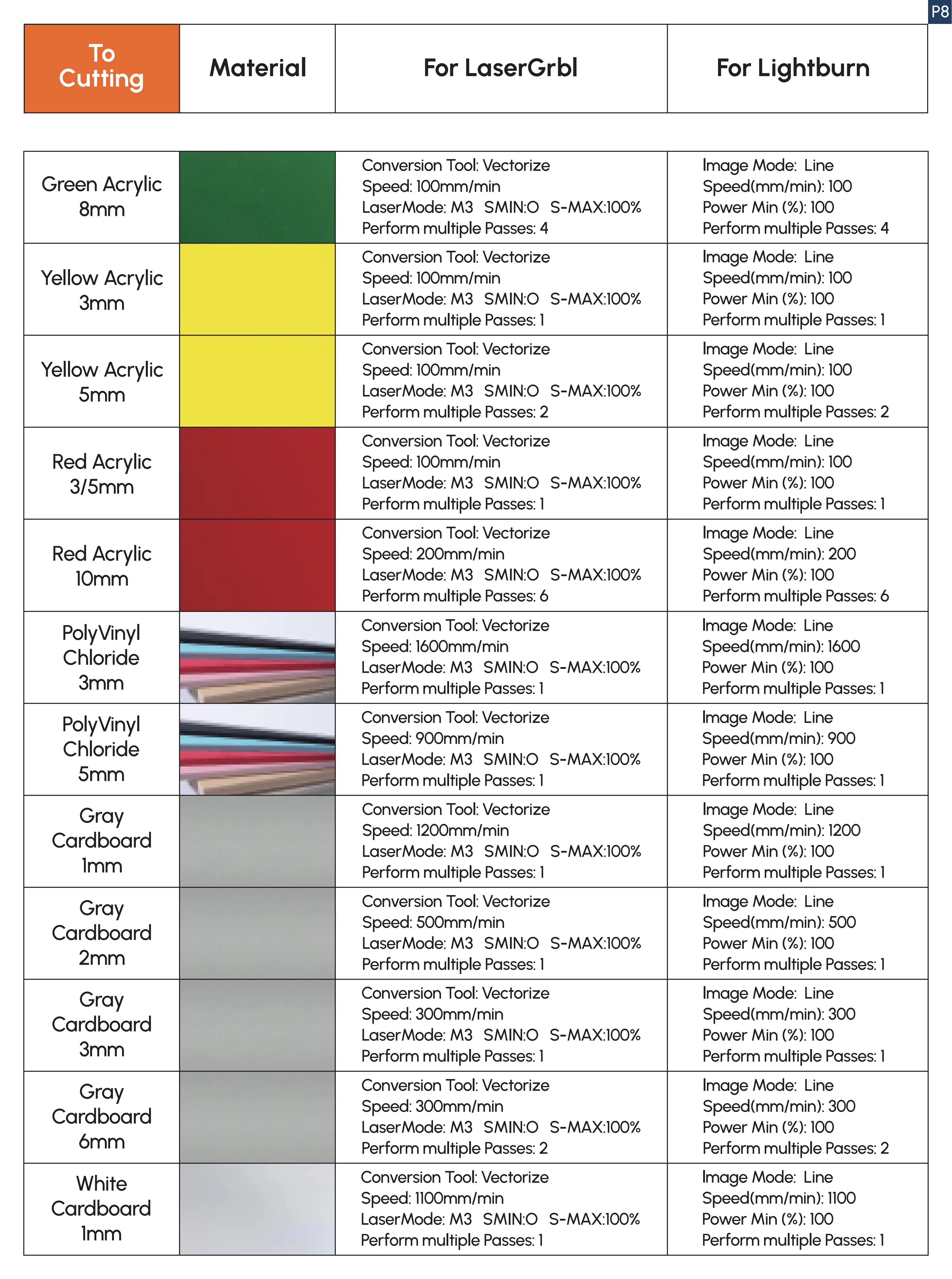

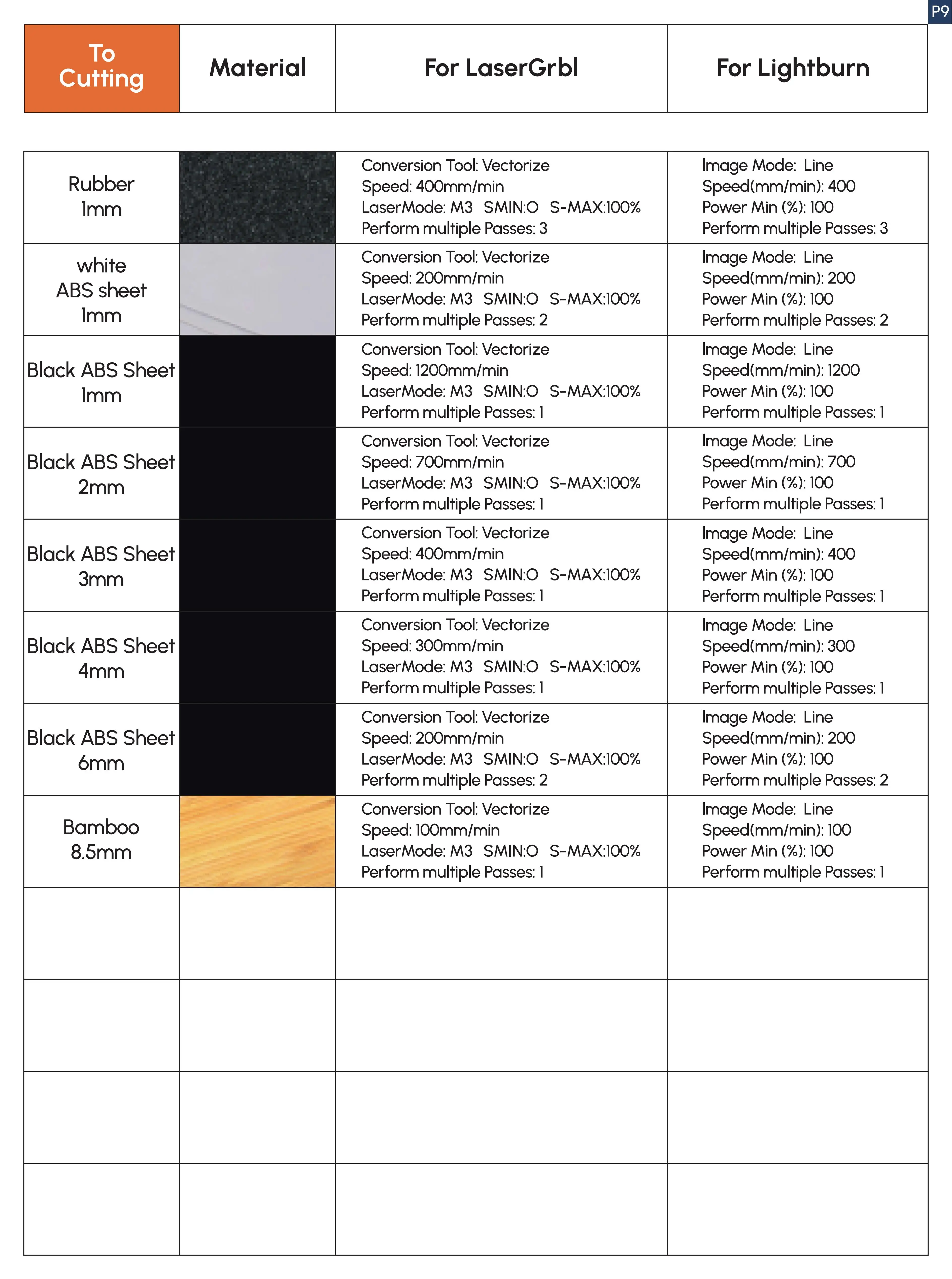

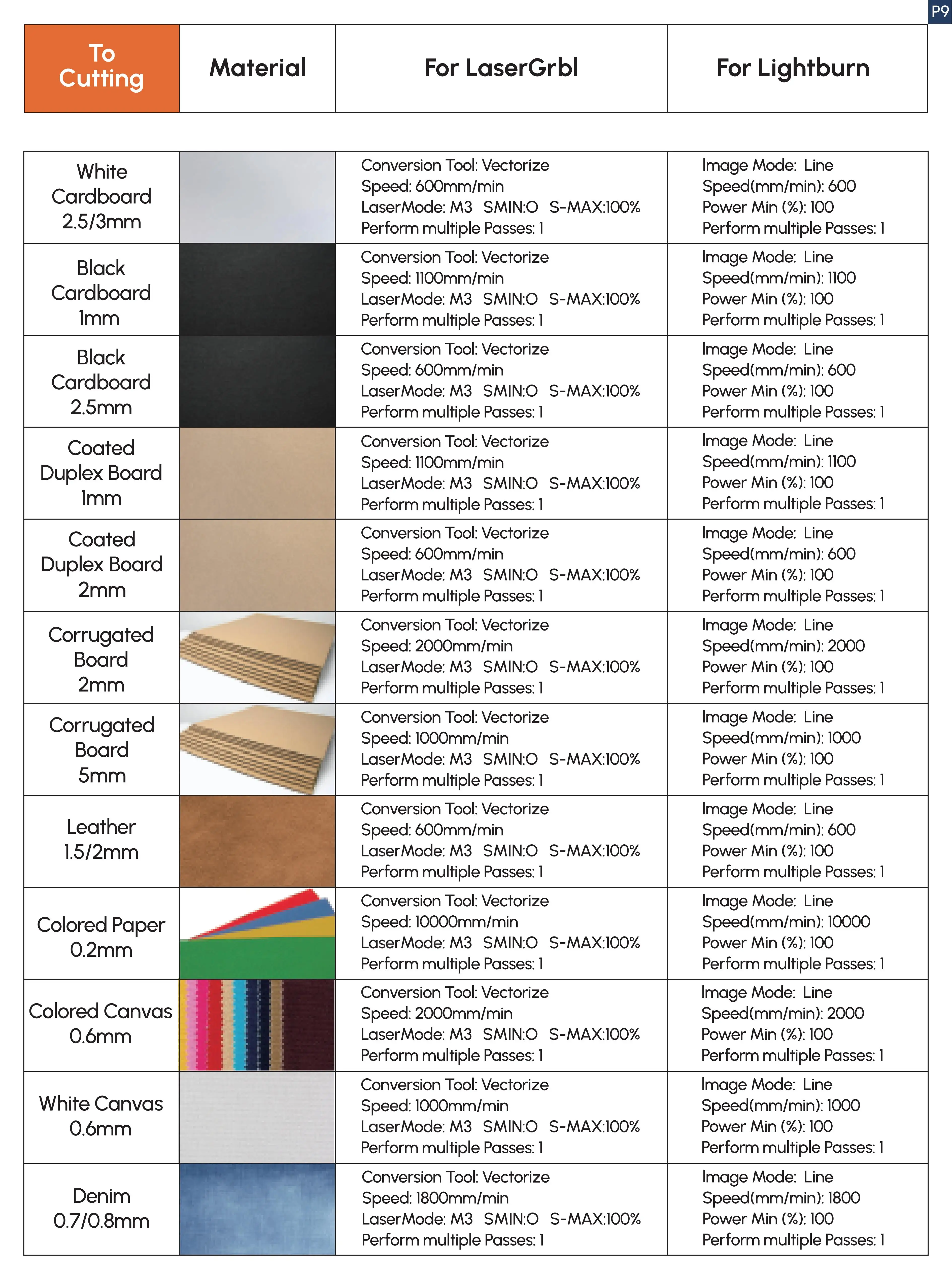

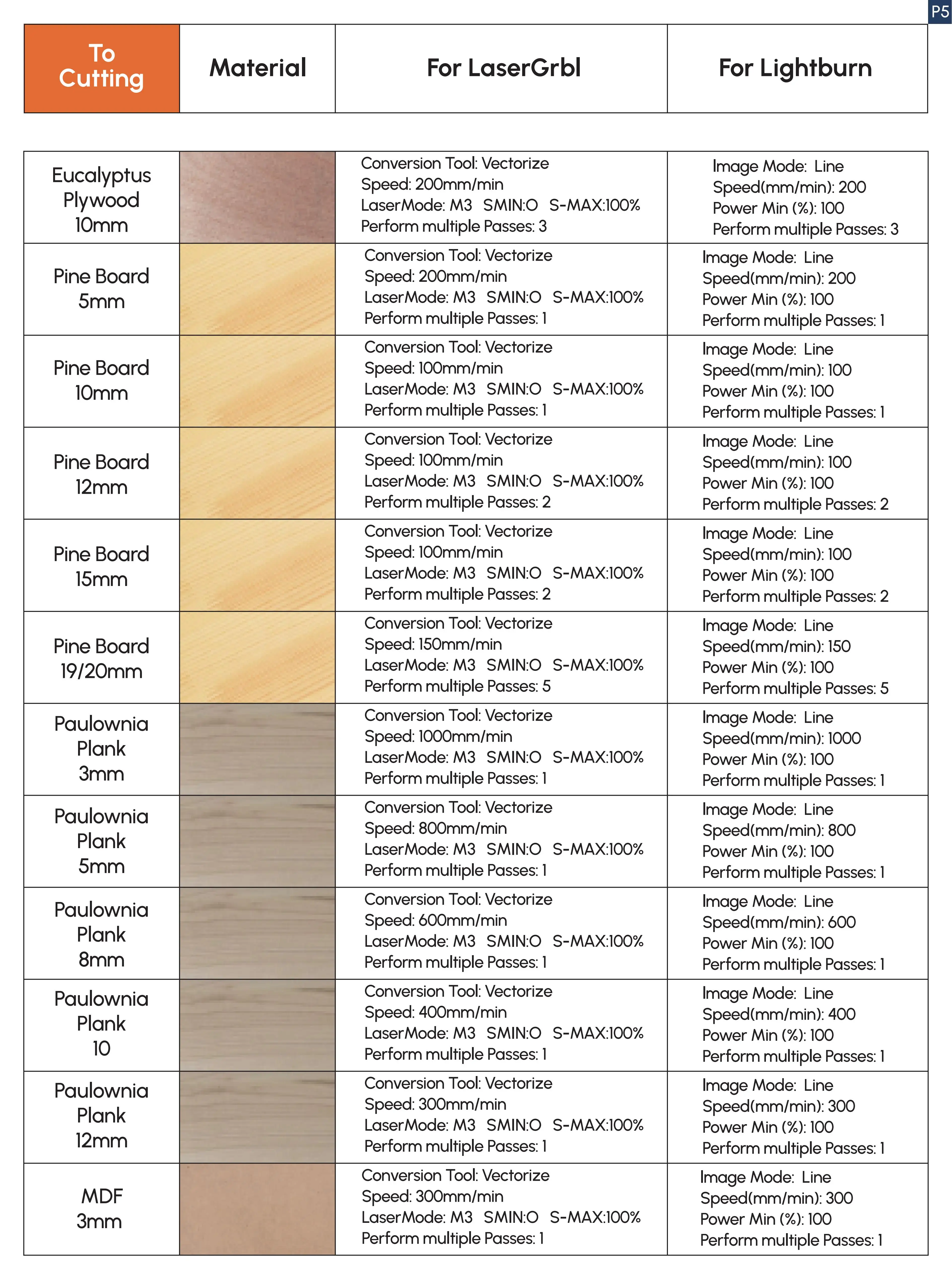

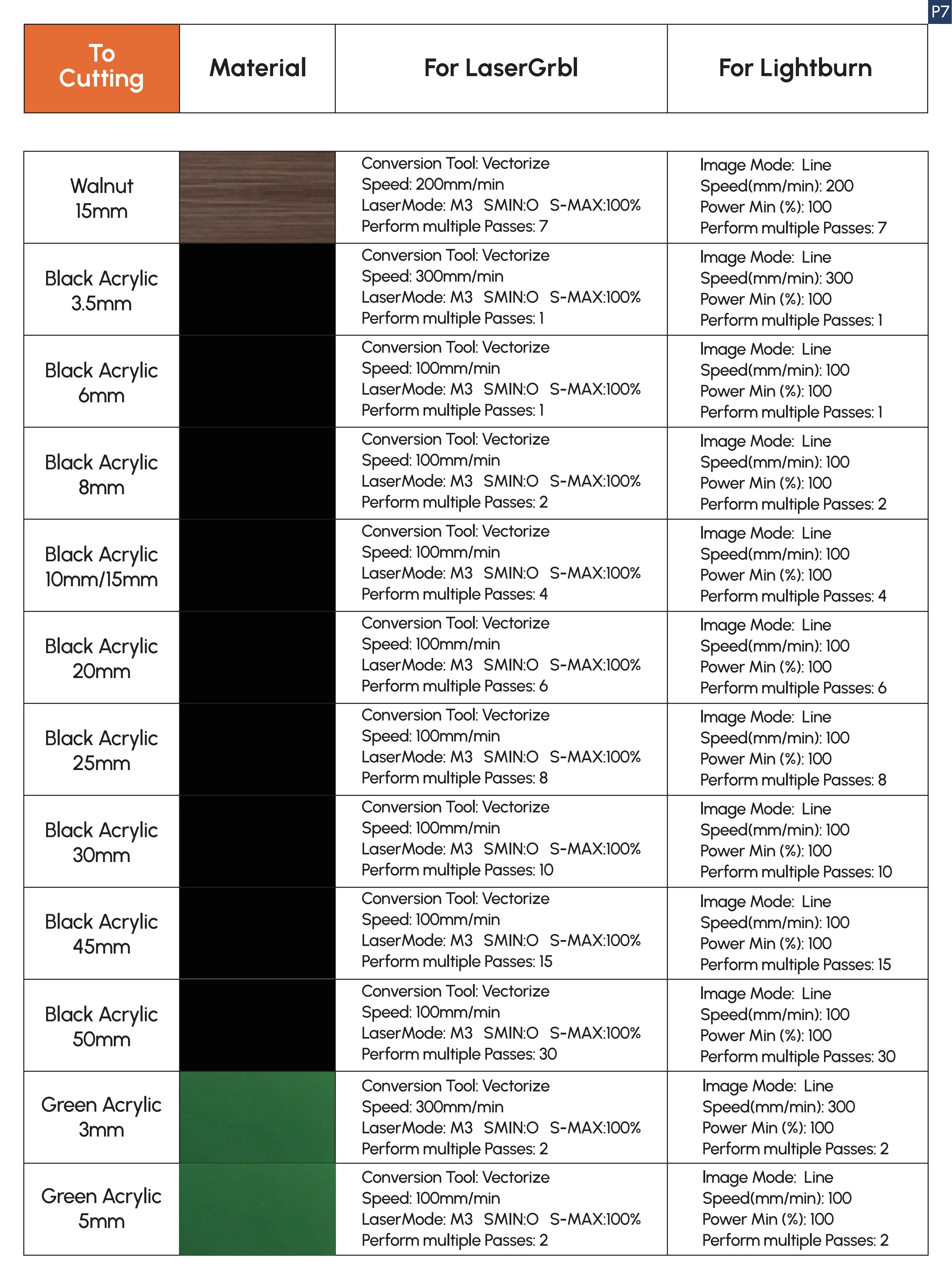

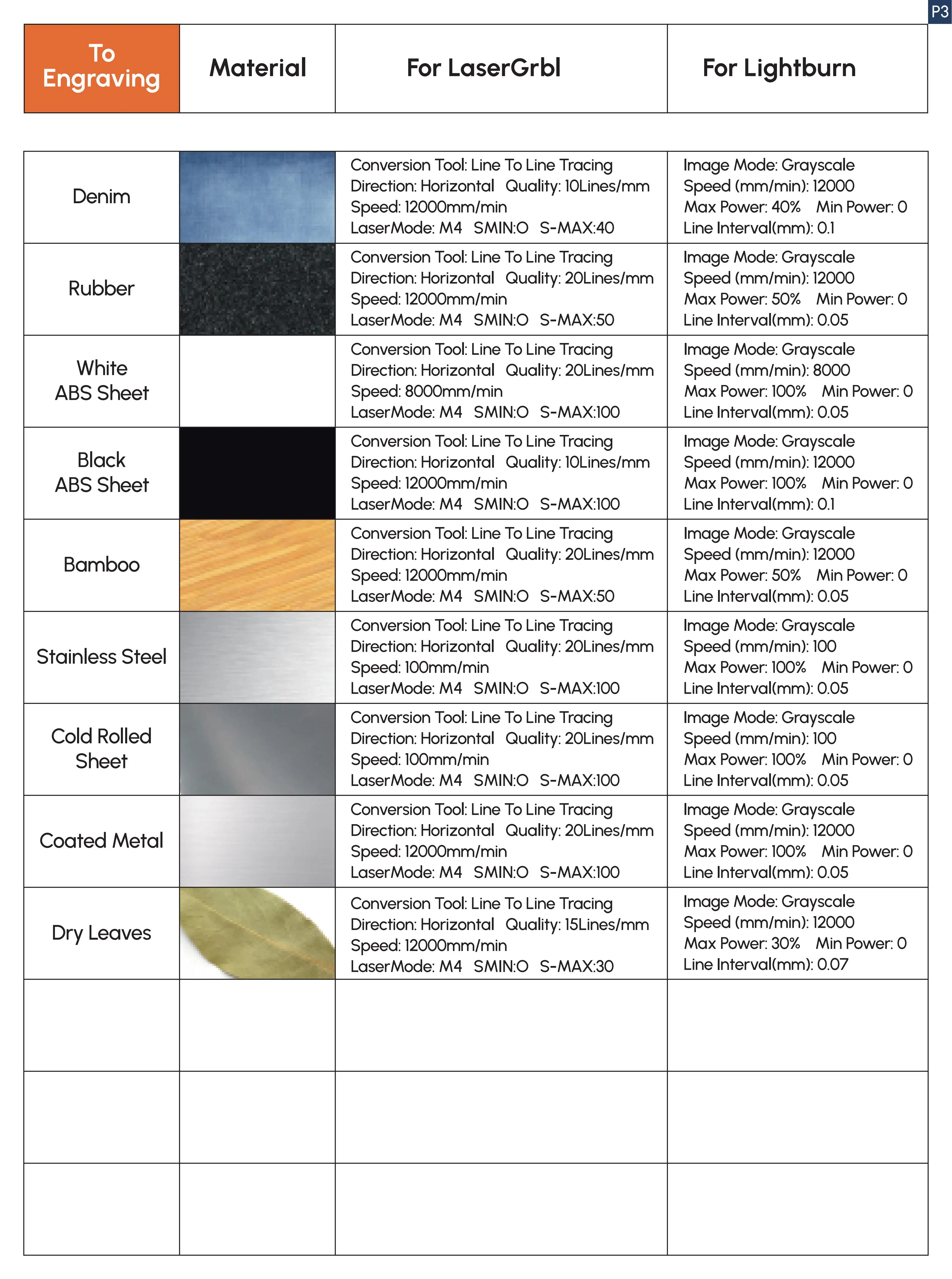

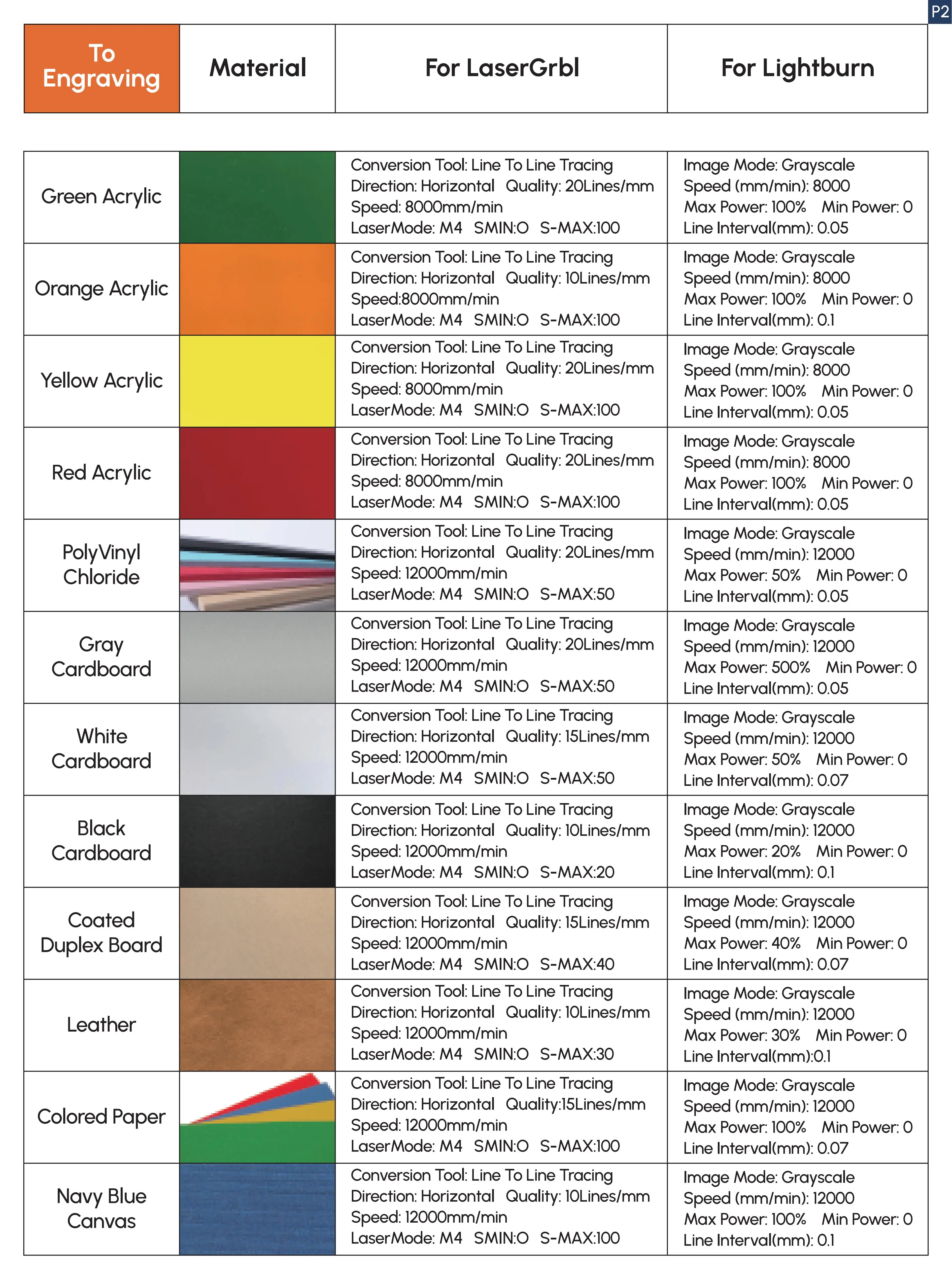

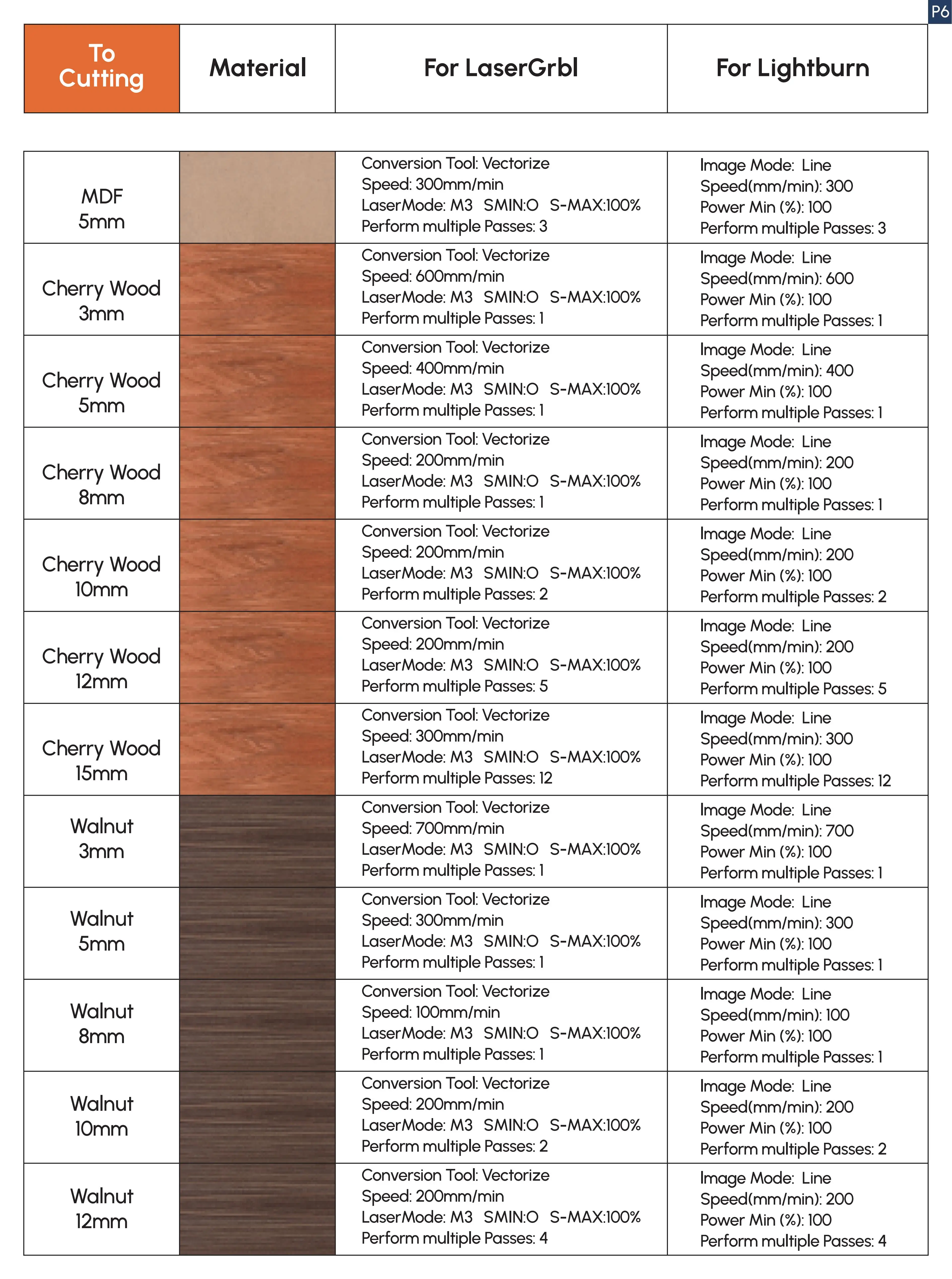

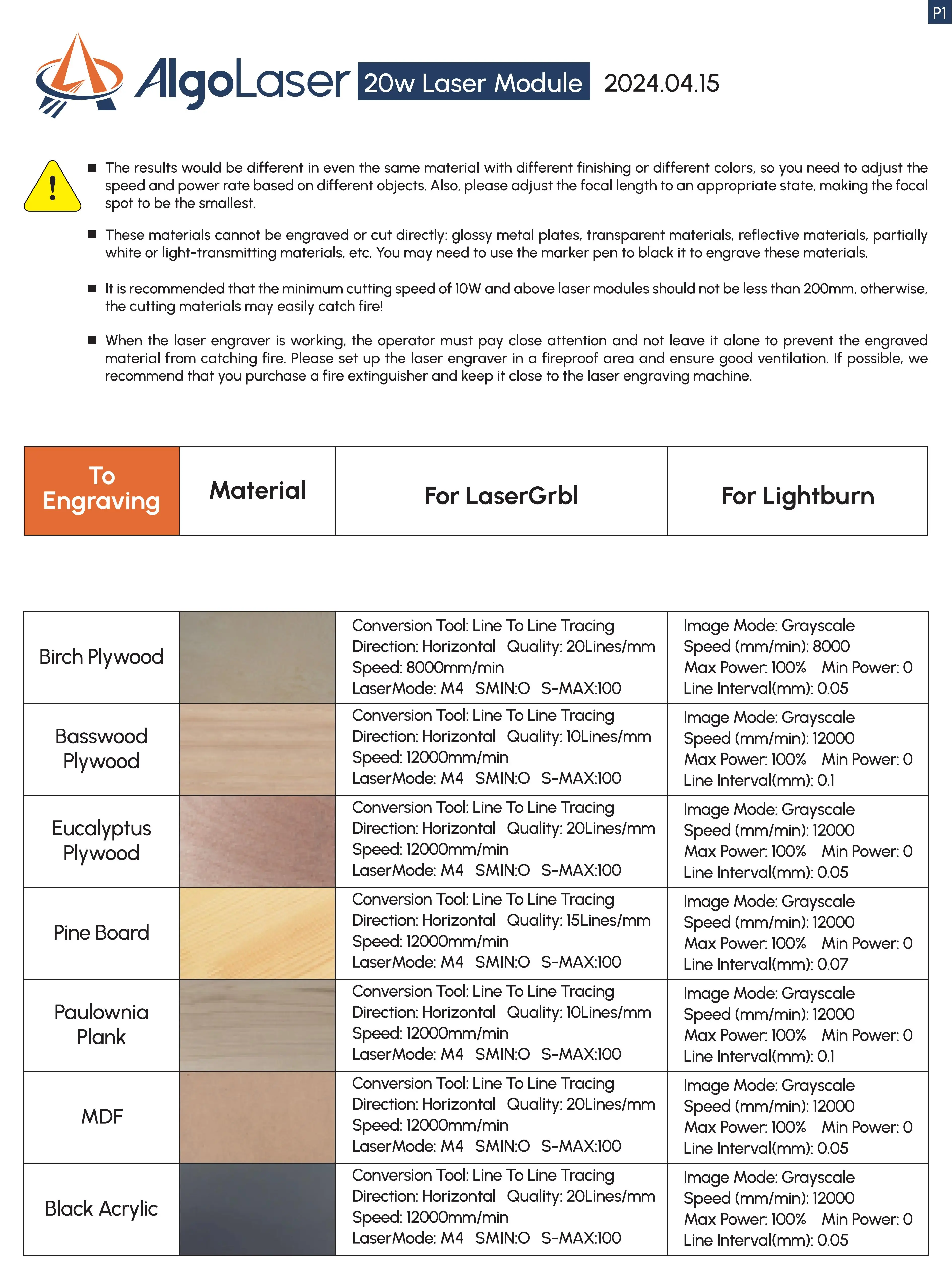

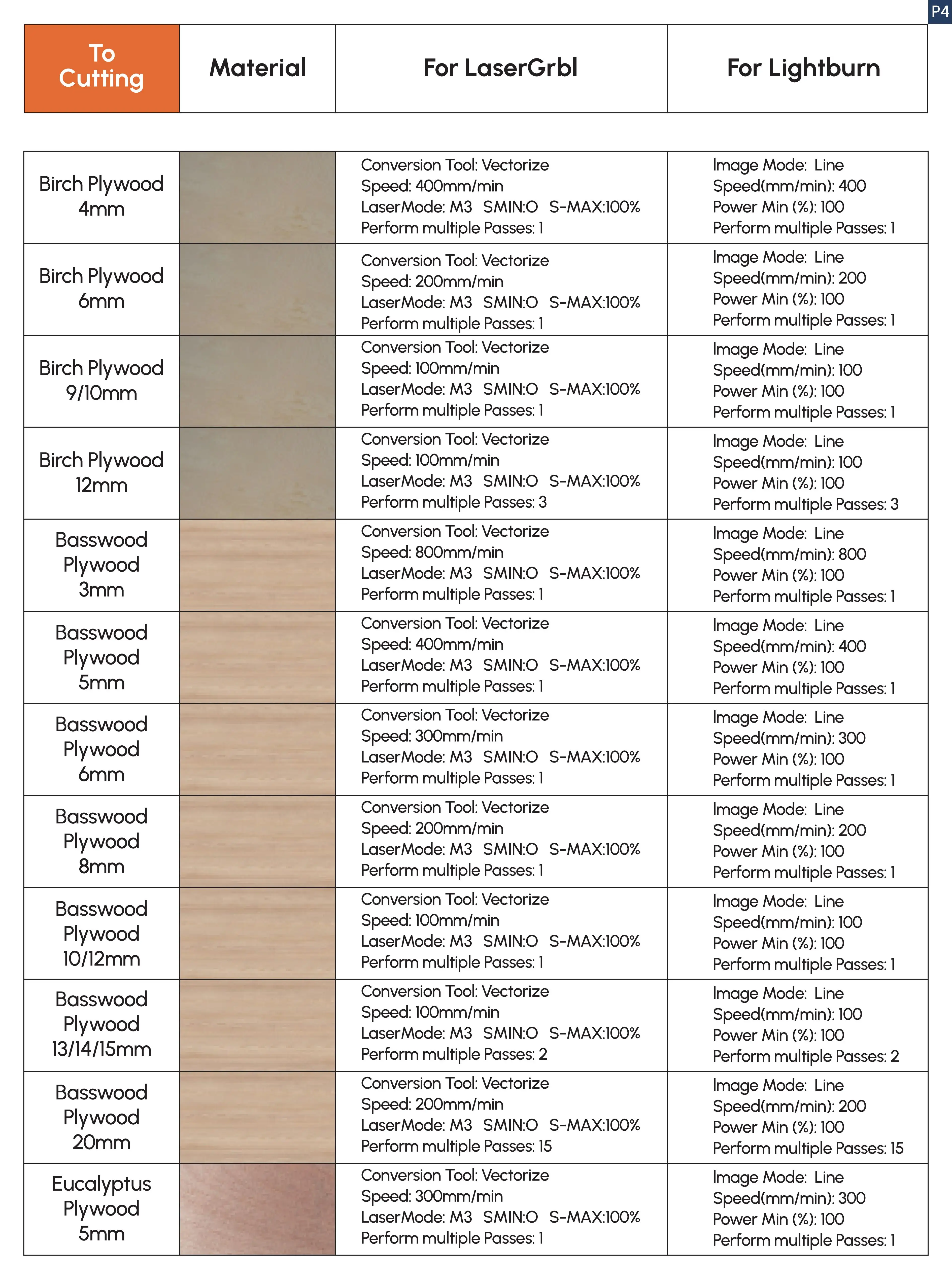

Reference settings for cutting/engraving

FAQ:

About AlgoLaser Official Store

Welcome to AlgoLaser Official Store, we dedicated to offering you laser engraving machines with Fast Delivery, Reliable Quality and Affordable Price.  We have lots of inventory in Russian, Czech republic, Spain, United States, Brazil, Mexico and China warehouse, about 3-7 Business Days Fast & Free Shipping. And we are original AlgoLaser original manufacturer in Shenzhen, China, you could rely on us for the consistent quality and service!

About Tax:

Most countries we ship the parcel for free shipping, but we do not cover any tax and duty!

About customs charging fee . no body can control, every country has different Import and export tariff system.

About Maintenancece:

All products have12 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. Usually we do not accept return. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.

About delivery:

we need 1-3 days handle order in factory when payment received. As normal, it needs 5-7 days update first tracking and 15-60 days for delivery. If you do not receive the goods as promised,pls feel free to contact us before opening a dispute or leaving us a negative feedback.We would reply you within 24 hours and provide the best solution. If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra fees
