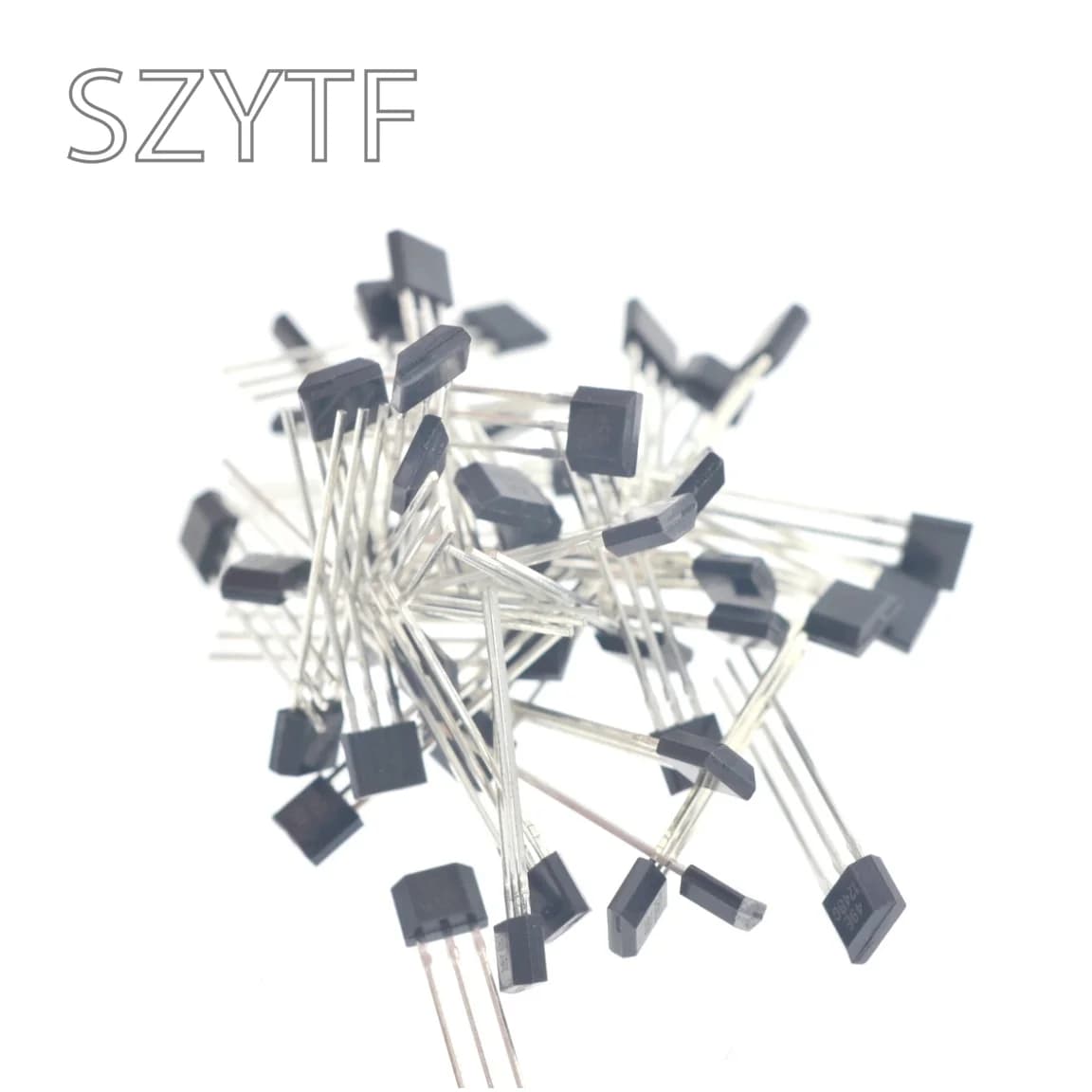

49E 41F A3144E US1881 AH3503 OH137 Hall Effect Sensor Hall Sensor Motor(10PCS/LOT)

A3144 OH3144  Y3144 Hall sensor TO-92UA (10PCS/LOT)

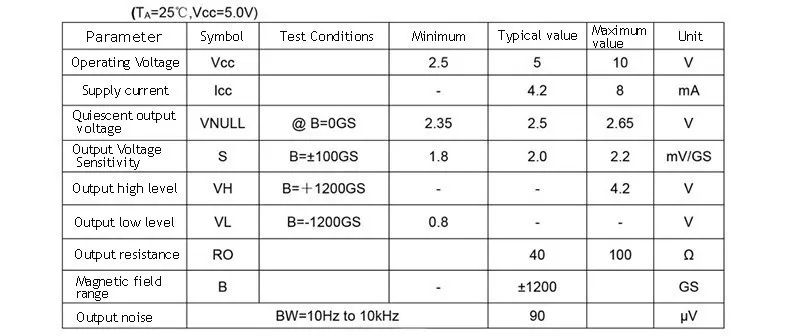

49E is a small, multi-function linear Hall, its input is the magnetic induction intensity, and the output is a voltage proportional to the input. The integrated circuit has a low noise output, which makes it unnecessary to use external filtering. It also includes precision resistors for more temperature stability and accuracy.

Features

Single current source output

low noise output

Both positive and negative magnetic fields can be sensed

typical application

Magnetic reader

Current Detection

motor control

position detection

Liquid level sensing

weight sensing

Vibration sensor

ferrous metal detector

Electric bike governor

Other applications for detecting magnetic fields.

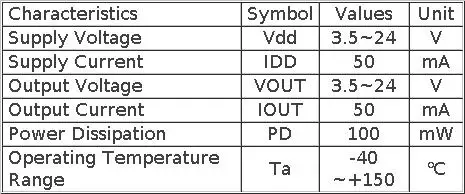

Limit parameters

Overview：

41 Hall lock IC is composed of reverse voltage protector, voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and output stage, which can convert the changing magnetic field signal into digital voltage output.

Features：

High sensitivity, anti-stress, wide voltage range, guaranteed locking under high temperature and high pressure

typical application：

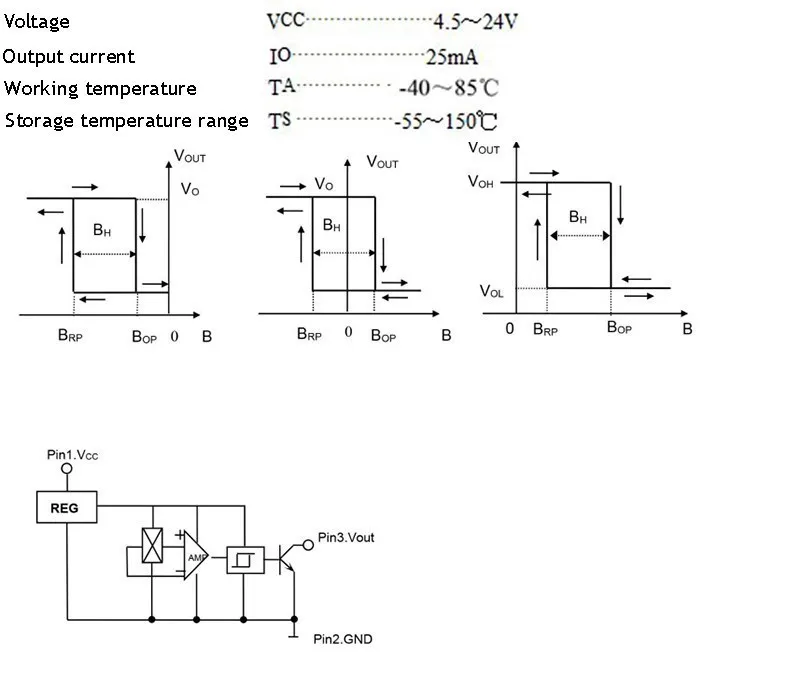

Highly sensitive non-contact switch, DC brushless motor, DC brushless fan limit parameters (25 ℃)

General Description US1881 The US1881 is a bipolar Hall effect sensor IC fabricated from mixed signal CMOS technology. It incorporates advanced chopper stabilization techniques to provide accurate and stable magnetic switch points. There are many applications for this HED in addition to those listed above. The design, specifications and performance have been optimized for commutation applications in 5V and 12V brushless DC motors.The output transistor will be latched on (BOP) in the presence of a sufficiently strong South pole magnetic field facing the marked side of the package. Similarly, the output will be latched off (BRP) in the presence of a North field. The SOT-23 device is reversed from the UA package.The SOT-23 output transistor will be latched on in the presence of a sufficiently strong North pole magnetic field applied to the marked face.

Features-Chopper stabilized amplifier stage-Optimized for BDC motor applications-New miniature package / thin, high reliability package-Operation down to 3.5V-CMOS for optimum stability, quality and costFunctional Block DiagramsAbsolute Maximum Ratings ( at Ta=25℃ )

Overview:

Product model: OH137A0 Working temperature: -40~85℃, package TO-92S

The OH137A0 unipolar Hall switch circuit is composed of reverse voltage protector, voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and open collector output stage, which can convert the changing magnetic field signal into digital voltage output. Because of its reliable and stable performance, it is widely used in various fields as a non-contact switch.

Features:

Fast switching speed, no instant jitter

Wide operating frequency and good consistency

Bipolar non-locking

The circuit can interface directly with various logic circuits

Achievable functions:

Contactless switch

position detection

Speed detection

Traffic detection
