Upgrade Nema23 Stepper Motor Driver TB6600 4A DC9-42V Nema17 Drive For 3D Pinter Laser Engraving Machine CNC Router Controller

TB6600 Upgrade Stepper Motor Driver TB6600 4.0A DC9-42V Nema 17/23/34 Drive For 3D Pinter Laser Engraving Machine CNC Router

Please note to buyers: European warehouses cannot be shipped to areas whose postcode starts with 35/38/39.

Please choose China warehouse for delivery. (Some areas are remote areas, and additional remote fees need to be paid)

This is the reason for the logistics channel, which is not under our control.

We apologize for the inconvenience caused to you, thank you!

Introduction:

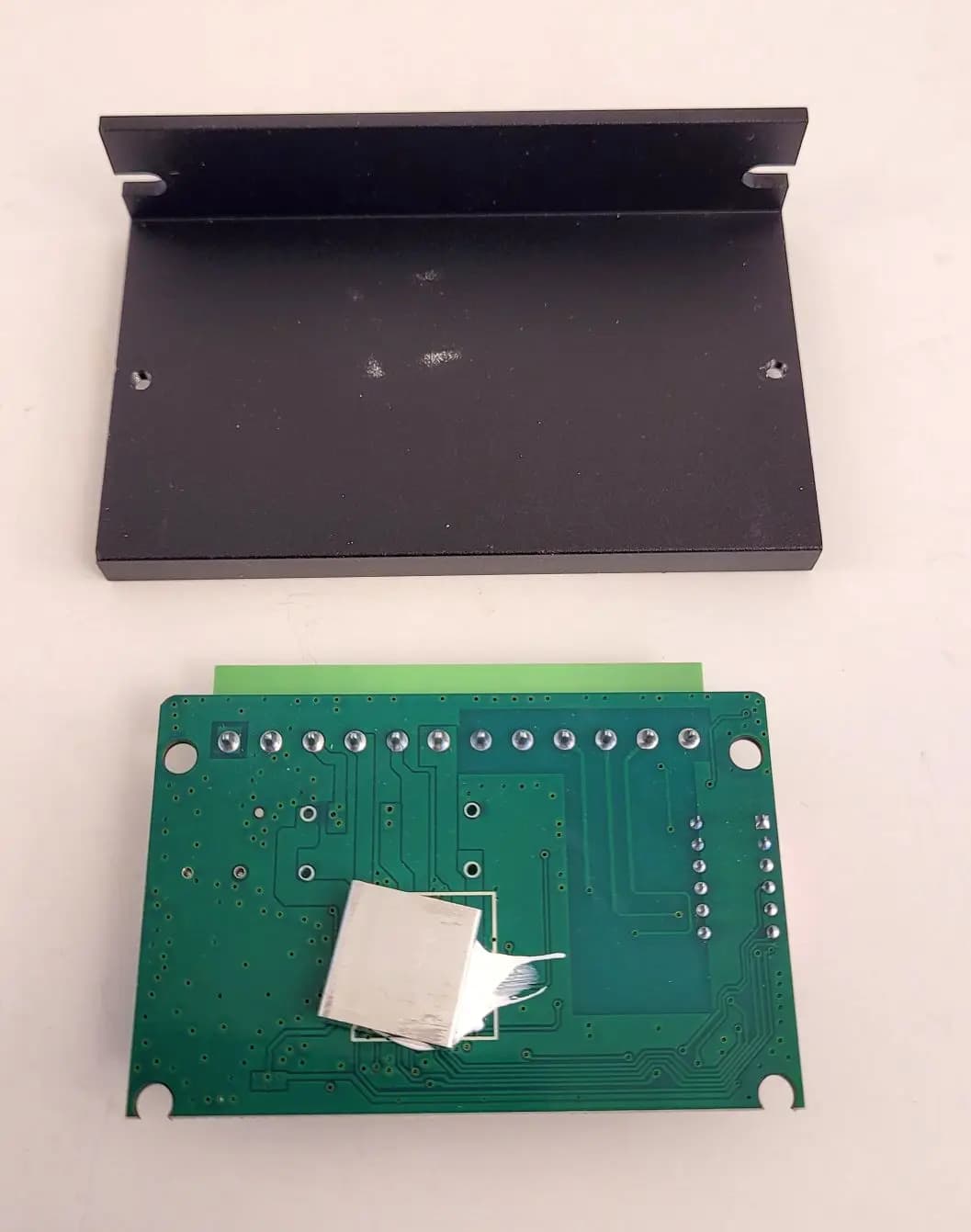

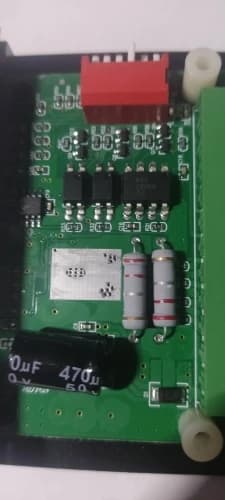

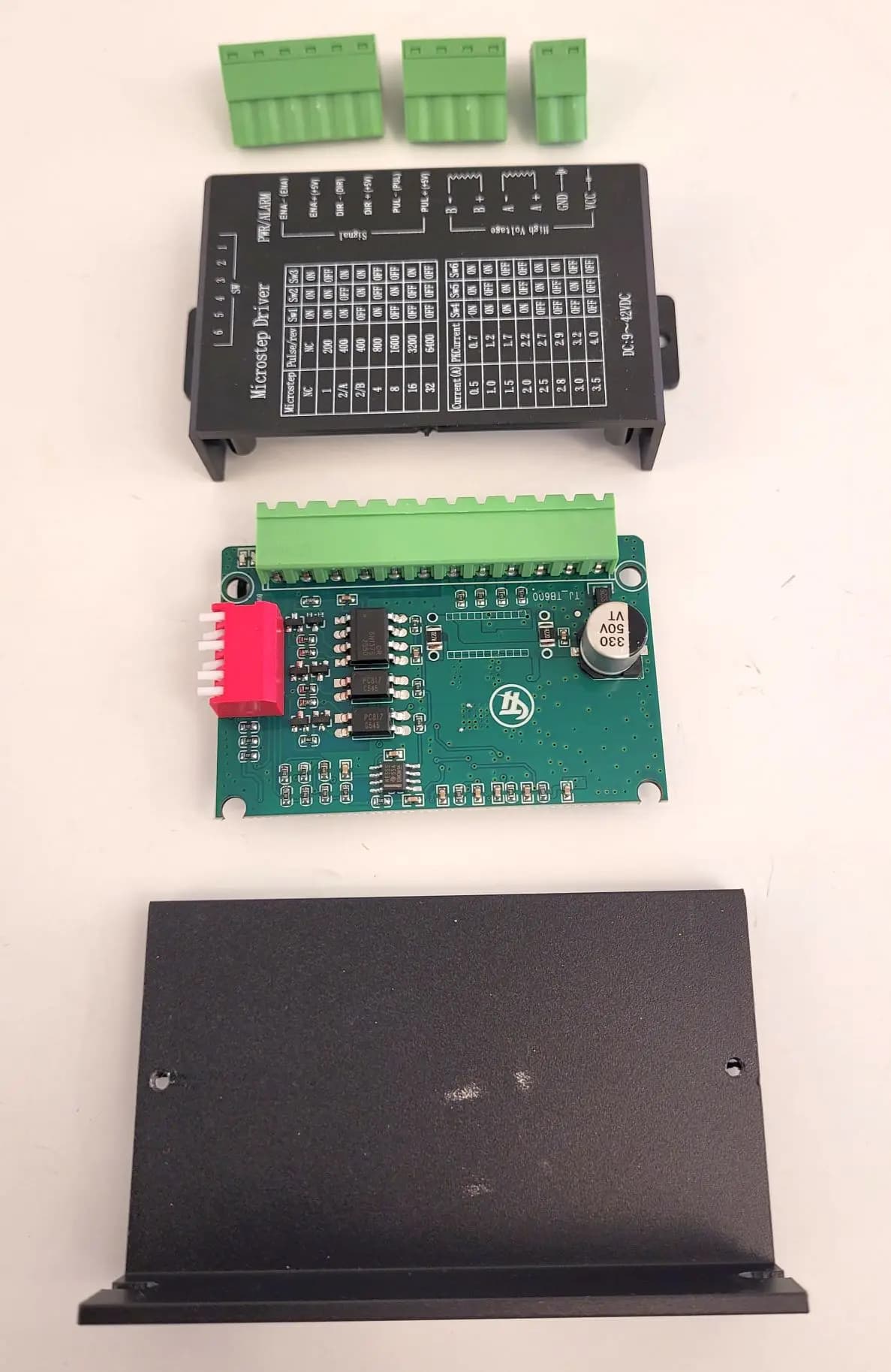

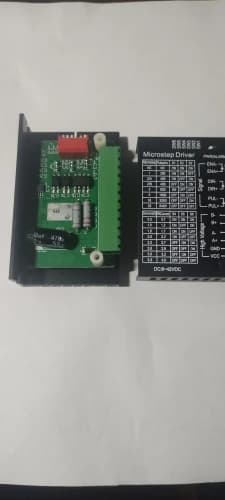

The upgraded version of TB6600 is a driver suitable for 57/42 type two-phase hybrid stepping motor with phase current below 4.0A.

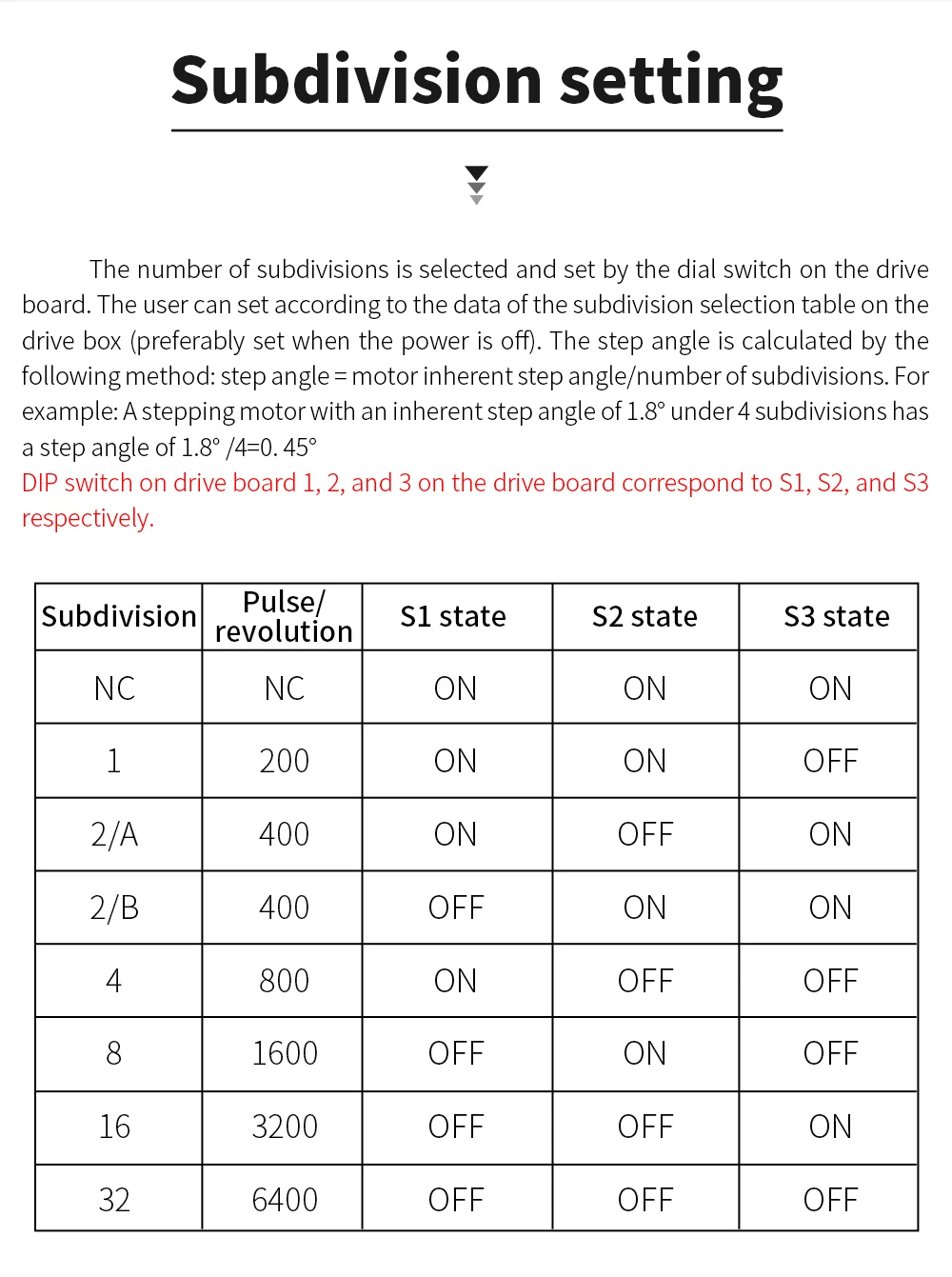

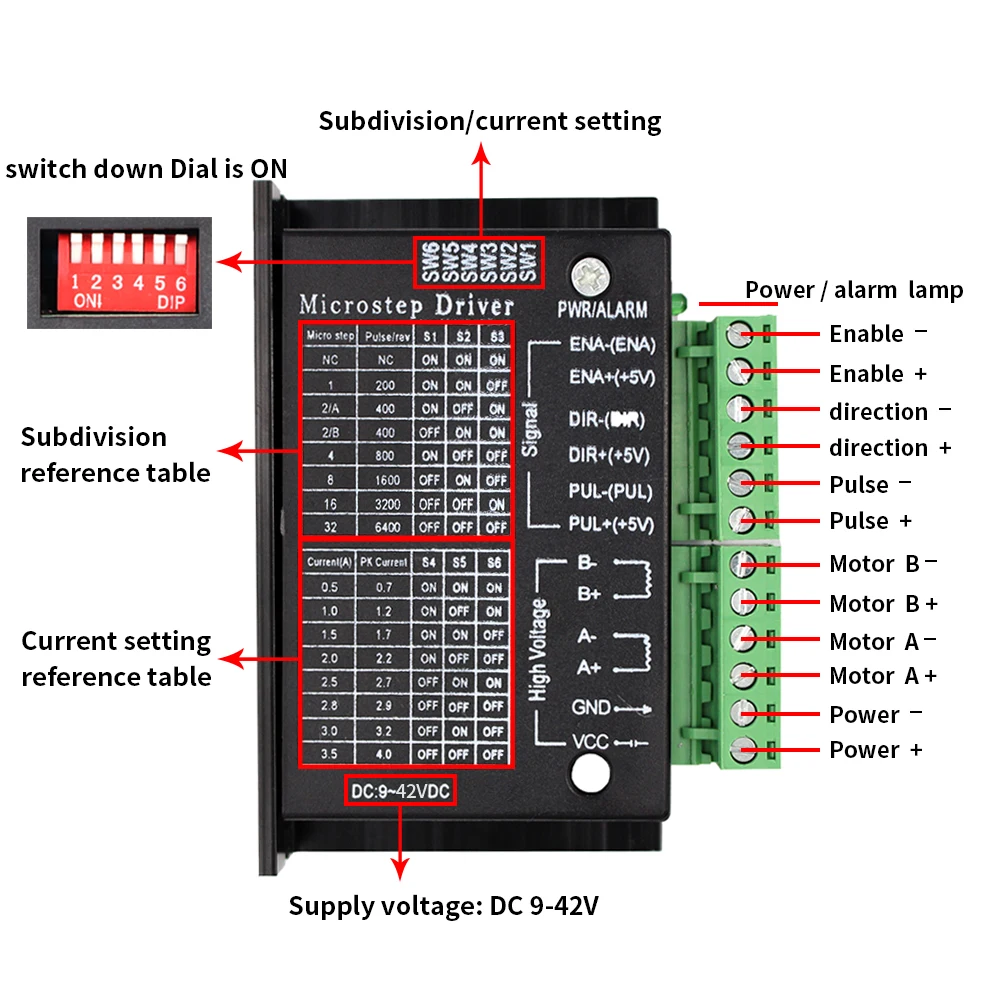

Set 7 kinds of subdivisions (1/2A/2B/4/8/16/32) through 6-bit DIP switch

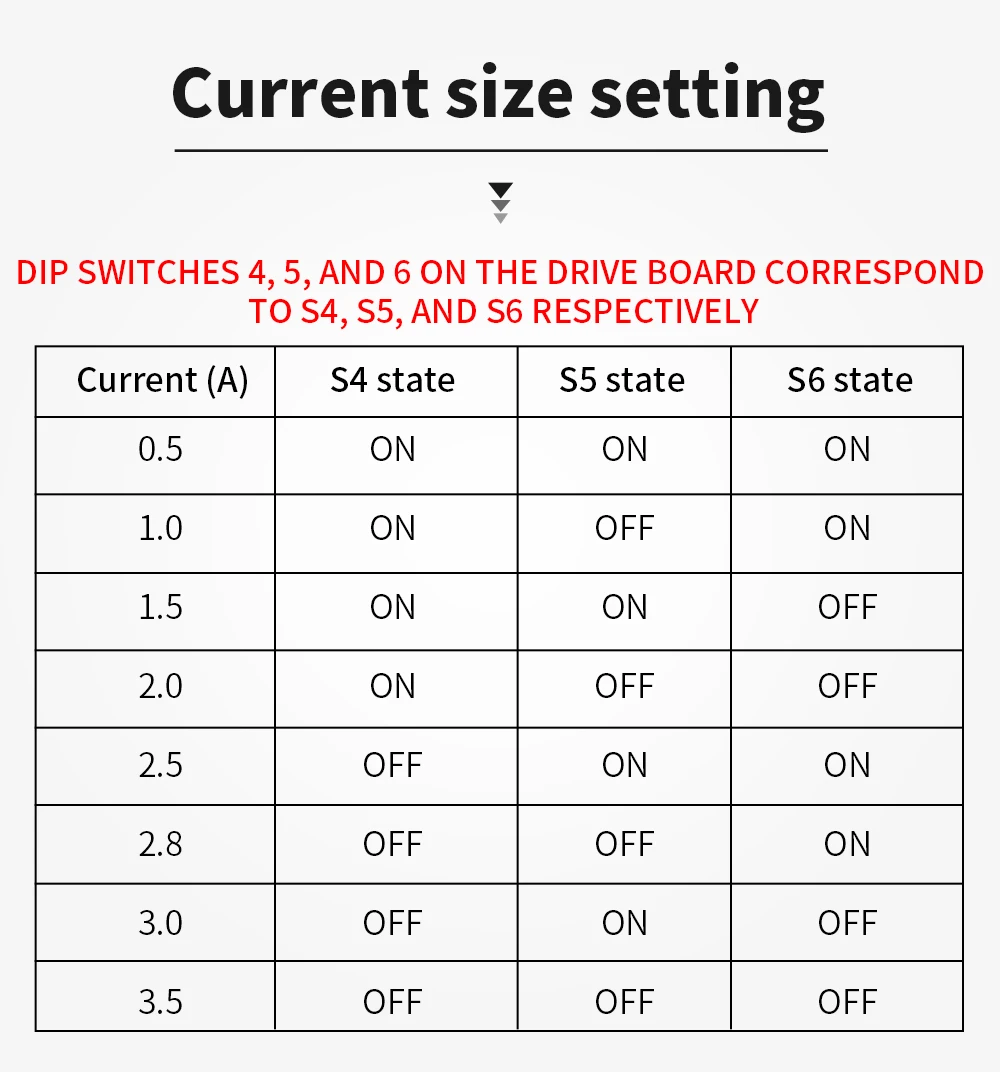

And 8 gear output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A)

Widely used in various small and medium-sized automation equipment and hardware,

Such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, crystal grinding machine, automatic assembly equipment, etc.

The best application object is 57 stepper motors and 42 stepper motors with a torque of 1.8N.m and below.

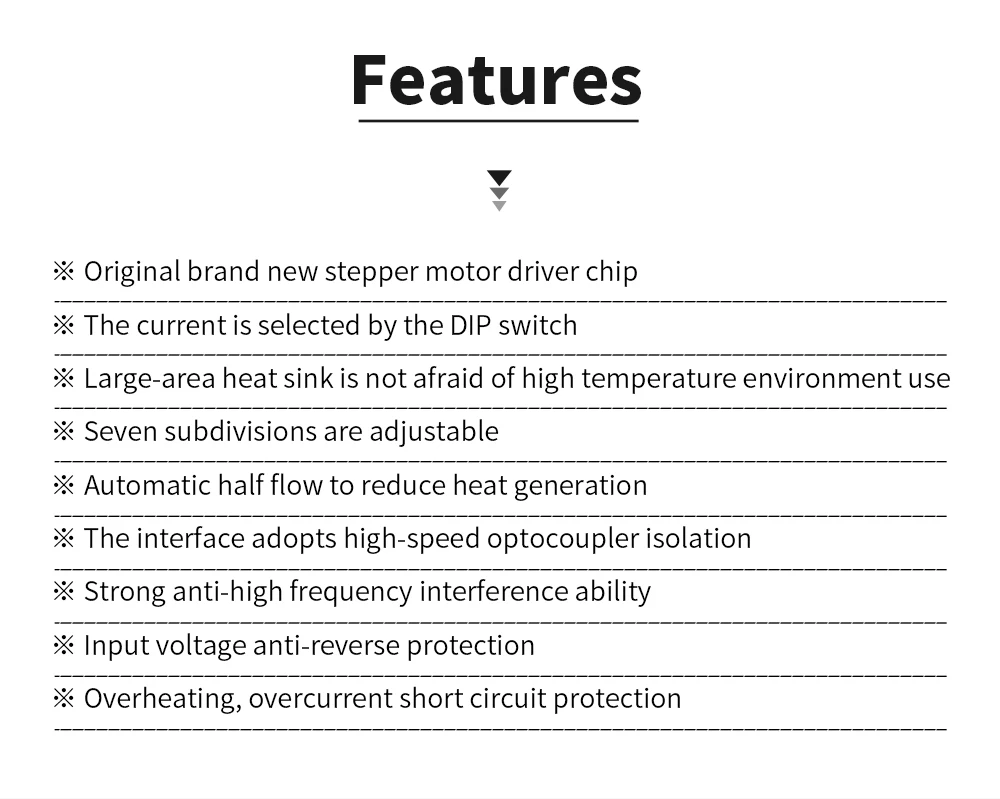

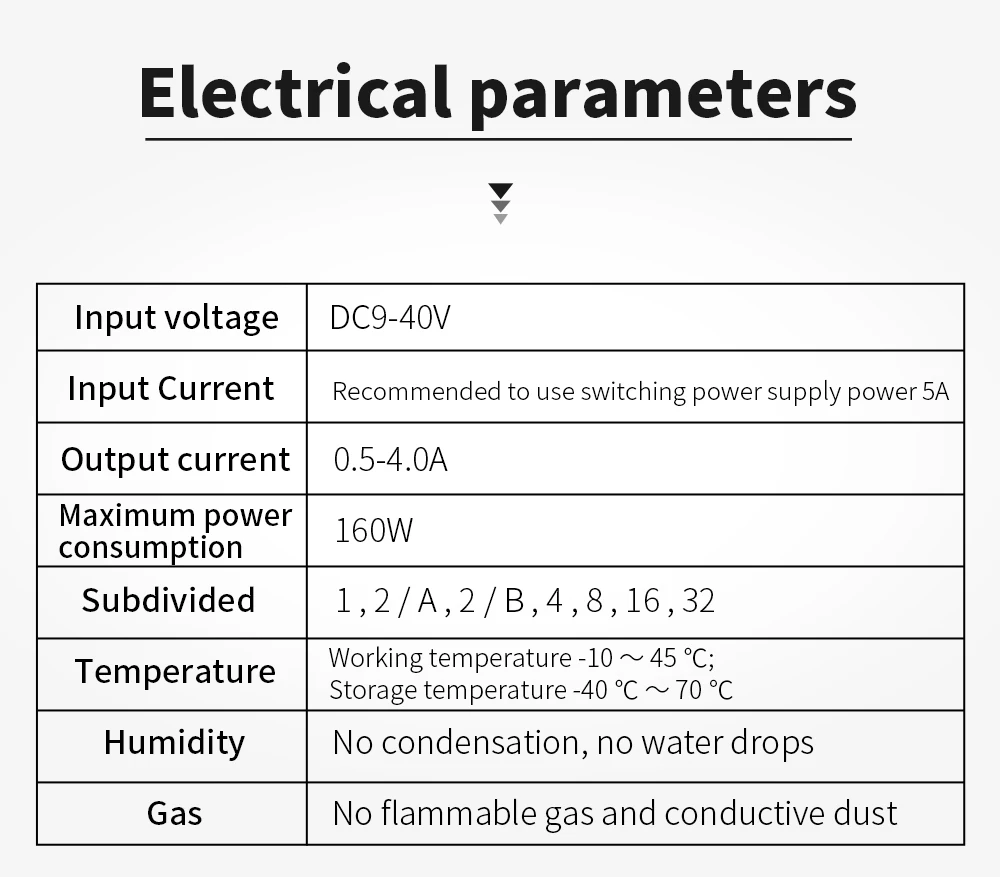

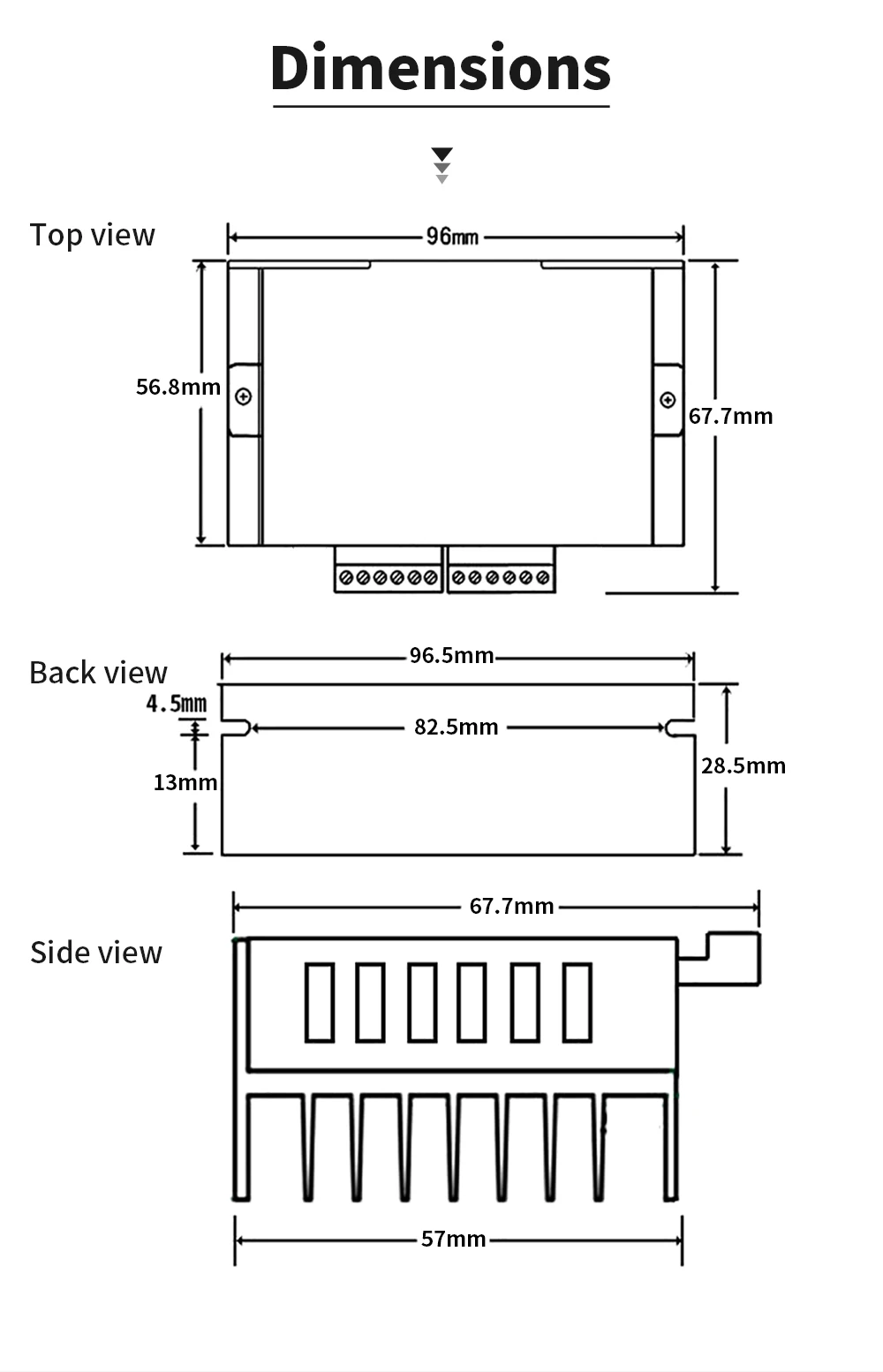

Product features：

※ DC 9-42V power supply, 12-30V power supply is the best

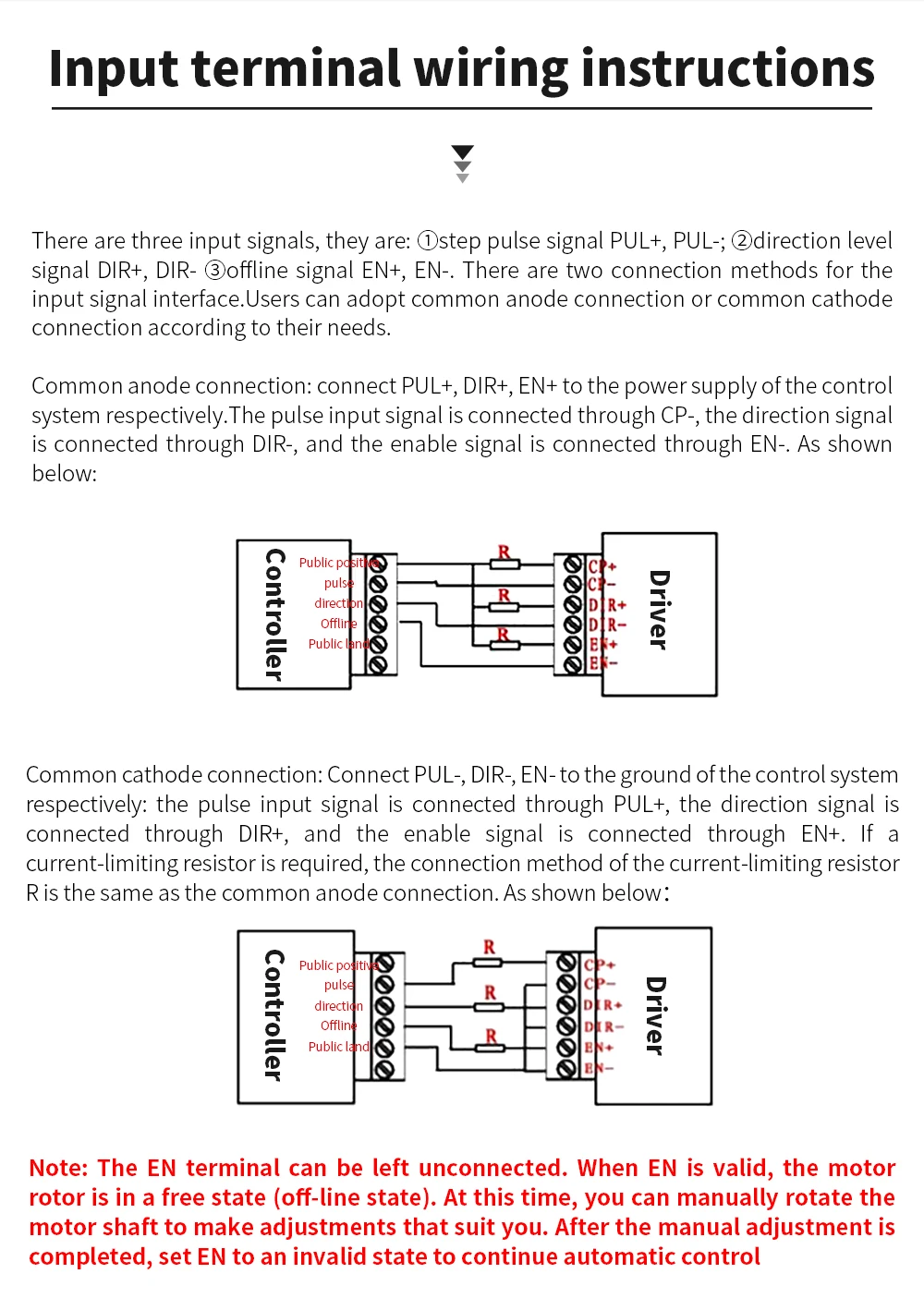

※ The control signal input voltage is 3.3-24V universal (no string resistance required)

※ Subdivision accuracy 1-32 subdivision optional

※ Output peak current 4.0A

※ H-bridge bipolar constant current drive

※ Input signal high-speed optocoupler isolation

※ Built-in temperature protection and overcurrent protection

※ Automatic half flow to reduce heat generation

※ Motor noise optimization function

※ Small size, save space

Frequently Asked Questions:

1. Question: How can I get started as soon as possible when using this stepper driver for the first time?

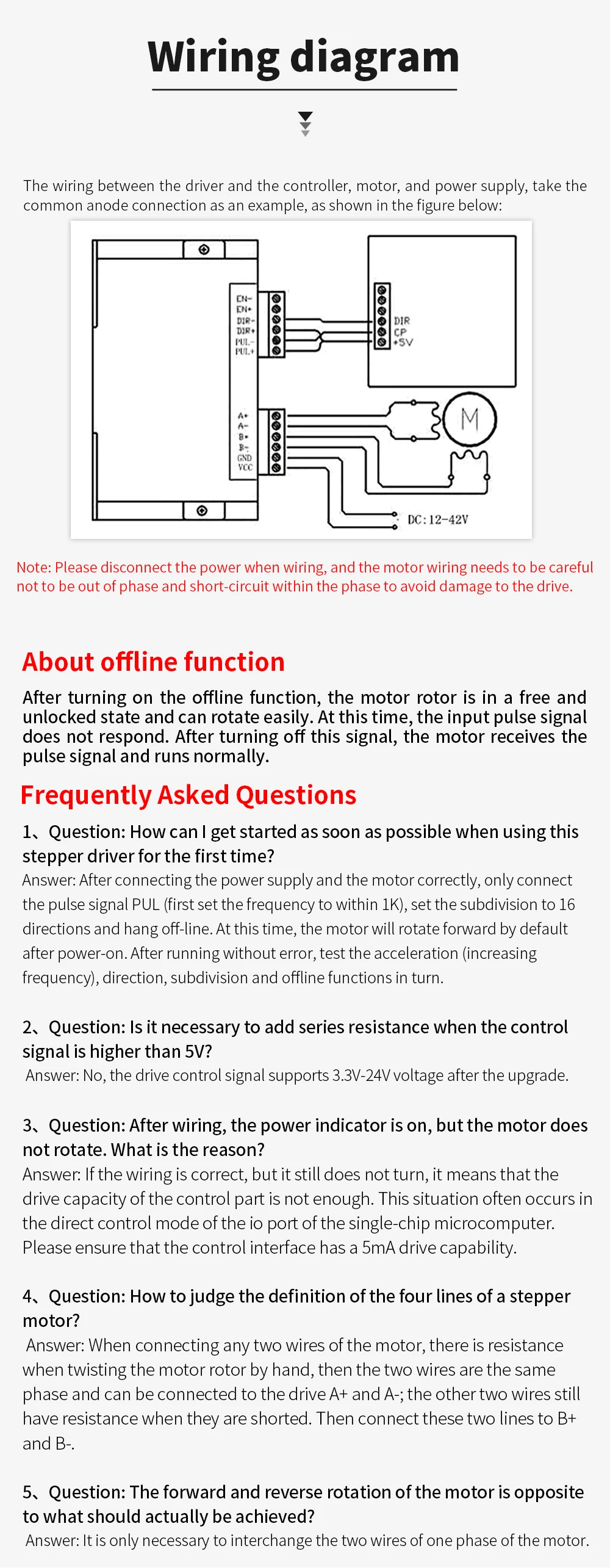

Answer: After the power supply and the motor are correctly connected,

only the pulse signal PUL is connected (first set the frequency to within 1K),

the subdivision is set to 16, the direction and offline are suspended, and the motor defaults to forward after power on. After the operation is correct, test the acceleration (increasing frequency),

direction, subdivision and offline functions in turn.

2. Question: Is it necessary to add series resistance if the control signal is higher than 5V?

Answer: The upgraded TB6600 does not need to add series resistance.

3. Question: The power indicator light is on after wiring, but the motor does not rotate. What is the reason?

Answer: If the wiring is correct, but still does not turn, it means that the drive capacity of the control part is not enough.

This situation mostly occurs in the direct control mode of the io port of the single-chip microcomputer.

Please ensure that the control interface has a 5mA drive capability.

4. Question: How to judge the definition of the four lines of a stepper motor?

Answer: Connect any two wires of the motor together. At this time,

there is resistance when twisting the motor rotor by hand.

Then the two lines are the same phase and can be connected to the driver A+, A-;

There is still resistance when the other two lines are short-circuited, so connect these two lines to B+ and B-.

5. Q: The forward and reverse rotation of the motor is opposite to what should be actually achieved?

Answer: It is only necessary to interchange the two wires of one phase of the motor.

For more information, please contact us. thanks.

-------------------------------------------------- -------------------------------------------------- -------

customer satisfaction

If you have any questions or concerns before or after the purchase, please feel free to contact us. We are committed to making you 100% satisfied.

Salary

1. The full amount must be paid within 7 days after placing the order.

2. We will deliver the product within 3 working days after receiving your payment.

Transport and handling

1.We have a variety of logistics channels, and we will deliver goods according to the logistics channel chosen by the buyer.

2. Please be sure to leave the phone number when filling in the buyer's information.

3. You can check the products in transit through the waybill number.

Refund (exchange only)

1. If you are not satisfied with the purchased product, you can replace the received product. You must contact us within 5 days of receiving the order. And you should pay all the additional shipping costs incurred, and the returned items should remain in their original condition.

2. If you want to replace a defective or incorrect product, please contact us within 5 days after receiving the product.

notes

1. The buyer is responsible for any insurance you deem necessary.

The processing time for a particular order varies depending on the product type and inventory status. In most cases, the processing time can be 3 to 15 working days.

Annotation

1. Since your feedback is very important to the development of our business, we sincerely invite you to leave us positive feedback if you are satisfied with our products and services. It only takes you 1 minute.

2. Contact us before leaving any negative or neutral feedback. We will work with you to resolve any issues. Thanks!
