SKYSHL 1310nm/35dB+1550nm/33dB SM Fiber OTDR Tester Build in OPM+OLS+VFL+Event Map Compatible with SC+FC+ST+LC/UPC&APC Connector

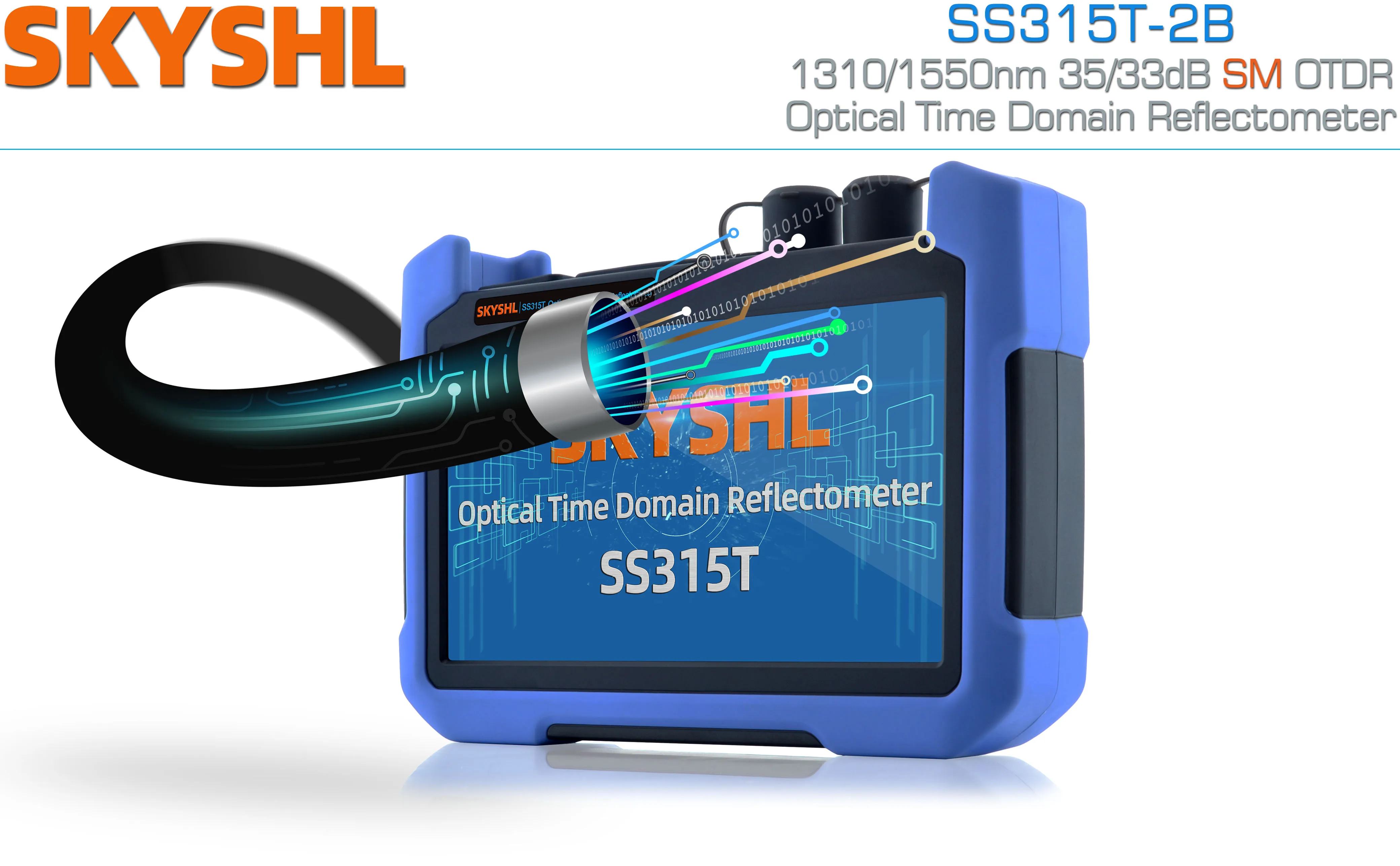

SKYSHL provides a new Optical Time Domain Reflectometer(OTDR)--SS315T series. They are used to measure the fiber length and overall optical attenuation in a circuit. The analyzed data provides insight into the integrity of the fiber and any passive optical components (such as connectors, splices, splitters, and multiplexers) transmitted along the cable path.

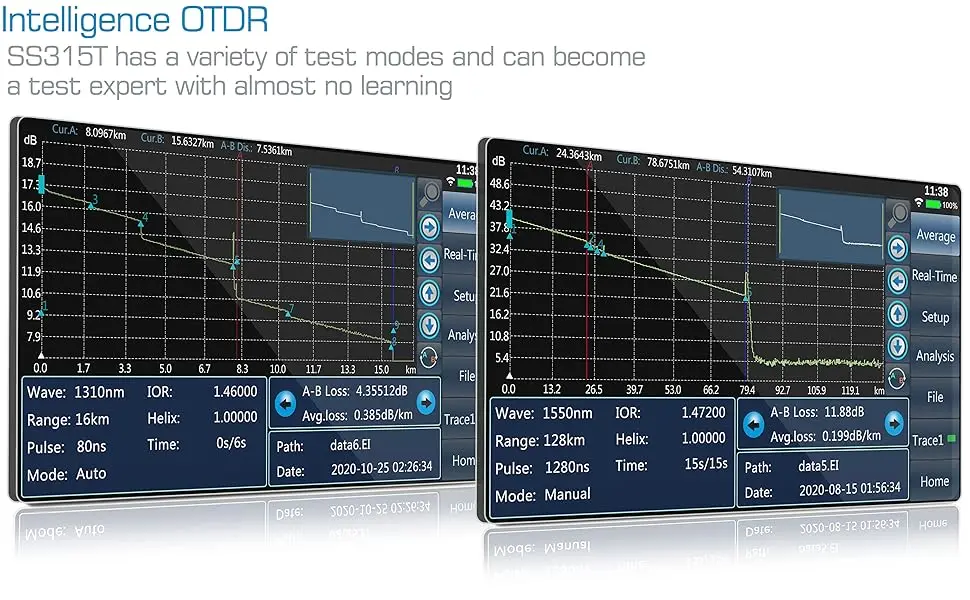

The Auto test lets you take advantage of the full power of your OTDR—bringing automation to a new level and enabling untrained technicians to become test experts in no time.
At the same time, SKYSHL SS315T series OTDR has the most advanced optical technology, which can achieve extremely short Event dead zone (SM typical value is 1.2m) and Attenuation dead zone (SM typical value is 4.5m). This advanced optical technology enables SS315T It can detect the failure of very short fibers.

OTDR test curve images (“Traces") contain more information than a thousand words.

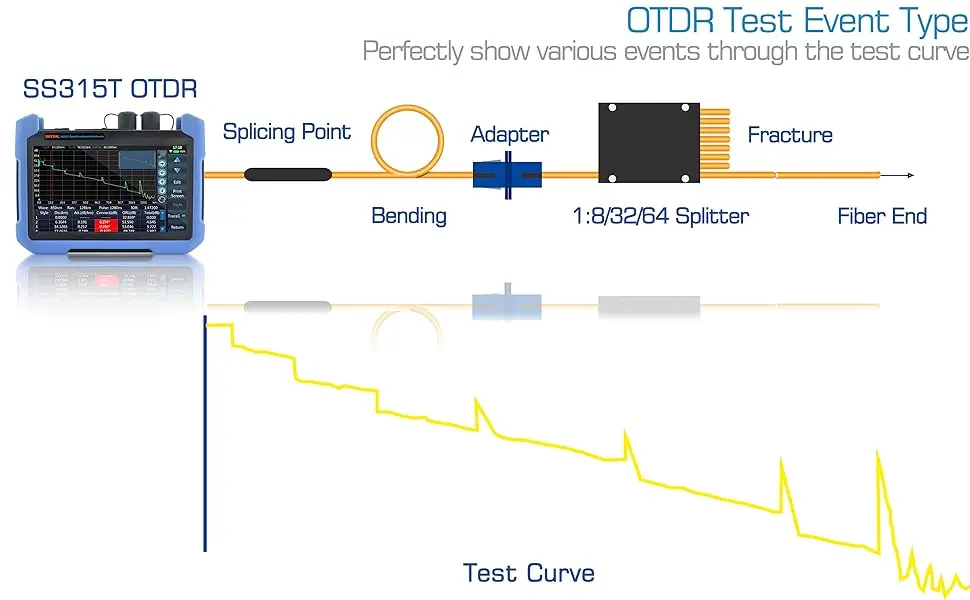

The slope of the fiber trajectory indicates the attenuation factor of the fiber, which OTDR expresses in dB/km. Connectors, solder joints, small bends, flanges, adapters, fiber splitters, breaks, etc. in a fiber link are called "events" in OTDR.

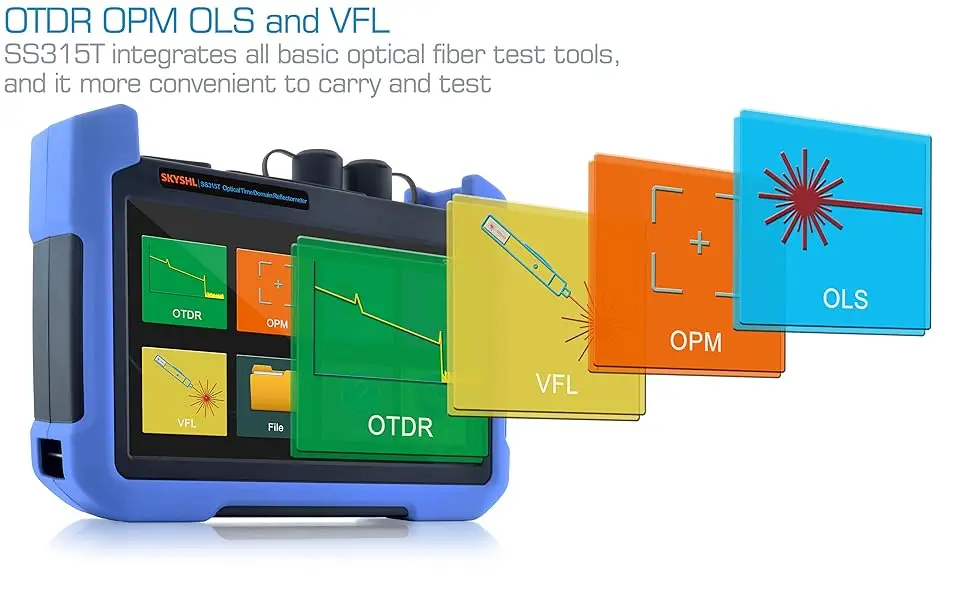

SKYSHL SS315T-2B1 integrates four of the most commonly used fiber optic test instruments, such as Optical Time Domain Reflectometer OTDR (OTDR-1310nm+1550nm/35dB+33dB), Visual Fault Locator (VFL-2km), Optical Power Meter OPM-850-1650nm/-60~+3dB) and Light Source (OLS- 1310nm+1550nm).

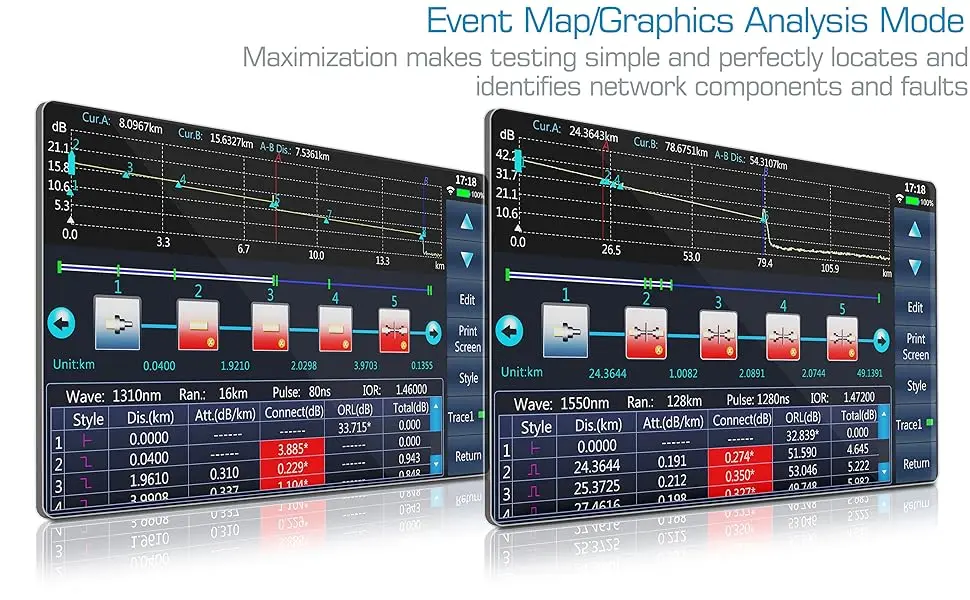

Although the operation and usability of the OTDR has been greatly simplified over the years, it is still considered an advanced operating tool and the analysis of its results can be complex. To make fiber optic testing easier for users, the SS315T includes an "Graphics Analysis/Event Map" feature that removes the complexity from OTDR testing and results analysis.

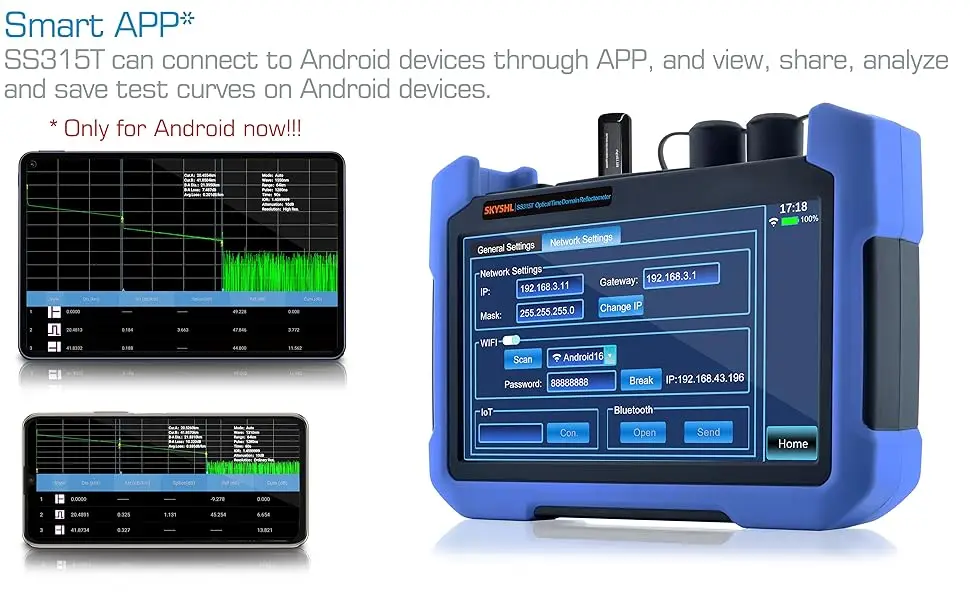

SS315T can connect OTDR and Android device/computer through APP module, and test, view, share, analyze and save the curve through Android APP and computer software.
(Currently, the software developed by our company only supports Android and Windows systems)

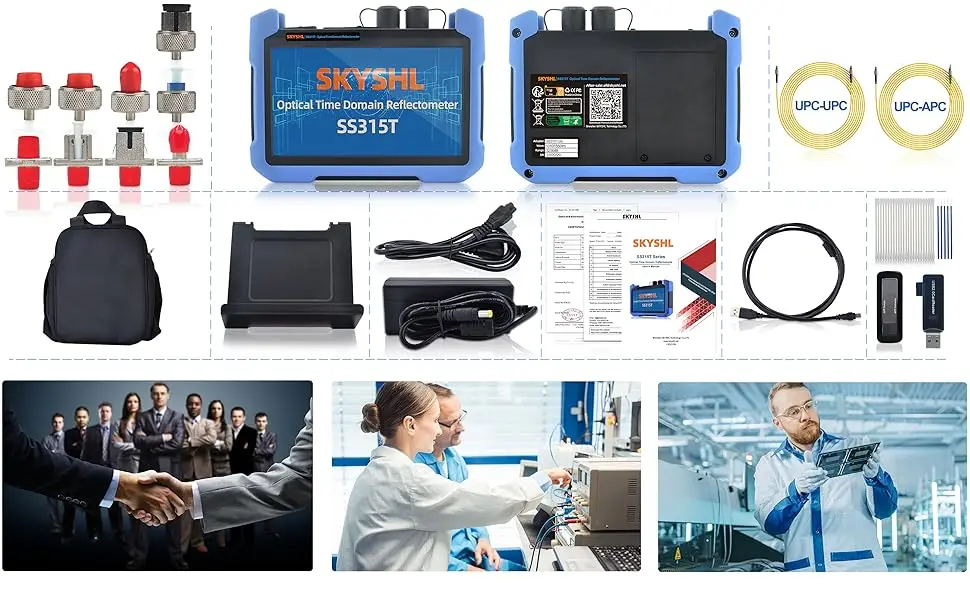

SS315T-2B1(1310nm+1550nm 35dB+33dB) SM Fiber OTDR Package List: 1*OTDR+5*Adapter For OTDR/OLS/OPM/VFL(2*FC+1*SC+1*LC+1*ST)+2*Patch Cord(1*SM FC/UPC-FC/UPC+1*SM FC/UPC-FC/APC)+4*Adapter(1*FC-LC UPC&APC+1*FC-SC UPC&APC+1*FC-ST UPC&APC+1*FC-FC UPC&APC)+1*USB Cable+1*Charger+1*Oxford backpack+1*Manual+1*APP Module+1*OTDR Holderr+1*2.5mm cleaning rod+1*1.25mm cleaning rod+1*Factory test report+1*Memory.
