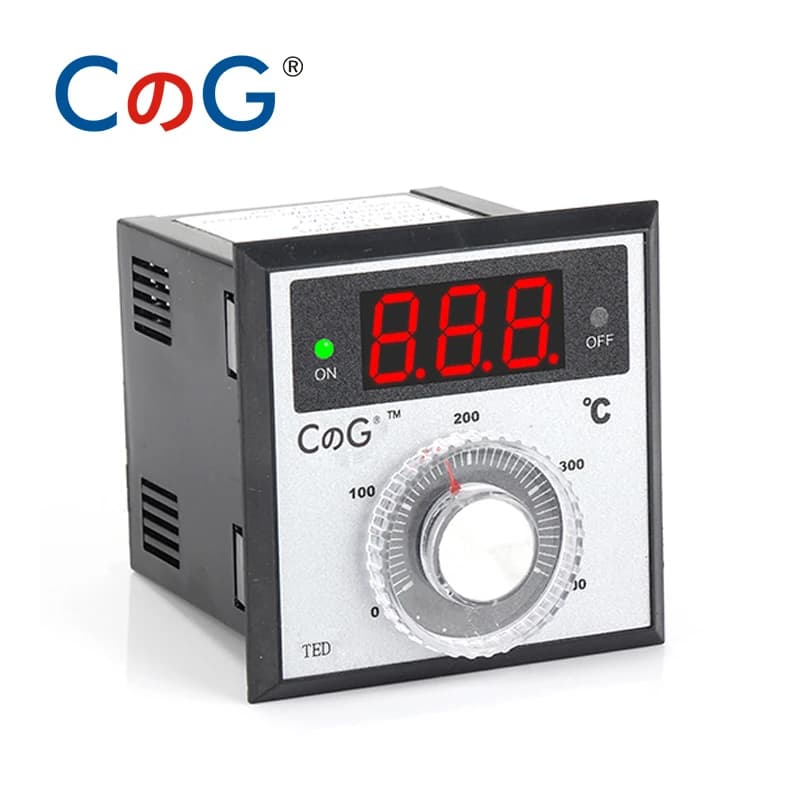

TED 72*72mm K J PT100 Type AC220V 110V 24V 380V Knob 0-100 300 400 600 Degree Digital Thermostat Powered Temperature Controller
14.5$
13.9$
Quantity:
1
Availability:
Color
Voltage
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Describtion
1. All of the controller series is AC 24V/ 220V/110V/ 380V, single input ,we can select K/ J/ PT100 when we place the order.
2. Controller is one relay output, the relay rated current is 5A,so if the laod power more than 1000W, we need add one AC contactor.
3. If need other requirement please contact us , our factory manufacture controller more than 20years.We can provide technical support and customized production of products.
TED Instrument Manual
1. The meter type must be used with the sensor type. For example, the K type can only use the K type sensor.
2. Common faults: display HHH - sensor damage / missed /K or E not match. The temperature does not rise and fall when heater working or display LLL: sensor reverse connection / K or E not match.
3. If it is unclear which is fault between the sensor and the meter(E/K type). We can short the 1 and 2 terminals, and the meter shows that the temperature is almost the same as the normal temperature. It means the instrument is normal, the sensor (thermocouple) is broken.
4. This method is not applicable to the detection and judgment of CU50 and Pt100 thermal resistance type meters.
Instrument description and wiring instructions
6.7.8 Terminals are relay output terminals (passive output) 7 is a common point and 6 is a normally closed point. 8 is a normally open point.no power output. When the temperature does not reach the set temperature,the panel green light (ON) is on / 7 and 8 terminals are closed (conducted) :when the temperature reaches the set temperature or higher than the set temperature: the panel red (OFF) lights up / 7 and 6 twoTerminal pull-in (conduction)
The temperature difference of the controller is 2 degrees. When the normally open point is connected, the temperature rises to the set point and the contact open and the load stop heating. When the temperature falls below the set temperature by 2 degrees, it closes and load starts to work.
Customer Reviews
65 ratings
excellent experience (6)
quick delivery (4)
well packaged (3)
incorrect dimensions (3)
precise regulation (2)
good condition (2)

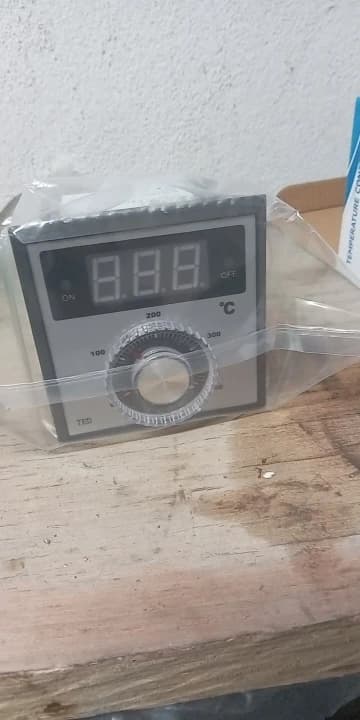

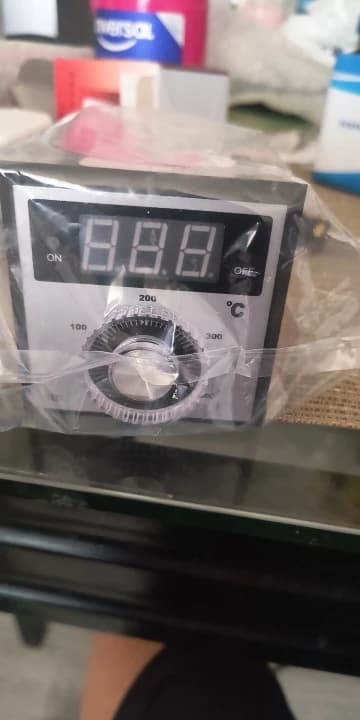

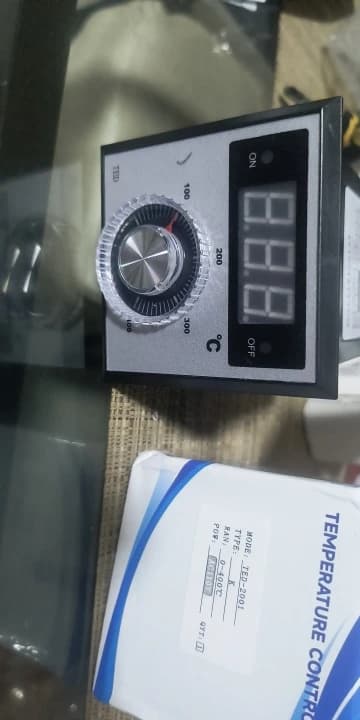

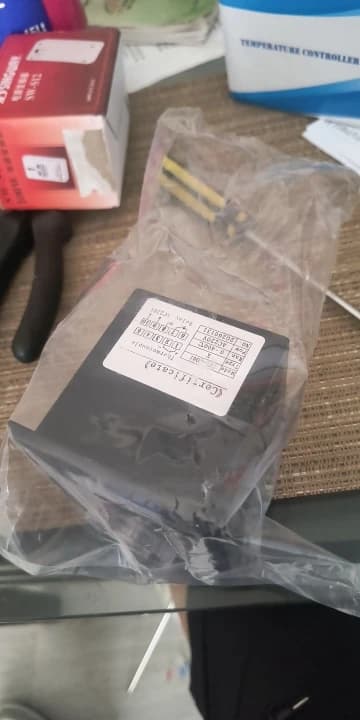

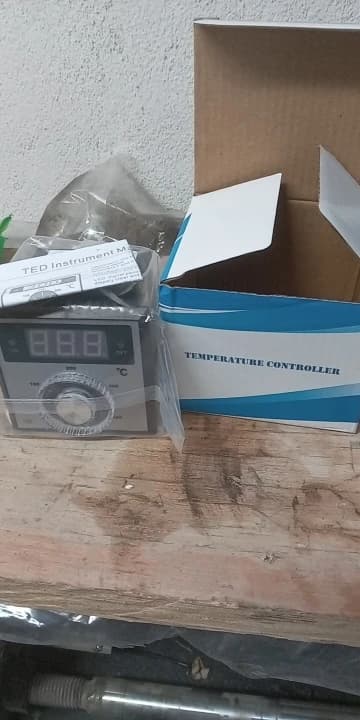

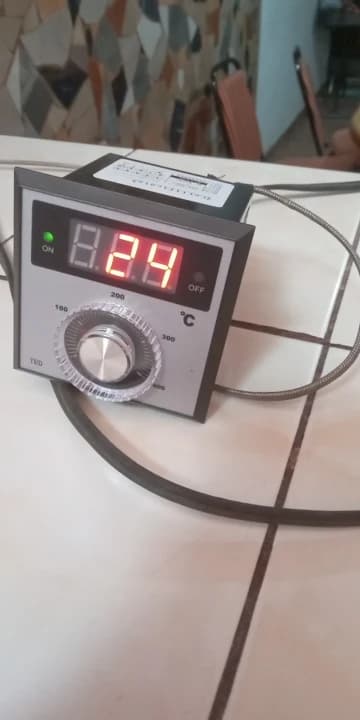

Customer photos (14)
Buyer from Colombia
October 5, 2026
Variant: Color:J 0-400 Voltage:220V Ships From:China Mainland
It's very good that they respect delivery times.
Translated by AliExpress ·
Buyer from Colombia
October 4, 2026
Variant: Color:J 0-400 Voltage:110V Ships From:China Mainland
One of them arrived damaged from the journey, but nothing that can't be repaired. It would be good to put a "delicate" label on the next order, thank you.
Translated by AliExpress ·
L***a
October 2, 2026
Variant: Color:J 0-300 Voltage:220V Ships From:China Mainland
It didn't work, the LED doesn't light up.
Translated by AliExpress ·
Buyer from Colombia
July 8, 2026
Variant: Color:K 0-400 Voltage:110V Ships From:China Mainland
Operating properly. Well packaged I need to review it continuously at work.
Translated by AliExpress ·
Buyer from Germany
June 22, 2026
Variant: Color:PT100 0-400 Voltage:220V Ships From:China Mainland
Perfectly handled, gladly again.
Translated by AliExpress ·
Buyer from Brazil
June 16, 2026
Variant: Color:K 0-400 Voltage:220V Ships From:China Mainland
It worked perfectly, I recommend everyone to buy it. Honest seller, shipping on time.
Translated by AliExpress ·
