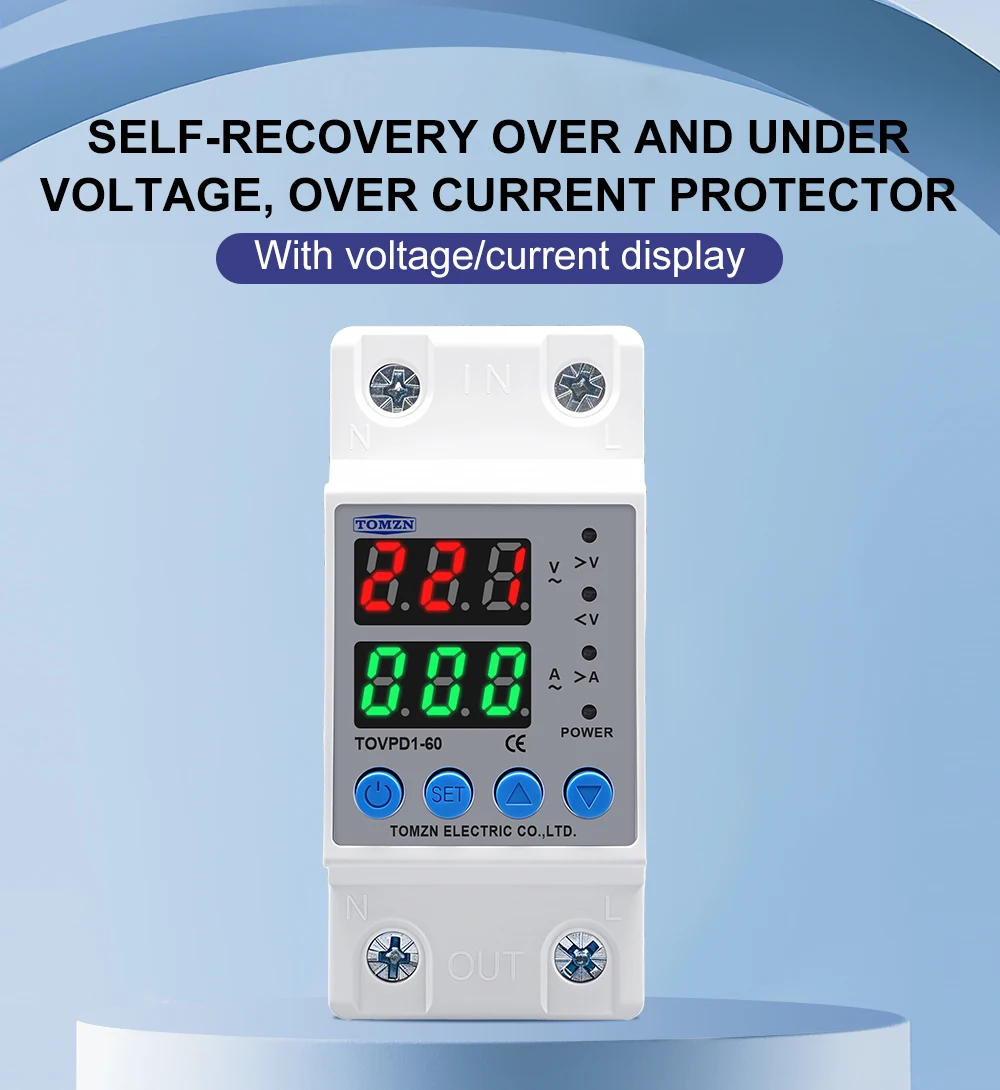

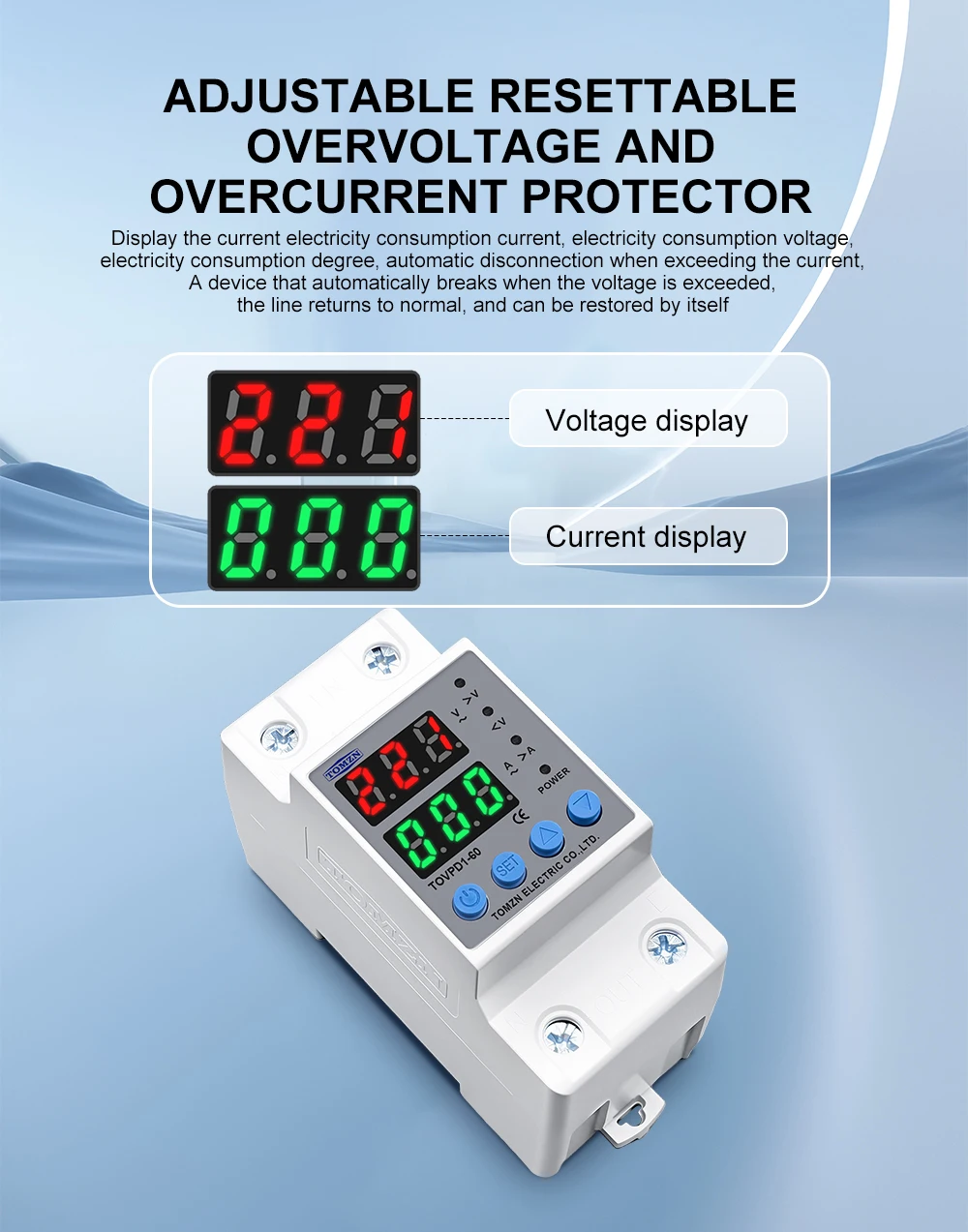

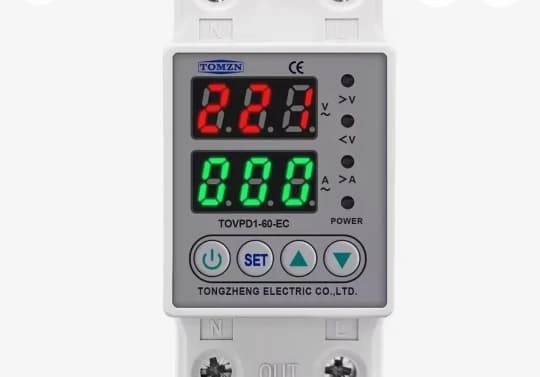

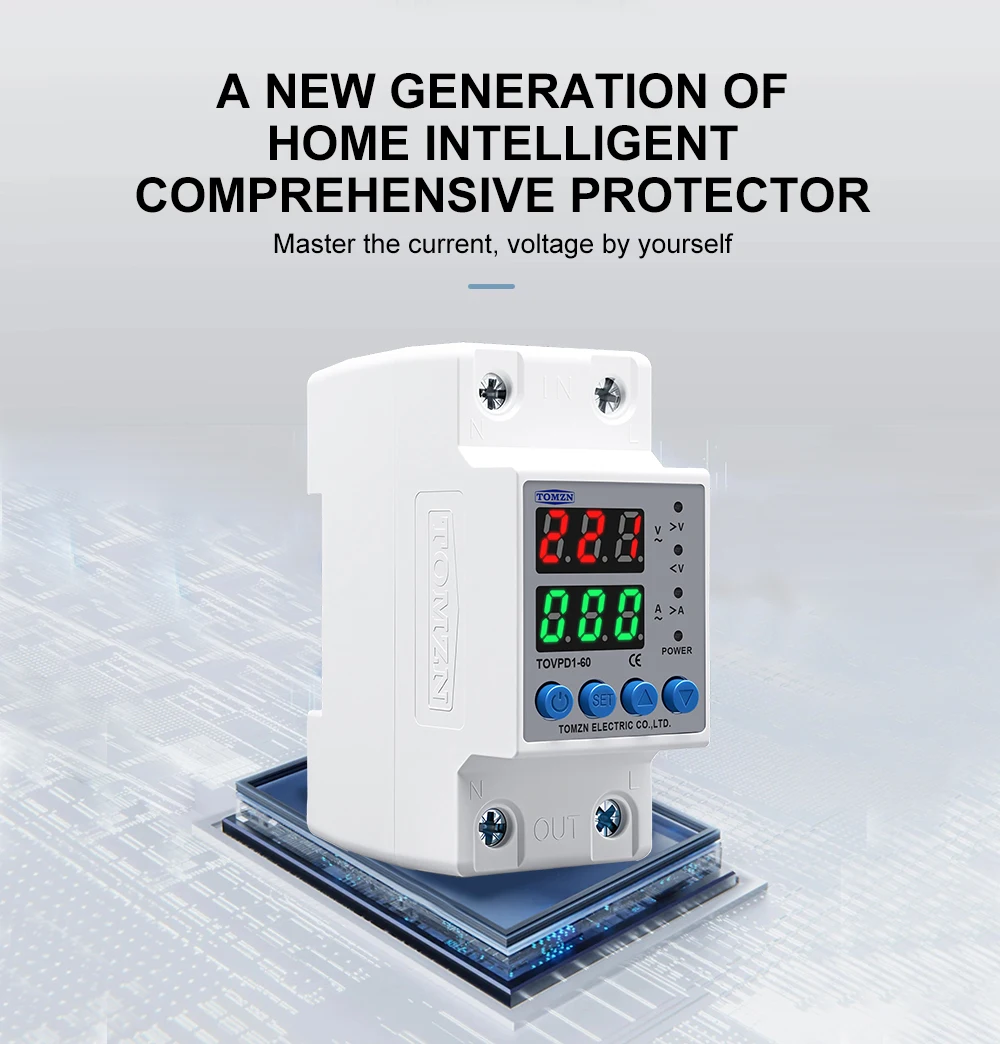

TOMZN Din Rail 60A 230V Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63

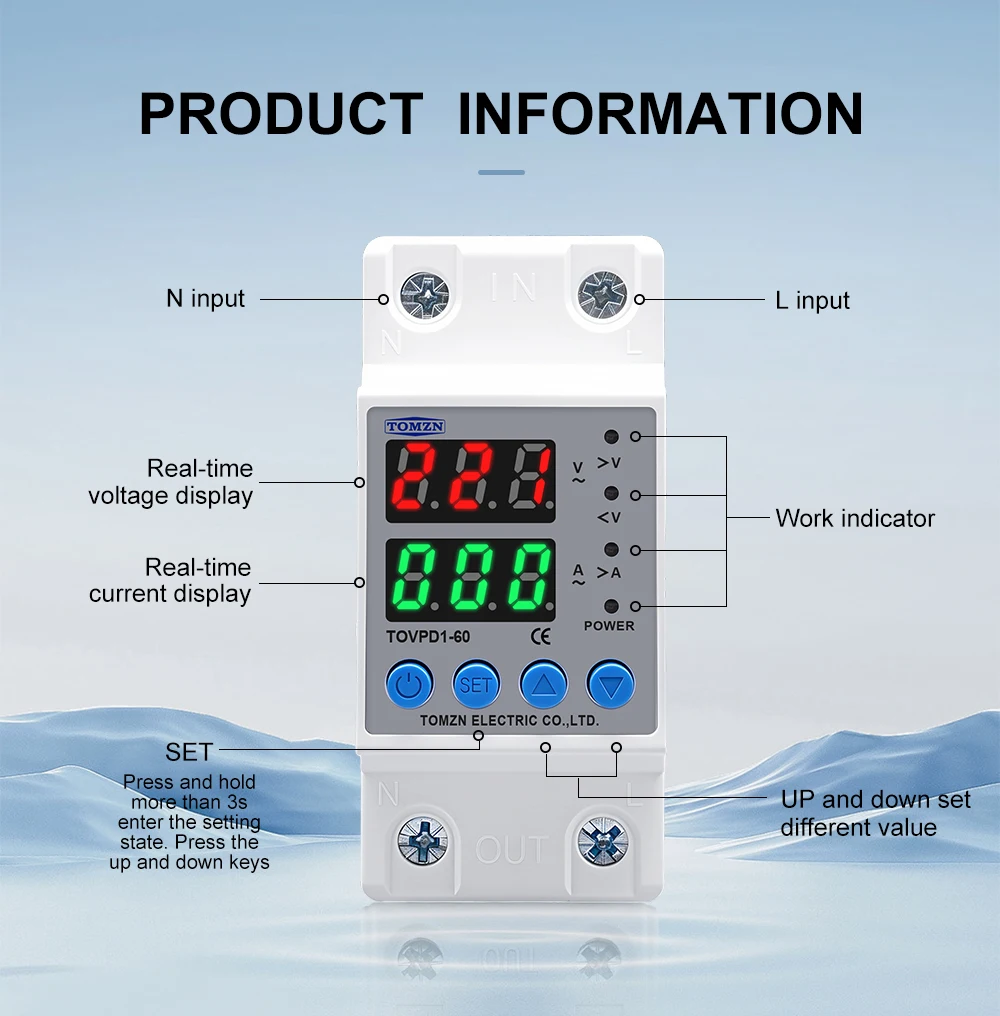

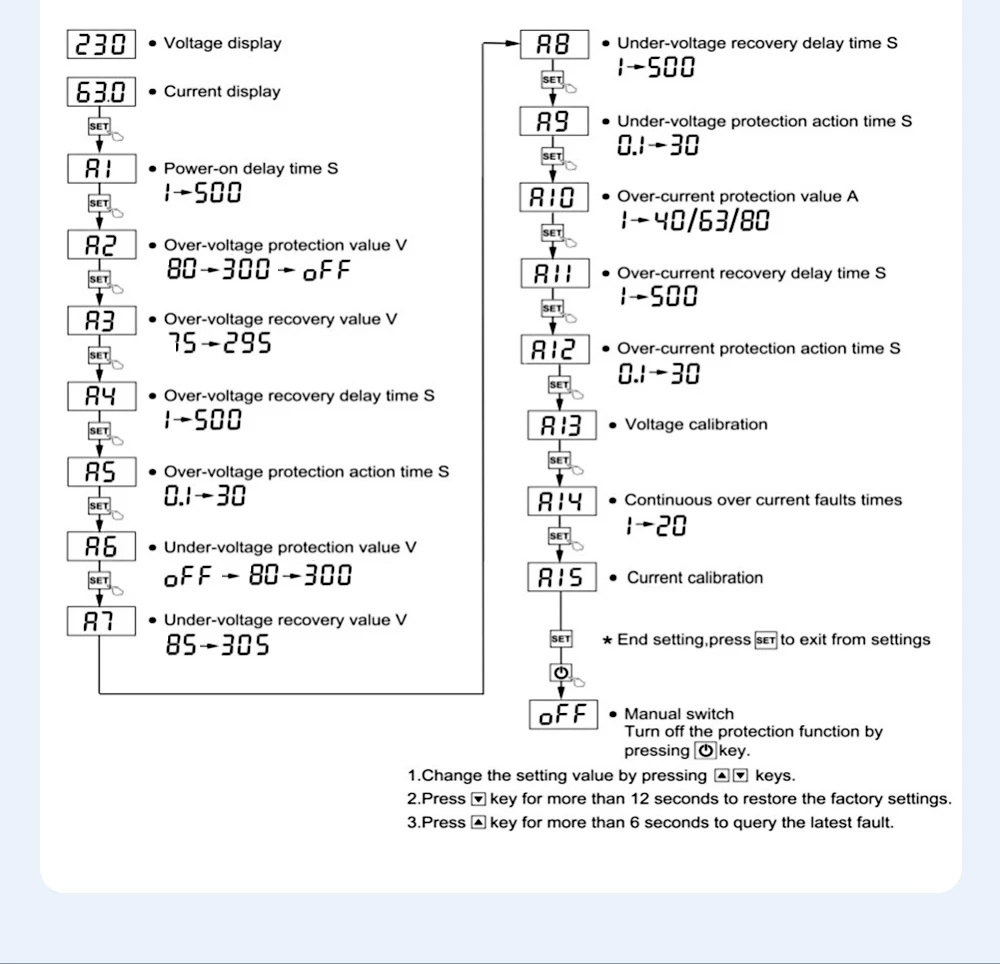

Functions:

1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

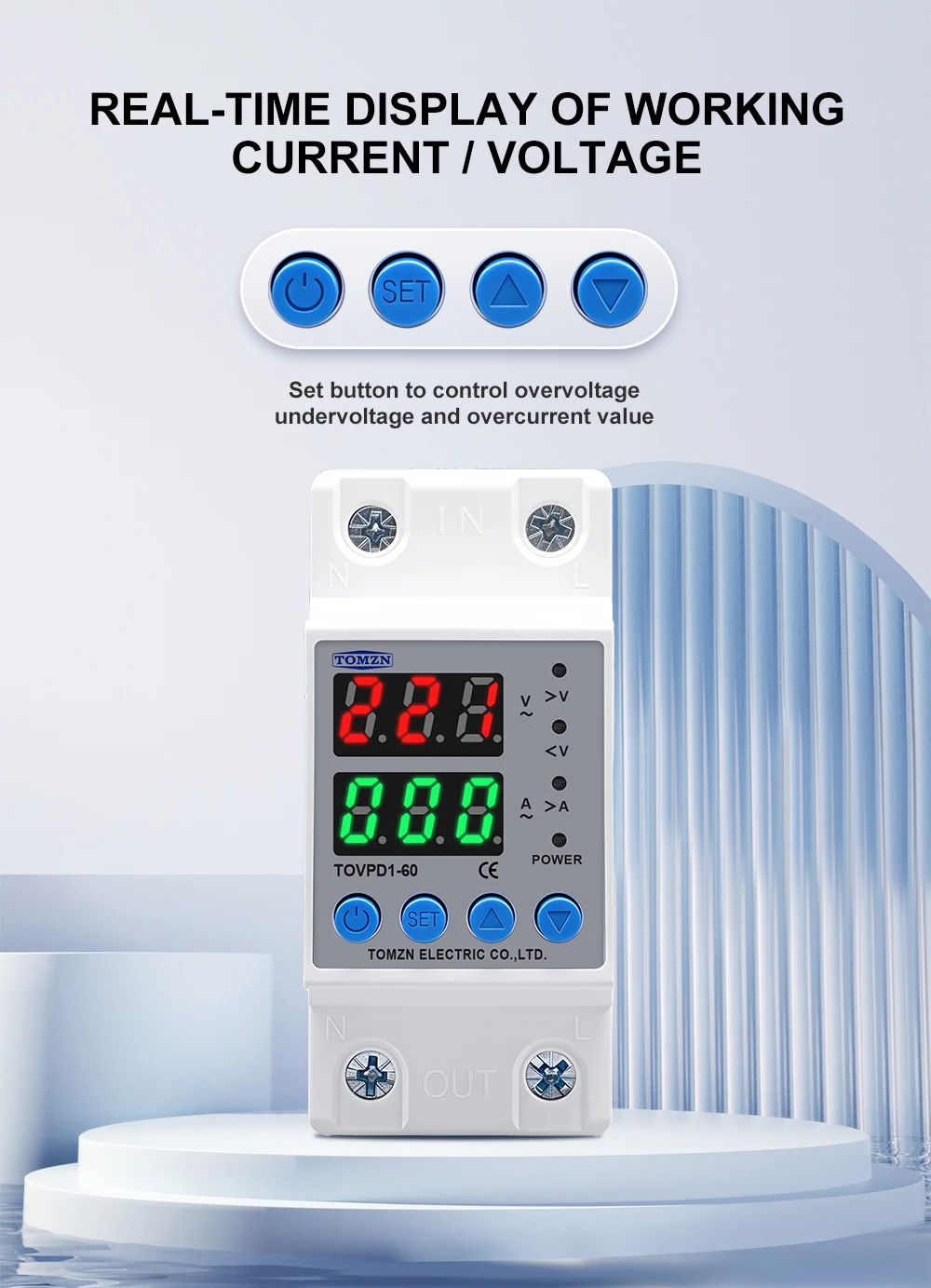

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration A13

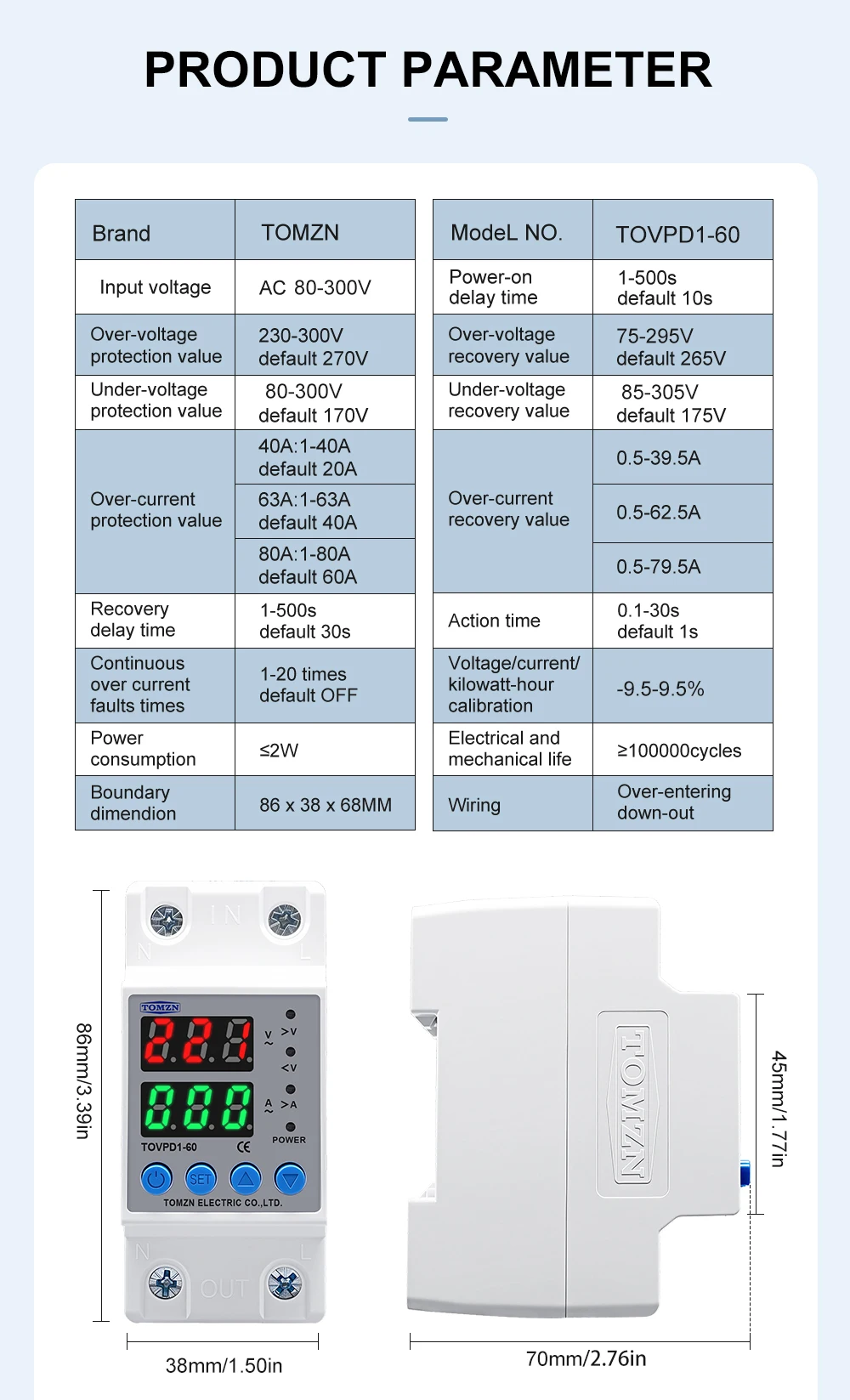

Product Parameters:

1.Model number:TOVPD1-60-VA
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A  Adjustable(default:40A)

                                    1~63A  Adjustable(default:63A)

4.Over-voltage protection value range:230V~300V (default:270V)

Over-voltage recovery voltage range:225V--295V(default:250V)

   Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage recovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V (default:170V)

Under-voltage recovery voltage range:145V--215V (default:190V)

   Under-voltage protection action time:0.1s~30s(default:0.5s)

   Under-voltage recovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)

   Over-current action range:0.1~30 second (default:0.5s)

Over-currentrecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

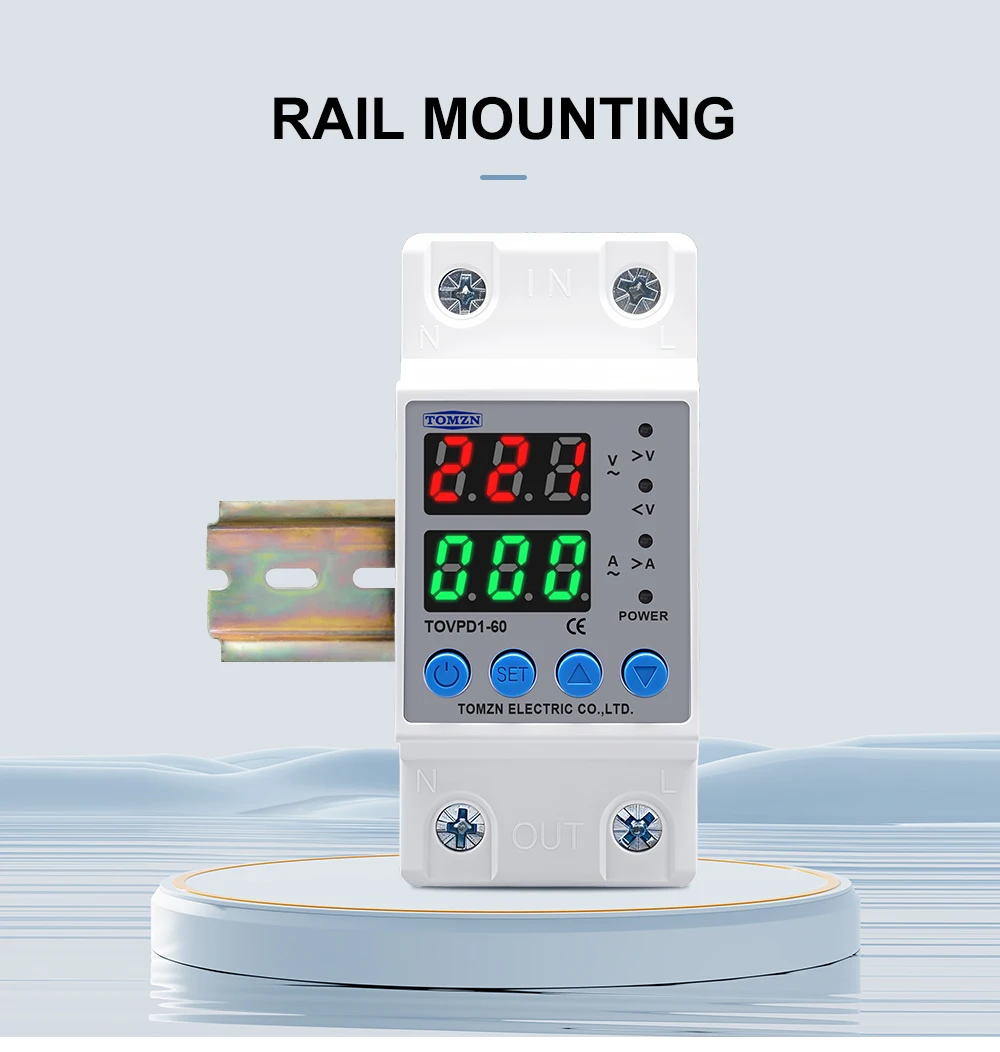

11.Installation:35mm DIN rail
