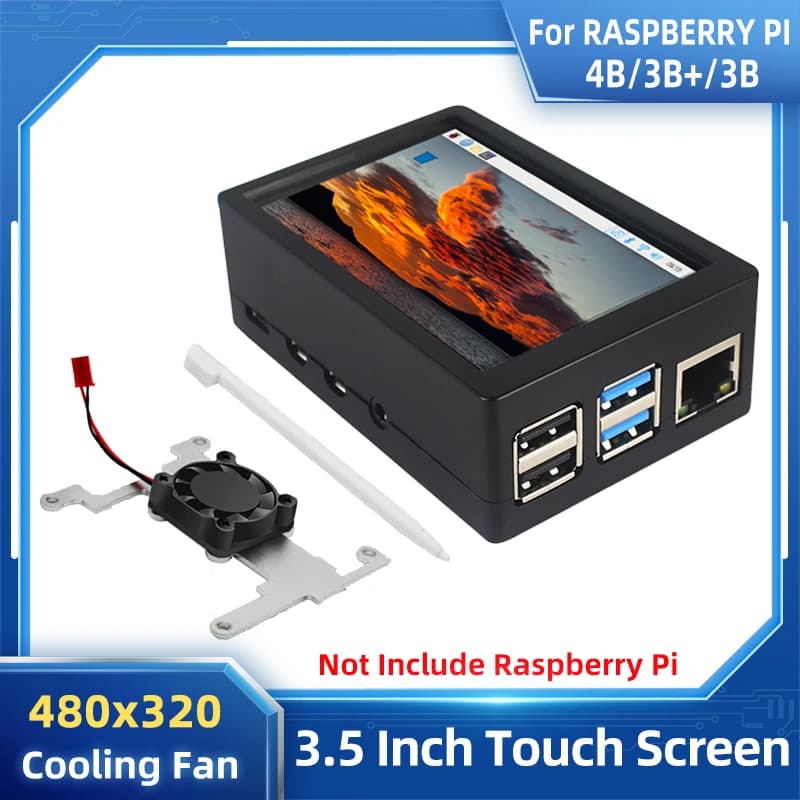

Raspberry Pi 3.5 Touch Screen 480*320 LCD TFT Display Optional ABS Metal Case Cooling Fan for Raspberry Pi 4 Model B or 3B+ 3B

3.5 Inch Touch Screen 480*320 LCD TFT Display Optional Case Fan for Raspberry Pi 4 or Raspberry Pi 3B+/3B

Note: Raspberry Pi board is not included!

Introduction

We design the case for install 3.5 inch touch screen.When you use the screen, please remove the cover of case. The cover can install the cooling fan (the fan is not include), so when you don't use the screen , you can use it with cooling fan. We also design a holder with cooling fan, which allow you use the screen with cooling fan at the same time. You can choose the option accordin to your need.

The touch screen connect to Raspberry Pi by GPIO pin only , please don't use the HDMI-compatible interface when you use the touch screen.

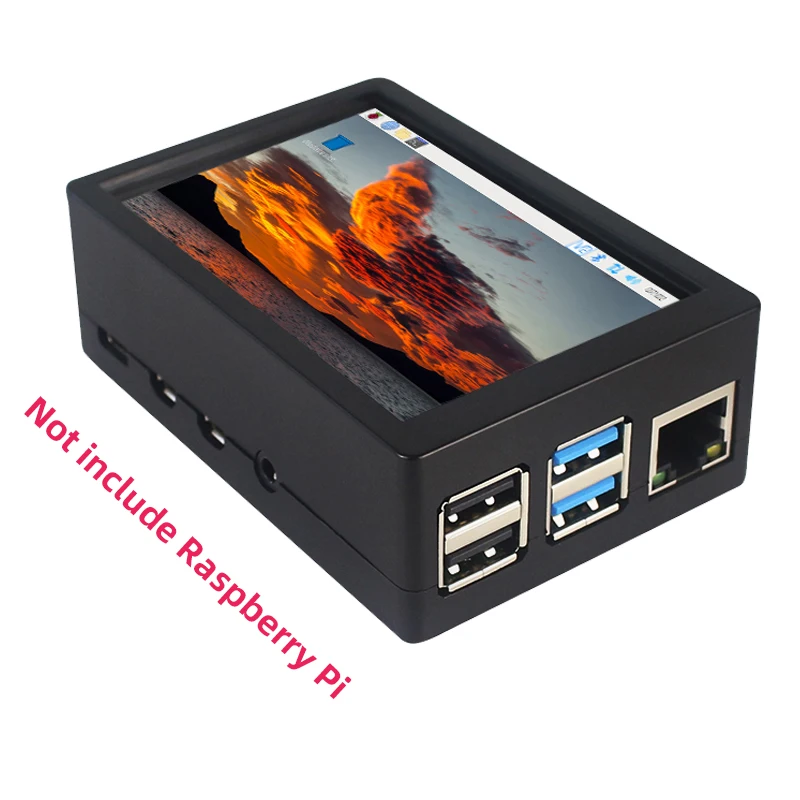

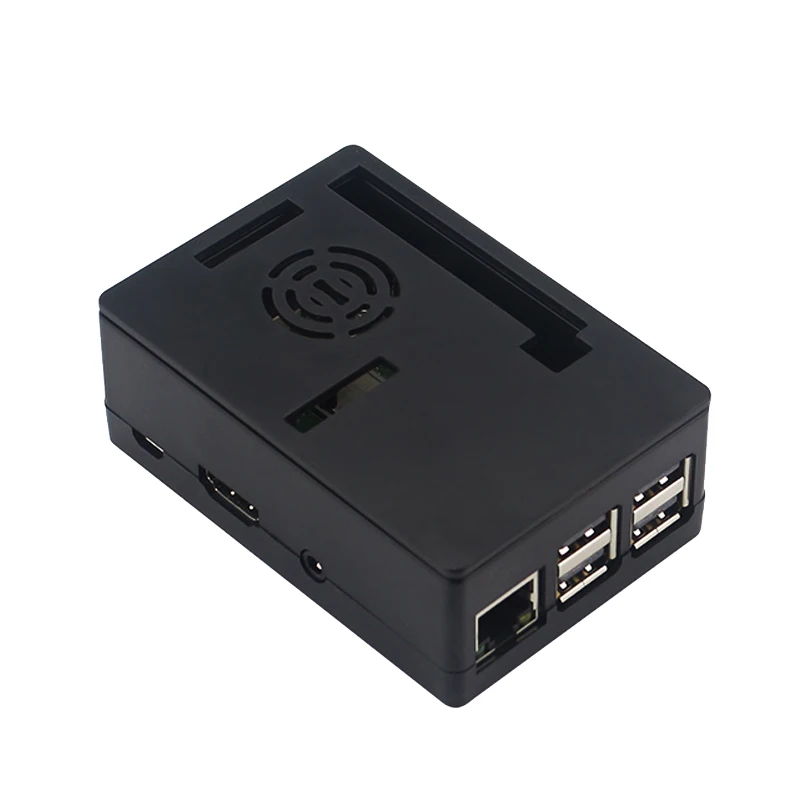

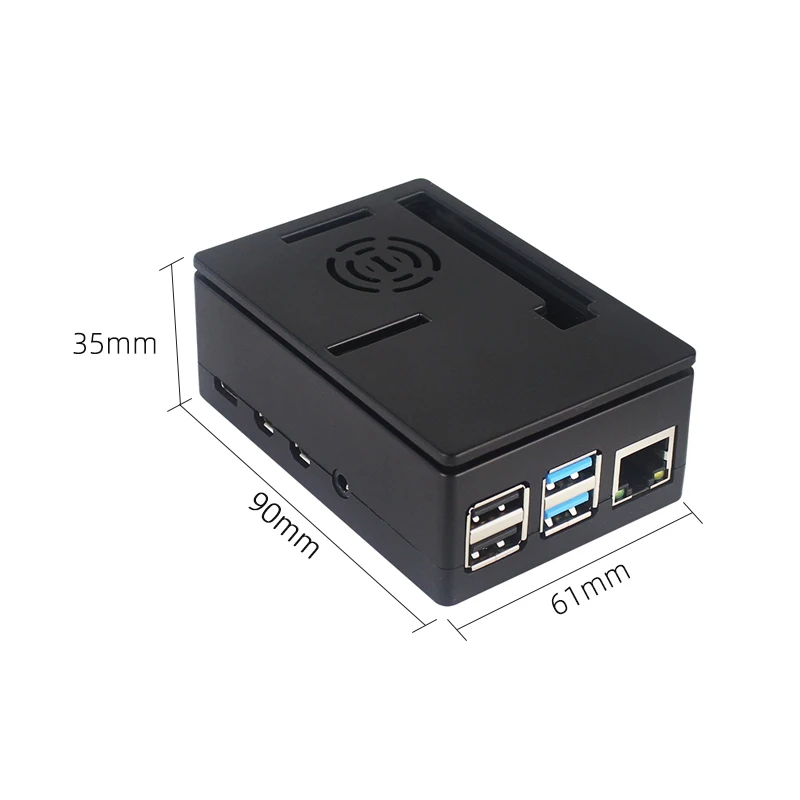

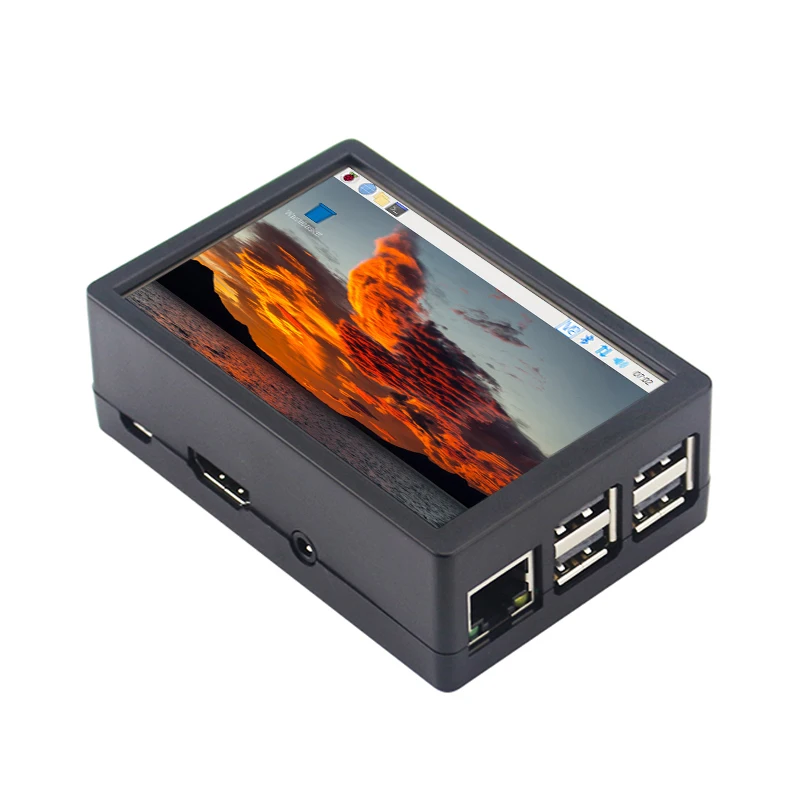

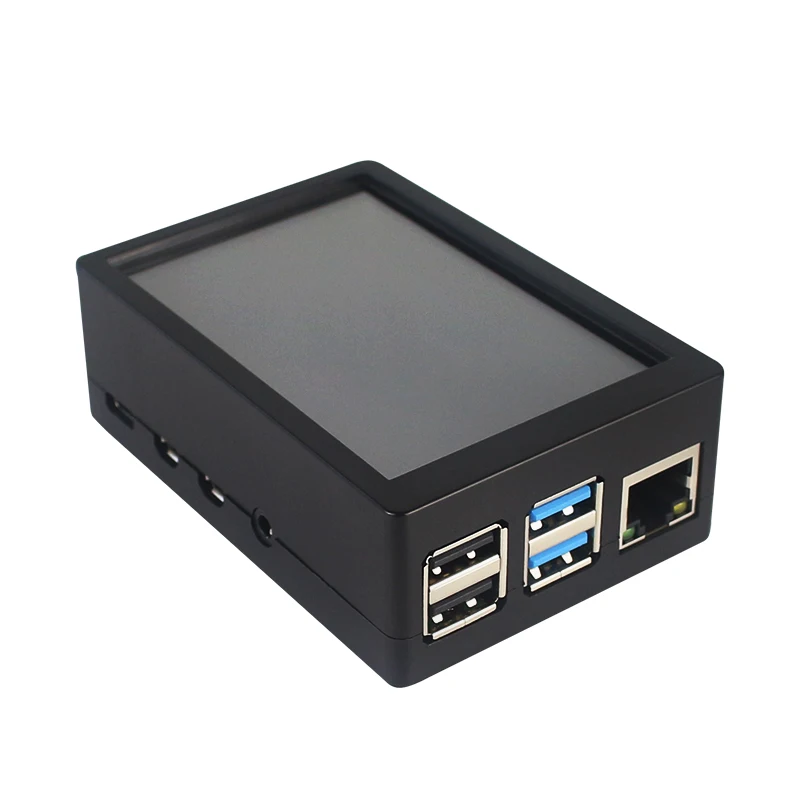

ABS Case

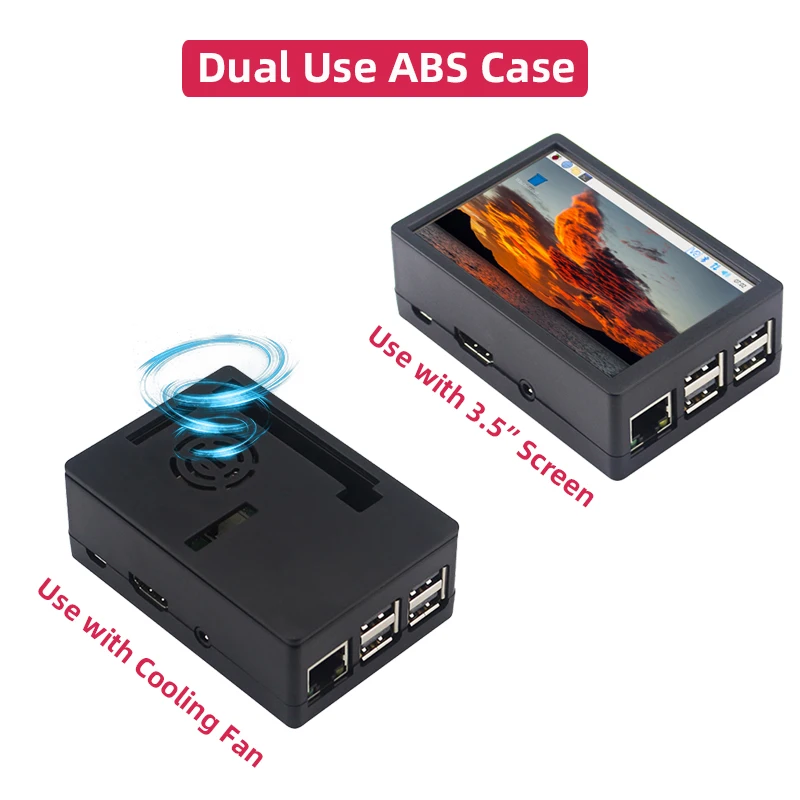

1.Dual use:
1). This case support to install 3.5 inch touchscreen , and need to remove the cover board and fan in this using way. ( Youcan notinstall the 3.5 inch screen and fan at the same time )
2). When you don't use the 3.5 inch touchscreen , it is a general case with cooling fan.

2.Full access for Raspberry Pi :
We leave every hole for SD card , HDMI-compatible, AV , Ethernet , USB , POE , Camera , MIPI DSI ports.

3.Support cooling fan :

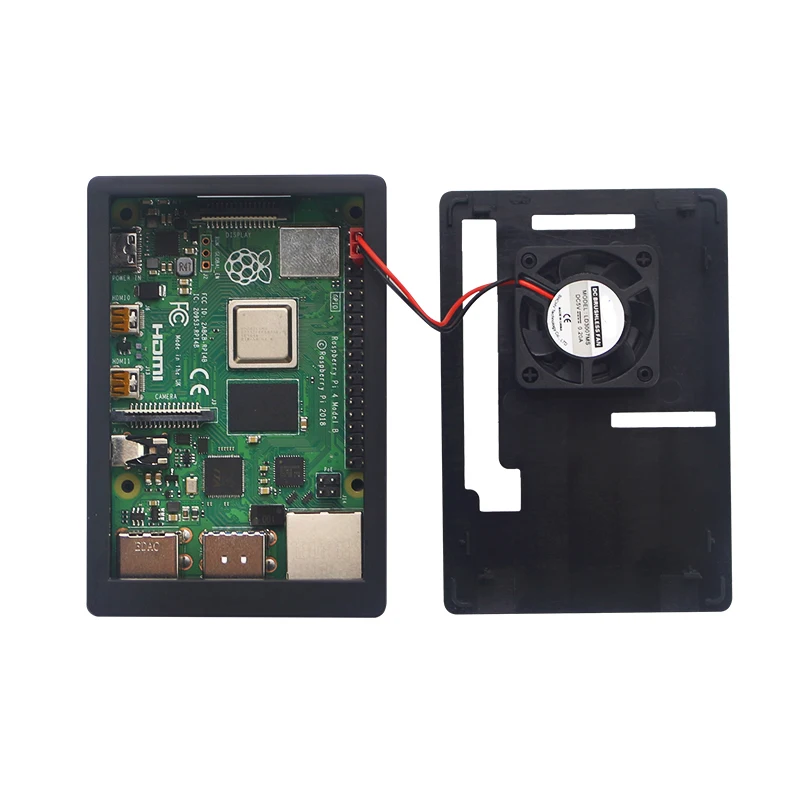

You can install the cooling fan on the cover board , which make the best heat dissipation and extend the using life of Raspberry Pi.

4.Hange hole on the bottom:

We make 2 hole on the bottom so that you can hange the case on the wall or something else . This design is very convenient when using the 3.5 inch touchscreen.

5.There are Black / Transaperent color to chose for the case.

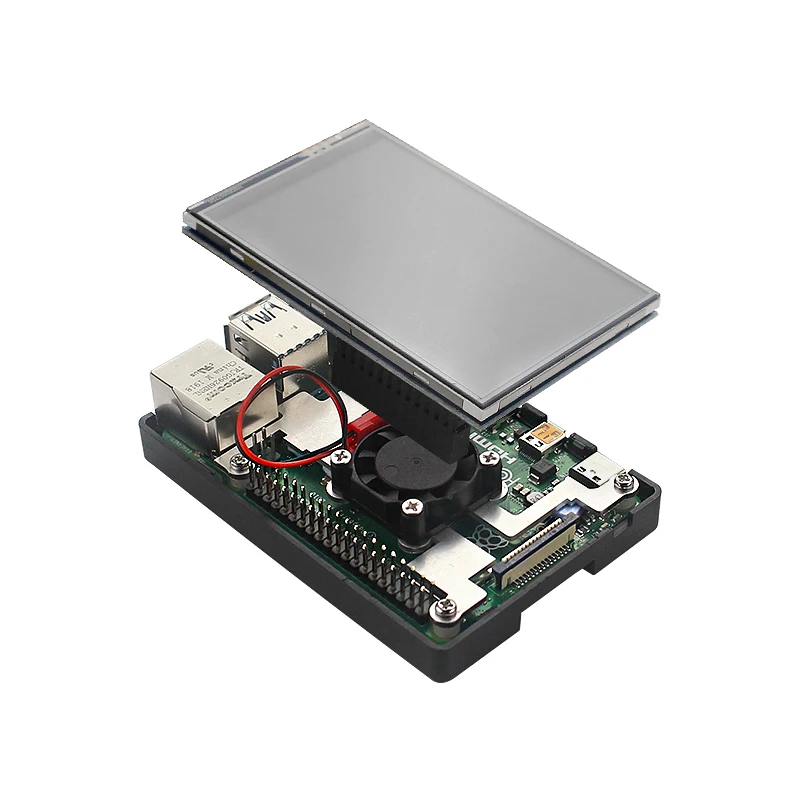

6.How to assemble the screen and case

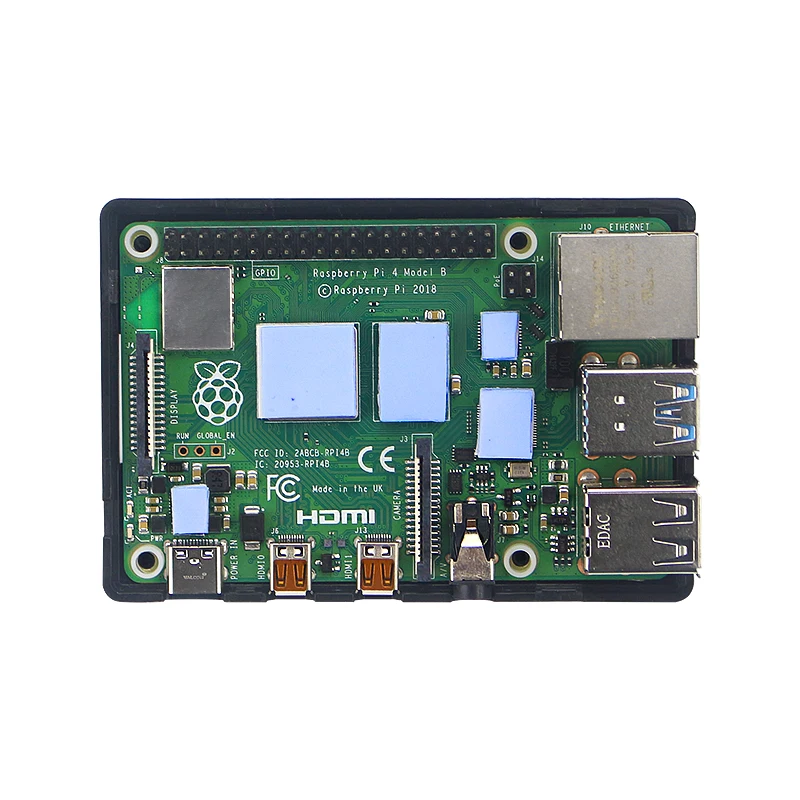

1). Install the Raspberry Pi on the base board

2). Insert the 3.5 inch touch screen on Raspberry Pi by GPIO pin correctly ( don't be malposed )

3). Install the cover board

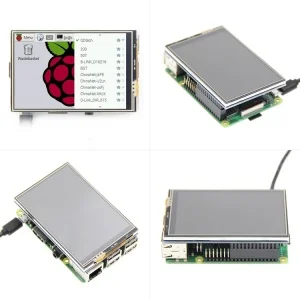

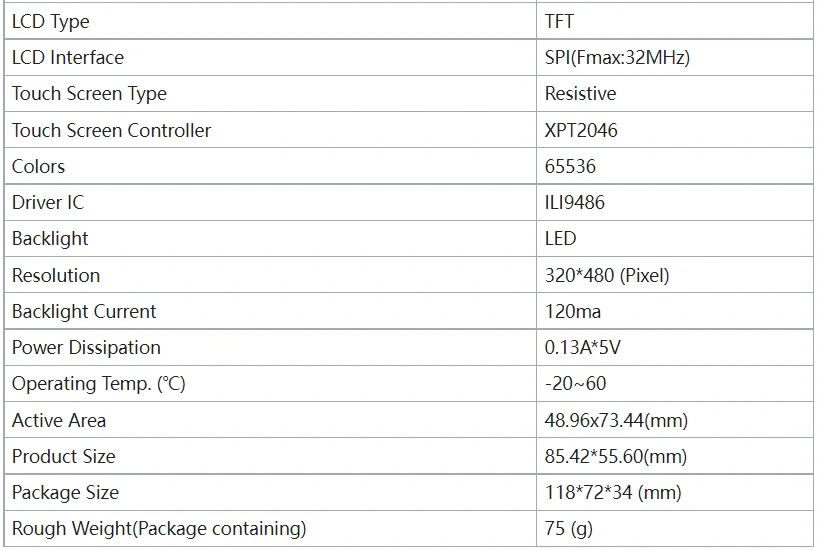

About 3.5 inch Touch Screen

1. 320×480 resolution
2. Resistive touch control
3. Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B, 3B+,4B versions
4. Drivers provided (works with your own Raspbian/Ubuntu directly)
5. Size perfectly fits the Pi
6. High quality immersion gold surface plating
7. Supports Raspbian system, ubuntu system ,kali Linux system

Note: Please do not use for other system, because it may not compatible.

How to use

Refer to this video :https://youtu.be/5DAn_5-1Jg4 orhttps://v.youku.com/v_show/id_XNDg4MjI1MDAwNA==.html

You can download the system imgae which configured well at the bottom of this link : http://www.lcdwiki.com/3.5inch_RPi_Display

Note

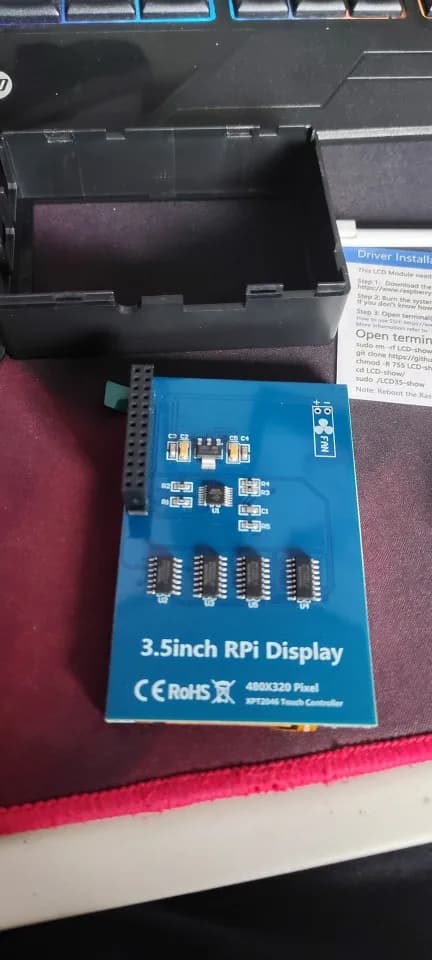

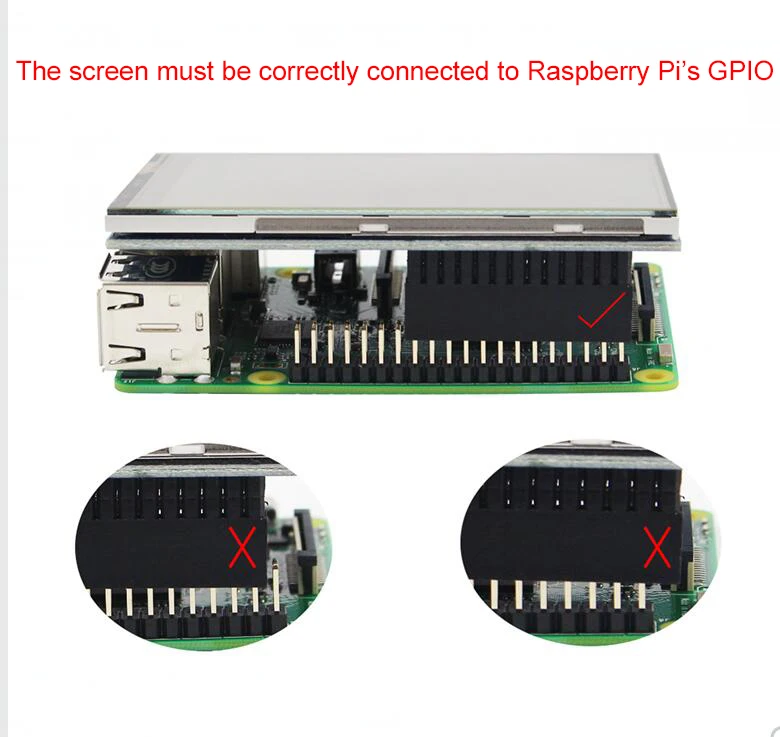

Please plug the screen on Raspberry Pi's GPIO pins correctly ( as the picture) . If you misplace it , the screen will lose the touch function forever. Make sure the right pin of screen is aligned before powering up.

Use for Raspberry Pi 4

Use for Raspberry Pi 3B+/3B

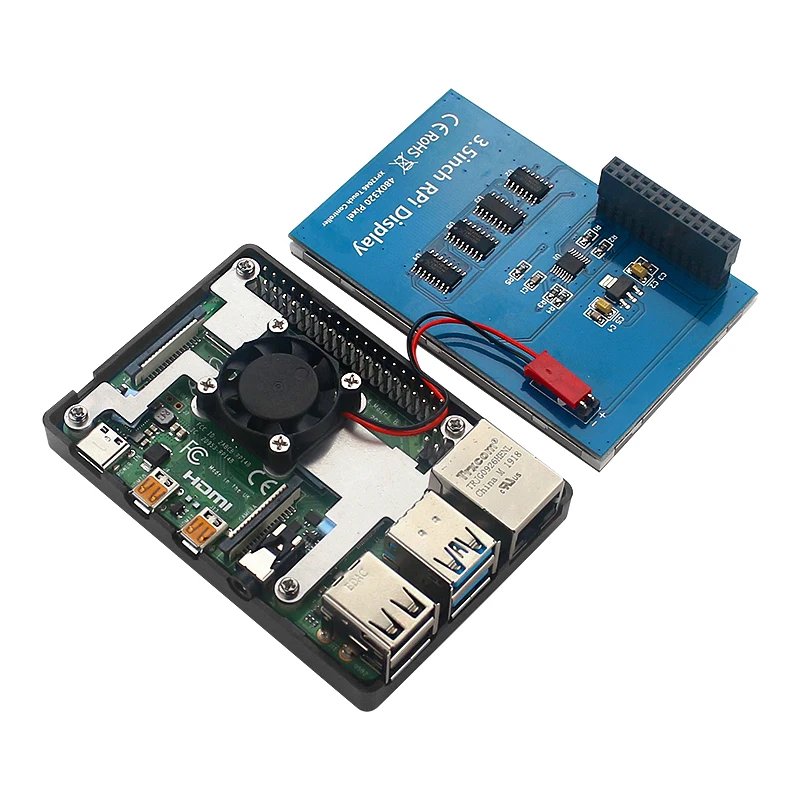

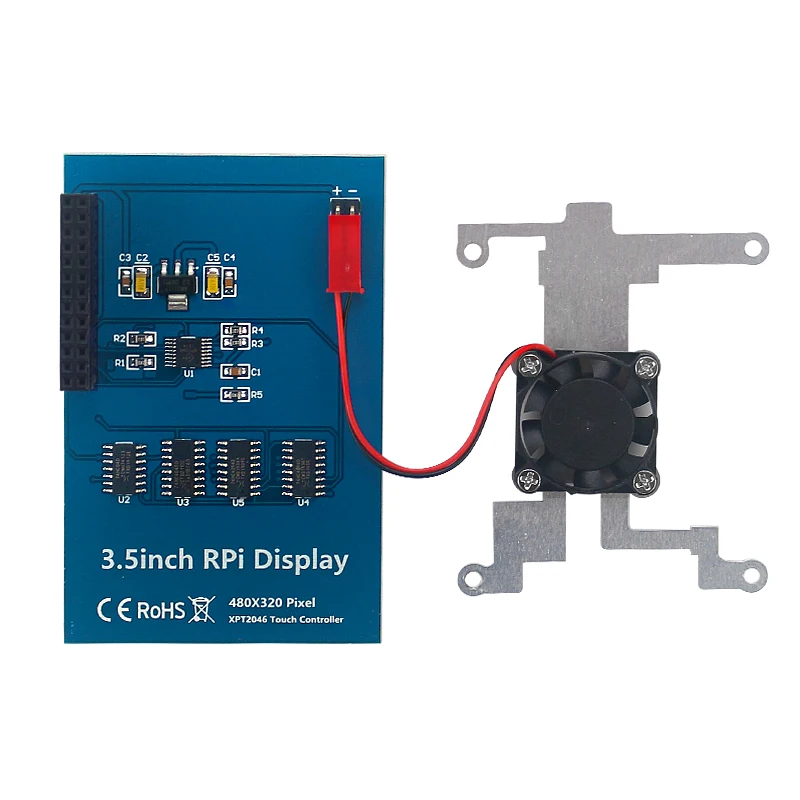

Use with Cooling Fan & Silicone Heatsink Module

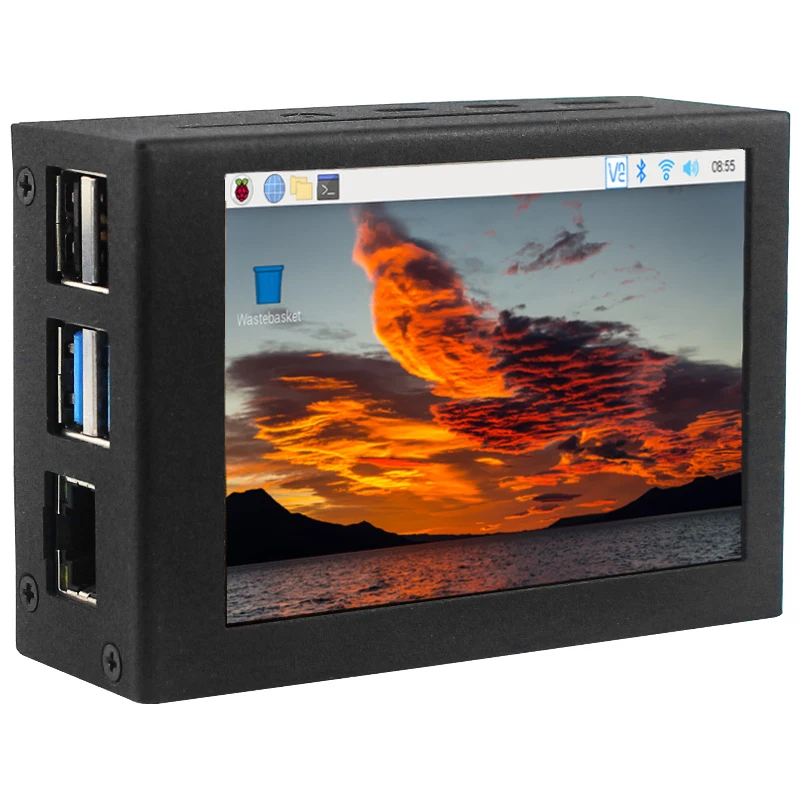

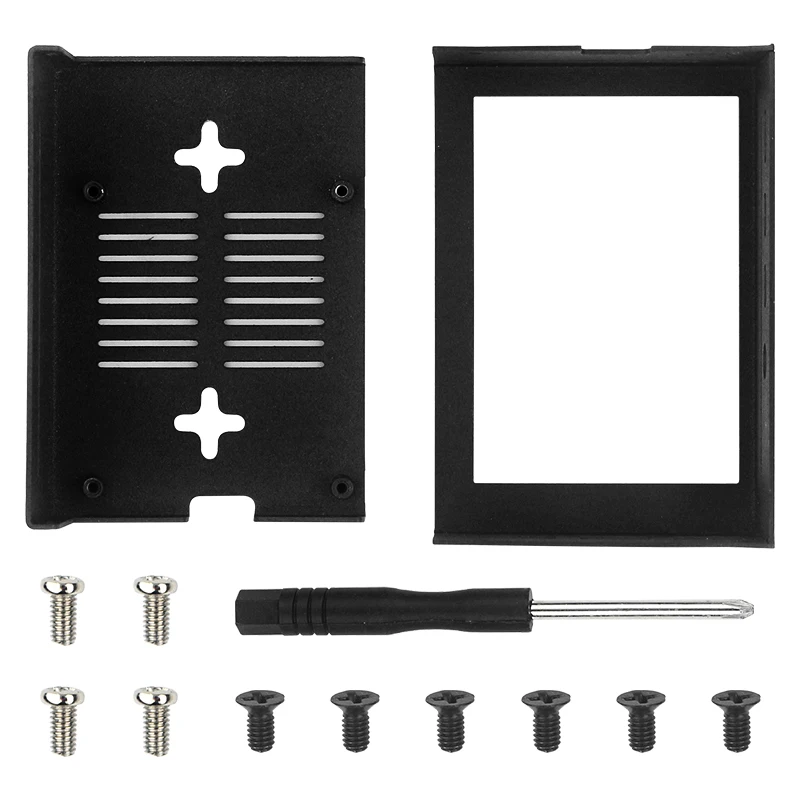

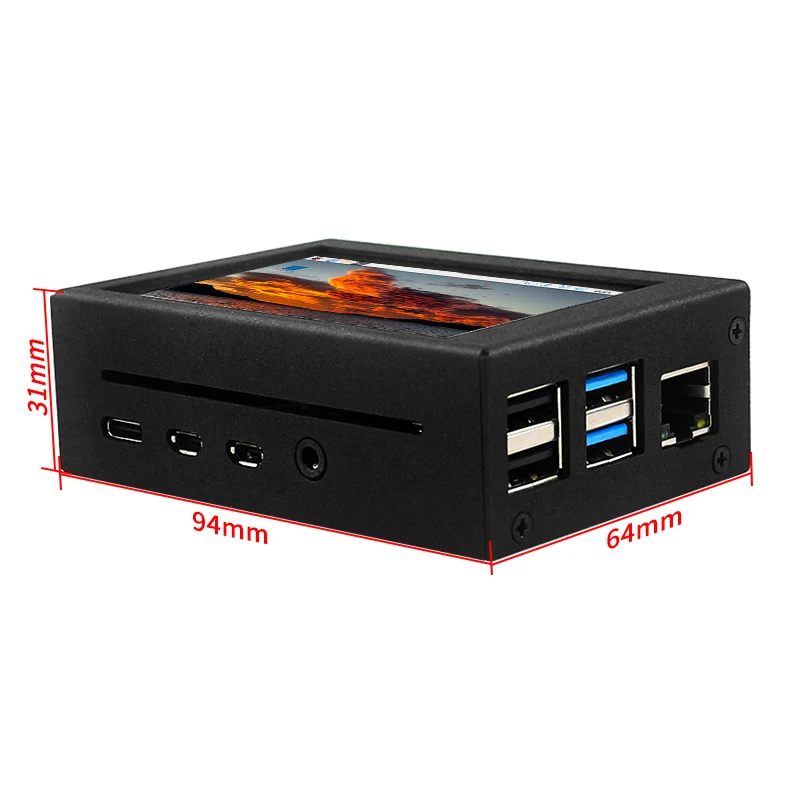

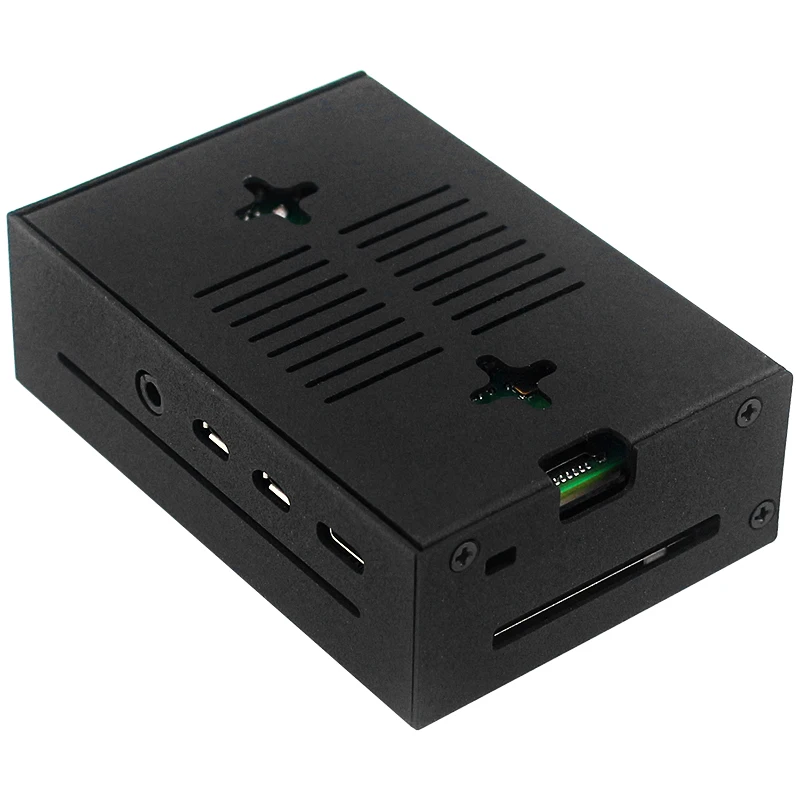

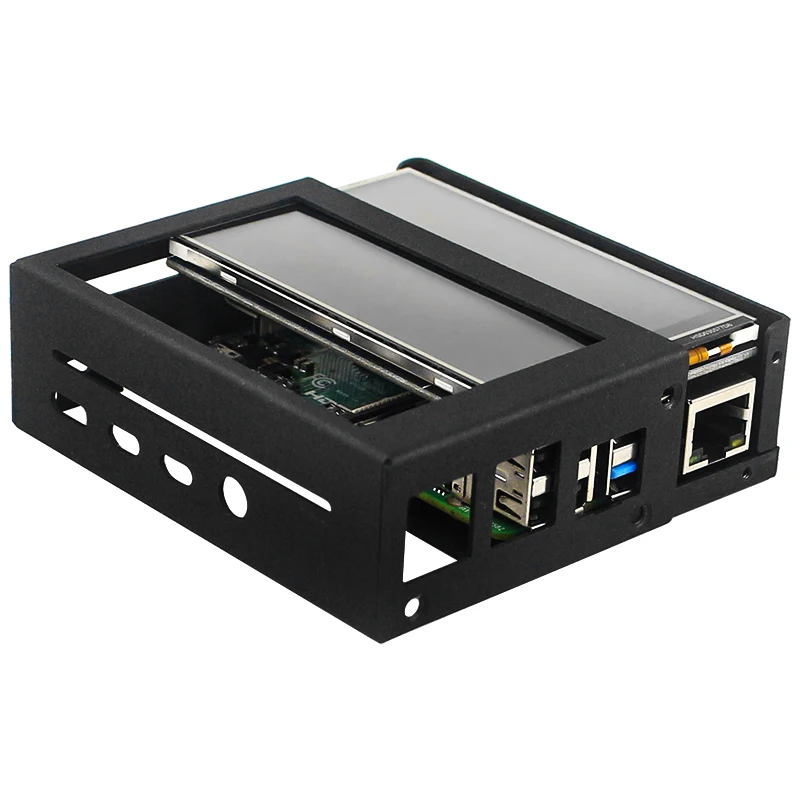

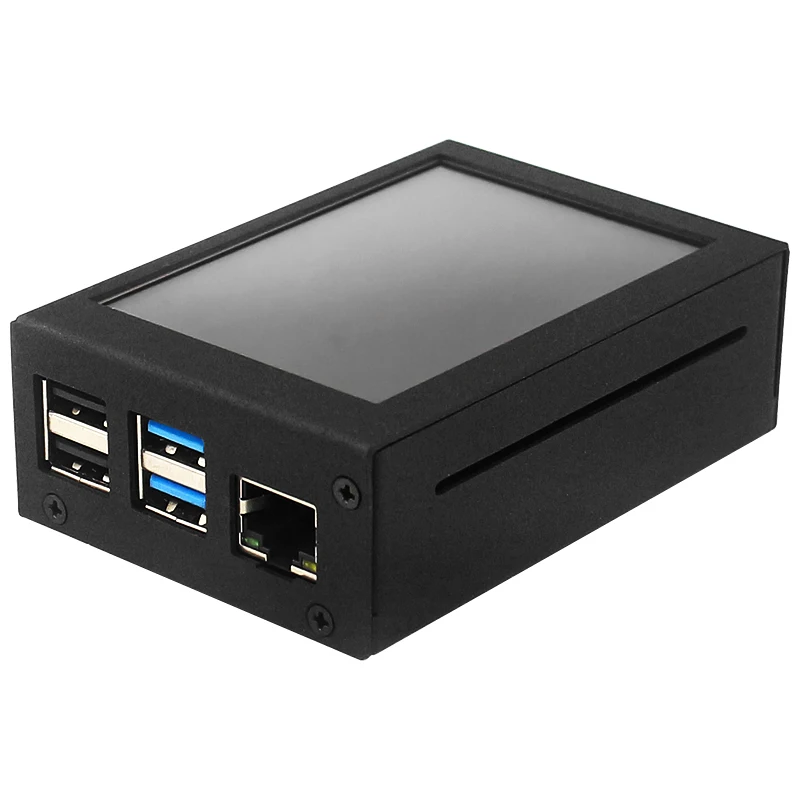

Metal Case for Raspberry Pi 4
