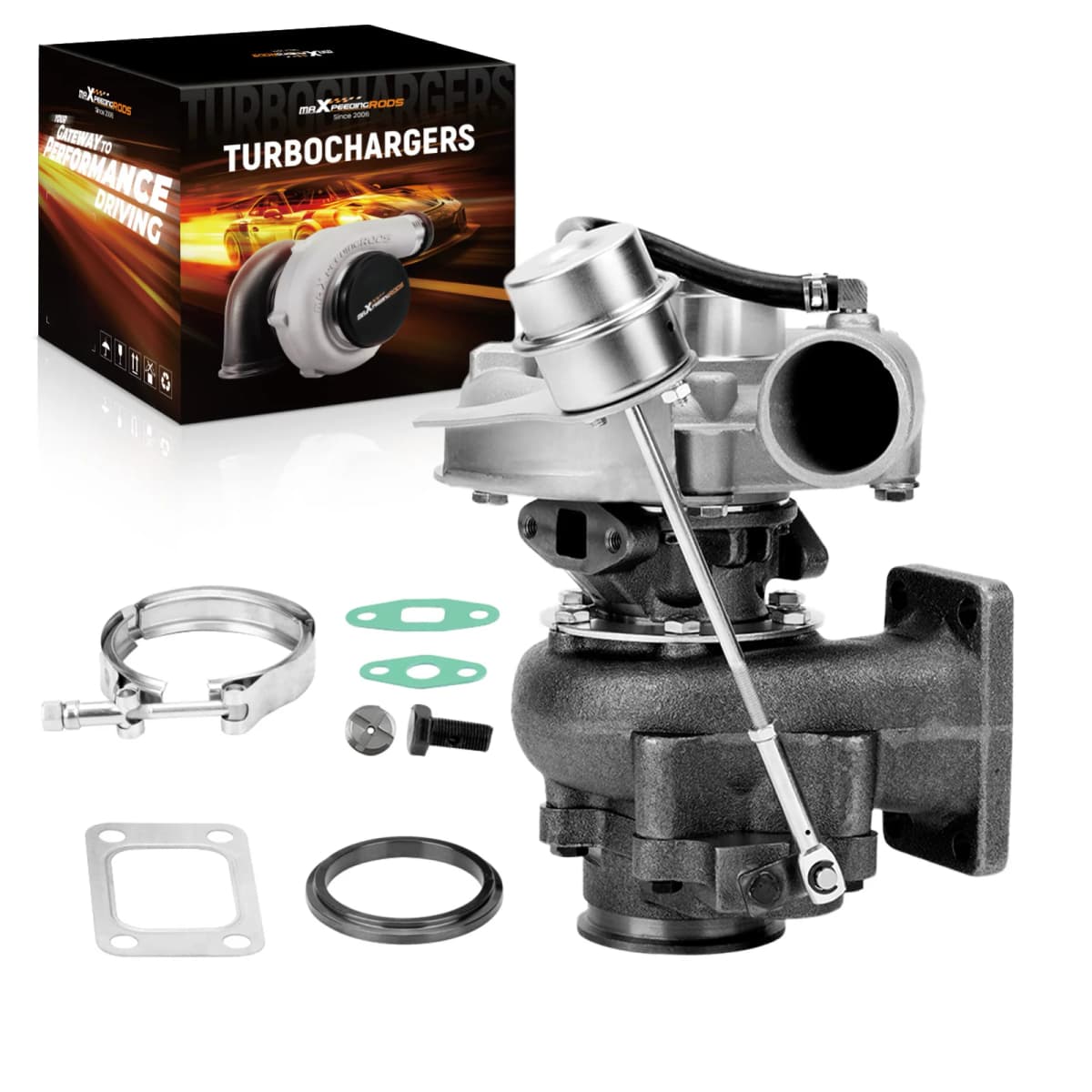

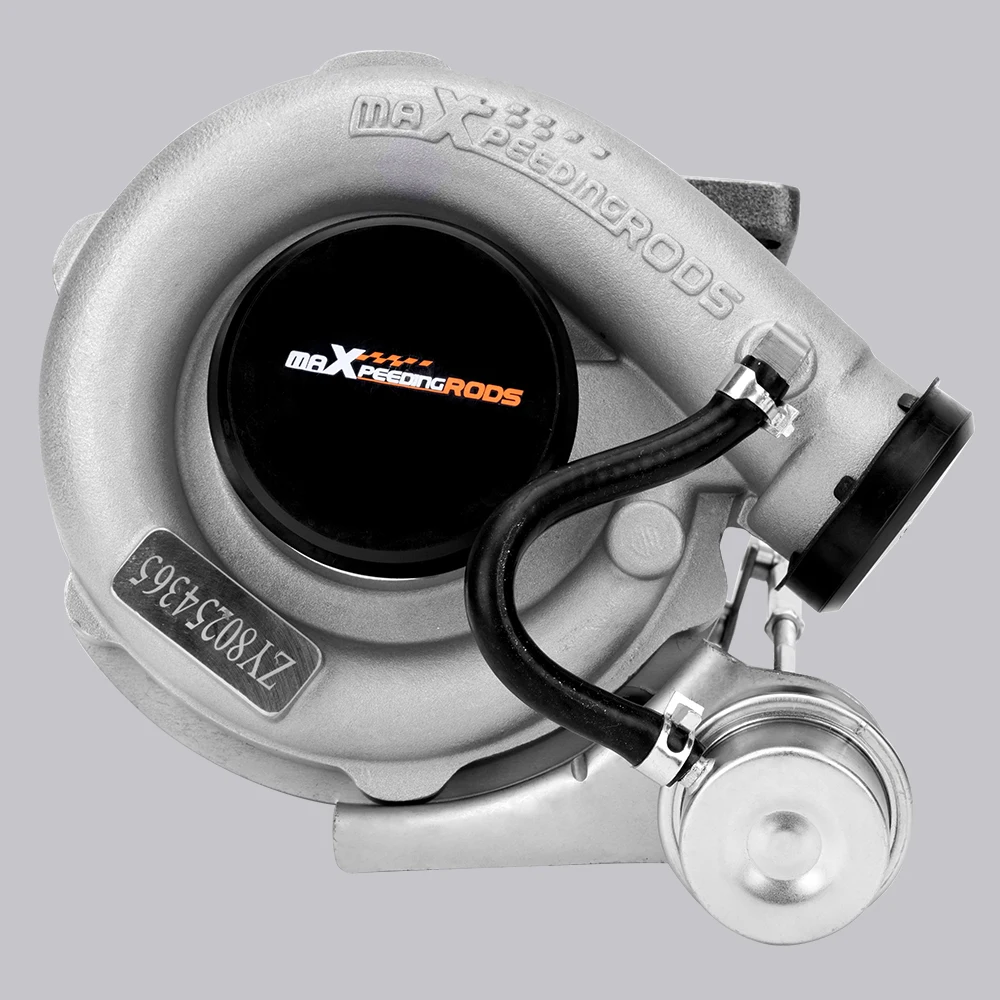

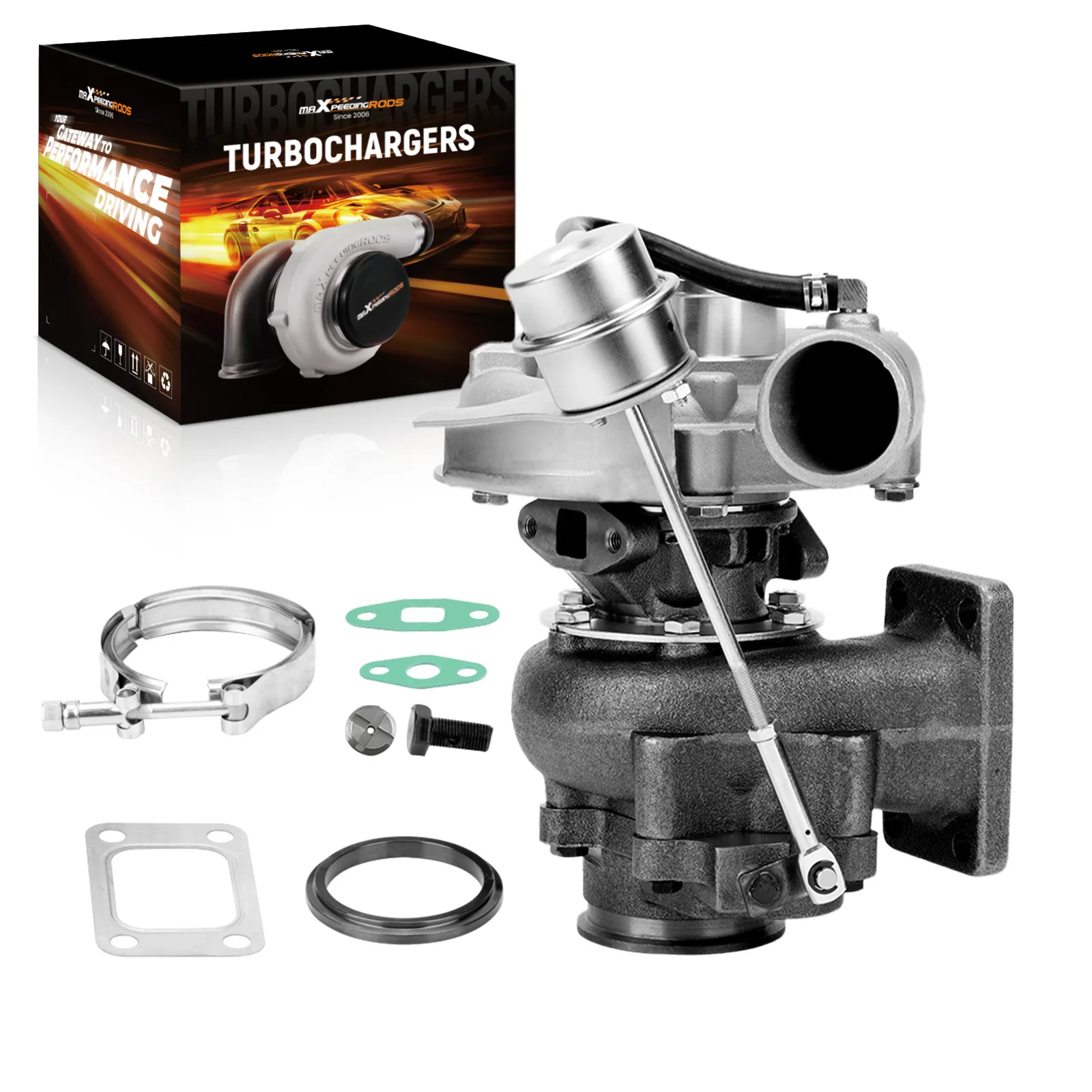

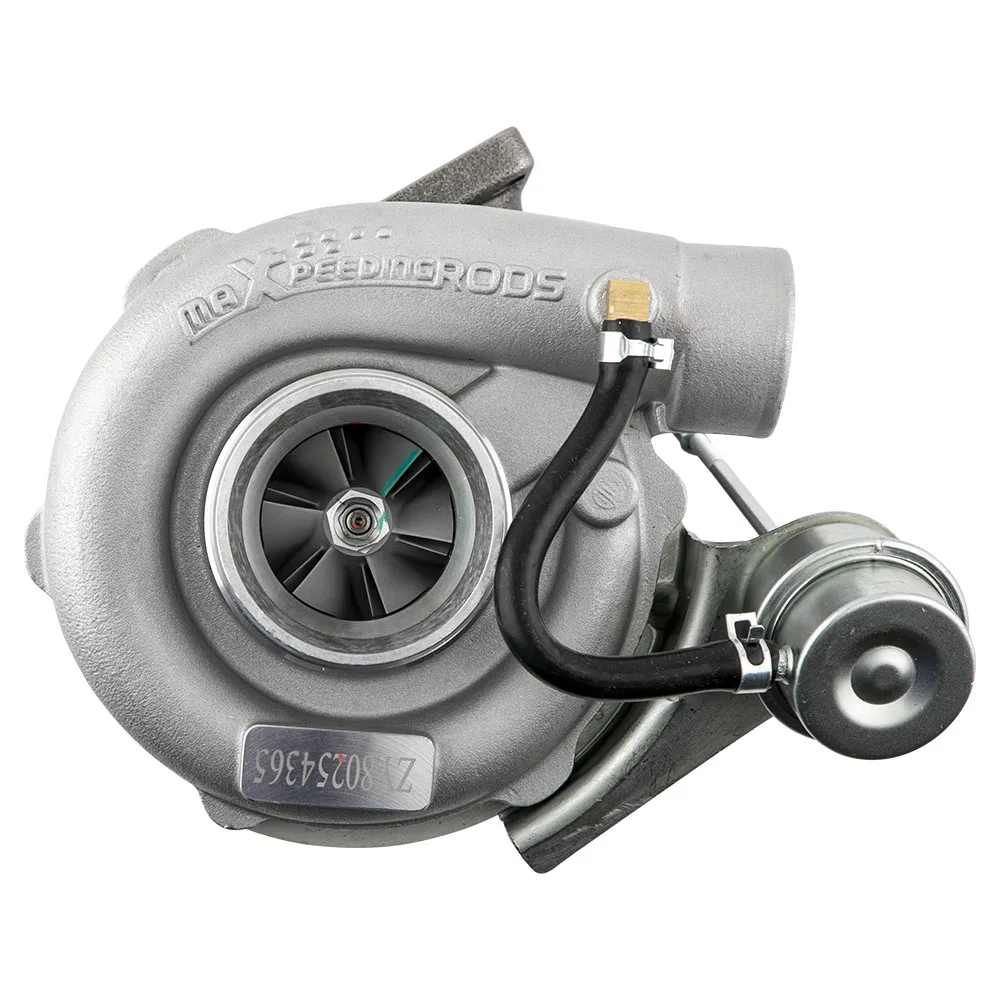

GT30 Turbo T3 T04E V-band Universal Turbo Turbocharger Upgrade​ Turbo.63 A/R for 1.5L-2.5L Engines

Legal Note: Not For Sale or Use in California, or New York.(for all vehicles registered in these states)


Universal Turbo Charger For Nissan Safari Patrol GQ GU Y60 TD42 4.2L TB42 V-Band A/R .63 Turbolader Turbine

This turbo is an universal application turbo, some modification may be required based on individual vehicle.

The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

Turbo For Nissan Safari Patrol 4.2L TD42 GU GQ Y60 Turbocharger T3 Flange

Application

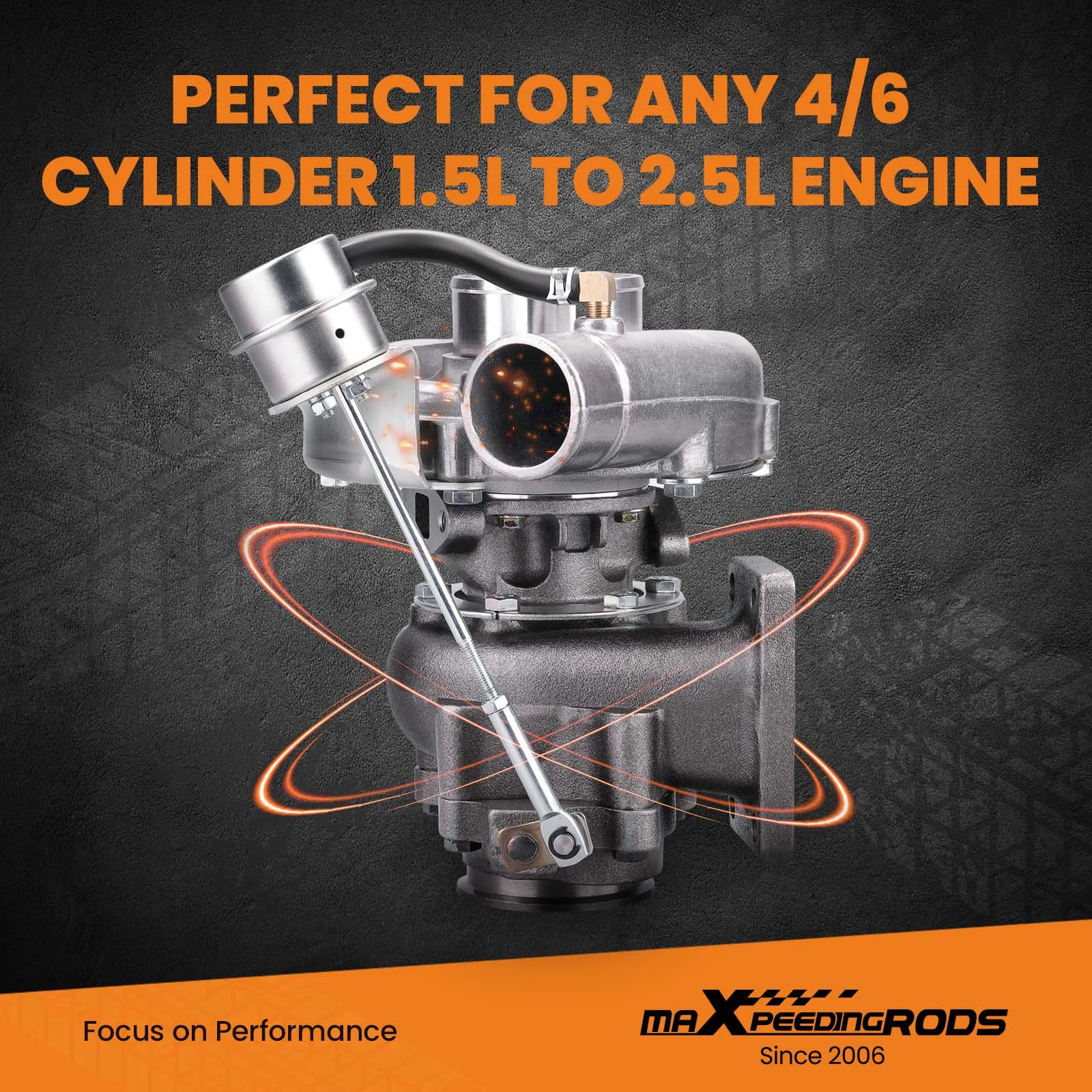

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Horse Power: Capable of Boosting Horse Power up to 420HP

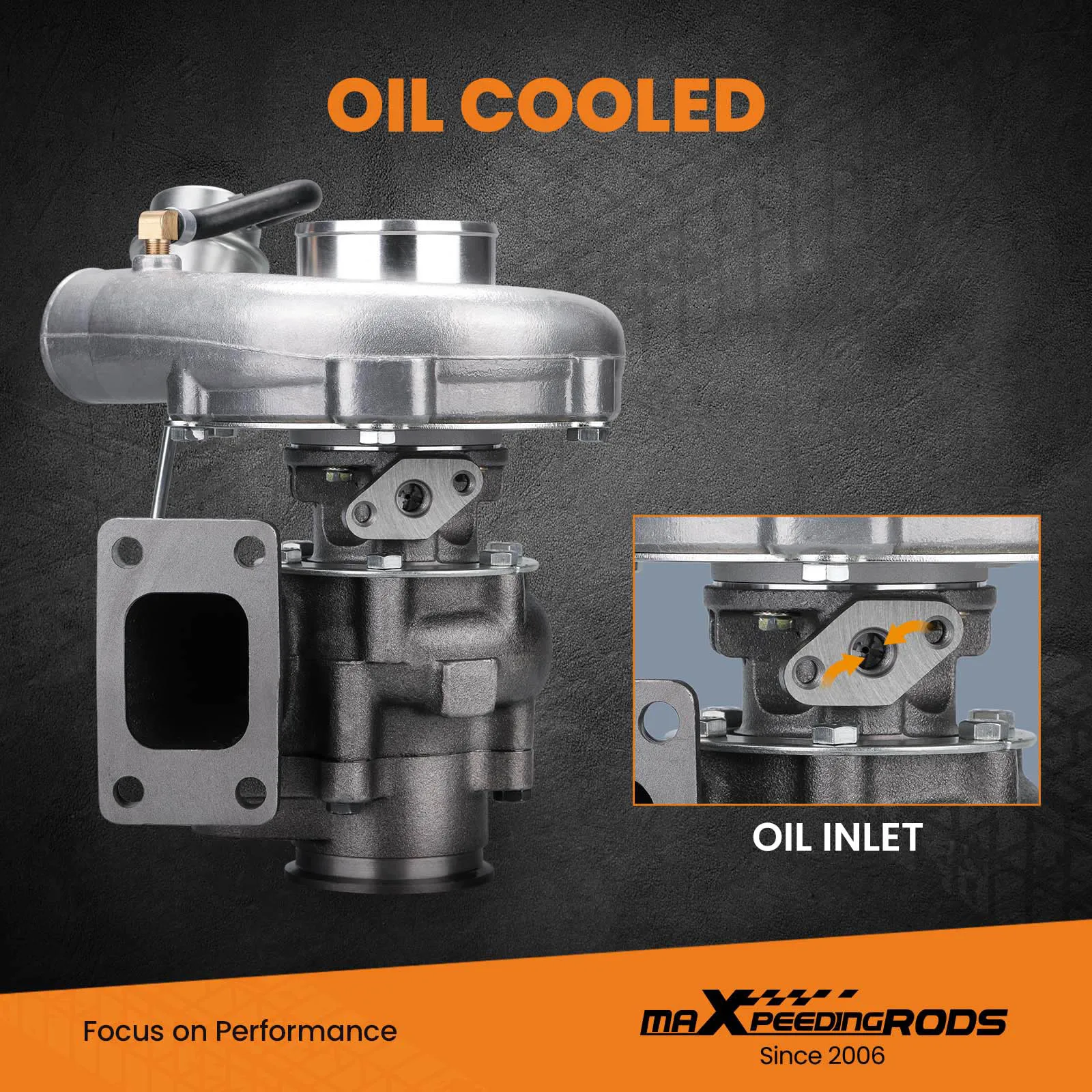

Cooling Type: Oil Cooled

Specification

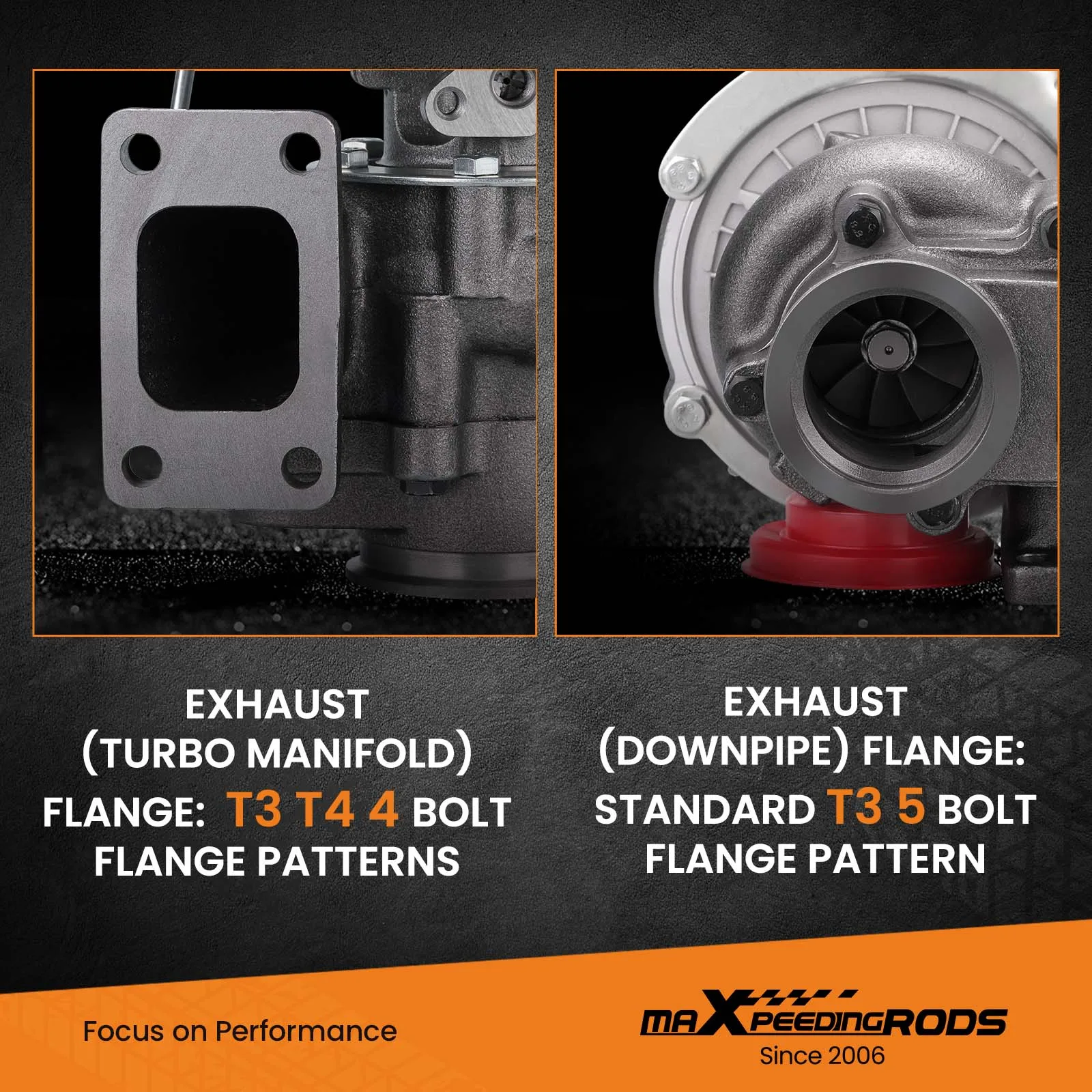

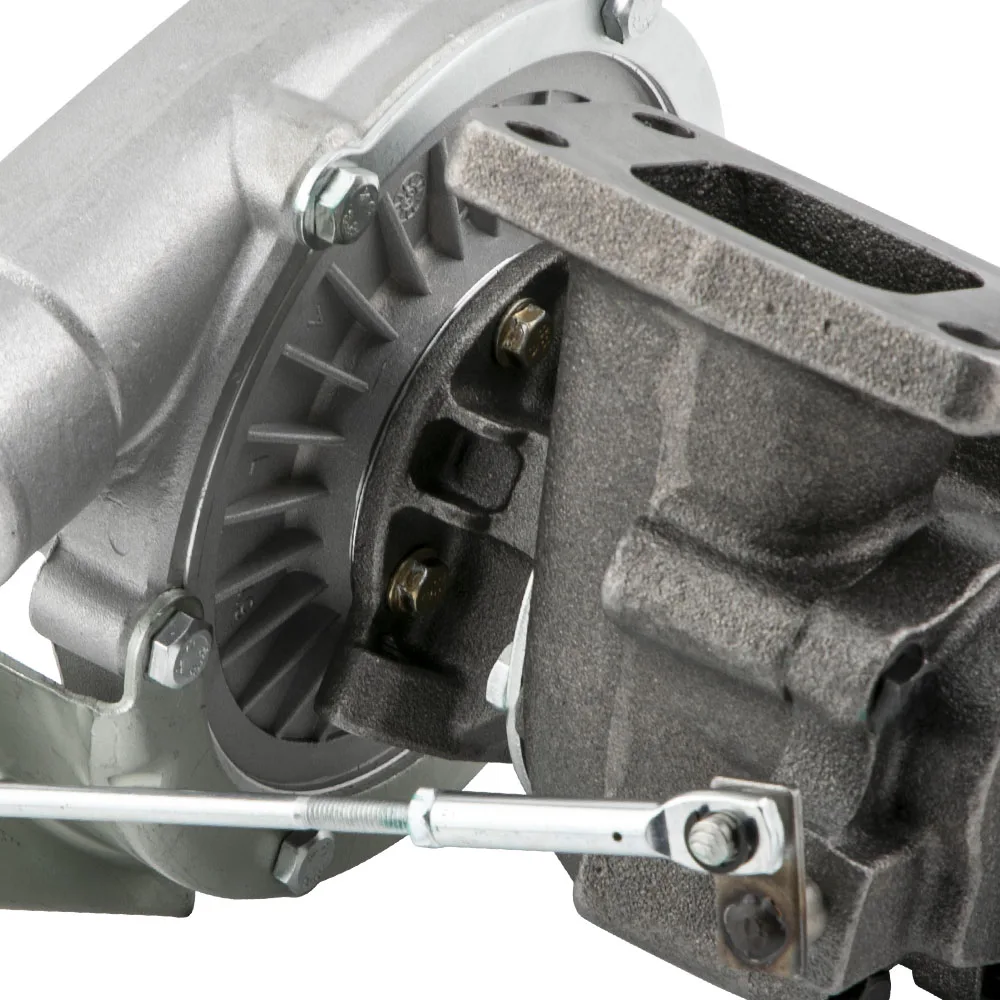

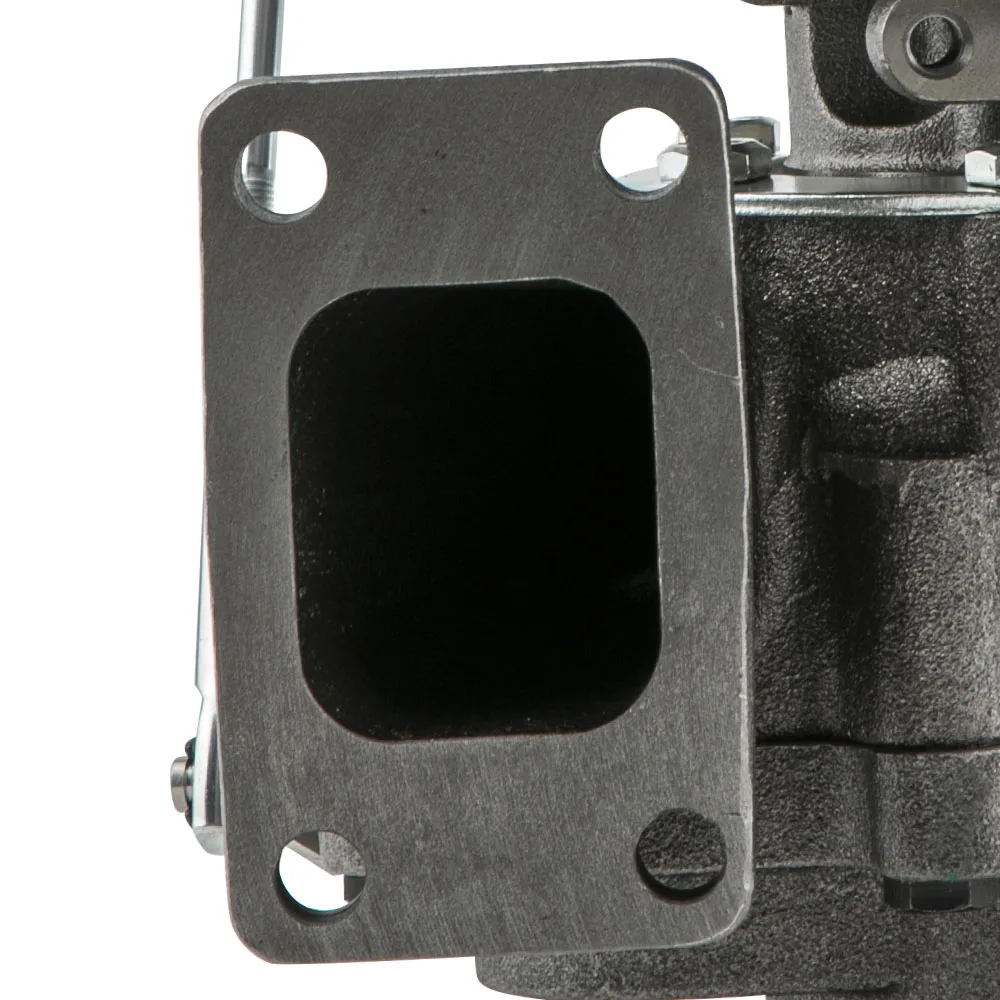

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: V-Band Flange

Turbine Trim:74.2

Turbine Inducer Diameter:64.8mm

Turbine Exducer Diameter:55.8mm

Turbine A/R:0.63

Turbine exhaust outlet : 79mm

Turbine exhaust inlet：44.7mm/85.8mm

Compressor outlet：78 mm

Compressor inlet：51.5 mm

Compressor Trim:48.1

Compressor Inducer Diameter:52.7mm

Compressor Exducer Diameter:76 mm

Compressor A/R:0.5

Bearing:Journal Bearing

Warranty:2 Year

Wastegate：With Wastegate

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

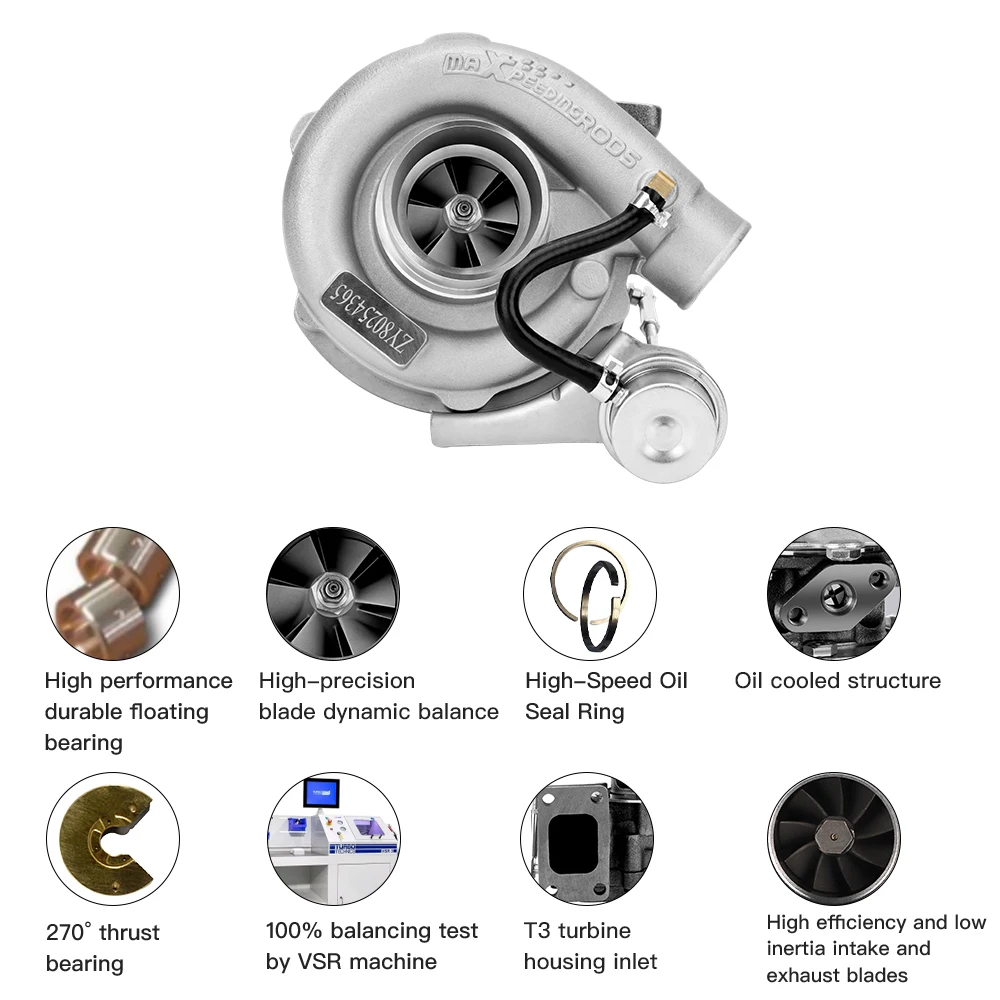

KEY FEATURES

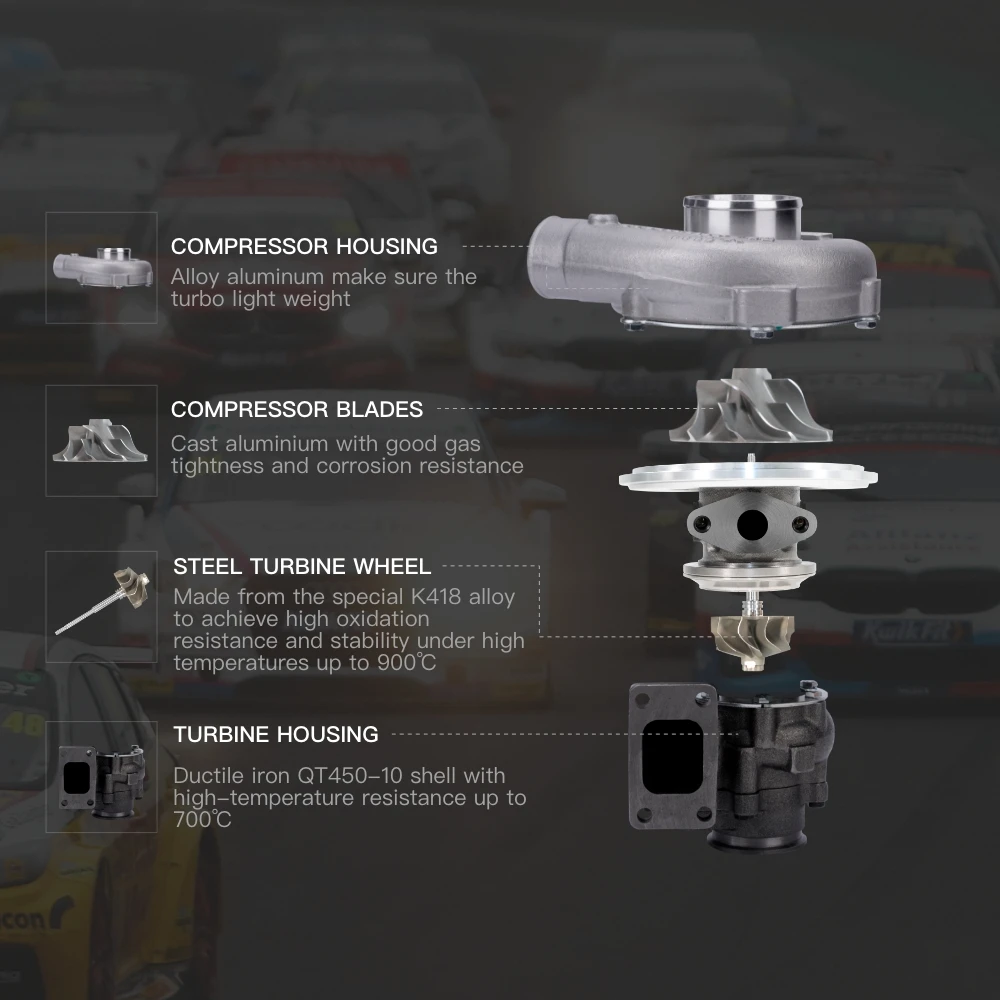

-High Quality Material, Cast Housing with Durable Steel
