CP-700 Manual Hydraulic Pump with Pressure Guage Maximum Output Pressure 700bar Easy to Use

Description

Our manual hydraulic pump is forged from premium cast iron, sturdy and durable. The equipped pressure safety valve and pressure relief valve can effectively ensure the safety of your use. Its high efficiency and stability make it your powerful assistant at work.

Key Features

Made to Last: This product is forged from high-quality cast iron and adopts a precision machining process, which has high hardness and strong pressure resistance, effectively extending the service life of the product.

High Efficiency: Low-pressure high-flow oil supply, high-pressure low-flow oil supply, and the 10152.64psi maximum output pressure greatly improve its work efficiency.

Large Oil Storage: The large oil storage capacity of 700cc allows you to use it easily without frequent refueling.

High Safety: The product is equipped with an internal pressure safety valve, which can be set to the maximum pressure limit to ensure the safety of use.

Integrated Structure: With an integrated structure, it can be directly used with jacks without an additional installation.

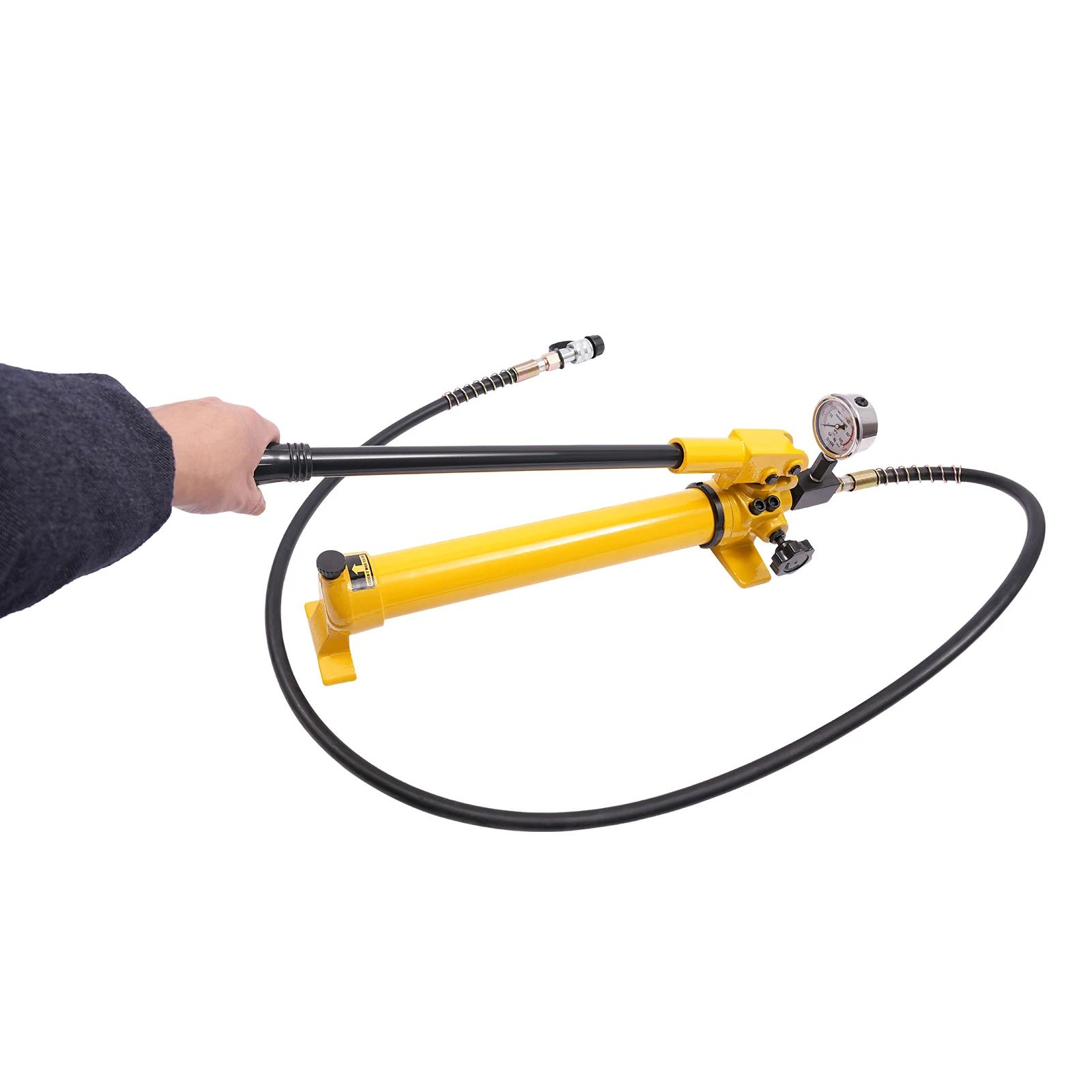

Easy to Use:The long non-slip handle has a comfortable grip, ensuring effortless and convenient operation.

Protective Package: To prevent the product from being damaged during transportation, we packed it with pearl cotton and bubble bags to protect your products to the maximum extent possible.

Good Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

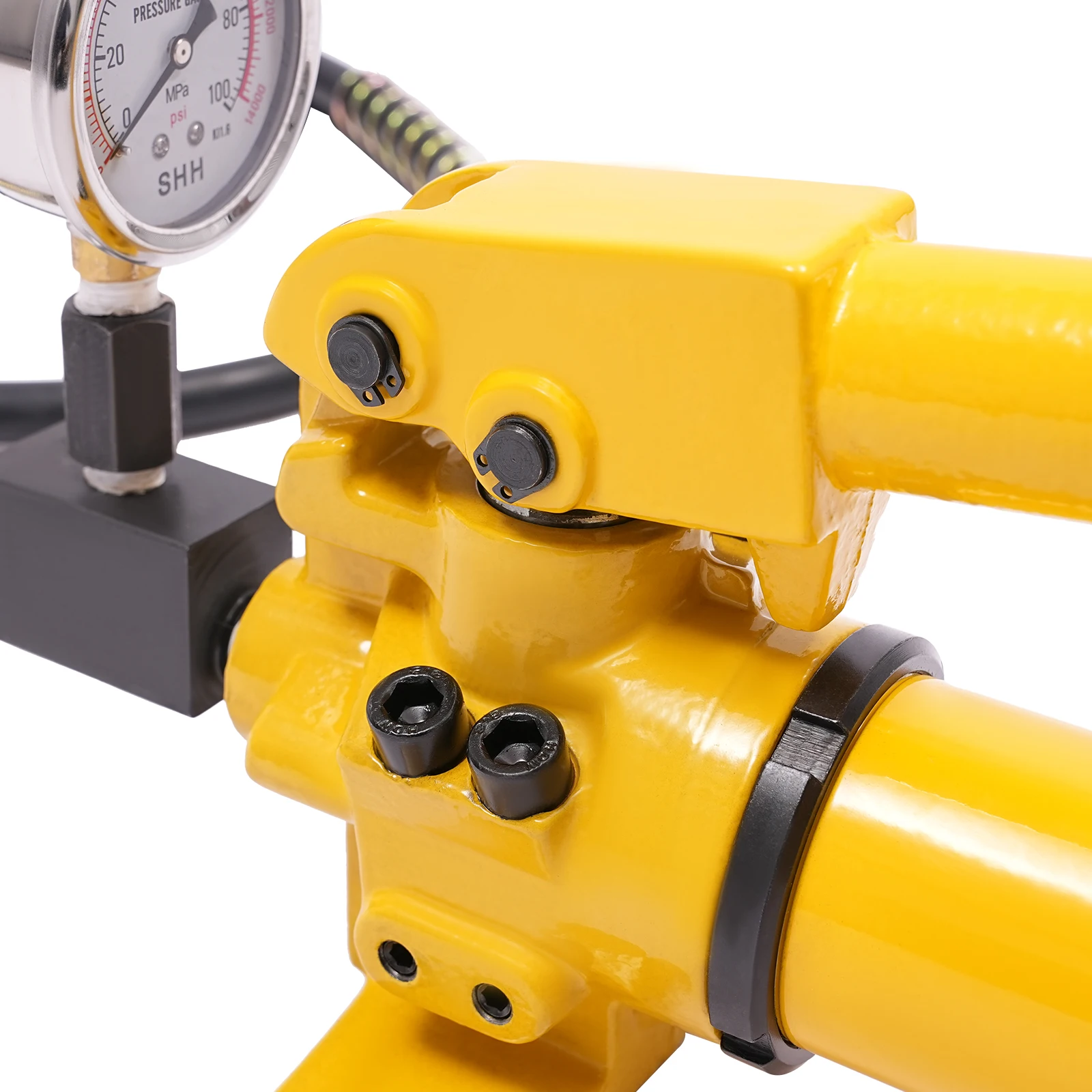

Pressure Gauge: This product comes with a pressure gauge that allows you to know the working status of the product at any time for safer use.

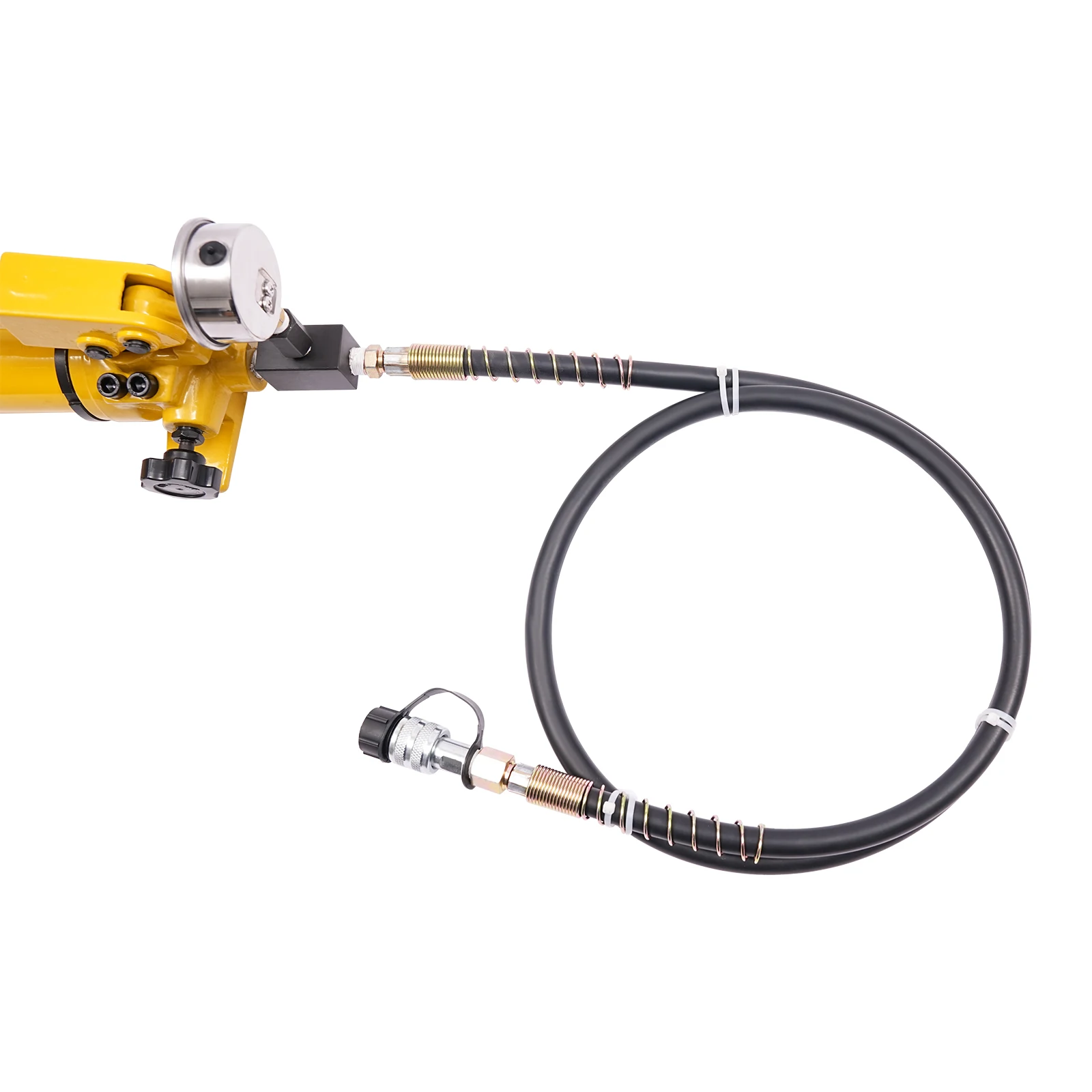

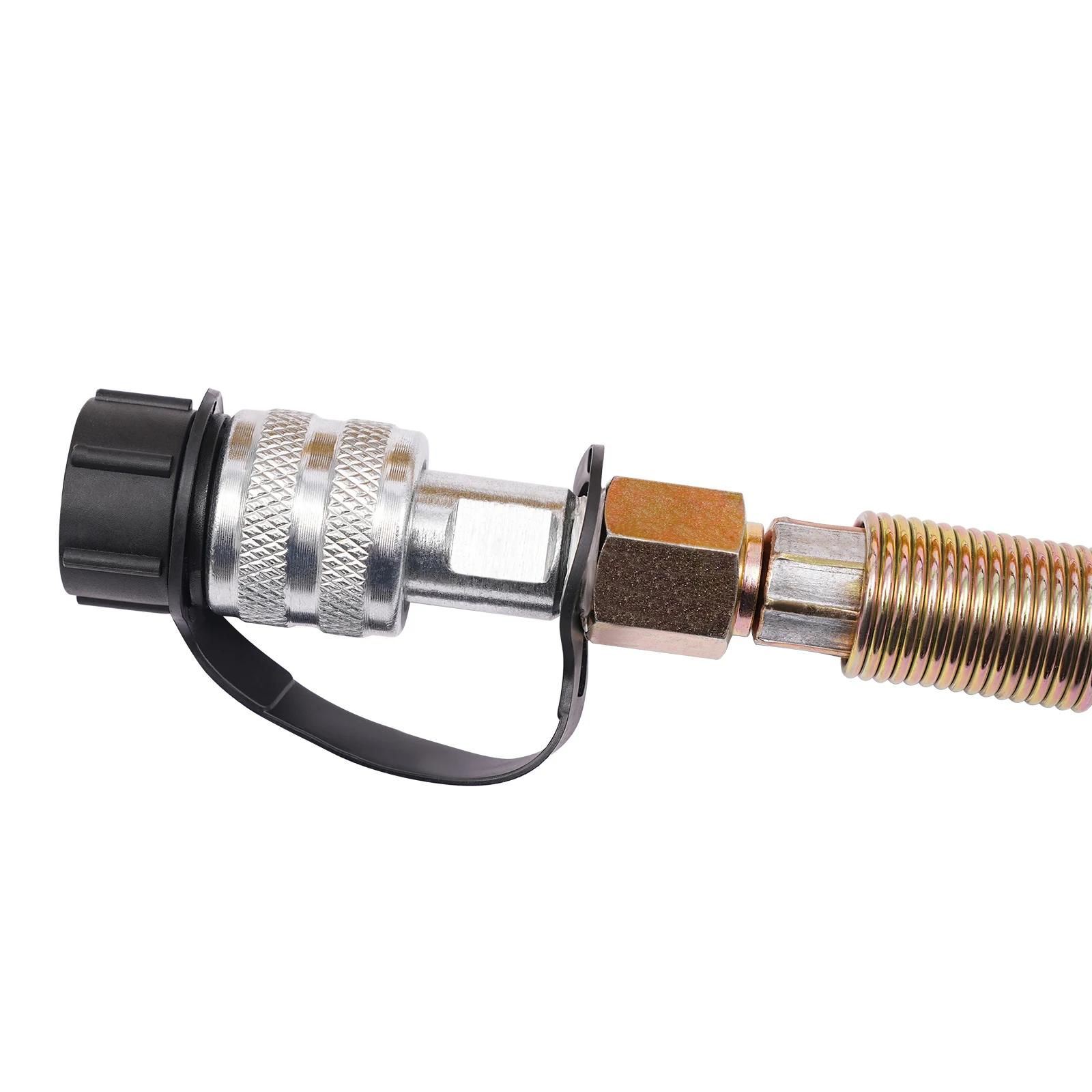

High-pressure Oil Pipe: It adopts a high-pressure oil pipe (6.23 ft) and attaches a quick joint(ZG3/8''), which makes it convenient and fast for you to use.

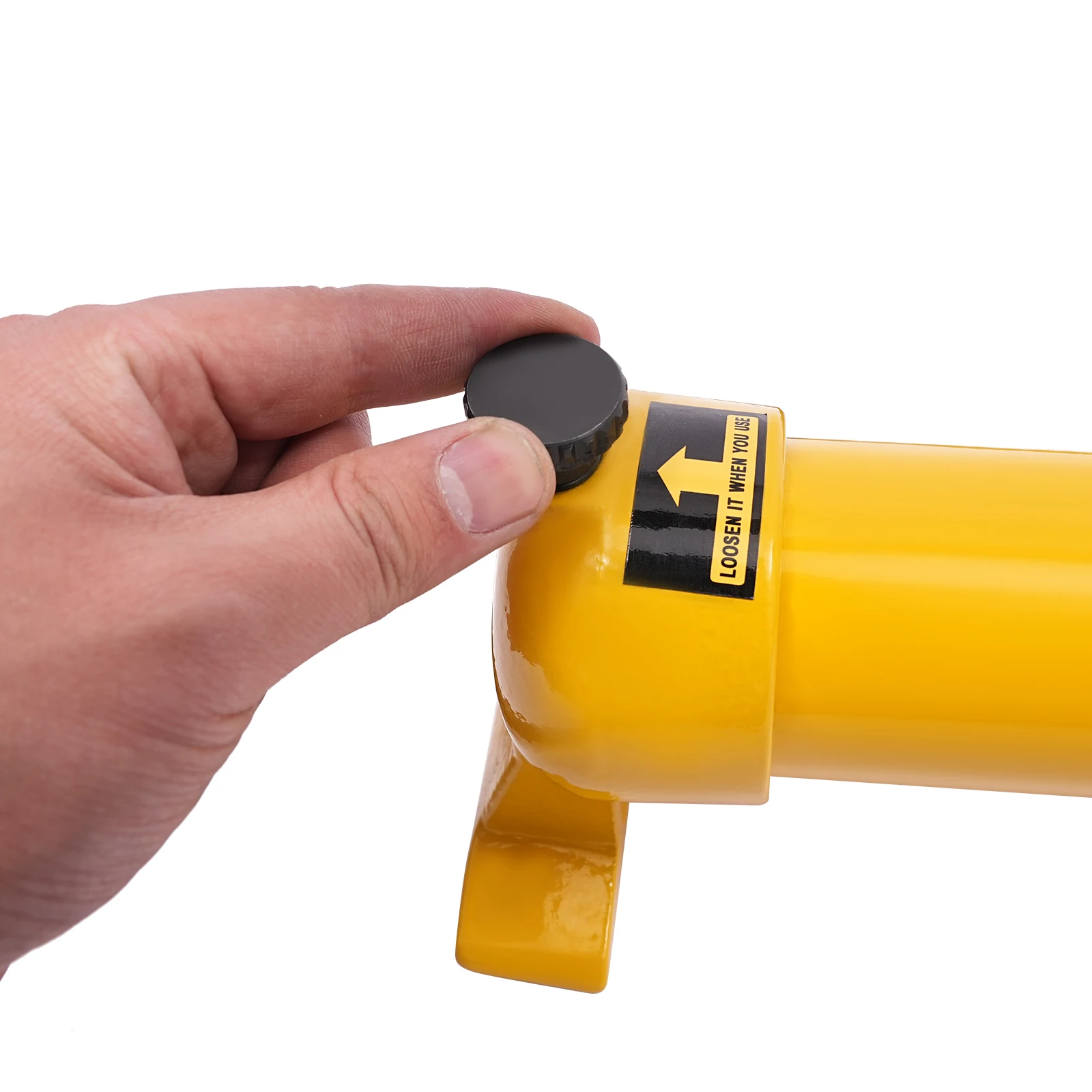

Pressure Relief Valve and Venting Screw: These two designs provide safety in use.

Application

This product can be used together with other hydraulic tools, such as a hydraulic jack, hydraulic crimping machine, hydraulic punching machine, and hydraulic pipe bender. It can conduct pressure tests directly on pressure vessels equipped with cylinders and equipment for lifting, jacking, bending, straightening, stretching, punching, riveting, dismantling, etc.

How to Use

1. Before use, please confirm whether the oil cylinder fits the quick coupling on the hydraulic pump. When using, stand on the back of the hydraulic pump and keep away from the hydraulic cylinder to avoid accidental injury.

2. When using, insert the quick connector on the high-pressure oil pipe of the oil pump into the oil cylinder connector first, and then lock the connector nut. Then, unscrew the tail ventilation screw, and tighten the return switch on the hydraulic pump head clockwise. Last, press the handle up and down.

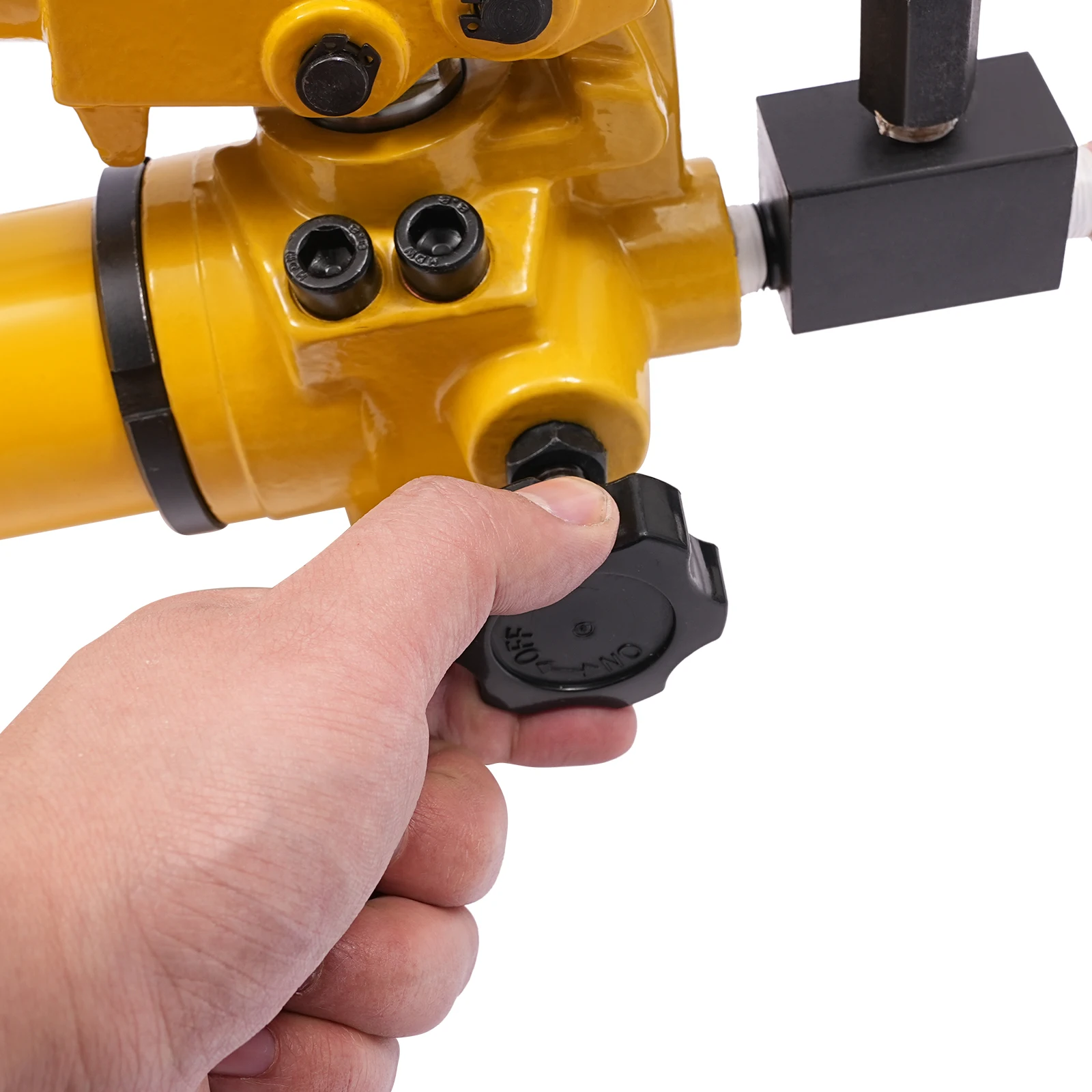

3. Turn the oil return switch counterclockwise to release pressure. When not in use, tighten the ventilation screw at the rear to avoid hydraulic oil leakage.

Specification

Color: Yellow

Model: CP-700

Material: Cast Iron

Process: Machining

Assembly Required: Yes

Thread Connection: ZG3/8''

Maximum Output Pressure: 700bar/10152.64psi

High-Pressure Output Oil: 2.3cc/0.14cu in

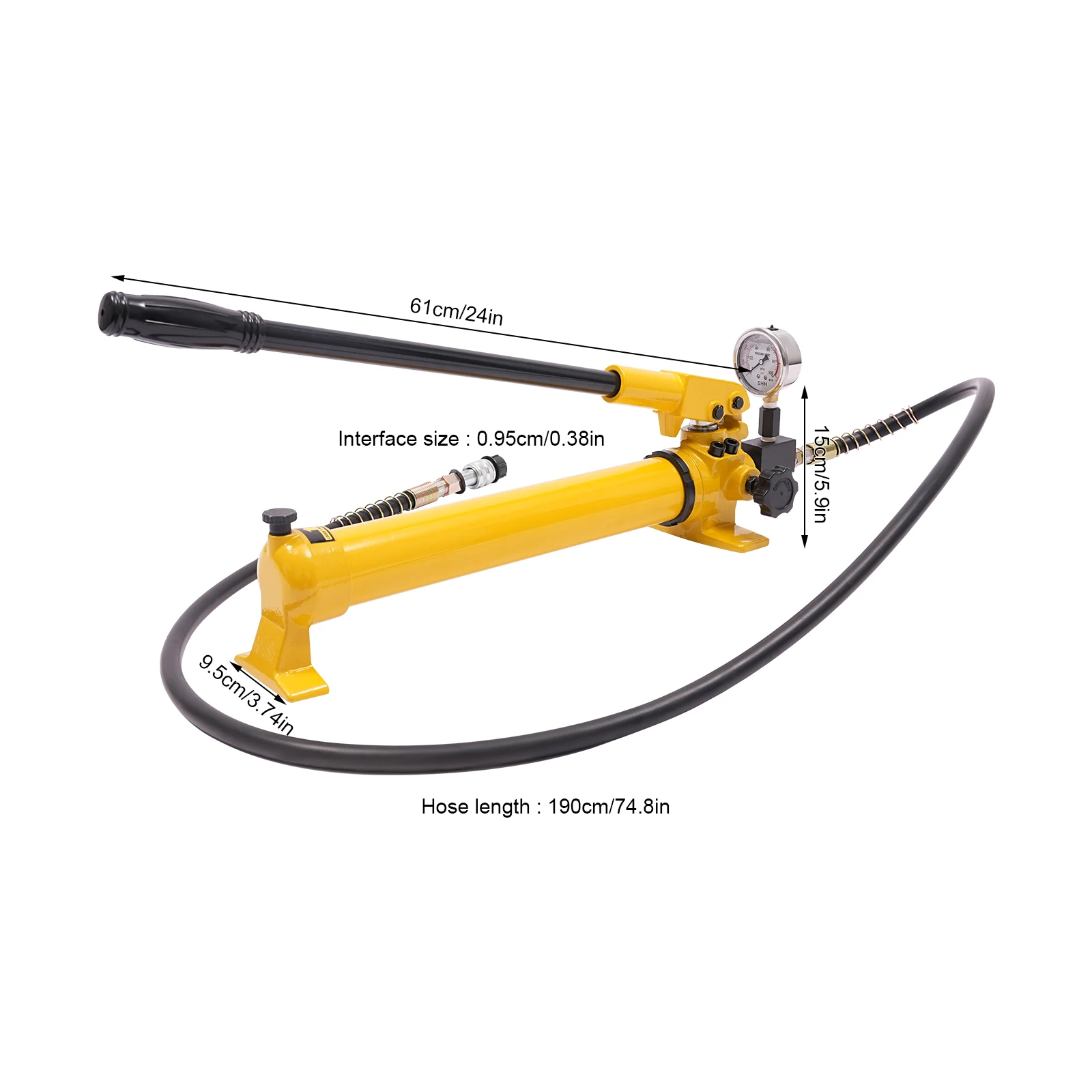

Low-Pressure Output Oil: 13cc/0.79cu in    Oil Storage: 700cc/42.72cu inTubing Length: 1.9m/6.23ftProduct Size: 61*9.5*15cm/24*3.74*5.9inPackage Size: 78*22*19cm/30.71*8.66*7.48inGross Weight: 6.4kg/14.11lbs

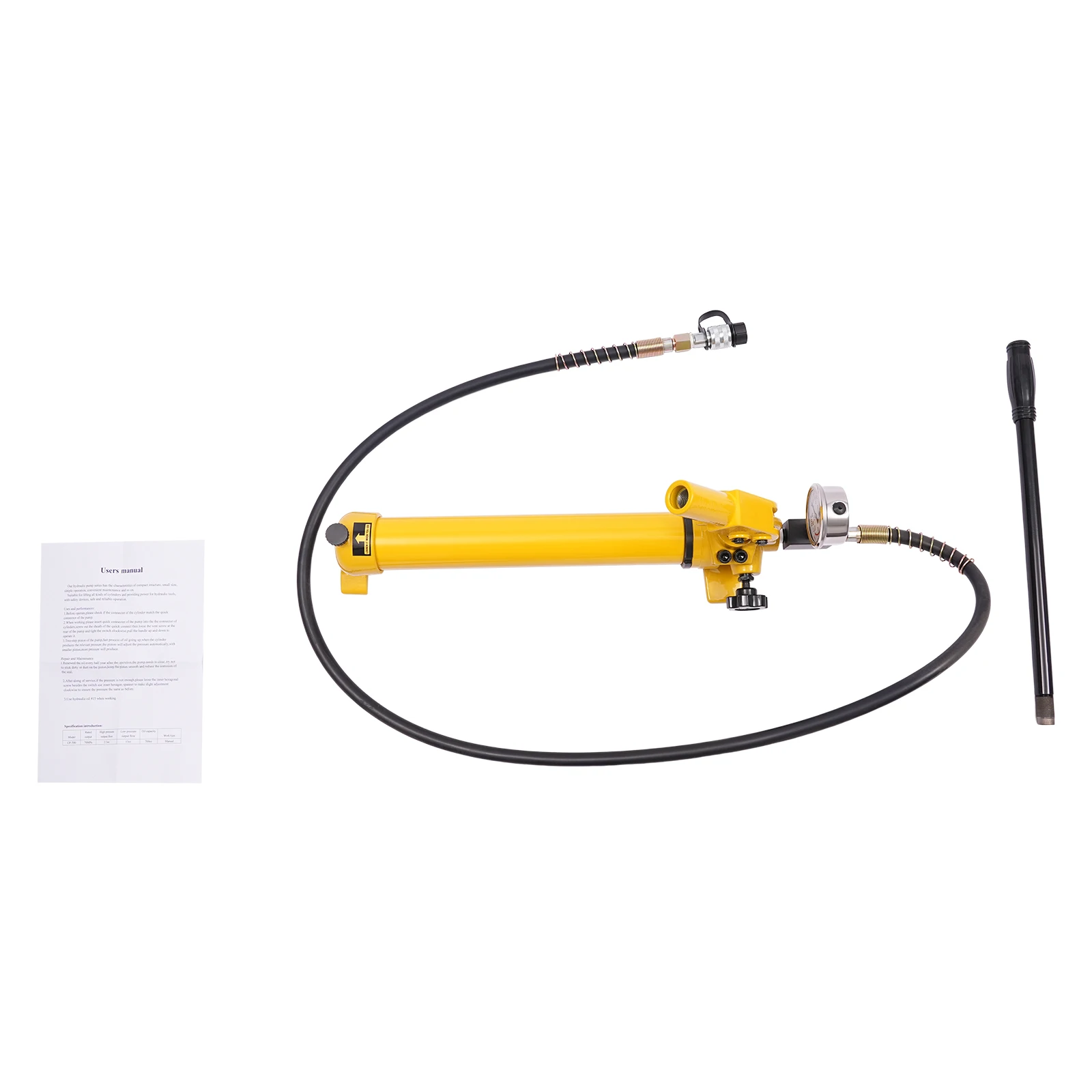

Package Included1*Manual Hydraulic Pump1*Handle1*English Manual
Notes1. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.2. Please note that the oil must be changed every six months. 3. Please loosen the venting screw when using it to avoid no pressure.4. This product is applicable to horizontal or head down directions. If the tail is down, it will not be able to absorb the oil.5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
