DC12V-24V LED Strip Light Controller Dimmer for Single Color Tape Lights Dimmer 3A RF+14-Key Remote Control Convenient Switch

DC12V-24V Single Color LED Strip Controller Dimmer 3A RF+14-Button Remote Control DC Head Dimmer Connect

Features:

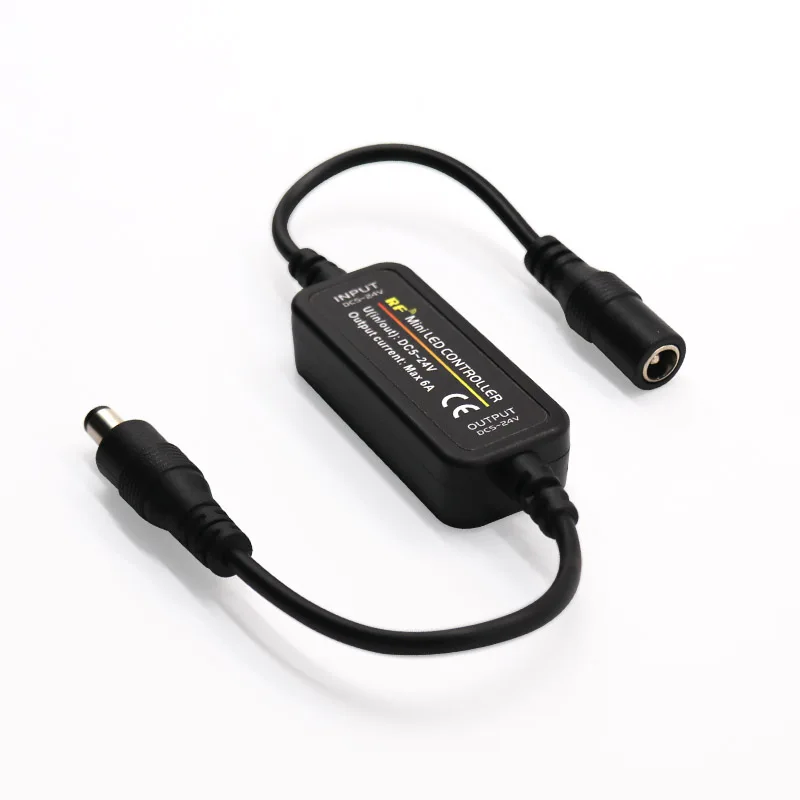

Name:Single Color LED Strip Controller

Plug and Play

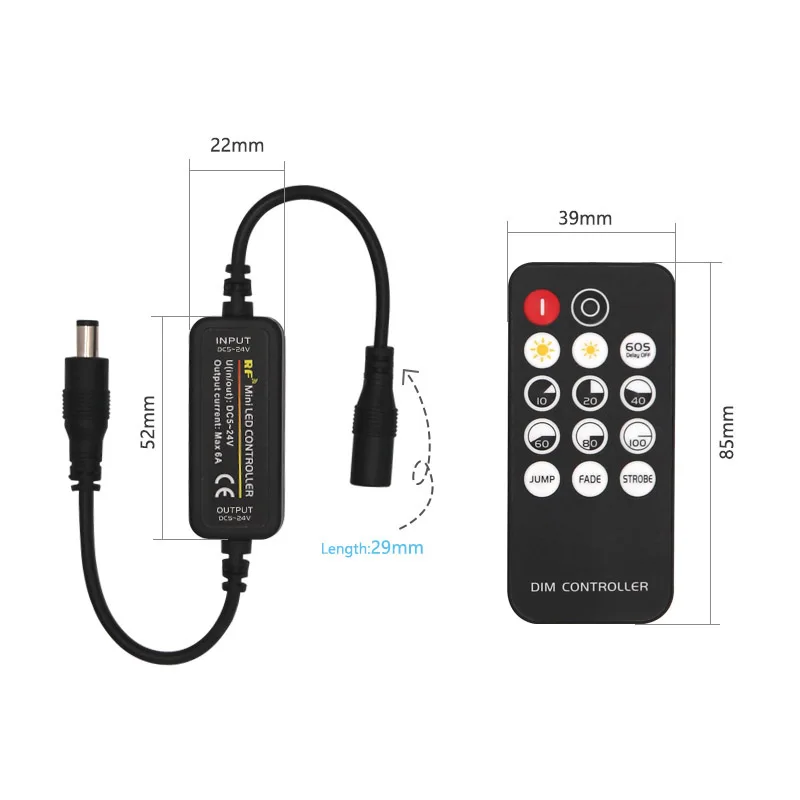

Cable Length: 30cm

Working Voltage: DC12V~24V (never connect to others or AC220V)

Body material: Plastic

Wire material: Copper

Input: 5.5mm DC Female

Output: 5.5mm DC Male

Max Output Current: 6A

Max Output Power: 5V: <30W,12V: <72W,24V: <144W,

Work temperature: -20~60°C

Not waterproof

Remote distance: up to 20 meter

Remote battery 1pcs CR2025aluminum cell

RF frequency: 433.92MHz

Package list:

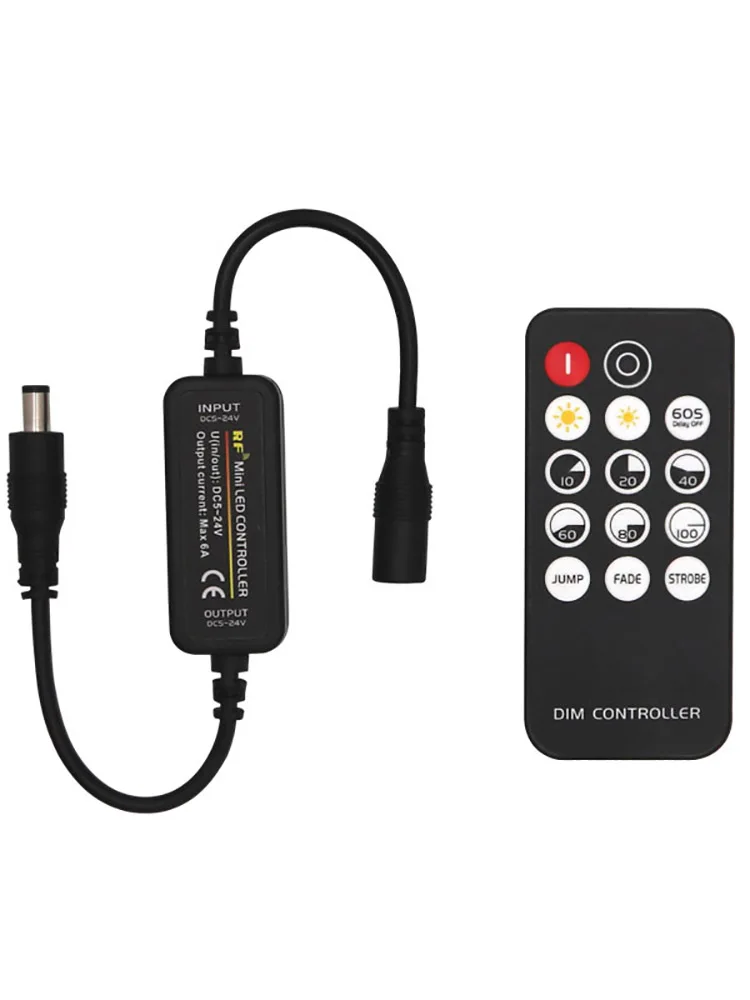

1 *Single Color LED Dimmer Controller

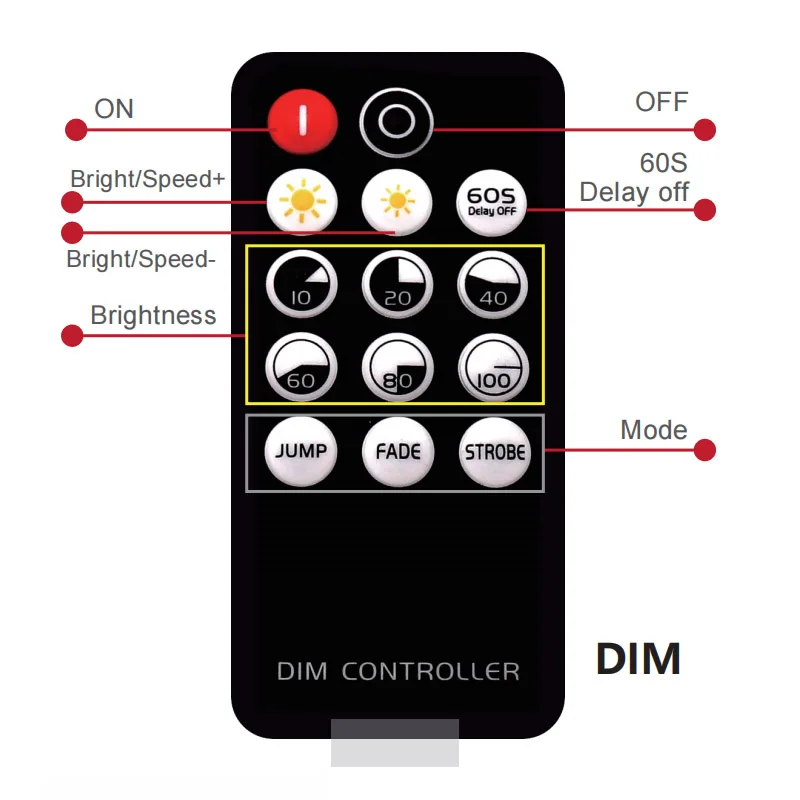

1 * 14 Key Remoter (battery included, remove insulating film when using)

*Note: 14key DIM default pass code for product delivery:

1. If one-to-one codes are required, the controller is powered

off and powered on again. Press and hold the power on key,

and the light strip flashes white light to check the code

successfully.

2. If a pair of multi-pass code is required, the controller is

powered off and powered on again. Long press the power

off key, and the light strip flashes white light to clear the

code successfully.

Connection method:

Follow steps below to pair a new remote:

1.Disconnect receiver from power, reconnect within 5 sec.

2.Press "on"button for 2 seconds and the receiver will recognize

the new remote controller.
