12V Marine Grade Rocker Switch SPST/ON OFF, DPDT/(ON) OFF (ON) Blue Led Light Bar for Carling ARB NARVA Replace Waterproof IP66

12V 20A / 24V 10A Rocker Switch With Blue Lights for Cars / Boats / Instruments

All logos for these rocker switches are printed directly onto the switch face using modern high tech inks and printers to ensure long image life. It uses a standard din size mounting hole of 37.2mm x 21.2mm. This is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.  We have SELF LOCKING and AUTO RESET switches to meet all your needs to operation your accessories.

Pole & Throw : Single Pole Single Throw ( SPST), Double Pole Double Throw (DPDT)

Switch Actions: ON OFF, (ON) OFF, ON OFF ON, (ON) OFF ON, (ON) OFF (ON)

Terminals: 5-Pin, 7-Pin

Explanations: ON is self locking. When you remove your finger the switch holds on; (ON) is auto reset. When you remove your finger the switch springs back.

Switch Material: Black hard surface rocker made of high quality ABS plastic

Led Color : Dual LED lights in Blue Blue

Logos: Using high tech inks and printers to ensure long image life

Install Size: 37.5mm x 21.2mm. Same size as the ARB switches.

Working Voltage: Rated 20A 12V / 10A 24V

Barriers or not: No rear barriers between terminals.

Waterproof Grade: Marine IP66

Package Contents: 1 x what you have selected

Friendly Reminding: The switch is rated to 20amp at 12V and 10amp at 24V however in ALL case we recommend that you wire the accessory through a fused relay.

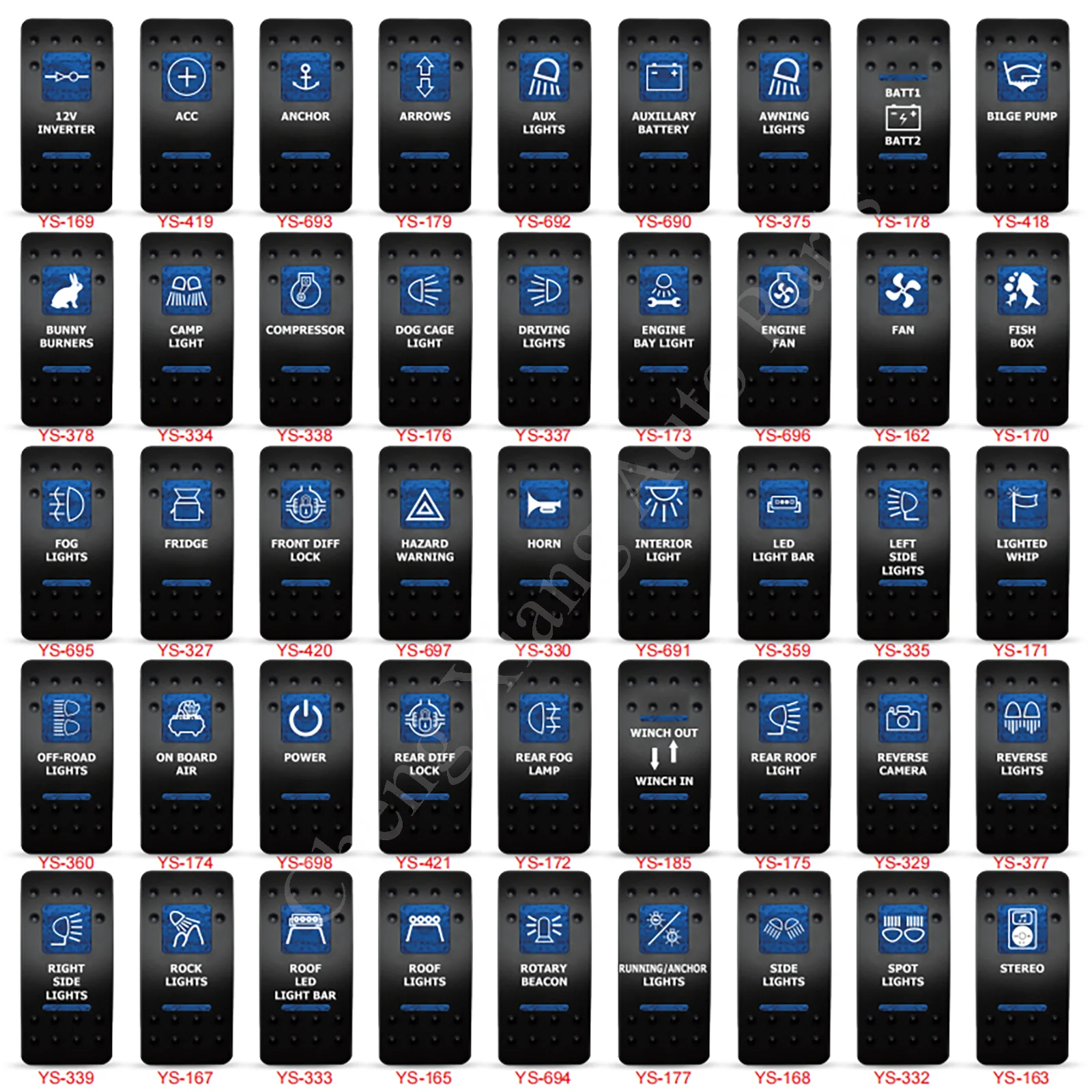

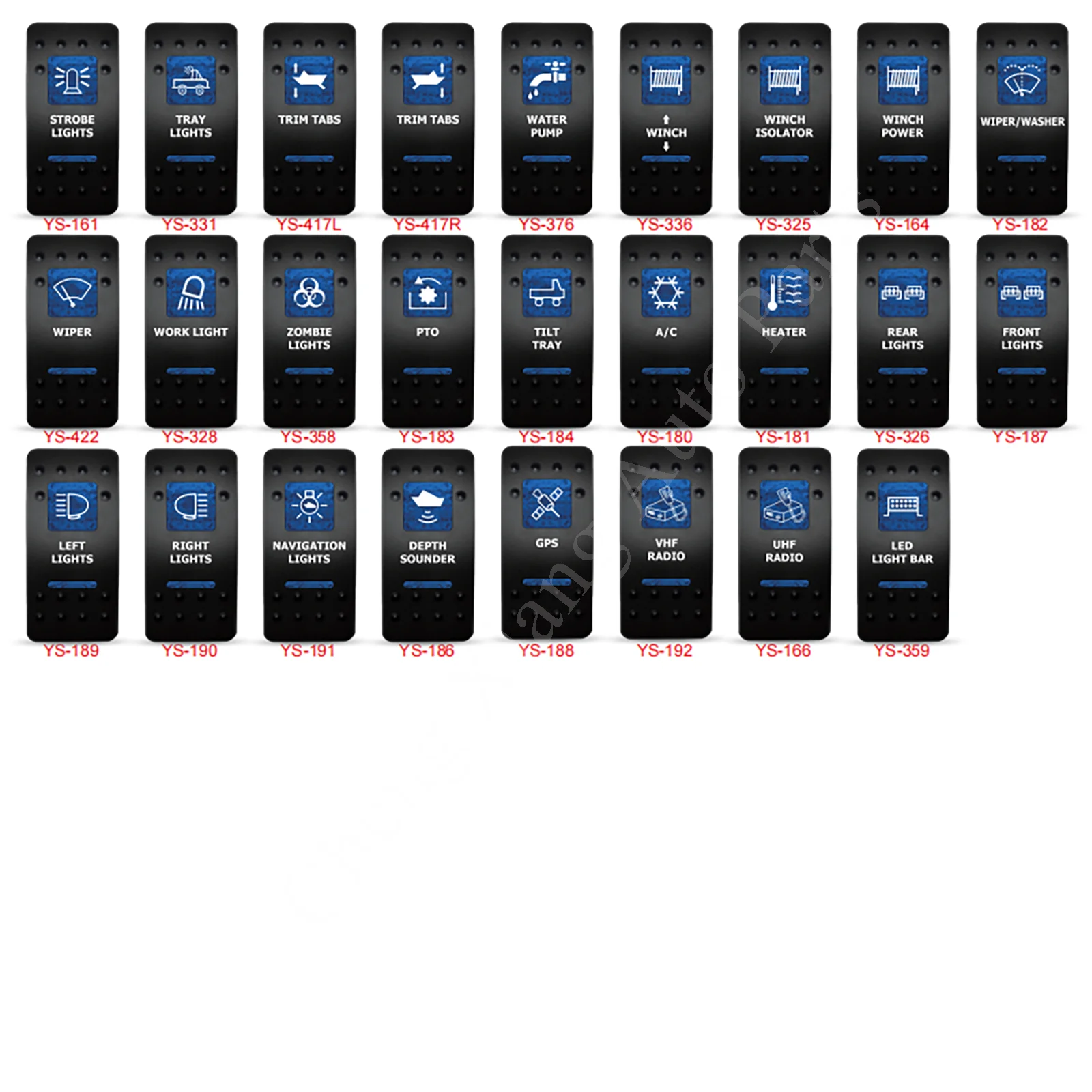

Available Patterns / Designs
