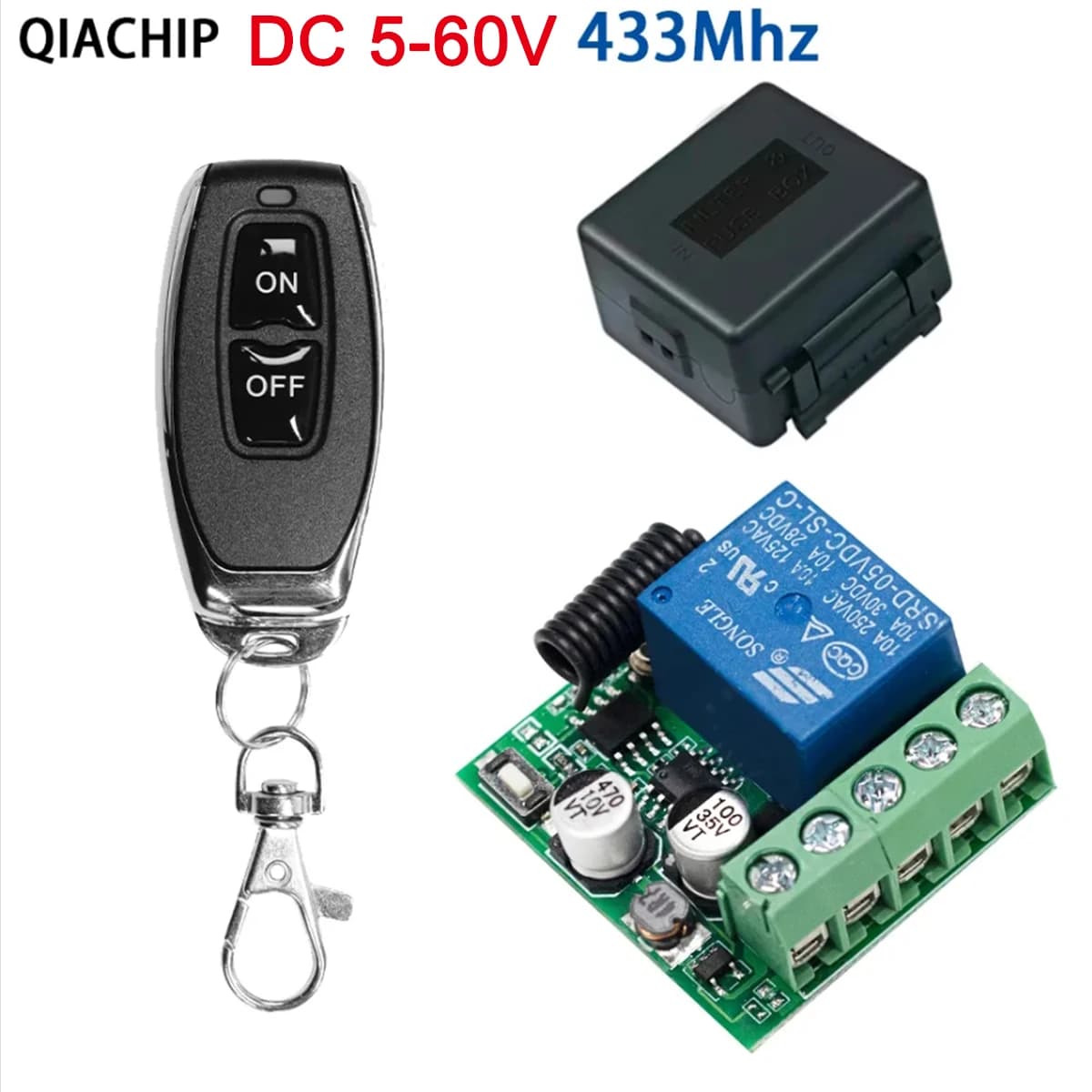

433Mhz DC 12V 5V-60V 1CH Universal Wireless Remote Control Switch Relay Receiver Module RF Transmitter 433Mhz Remote Control

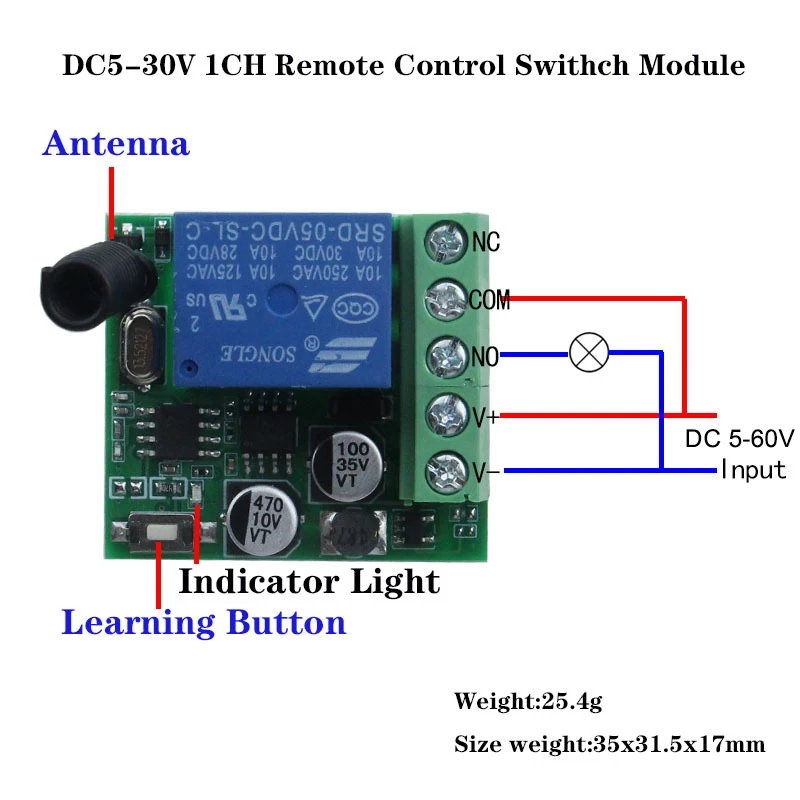

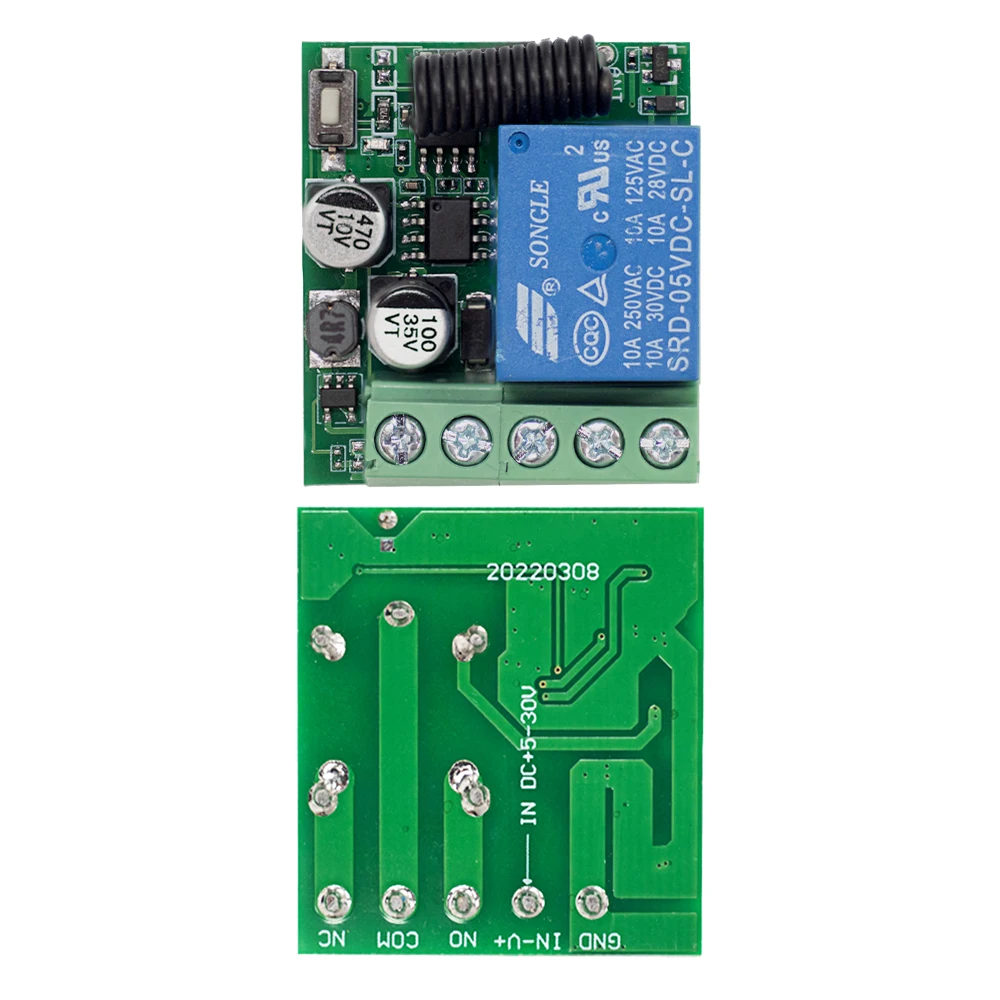

Specifications Of The Receiver:

Model Number : KR3001-4

RF Working Mode: Superheterodyne Reception

Modulation Mode: ASK

Working Mode: Momentary, Toggle, Latching and Time Delay Mode.

Input Voltage: DC 5 ~ 60V

RF Frequency: 433MHz

Quiescent Current: 5mA

Receiving Sensitivity: >97dbm

Theoretical remote control distance:>80-100m(The actual distance has losses depending on the application method)

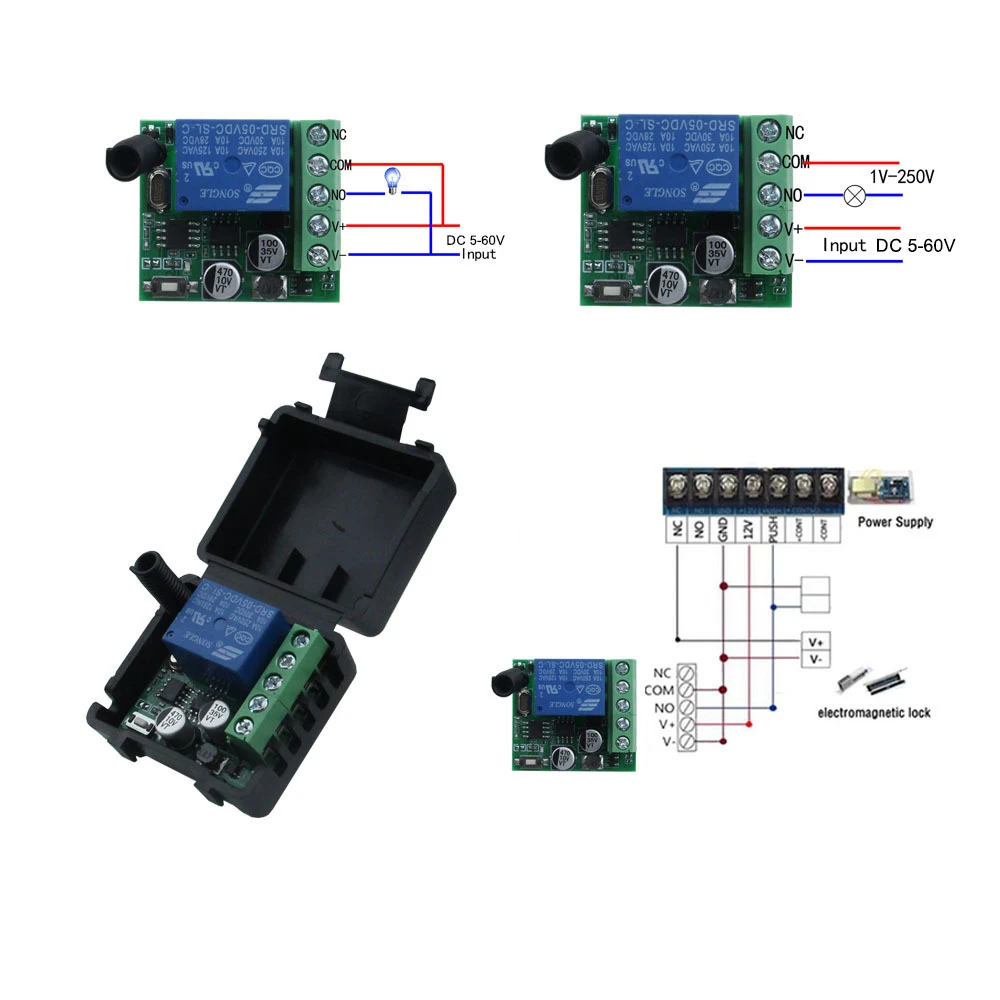

Wired Connection Way: Fixed Wiring Pillar.

Decoding Mode:MCU Software Decoding.

Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )

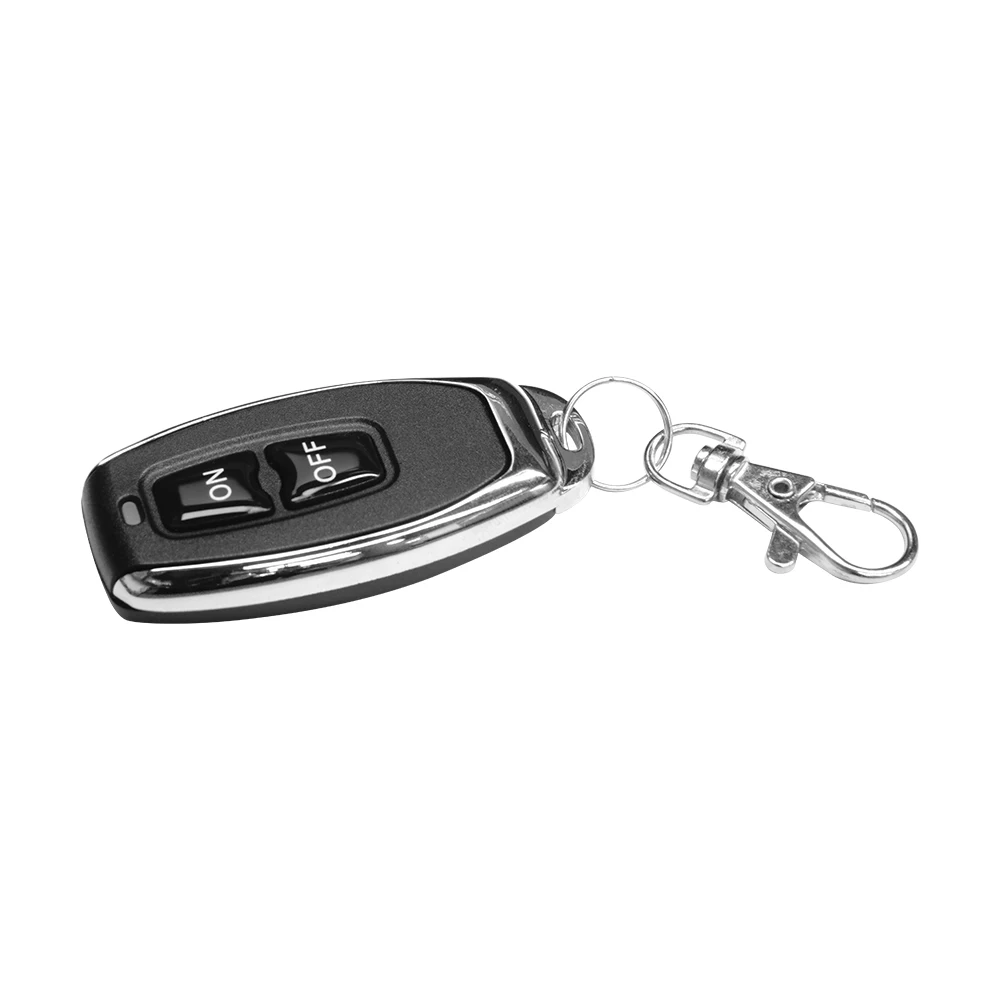

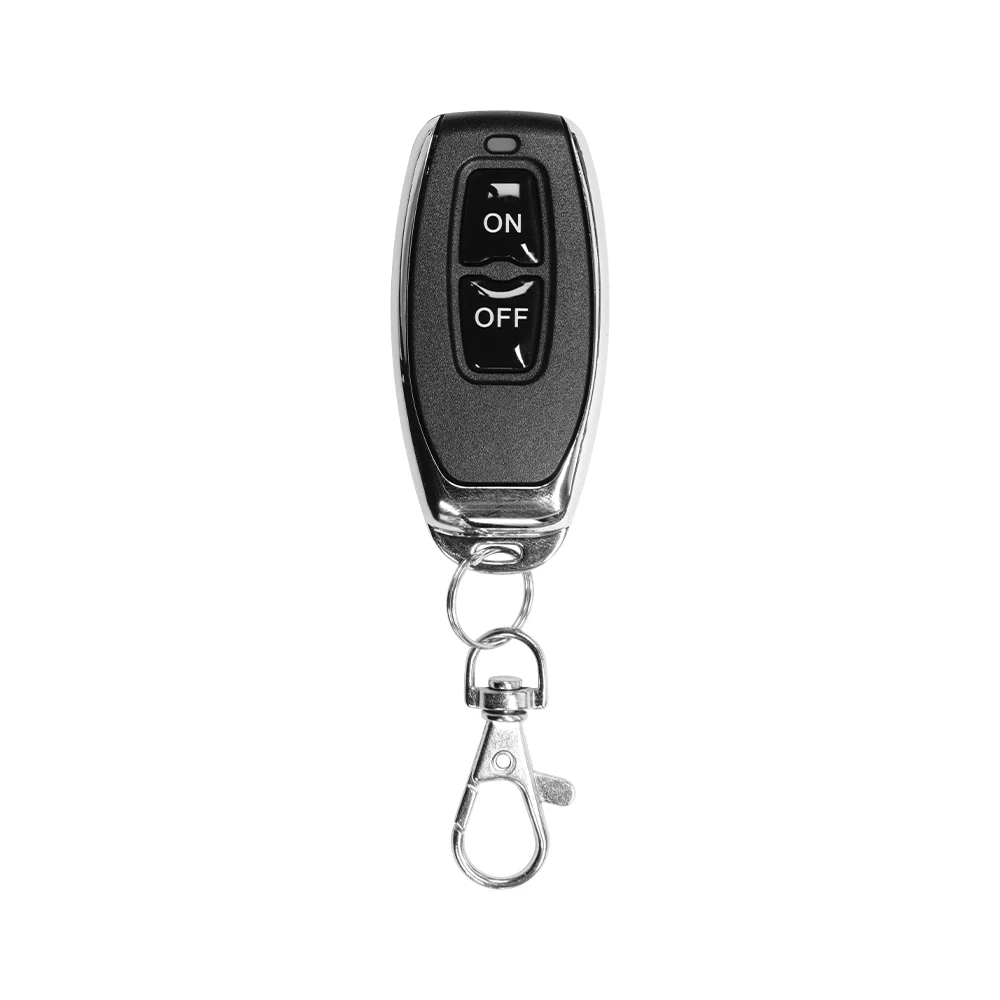

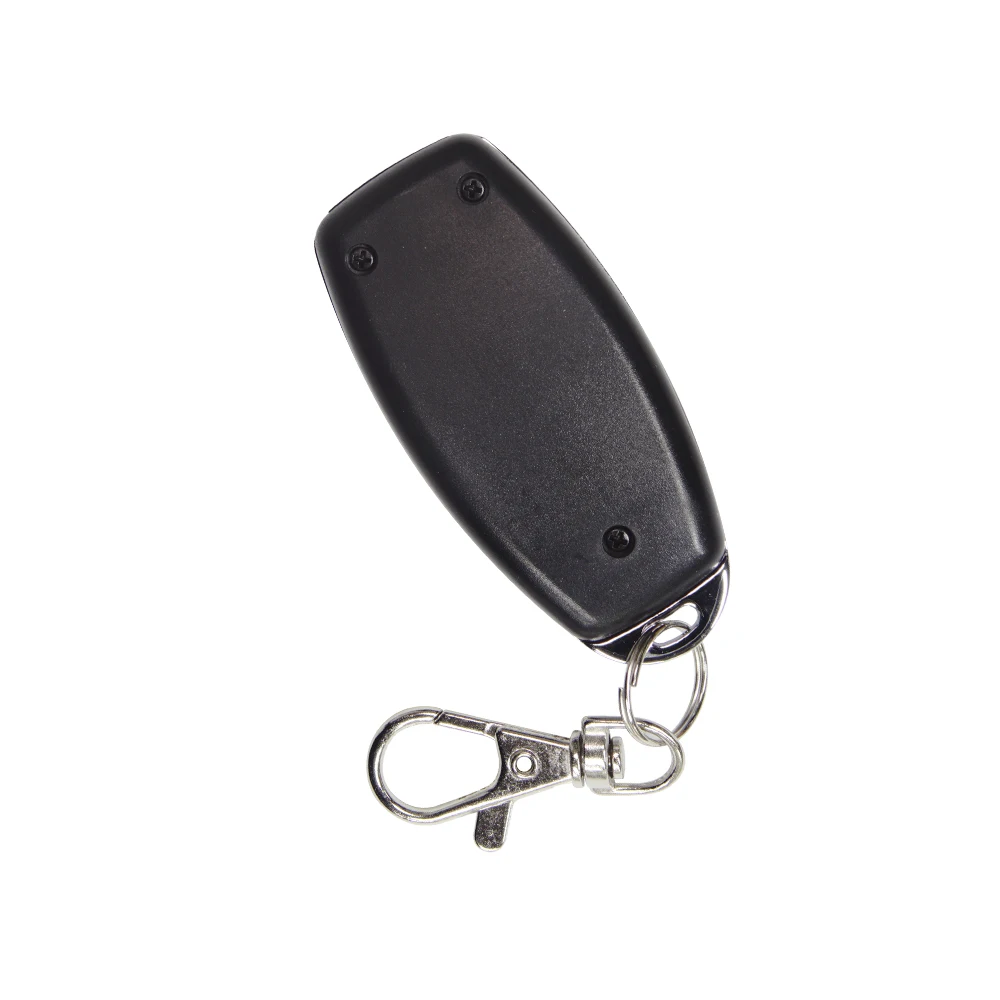

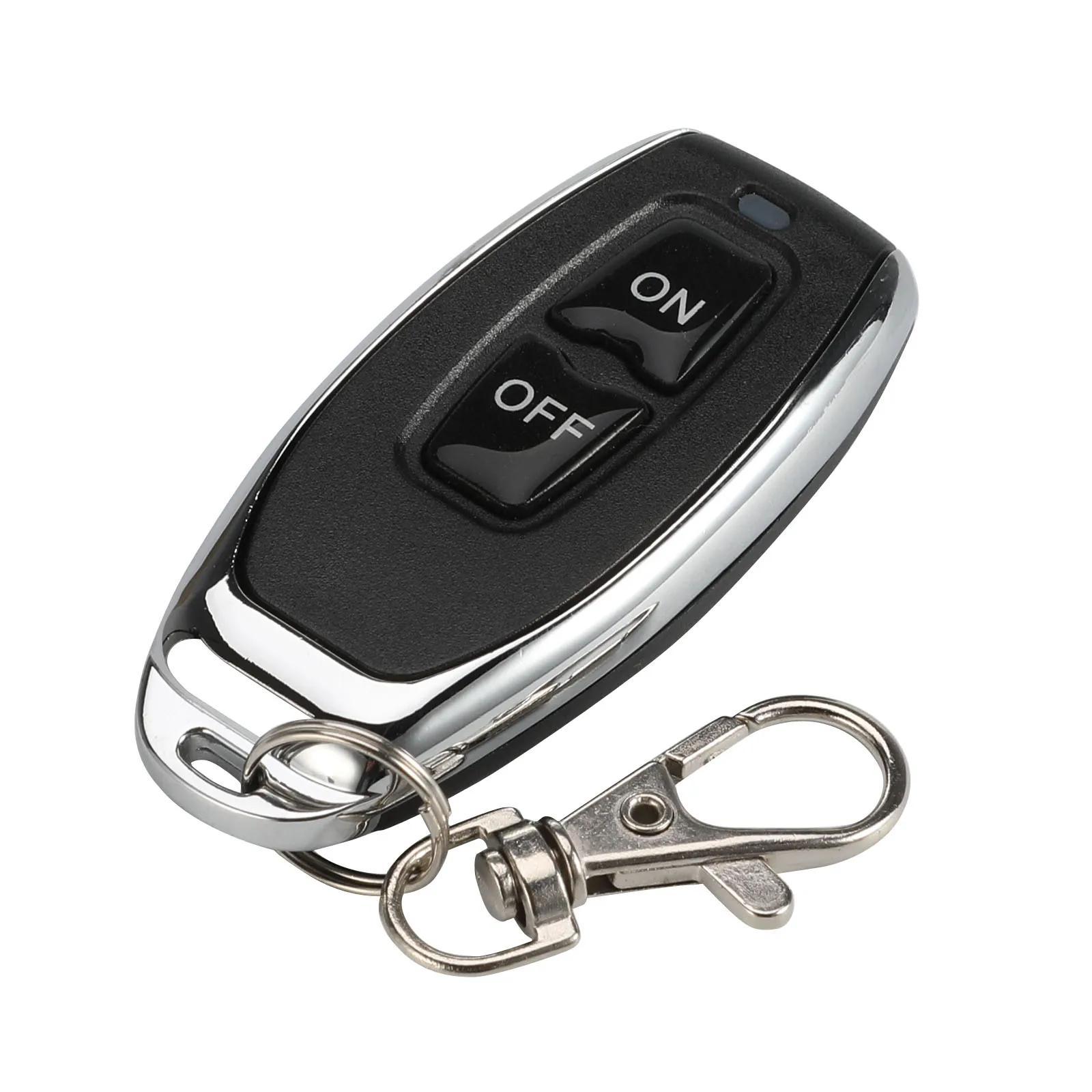

Specifications Of The Transmitter:

Model Number : KT05-4

Operating Frequency: 433MHz

Power by 3V Coin Cell Button Battery (Battery included )

Material: PVC

Button: 2 Buttons

Size: 59mm x 28mm x 8mm

Operating Voltage: 3V

Operating Current: 12mA

Transmitting Power: 10mw

Modulation Mode: ASK (AM)

Encoding Type: Learning

Transfers Distance: 20-50 m

Operation Introduction:

About Working Mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.

Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
