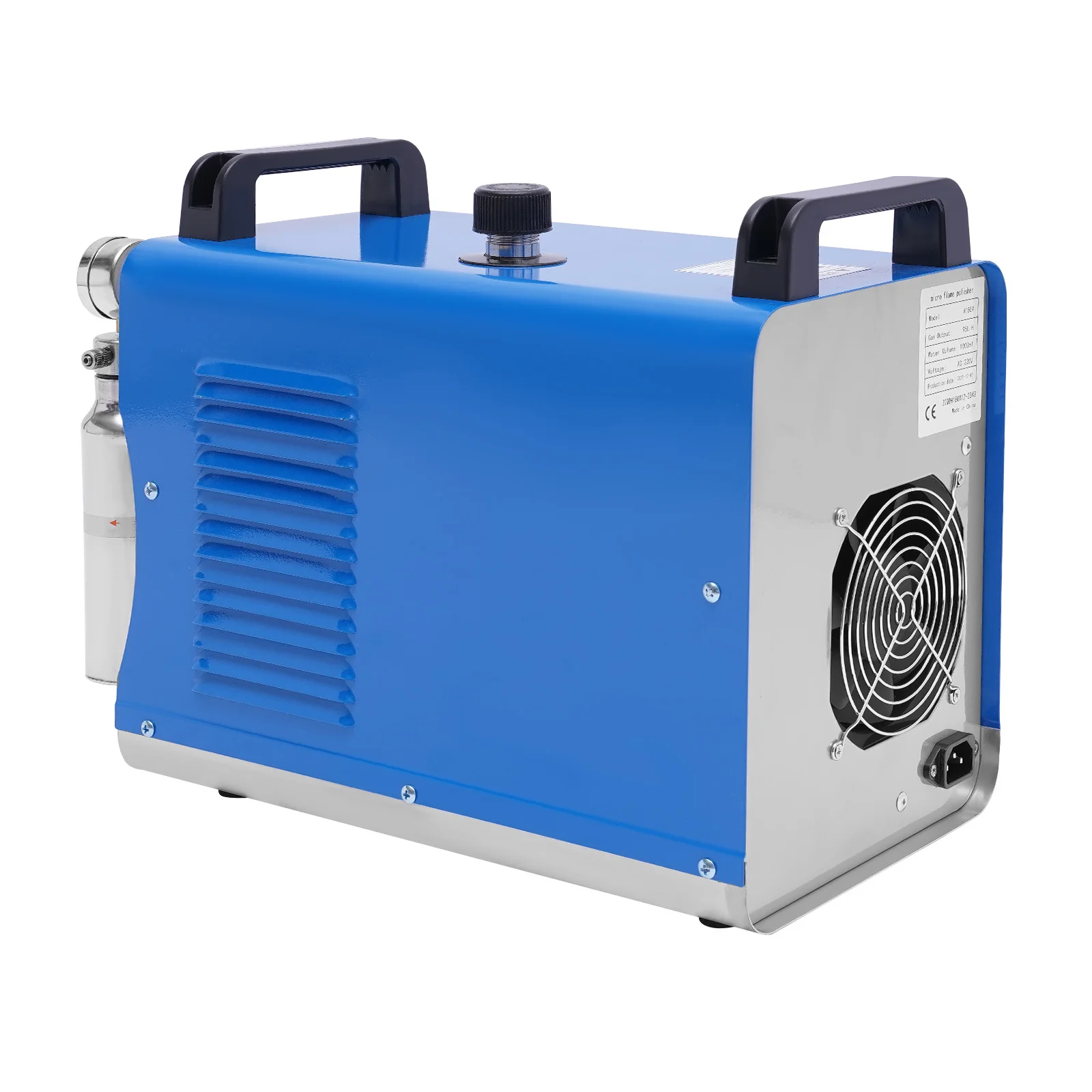

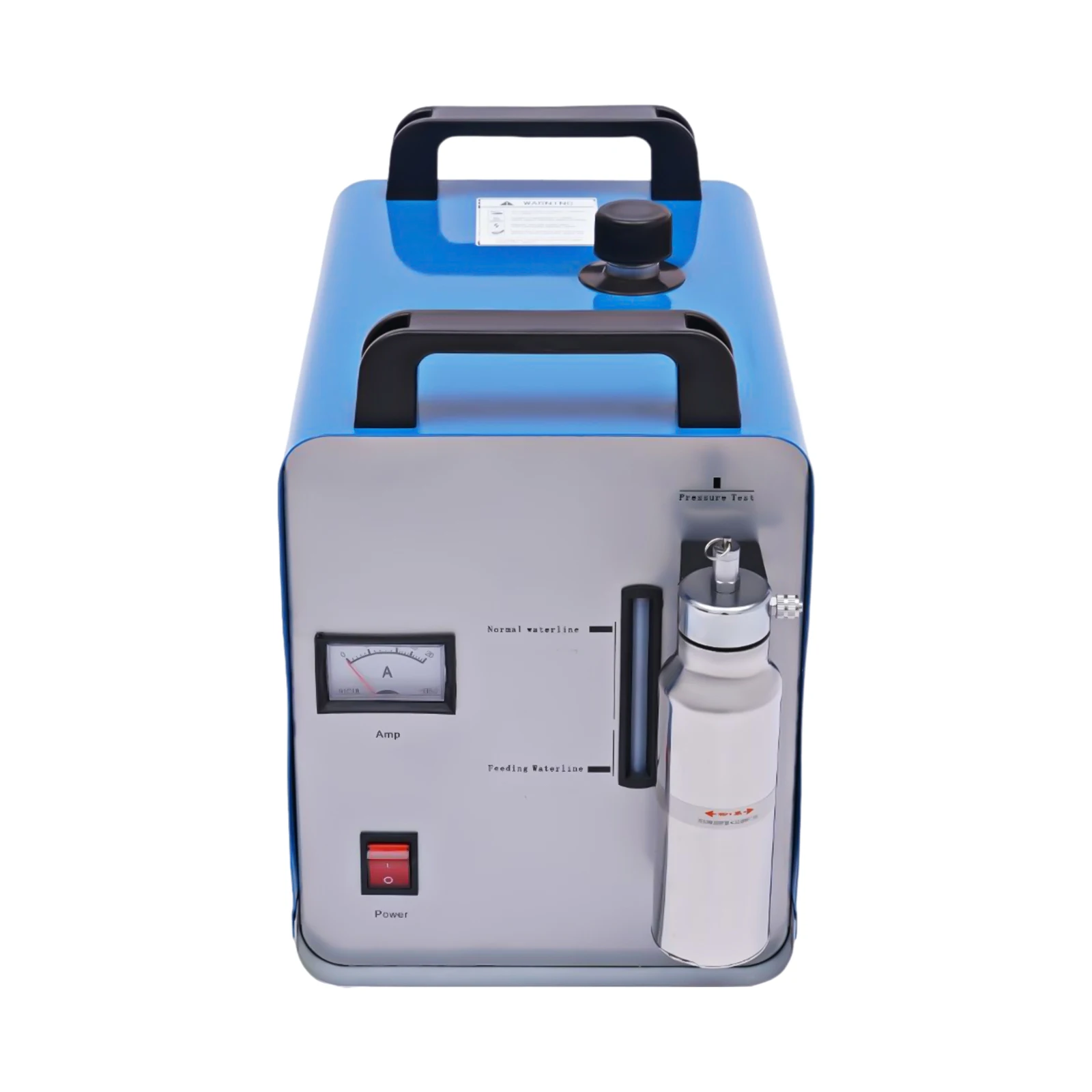

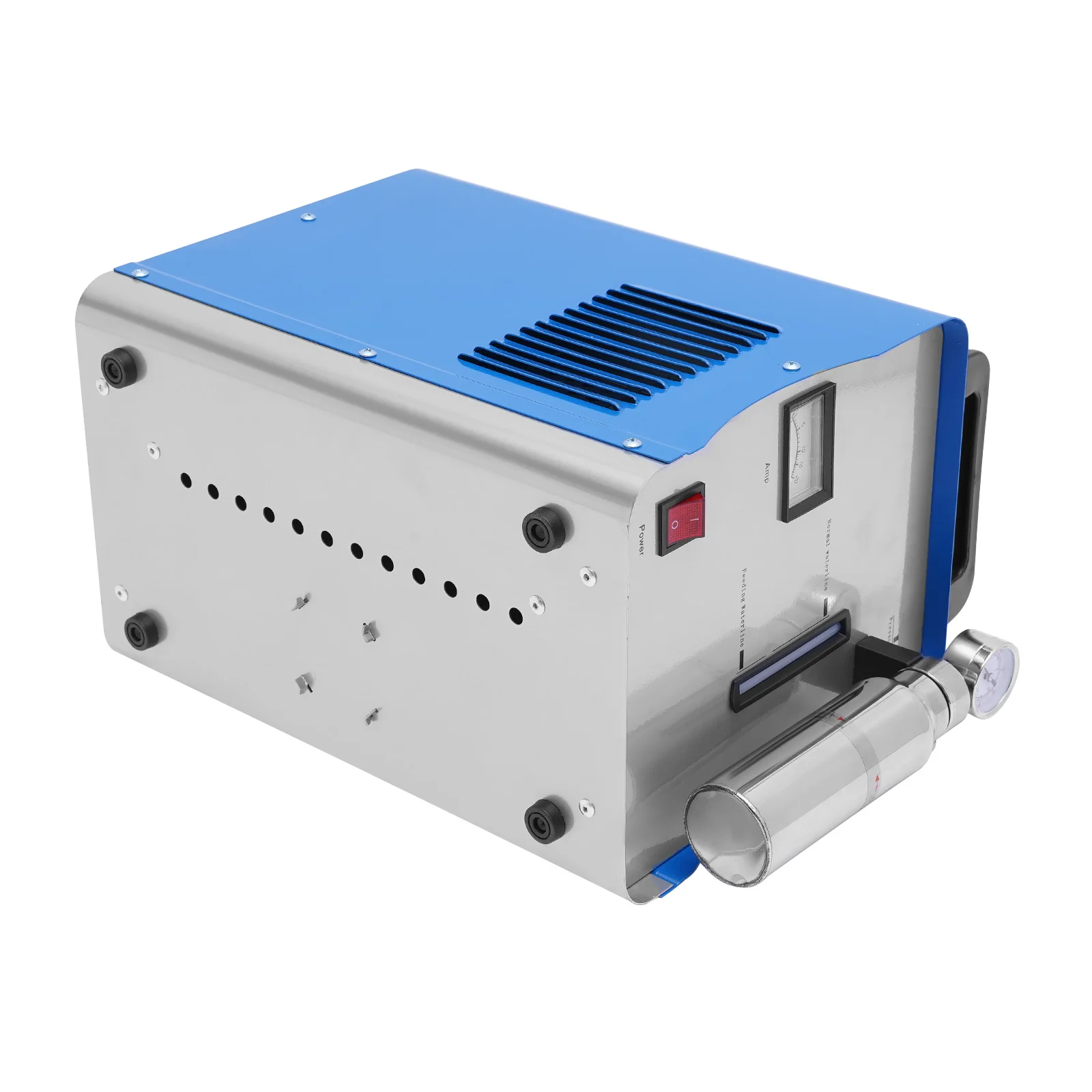

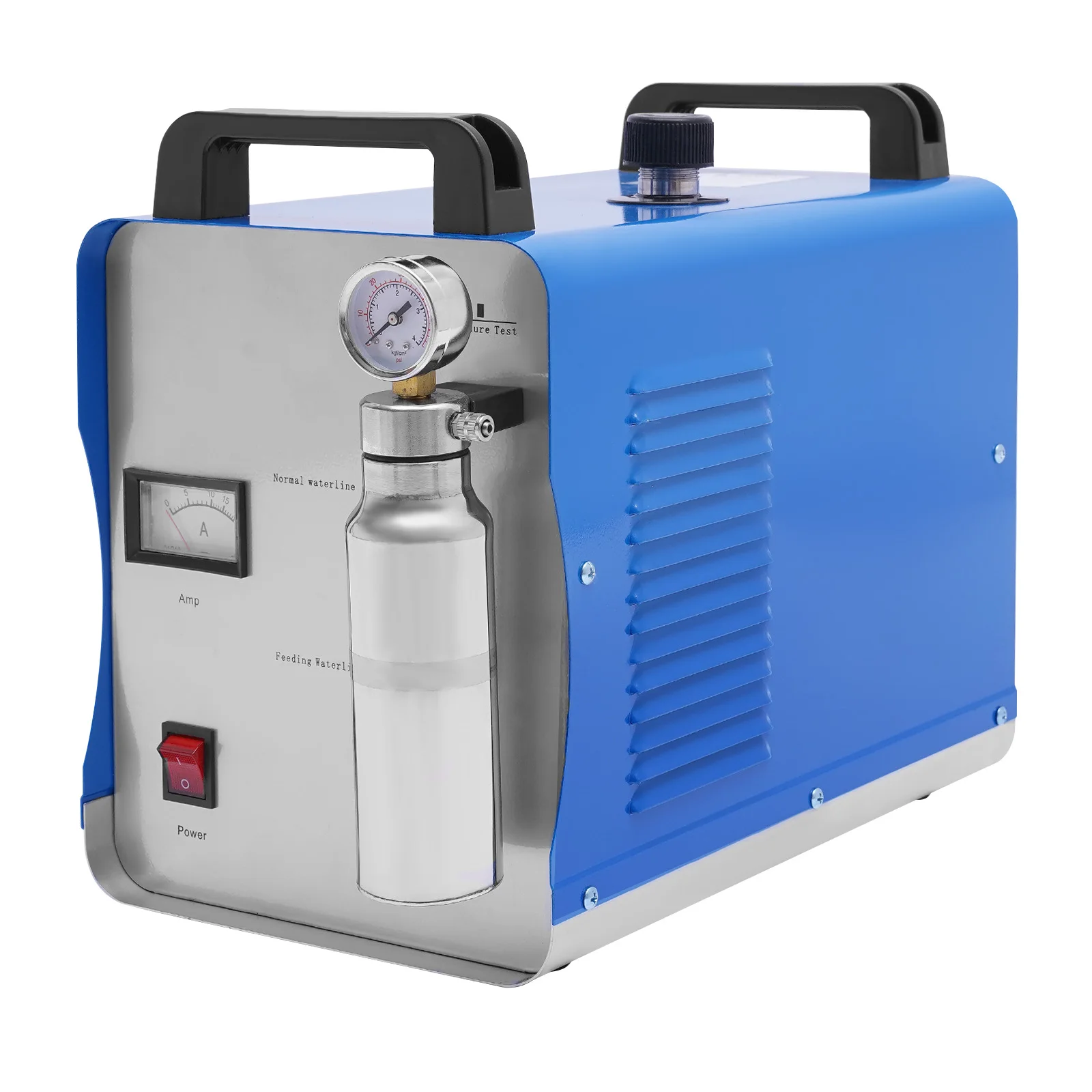

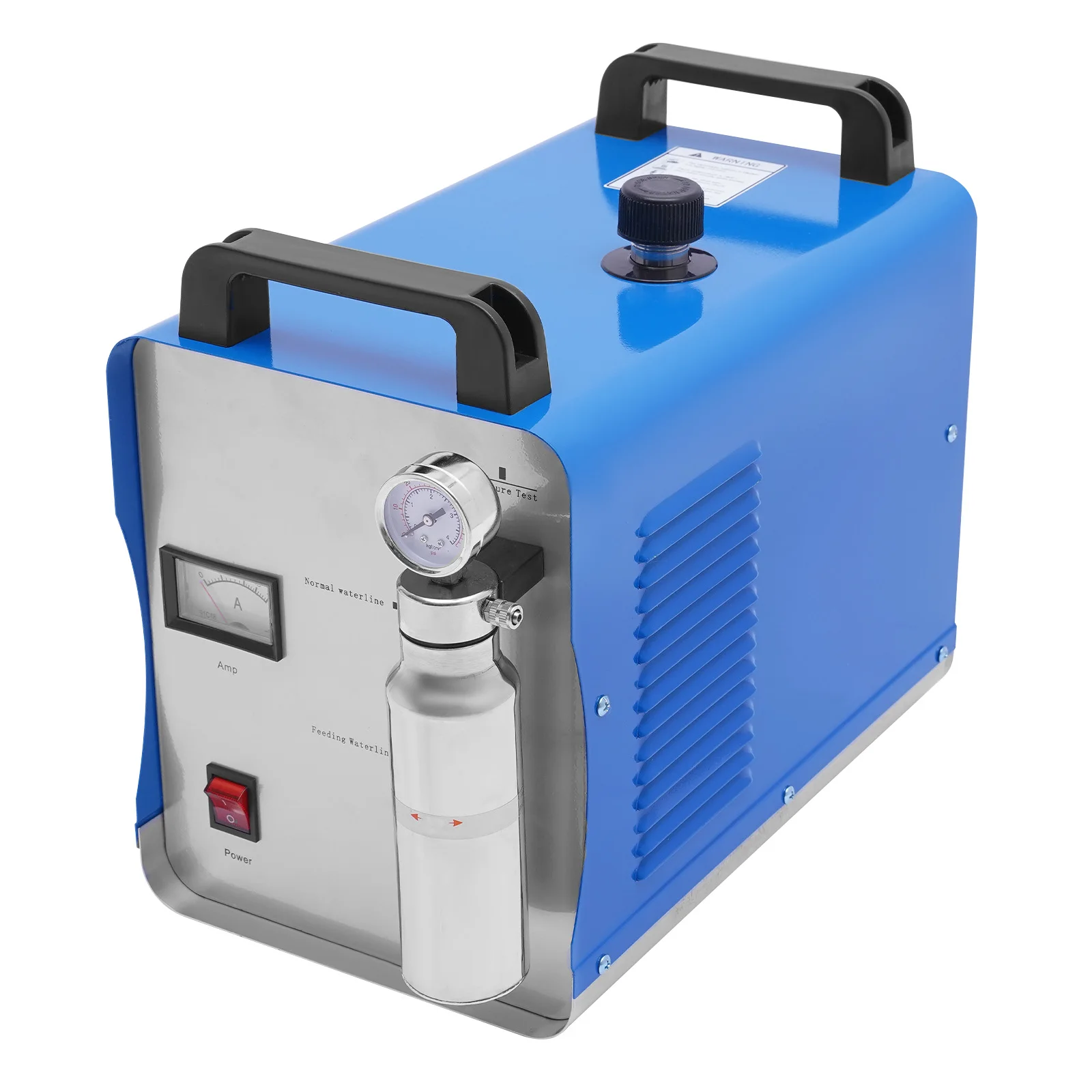

75/95L/h H160/H180 Oxygen-Hydrogen HHO Generator Water Welder HHO Acrylic Polishing Machine Polisher w/Flame Torch

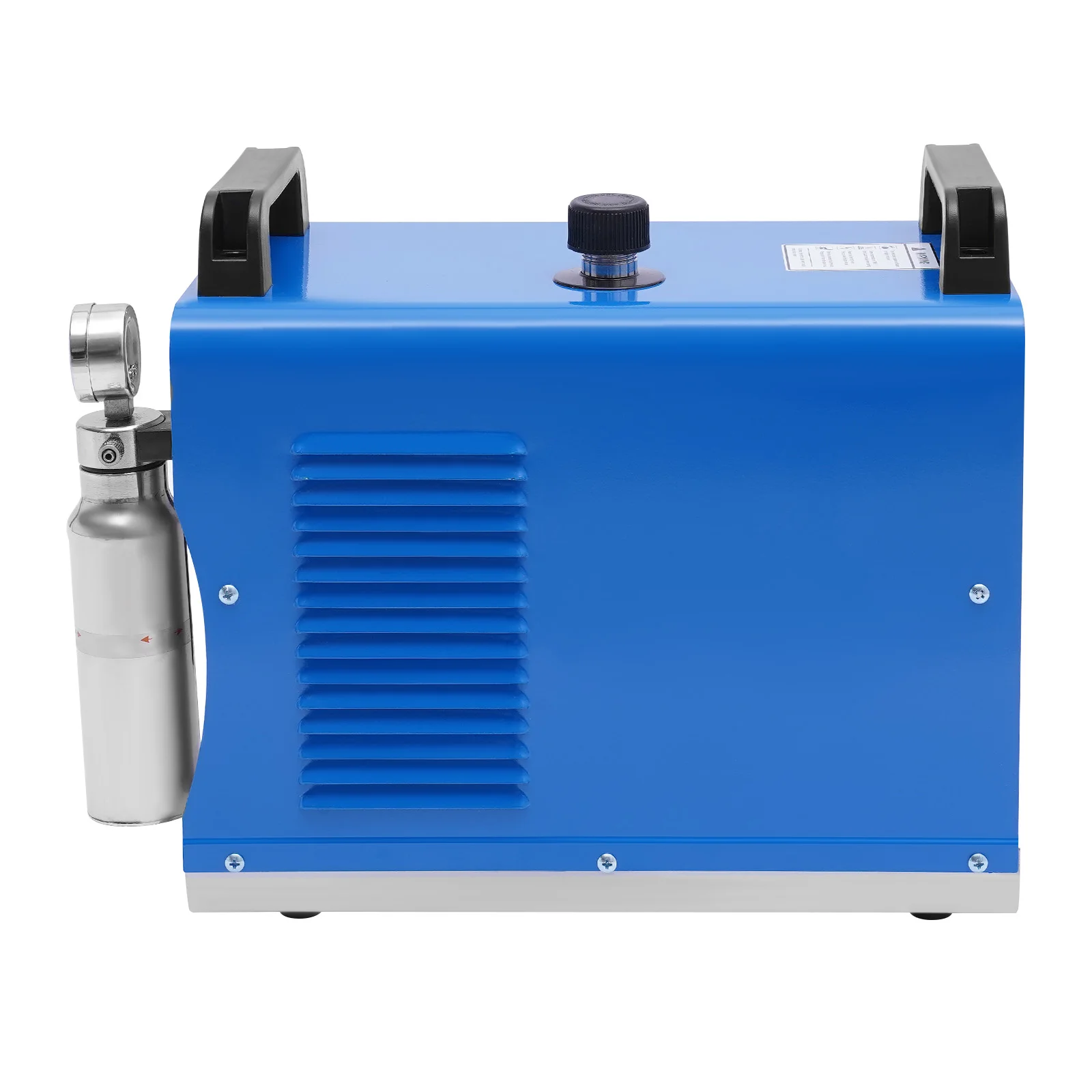

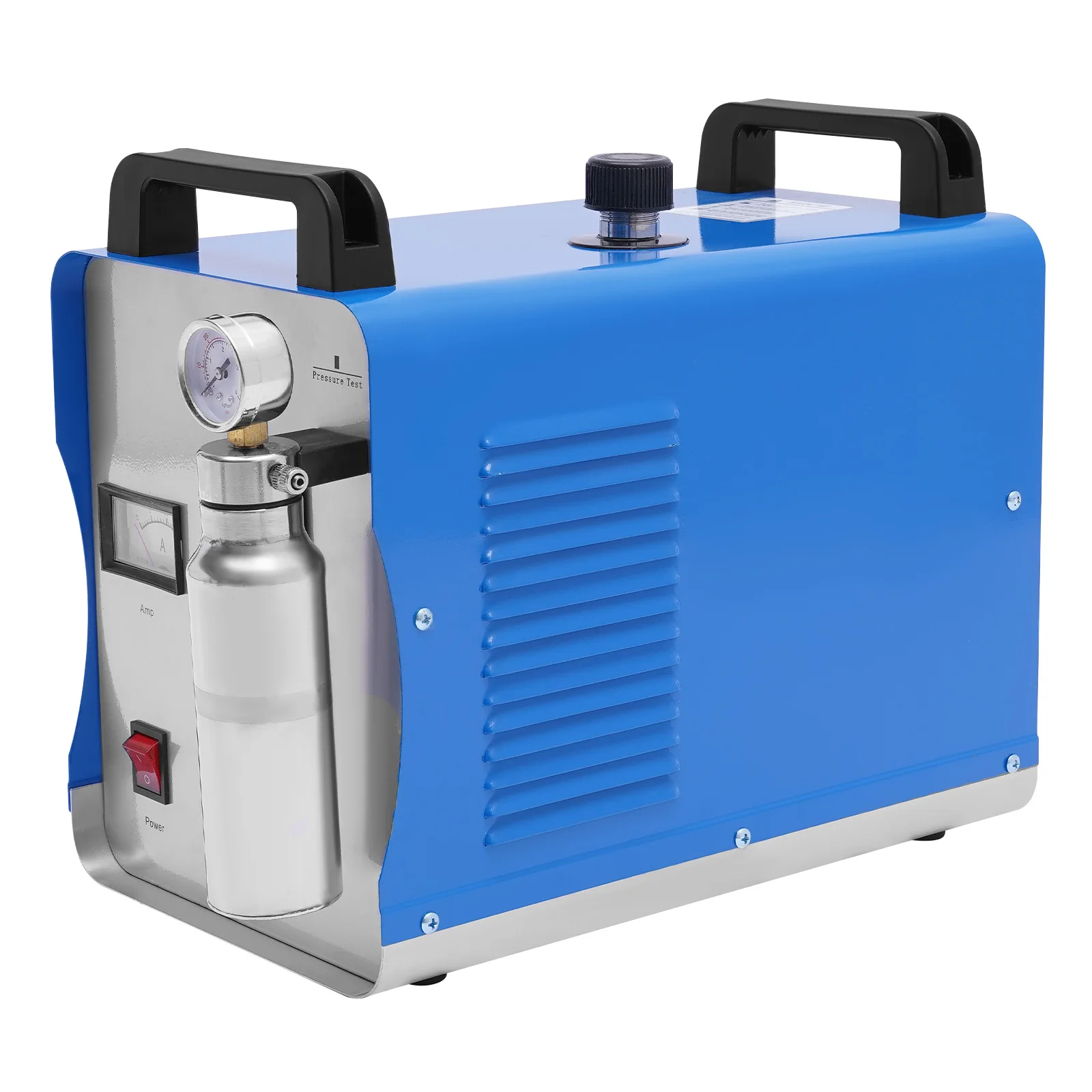

Please note that the 75L/H pump does not have a pressure gauge, only the 95L/H pump has a pressure gauge

Description

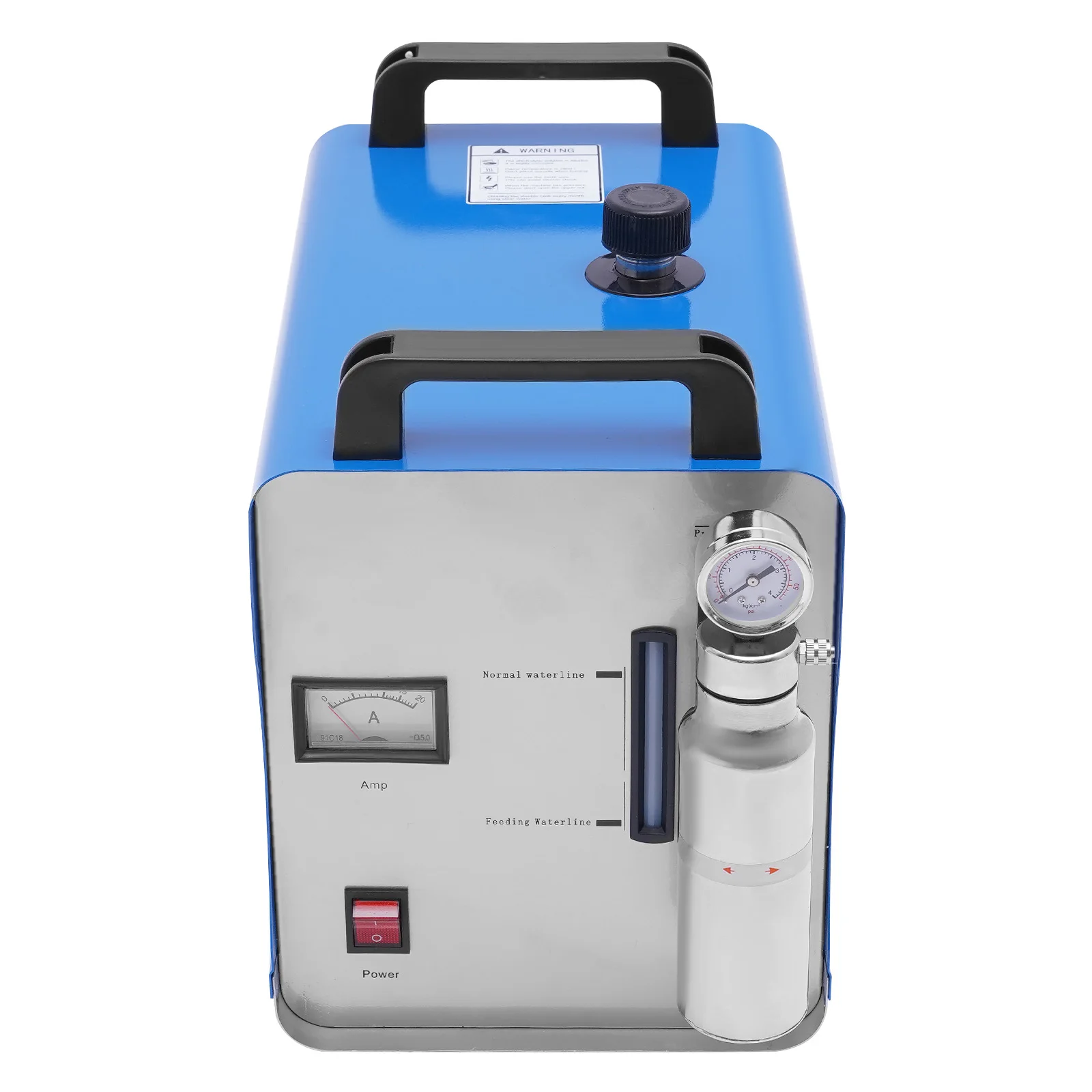

Whether for commercial or home use, you shouldn't miss this acrylic polishing machine. It is made of high-quality materials and is durable. Utilizing advanced and environmentally friendly technology saves energy and allows for a fine surface finish at the same time. The precise pressure gauge and ammeter allow you to keep track of the machine's operation and work better. If you are looking for a polishing machine that is efficient and easy to use, then it will be your ideal choice.

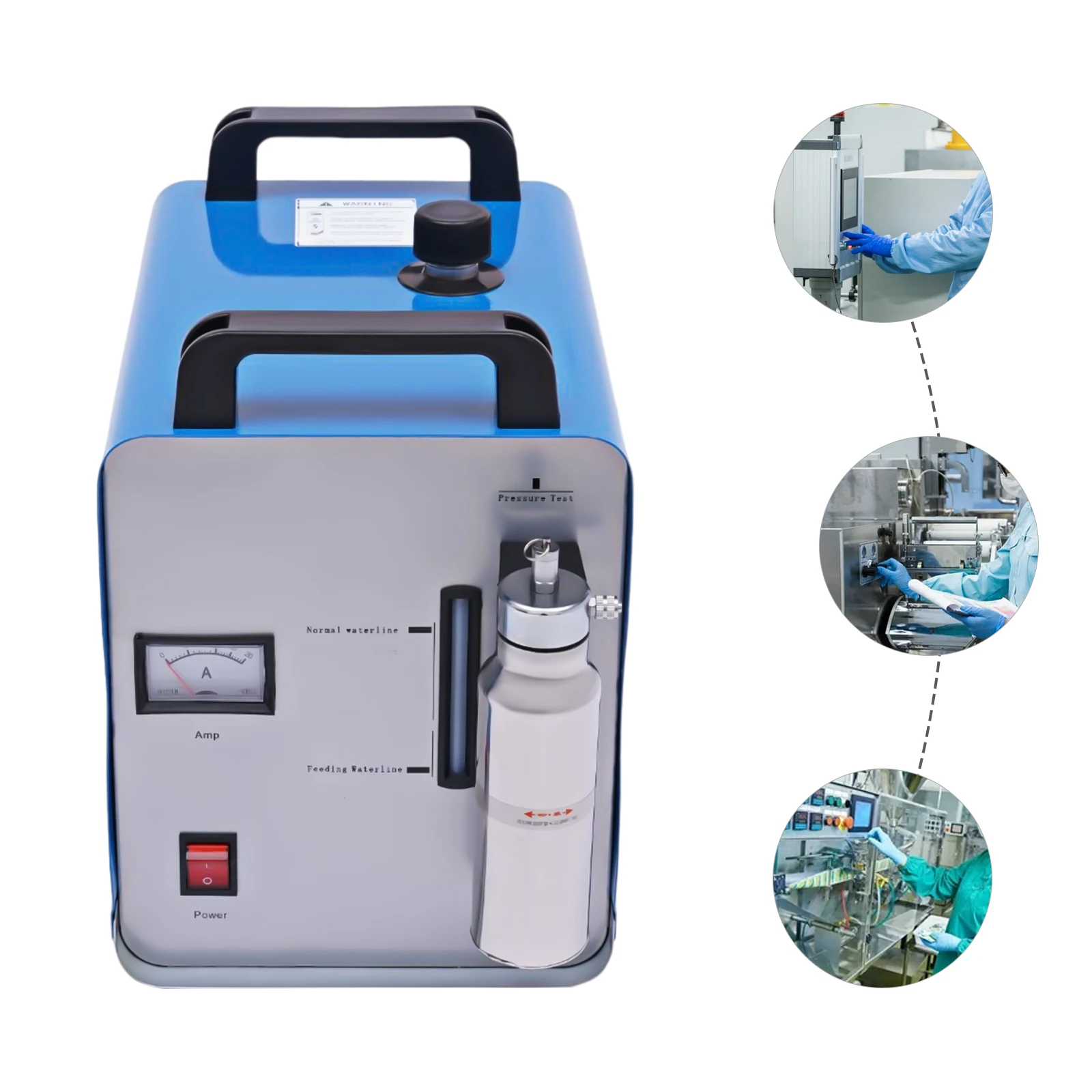

Application

It can be used for heat treatment for metal parts, welding the hinges of spectacles rim, sealing the injection glass bottles, fusing the lead or tin alloy plates for storage batteries, cutting&fusing quartz or fine parts, peeling off FPC of computers, fusing LED chips&thermocouple, welding jewelry made of gold, silver, copper, lead, tin casting, etc. and polishing irregular acrylic surface.

Attention:

The product does not come with the electrolyte powder (i.e. sodium hydroxide powder) mentioned in the manual.

Acrylic flame polishing machine 95L/H Application

2 Kind of Voltage: 110V US Plug for US / 220V EU Plug for EU

Specifications

Specifications

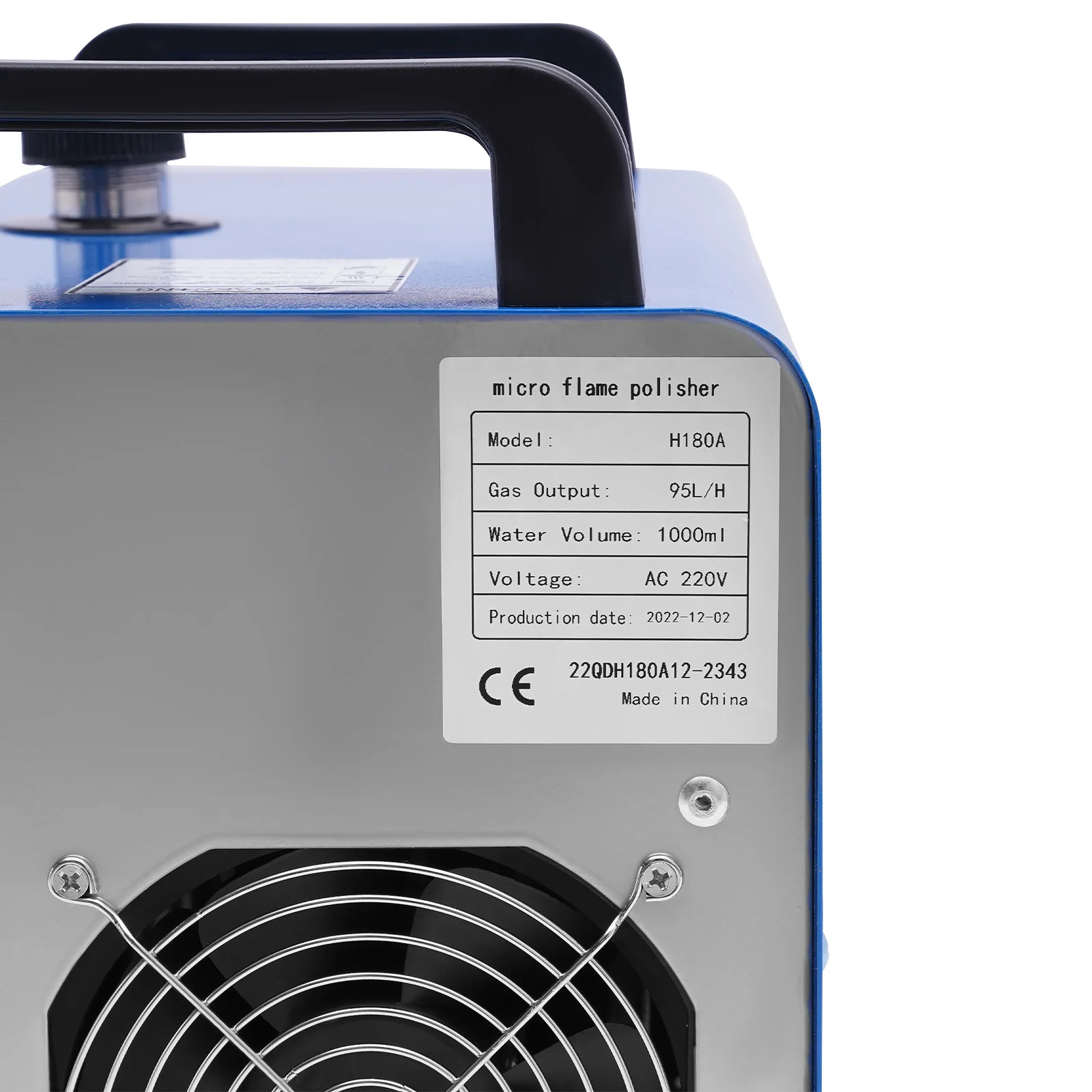

Model: H180
Style: Modern
Shape: Rectangular
Color: Blue
Material: Iron, 304 Stainless Steel
Surface Treatment: Gold-plating
Assembly Required: Yes
Power Source: Corded Electric
Plug Standard: US/EU Standard
Mount Type: Tabletop
Voltage: AC110V/220V, 1.5A
Power: 300W
Max. Gas Production: 95L/86.26 Qt/ H
Flame Temperature: 2800℃/5072℉
Electrolysis Tank: 1
Inlet Cell: 0
Water Consumption: 30ml/0.03 Qt/H
Maximum Water Adding: 1L/0.91 Qt
Solution Density: 30%
Pressure Range: 0.13-0.15Mpa
Working Pressure: <0.2Mpa
Max. Water Consumption for Gas Production: 0.3L/0.27Qt/H
Electrolysis Tank Capacity: 1.5L/1.36 Qt
Pipe Length: 1.5m/4.92 ft
Power Cord Length: 1.5m/4.92 ft

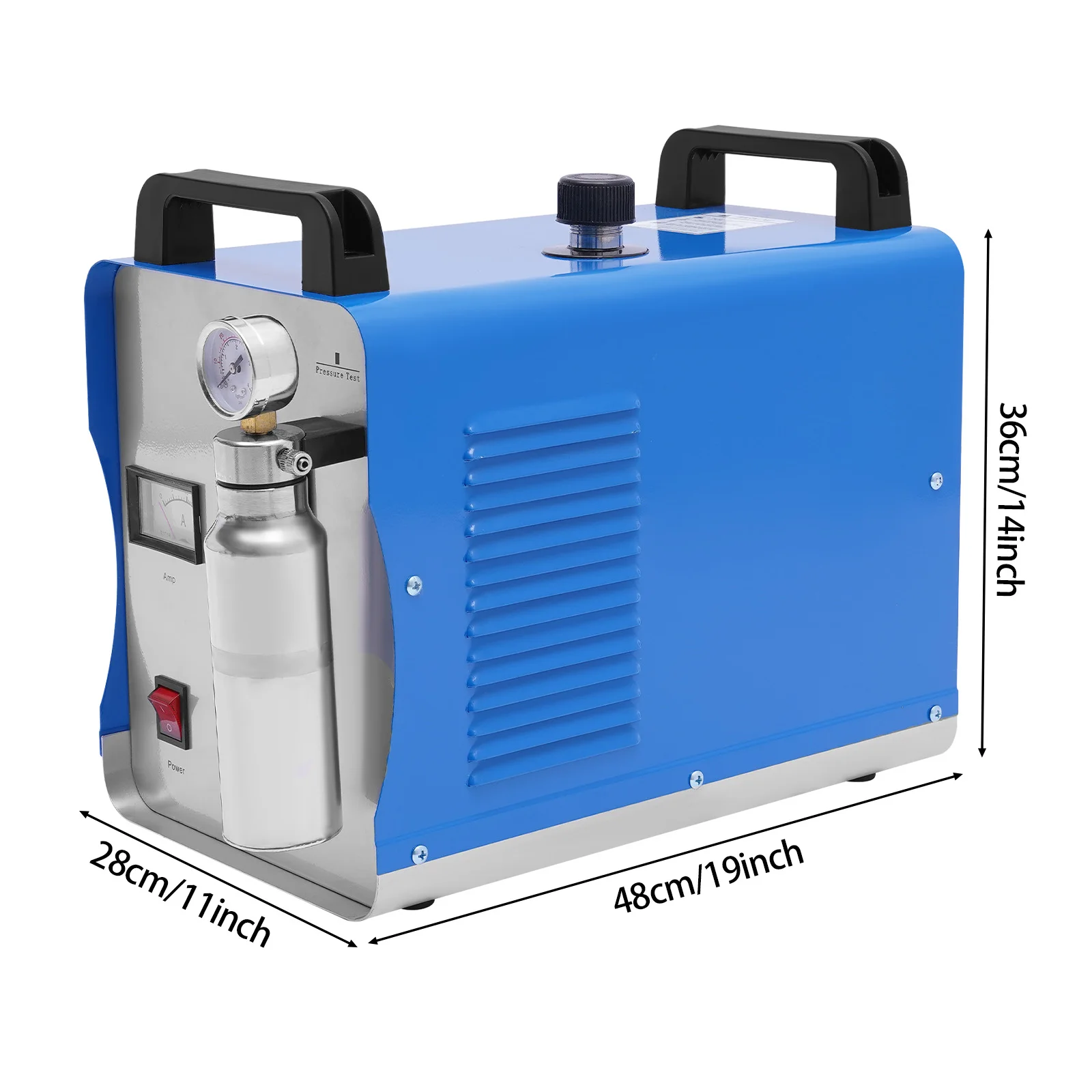

Product Size: 48*28*36cm/19*11*14 in

Package Included

1* Acrylic Polishing Machine
1* Power Cord

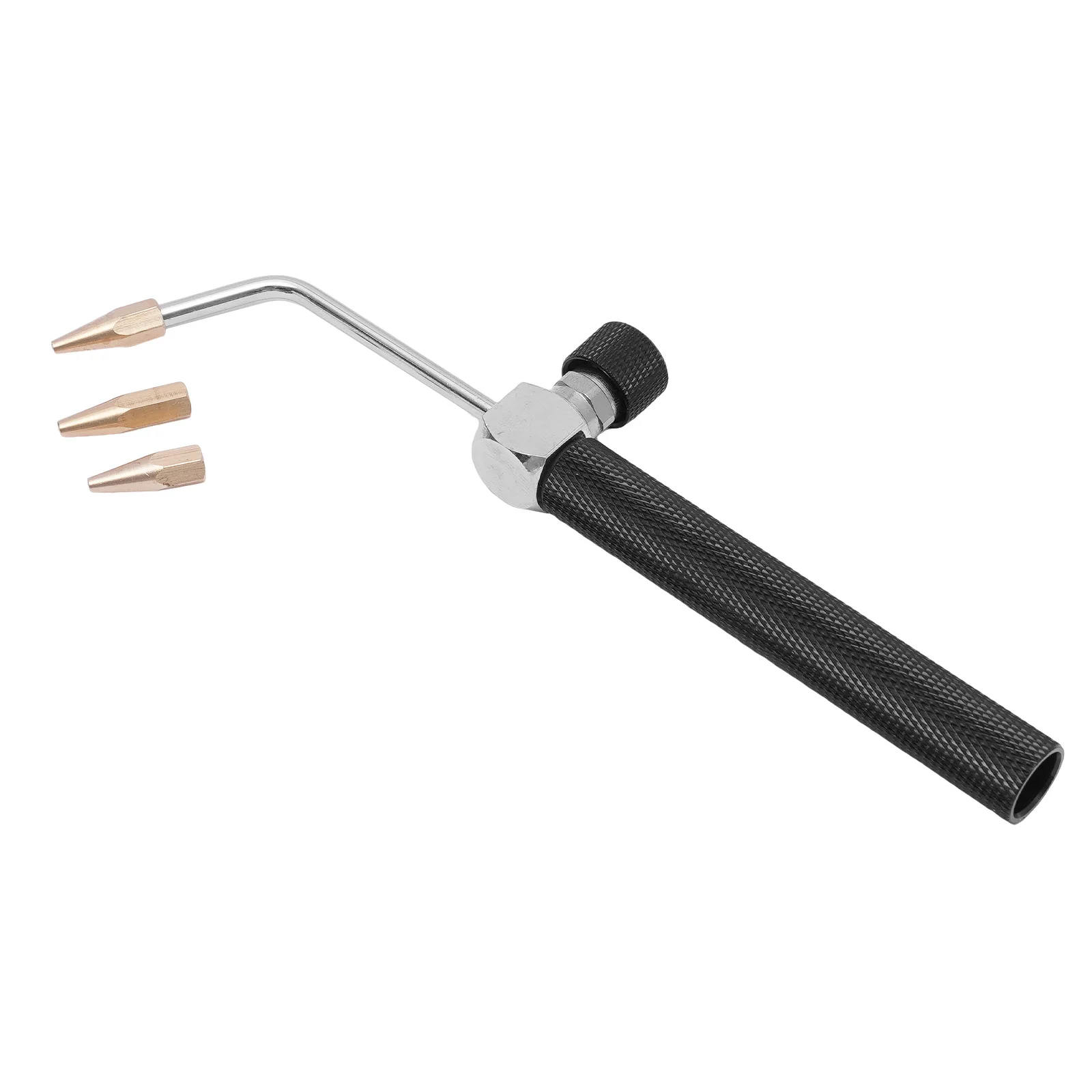

1* Flame Gun

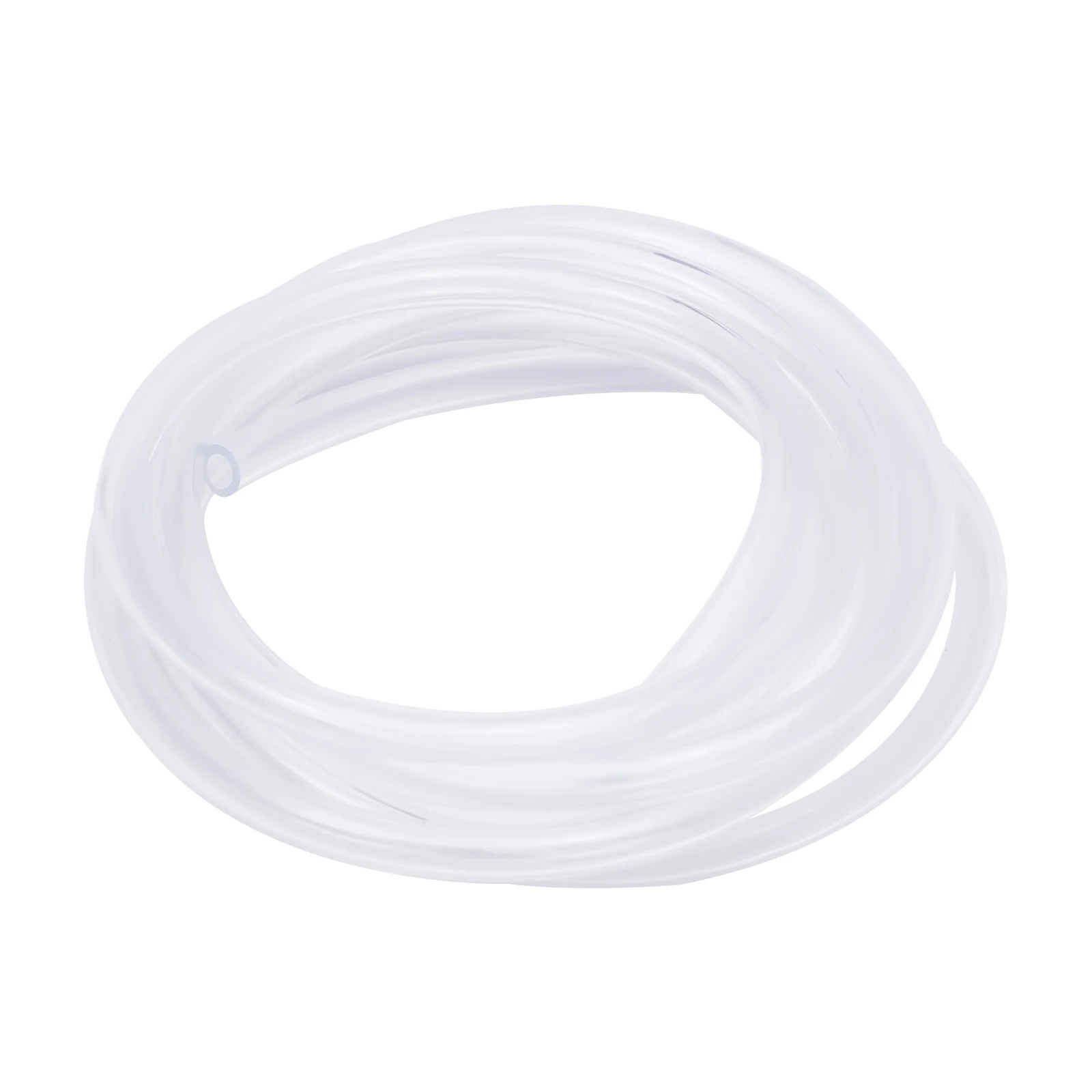

1* PVC Tube
3* Flame Nozzles


Acrylic flame polishing machine 75L/H Application

Specifications

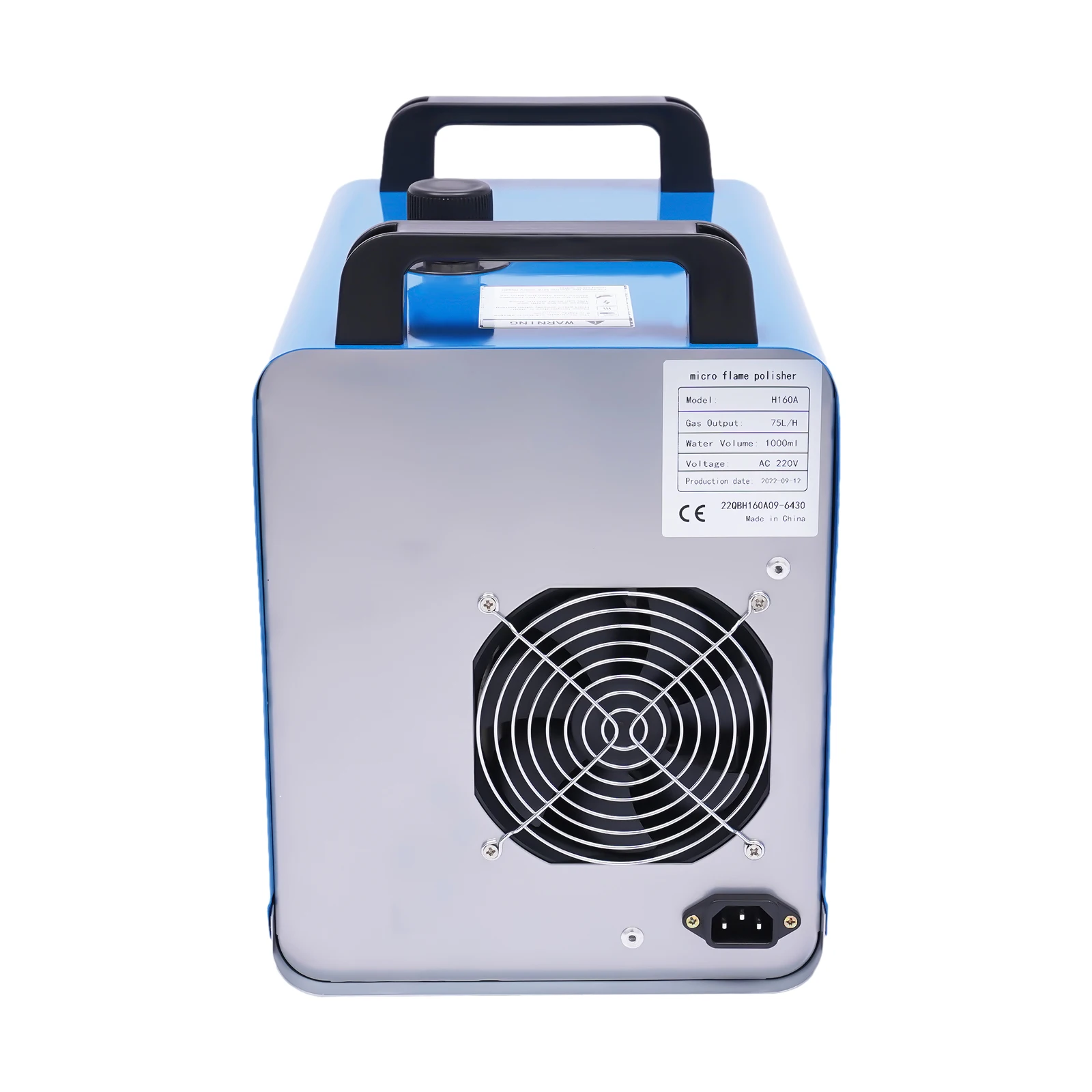

Model: H160A
Color: Blue
Material: Iron, Stainless Steel, PVC
Treatment: Paint Spraying
Product Type: Polishing Machine
Features:
Fuel: Water (Distilled Water and Pure Water)
Power Source: Corded Electric
Appicable Acrylic Plates Thickness: ＜5mm/0.2inch

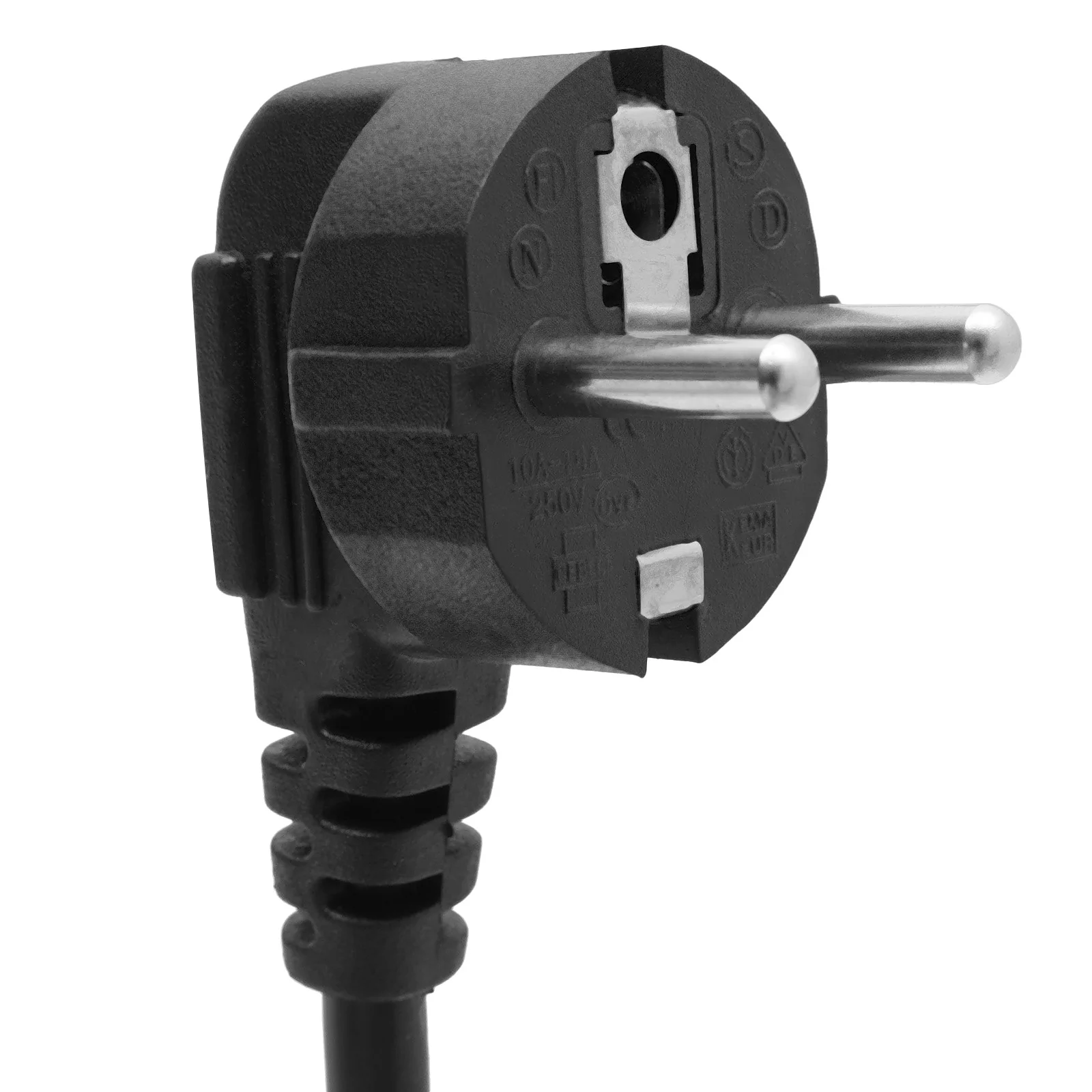

Plug: EU Plug
Voltage: AC 220V
Gas Pressure: 0.08-0.13Mpa
Environment Temperature: -10-40°C/14-104°F
Flame Temperature: ≥ 2800℃/5072°F
Capacity: 1.6L/54.1Oz
Max. Gas Output: 75L/H, 2536Oz/H
Water Consumption: 0.015L/H, 0.5Oz/H
Water Volume: 1000ml/33.8Oz
Solution Density: 15%
Flame Gun No.: Single
Power Cord Length: 1.5m/4.9ft
Hose Length: 1.5m/4.9ft

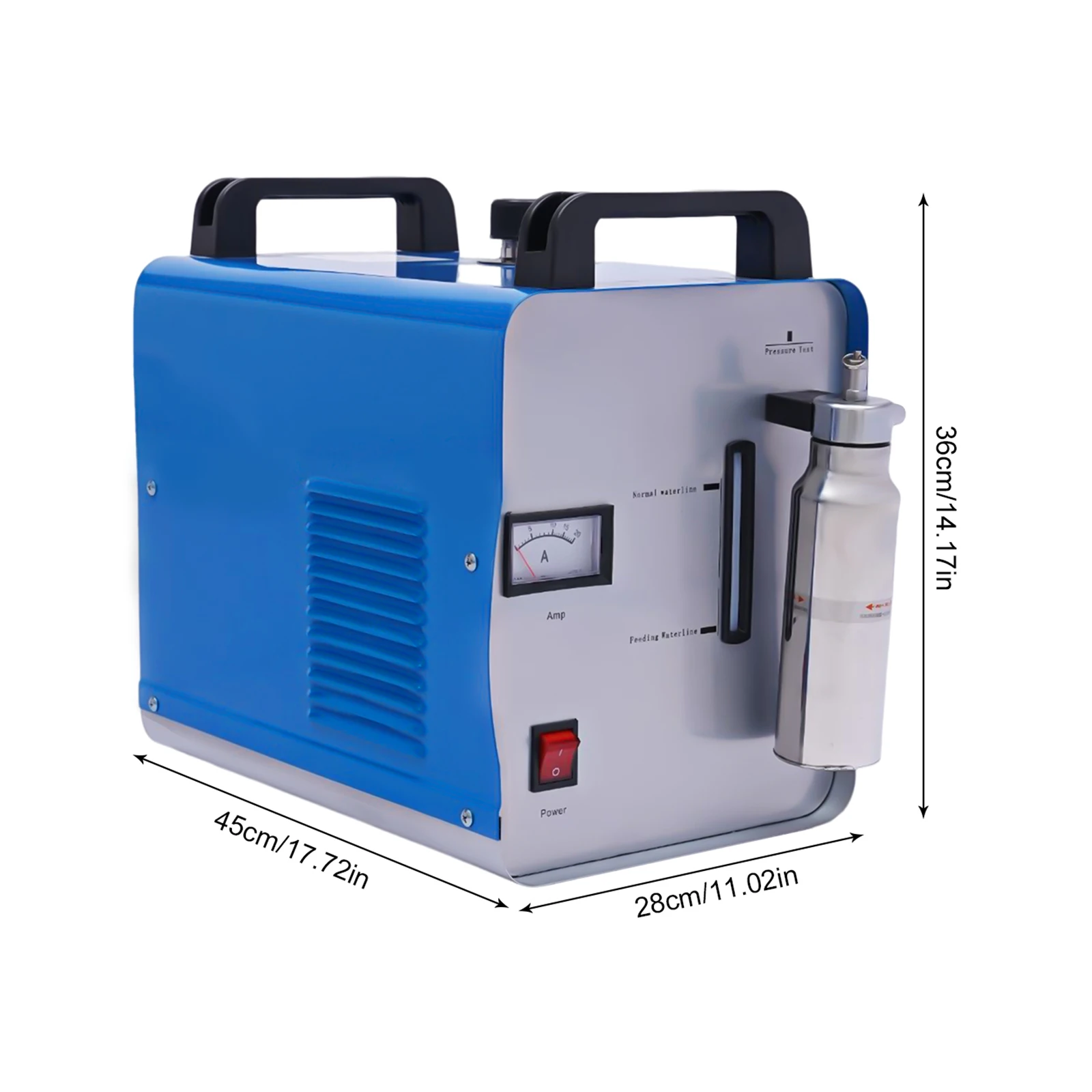

Product Size: 45*28*36cm/18*11*14inch
Package Size: 46*38*29cm/18.11*14.96*11.4inch
Net Weight: 6.4kg/14lbs
Gross Weight: 7.15kg/15.76lbs

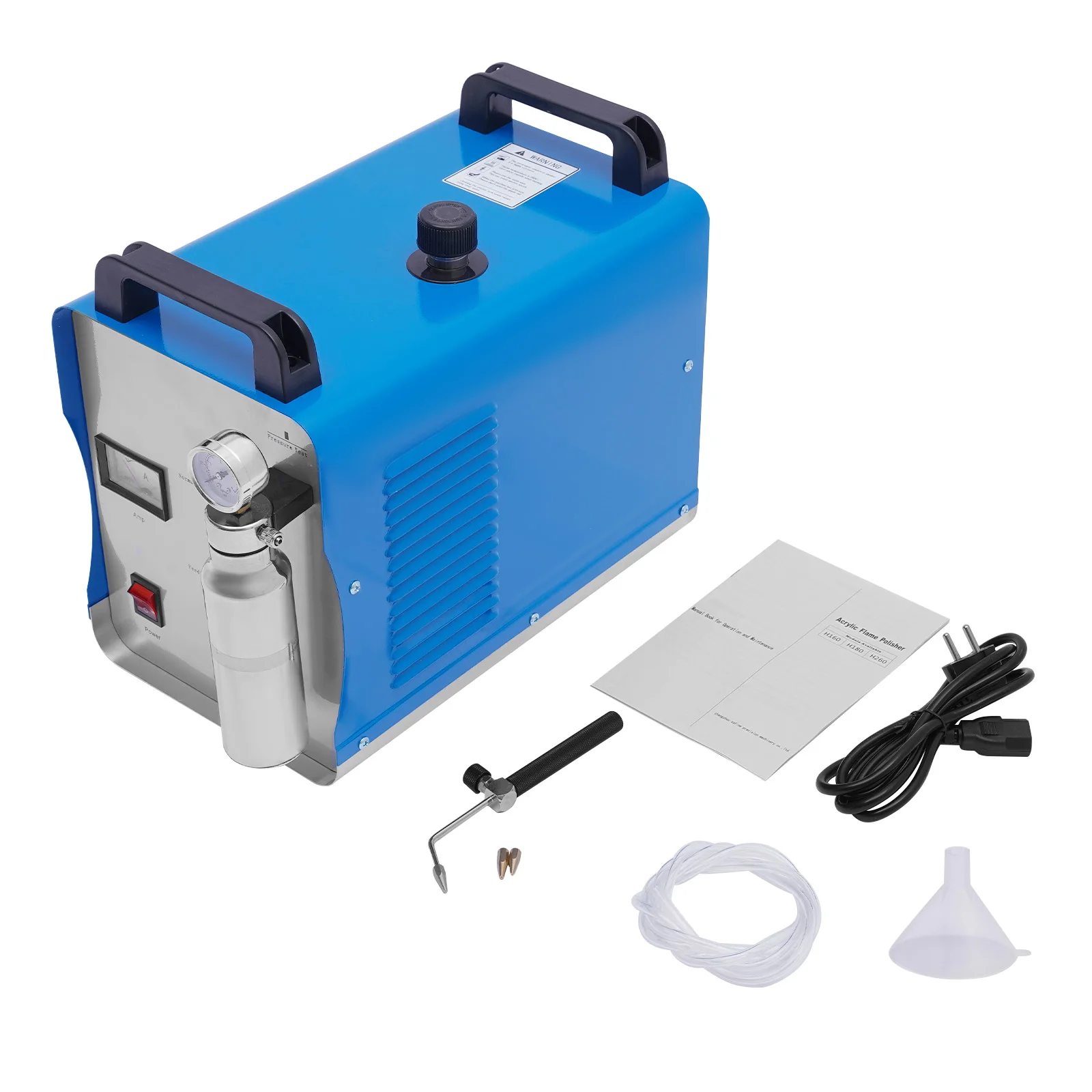

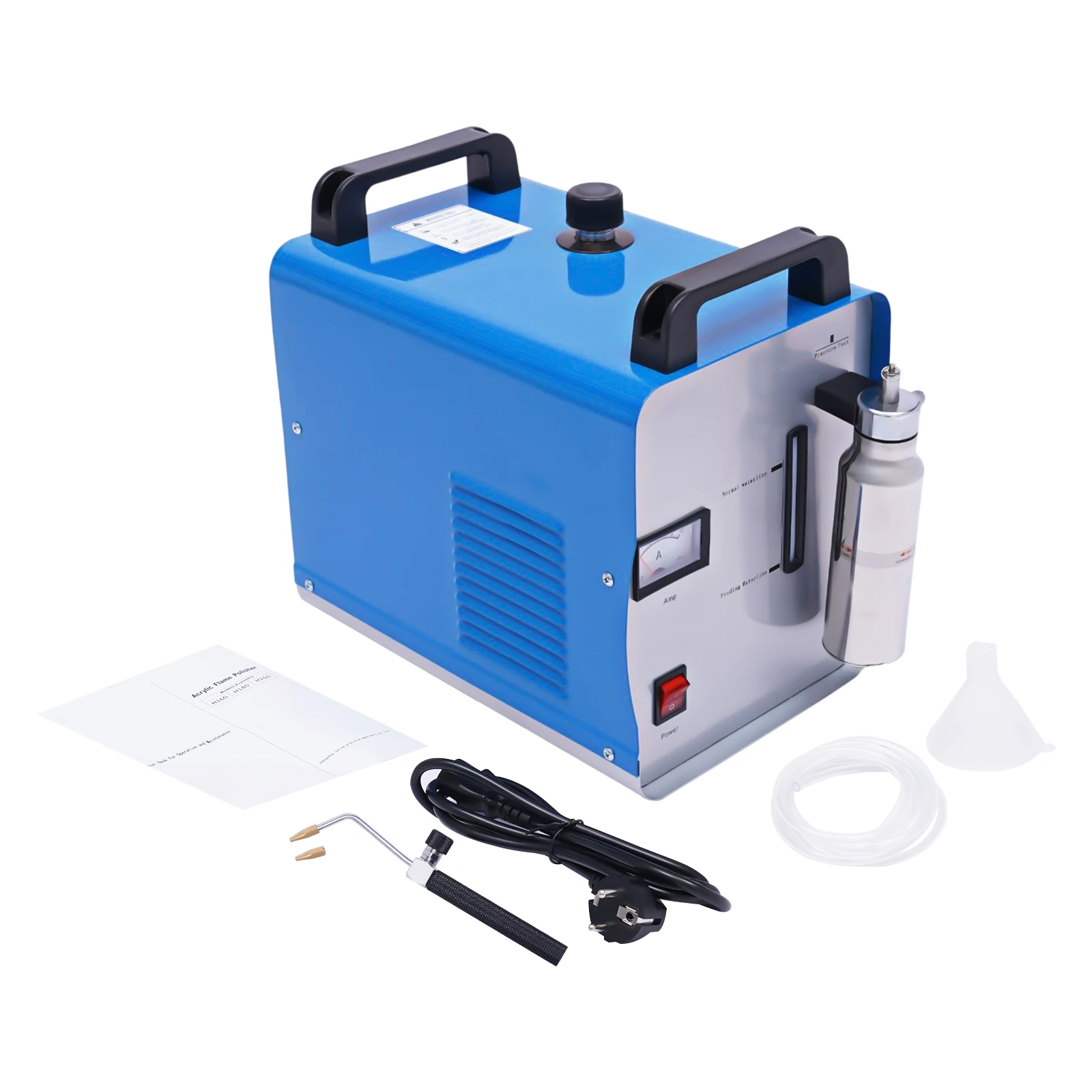

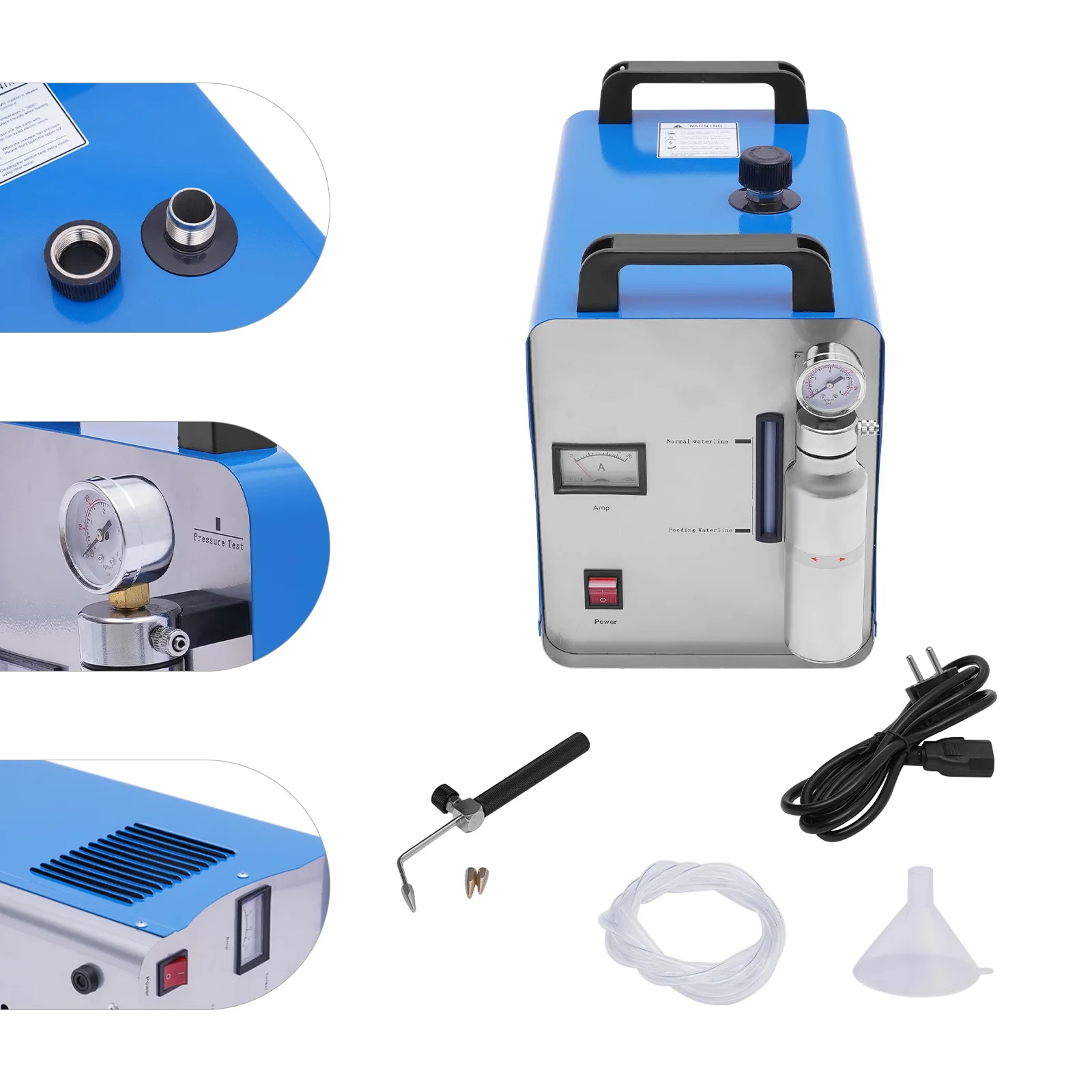

Package Included
1* Polishing Machine

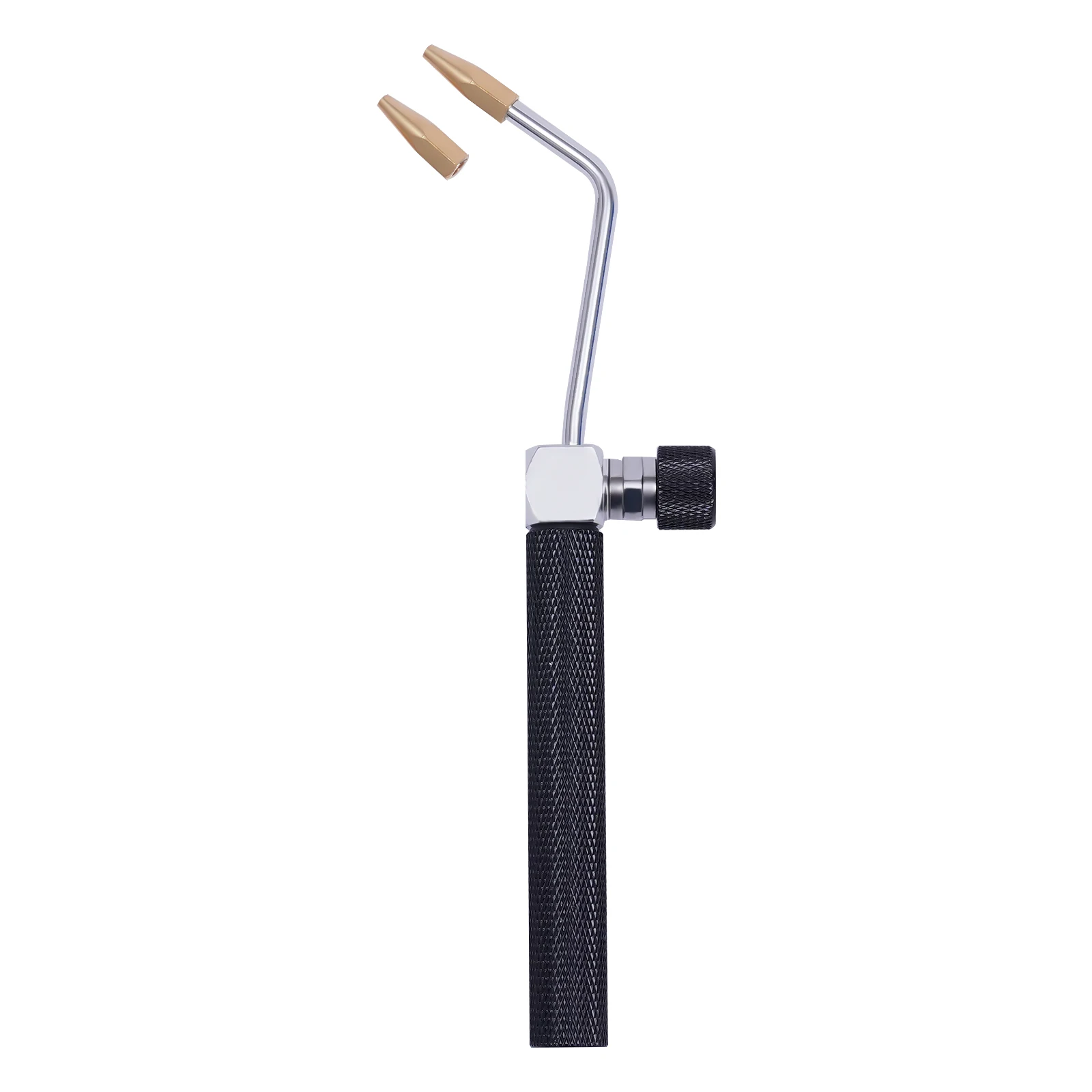

1* Flame Gun with 2 Tips
1* Power Cable
1* Hose
1* Funnel
1* English Manual
