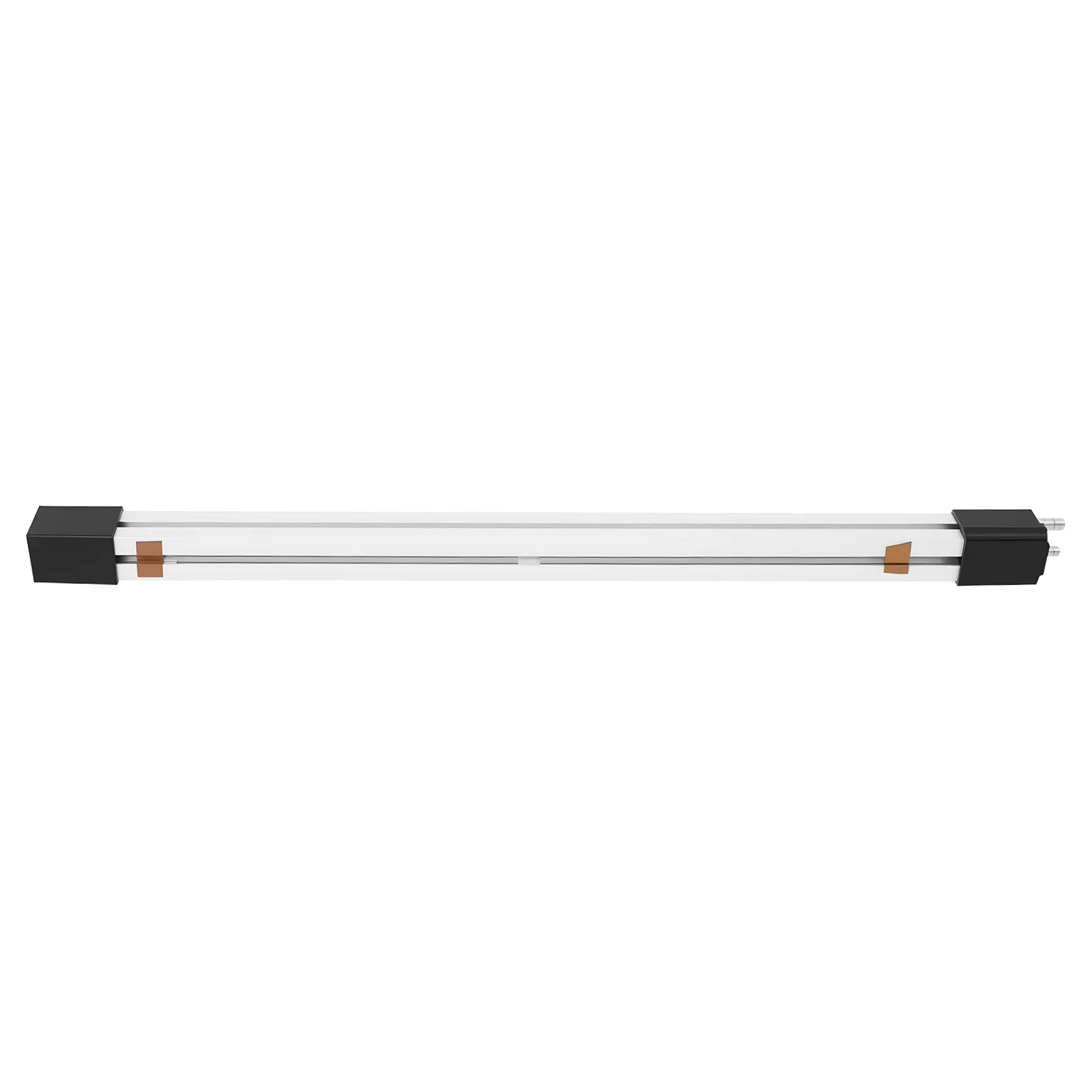

220V/110V Acrylic Heat Bending Machine, Portable PVC Plastic Board Heater Bender for Sign Display Cabinet Making

Looking for an efficient, precise solution for plastic bending? Then our bending machine is well worth your consideration! Crafted to cater to diverse plastic processing requirements, it delivers exceptional precision and stability. Whether you’re manufacturing cabinets, door frames, or other plastic structural parts, it’s incredibly user-friendly. Built with a high-strength frame and top-tier heating components, it guarantees fast, consistent bending results every time. If you want to boost your work efficiency and ensure the quality of your end products, opt for our bending machine—it will take your plastic processing operations to a more professional, efficient level!

Specifications --EU Standard

Material: Aluminum, Glass
Color: Black, Silver
Style: Modern
Assembly Required: Yes
Power Source: Corded Electric
Plug Type: EU Standard
Voltage: 220V
Power: 800W
Water Pump Waterproof Rating: IPX8
Water Pump Voltage: 220-240V, 50Hz
Water Pump Power: 25W
Heating Temperature Range: 0-100℃/32-212℉
Heating Width: 10-60cm/3.94-23.62in
Bending Material Thickness: 1-6mm/0.04-0.24in
Gross Weight: 3.1kg/6.83lbs
Net Weight: 2.95kg/6.5lbs

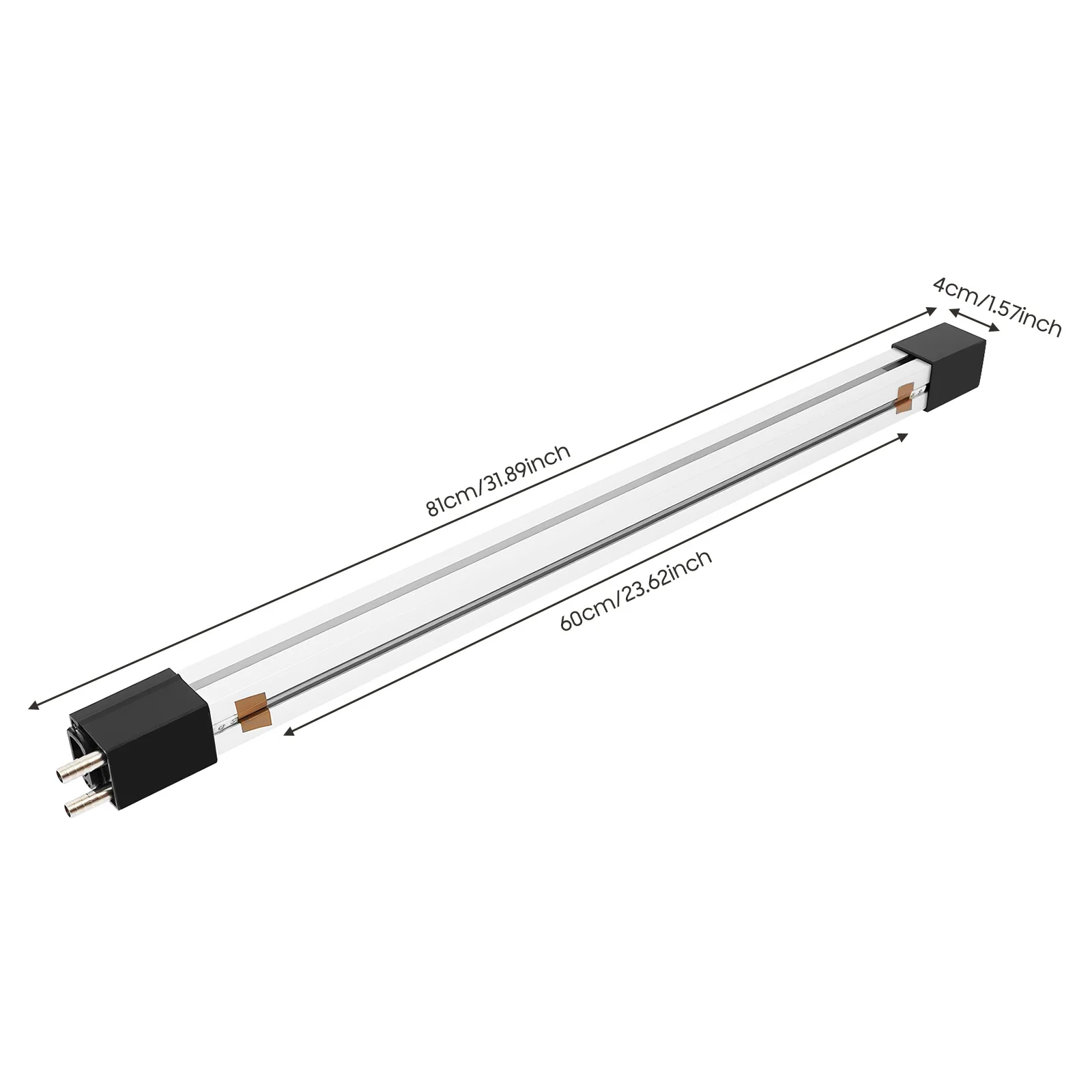

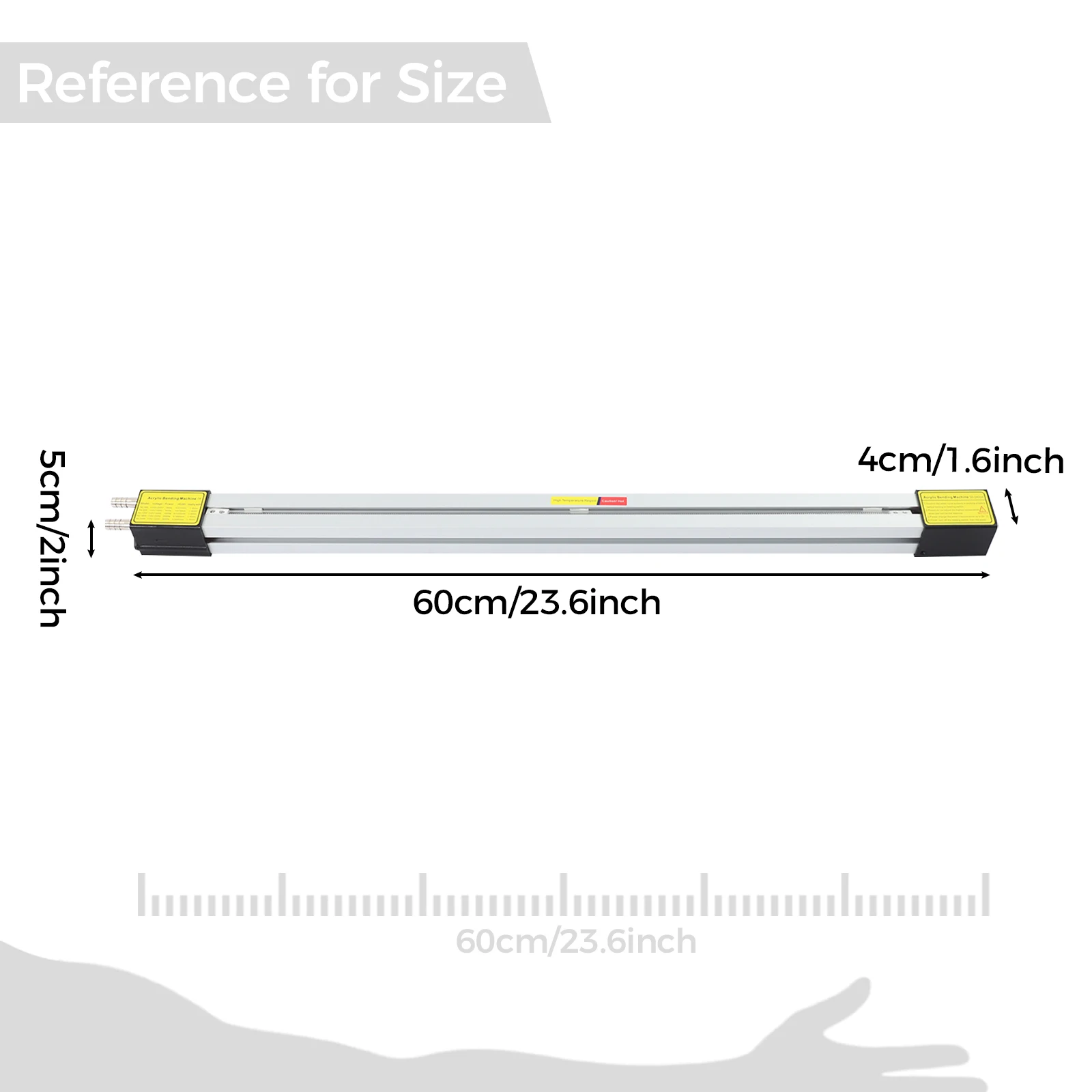

Product Size: 60*5*4cm/23.6*2*1.6in
Package Size: 86*21*13cm/33.86*8.27*5.12in

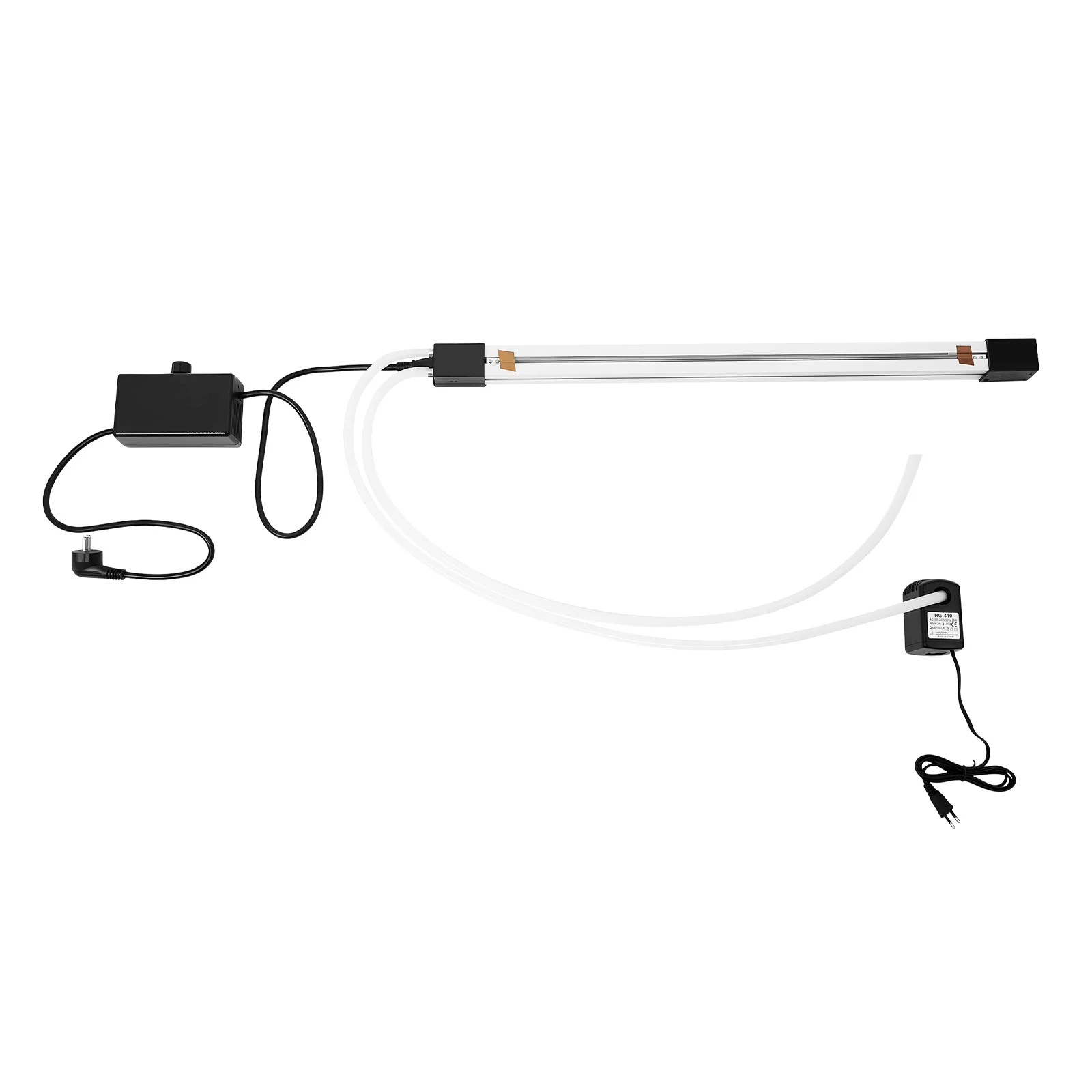

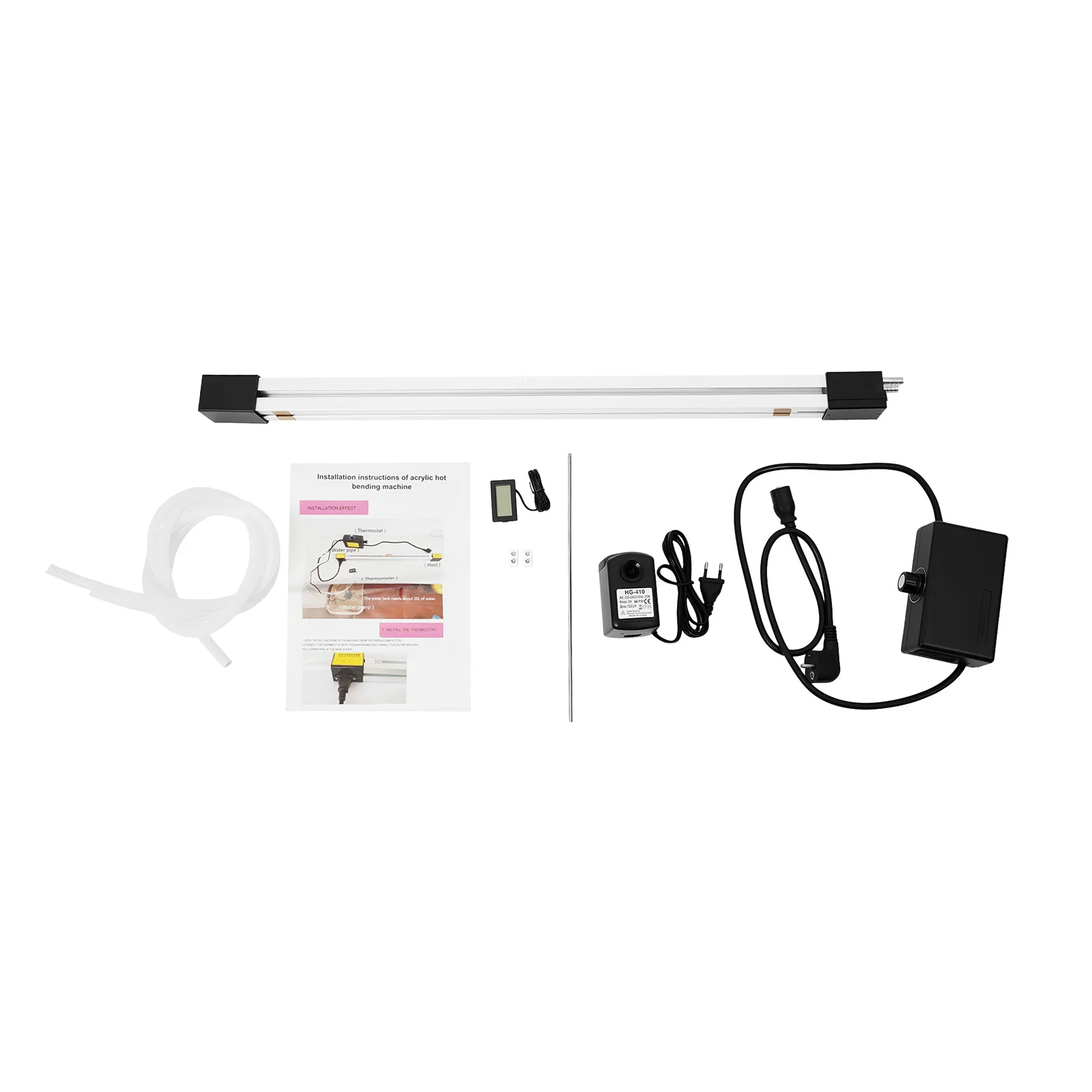

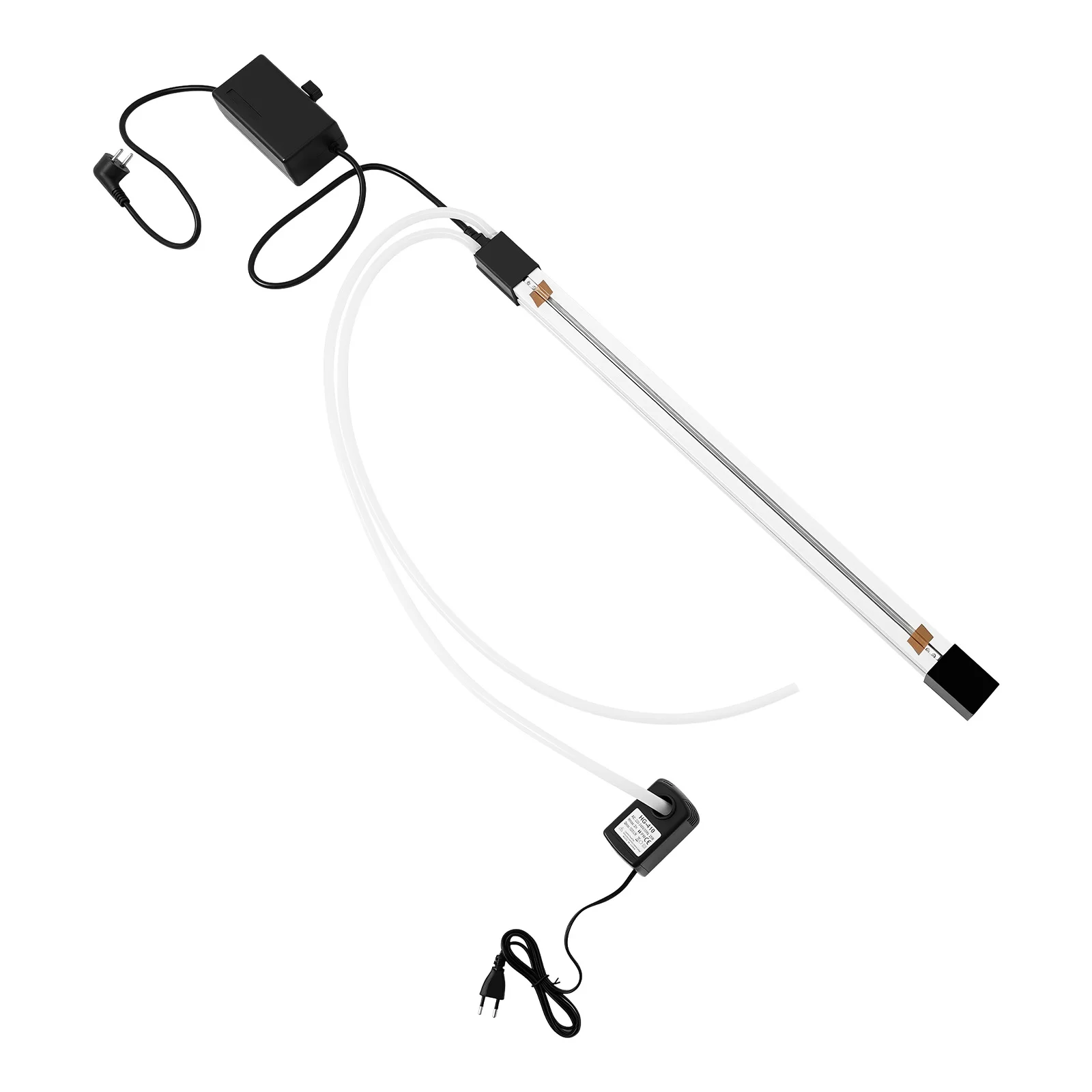

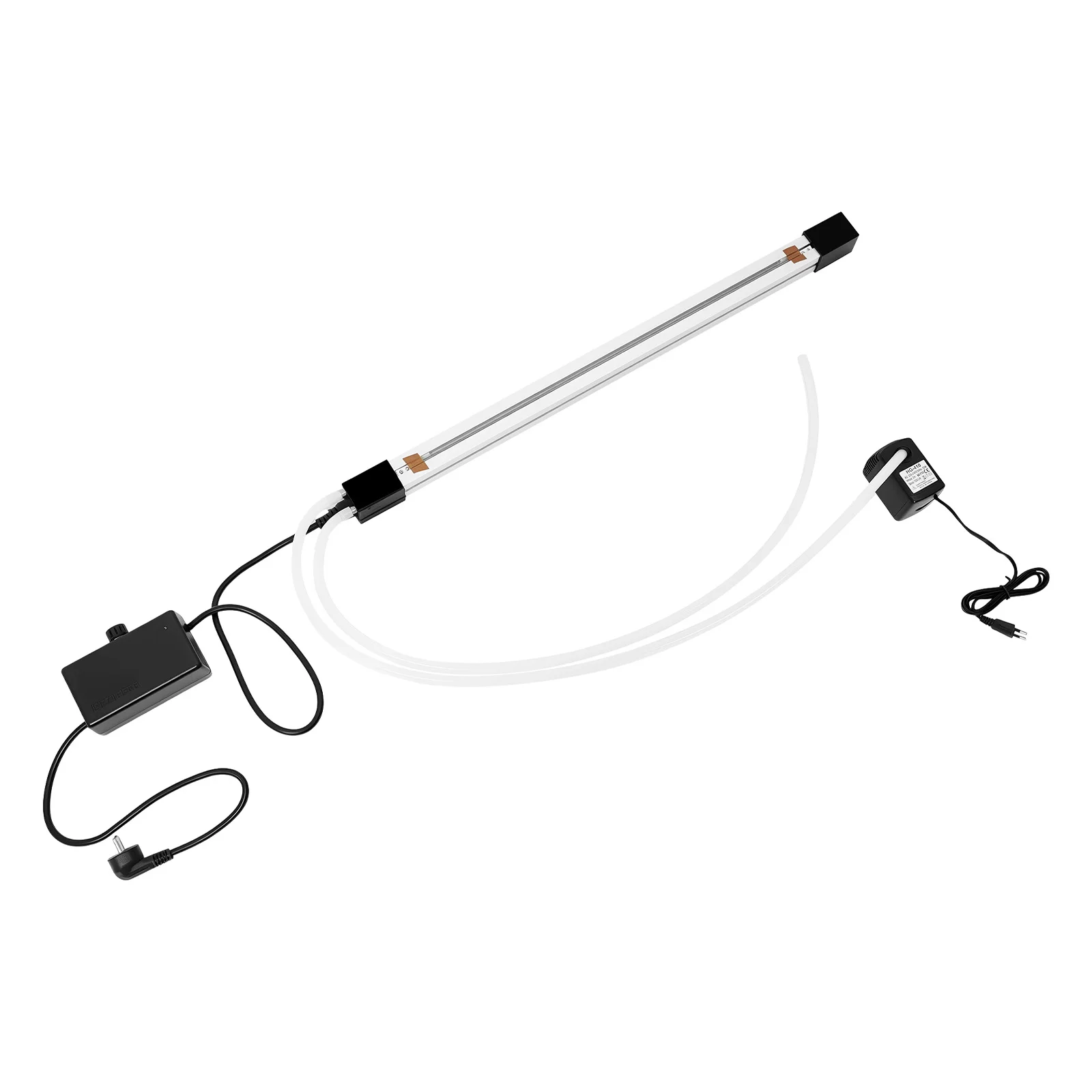

Package Included

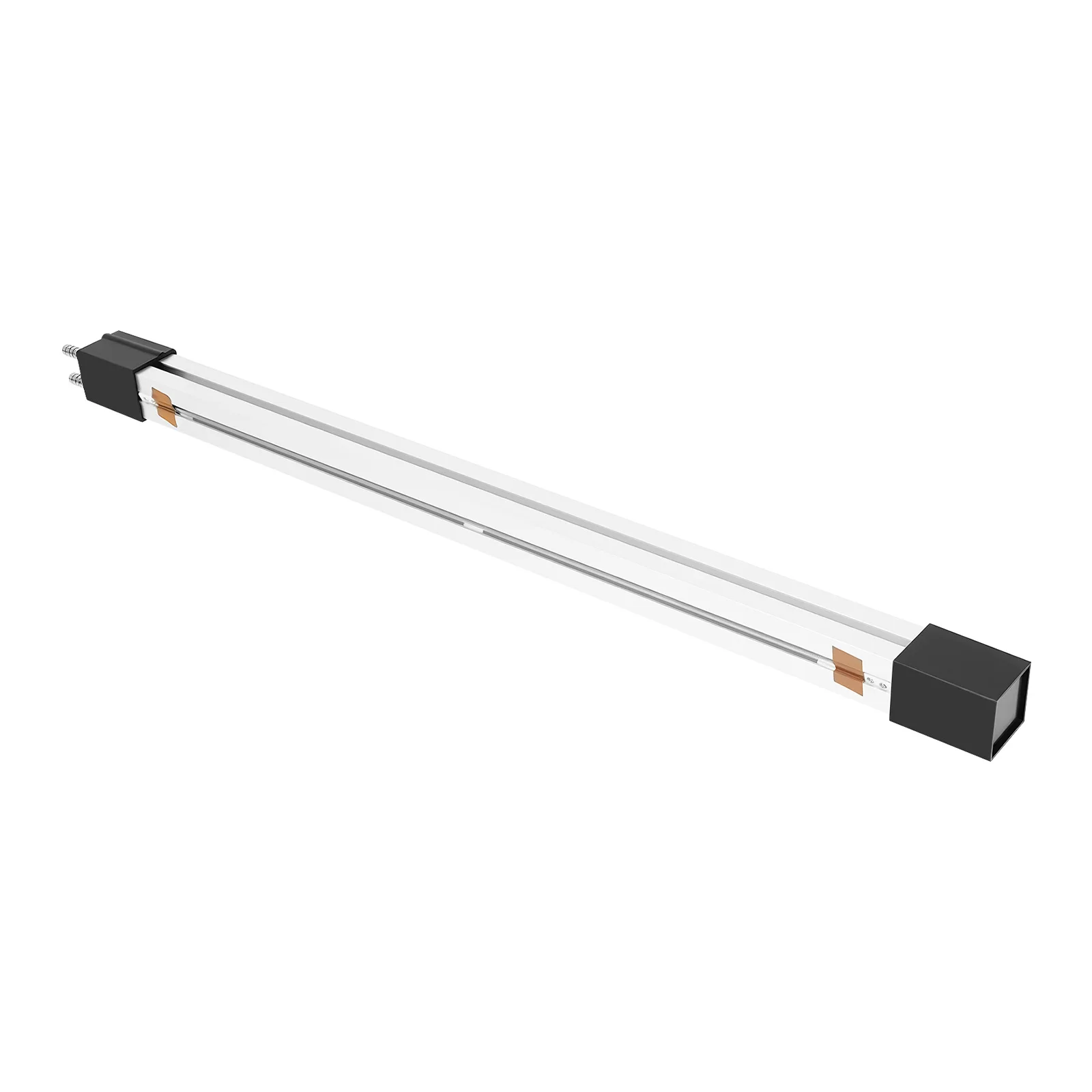

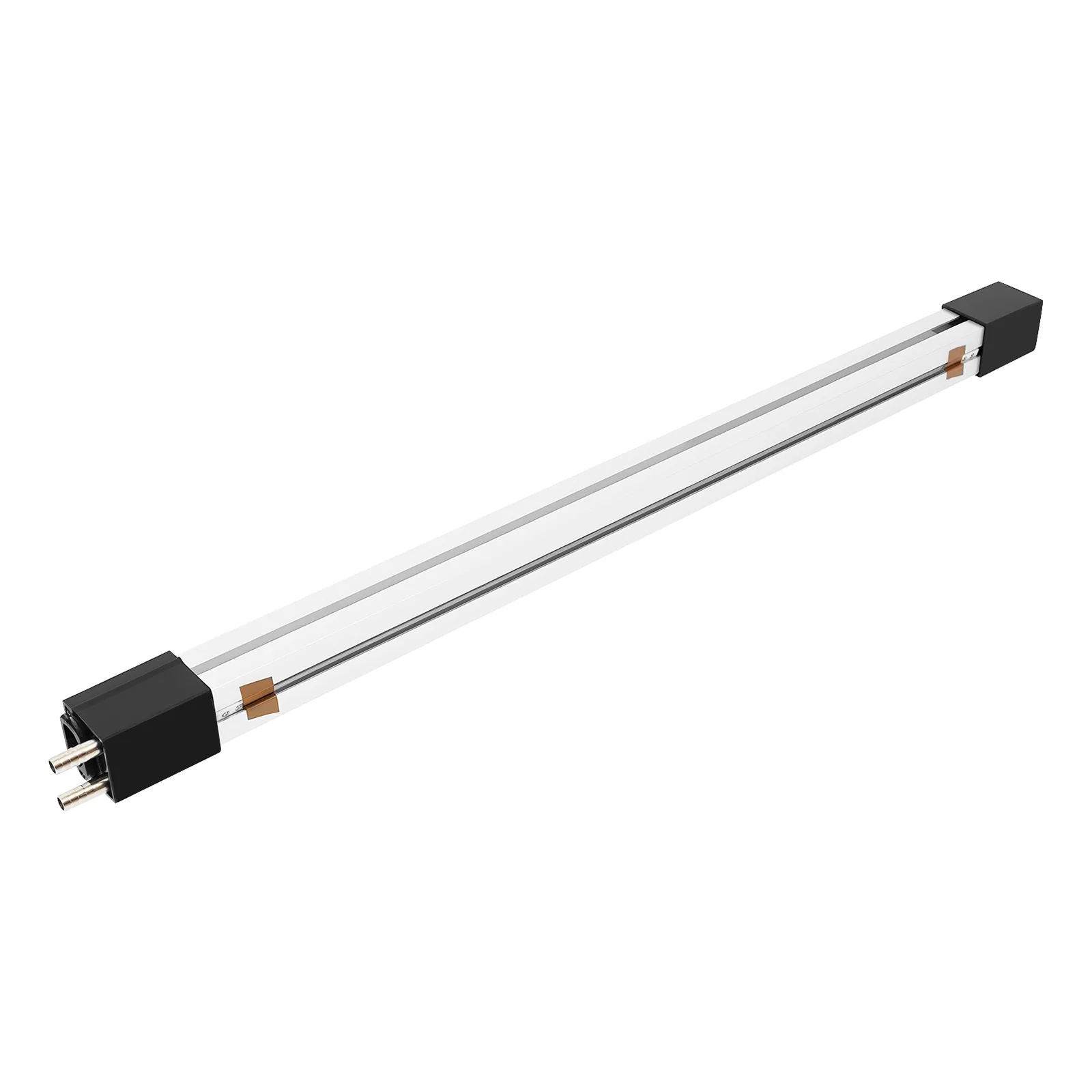

1* Bending Machine Heater
1* Temperature Controller
1* Thermometer

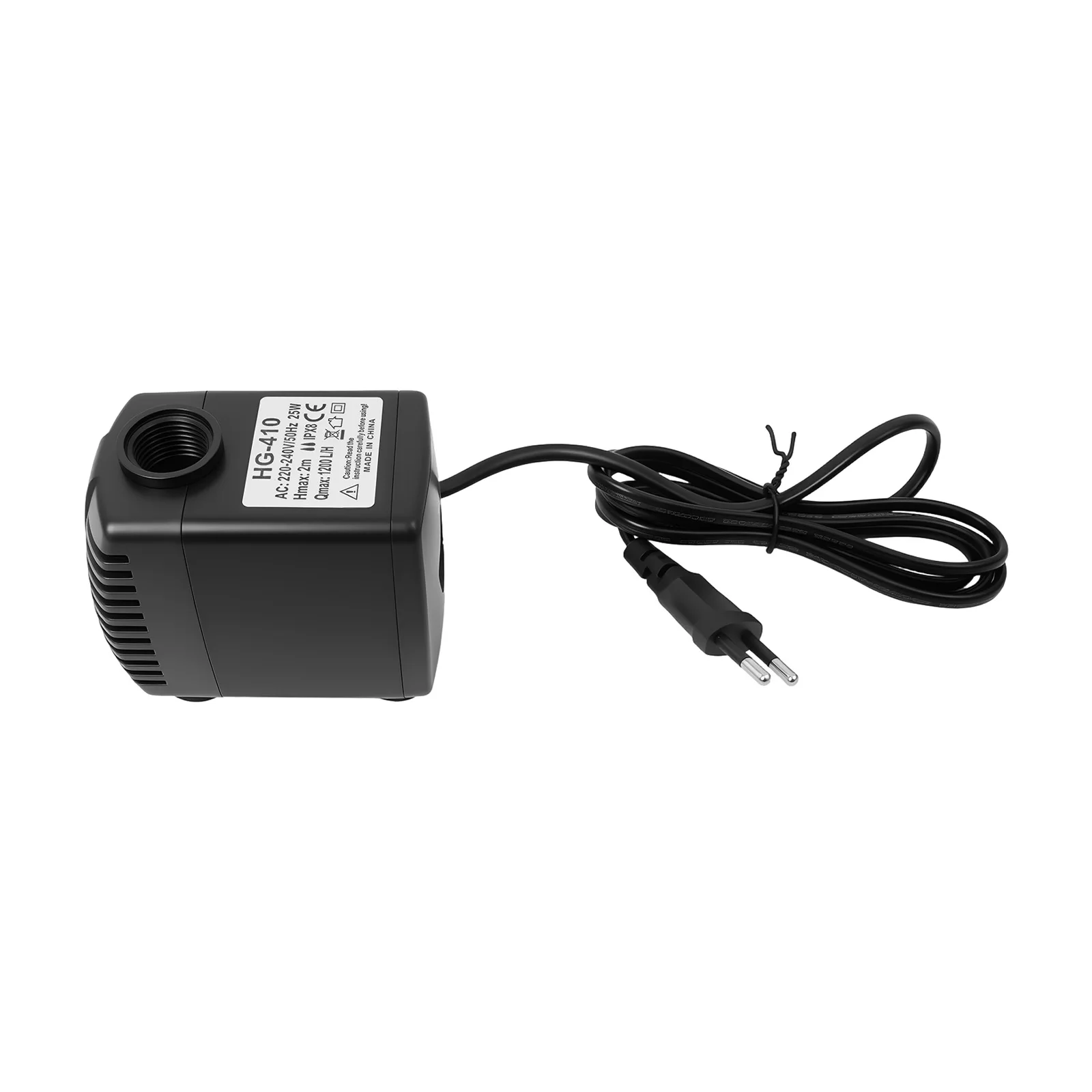

1* Water Pump
2* Water Pipes
1* English Manual

Specifications -- US Standard

Material: Aluminum, Glass
Color: Black, Silver
Style: Modern
Assembly Required: Yes
Power Source: Corded Electric
Plug Type: US Standard
Voltage: 110V
Power: 800W
Water Pump Waterproof Rating: IPX8
Water Pump Voltage: 110V, 60Hz
Water Pump Power: 25W
Water Pump Hmax: 1.8m/5.91ft
Water Pump Qmax: 1500L/396.26gal/H
Water Pump Maximum Water Temperature: 35℃/95℉
Heating Temperature Range: 0-100℃/32-212℉
Heating Width: 10-60cm/3.94-23.62in
Bending Material Thickness: 1-6mm/0.04-0.24in
Gross Weight: 3.1kg/6.83lbs
Net Weight: 2.95kg/6.5lbs
Product Size: 60*5*4cm/23.6*2*1.6in
Package Size: 86*21*13cm/33.86*8.27*5.12in

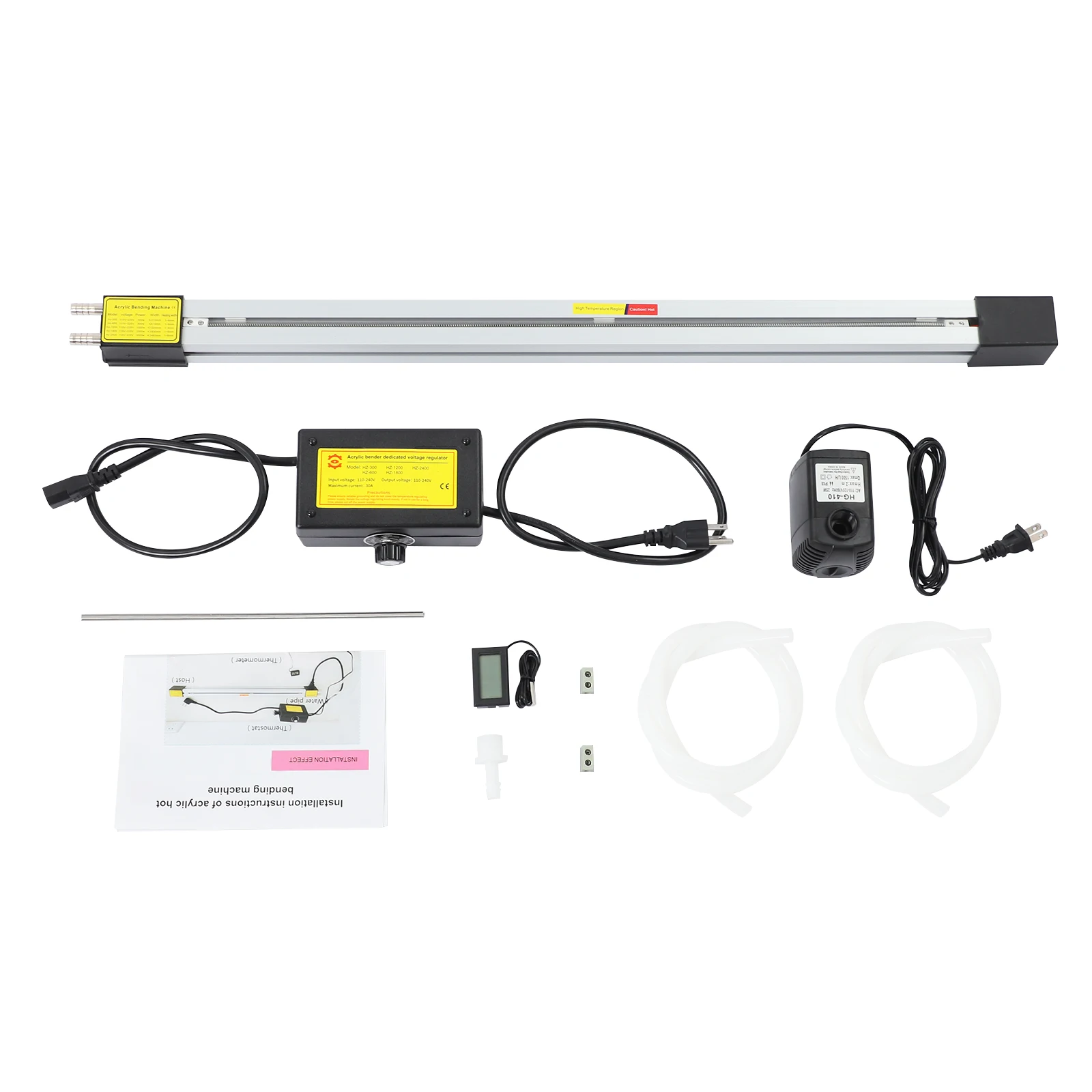

Package Included
‌1* Bending Machine Heater
1* Temperature Controller
1* Thermometer
1* Water Pump
2* Water Pipes
1* Manual

Key Features

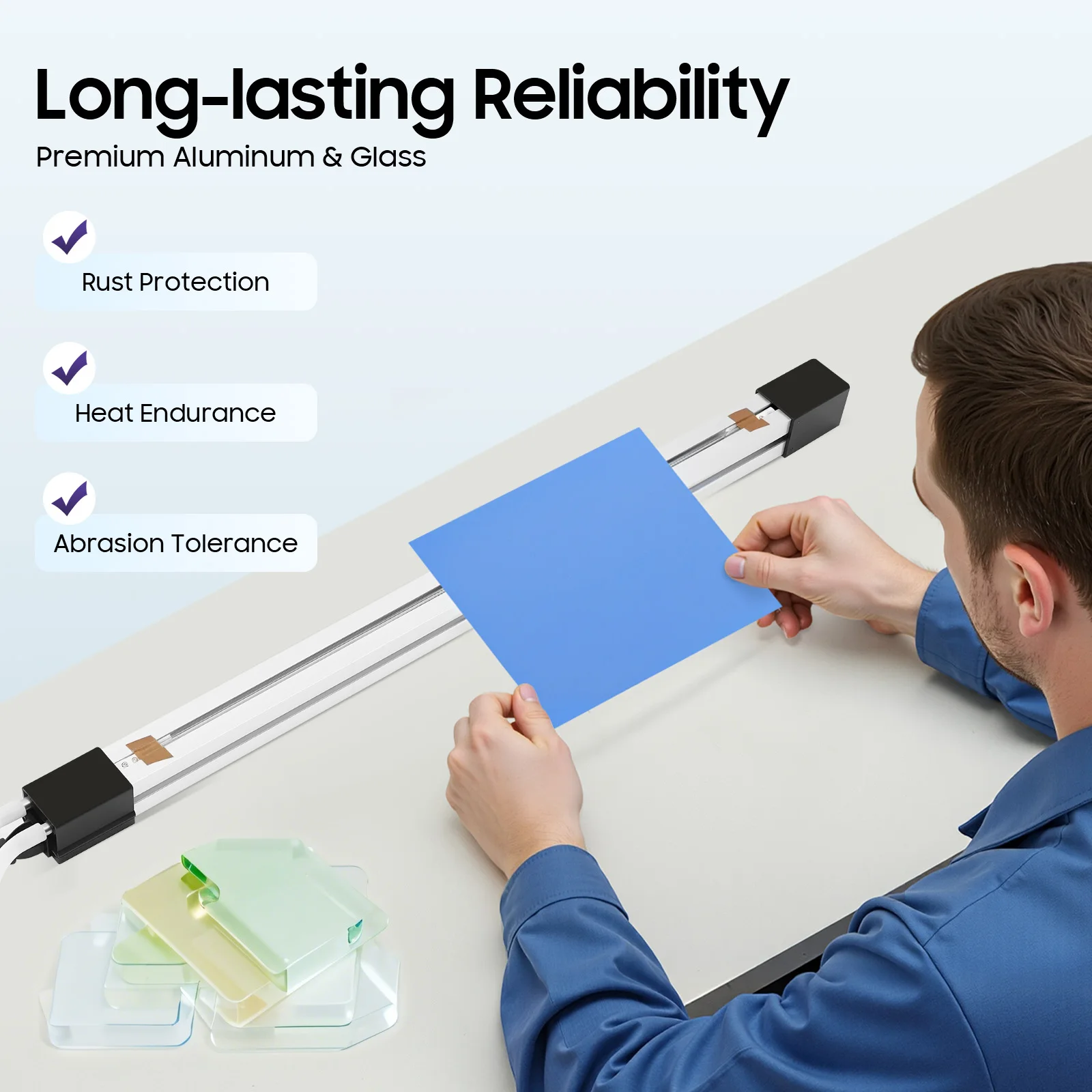

Long-lasting Reliability: Crafted from aluminum and glass, this unit delivers exceptional sturdiness, heat endurance, rust protection, and abrasion tolerance—all key traits that extend its overall service life.

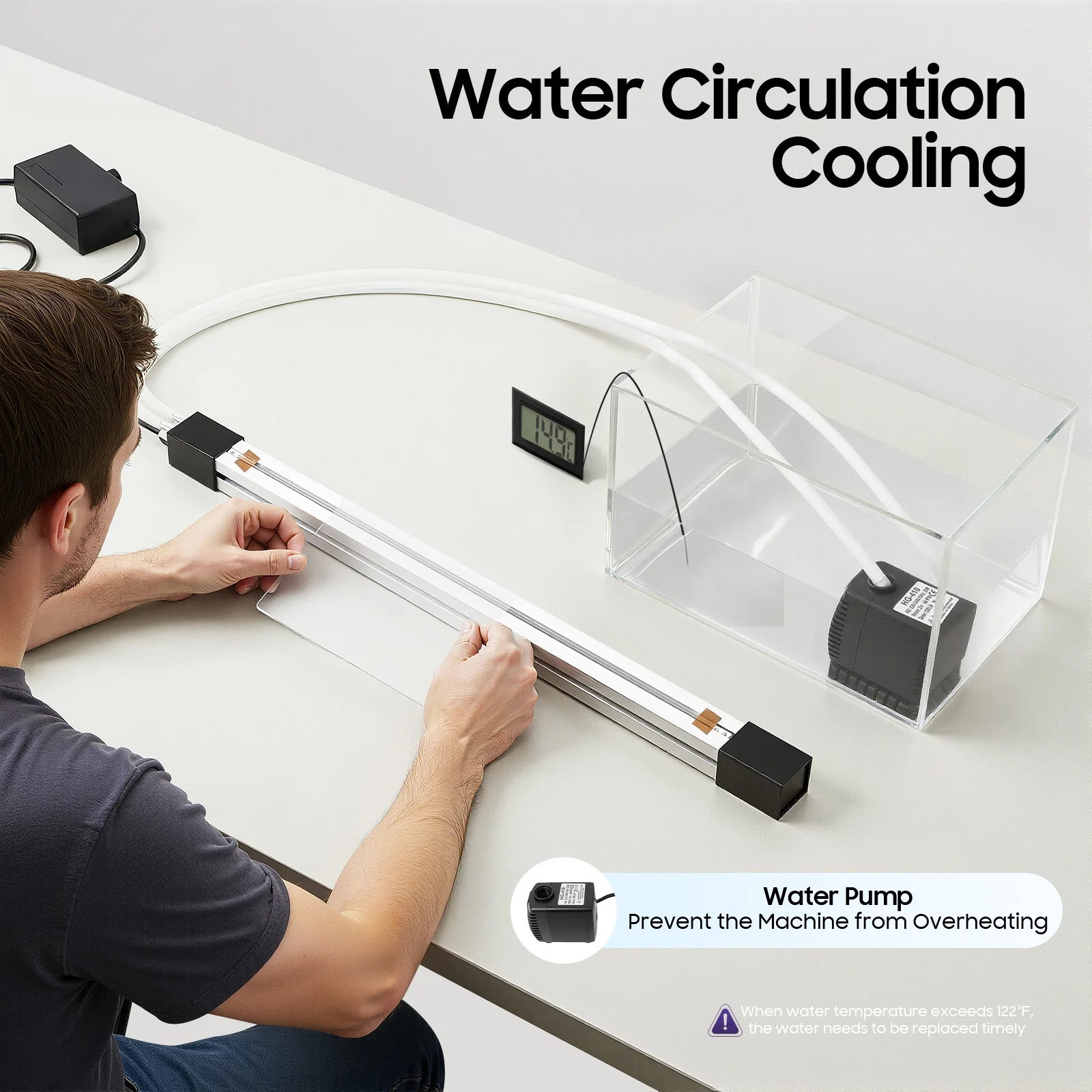

Security-assured: Dual-sided water circulation cooling surrounds the heating tube, effectively preventing both unnecessary thermal deformation of the finished product and overheating of the machine itself, so you can operate with complete peace of mind.

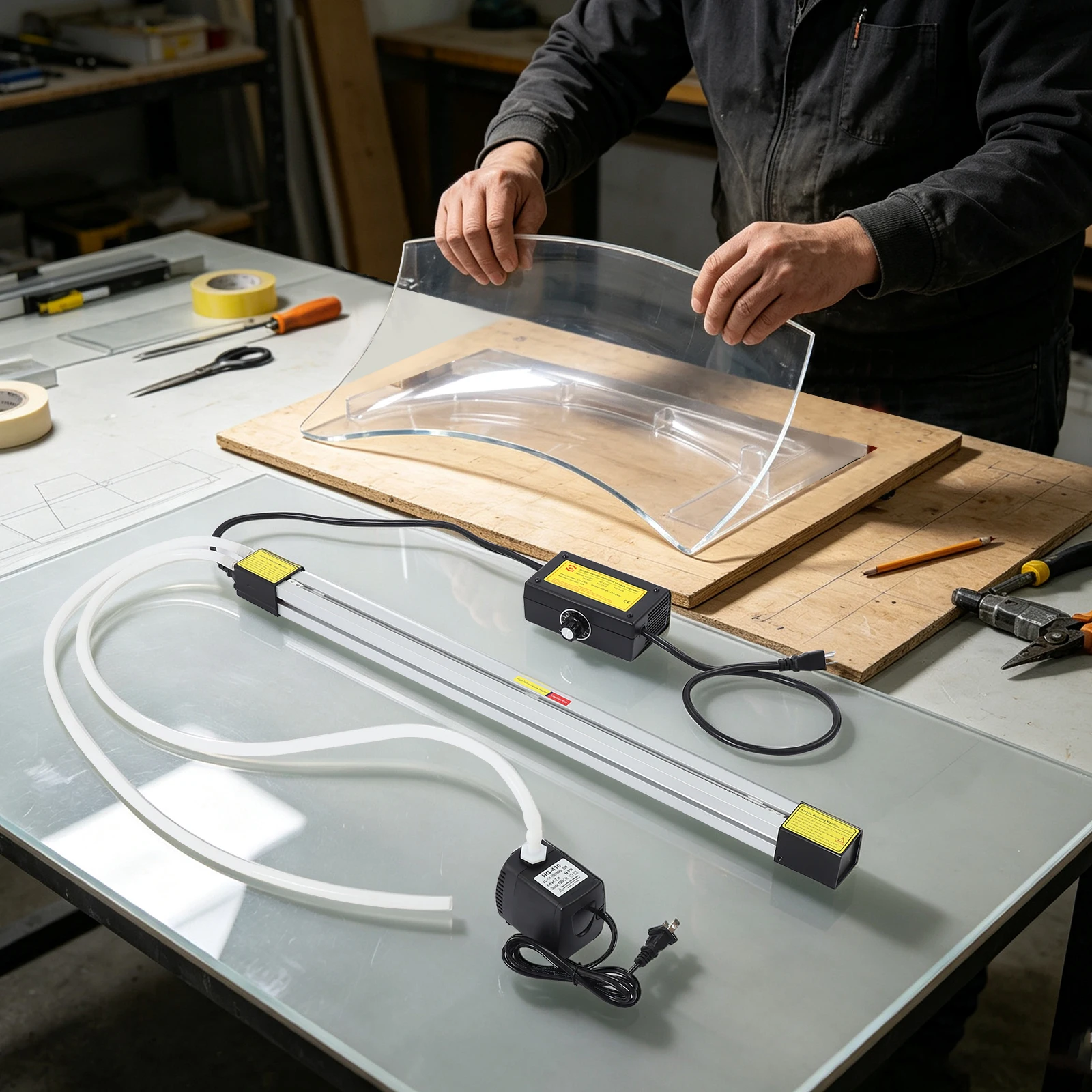

Bending Assistant: The product emits heat and softens the plastic sheet, then you can bend the plastic sheet by hand or with a shaping die. With it, you can safely and easily bend acrylic materials and more (not included), allowing you to create the shape of the item you want. In addition, the water pump has an IPX8 waterproof rating so you can use it with confidence.

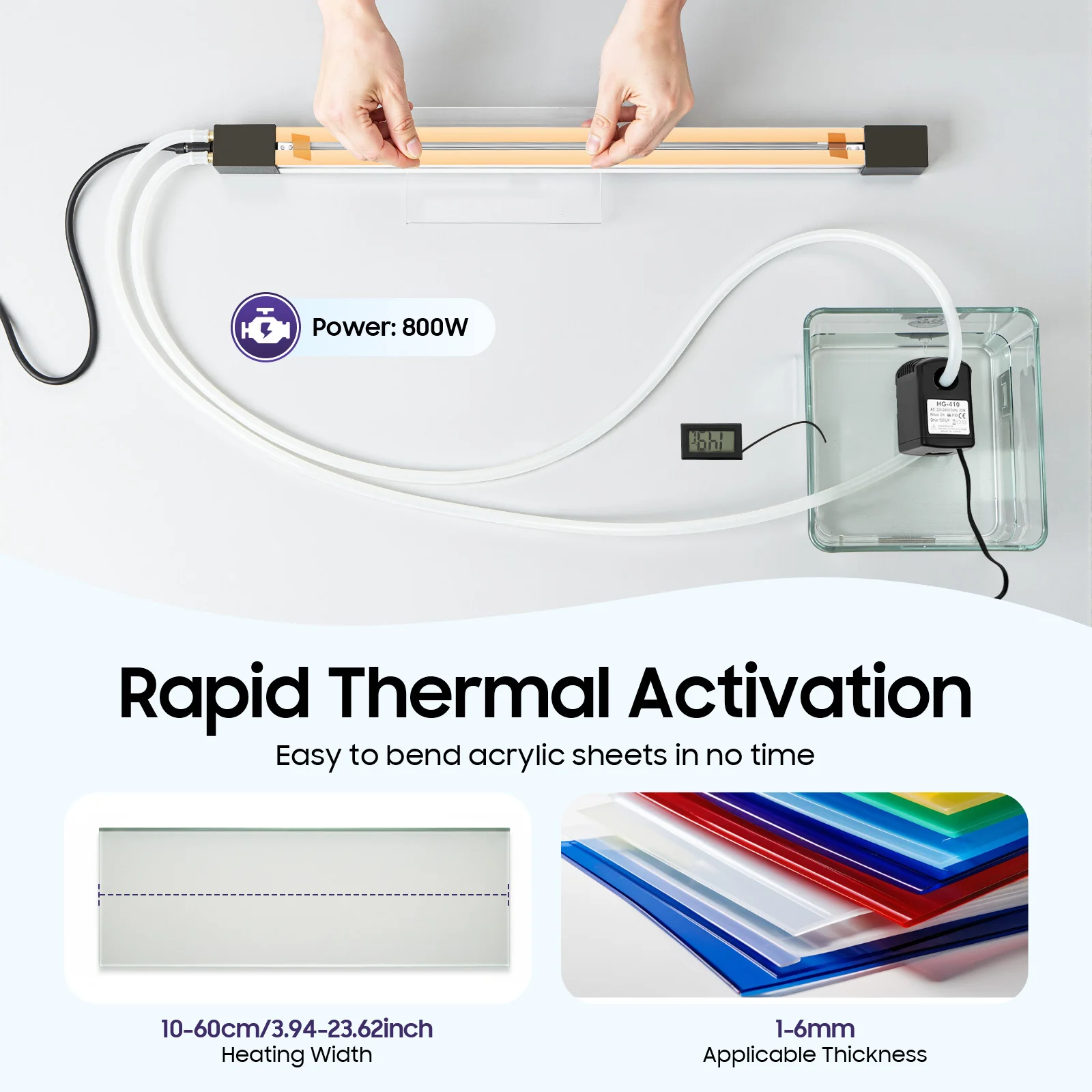

Rapid Thermal Activation: Powered by an 800W system and boasting a maximum heating width of 23.62 inches, it rapidly and evenly heats materials ranging from 1mm to 6mm thick. This lets you bend acrylic sheets in no time, directly ramping up your work efficiency.

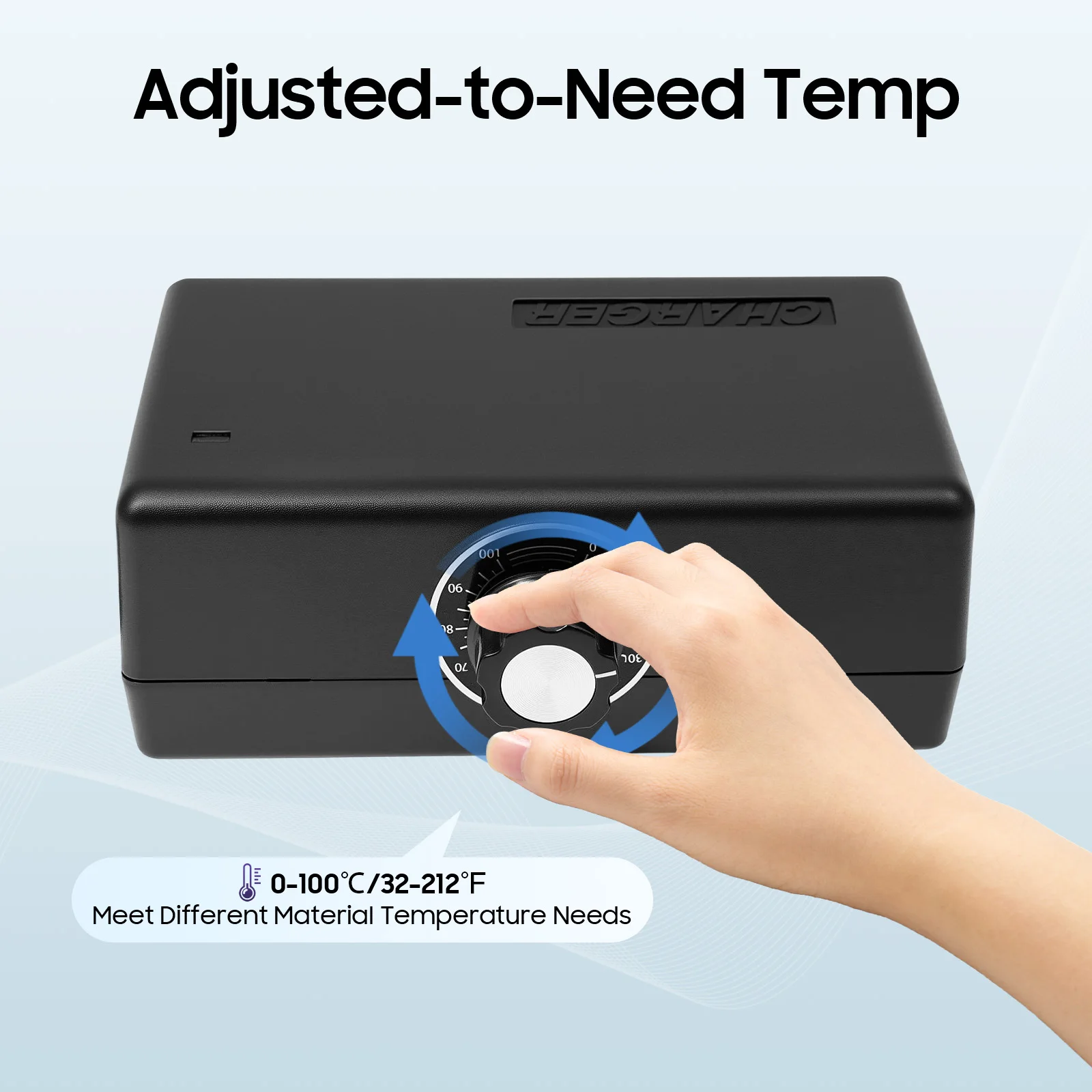

Adjusted-to-Need Temp: A temperature controller lets you adjust the machine’s temperature between 32℉ and 212℉ as required, easily meeting the unique temperature demands of various materials.

Easy to Carry and Store: The compact size (23.6*2*1.6in), lightweight (6.5 lbs), and detachable design make it take little place so as to be used as a portable bender.

Easy to Clean: Its smooth surface and simple structure make it easy to clean with a cloth (not included).

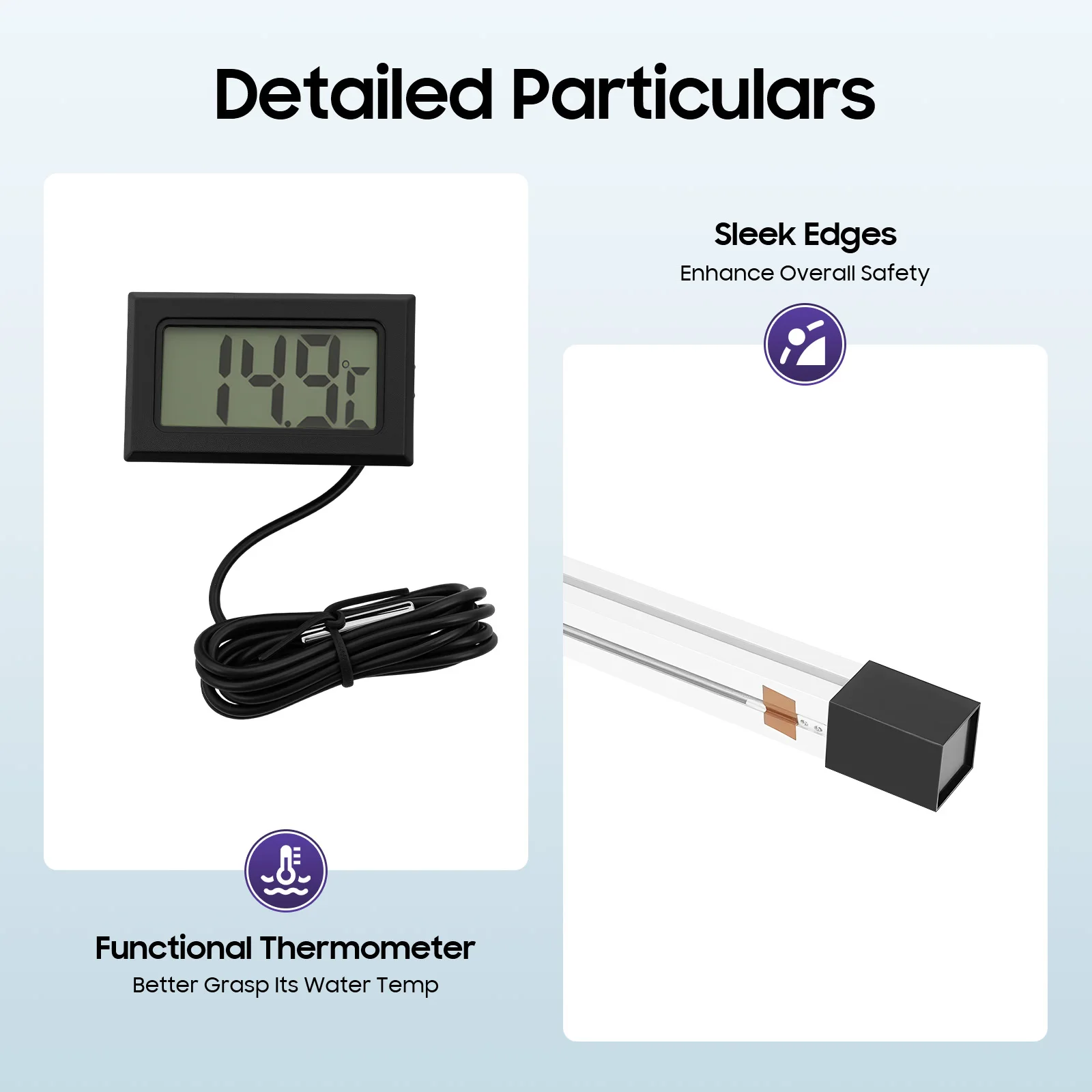

Details
Sleek Edges: The corners feature a sleek design—this minimizes scratch or wear damage from accidental impacts and enhances overall safety during use.

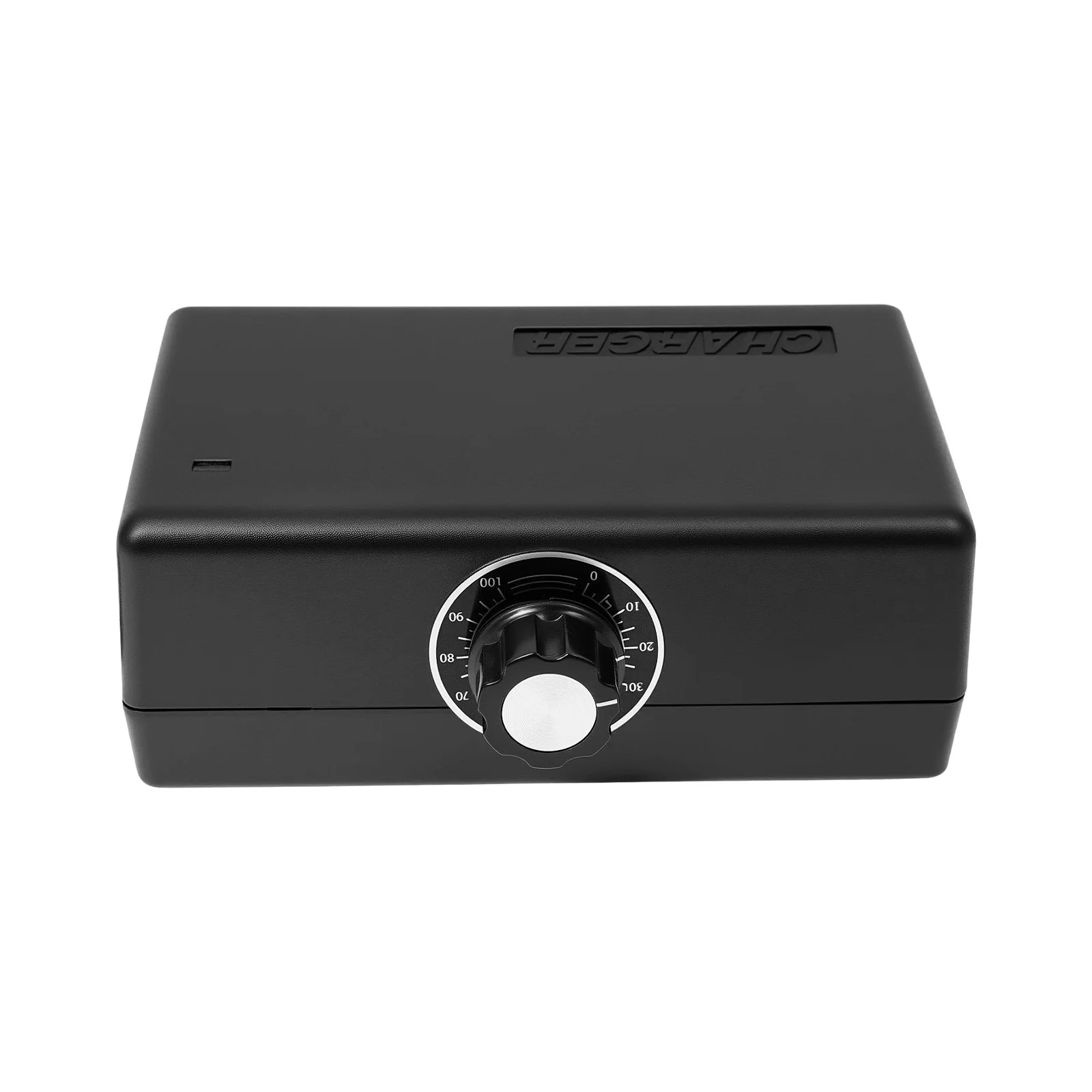

Temperature Adjustment Knob: It makes it easier and clearer for you to adjust the temperature.

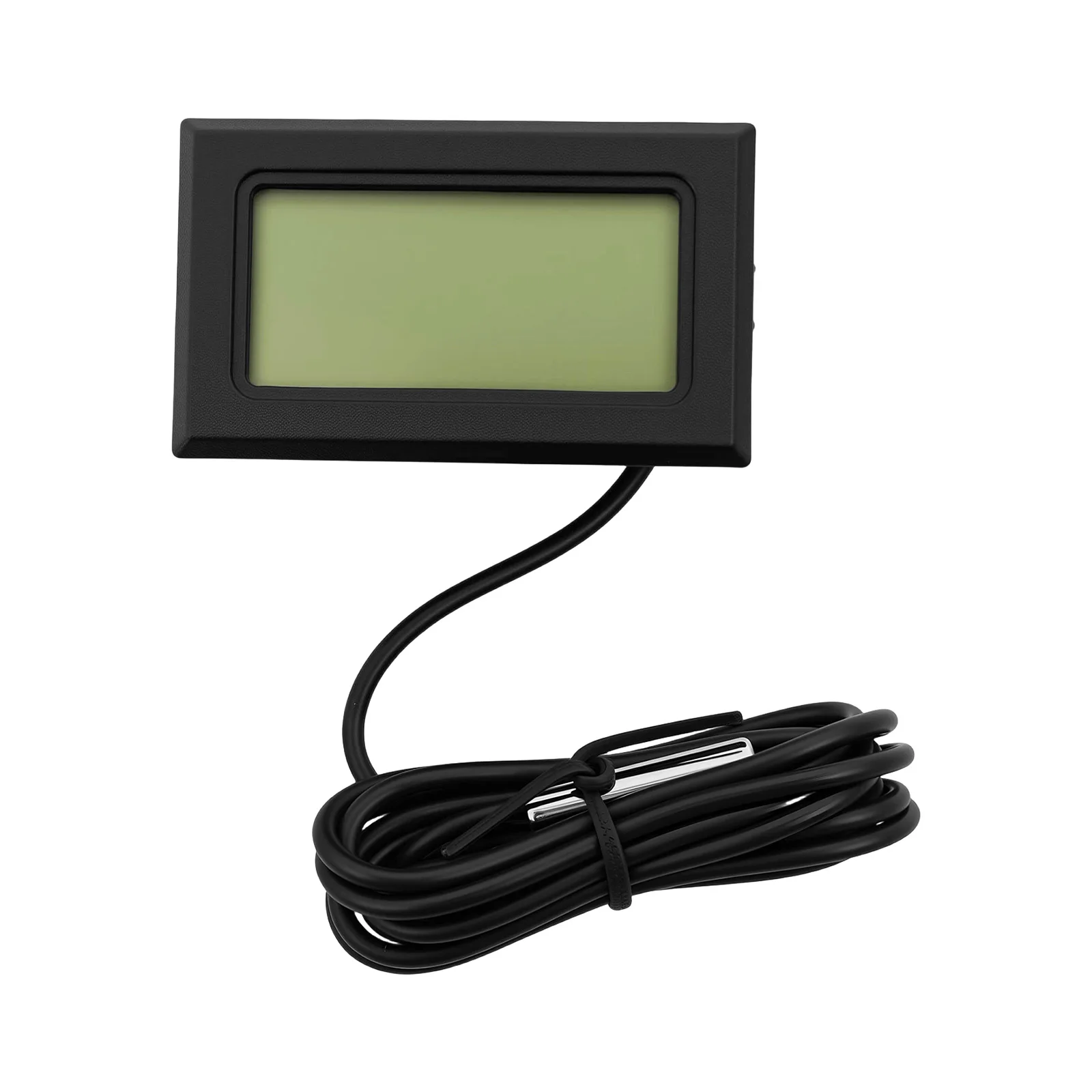

Functional Thermometer: This thermometer enables real-time monitoring of the water temperature in the tank (excluded). This makes it simple for you to replace the water promptly, ensuring safe operation of the machine.

Application

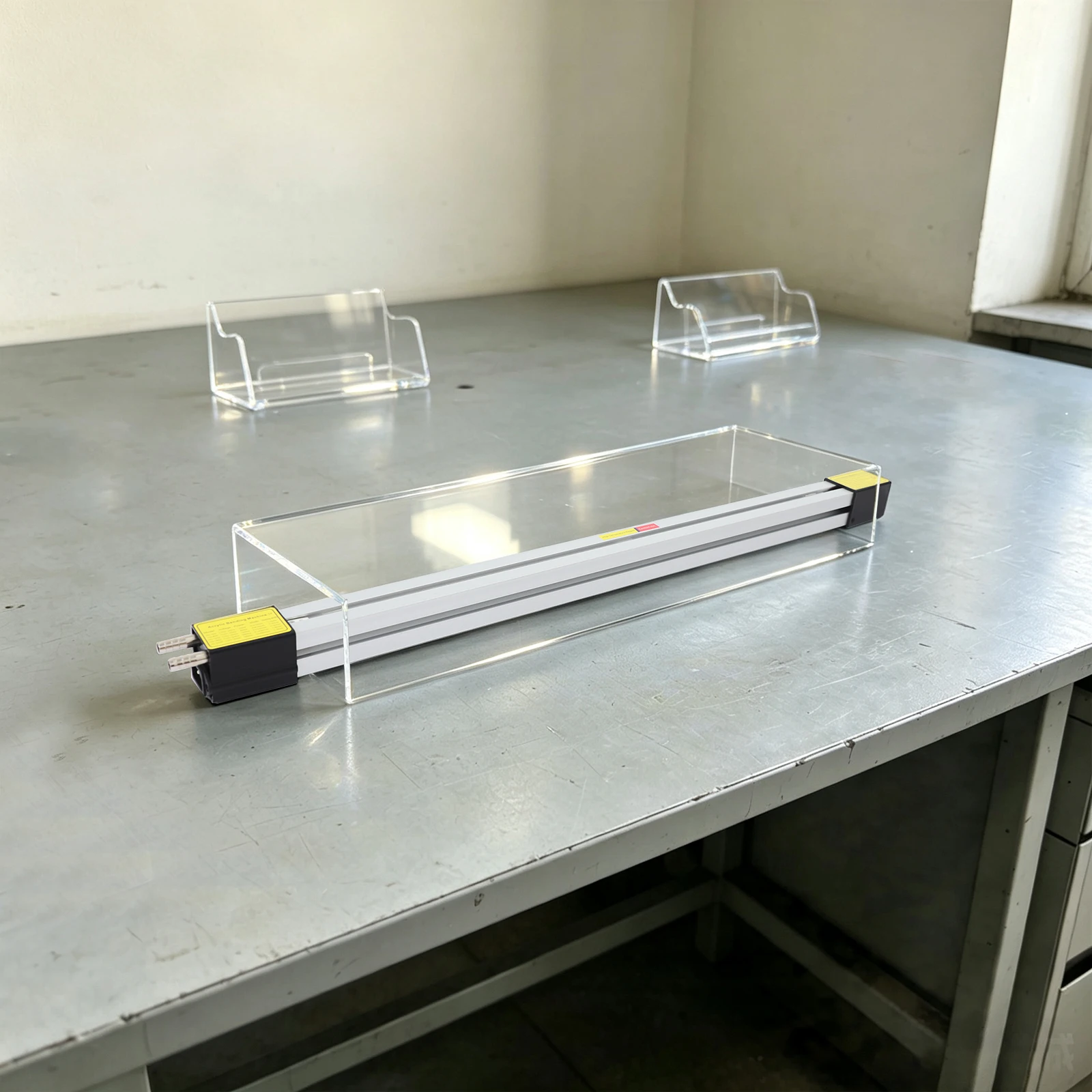

It is suitable for materials such as acrylic, PVC board, organic glass, and plastic board, widely used in decoration engineering, sign making, display cabinets, aquarium wrapping, lighting LED channel letters, supermarket shelves, curtain walls, large light boxes, etc.

Notes

1. The water temperature will continue to rise after working for a long time. Please change the cold water immediately. The circulating water temperature should not drop sharply. When the water temperature exceeds 122℉, the power supply of the heater should be cut off in time, and the circulating water needs to be replaced later.
2. If the thickness of the acrylic sheet is beyond 6mm, you can use two heaters (only one is included) to heat the top and bottom of the sheet at the same time, or you need to cut a slot on the sheet to heat.
3. Please note that it is advisable to adjust the thermostat slowly until the heating tube is slightly red, too high a temperature will easily cause damage to the plate.
4. Please note that the product heating will produce high temperatures, the heating element should avoid contact with human skin. Please change the heating time according to the thickness of the materials.
5. Pay attention to the usage environment and keep away from combustible dangerous articles.
6. If the product is not used for a long time, please cut off the power supply in time.
7. Please be informed that the water tank (not included) requires 7.93 gal of water during work.
8. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
9. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
