Diameter 22mm 15A 2/3/4 ChannelsRotate Dining Table Slip Ring Electric Collector Rings Slip Ring Rotary Joint
14$
13.72$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
This listing is include multiple sales option, please option what you needing.
****100% Brand New, Shipping within 48 Hours****
Features:
Diameter 22mm 15A 2/3/4 ChannelsRotate Dining Table Slip Ring Electric Collector Rings slip ring rotary joint Fully meet the 360 degree of unlimited rotation of the image and data transmission work small noise, long life, small rotation torque, smooth running dynamic resistance change value is extremely low,small volume, compact structure.
Specifications:
Speed:up to 250rpm Channel number: 2, 3, 4Channels for option Rated voltage:220VAC/DC Rated current: 15 A/channel Diameter: 22mm Operating temperature: -20 ℃ ~ +60 ℃ Contact material: Gold Wire Size: AWG16 Silver-plated Teflon UL Wire length: standard 200mm Compressive strength: between the two channels≥500V 50Hz Insulation resistance: 500MΩ/500VDC Dynamic resistance fluctuation value: minimum 10mΩ Shell material: Engineering plastics Working life: ≥5 million rpm(depending on the working environment and speed)
Pack Included:
1* Slip Ring Number of Channels for option, Each channel 15A, Diameter 22mm
Customer Reviews
33 ratings
good quality (3)
fast delivery (2)
sturdy material (1)
well-packaged (1)
misleading description (1)
Customer photos (4)
j***r
August 25, 2026
Variant: Color:2 Channel 15A (22mm)

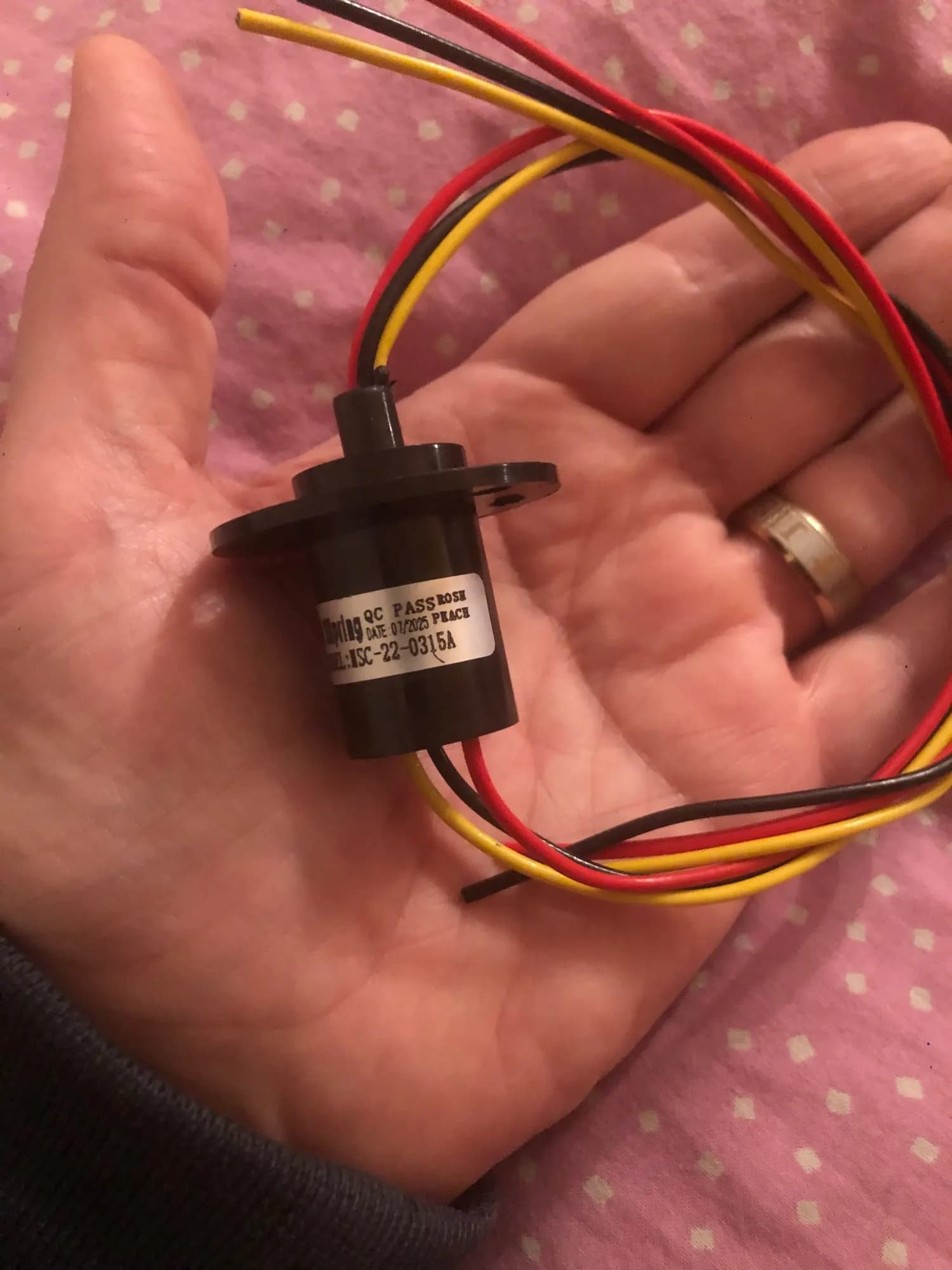

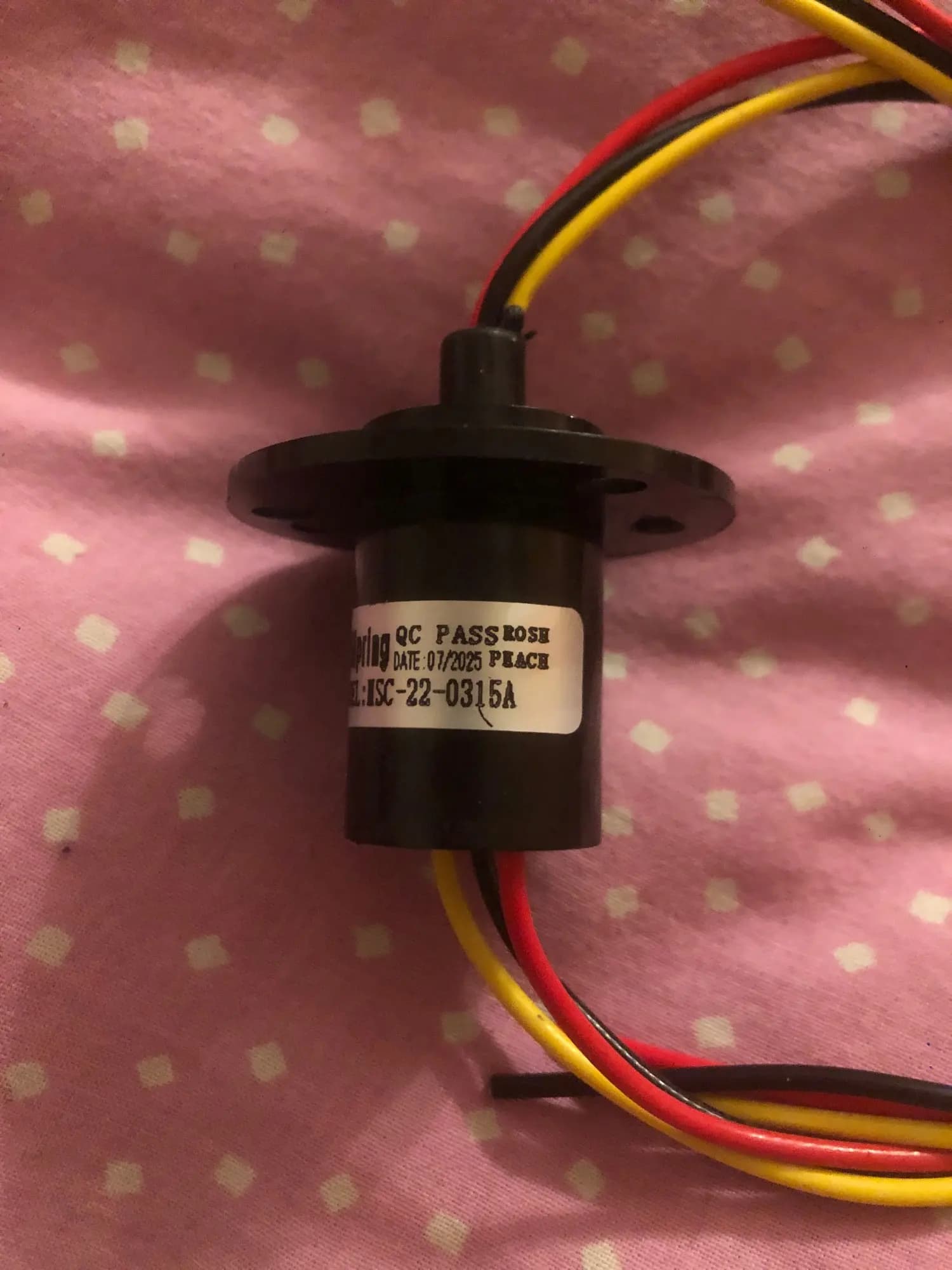

They say it’s a 2 channel ring but it is actually only 1 channel as it only has 2 wires coming out at each side.
Buyer from United Kingdom
July 14, 2026
Variant: Color:2 Channel 15A (22mm)
arrived as it should, seems good quality, as described in advert
f***i
April 17, 2026
Variant: Color:4 Channel 15A (22mm)
Excellent product, highly recommended.
Translated by AliExpress ·
R***i
March 21, 2026
Variant: Color:4 Channel 15A (22mm)
As described
Buyer from Germany
March 15, 2026
Variant: Color:4 Channel 15A (22mm)
top
M***k
February 23, 2026
Variant: Color:4 Channel 15A (22mm)
Just as described. Good qualety. Fast shipping. Recomanded
