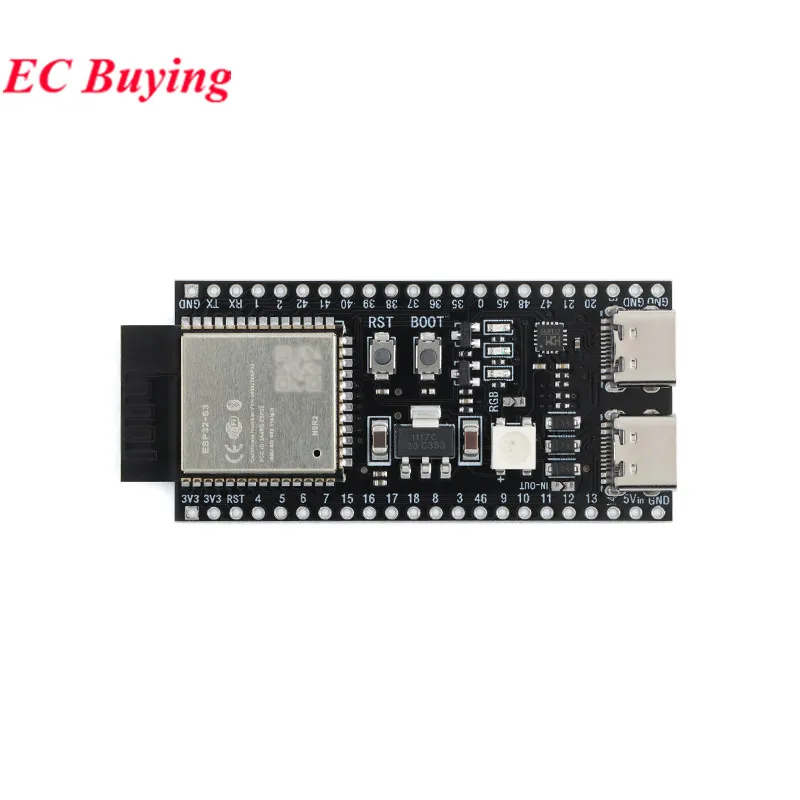

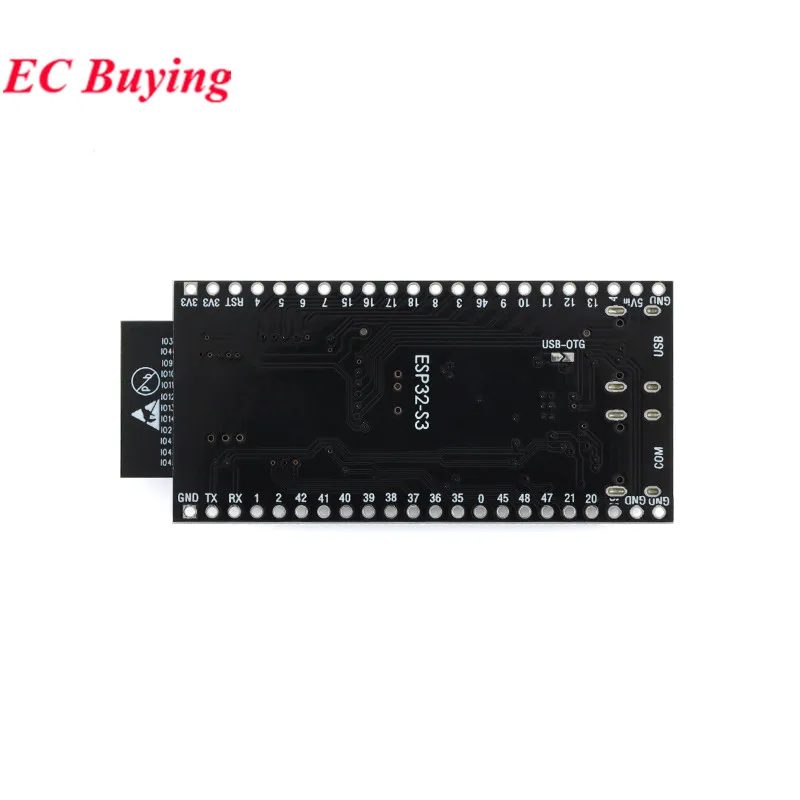

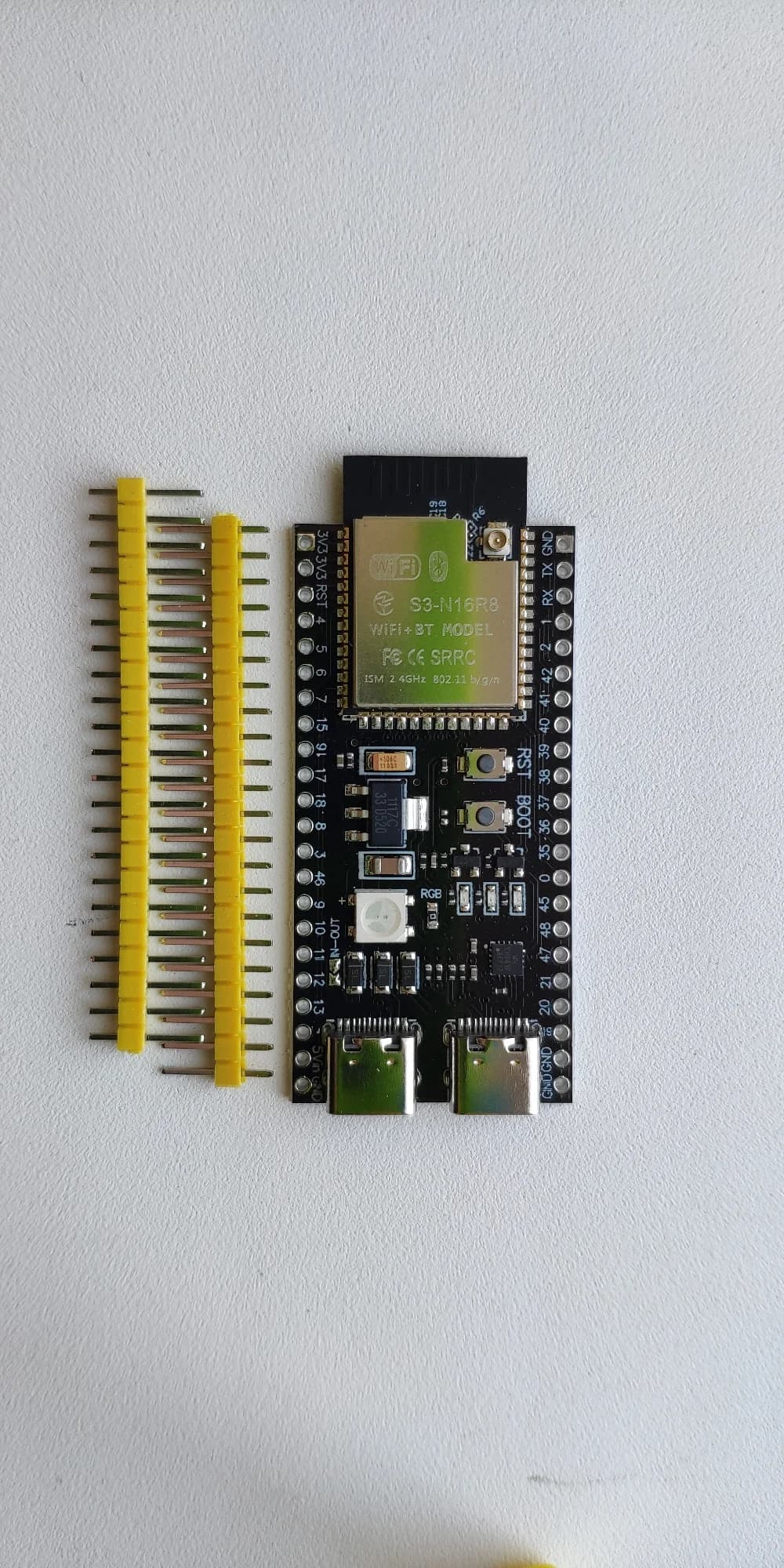

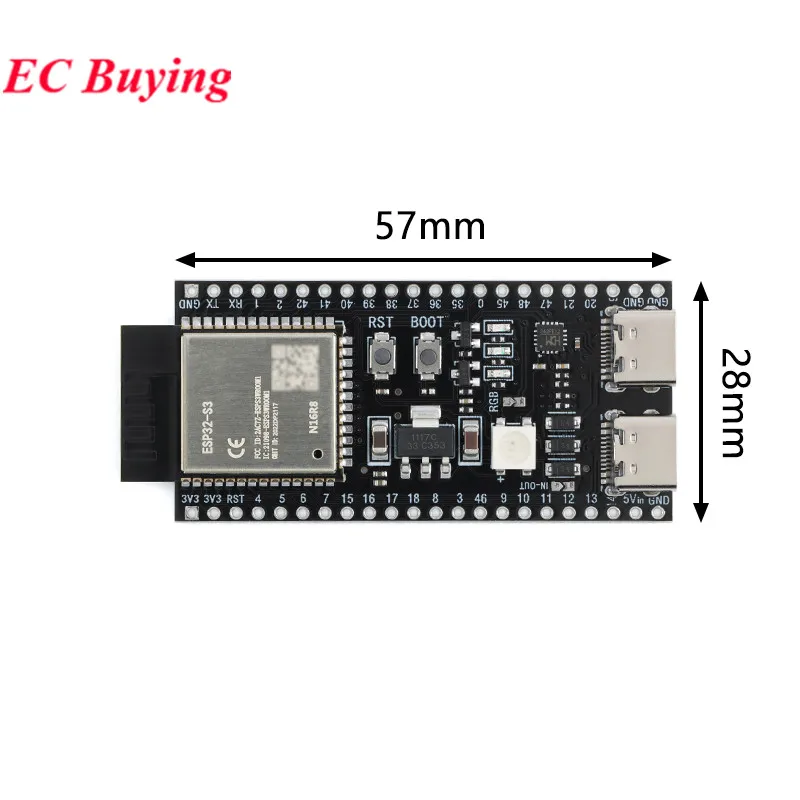

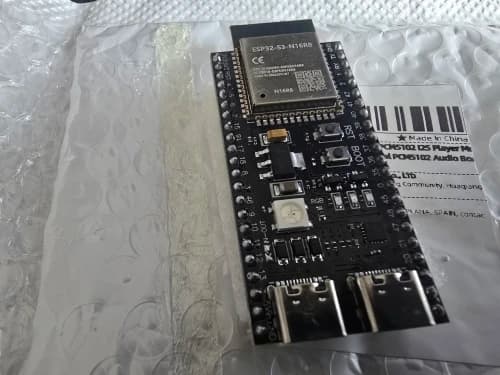

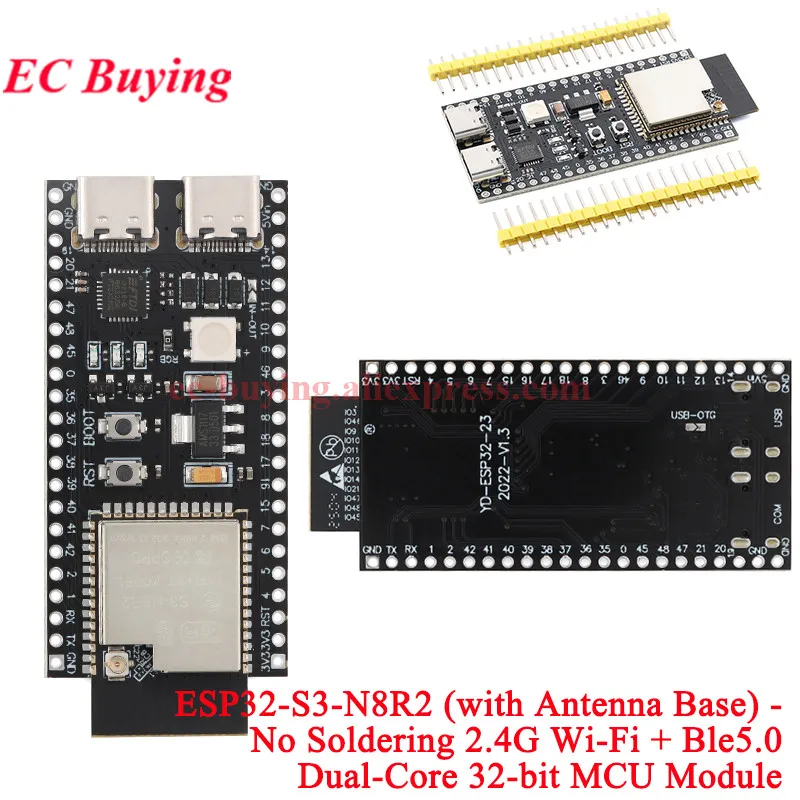

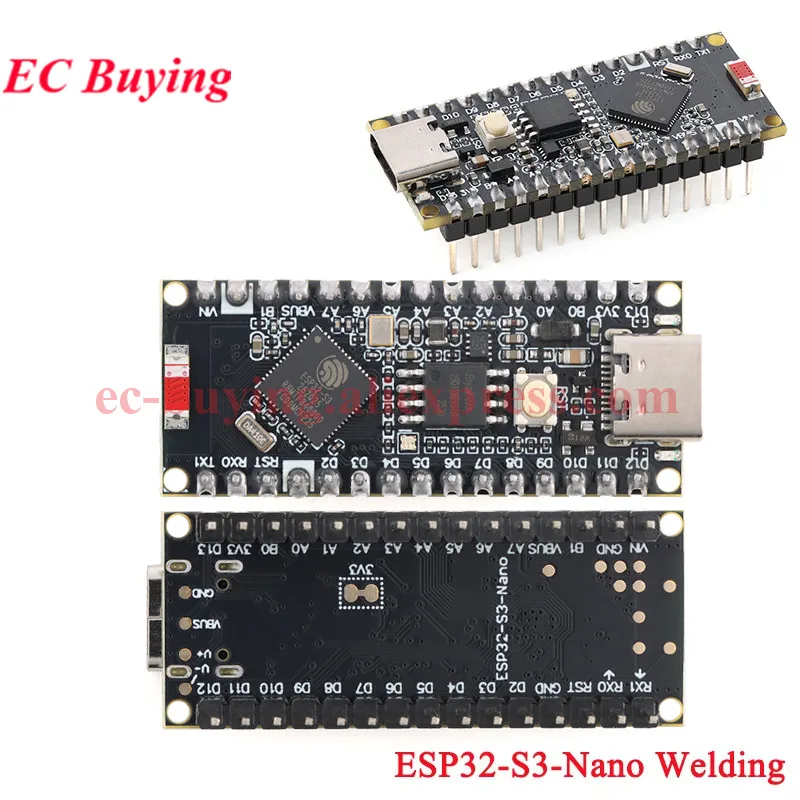

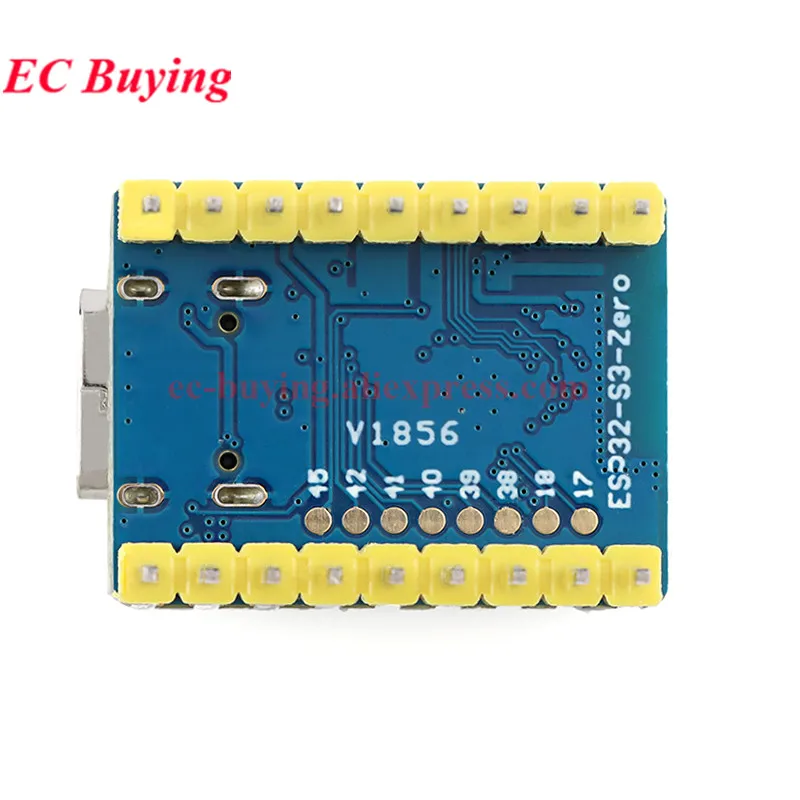

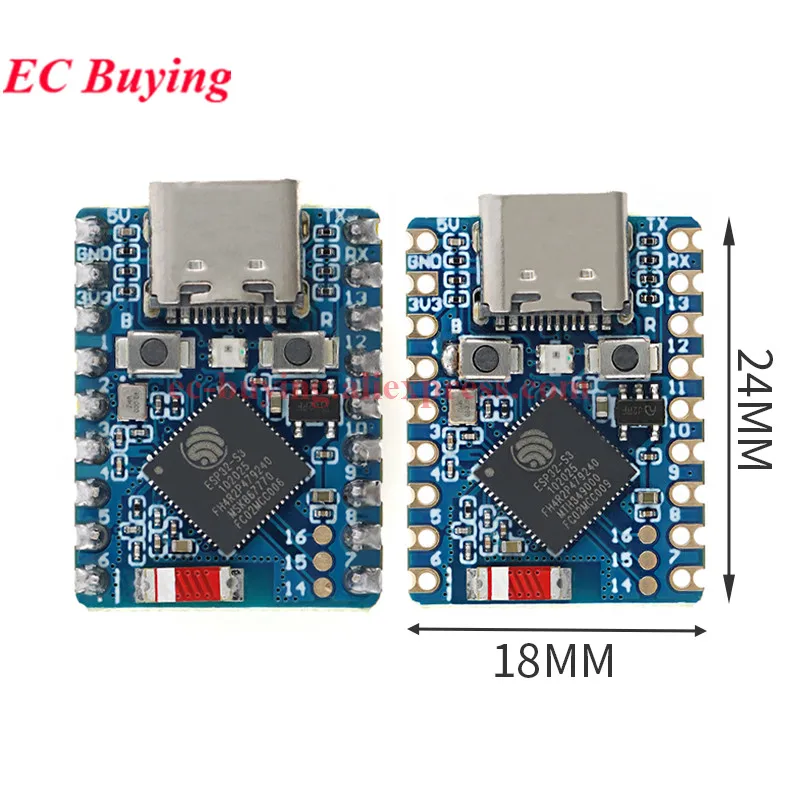

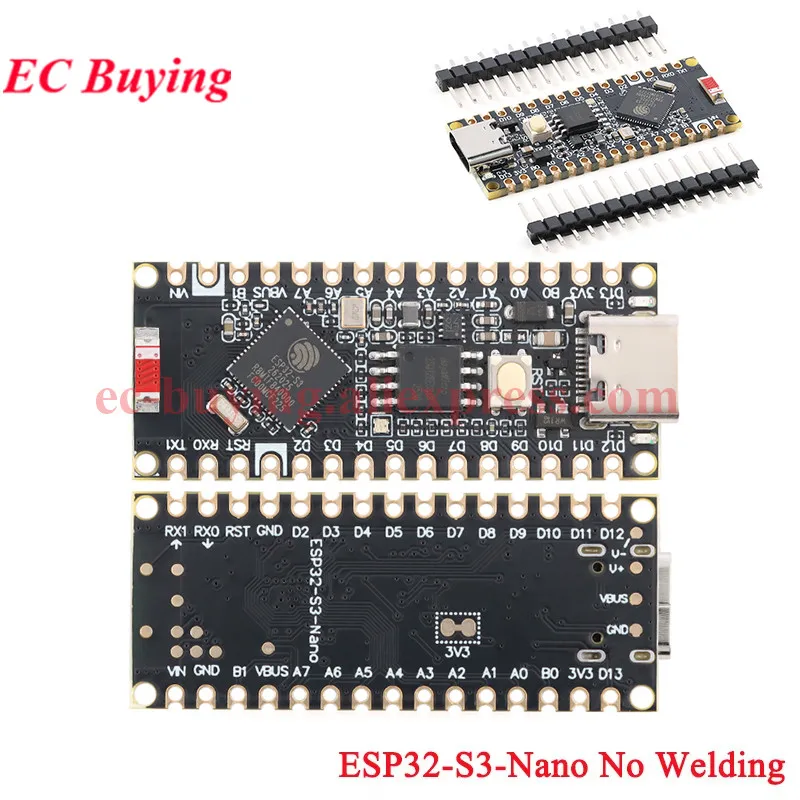

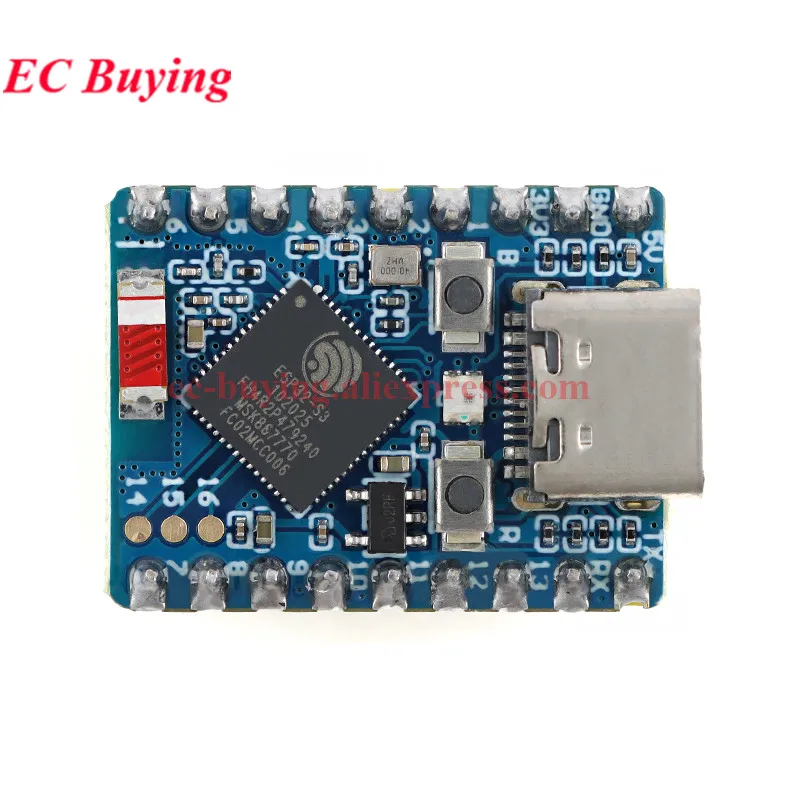

ESP32-S3 Development Boards with Expansion Adapter Kit 2.4G Wifi BT Module ESP32-S3-WROOM-1 N8R2/8 N16R8 44Pin Type-C ESP32S3

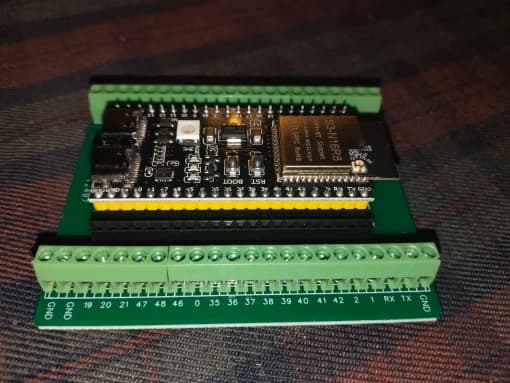

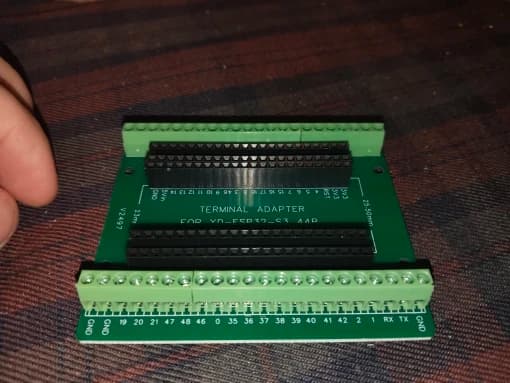

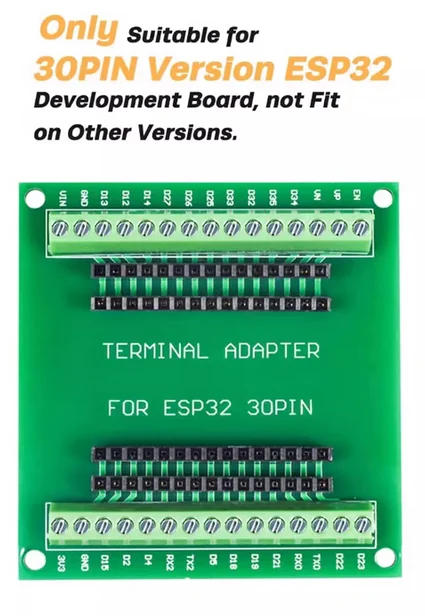

Features:

1. This expansion board module is safe, reliable, and can be extended to various applications;

2. Compatible with ESP32-S3 or development boards with the same pins;

3. The expansion board is made of high-quality materials, with good stability and high reliability;

4. This distribution board can expand one GPIO pin of the ESP32-S3 board to two, which is very suitable for you to reuse all pins and is also an excellent tool for your project;

5. Strong applicability, very suitable for users to reuse all pins in DIY projects.

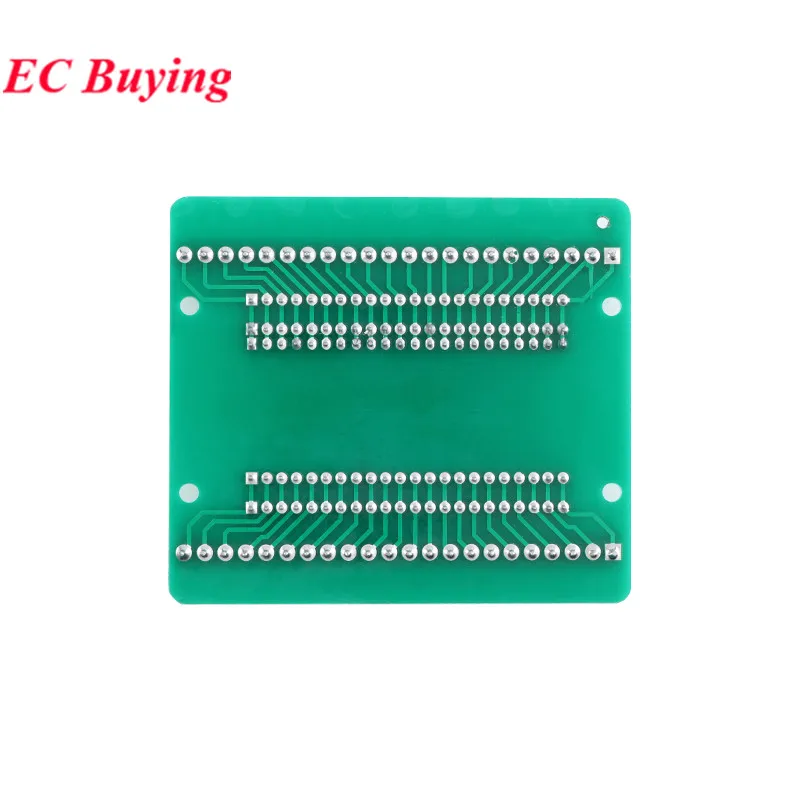

Parameter:

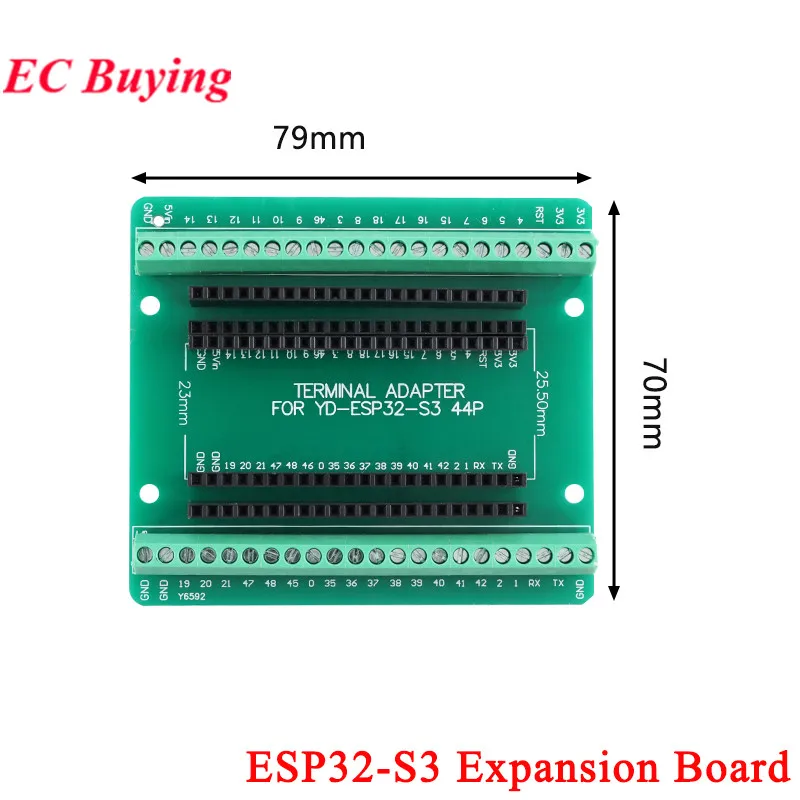

Name: ESP32-S3 Expansion Board

PCB layers: 2 layers

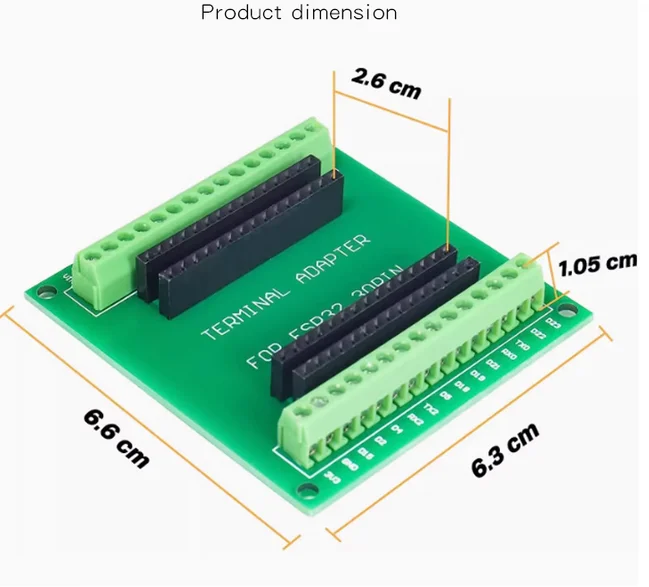

Size: 7.35 * 8.45 * 1cm

Package include:

1X expansion board

Note: The product does not include a development board and is only compatible with ESP32-S3 or development boards with the same pins.

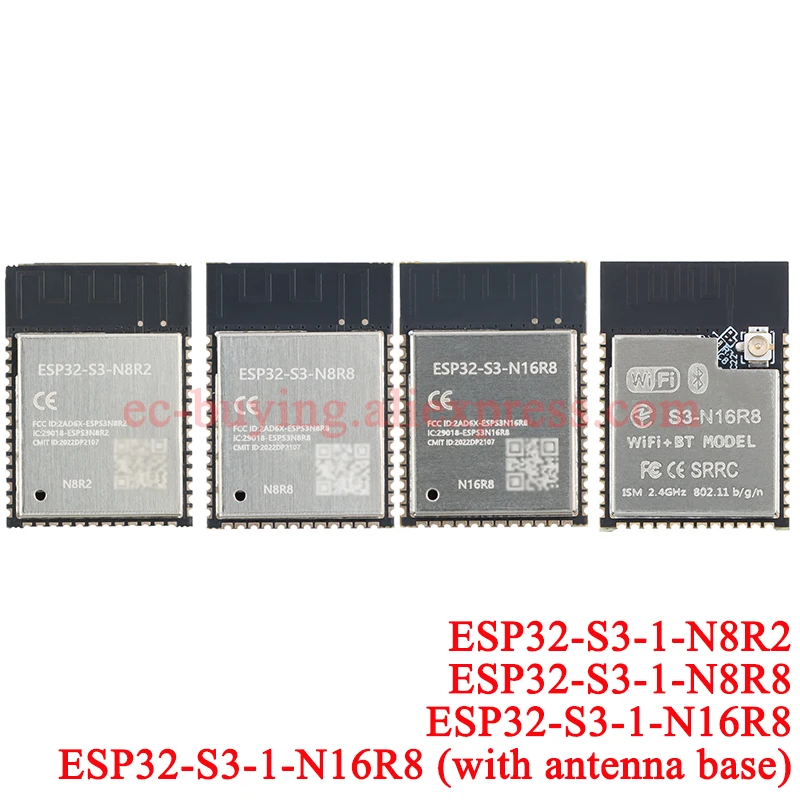

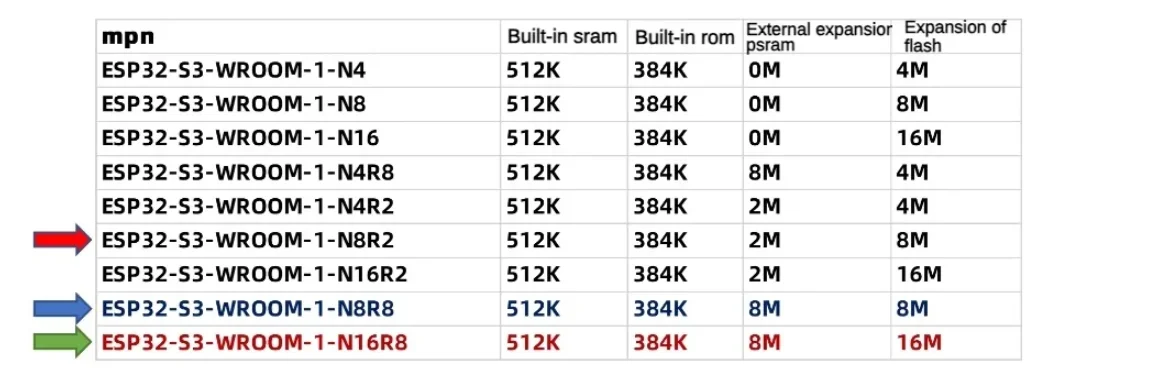

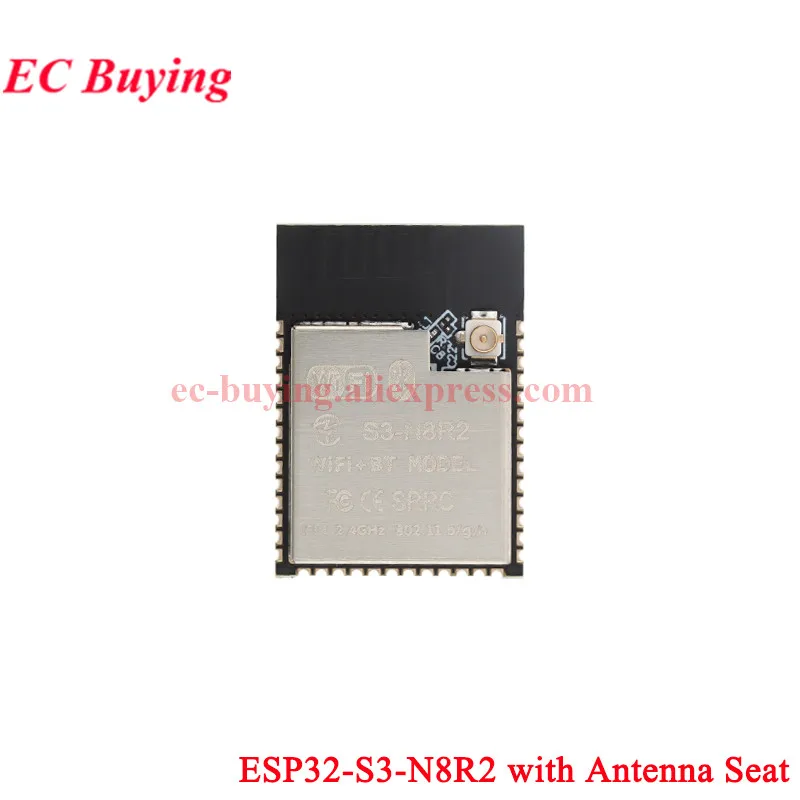

The link provides a selection of N8R2/N8R8/R16R8 specification items, which are in turn downward

Capacity, storage specifications of small module programs, can be directly run in higher regulations without modification

A program on a grid storage module, such as N4, can run on top of N8, N16, and outside

The specification module program with prom 0 can operate the external psram module with 2M and 8M

Block above.

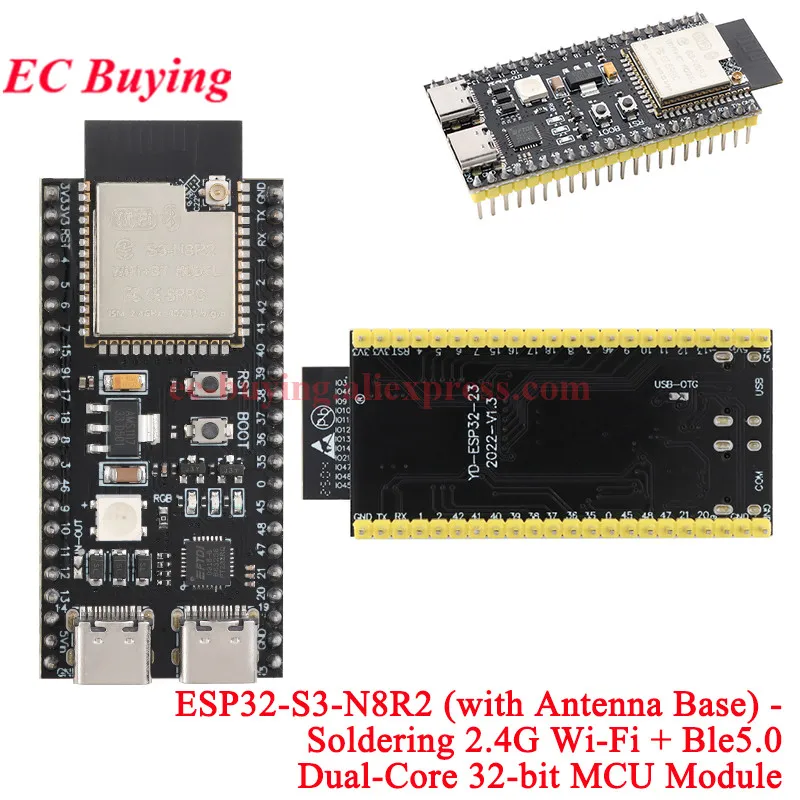

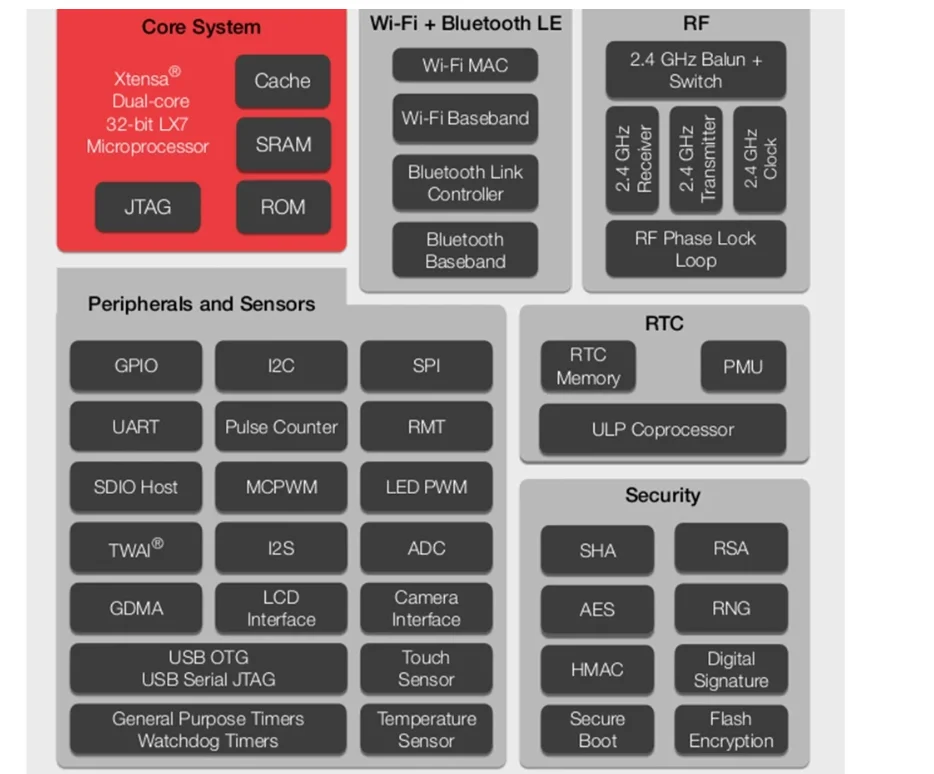

About ESP32-S3 hardware resources

The ESP32-S3 is a low-power MCU system-on-chip (SoC) with integrated 2.4GHzWi-Fi

And Bluetooth Low Power (Bluetooth®LE) dual-mode wireless communication.

The ESP32-S3 has a full Wi-Fi subsystem and Bluetooth Low Energy subsystem with the industry leading low

Power performance and RF performance. Supports a variety of low-power working states to meet the power requirements of various application scenarios.

ESP32-S3 chip provides a rich peripheral interface, and has a variety of unique hardware security mechanisms.

The perfect security mechanism enables the chip to meet the strict security requirements.

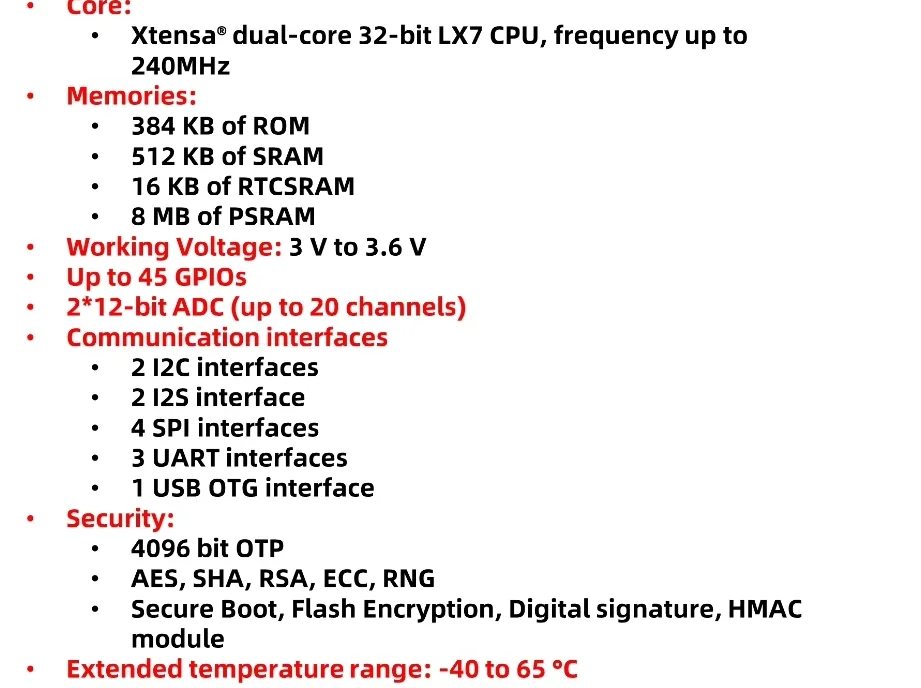

Property：

WI-FI

Support lEEE 802.11 blg/n protocol support 20 MHz and 40 MHZ

bandwidth in 2.4 GHz band;

Supports 1T1R mode with data rates up to 150 Mbps;

Wireless Multimedia(WMM);

Frame aggregation (TX/RXA-MPDU, TX/RXA-MSDU);

mmediate BlockACK:

Fragmentation and defragmentation;

Beacon automatic monitoring (hardware TSF);

4 x virtual Wi-Fi ports;

Supports Infrastructure BSS Station mode, SoftAP mode, Station+

SoftAP mode and Promiscuous mode at the same time (please note

that when ESP32-S3 series chips scan in Station mode, the SoftAP

channel will change at the same time);

Antenna diversity;

802.11 mc FTM;

Support for external power amplifier.

Bluetooth

Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetooth mesh;

High Power Mode(18 dBm);

Rates support 125 Kbps, 500Kbps, 1 Mbps, 2 Mbps;

Advertising Extensions;

Multiple Advertisement Sets;

Channel Selection Algorithm #2:

Wi-Fi and Bluetooth coexist and share the same antenna.

Advanced peripheral interfaces and sensors

45 xGPlO ports

Digital interface

-4x SPI

-1xLCD interface (8-bit to 16-bit parallel RGB, I8080, MOT06800)

Support conversion between RGB565, YUV422, YUV420, YUV411)

-1 x DVP 8-bit~16-bit camera interface

-3 xUART

-2 x12C

-2 xI2S

-1 x RMT (TX/RX)

-1 x Pulse counter

-LED PWM controller, up to 8 channels

-1 x Full Speed USB OTG

-1 x USB Serial/JTAG controller

-2xMCPWM

-1x SDlO host interface with 2 card slots

-General purpose DMA controller (GDMA for short),5 receive

channels and 5 transmit channels

-1 xTWA® controller, compatible with lS011898-1(CAN

specification 2.0)

Analog Interface

-2x12-bit SAR ADC, up to 20 channels

-1xtemperature sensor

-14 xcapacitive sensing GPlO

timers:

-4x54-bit general purpose timers

-1 x52-bit system timer

-3 x watchdog timers

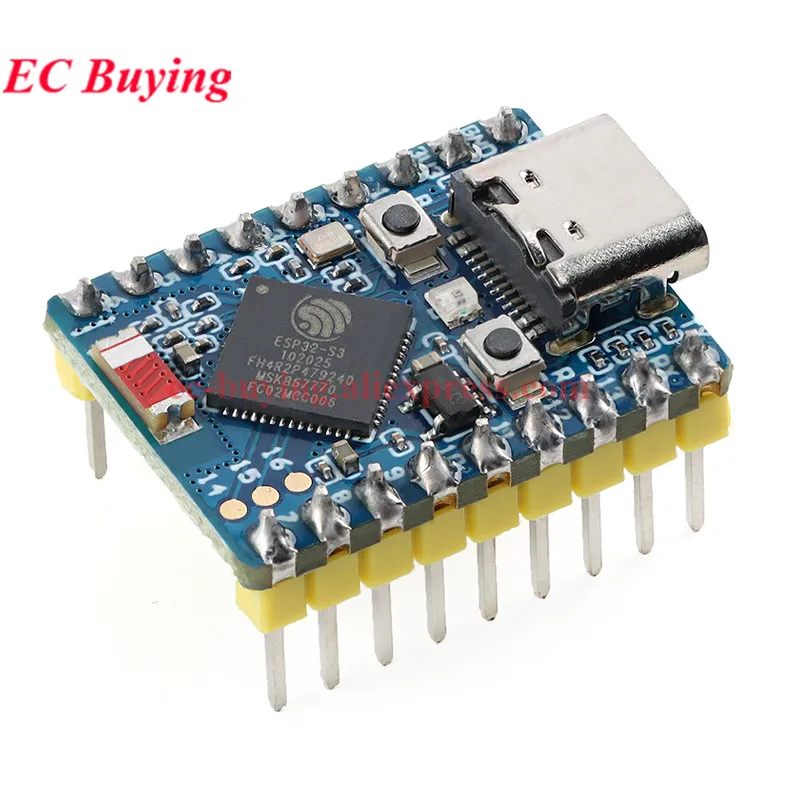

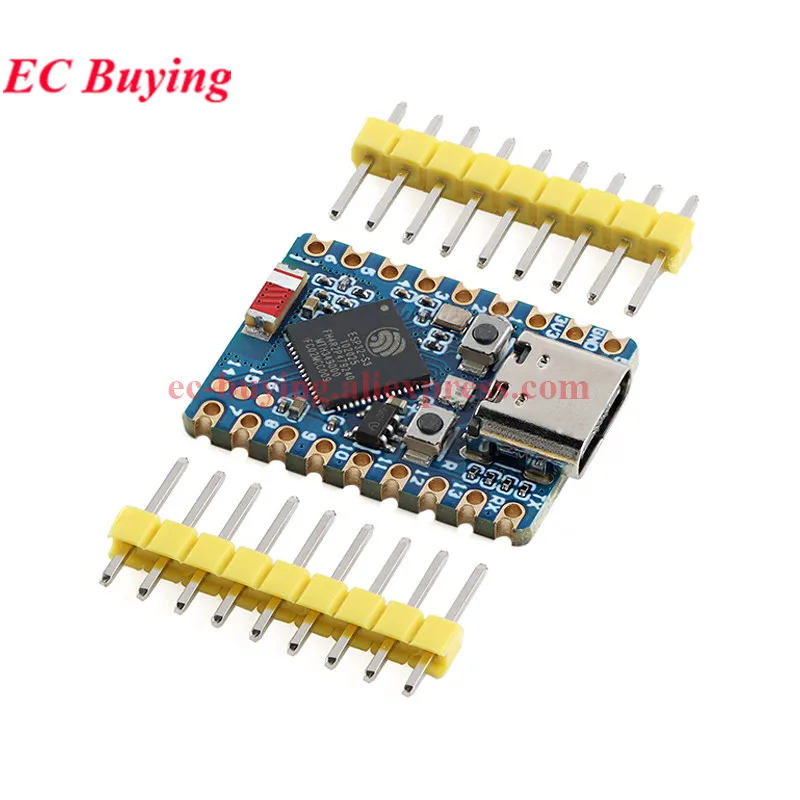

Features:

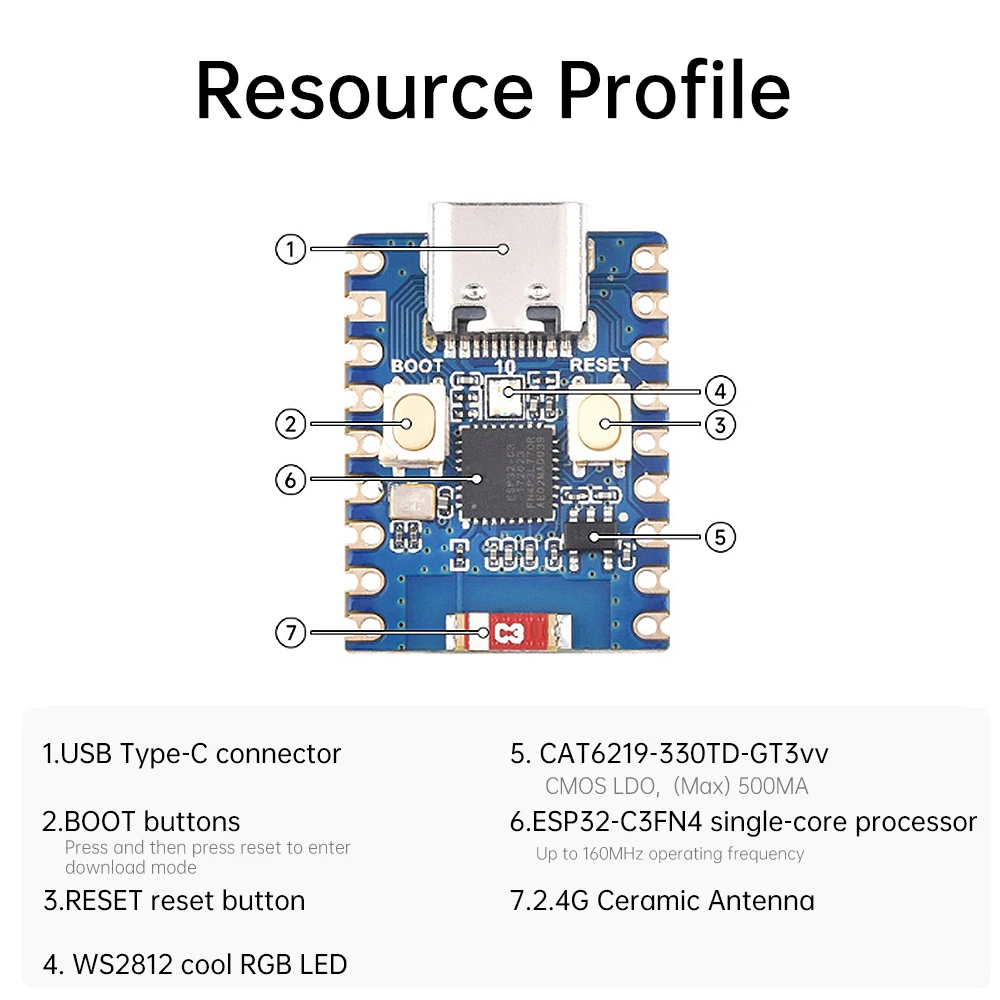

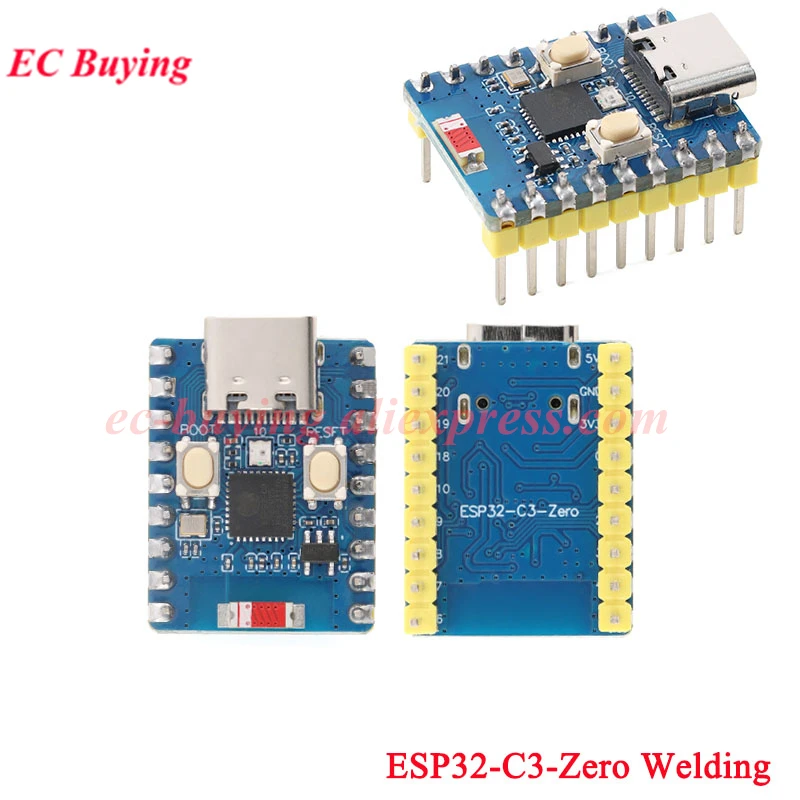

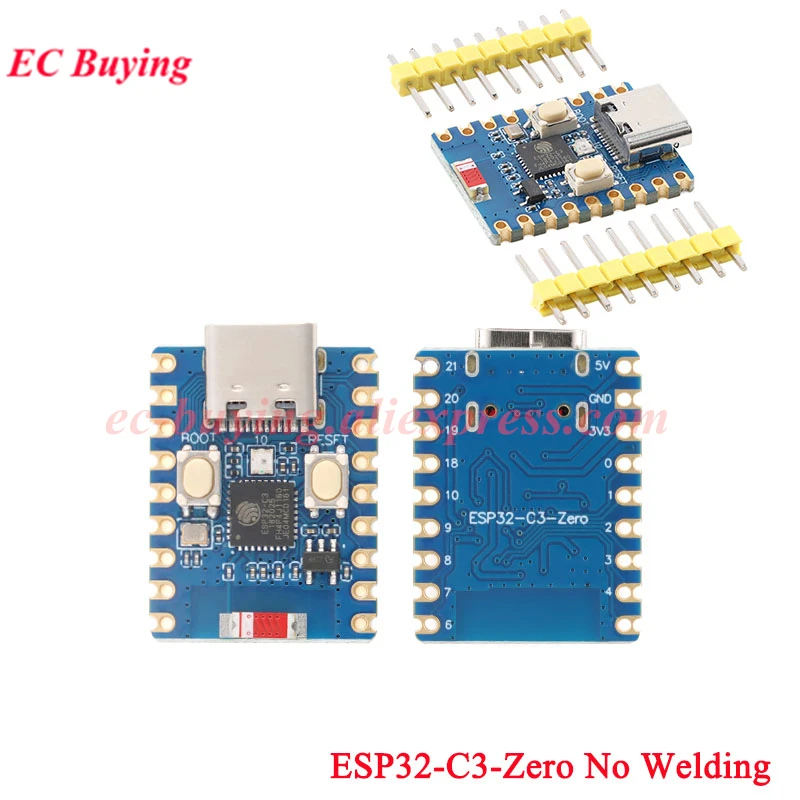

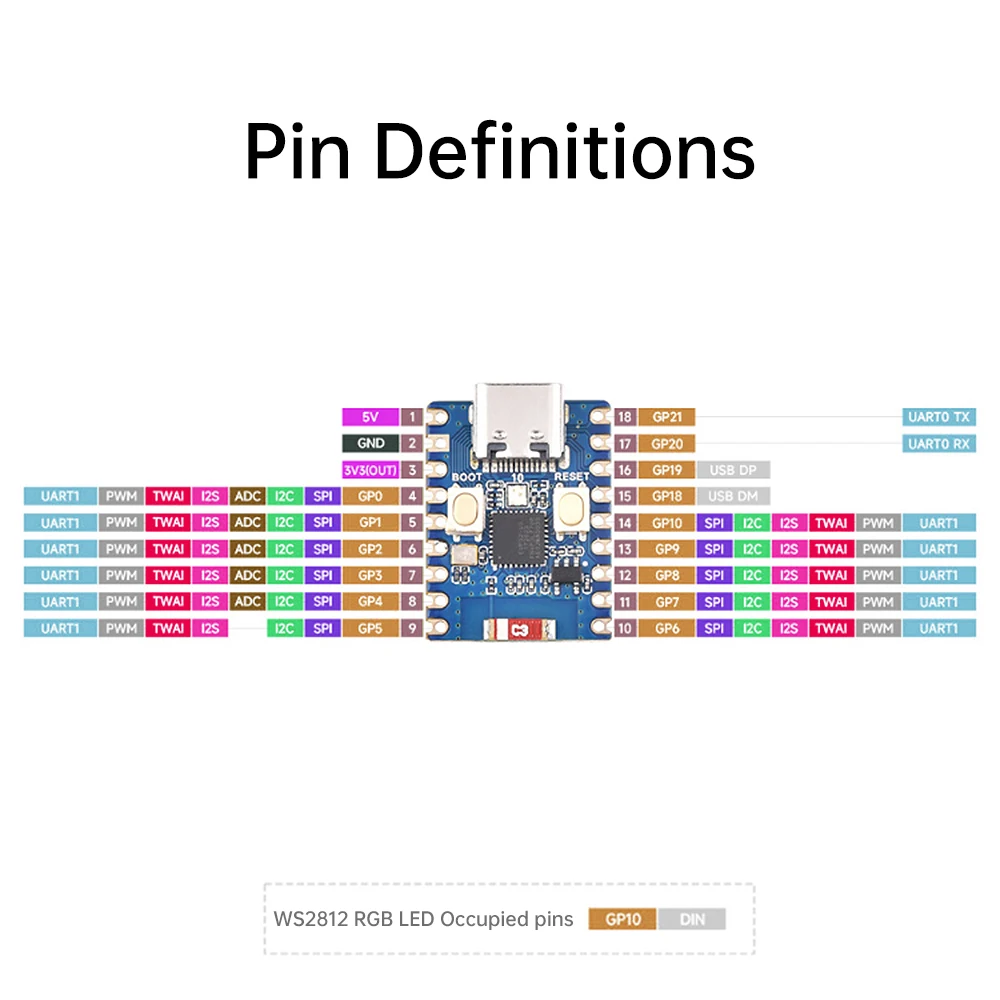

1. ESP32-C3-Zero mini development board, based on ESP32-C3FN4, leads out most of the pins under the small board type

2. Adopting a half hole process, it can be welded to custom boards

3. Low power SoC equipped with RISC-V 32-bit single core processor, with a main frequency of up to 160MHz

4. Supports 2.4GHz Wi Fi (802.11 b/g/n) and Bt@5 (LE)

5. Built in 400KB SRAM and 384KB ROM, stacked 4MB Flash

6. Adopting a stamp hole design and onboard ceramic antenna, it is easy to integrate into the user's self-designed bottom plate

7. Support flexible clock and separate module power settings for control, achieving low power consumption mode in multiple scenarios

8. Integrated USB serial port full speed controller, with 15 GPIOs for flexible configuration of peripheral functions

9. Equipped with external devices such as 3xSPI, 1xI2C, 2xUART, 1xI2S, 2xADC, etc

Parameter:

Interface: Type-C interface

Current (Max): 500MA

BOOT button: Press and then reset to enter download mode

RESET button: Reset button

Operating frequency: up to 160MHz

Antenna: 2.4G ceramic antenna

Processor: ESP32-C3FN4 single core processor
