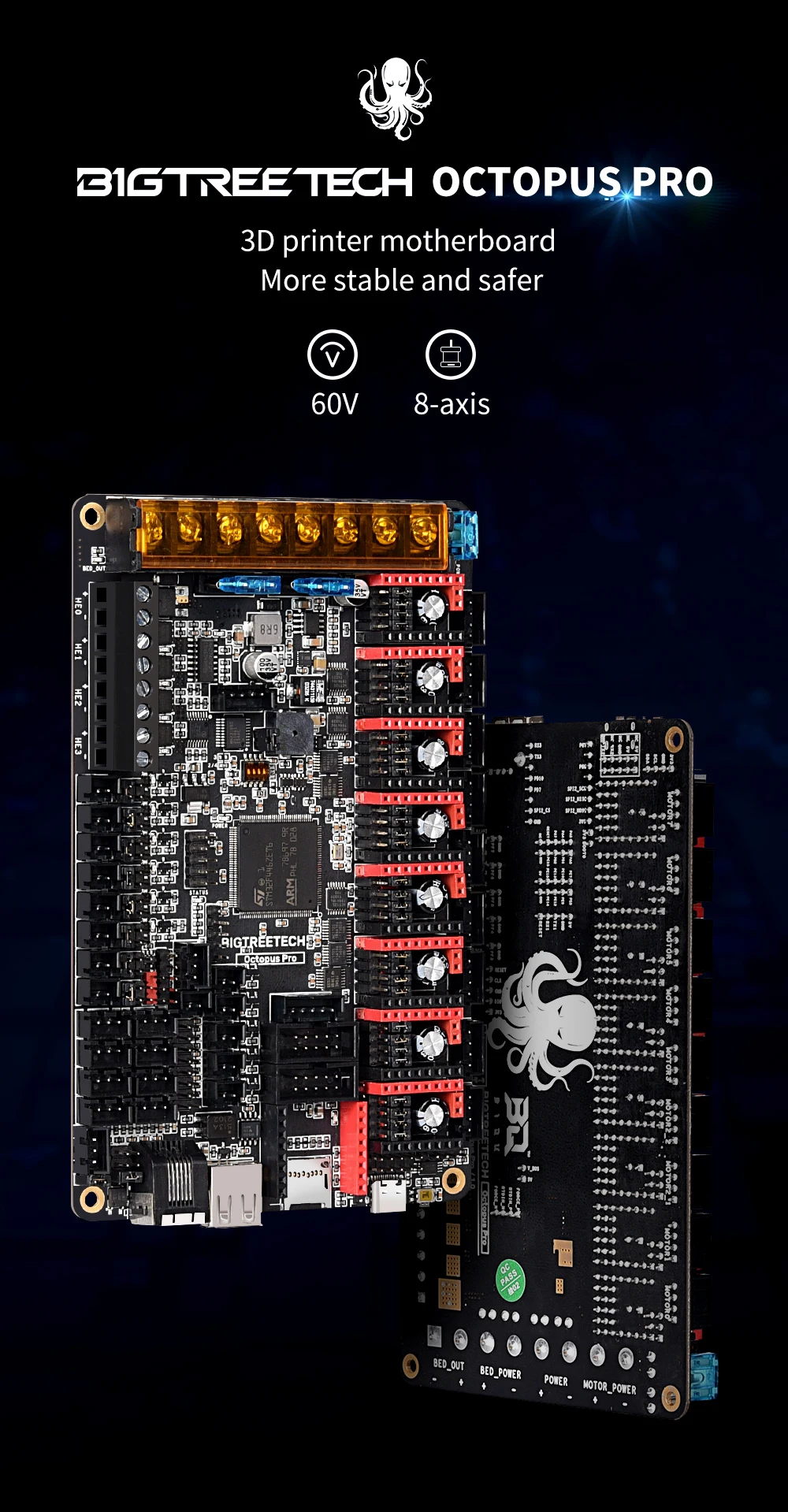

BIGTREETECH Octopus PRO V1.0/V1.1 Motherboard 32-Bit Control Board Upgrade Octopus TMC5160T TMC2208 VS Ender3 V2 For CR10

【Main Control Chip】The main control board uses 32-bit ARM-level Cortex-M4 series STM32H723ZE/ STM32F429ZE / STM32F446ZE chip with a frequency of up to 168MHz and the flash is 1MB.

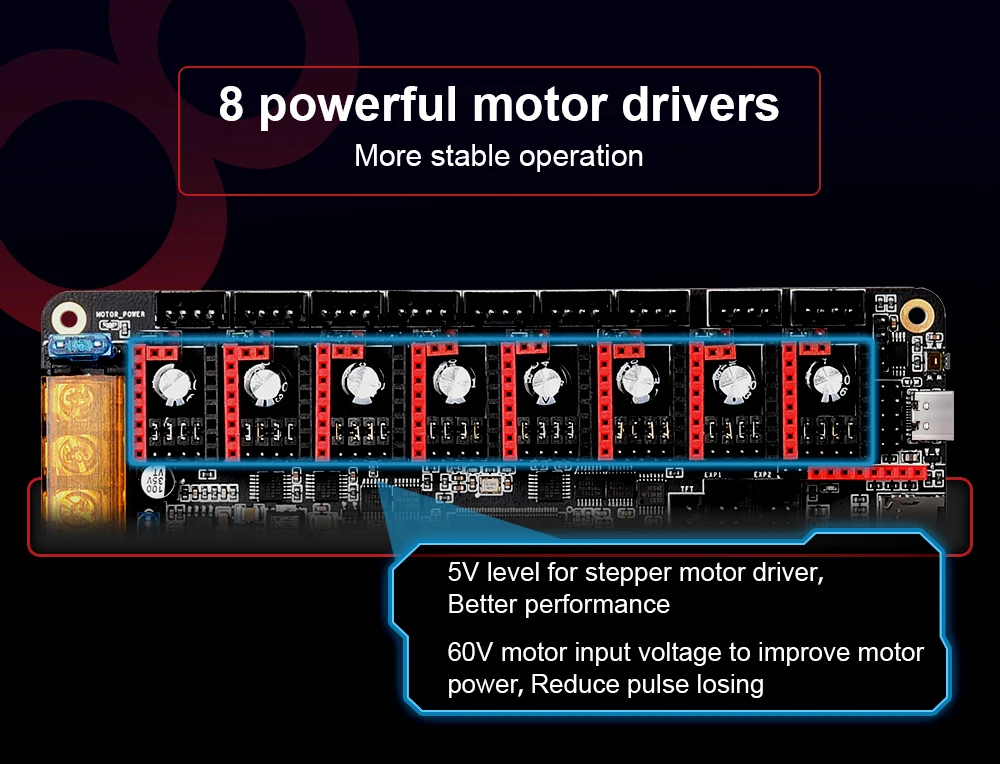

【Support 60V Input】Supports up to 8 3D printer motherboards with a maximum 60V stepper motor. The motor drive power supply supports up to 60V input (only for the motor drive power supply).

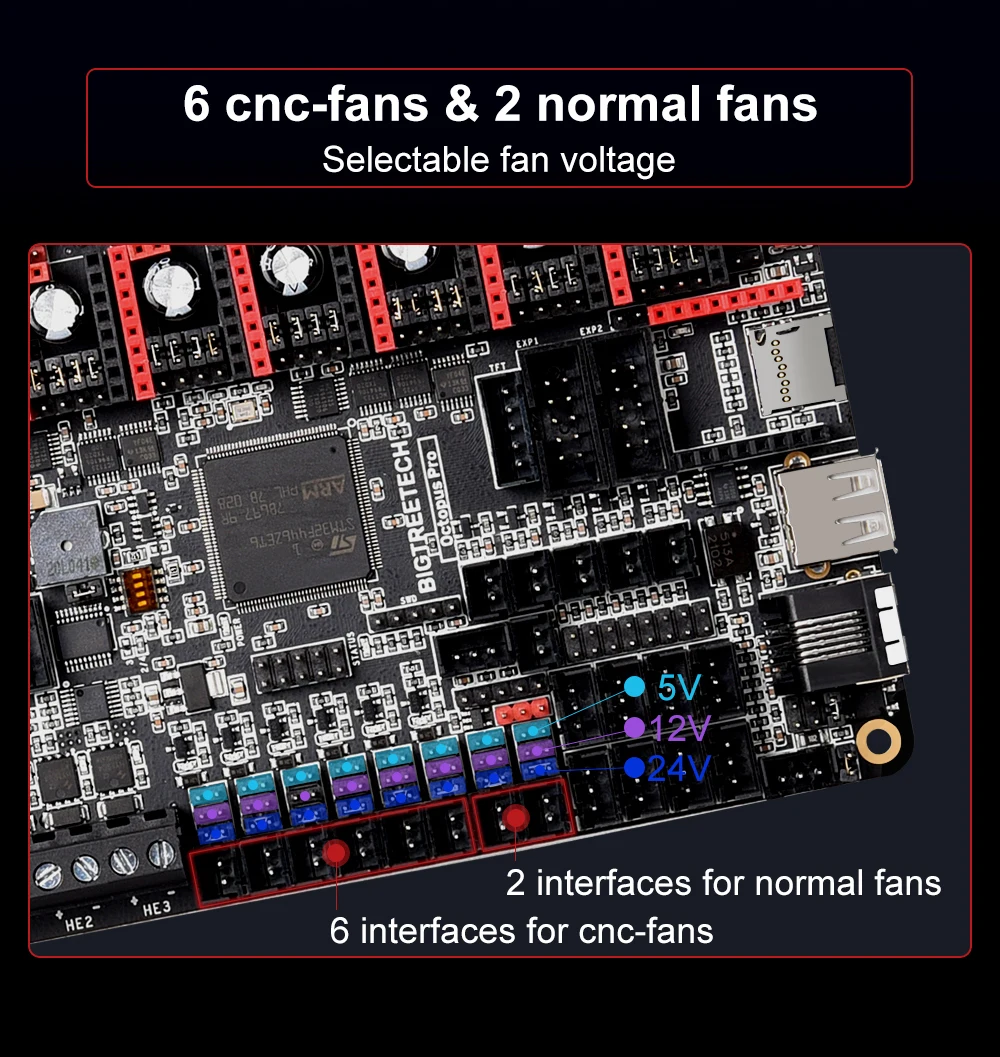

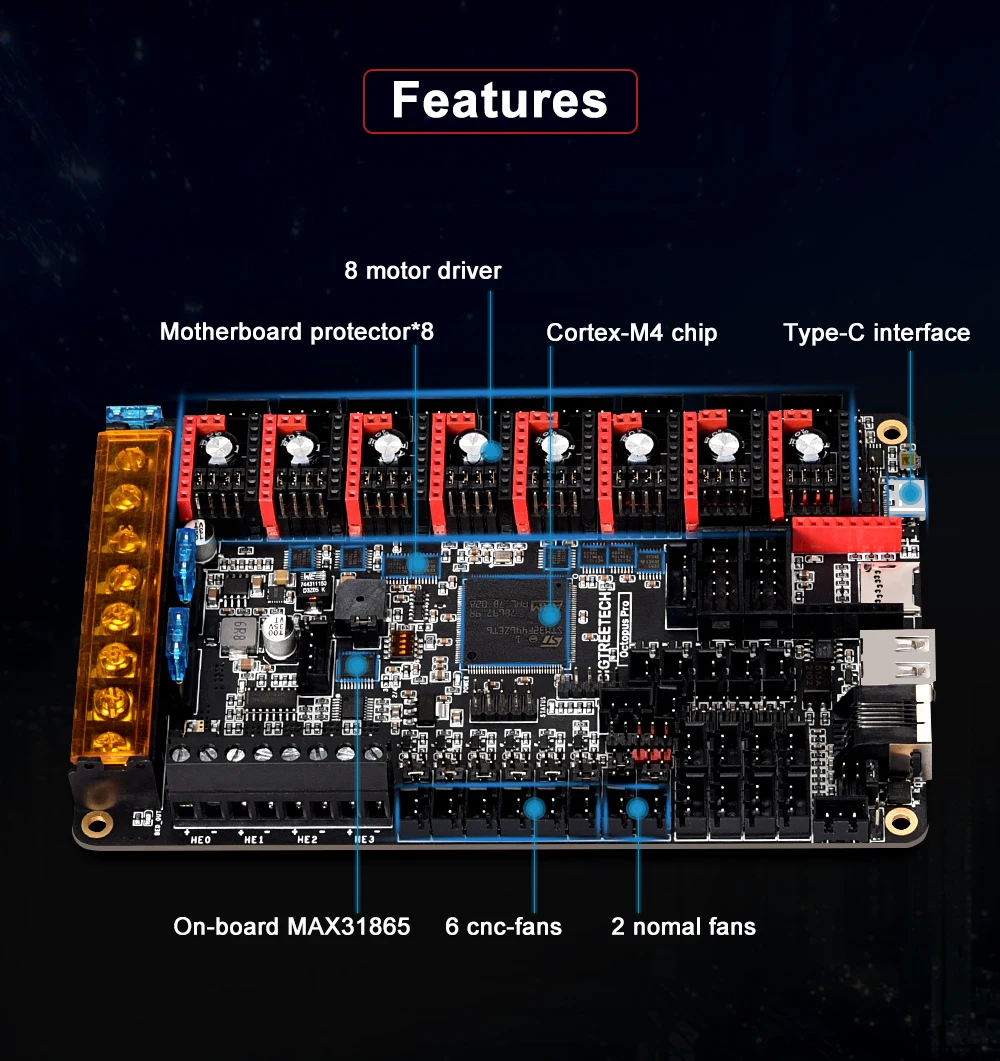

【6 Controllable Fans】Up to 6 controllable fans, two normally open fans, and both support power supply voltage, 12V, 5V options.

【Update Firmware: Klipper/Marlin/RRF】Supports firmware update via DFU mode. This is where the firmware is sent to the board directly from the PC and does not require a bootloader however this method is not recommended for novice users as discussed later in this document.

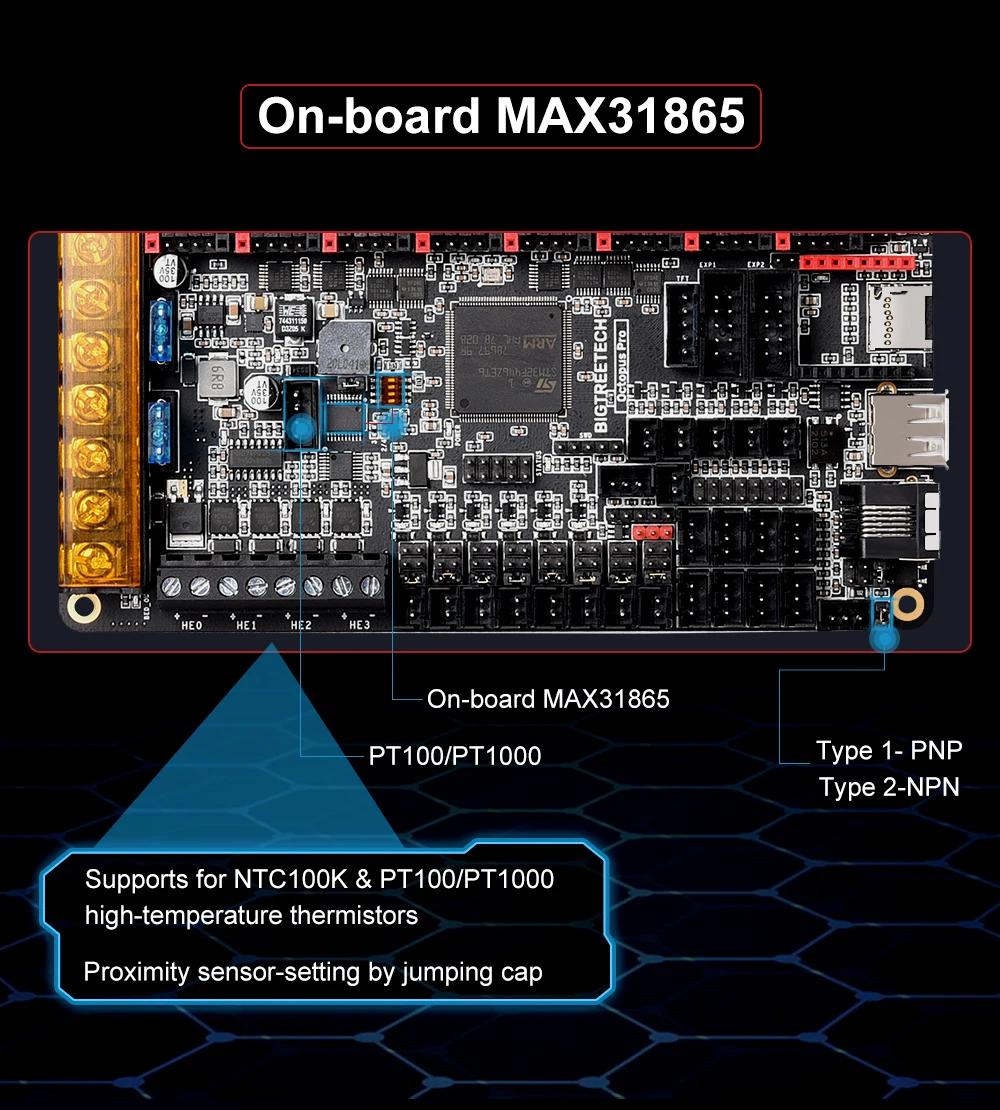

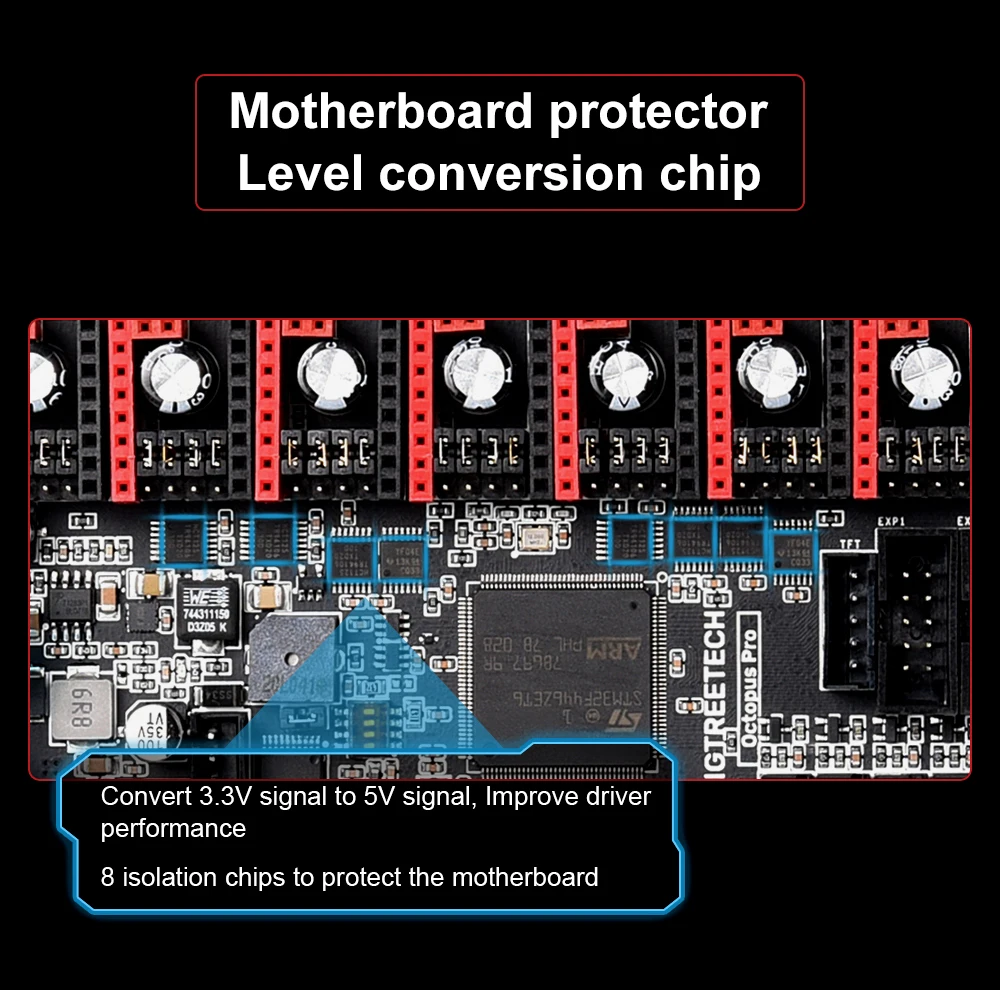

【Level conversion IC】Supports proximity sensor, jumper optional pull-up resistor, supports more models, supports BL Touch.

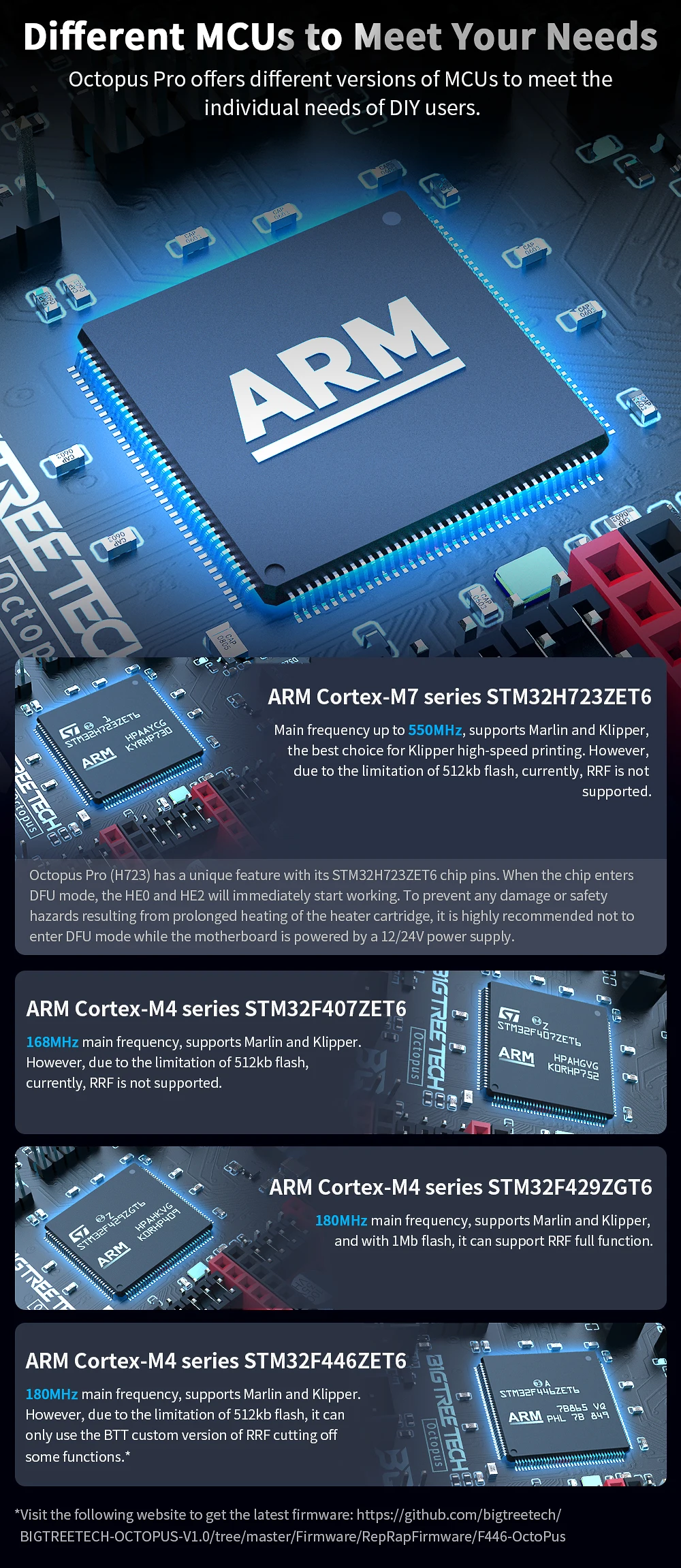

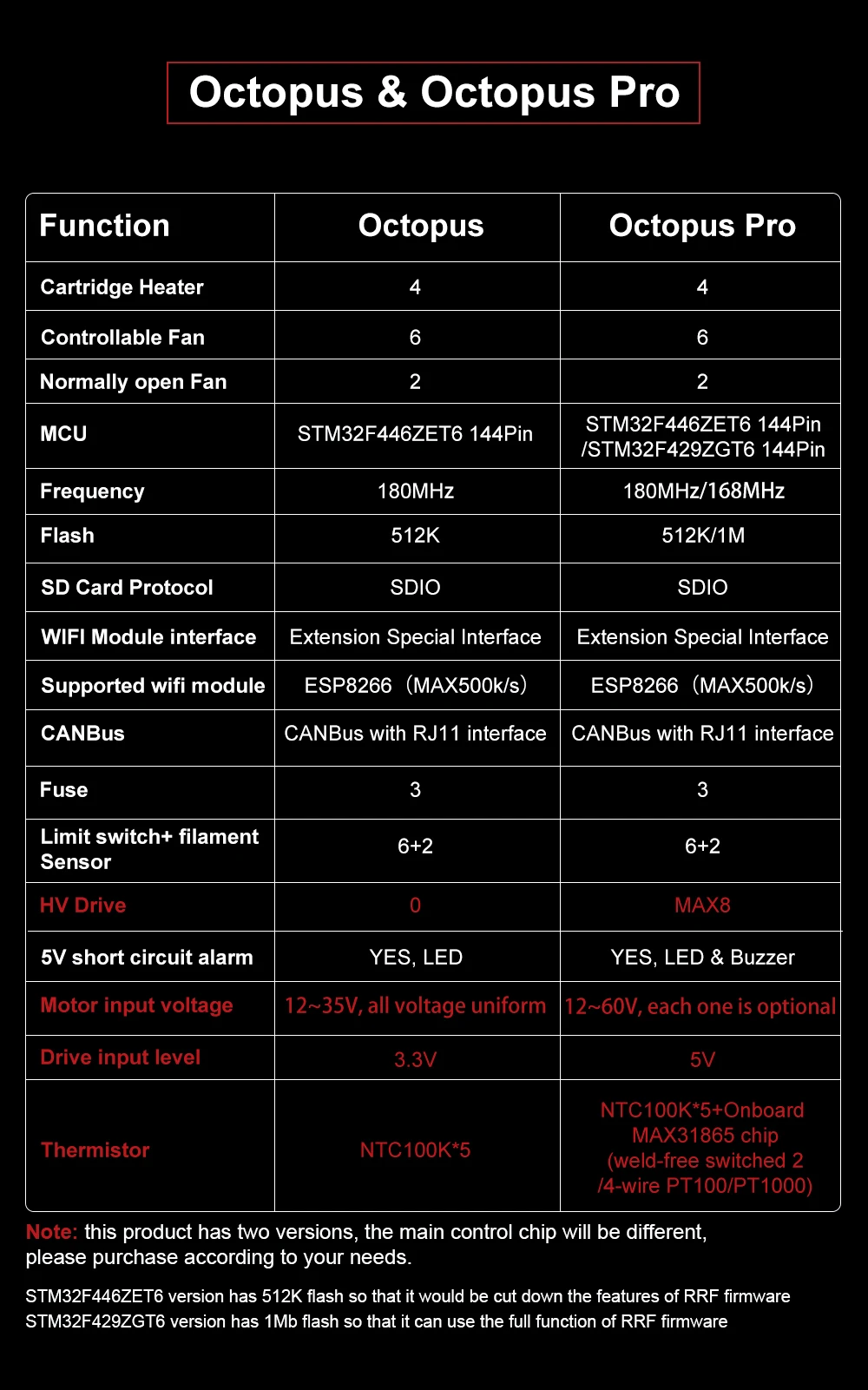

Octopus Pro offers different versions of MCUs to meet the individual needs of DIY users.

ARM Cortex-M7 series, STM32H723ZET6, main frequency up to 550MHz, supports Marlin and Klipper, the best choice for Klipper high-speed printing. However, due to the limitation of 512kb flash, currently, RRF is not supported.

ARM Cortex-M4 series, STM32F429ZGT6, 180MHz main frequency, supports Marlin and Klipper, and with 1Mb flash, it can support RRF full function.

ARM Cortex-M4 series, STM32F446ZET6, 180MHz main frequency, supports Marlin and Klipper. However, due to the limitation of 512kb flash, it can only use the BTT custom version of RRF cutting off some functions.

Octopus Pro:

https://github.com/bigtreetech/BIGTREETECH-OCTOPUS-V1.0/tree/master/Firmware/RepRapFirmware/F446-OctoPus

MINI 12864:

https://github.com/bigtreetech/MINI-12864

Driver:

https://github.com/bigtreetech/BIGTREETECH-Stepper-Motor-Driver/tree/master
