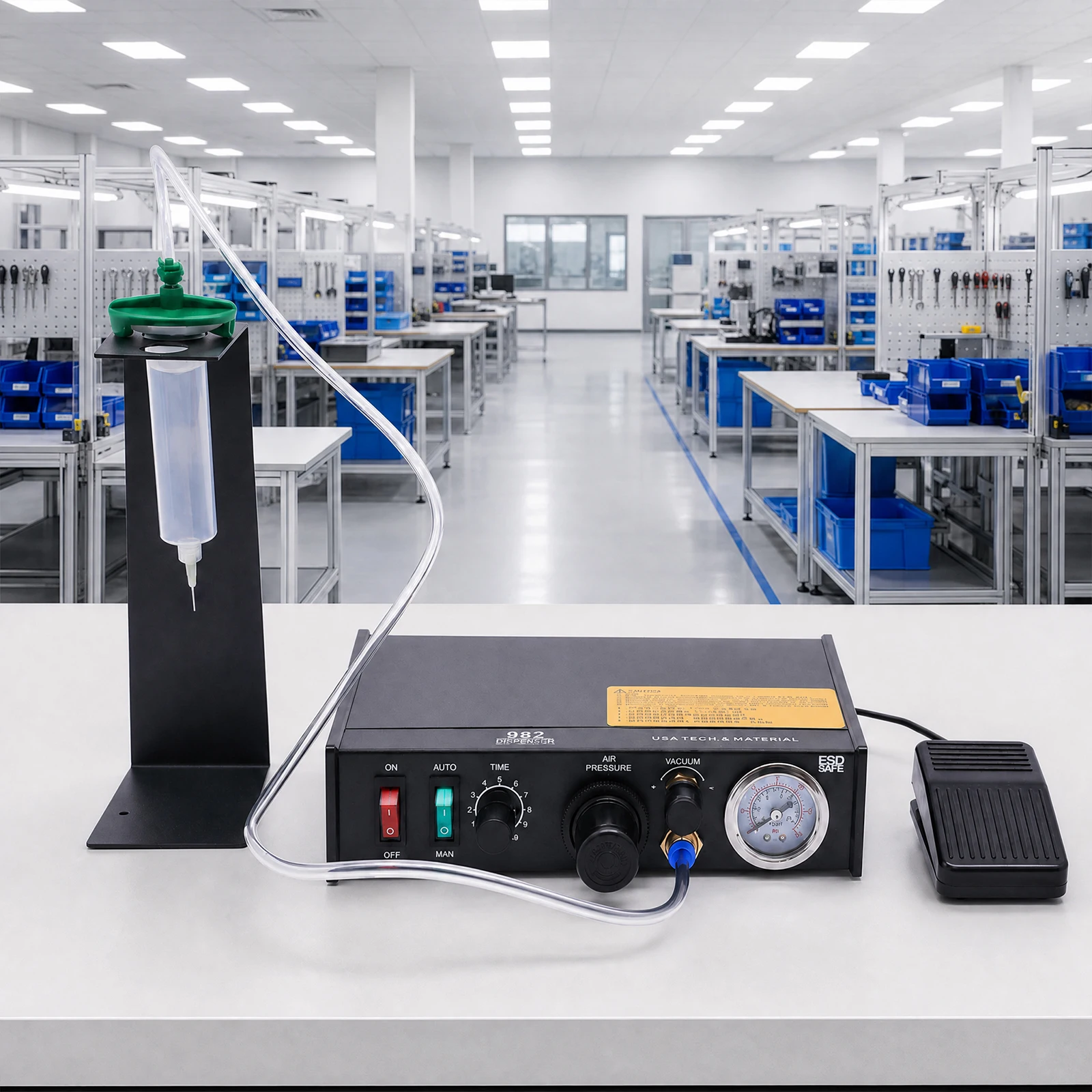

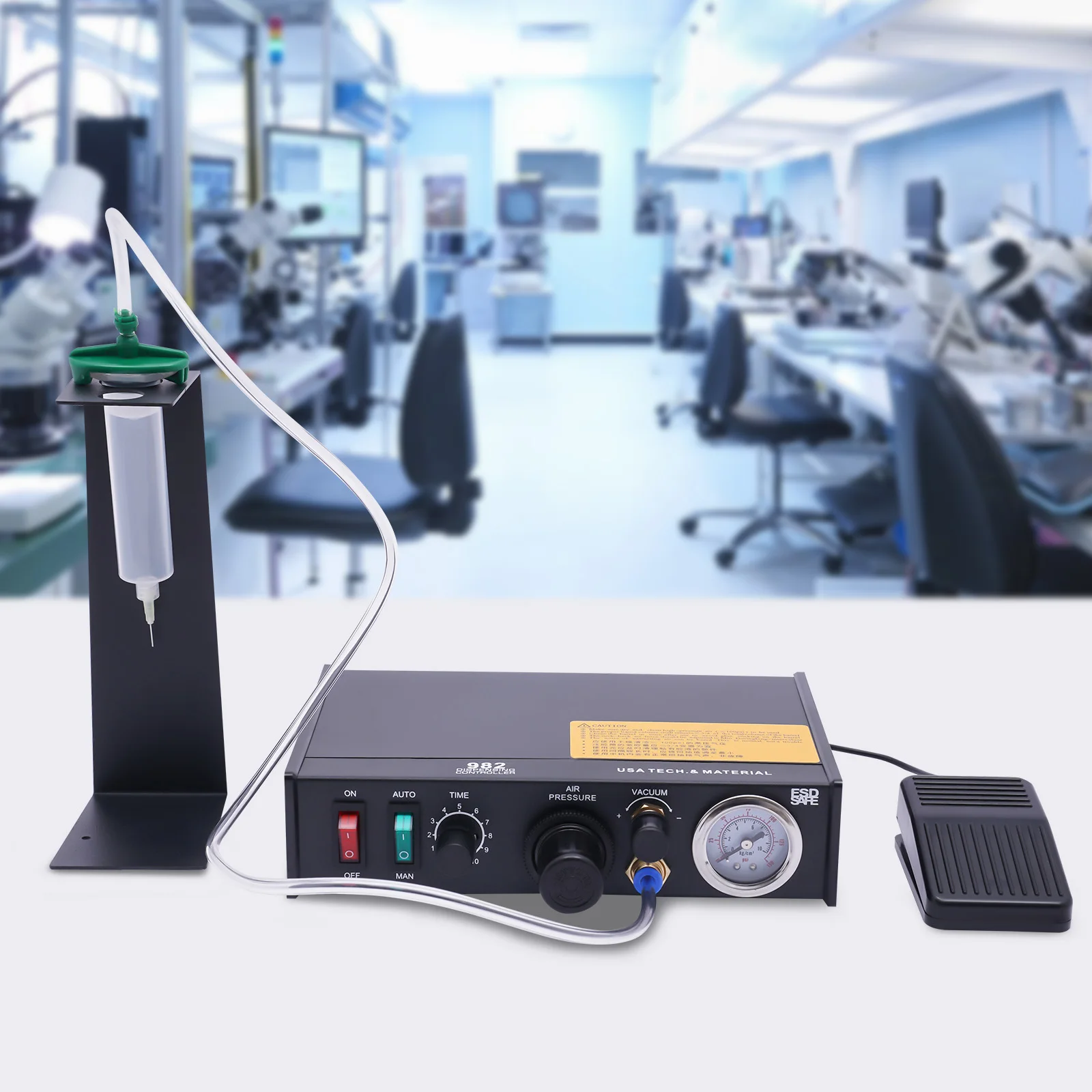

Semi‑Automatic Pneumatic Glue Dispenser, Solder Paste Adhesive Dispensing Controller with Vacuum Back‑Suction for Electronic Component Bonding

Are you affected by the slow speed of traditional drip glue, which affects productivity? Are you often wasting a lot of glue material? Do you feel that the precision of glue dripping is low and difficult to control? Choose this semi-automatic glue dispenser machine, which can precisely control the dripping speed and improve the working efficiency, bringing you a more efficient and energy-saving working experience!

Specification

Color: Black
Model: 982
Material: Metal
Spitting Mode: Manual / Semi-automatic
Minimum Drip Volume: 0.01ml
Spitting Time Interval: 0.1-9.9s
Automatic Timing(Can Be Set): 0.01-30s
Repeat Accuracy: ±0.5%
Internal Voltage: 12-24DC
Input Air Pressure: 2.5-7bar(35-100psi)
Output Air Pressure: 0.1-5.5bar(1-78psi)
Power Supply: 220V AC, 50Hz /110V AC
Power Consumption: 20W

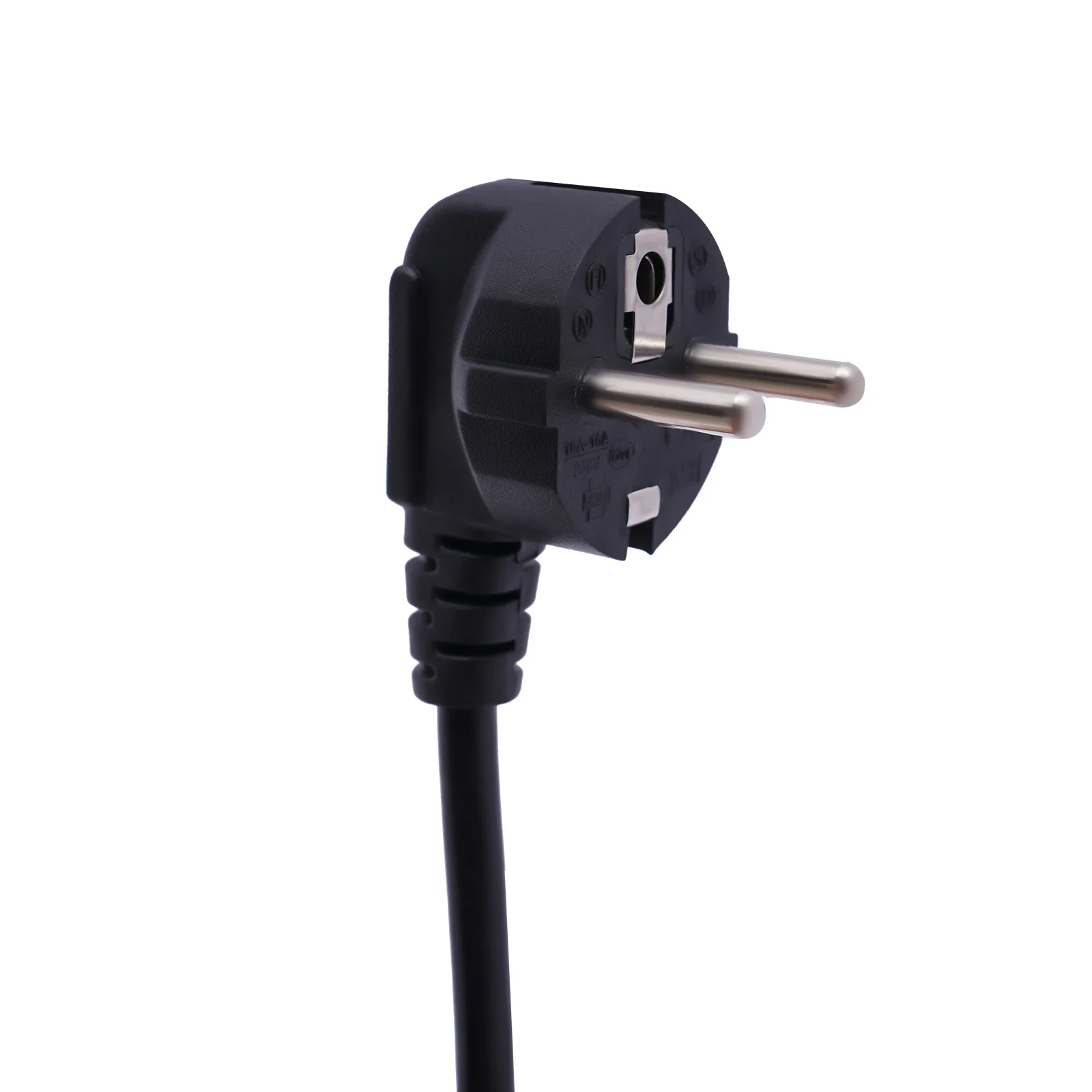

Plug Specification: European Standard 220V

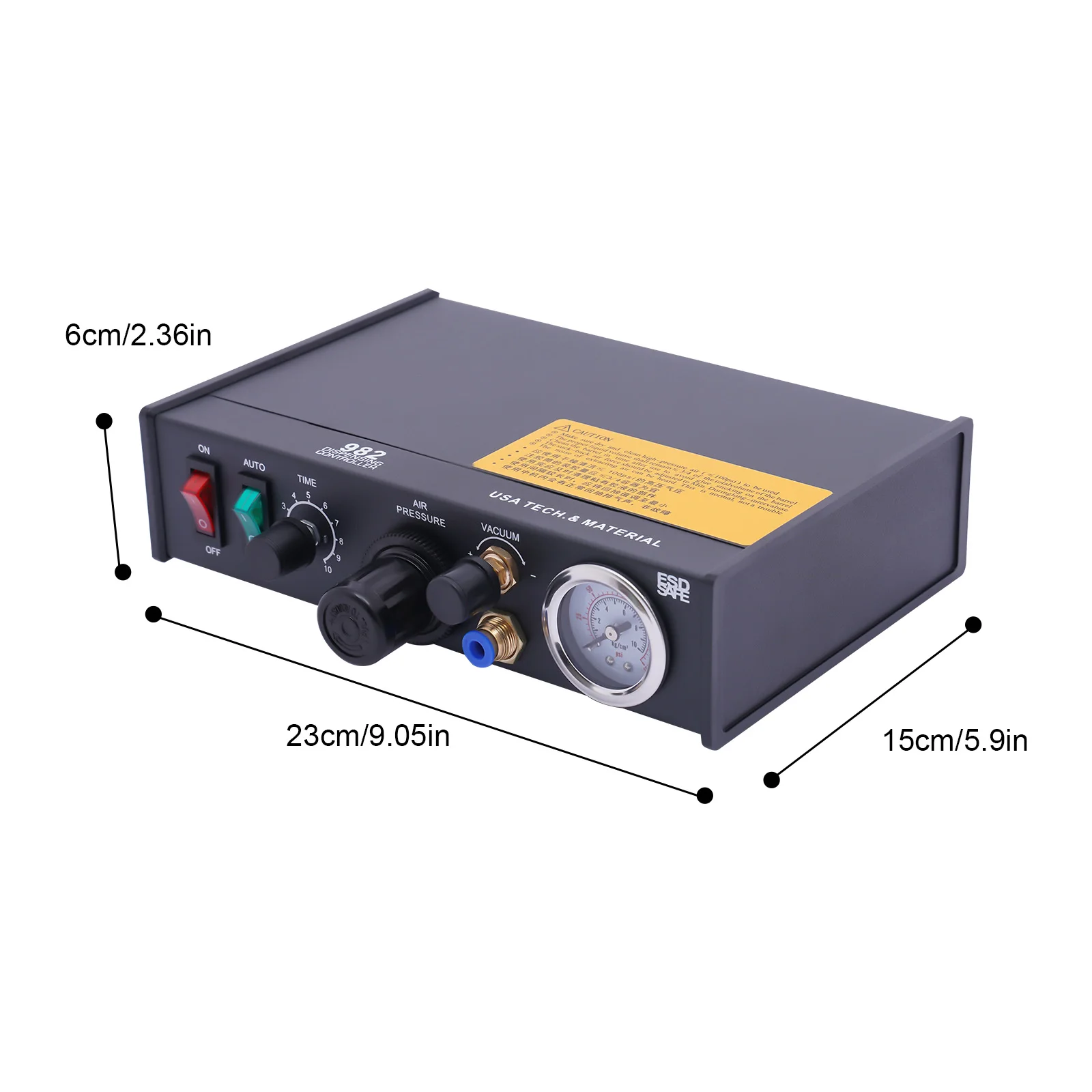

Product Size:23*15*6cm/9.05*5.9*2.36in
Package Size:20*26*14cm/10*9*12.5in
Gross Weight: 2.1kg/4.63 lbs

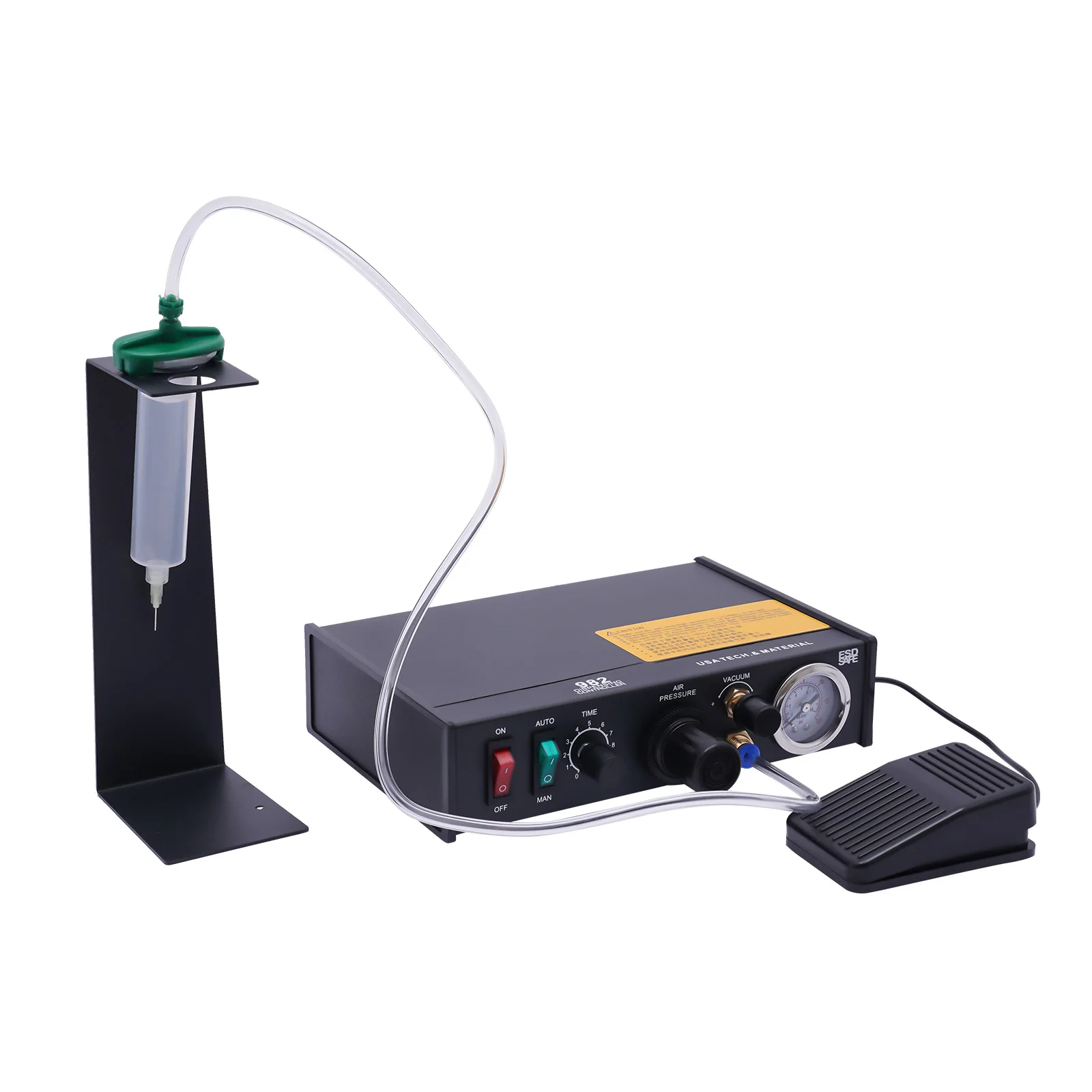

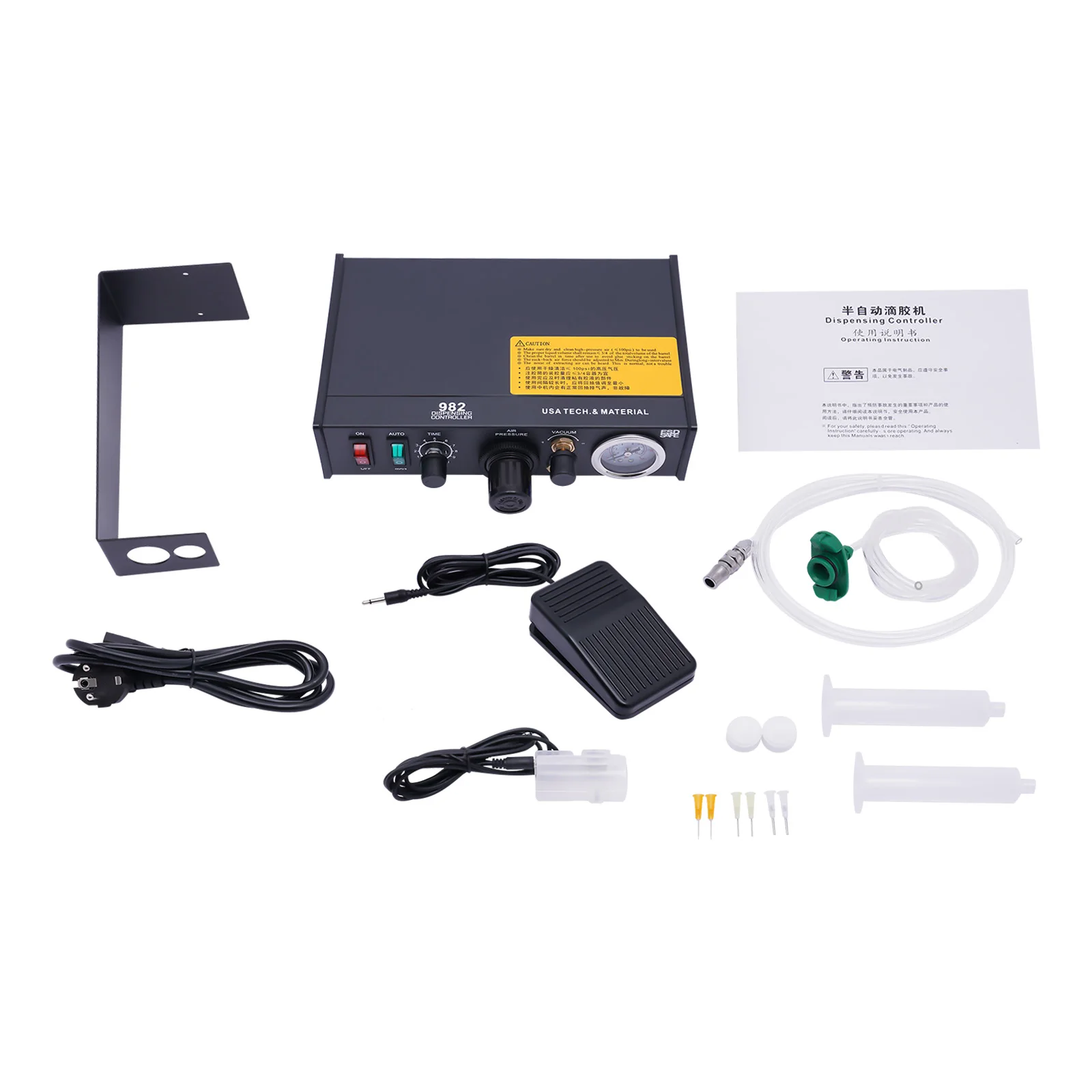

Package Included

‌1* Dispenser Main Unit
1* Manually Switch

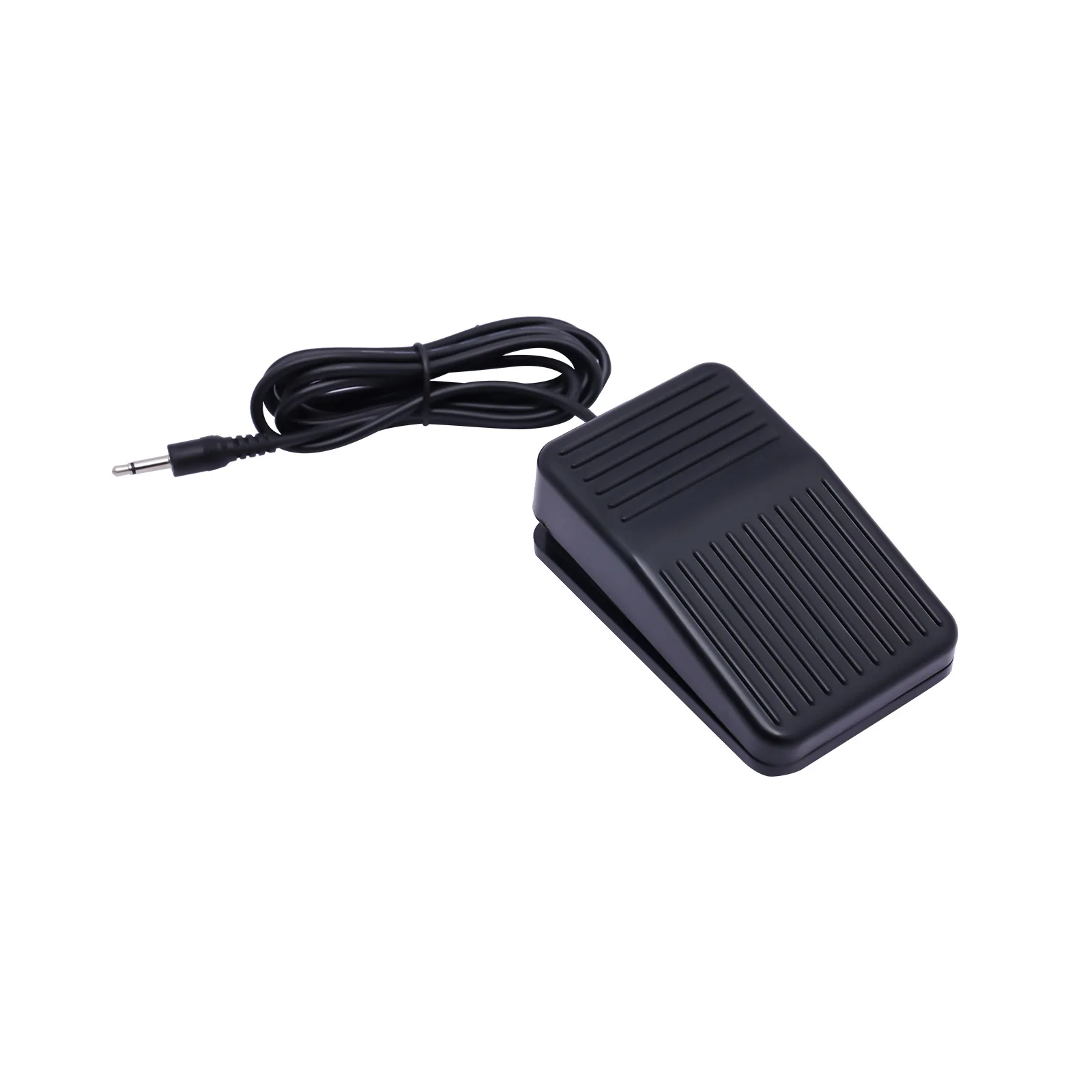

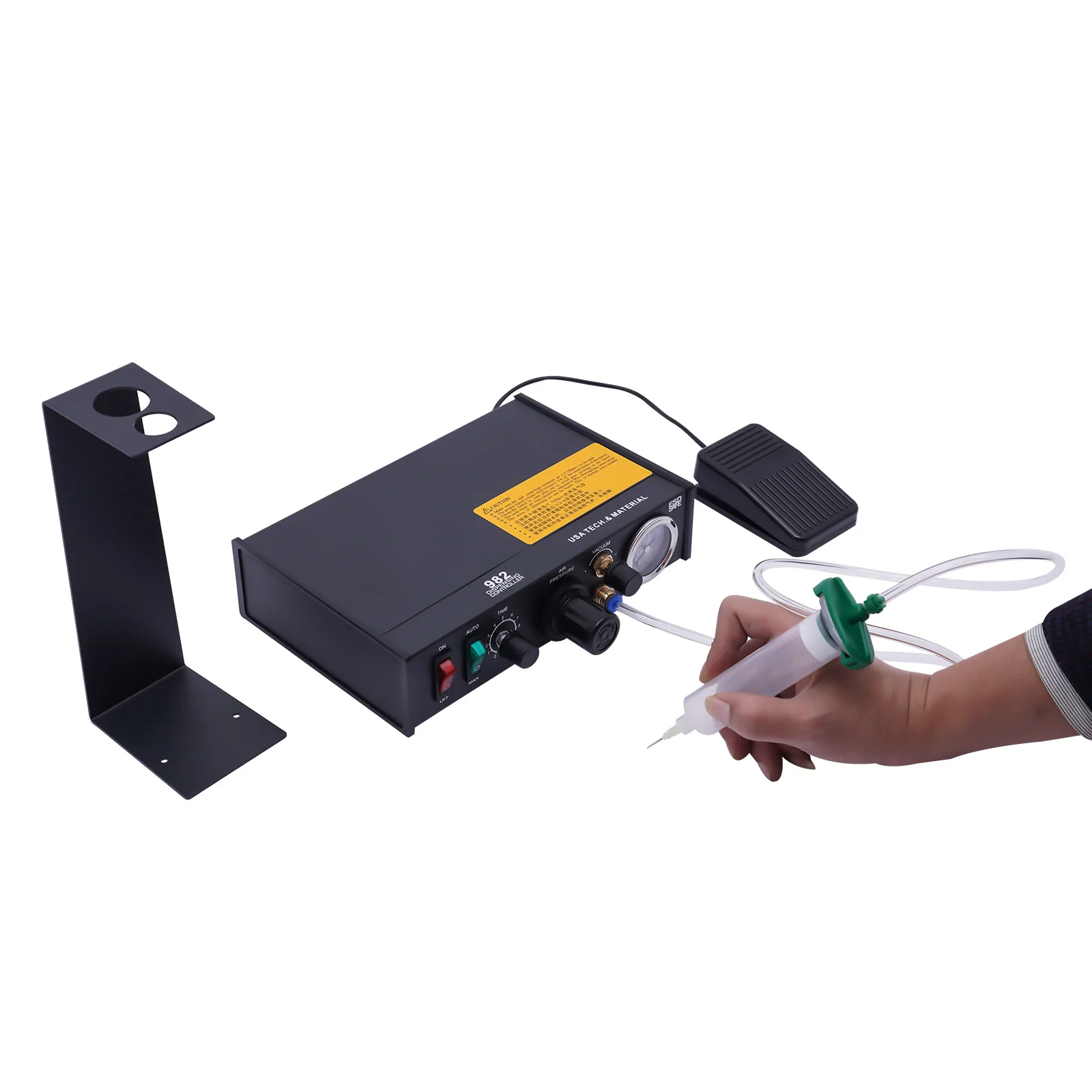

1* Foot Switch
1* Air Tube
1* Connection Tube
1* Power Cord

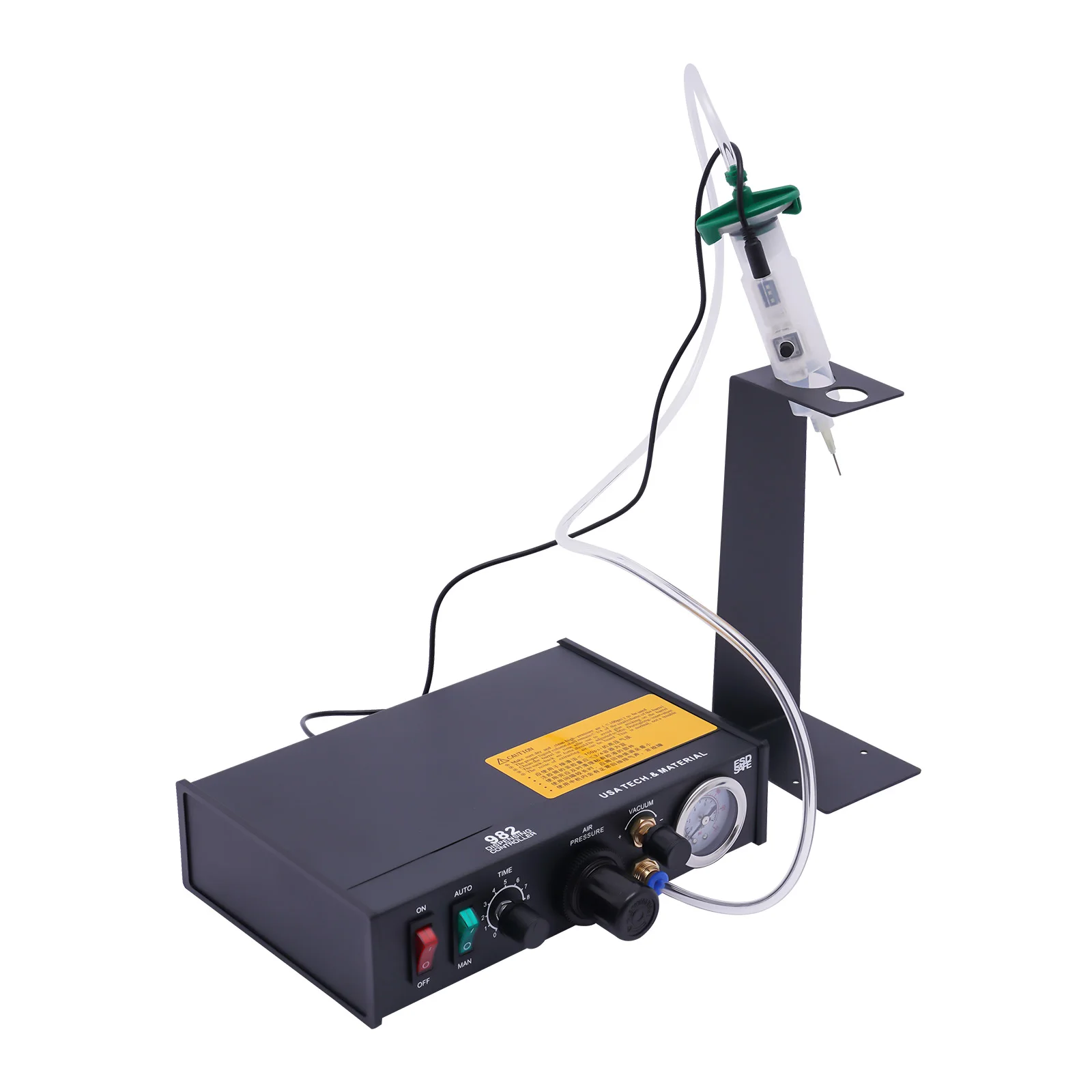

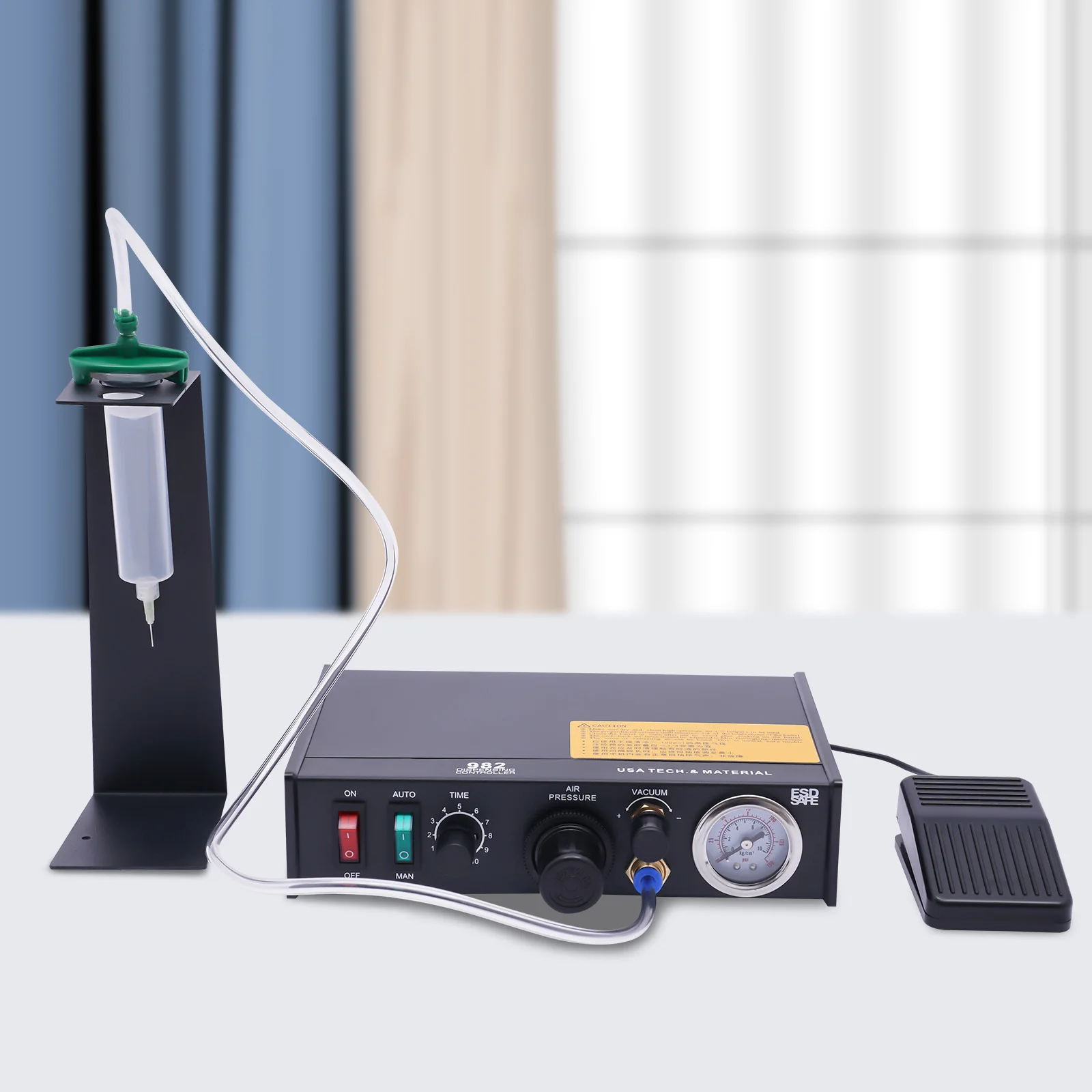

1*Dispenser Stand
2* 30CC Liquid Barrels
6* Dispensing Needles (Color May Vary)
1* Chinese and English Manual

Key Features

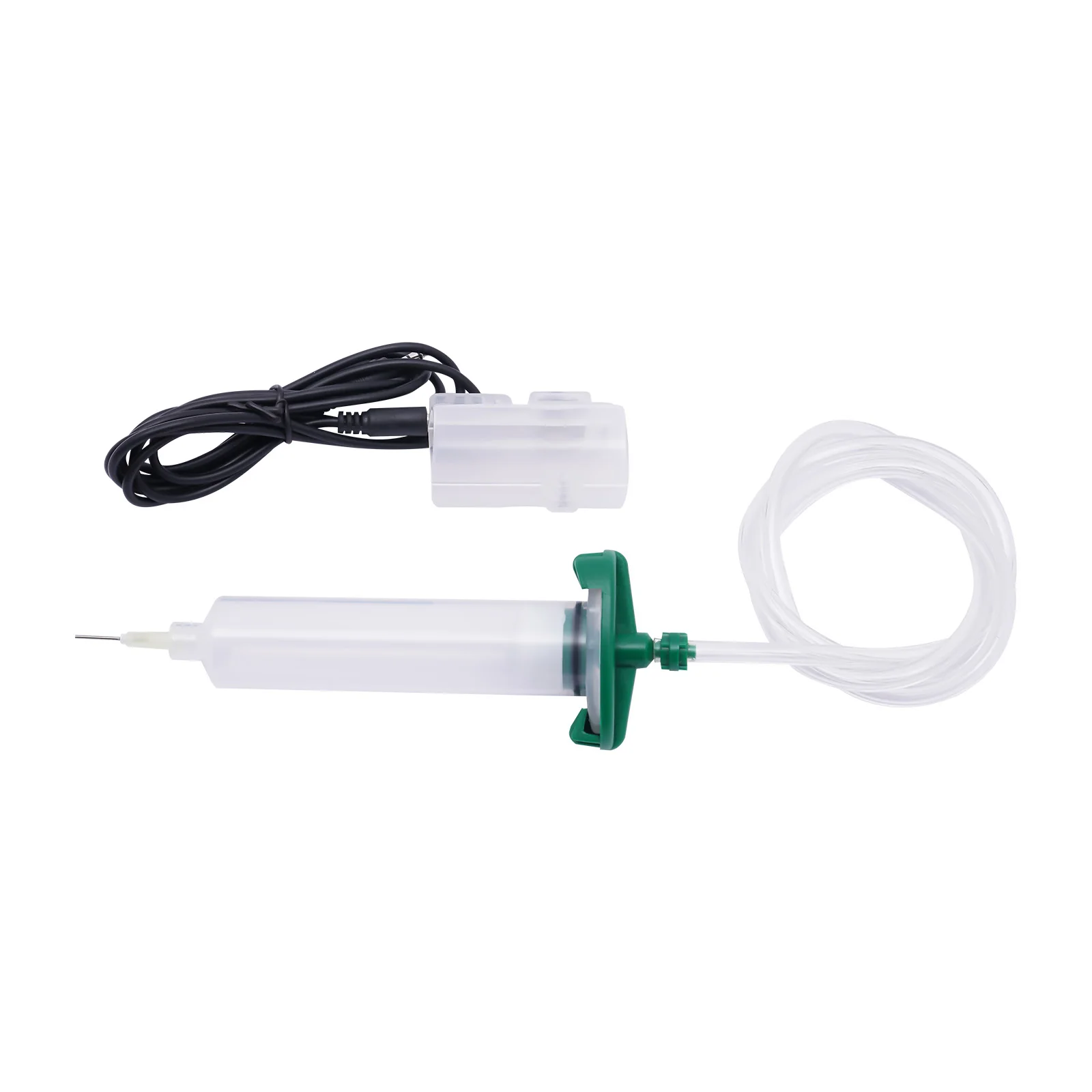

Vacuum Back Suction: This semi-automatic glue dispenser machine is equipped with a vacuum back suction device, which can effectively prevent the glue from dripping during use to achieve a more accurate glue dripping, and ensure a clean and tidy working environment.

Quick Start: This item adopts a high-quality electronic valve, which can instantly start the diaphragm valve and increase the working efficiency by more than 80%.

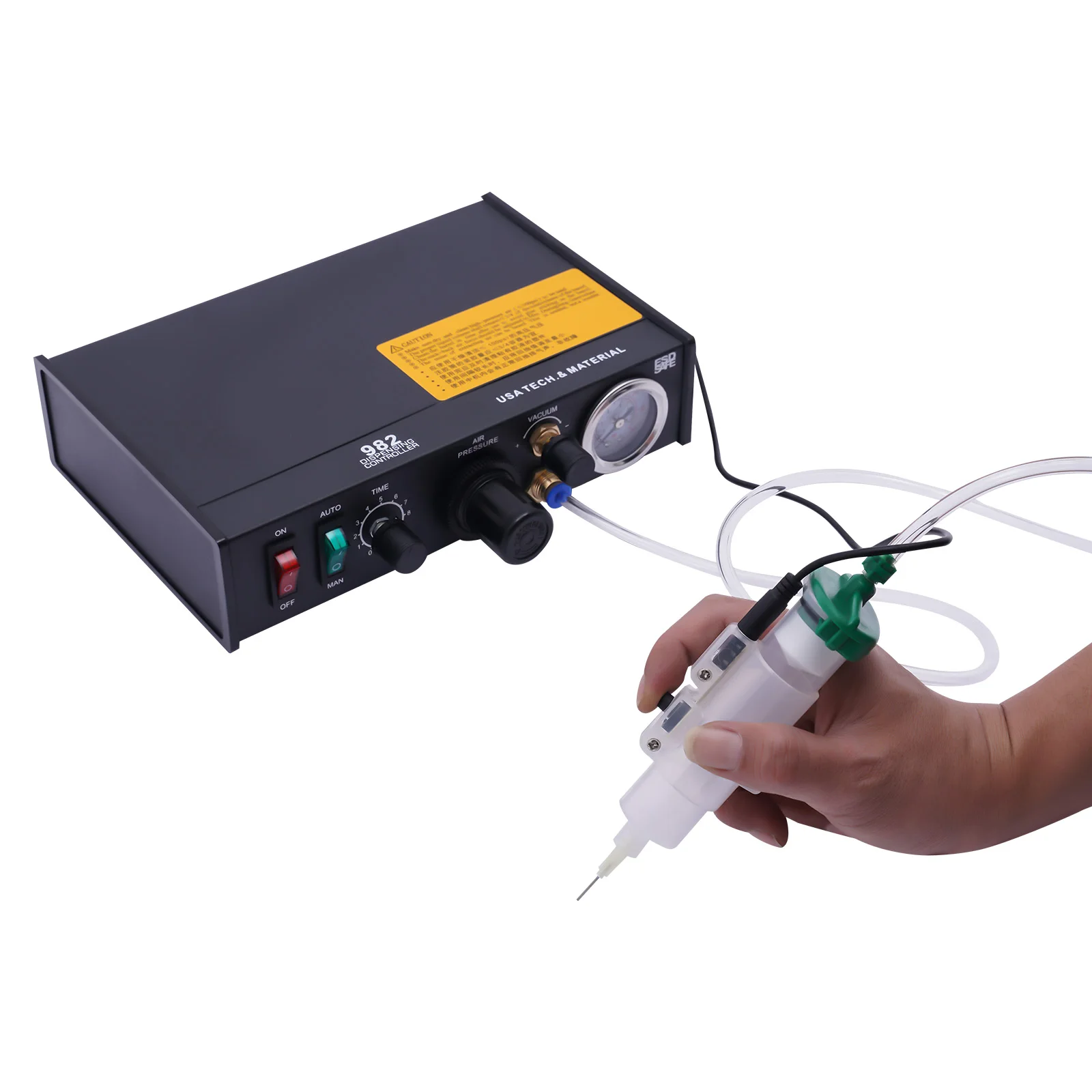

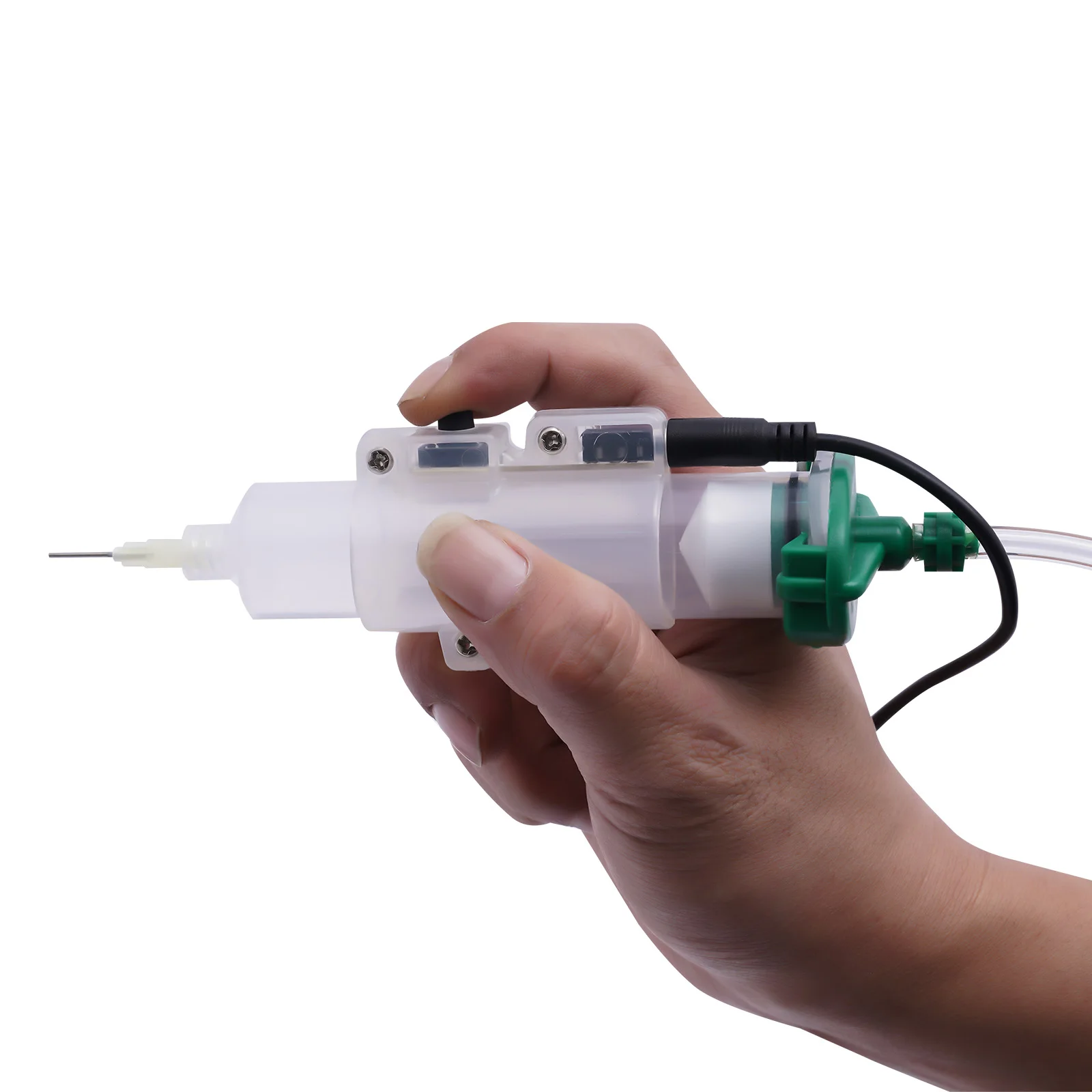

Precise Drip: The minimum drip volume is 0.01ML, and the spitting interval is 0.1-9.9s. It can drip precisely and achieve a repeat accuracy of about 0.5%. It is also equipped with a single-hole hand control switch, allowing you to control it personally by hand for more accuracy and timeliness.

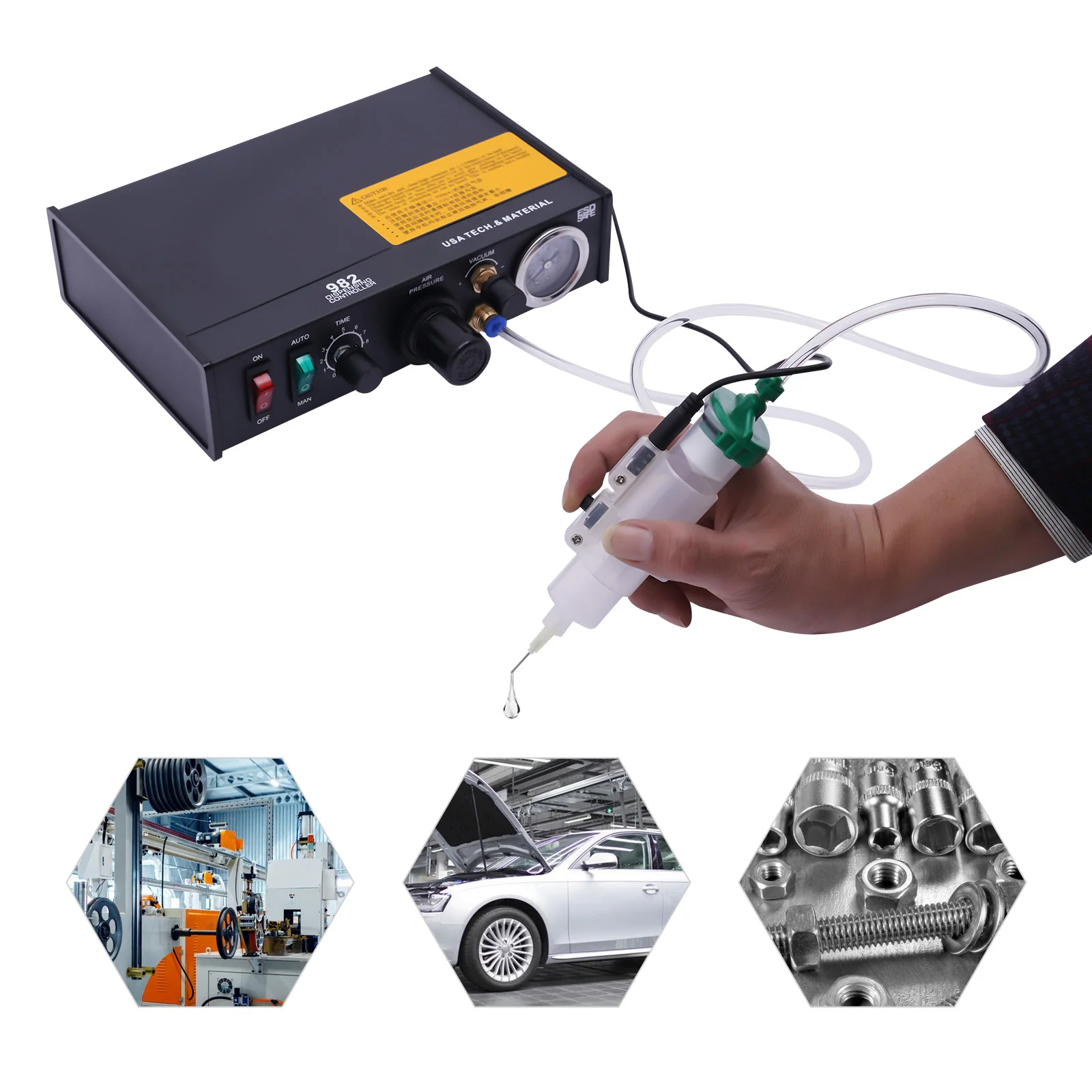

Semi-automatic Design: It can be both automatically dripped by the machine and precisely controlled by a single-hole hand switch. If you want to free your hands, you can set the switch to the automatic position, to achieve a more efficient and higher-quality working method.

Stable Voltage Change: Features a high-end all-copper coil transformer, which can stabilize the voltage change and increase the service life, and can be used in high-frequency and high-intensity work scenarios, improving operational safety while being efficient and energy-saving.

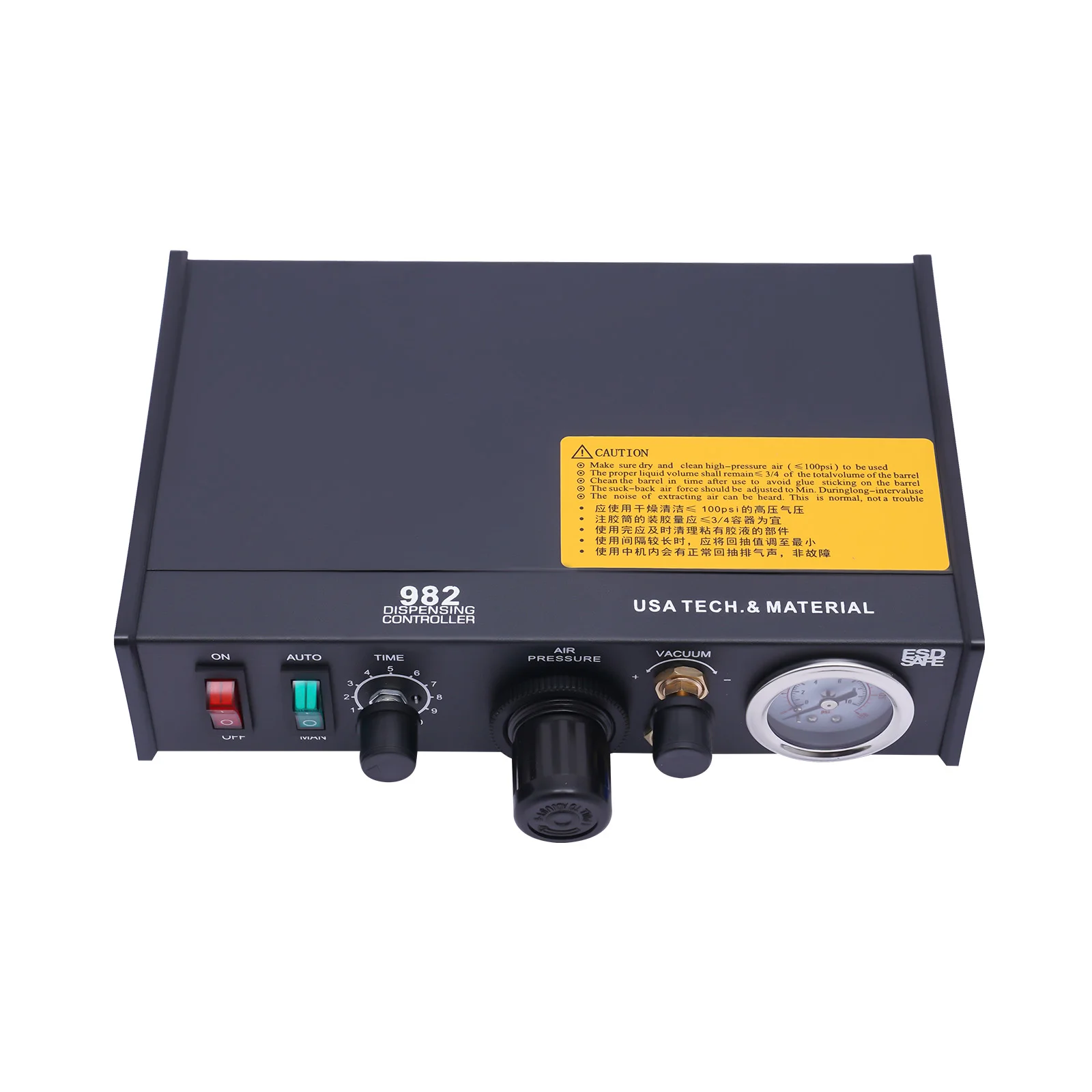

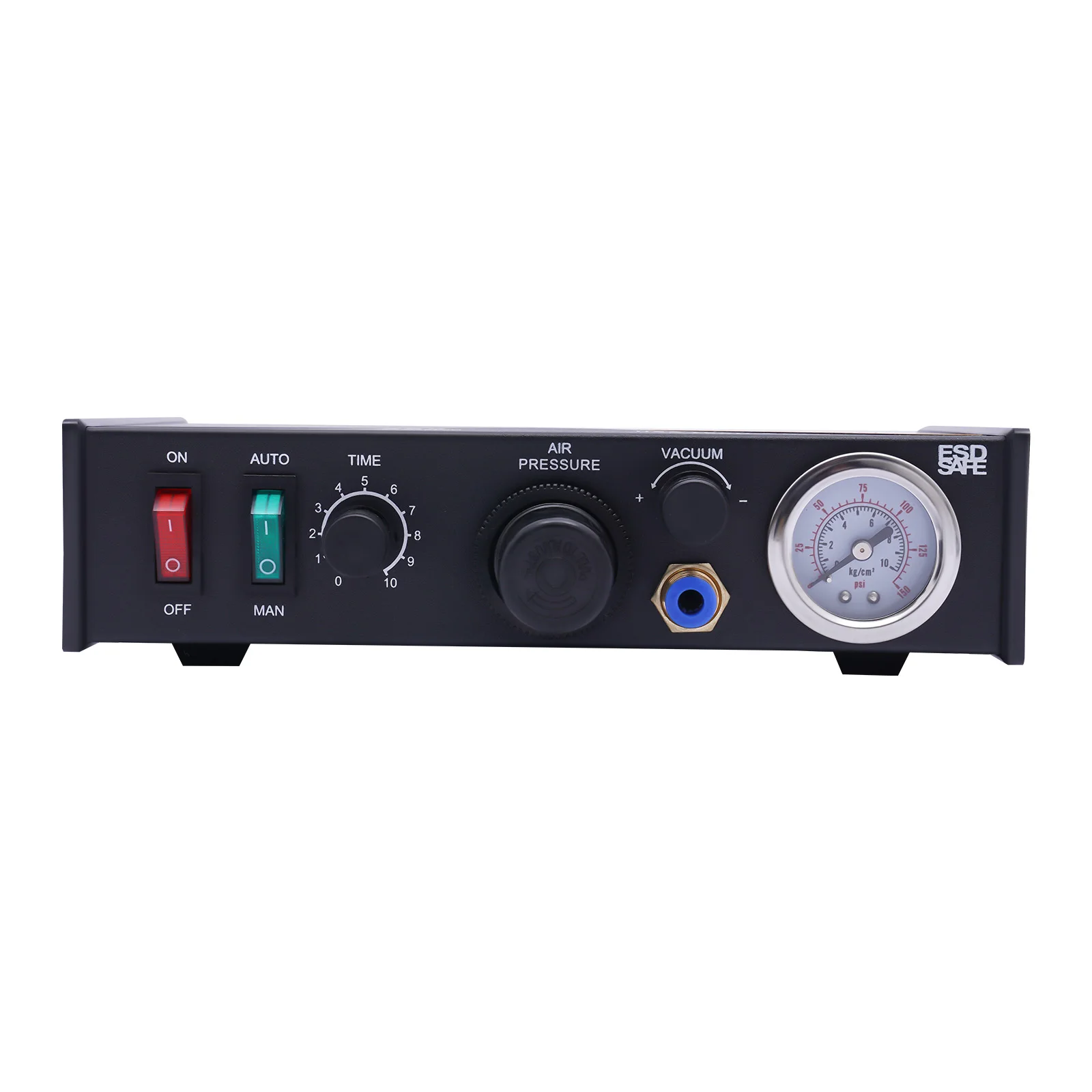

High-precision Air Pressure Gauge: The high-precision air pressure gauge can precisely control the air pressure input to the air pump and convert the air pressure precisely to ensure that the air tube will not break.

Solid and Durable: The product is made of metal, strong and stable, not easy to damage and corrosion, but also uses the fourth generation chip design circuit board, significantly improving stability.

Anti-impregnation Design: It is equipped with high-quality electronic valves, with a certain anti-impregnation function, to better ensure operational safety and can also effectively extend the life of the semi-automatic glue dispenser machine.

Details

Anti-slip Feet: The bottom has anti-slip feet so that the product is placed more stable and does not easy to fall down and slip.

Rounded Corners: The corners have been polished to become smooth and rounded, reducing the risk of you being accidentally bumped at work.

Application

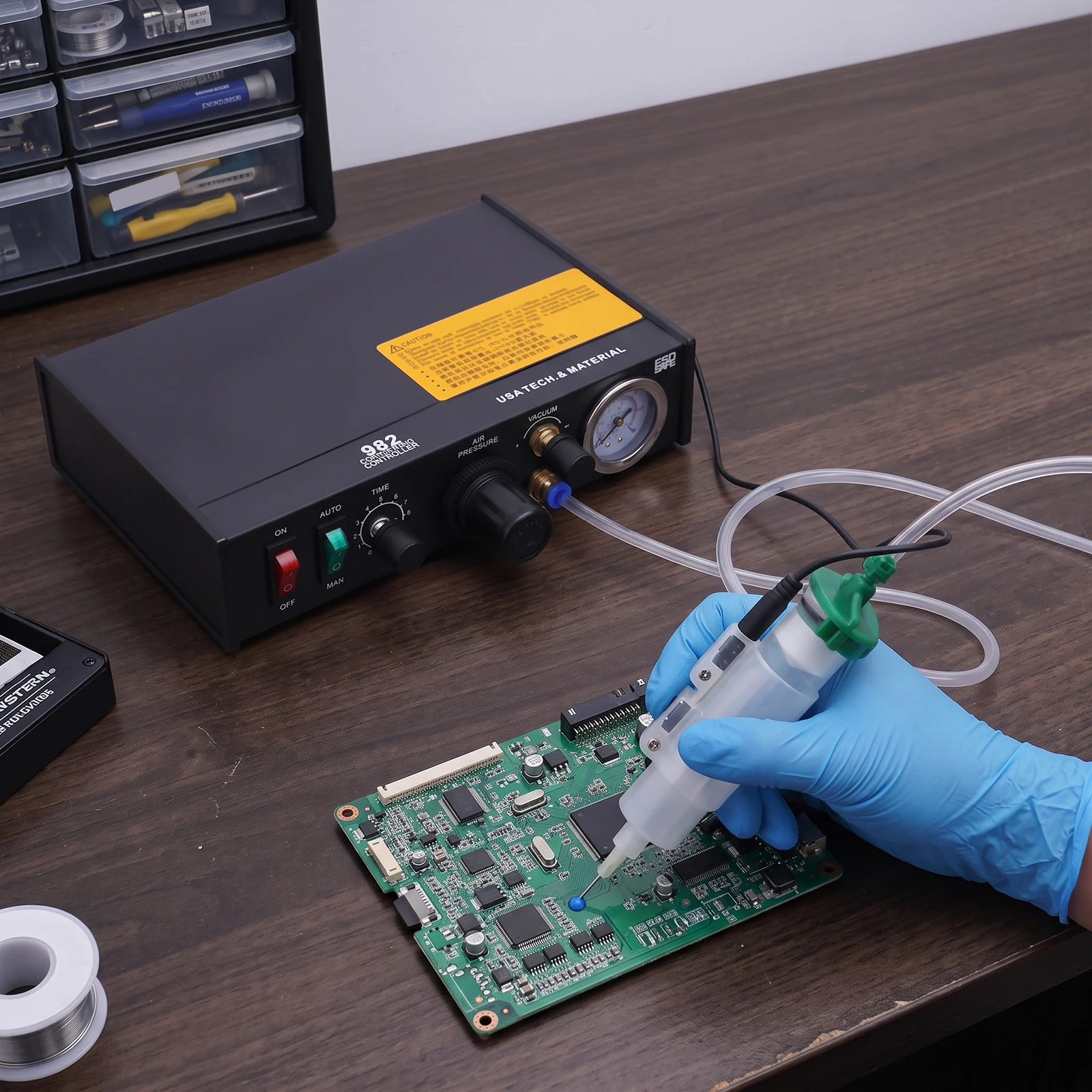

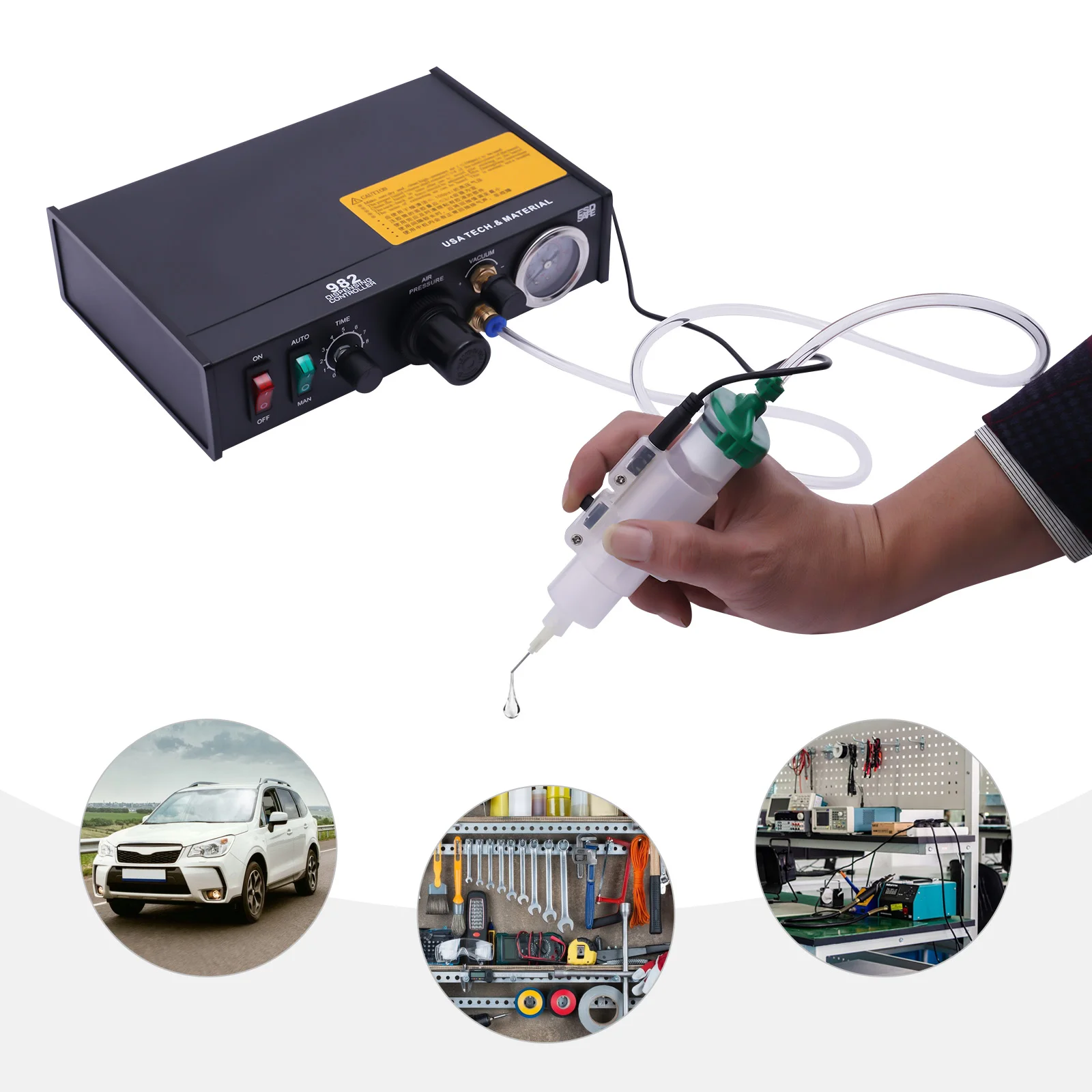

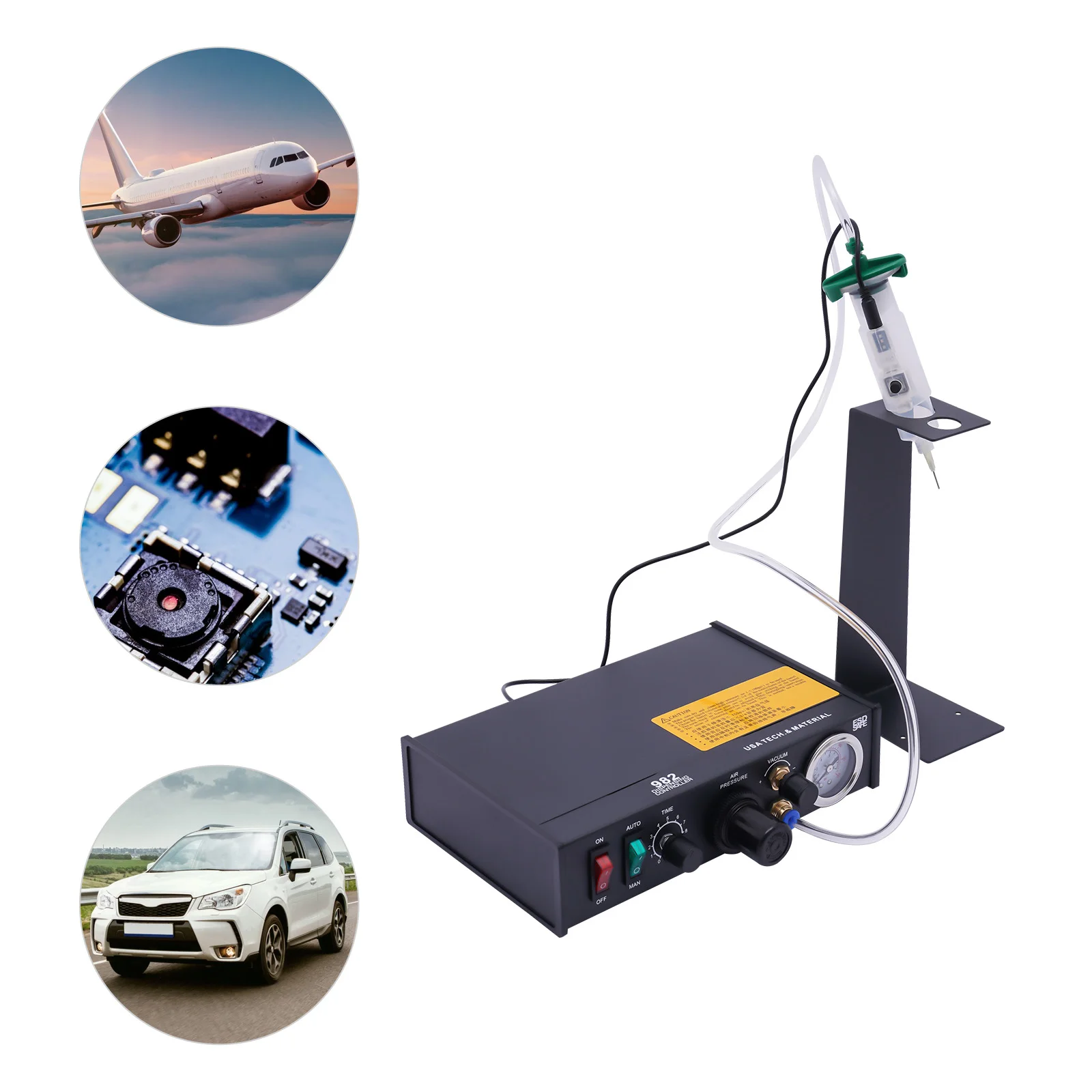

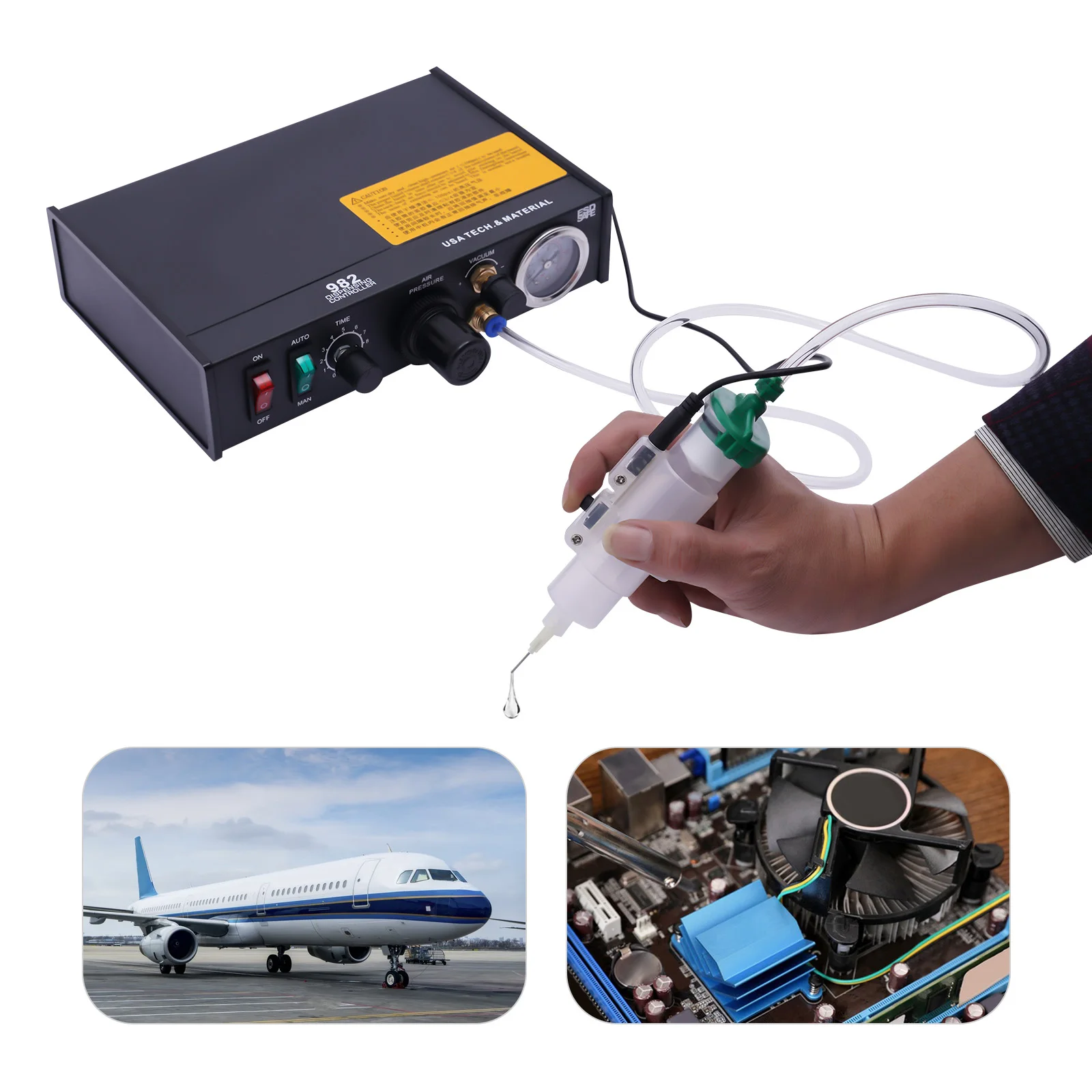

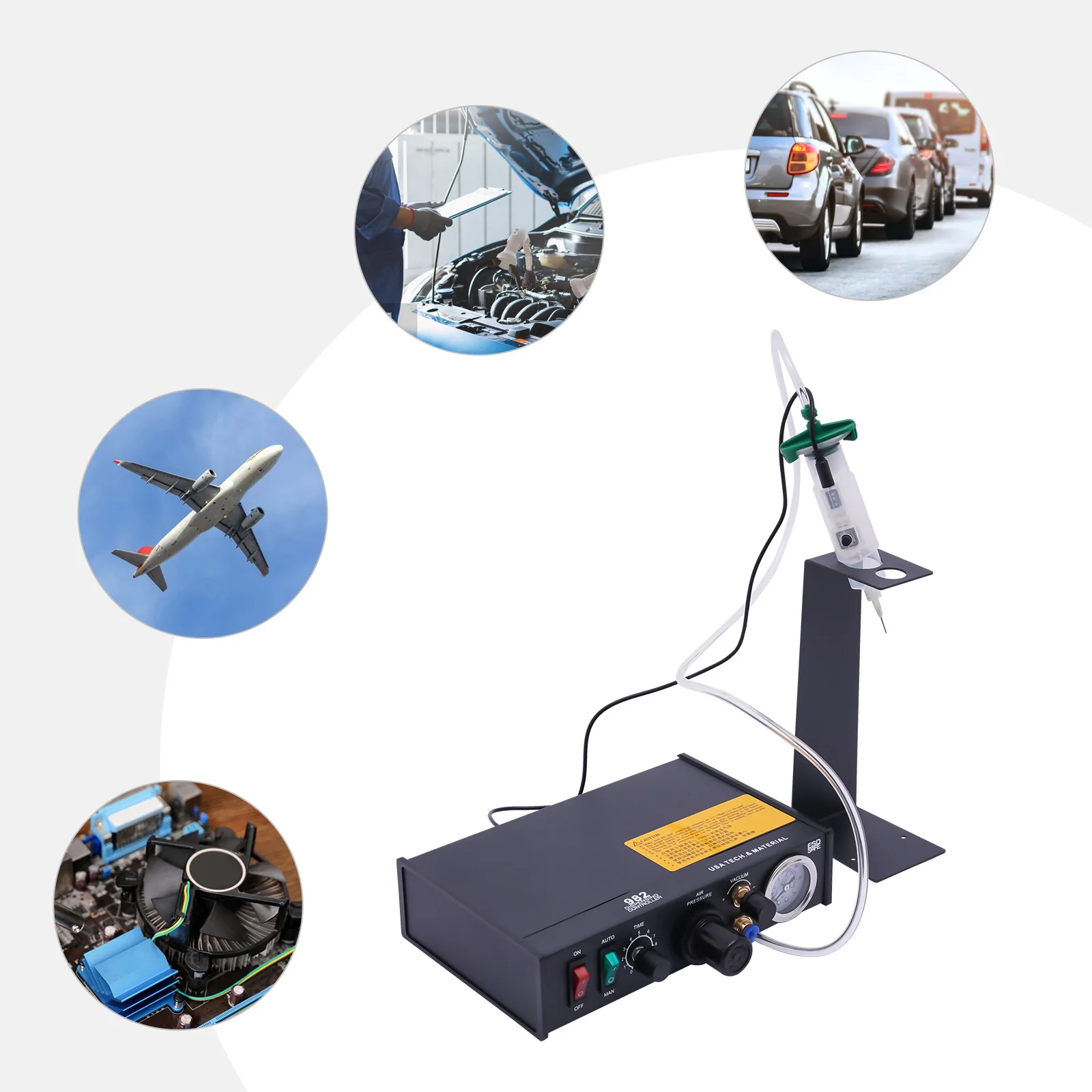

It is suitable for most of the yellow glue, quick-drying glue, epoxy resin, etc. in the market, and is widely used in bonding various electronic components, machine production, instrumentation, jewelry, and other objects

Notes:

1. The input high pressure should not exceed 7 bar (100psi), and the maximum working pressure of the glue dropper should not exceed 5.5 bar (78psi). If the working air pressure is above 4 bar, please switch to aluminum connectors.
2. If available, store all materials at a constant temperature (5°) as directed to ensure that the concentration does not change significantly during use.
3. When the material concentration is too large (flow difficulties), can not drip, if you want to use it, according to the manufacturer's instructions dilute the use; before work, the material must be fully stirred evenly to ensure that the size of the drip consistent.
4. Automatic state, the general air pressure adjustment in the machine at 1-2.7bar (15-40psi) is more appropriate. When working in the automatic state, the strength of the vacuum tube pumping back air should be adjusted to the proper position. Too much pumping back will flush the piston and destroy the normal operation.
5. Automatic state work, according to the actual situation, timely removal of the material left at the needle nozzle, these materials gradually curing will block the muzzle discharge and back pumping; after work, the barrel should be cleaned in time, otherwise, the barrel's disassembly will be very difficult.
6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
