Herdio 4 Inch Outdoor Speaker Passive 400W Wireless Stereo Subwoofer Music Full Range Audio Bass Loudspeaker For Home Theater

IMPORTANT SAFETY PRECATIONS

To avoid potential shorts in the electrical system, be sure to disconnect the (–) battery cable before installation. Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction.

When replacing the fuse, be sure to only use a fuse of the rating specified on this product.

INSTALLATION & MOUNTING

Remove the bracket knobs and the bracket from the speakers.

Hold the bracket up to the mounting surface. The speaker can be mounted either horizontally or vertically.

Mark the locations of the screw holes.Use all of the holes.

Drill pilot holes into the mounting surface.

Align the bracket so that holes all line up.

Use the screws and bolts to attach the bracket to the mounting surface.

Place the speaker for the best angle, and Tighten the speaker by the bracket knobs and the bracket

Check that the entire installation is safe and secure.

THIS PACKAGE CONTAINS

4-Speakers

4-Mount Brackets

2- Power Cable ( 6.5 Feet, 2 meters )

2- Speaker Wire ( 16 Feet, 5 meters )

2-Owner’s Manual

SPECIFICATIONS

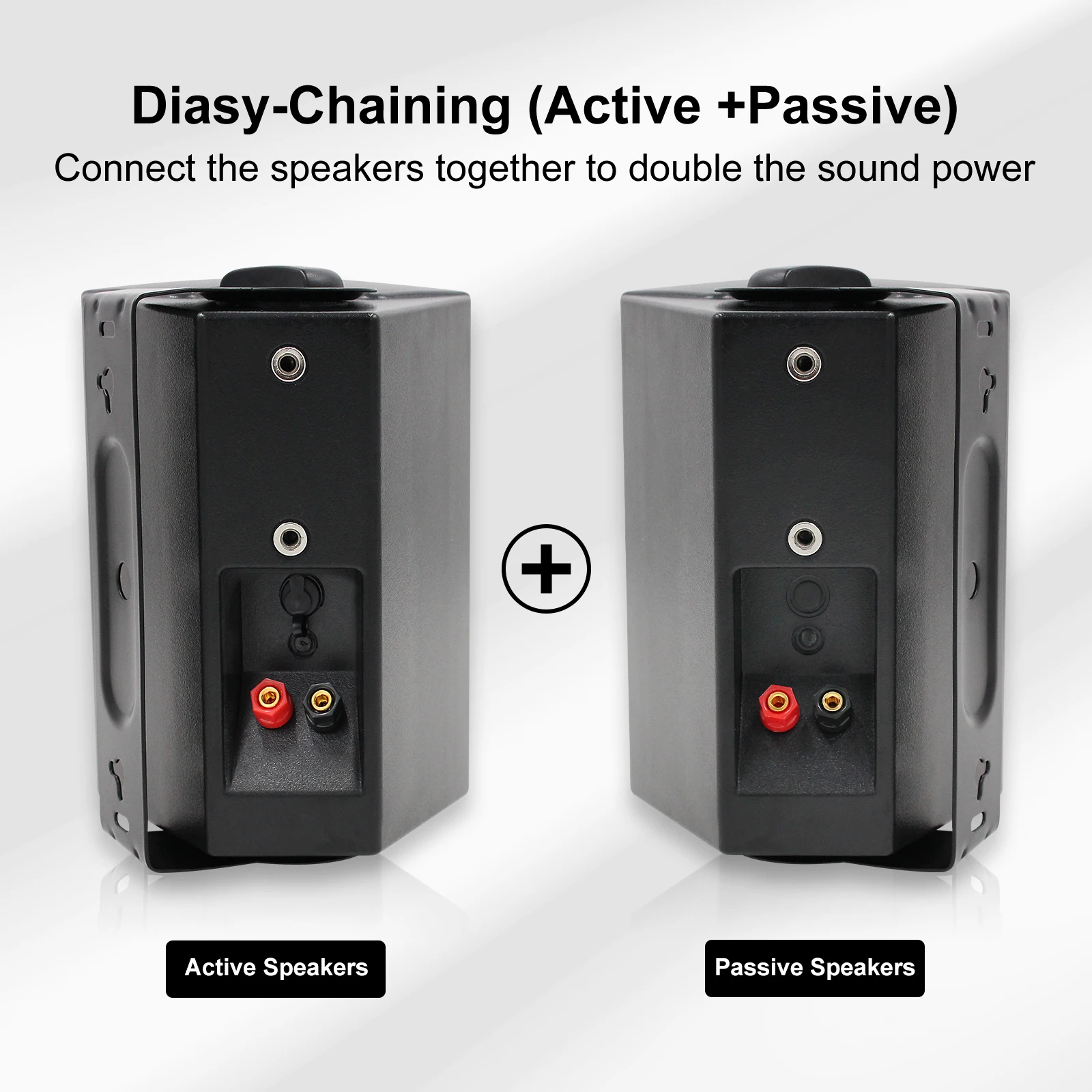

● Active & Passive Speaker System

● Built-in 2 Channel Amplifier

● 4.2 Bluetooth Wireless Music Streaming

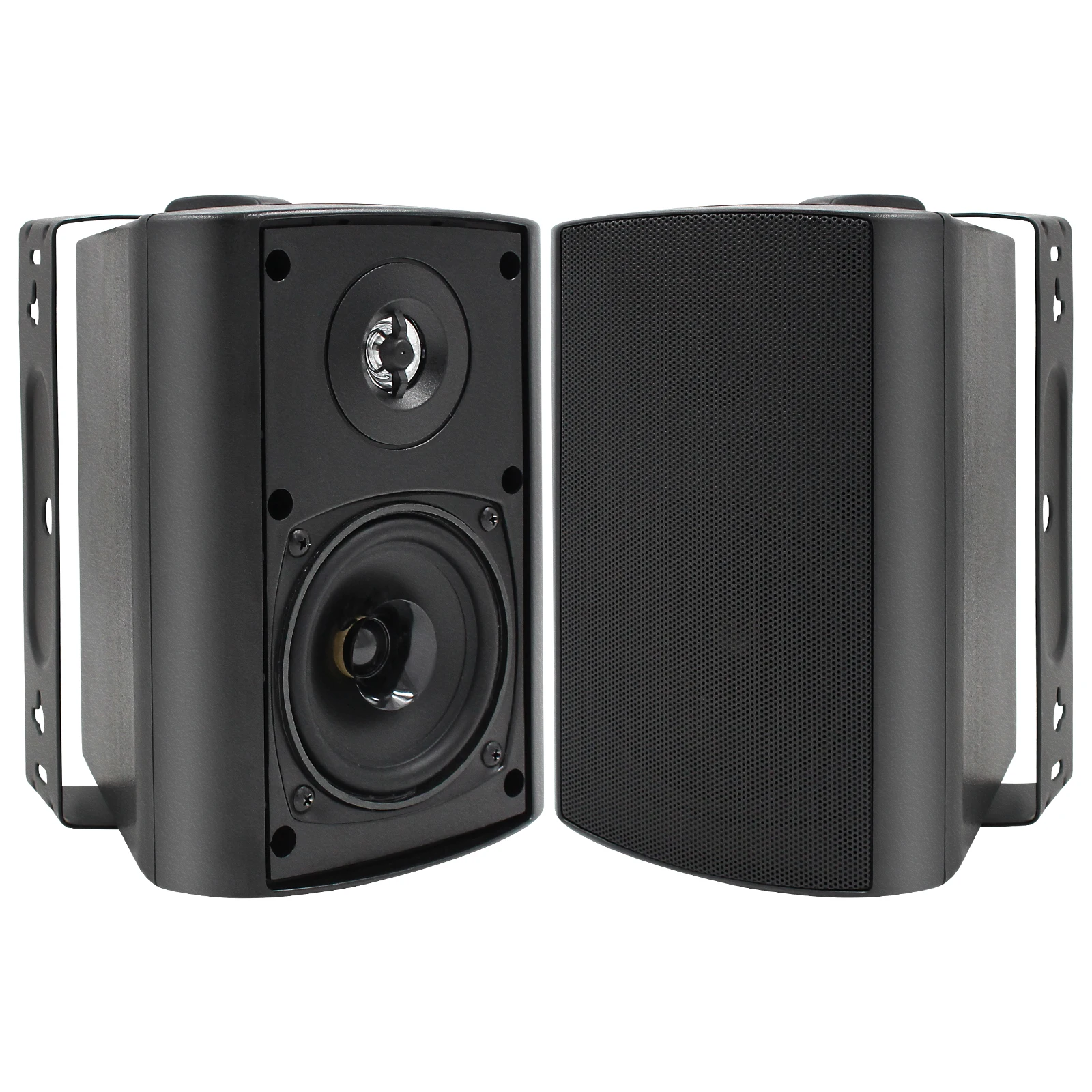

● 2-Way Full Range Stereo Speakers with 1 PEI Dome Tweeter

● Marine Grade Waterproof Construction

● Custom Tooled Design for High Power

● Removable & Rust Proof Speaker Grills

● Heavy Duty Engineered Plastic Cabinet

Technical Specs:

● Marine Grade IP44 Rating

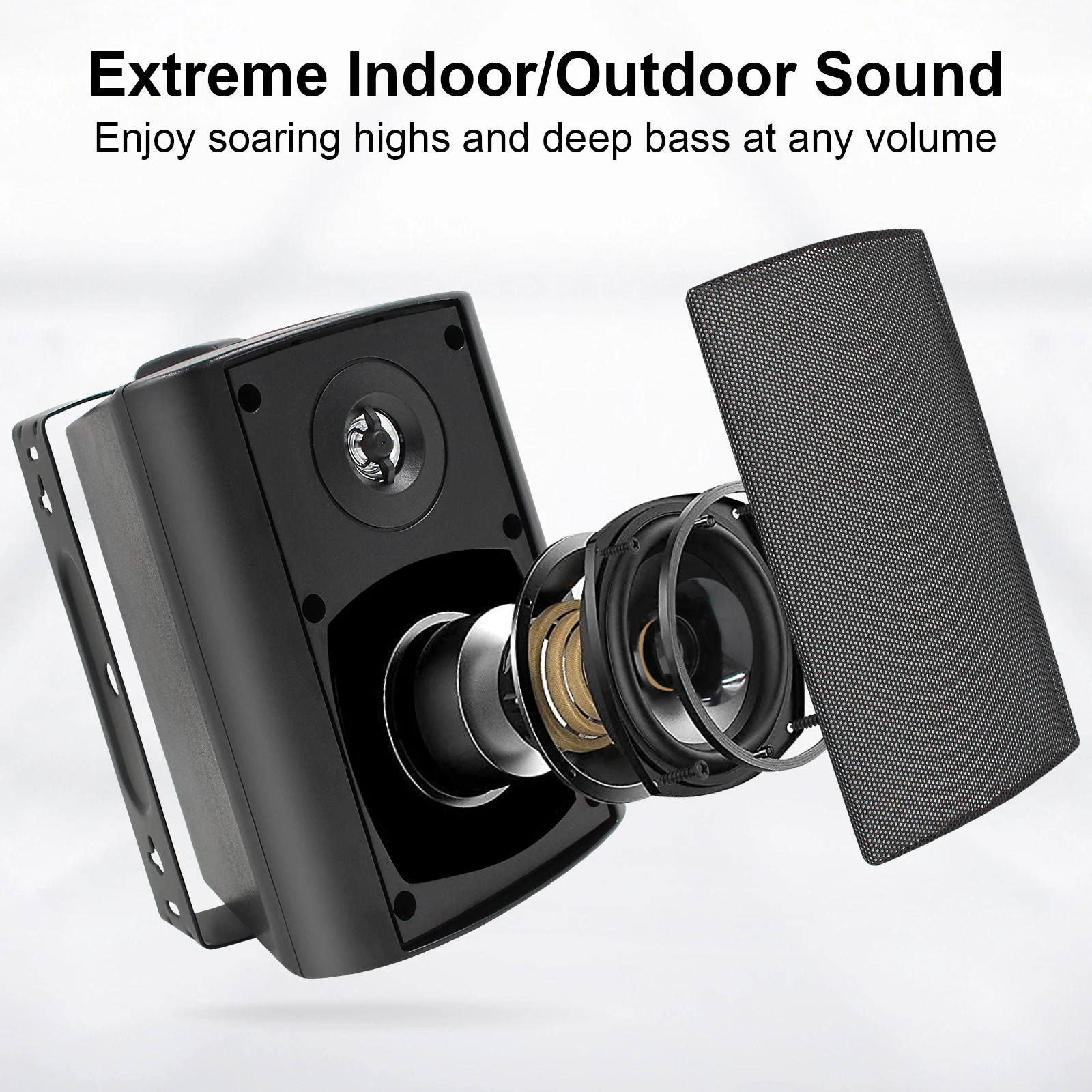

● 4” Full Range Speakers

● 1.0'' PEI Dome Tweeters

● Magnet Size: 6.0oz.

● 200 Watt Rated Peak Power

● 100Watt Rates RMS Power

● Frequency Response: 100Hz-20kHz

● 4 Ohm Impedance

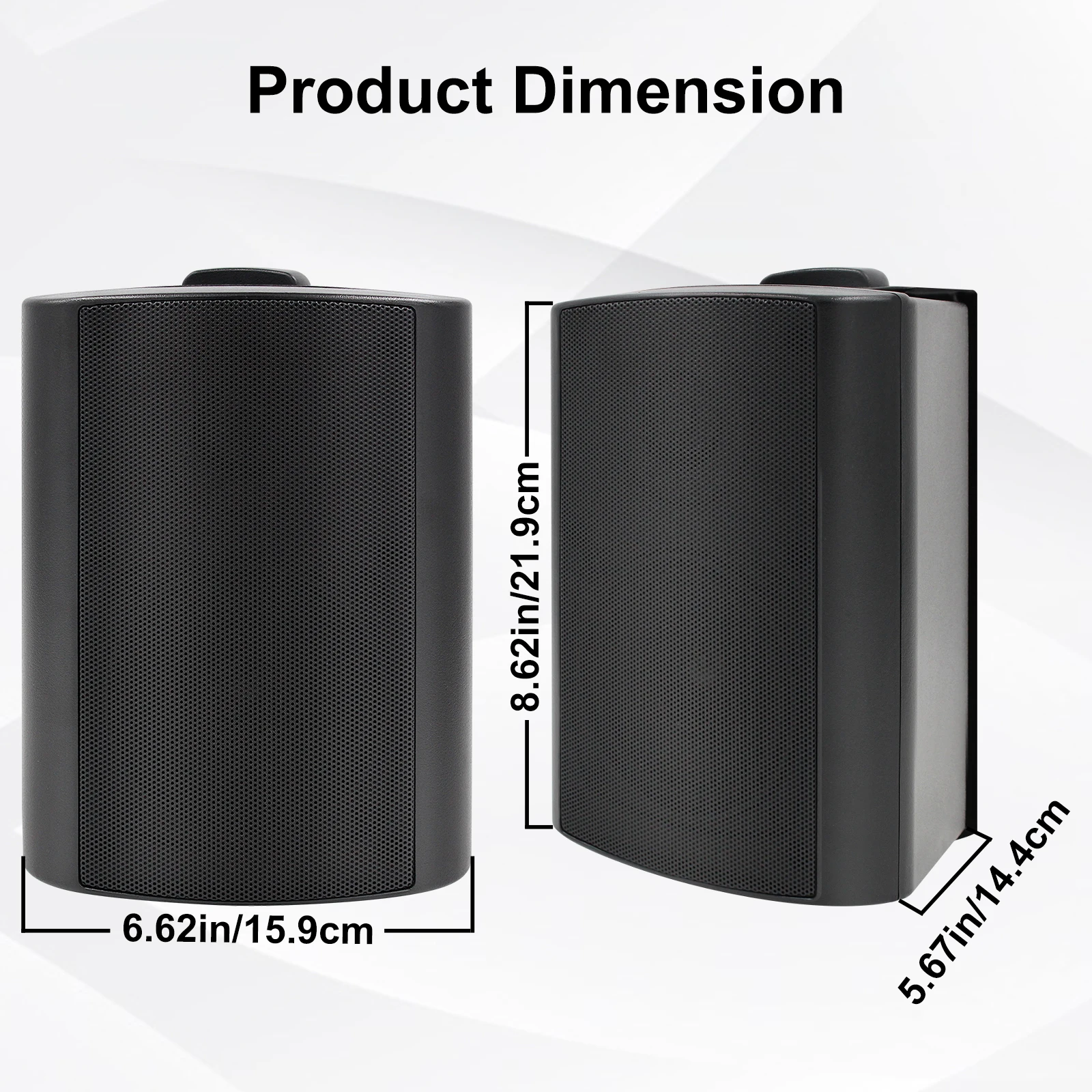

● Product Dimensions (L x W x H):5.67"(219mm) (L) x 8.62"(144mm) (W)   x6.62"(159mm) (H)

● Package Dimensions (L x W x H): 15"(380mm) (L) x 8.7"(220mm) (W)   x11.4"( 290mm) (H)

● Weight : 6.6 lbs./PRS

● Sold as: 2 Pair
